Sayfa 3-75 - Isuzu EPC

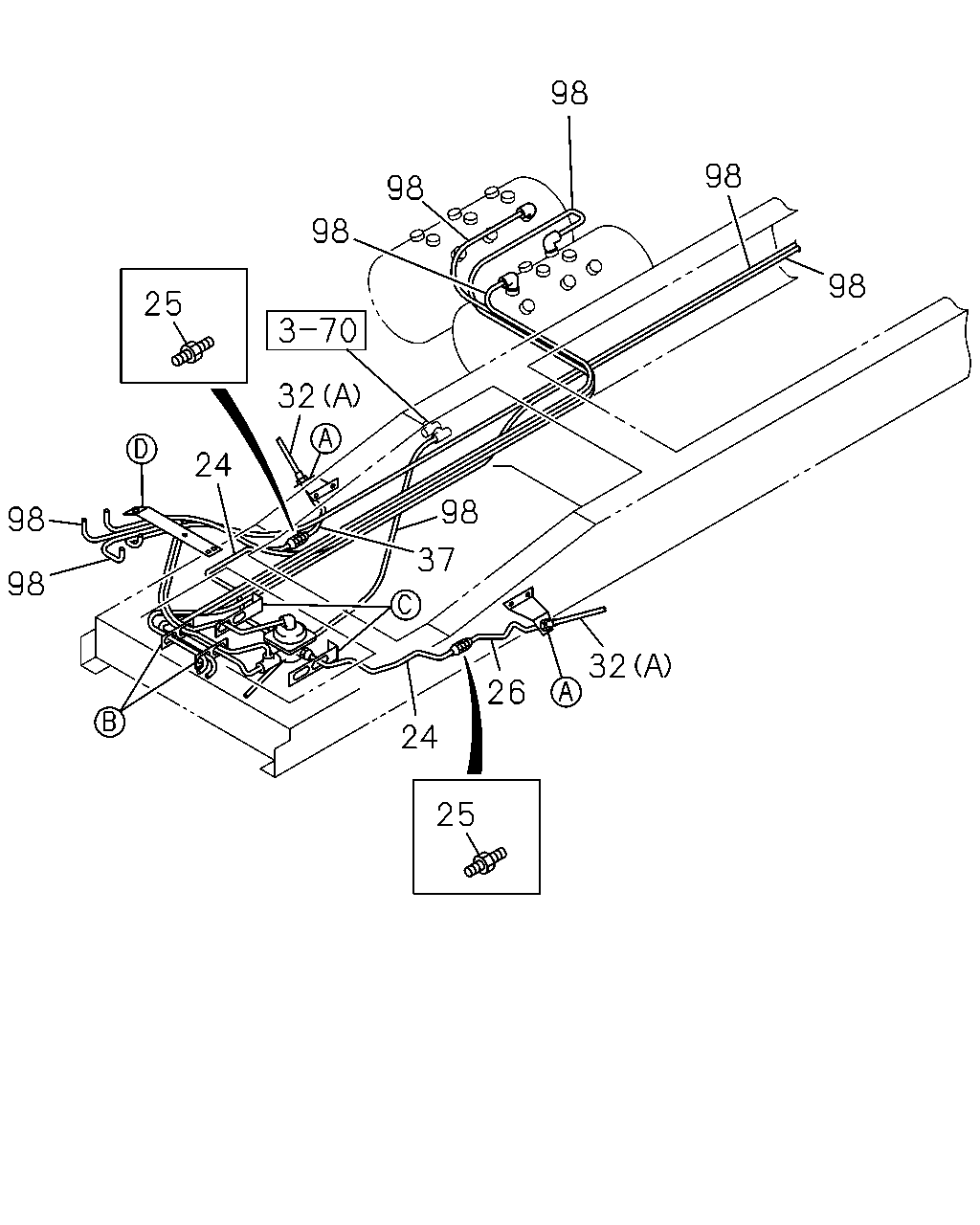

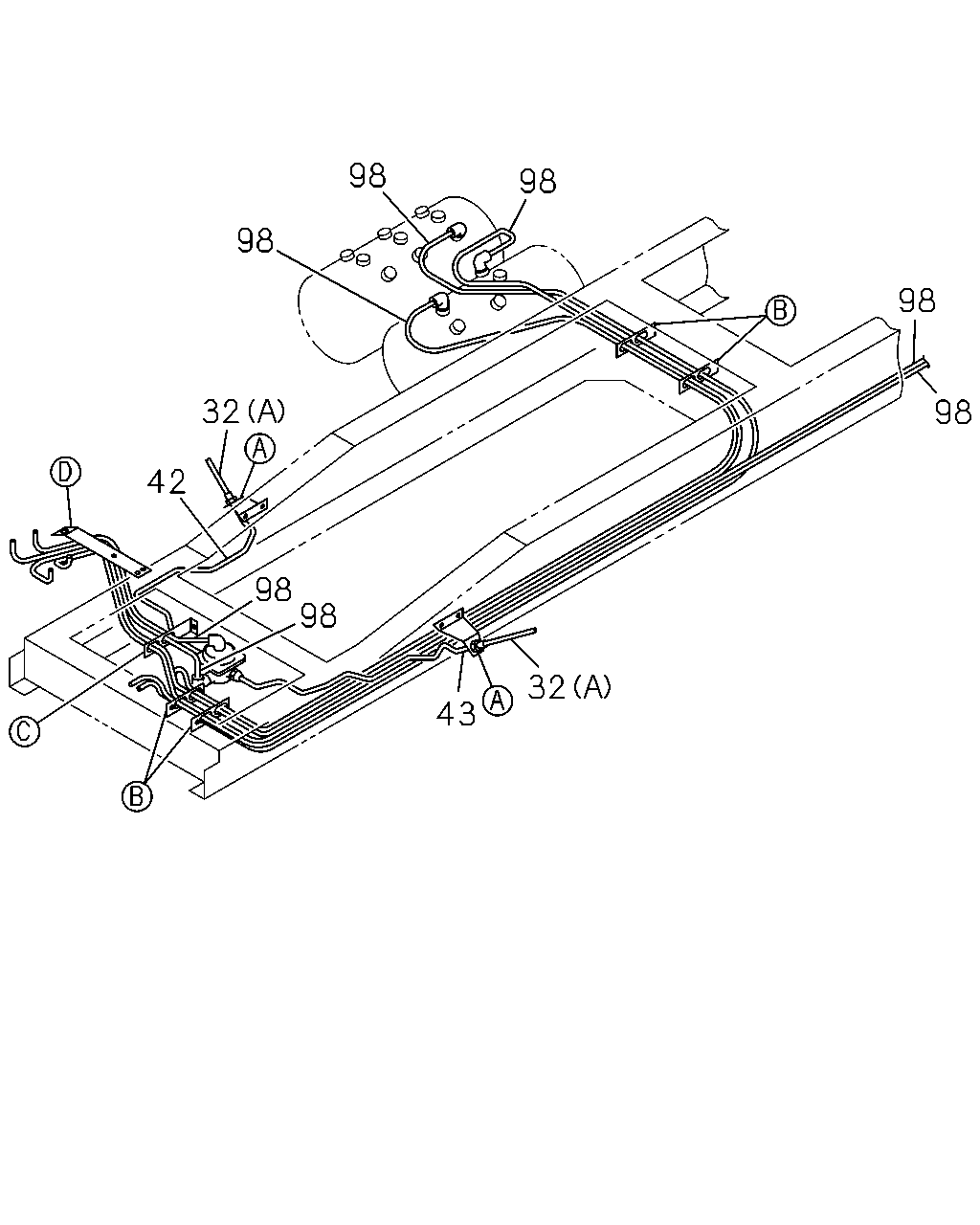

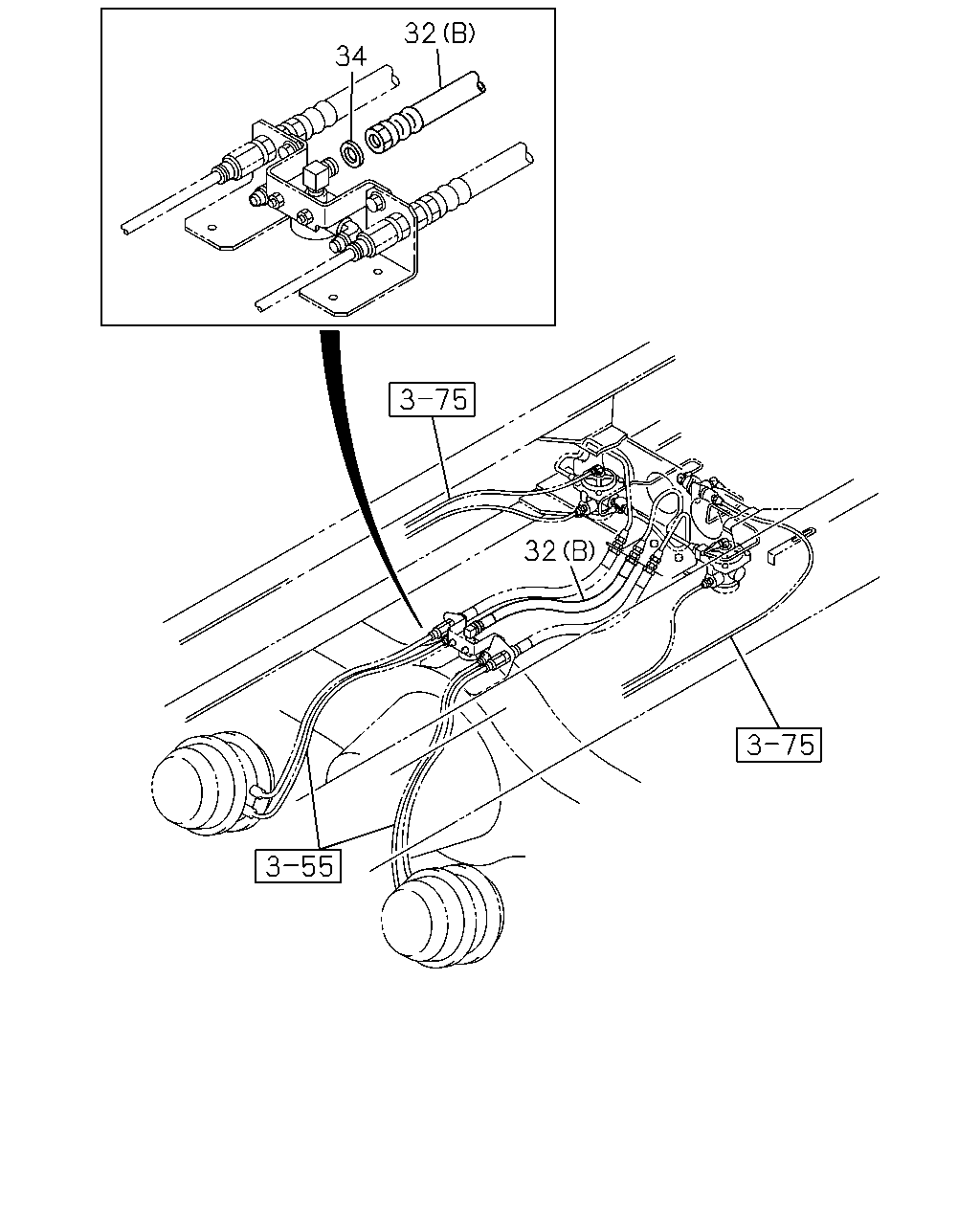

3-75 — BRAKE PIPING; AIR,FRONT (#24817) — 237 parça

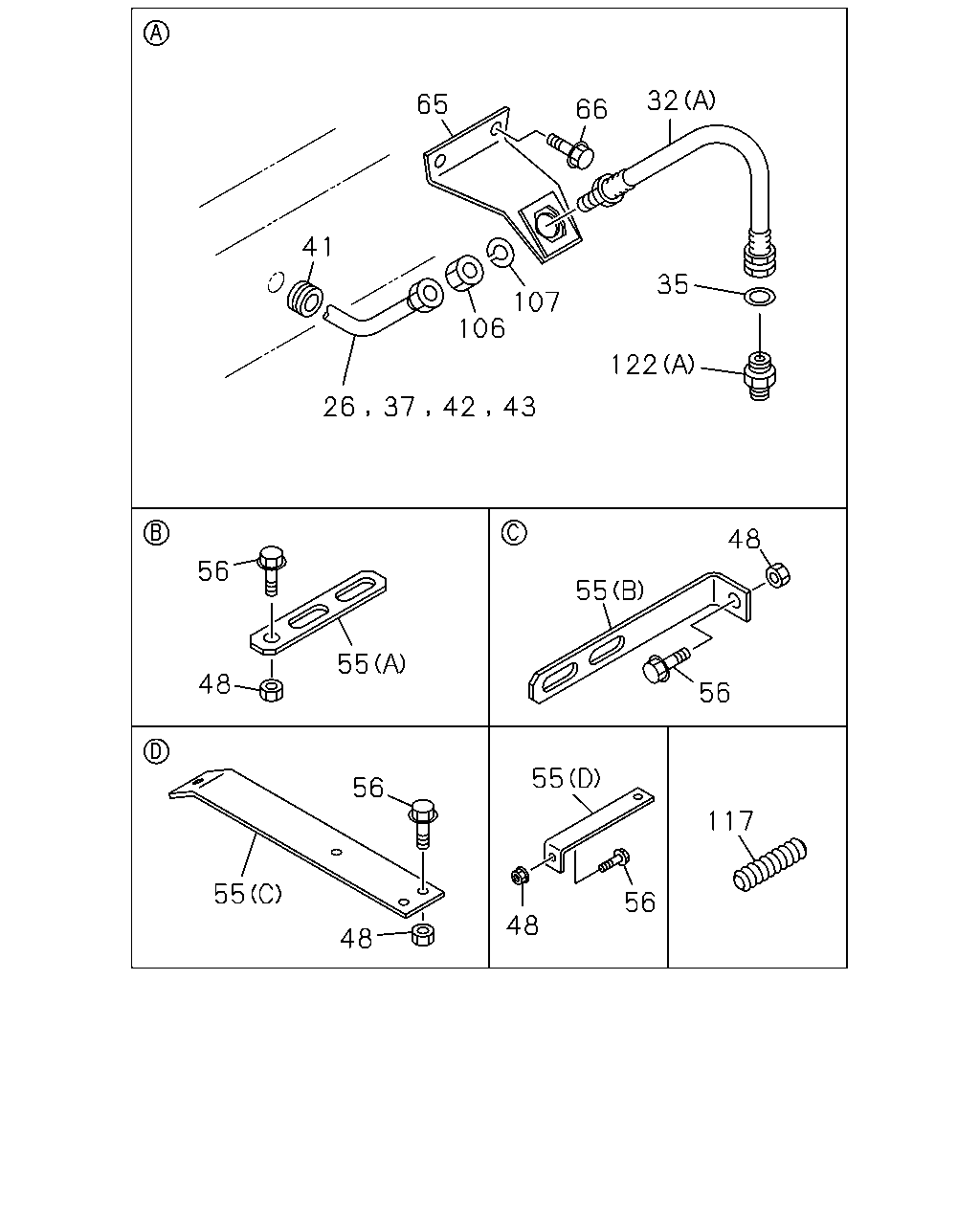

32 65 66 41 35 107 122 26 48 56 55 55 48 56 55 56 117 55 56 48 48 106 37 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-325-0	01	1	9601-9609	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-325-0	01	1	9610-	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9601-9803	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9804-0605	●
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9601-9803	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9804-0605	●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0606-	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9601-9803	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9804-	●
37	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-327-0	01	1	9601-9609	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-327-0	01	1	9610-	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	9601-9803	●	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	9804-	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9601-9610		●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9611-9803	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9611-9803		●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9804-0106	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HK1 TCS ENG(80L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0107-	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9601-9610		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9611-9803	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9611-9803		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9804-0106	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HK1 TCS ENG(80L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0107-	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	05	1	9610-9803	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	05	1	9610-9803		●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	05	1	9804-0002	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	06	1	0003-0004	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	0005-0106	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	06	1	0005-0106	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	03	1	0005-0105	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0106-0108	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	05	1	0109-0112	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0201-0201	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	05	1	0202-0602	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	05	1	0603-	●
48	NUT; UNION BRKT M8	9-09110-408-0	05	1	9601-9606		●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	05	1	9607-9609		●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	9610-9803	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	03	1	9804-9807	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	9808-0002	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	02	1	0003-0004	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0005-0106	●
48	NUT; UNION BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	12	1	0107-0602	●
48	NUT; UNION BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	12	1	0603-	●
55	BRACKET; TUBE UNION (A)	1-47477-514-3	01	1	9804-0106	●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) (B) L=100 H=30	1-47477-645-2	02	1	0107-	●
55	BRACKET; TUBE UNION (B) L=225	1-47477-646-3	01	1	9804-0002	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (B) L=225	1-47477-646-3	01	1	0003-0004	●
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	0107-	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (D) L=145 B=25	1-47477-697-0	01	1	0003-0011	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (D) L=160 B=25	1-53441-518-0	01	1	0003-0004	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (D) L=160 B=25	1-53441-518-0	01	1	0005-0011	●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0005-0011	●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0012-0106	●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0012-0106	●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	02	1	0107-	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (B) L=100 H=30	1-47477-645-2	01	1	0106-0106	●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) (D) L=60 H=30	1-47477-716-1	02	1	0107-	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (B) L=100 H=30	1-47477-645-2	01	1	0109-0112	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (D) L=60 H=30	1-47477-716-1	01	1	0202-	●
55	BRACKET; TUBE UNION (C)	1-47477-256-1	01	1	9601-9803	●	●
55	BRACKET; TUBE UNION (C)	1-47477-256-1	01	1	9804-0106	●
55	BRACKET; TUBE UNION (C)	1-47477-256-1	01	1	0107-	●
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	9601-9803	●	●
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	9804-9807	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (B) L=150 H=30	1-47477-629-2	01	1	9808-0004	●
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	0005-0011	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (B) L=150 H=30	1-47477-629-2	01	1	0012-0106	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (A)	1-47477-514-3	01	1	0107-	●
55	BRACKET; TUBE UNION (A)	1-47477-514-2	04	1	9601-9609		●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (A)	1-47477-514-3	04	1	9610-9803	●
55	BRACKET; TUBE UNION (A)	1-47477-514-3	04	1	9610-9803		●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (A)	1-47477-514-3	02	1	9804-0106	●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) (A)	1-47477-514-3	03	1	0107-	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	05	1	0003-0106	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	03	1	0107-0108	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0109-0112	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	03	1	0201-0512	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) M8X30 FLANGE	0-28680-830-0	01	1	0003-0106	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	03	1	0107-0201	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	04	1	0202-0512	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-9803	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	03	1	9804-0106	●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	08	1	0107-0512	●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	08	1	0601-	●
56	BOLT; UNION BRKT M8X20 FLANGE	0-28080-820-0	05	1	9601-9606		●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	05	1	9607-9609		●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	05	1	9610-9803	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	05	1	9610-9803		●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	04	1	9804-0002	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	01	1	0003-0004	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-0106	●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	06	1	0107-0512	●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	06	1	0601-	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	9601-9803	●	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	9804-	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	9601-9803	●	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	9804-	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28080-825-0	04	1	9601-9602	●	●
66	BOLT; HOSE BRKT M8X16 FLANGE	0-28080-816-0	04	1	9603-9603	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	9603-9803	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	9804-0512	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-9601	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	01	1	9601-9601	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-9803	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-9803	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9804-0106	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9804-0106	●
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	0107-0512	●
106	NUT; FLEX HOSE M16	0-91111-516-0	04	1	0601-	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9601-9803	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9804-0512	●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0601-	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-9601	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	01	1	9601-9601	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-9803	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-9803	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9804-0106	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9804-0106	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	0107-0603	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	04	1	0604-	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9601-9803	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9804-0603	●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9601-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9601-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9601-	●	●
122	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9601-9803	●	●
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	9804-	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	02	1	9601-9803	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	02	1	9804-0011	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	02	1	0012-0106	●

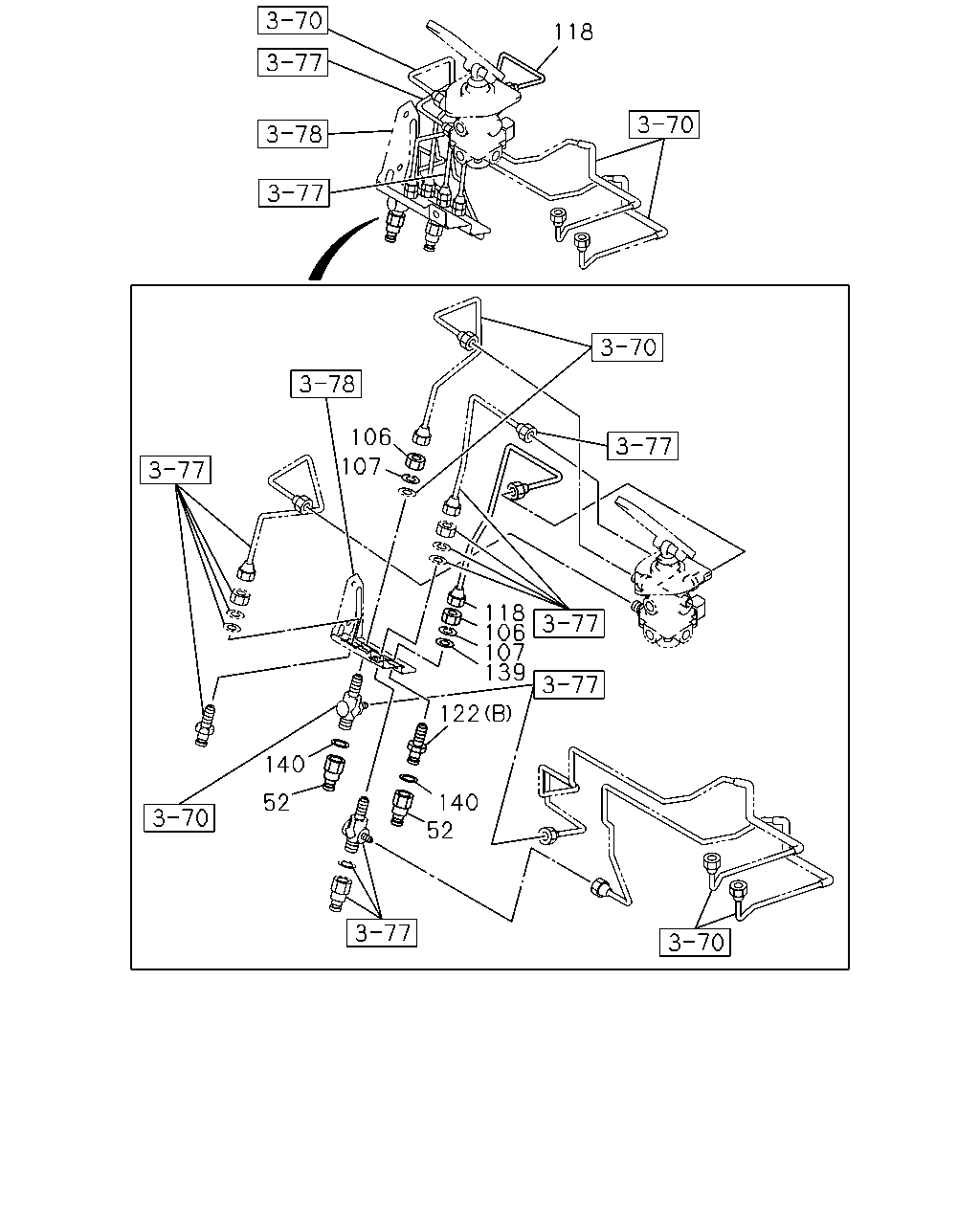

118 106 107 122 140 52 140 52 118 106 107 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	CONNECTOR; NYLON TUBE	1-09660-728-1	01	1	9601-9601	●	●
52	CONNECTOR; NYLON TUBE	1-09660-728-1	01	1	9601-9803	●	●
52	CONNECTOR; NYLON TUBE	1-09660-728-1	01	1	9601-9803		●
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9804-0302	●
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0303-	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-9601	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	01	1	9601-9601	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-9803	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-9803	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9804-0106	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9804-0106	●
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	0107-0512	●
106	NUT; FLEX HOSE M16	0-91111-516-0	04	1	0601-	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9601-9803	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9804-0512	●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0601-	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-9601	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	01	1	9601-9601	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-9803	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-9803	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9804-0106	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9804-0106	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	0107-0603	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	04	1	0604-	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9601-9803	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9804-0603	●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE	1-49116-428-0	01	1	9601-9601	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	9601-9803	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	9804-	●
122	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9601-9803	●	●
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	9804-	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	02	1	9601-9803	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	02	1	9804-0011	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	02	1	0012-0106	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9601-9803	●	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9804-0605	●
139	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9601-9601	●	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9601-9803	●	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9601-9803		●

98 98 98 98 32 98 42 98 98 32 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9601-9803	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9804-0605	●
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9601-9803	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9804-0605	●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0606-	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9601-9610		●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9611-9803	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9611-9803		●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9804-0106	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HK1 TCS ENG(80L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0107-	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9601-9610		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9611-9803	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9611-9803		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9804-0106	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HK1 TCS ENG(80L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0107-	●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9601-	●	●

98 98 98 98 98 25 32 24 98 98 37 98 32 26 24 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-326-0	01	1	9601-9609	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L)	1-49113-326-0	01	1	9610-	●
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-324-0	01	1	9601-9609	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L)	1-49113-324-0	01	1	9610-0301	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L)	1-49124-019-0	01	1	0302-	●
25	UNION; AIR PIPE M16 L=42	9-09233-010-1	02	1	9601-9609	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L) M16 L=42	9-09233-010-1	02	1	9610-0607	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L) M16 L=42	0-92123-010-0	02	1	0608-	●
26	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-325-0	01	1	9601-9609	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-325-0	01	1	9610-	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9601-9803	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9804-0605	●
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9601-9803	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9804-0605	●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0606-	●
37	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-327-0	01	1	9601-9609	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-327-0	01	1	9610-	●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9601-	●	●

32 34 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9601-9803	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9804-0605	●
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9601-9803	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9804-0605	●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0606-	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9601-9803	●	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9804-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
