◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#24816) — 826 parça

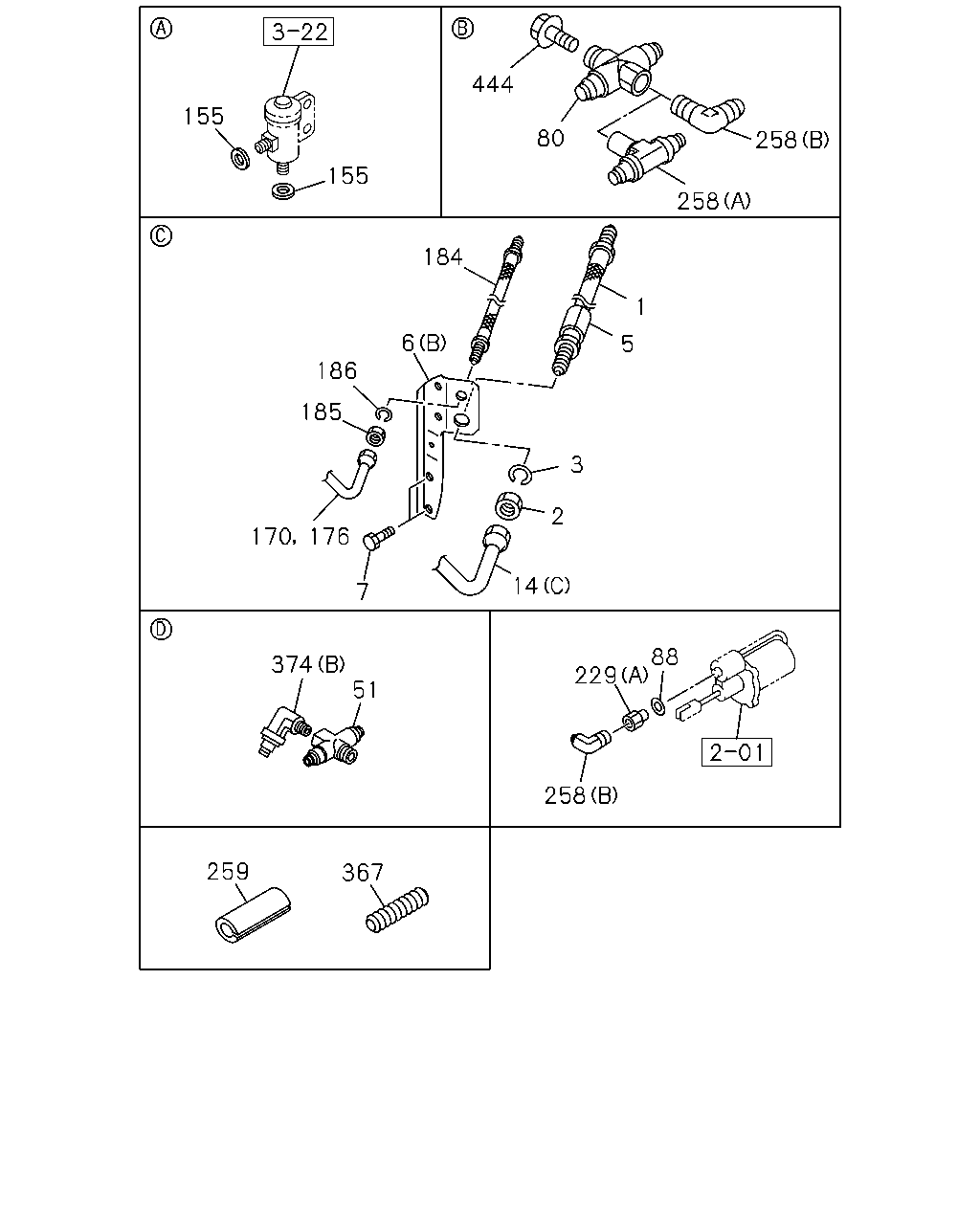

çizim 85623
444 155 80 258 155 258 184 1 6 5 186 185 3 2 170 176 14 7 88 374 51 229 258 259 367
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9609 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-17716-150-0 01 1 9610-0605 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-77716-150-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9610-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9706-9803 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) L=320 		1-09363-560-1 01 1 9804-0106 ●
1 HOSE; FLEX,AIR TANK
6HK1 TCS ENG(80L) L=350 		1-09363-558-0 01 1 0107- ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9601-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9706-9803 ●
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 9601-9609 ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M20 		9-99111-420-0 01 1 9610-0512 ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M20 		0-91111-520-0 01 1 0601- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9601-9609 ● ●
2 NUT; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) M22 		9-09111-422-0 01 1 9610-9701 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9610-9701 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9702-9803 ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9804-0512 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 9601-9609 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=20.2 		9-09150-520-0 01 1 9610-0106 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=20.2 		9-09150-520-0 01 1 0107-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=20.2 		0-91510-520-0 01 1 0604- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9601-9609 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) ID=22.5 		9-09150-522-0 01 1 9610-9701 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9610-9701 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9702-9803 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9804-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ●
5 SLEEVE; FLEX HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 9604-9609 ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 9610-9903 ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T(Y3Y) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 9904-0004 ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0005-0106 ●
5 SLEEVE; FLEX HOSE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0107- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47476-693-1 01 1 9601-9609 ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) (A) 		1-47476-693-2 01 1 9610- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47477-264-2 01 1 9601-9609 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) (B) 		1-47477-264-2 01 1 9610-9803 ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47477-264-2 01 1 9610-9803 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) (B) 		1-47477-264-2 01 1 9804-0106 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) (B) 		1-47477-264-2 01 1 0107-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) (B) 		1-47478-864-0 01 1 0305- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 9607-9609 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8X35 FLANGE 		0-28680-835-0 02 1 9610-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9609 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) M8X30 FLANGE 		0-28680-830-0 02 1 9610-9803 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9610-9803 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) M8X30 FLANGE 		0-28680-830-0 02 1 9804-0106 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> (A) 		1-49115-575-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) AIR DRYER<PS7> (A) 		1-49115-575-0 01 1 9610-0106 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) (A) 		1-49115-575-0 01 1 0107- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> (B) 		1-49115-545-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> (B) 		1-49117-175-0 01 1 9602-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W) (B) 		1-49117-175-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> (B) 		1-49117-175-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> (B) 		1-49119-130-0 01 1 9804-0106 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HK1 TCS ENG(80L) (C) 		1-49122-834-0 01 1 0107- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> (C) 		1-49115-560-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> (C) 		1-49115-560-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> (C) 		1-49115-560-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> (C) 		1-49118-849-0 01 1 9804-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> (C) 		1-49123-059-0 01 1 0104-0106 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> (C) 		1-49115-561-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> (C) 		1-49115-561-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> (C) 		1-49115-561-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> (C) 		1-49118-850-0 01 1 9804-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> (C) 		1-49123-077-0 01 1 0104-0106 ●
51 UNION
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9709-9803 ● ●
80 UNION; 3 WAY
6HK1 TCS ENG(80L) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0107- ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9601-9609 ● ●
80 UNION; 3 WAY
6SD1 TCN ENG(31L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9610-9612 ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9610-9612 ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9701-9705 ● ●
80 UNION; 3 WAY
EXC. EURO2 SPECIFICATION<THN> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9706-9706 ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9706-9706 ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9707-9803 ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9707-9803 ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9804-0004 ●
80 UNION; 3 WAY
AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9804-0004 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0011 ●
80 UNION; 3 WAY
AIR HORN<WB8> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0011 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0012-0106 ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0012-0106 ●
80 UNION; 3 WAY
6SD1 TCN ENG(31L) DIN8 & RC3/8 3WAY 		1-09661-129-0 02 1 0107- ●
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 9601-9609 ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L) ID=14.2 OD=23.0 		9-09572-014-0 01 1 9610-0106 ●
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0107- ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9601-9803 ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-9609 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9610-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105-0106 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9601-9609 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9610-9803 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9610-9803 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-852-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0005-0106 ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-9609 ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49115-551-0 01 1 9610-0106 ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L) 		1-49115-551-0 01 1 0107- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-565-0 01 1 9601-9609 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9804-0106 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1 TCS ENG(80L) L=1204 SERVICED BY L=1200 		1-47428-816-0 01 1 0107- ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9610-9705 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9706-9803 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9804-0106 ●
184 HOSE; FLEX,AIR GOV
6HK1 TCS ENG(80L) L=330 		1-09363-584-0 01 1 0107- ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 9601-9606 ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 9607-9705 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9706-9803 ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9601-9609 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L) M12 		9-09840-280-0 01 1 9610-9803 ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9610-9803 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L) M12 		9-09840-280-0 01 1 9804-0106 ●
185 NUT; FLEX HOSE,AIR GOV
6HK1 TCS ENG(80L) M12 		9-09840-280-0 01 1 0107- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9601-9609 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L) ID=12.2 		9-09150-512-0 01 1 9610-9803 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9610-9803 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L) ID=12.2 		9-09150-512-0 01 1 9804-0106 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HK1 TCS ENG(80L) ID=12.2 		9-09150-512-0 01 1 0107-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HK1 TCS ENG(80L) ID=12.2 		0-91510-512-0 01 1 0604- ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9601-9609 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9610-0004 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0005-0005 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006- ●
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 9601-9609 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (B) M14 & PT1/4 		9-48319-149-0 01 1 9610-0106 ●
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 0107-0403 ●
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404- ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9610-9705 ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9706-9803 ● ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9804-0004 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-0106 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ●
258 CONNECTOR; NYLON TUBE
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ●
258 CONNECTOR; NYLON TUBE
EXC. EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0106 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107- ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9610-9612 ●
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9610-9612 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ●
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-0004 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-0004 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0107- ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9705 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9706-9803 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9706-9803 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0012-0106 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0012-0106 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0107- ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9601-9705 ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9706-9803 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9706-9803 ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9804-0302 ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9601-9602 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9603-9610 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9611-9803 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9804-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9804-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 0005-0104 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0105-0106 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 9805-0104 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0007-0106 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0009-0106 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 02 1 0107- ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 02 1 9611-9705 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 9706-9803 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9601- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9601- ● ●
374 CONNECTOR
(A) 		1-09656-451-1 01 1 9601-9803 ● ●
374 CONNECTOR
(A) 		1-09656-721-0 01 1 9804-0103 ●
374 CONNECTOR
(A) 		1-09656-754-0 01 1 0104- ●
374 CONNECTOR
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ● ●
444 BOLT; UNION
6HK1 TCS ENG(80L) M8X25 FLANGE 		0-28080-825-0 01 1 0107-0512 ●
444 BOLT; UNION
6HK1 TCS ENG(80L) M8X25 FLANGE 		0-28050-825-0 01 1 0601- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9601-9609 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 9610-9612 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9610-9612 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 9701-9705 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M8X25 FLANGE 		0-28080-825-0 01 1 9701-9705 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9701-9705 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 9706-9706 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M8X25 FLANGE 		0-28080-825-0 01 1 9706-9706 ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9706-9706 ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9706-9706 ●
444 BOLT; UNION
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28080-825-0 01 1 9707-9708 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 9707-9708 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M8X25 FLANGE 		0-28080-825-0 01 1 9707-9708 ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9707-9708 ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9707-9708 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 9709-9803 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28080-825-0 01 1 9709-9803 ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28080-825-0 01 1 9709-9803 ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9709-9803 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 9804-0004 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M8X25 FLANGE 		0-28080-825-0 01 1 9804-0004 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0005-0106 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 0005-0106 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 02 1 0107-0512 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28050-825-0 02 1 0601- ●
444 BOLT; UNION
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28080-825-0 02 1 9709-9803 ● ●

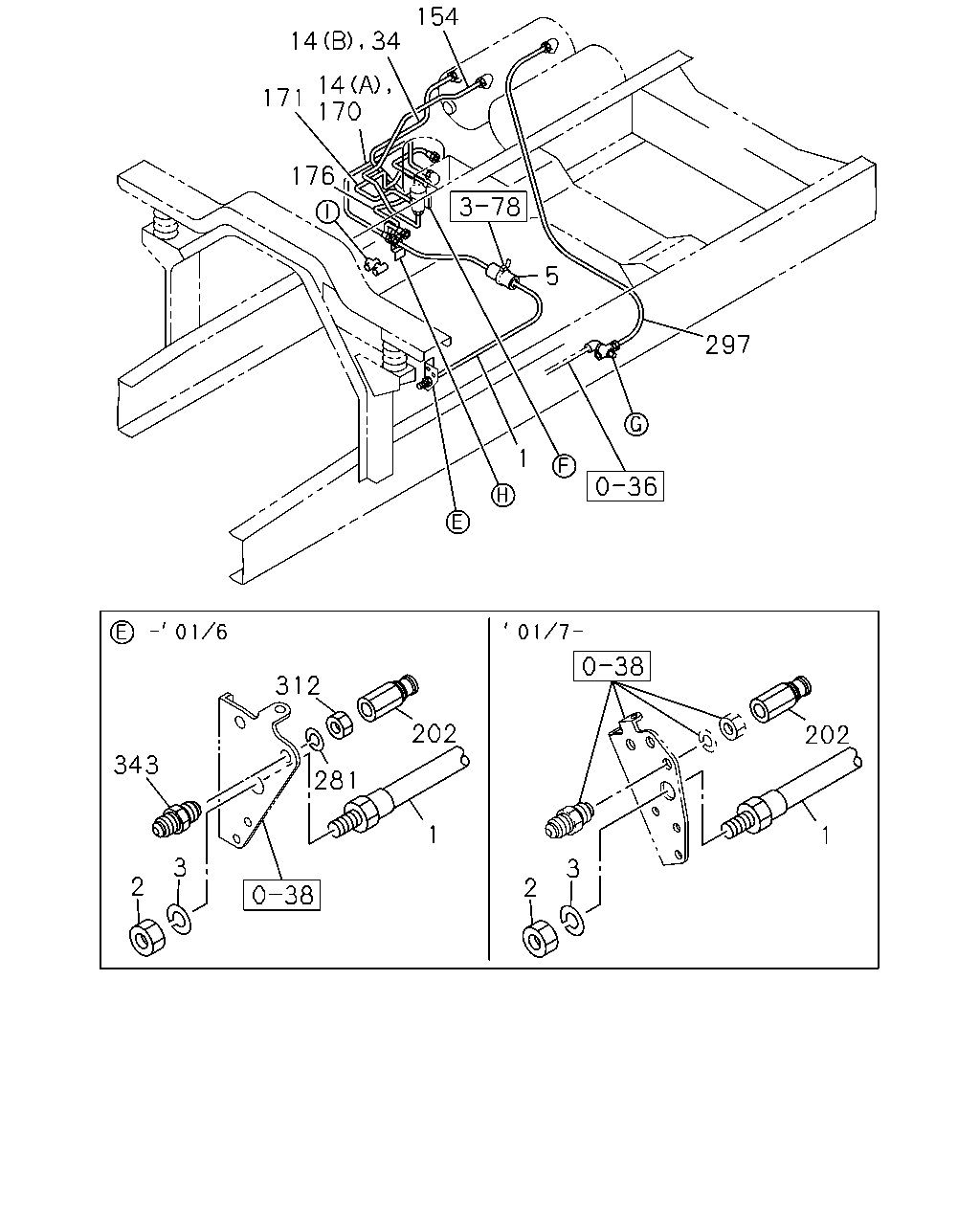

çizim 85717
154 14 170 171 176 5 297 1 312 202 202 343 281 1 1 3 3 2 2 14 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9609 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-17716-150-0 01 1 9610-0605 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-77716-150-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9610-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9706-9803 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) L=320 		1-09363-560-1 01 1 9804-0106 ●
1 HOSE; FLEX,AIR TANK
6HK1 TCS ENG(80L) L=350 		1-09363-558-0 01 1 0107- ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9601-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9706-9803 ●
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 9601-9609 ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M20 		9-99111-420-0 01 1 9610-0512 ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M20 		0-91111-520-0 01 1 0601- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9601-9609 ● ●
2 NUT; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) M22 		9-09111-422-0 01 1 9610-9701 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9610-9701 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9702-9803 ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9804-0512 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 9601-9609 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=20.2 		9-09150-520-0 01 1 9610-0106 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=20.2 		9-09150-520-0 01 1 0107-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=20.2 		0-91510-520-0 01 1 0604- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9601-9609 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) ID=22.5 		9-09150-522-0 01 1 9610-9701 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9610-9701 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9702-9803 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9804-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ●
5 SLEEVE; FLEX HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 9604-9609 ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 9610-9903 ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T(Y3Y) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 9904-0004 ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0005-0106 ●
5 SLEEVE; FLEX HOSE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0107- ●

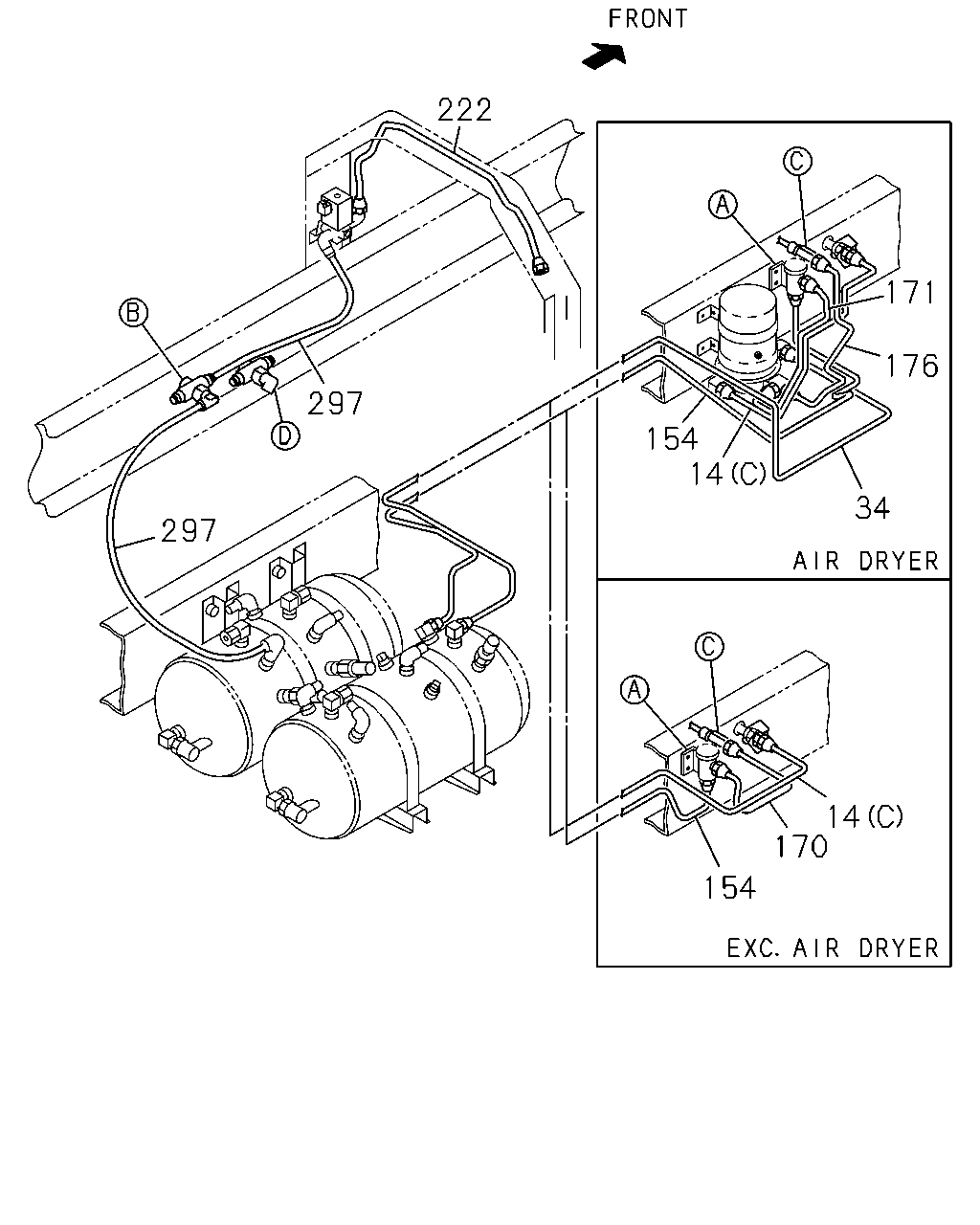

14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> (A) 		1-49115-575-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) AIR DRYER<PS7> (A) 		1-49115-575-0 01 1 9610-0106 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) (A) 		1-49115-575-0 01 1 0107- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> (B) 		1-49115-545-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> (B) 		1-49117-175-0 01 1 9602-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W) (B) 		1-49117-175-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> (B) 		1-49117-175-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> (B) 		1-49119-130-0 01 1 9804-0106 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HK1 TCS ENG(80L) (C) 		1-49122-834-0 01 1 0107- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> (C) 		1-49115-560-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> (C) 		1-49115-560-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> (C) 		1-49115-560-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> (C) 		1-49118-849-0 01 1 9804-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> (C) 		1-49123-059-0 01 1 0104-0106 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> (C) 		1-49115-561-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> (C) 		1-49115-561-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> (C) 		1-49115-561-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> (C) 		1-49118-850-0 01 1 9804-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> (C) 		1-49123-077-0 01 1 0104-0106 ●
34 PIPE; AIR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49115-543-0 01 1 9601-9601 ●
34 PIPE; AIR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-177-0 01 1 9602-9609 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-177-0 01 1 9610-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49119-129-0 01 1 9804-0106 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) 		1-49119-129-0 01 1 0107- ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49115-562-0 01 1 9601-9609 ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-562-0 01 1 9610-9803 ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49115-562-0 01 1 9610-9803 ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-521-0 01 1 9804-0106 ●
34 PIPE; AIR
6HK1 TCS ENG(80L) 		1-49118-521-0 01 1 0107- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49115-544-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-155-0 01 1 9602-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-155-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49119-132-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49122-181-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49123-063-0 01 1 0105-0106 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1 TCS ENG(80L) 		1-49123-065-0 01 1 0107- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49115-555-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9602-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W) 		1-49117-154-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49119-131-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49122-180-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49123-106-0 01 1 0105-0106 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) 		1-49122-923-0 01 1 0107- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49115-563-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-563-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49115-563-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-526-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0005-0106 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-524-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0005-0106 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-9609 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9610-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105-0106 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9601-9609 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9610-9803 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9610-9803 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-852-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0005-0106 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9609 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49114-366-0 01 1 9610-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49122-192-0 01 1 0005-0106 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) 		1-49122-192-0 01 1 0107- ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49115-564-0 01 1 9601-9609 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9610-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49115-564-0 01 1 9610-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0005-0106 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1 TCS ENG(80L) L=581 SERVICED BY L=600 		1-47428-809-0 01 1 0107- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-9609 ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49115-551-0 01 1 9610-0106 ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L) 		1-49115-551-0 01 1 0107- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-565-0 01 1 9601-9609 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9804-0106 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1 TCS ENG(80L) L=1204 SERVICED BY L=1200 		1-47428-816-0 01 1 0107- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9601-9609 ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9610-0004 ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006- ●
281 WASHER; LK UNION
ID=12.2 		9-09150-512-0 01 1 9601-9609 ●
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 9610-0106 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9601- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0301- ● ●
312 NUT; UNION
M12 		9-09840-280-0 01 1 9601-9609 ●
312 NUT; UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 01 1 9610-0106 ●
343 UNION; NYLON TUBE
M12 L=66.5 		9-09223-306-1 01 1 9601-9609 ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 01 1 9610-0106 ●

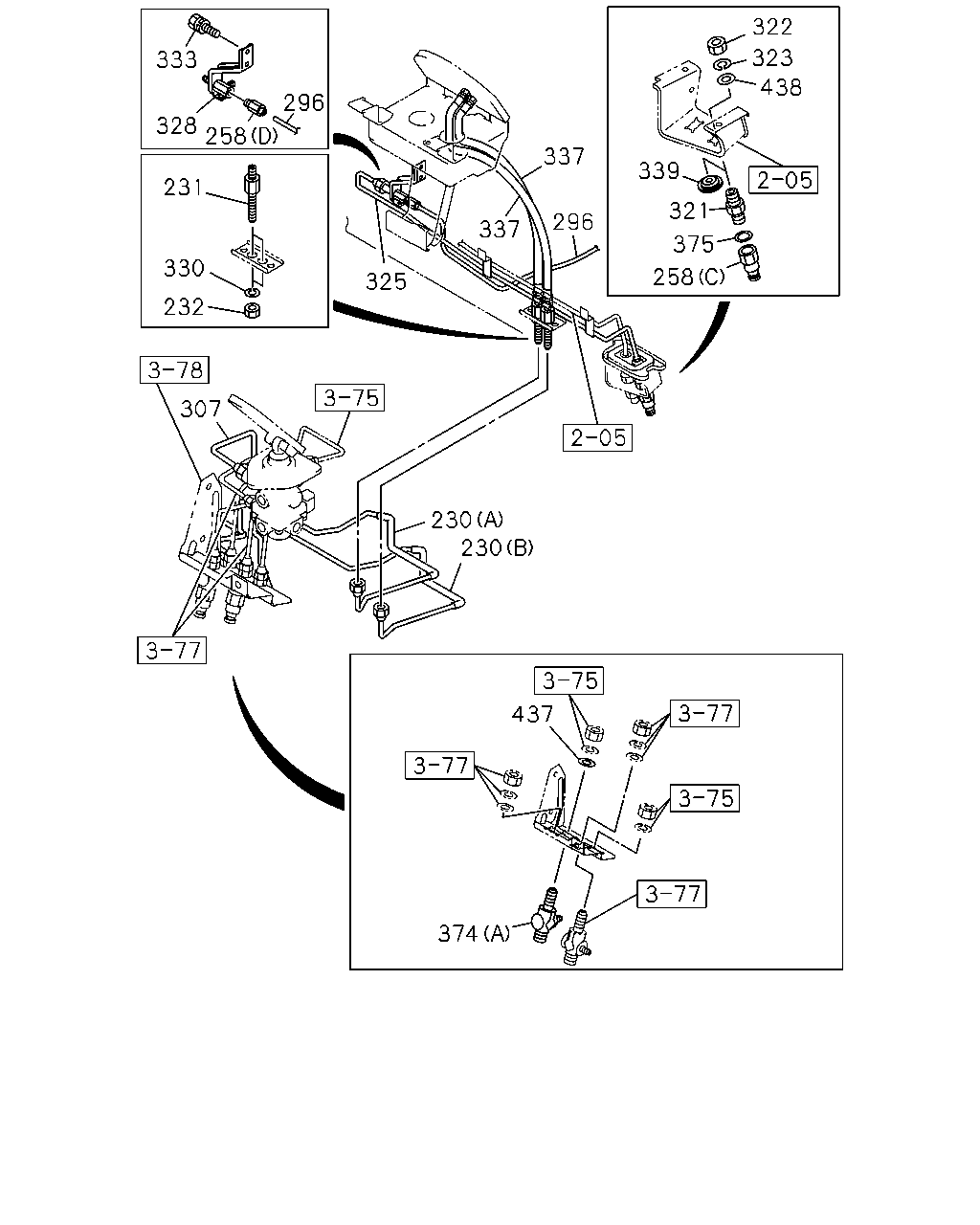

çizim 86036
322 323 333 438 296 328 258 337 339 231 321 296 337 375 330 258 325 232 307 230 230 437 374
BalonParca AdiParca NoAdetTipApplied Date A B
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-431-1 01 1 9601-0103 ●
230 PIPE; AIR,UNION TO UNION
(A) L=1561 		1-49122-779-0 01 1 0104- ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-432-1 01 1 9601-0103 ●
230 PIPE; AIR,UNION TO UNION
(B) L=1245 		1-49122-780-0 01 1 0104- ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-429-1 01 1 9601-9803 ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-430-1 01 1 9601-9803 ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 9601-9803 ● ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 9804- ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 9601-9803 ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 9804- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ●
258 CONNECTOR; NYLON TUBE
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ●
258 CONNECTOR; NYLON TUBE
EXC. EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0106 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107- ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9610-9612 ●
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9610-9612 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ●
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-0004 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-0004 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0107- ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9705 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9706-9803 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9706-9803 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0012-0106 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0012-0106 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0107- ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9601-9705 ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9706-9803 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9706-9803 ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9804-0302 ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 AR 1 9601- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 9601- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-0212 ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9601- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV 1-49116-427-0 01 1 9601-9601 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-47492-448-5 01 1 9601-9803 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-47492-448-5 01 1 9804-9902 ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 9903- ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> 		1-09656-663-0 01 1 9804-9911 ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> 		1-09656-712-0 01 1 9912-0004 ●
321 JOINT; FLEX HOSE 1-09654-362-1 01 1 9601-9705 ● ●
321 JOINT; FLEX HOSE 1-09654-362-1 01 1 9706-9803 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> 		1-09654-362-1 01 1 9706-9803 ●
321 JOINT; FLEX HOSE
EXC. AIR HORN<WB8> 		1-09654-362-1 01 1 9804-9811 ●
321 JOINT; FLEX HOSE
EXC. AIR HORN<WB8> 		1-09656-738-0 01 1 9812-0004 ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0005- ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 9601-9705 ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 9706-9803 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 9706-9803 ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 9804-0004 ●
322 NUT; JOINT,FLEX HOSE
AIR HORN<WB8> M10 H=8 		1-09400-029-0 01 1 9804-0004 ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0005- ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 9601-9705 ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 9706-9803 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 9706-9803 ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 9804-0004 ●
323 WASHER; LK,JOINT
AIR HORN<WB8> ID=10.2 		9-09150-510-0 01 1 9804-0004 ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0005-0603 ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47493-105-1 01 1 9601- ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 9601-9705 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> 		1-47492-452-2 01 1 9706-9803 ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 9601-9705 ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 9706-9803 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-392-0 01 1 9706-9803 ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 9804- ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 9601-9803 ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 9804-0603 ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604- ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9705 ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9706-9803 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9706-9803 ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9601-9803 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9804-0608 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609- ●
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 9706-9803 ●
374 CONNECTOR
(A) 		1-09656-451-1 01 1 9601-9803 ● ●
374 CONNECTOR
(A) 		1-09656-721-0 01 1 9804-0103 ●
374 CONNECTOR
(A) 		1-09656-754-0 01 1 0104- ●
374 CONNECTOR
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ● ●
375 GASKET
ID=11 OD=18 		9-09572-510-0 01 1 9601-9705 ● ●
375 GASKET
ID=11 OD=18 		9-09572-510-0 01 1 9706-9803 ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9706-9803 ●
375 GASKET
ID=11 OD=18 		9-09572-510-0 01 1 9804-9811 ●
375 GASKET
AIR HORN<WB8> ID=11 OD=18 		9-09572-510-0 01 1 9804-9811 ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9601-9803 ● ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9804-0605 ●
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9601-9705 ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9706-9803 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9706-9803 ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9804-0004 ●
438 WASHER; PL,JOINT
AIR HORN<WB8> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9804-0004 ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0106 ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0107- ●

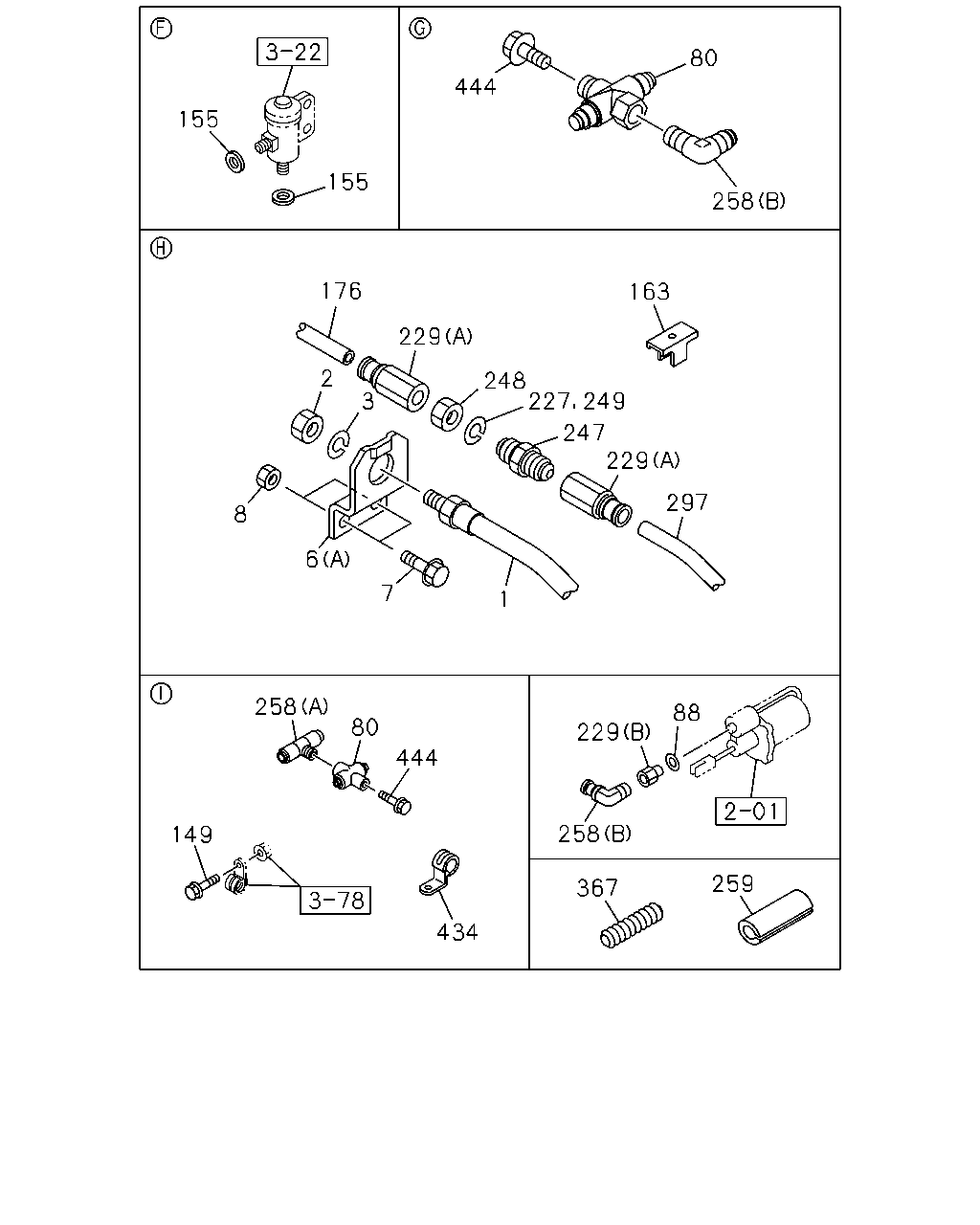

çizim 86366
80 444 155 155 258 176 163 229 2 248 3 247 229 297 8 6 7 1 258 88 80 229 444 258 149 259 367 434 227 249
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9609 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-17716-150-0 01 1 9610-0605 ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) L=1500 		0-77716-150-0 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9610-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9706-9803 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) L=320 		1-09363-560-1 01 1 9804-0106 ●
1 HOSE; FLEX,AIR TANK
6HK1 TCS ENG(80L) L=350 		1-09363-558-0 01 1 0107- ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9601-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9706-9803 ●
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 9601-9609 ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M20 		9-99111-420-0 01 1 9610-0512 ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M20 		0-91111-520-0 01 1 0601- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9601-9609 ● ●
2 NUT; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) M22 		9-09111-422-0 01 1 9610-9701 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9610-9701 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9702-9803 ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9804-0512 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 9601-9609 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=20.2 		9-09150-520-0 01 1 9610-0106 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=20.2 		9-09150-520-0 01 1 0107-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=20.2 		0-91510-520-0 01 1 0604- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9601-9609 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) ID=22.5 		9-09150-522-0 01 1 9610-9701 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9610-9701 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9702-9803 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9804-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47476-693-1 01 1 9601-9609 ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) (A) 		1-47476-693-2 01 1 9610- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47477-264-2 01 1 9601-9609 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) (B) 		1-47477-264-2 01 1 9610-9803 ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47477-264-2 01 1 9610-9803 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) (B) 		1-47477-264-2 01 1 9804-0106 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) (B) 		1-47477-264-2 01 1 0107-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) (B) 		1-47478-864-0 01 1 0305- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 9607-9609 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8X35 FLANGE 		0-28680-835-0 02 1 9610-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9609 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) M8X30 FLANGE 		0-28680-830-0 02 1 9610-9803 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9610-9803 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) M8X30 FLANGE 		0-28680-830-0 02 1 9804-0106 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-408-0 02 1 9601-9606 ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8 FLANGE 		0-91150-108-0 02 1 9610-0602 ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
80 UNION; 3 WAY
6HK1 TCS ENG(80L) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0107- ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9601-9609 ● ●
80 UNION; 3 WAY
6SD1 TCN ENG(31L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9610-9612 ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9610-9612 ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9701-9705 ● ●
80 UNION; 3 WAY
EXC. EURO2 SPECIFICATION<THN> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9706-9706 ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9706-9706 ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9707-9803 ● ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9707-9803 ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9804-0004 ●
80 UNION; 3 WAY
AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9804-0004 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0011 ●
80 UNION; 3 WAY
AIR HORN<WB8> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0011 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0012-0106 ●
80 UNION; 3 WAY
6HE1 TC ENG(57L) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0012-0106 ●
80 UNION; 3 WAY
6SD1 TCN ENG(31L) DIN8 & RC3/8 3WAY 		1-09661-129-0 02 1 0107- ●
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 9601-9609 ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L) ID=14.2 OD=23.0 		9-09572-014-0 01 1 9610-0106 ●
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0107- ●
149 BOLT; TUBE CLIP
6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) M8X30 FLANGE 		0-28680-830-0 01 1 0107-0512 ●
149 BOLT; TUBE CLIP
6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
149 BOLT; TUBE CLIP
6SD1 TCN ENG(31L) MAL6S M/T(Y1V) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0106 ●
149 BOLT; TUBE CLIP
MAL6S M/T(Y1V) M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512 ●
149 BOLT; TUBE CLIP
MAL6S M/T(Y1V) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9601-9803 ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9804-0004 ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> 		1-47475-427-1 01 1 9601-9601 ●
163 BRACKET; AIR PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-47475-427-1 01 1 9602-9609 ●
163 BRACKET; AIR PIPE
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) 		1-47475-427-1 01 1 9610-0106 ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-9609 ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49115-551-0 01 1 9610-0106 ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L) 		1-49115-551-0 01 1 0107- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-565-0 01 1 9601-9609 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9804-0106 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1 TCS ENG(80L) L=1204 SERVICED BY L=1200 		1-47428-816-0 01 1 0107- ●
227 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 9601-9609 ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 9610-0106 ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9601-9609 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9610-0004 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0005-0005 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006- ●
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 9601-9609 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (B) M14 & PT1/4 		9-48319-149-0 01 1 9610-0106 ●
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 0107-0403 ●
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404- ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9610-9705 ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9706-9803 ● ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9804-0004 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-0106 ●
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 02 1 9601-9609 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 02 1 9610-9803 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 01 1 9804-0004 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 01 1 9804-0004 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 02 1 0005-0106 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 01 1 0107-0607 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 02 1 9601-9609 ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 02 1 9610-9803 ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 01 1 9804-0004 ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 01 1 9804-0004 ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 02 1 0005-0106 ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 01 1 0107- ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 9601-9609 ●
249 WASHER; LK,PIPE UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 9610-0603 ●
249 WASHER; LK,PIPE UNION
6SD1 TCN ENG(31L) ID=12.2 		0-91510-512-0 01 1 0604- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ●
258 CONNECTOR; NYLON TUBE
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9705 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ●
258 CONNECTOR; NYLON TUBE
EXC. EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9706 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0106 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107- ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9609 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9610-9612 ●
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9610-9612 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ●
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9701-9705 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9708 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-0004 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-0004 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0107- ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9705 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9706-9803 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9706-9803 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0012-0106 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0012-0106 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0107- ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9601-9705 ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9706-9803 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9706-9803 ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9804-0302 ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9601-9602 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9603-9610 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9611-9803 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9804-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9804-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 0005-0104 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0105-0106 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 9805-0104 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0007-0106 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0009-0106 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 02 1 0107- ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 02 1 9611-9705 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 9706-9803 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9601- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0301- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9601- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9601- ● ●
434 CLIP
6SD1 TCN ENG(31L) ID=21 L=30 H=40 		1-09700-991-1 01 1 0107- ●
444 BOLT; UNION
6HK1 TCS ENG(80L) M8X25 FLANGE 		0-28080-825-0 01 1 0107-0512 ●
444 BOLT; UNION
6HK1 TCS ENG(80L) M8X25 FLANGE 		0-28050-825-0 01 1 0601- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9601-9609 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 9610-9612 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9610-9612 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 9701-9705 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M8X25 FLANGE 		0-28080-825-0 01 1 9701-9705 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9701-9705 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 9706-9706 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M8X25 FLANGE 		0-28080-825-0 01 1 9706-9706 ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9706-9706 ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9706-9706 ●
444 BOLT; UNION
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28080-825-0 01 1 9707-9708 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 9707-9708 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M8X25 FLANGE 		0-28080-825-0 01 1 9707-9708 ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9707-9708 ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9707-9708 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 9709-9803 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28080-825-0 01 1 9709-9803 ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28080-825-0 01 1 9709-9803 ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9709-9803 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 9804-0004 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M8X25 FLANGE 		0-28080-825-0 01 1 9804-0004 ●
444 BOLT; UNION
6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0005-0106 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 0005-0106 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 02 1 0107-0512 ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28050-825-0 02 1 0601- ●
444 BOLT; UNION
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28080-825-0 02 1 9709-9803 ● ●
çizim 86433
222 171 176 297 154 14 34 297 14 170 154
BalonParca AdiParca NoAdetTipApplied Date A B
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> (A) 		1-49115-575-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) AIR DRYER<PS7> (A) 		1-49115-575-0 01 1 9610-0106 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) (A) 		1-49115-575-0 01 1 0107- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> (B) 		1-49115-545-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> (B) 		1-49117-175-0 01 1 9602-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W) (B) 		1-49117-175-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> (B) 		1-49117-175-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> (B) 		1-49119-130-0 01 1 9804-0106 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HK1 TCS ENG(80L) (C) 		1-49122-834-0 01 1 0107- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> (C) 		1-49115-560-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> (C) 		1-49115-560-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> (C) 		1-49115-560-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> (C) 		1-49118-849-0 01 1 9804-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> (C) 		1-49123-059-0 01 1 0104-0106 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> (C) 		1-49115-561-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> (C) 		1-49115-561-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> (C) 		1-49115-561-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> (C) 		1-49118-850-0 01 1 9804-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> (C) 		1-49123-077-0 01 1 0104-0106 ●
34 PIPE; AIR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49115-543-0 01 1 9601-9601 ●
34 PIPE; AIR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-177-0 01 1 9602-9609 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-177-0 01 1 9610-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49119-129-0 01 1 9804-0106 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) 		1-49119-129-0 01 1 0107- ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49115-562-0 01 1 9601-9609 ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-562-0 01 1 9610-9803 ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49115-562-0 01 1 9610-9803 ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-521-0 01 1 9804-0106 ●
34 PIPE; AIR
6HK1 TCS ENG(80L) 		1-49118-521-0 01 1 0107- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49115-544-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-155-0 01 1 9602-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49117-155-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49119-132-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49122-181-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49123-063-0 01 1 0105-0106 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1 TCS ENG(80L) 		1-49123-065-0 01 1 0107- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49115-555-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9602-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W) 		1-49117-154-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49119-131-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49122-180-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) AIR DRYER<PS7> 		1-49123-106-0 01 1 0105-0106 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) 		1-49122-923-0 01 1 0107- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49115-563-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-563-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49115-563-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49118-526-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0005-0106 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-524-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-177-0 01 1 0005-0106 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-9609 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9610-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105-0106 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9601-9609 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9610-9803 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9610-9803 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49118-852-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. AIR DRYER<PS7> 		1-49122-188-0 01 1 0005-0106 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9609 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49114-366-0 01 1 9610-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49122-192-0 01 1 0005-0106 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) 		1-49122-192-0 01 1 0107- ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49115-564-0 01 1 9601-9609 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9610-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49115-564-0 01 1 9610-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-564-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0005-0106 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1 TCS ENG(80L) L=581 SERVICED BY L=600 		1-47428-809-0 01 1 0107- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-9609 ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-49115-551-0 01 1 9610-0106 ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L) 		1-49115-551-0 01 1 0107- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-565-0 01 1 9601-9609 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9804-0106 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1 TCS ENG(80L) L=1204 SERVICED BY L=1200 		1-47428-816-0 01 1 0107- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1057 SERVICED BY L=1100 		1-47426-351-0 01 1 9610-9705 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1057 SERVICED BY L=1100 		1-47426-351-0 01 1 9706-9708 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 9709-9803 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-0106 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCS ENG(80L) L=1241 SERVICED BY L=1250 		1-47428-817-0 01 1 0107-0107 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCS ENG(80L) L=1224 SERVICED BY L=1250 		1-47428-817-0 01 1 0107- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 9601-9705 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 9706-9803 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9601- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0301- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
