3-46 — AIR DRYER (#24814) — 108 parça

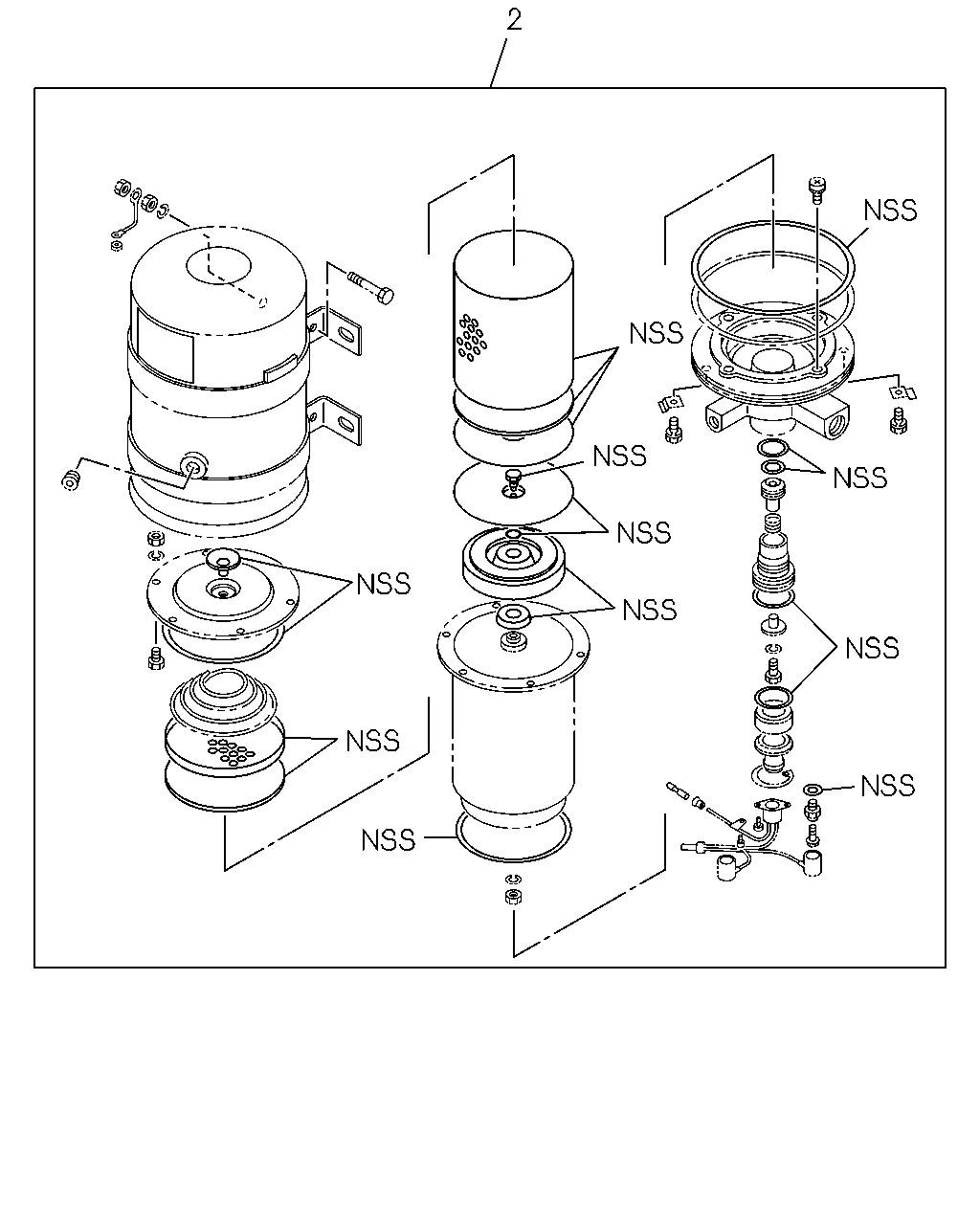

çizim 104312
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-055-1 01 1 9601-9803 ● ●
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-055-1 01 1 9804-0106 ●
2 REPAIR KIT; AIR DRYER 1-85576-055-1 01 1 0107-1001 ●
2 REPAIR KIT; AIR DRYER 1-85576-226-0 01 1 1002- ●

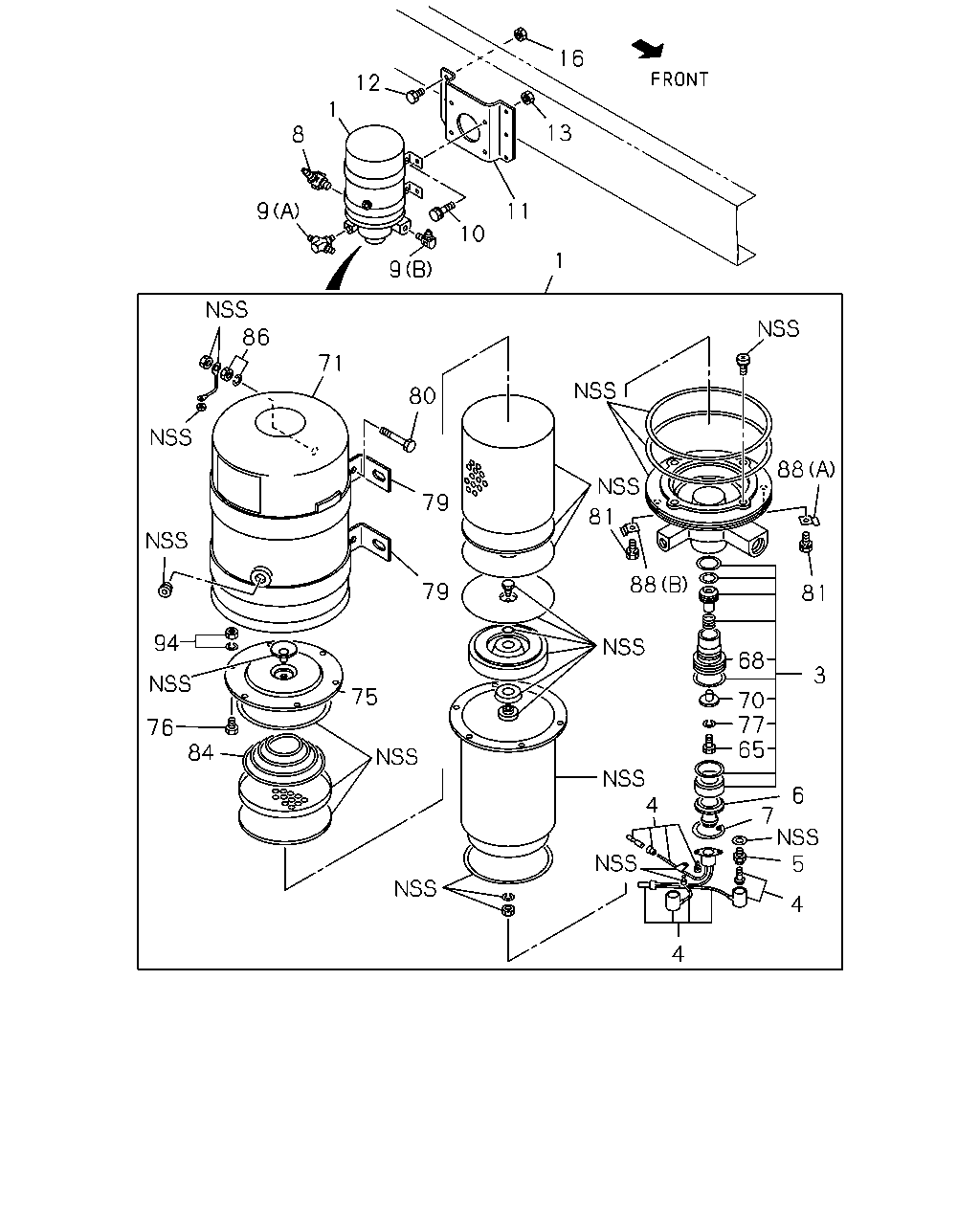

çizim 104315
16 12 1 13 8 9 11 10 1 9 86 71 80 88 79 81 88 79 81 94 68 3 75 70 77 65 76 84 4 6 7 5 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-105-3 01 1 9601-9803 ● ●
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-105-3 01 1 9804-0106 ●
1 DRYER; AIR 1-48190-105-3 01 1 0107-1001 ●
1 DRYER; AIR 1-48190-373-0 01 1 1002- ●
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-057-1 01 1 9601-9803 ● ●
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-057-1 01 1 9804-0106 ●
3 PISTON KIT; AIR DRYER 1-85576-057-1 01 1 0107- ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-129-0 01 1 9601-9803 ● ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-129-0 01 1 9804-0106 ●
4 THERMOSTAT KIT; AIR DRYER 1-85576-129-0 01 1 0107- ●
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> 		1-48199-085-0 02 1 9601-9803 ● ●
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> 		1-48199-085-0 02 1 9804-0106 ●
5 HEATER ASM; AIR DRYER 1-48199-085-0 02 1 0107- ●
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> 		1-48199-101-0 01 1 9601-9803 ● ●
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> 		1-48199-101-0 01 1 9804-0106 ●
6 COVER; EXH,AIR DRYER 1-48199-101-0 01 1 0107- ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> 		1-48199-154-0 01 1 9601-9803 ● ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> 		1-48199-154-0 01 1 9804-0106 ●
7 RING; SNAP,AIR DRYER 1-48199-154-0 01 1 0107- ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9601-9803 ● ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9804-0106 ●
8 CONNECTOR; OUT,AIR DRYER
M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 0107-0607 ●
8 CONNECTOR; OUT,AIR DRYER
M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0608- ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9601-9803 ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9804-0004 ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE 		1-48320-026-1 01 1 0005-0106 ●
9 CONNECTOR; PIPE,AIR DRYER
(B) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0107- ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9601-9803 ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9804-0106 ●
9 CONNECTOR; PIPE,AIR DRYER
(A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0107- ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X25 FLANGE 		0-28081-025-0 04 1 9601-9606 ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 9607-9609 ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 9610-0106 ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L) M10X30 FLANGE 		0-28681-030-0 04 1 0107-0512 ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X35 FLANGE 		0-28081-035-0 04 1 9601-9606 ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 9607-9609 ●
10 BOLT; AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 9610-9803 ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 9610-9803 ●
10 BOLT; AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 9804-0106 ●
10 BOLT; AIR DRYER
6HK1 TCS ENG(80L) M10X40 FLANGE 		0-28681-040-0 04 1 0107-0512 ●
10 BOLT; AIR DRYER
6HK1 TCS ENG(80L) M10X40 FLANGE 		0-28651-040-0 04 1 0601- ●
11 BRACKET; AIR DRYER
AIR DRYER<PS7> 		1-48195-055-0 01 1 9601-9609 ●
11 BRACKET; AIR DRYER
6SD1 TCN ENG(31L) AIR DRYER<PS7> 		1-48195-055-0 01 1 9610-0106 ●
11 BRACKET; AIR DRYER
6SD1 TCN ENG(31L) 		1-48195-055-0 01 1 0107- ●
12 BOLT; BRKT
AIR DRYER<PS7> M10X30 FLANGE 		0-28081-030-0 04 1 9601-9606 ●
12 BOLT; BRKT
AIR DRYER<PS7> M10X35 FLANGE 		0-28681-035-0 04 1 9607-9609 ●
12 BOLT; BRKT
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10X35 FLANGE 		0-28681-035-0 04 1 9610-0106 ●
12 BOLT; BRKT
6SD1 TCN ENG(31L) M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512 ●
12 BOLT; BRKT
6SD1 TCN ENG(31L) M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 		9-09110-410-0 04 1 9601-9606 ●
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 9607-9803 ● ●
13 NUT; AIR DRYER
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 9804-0106 ●
13 NUT; AIR DRYER
M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ●
13 NUT; AIR DRYER
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 		9-09110-510-0 04 1 9601-9606 ●
16 NUT; BRKT
6SD1 TCN ENG(31L) AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 9703-0106 ●
16 NUT; BRKT
6SD1 TCN ENG(31L) M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ●
16 NUT; BRKT
6SD1 TCN ENG(31L) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-102-0 01 1 9601-9704 ● ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-413-0 01 1 9705-9803 ● ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-413-0 01 1 9804-0106 ●
65 BOLT; PURGE VLV 1-48199-413-0 01 1 0107-1001 ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1002- ●
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-216-0 01 1 9601-9803 ● ●
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-216-0 01 1 9804-0106 ●
68 BODY; VALVE 1-48199-216-0 01 1 0107- ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 9601-9803 ● ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 9804-0106 ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 0107- ●
71 CASE; INNER,AIR DRYER
AIR DRYER<PS7> 		1-48199-156-1 01 1 9601-9803 ● ●
71 CASE; INNER,AIR DRYER
AIR DRYER<PS7> 		1-48199-156-1 01 1 9804-0106 ●
71 CASE; INNER,AIR DRYER 1-48199-156-1 01 1 0107- ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-167-0 01 1 9601-9803 ● ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-167-0 01 1 9804-0106 ●
75 COVER; CASE,AIR DRYER 1-48199-167-0 01 1 0107- ●
76 BOLT; COVER,AIR DRYER
AIR DRYER<PS7> 		1-48199-478-0 06 1 9607-9803 ● ●
76 BOLT; COVER,AIR DRYER
AIR DRYER<PS7> 		1-48199-478-0 06 1 9804-0106 ●
76 BOLT; COVER,AIR DRYER 1-48199-478-0 06 1 0107- ●
77 WASHER; LK,VALVE
AIR DRYER<PS7> 		1-48199-103-0 01 1 9601-9704 ● ●
79 BRACKET; AIR DRYER
AIR DRYER<PS7> 		1-48199-189-0 02 1 9601-9803 ● ●
79 BRACKET; AIR DRYER
AIR DRYER<PS7> 		1-48199-189-0 02 1 9804-0106 ●
79 BRACKET; AIR DRYER 1-48199-189-0 02 1 0107- ●
80 BOLT; BRKT
AIR DRYER<PS7> 		1-48199-190-0 02 1 9601-9803 ● ●
80 BOLT; BRKT
AIR DRYER<PS7> 		1-48199-190-0 02 1 9804-0106 ●
80 BOLT; BRKT 1-48199-190-0 02 1 0107- ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-177-0 02 1 9601-9803 ● ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-177-0 02 1 9804-0106 ●
81 BOLT; CASE,AIR DRYER 1-48199-177-0 02 1 0107- ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> 		1-48199-166-0 01 1 9601-9803 ● ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> 		1-48199-166-0 01 1 9804-0106 ●
84 SPRING; AIR DRYER 1-48199-166-0 01 1 0107- ●
86 NUT; BRKT
AIR DRYER<PS7> 		1-48199-320-0 02 1 9601-9803 ● ●
86 NUT; BRKT
AIR DRYER<PS7> 		1-48199-320-0 02 1 9804-0106 ●
86 NUT; BRKT 1-48199-320-0 02 1 0107- ●
88 PLATE; STOPPER
AIR DRYER<PS7> (A) 		1-48199-178-0 01 1 9601-9803 ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (A) 		1-48199-178-0 01 1 9804-0106 ●
88 PLATE; STOPPER
(A) 		1-48199-178-0 01 1 0107- ●
88 PLATE; STOPPER
AIR DRYER<PS7> (B) 		1-48199-179-0 01 1 9601-9803 ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (B) 		1-48199-179-0 01 1 9804-0106 ●
88 PLATE; STOPPER
(B) 		1-48199-179-0 01 1 0107- ●
94 NUT; COVER,AIR DRYER
AIR DRYER<PS7> 		1-48199-479-0 07 1 9607-9803 ● ●
94 NUT; COVER,AIR DRYER
AIR DRYER<PS7> 		1-48199-479-0 07 1 9804-0106 ●
94 NUT; COVER,AIR DRYER 1-48199-479-0 07 1 0107- ●
