3-41 — REAR BRAKE POWER CHAMBER (#24813) — 122 parça

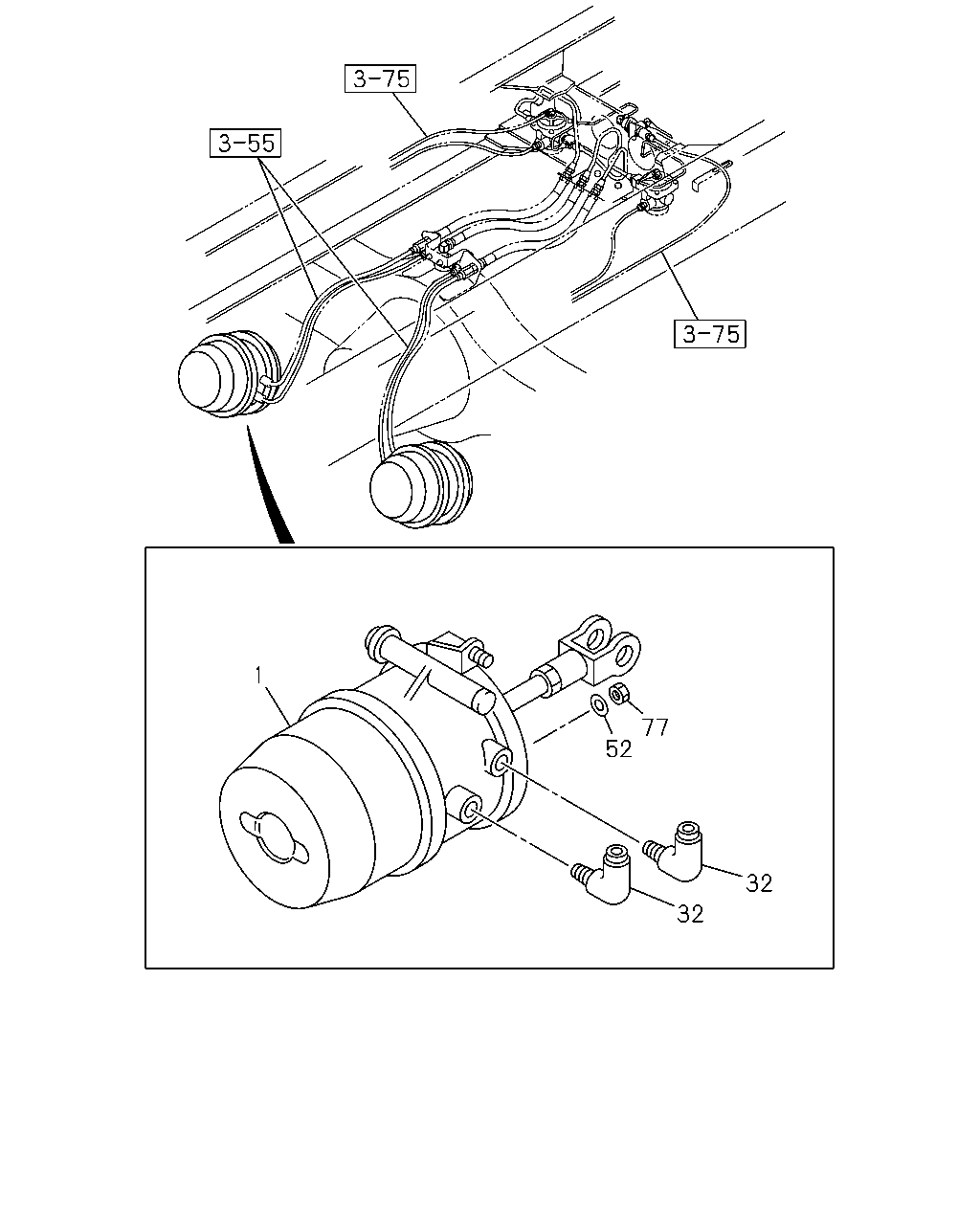

çizim 86367
1 77 52 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48250-641-0 01 1 0012-0106 ●
1 CHAMBER ASM; SPRING 1-48250-641-1 01 1 0107- ●
1 CHAMBER ASM; SPRING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48250-640-0 01 1 0012-0106 ●
1 CHAMBER ASM; SPRING 1-48250-640-1 01 1 0107- ●
1 CHAMBER ASM; SPRING 1-48250-558-0 02 1 9601-9803 ● ●
1 CHAMBER ASM; SPRING 1-48250-558-0 02 1 9804-0004 ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-48250-558-0 02 1 0005-0106 ●
32 CONNECTOR; SPR CHAMBER
FINAL GEAR 16.5"<B2Y> DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0012-0106 ●
32 CONNECTOR; SPR CHAMBER
FINAL GEAR 16.5"<B2Y> DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0012-0106 ●
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0107- ●
32 CONNECTOR; SPR CHAMBER 1-09660-741-0 02 1 9601-9803 ● ●
32 CONNECTOR; SPR CHAMBER 1-09660-741-0 02 1 9601-9803 ● ●
32 CONNECTOR; SPR CHAMBER
DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 9804-0011 ●
32 CONNECTOR; SPR CHAMBER
DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 9804-0011 ●
32 CONNECTOR; SPR CHAMBER
EXC. FINAL GEAR 16.5"<B2Y> DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0012-0106 ●
32 CONNECTOR; SPR CHAMBER
EXC. FINAL GEAR 16.5"<B2Y> DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0012-0106 ●
52 WASHER; PL 1-48259-291-0 04 1 9601-9803 ● ●
52 WASHER; PL 1-48259-291-0 04 1 9804-0004 ●
52 WASHER; PL
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-48259-291-0 04 1 0005-0106 ●
77 NUT; SPR CHAMBER BRK 1-48259-290-0 04 1 9601-9803 ● ●
77 NUT; SPR CHAMBER BRK 1-48259-290-0 04 1 9804-0004 ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-48259-290-0 04 1 0005-0106 ●

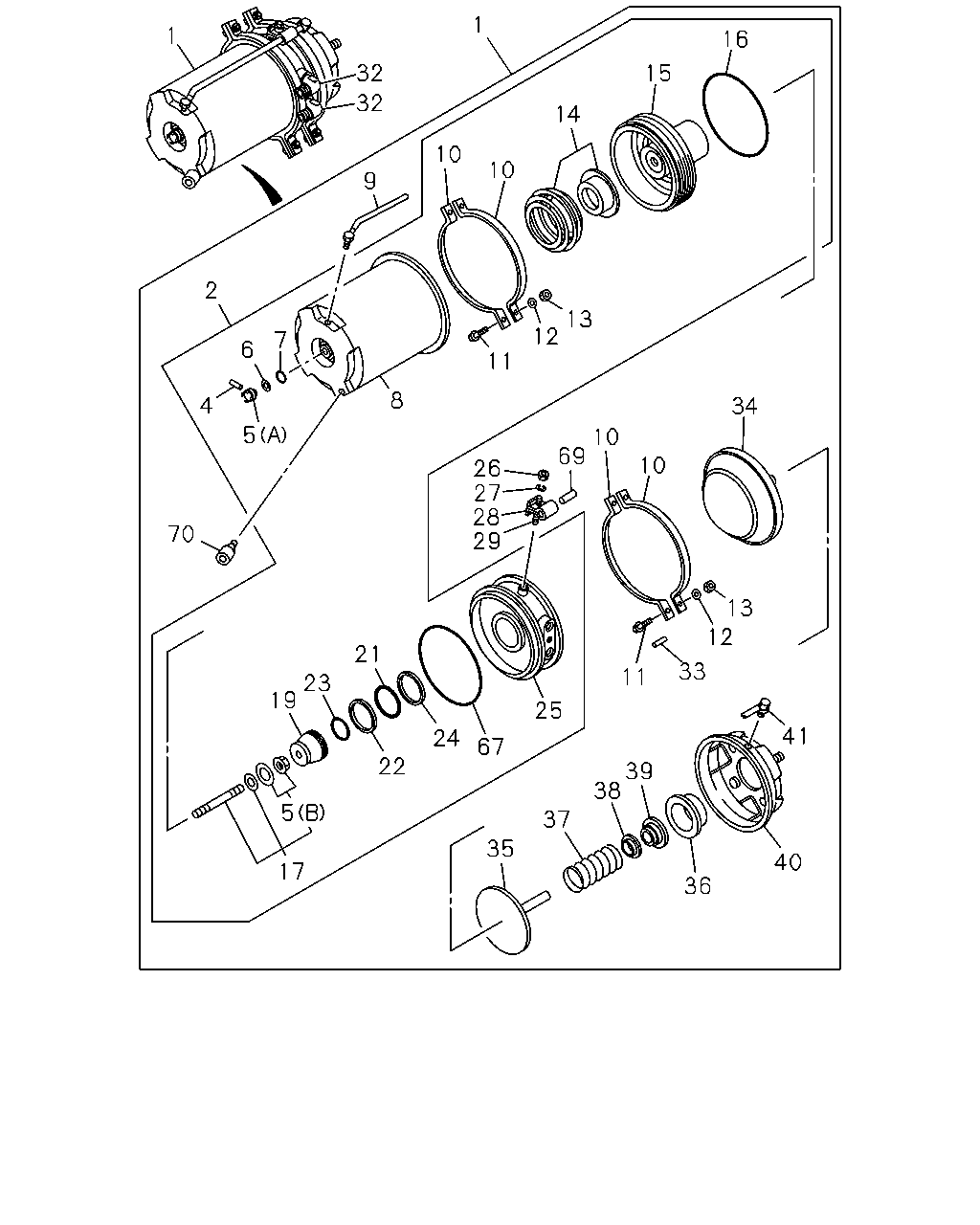

çizim 104233
1 1 16 32 15 32 14 10 10 9 2 13 12 7 6 11 8 4 34 5 10 69 10 26 27 28 29 70 13 12 21 33 11 23 19 25 41 24 67 22 39 38 5 37 35 40 17 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48250-641-0 01 1 0012-0106 ●
1 CHAMBER ASM; SPRING 1-48250-641-1 01 1 0107- ●
1 CHAMBER ASM; SPRING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48250-640-0 01 1 0012-0106 ●
1 CHAMBER ASM; SPRING 1-48250-640-1 01 1 0107- ●
1 CHAMBER ASM; SPRING 1-48250-558-0 02 1 9601-9803 ● ●
1 CHAMBER ASM; SPRING 1-48250-558-0 02 1 9804-0004 ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-48250-558-0 02 1 0005-0106 ●
2 CHAMBER; EMERGENCY
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48252-015-0 01 1 0012-0106 ●
2 CHAMBER; EMERGENCY 1-48252-015-0 01 1 0107- ●
2 CHAMBER; EMERGENCY
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48252-014-0 01 1 0012-0106 ●
2 CHAMBER; EMERGENCY 1-48252-014-0 01 1 0107- ●
4 PIN; STRAIGHT,SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-056-0 04 1 0012-0106 ●
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 0107- ●
5 NUT; SHELL
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (A) 		1-48259-054-0 02 1 0012-0106 ●
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 0107- ●
5 NUT; SHELL
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (B) 		1-48259-074-0 02 1 0012-0106 ●
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 0107- ●
6 GASKET; SHELL
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		9-09920-268-0 02 1 0012-0106 ●
6 GASKET; SHELL 9-09920-268-0 02 1 0107- ●
7 GASKET
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-055-0 02 1 0012-0106 ●
7 GASKET 1-48259-055-0 02 1 0107- ●
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-070-0 01 1 0012-0106 ●
8 SHELL; CYL,SPR CHAMBER 1-48259-070-0 01 1 0107- ●
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-069-0 01 1 0012-0106 ●
8 SHELL; CYL,SPR CHAMBER 1-48259-069-0 01 1 0107- ●
9 PIPE ASM; SHELL
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-076-0 02 1 0012-0106 ●
9 PIPE ASM; SHELL 1-48259-076-0 02 1 0107- ●
10 RING; CLAMP,SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-016-0 08 1 0012-0106 ●
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 0107- ●
11 BOLT; CLAMP RING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-092-0 08 1 0012-0106 ●
11 BOLT; CLAMP RING 1-48259-092-0 08 1 0107- ●
12 WASHER; LK,CLAMP RING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) ID=10.2 		9-09150-510-0 08 1 0012-0106 ●
12 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 08 1 0107- ●
13 NUT; CLAMP RING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		9-83315-080-0 08 1 0012-0106 ●
13 NUT; CLAMP RING 9-83315-080-0 08 1 0107- ●
14 SPRING & SEAT SET
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-037-0 02 1 0012-0106 ●
14 SPRING & SEAT SET 1-48259-037-1 02 1 0107- ●
15 PISTON
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48262-005-0 02 1 0012-0106 ●
15 PISTON 1-48262-005-0 02 1 0107- ●
16 GASKET
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-048-0 02 1 0012-0106 ●
16 GASKET 1-48259-048-0 02 1 0107- ●
17 BOLT ASM; EMERGENCY
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-073-0 02 1 0012-0106 ●
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 0107- ●
19 COVER; PISTON
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48269-011-0 02 1 0012-0106 ●
19 COVER; PISTON 1-48269-011-0 02 1 0107- ●
21 GASKET; SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-049-0 02 1 0012-0106 ●
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 0107- ●
22 RING; BACKUP,SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-019-0 02 1 0012-0106 ●
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 0107- ●
23 GASKET; SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-047-0 02 1 0012-0106 ●
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 0107- ●
24 BEARING; SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-020-0 02 1 0012-0106 ●
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 0107- ●
25 PLATE; PRESSURE,SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-078-0 01 1 0012-0106 ●
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-078-0 01 1 0107- ●
25 PLATE; PRESSURE,SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-077-0 01 1 0012-0106 ●
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-077-0 01 1 0107- ●
26 NUT; PRESSURE PLATE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-058-0 04 1 0012-0106 ●
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0107- ●
27 WASHER; PRESSURE PLATE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) ID=8.2 		9-09150-508-0 02 1 0012-0106 ●
27 WASHER; PRESSURE PLATE
ID=8.2 		9-09150-508-0 02 1 0107- ●
28 BRACKET; PRESSURE PLATE,HOSE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-059-0 02 1 0012-0106 ●
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 0107- ●
29 STUD; PRESSURE PLATE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-050-0 02 1 0012-0106 ●
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 0107- ●
32 CONNECTOR; SPR CHAMBER
FINAL GEAR 16.5"<B2Y> DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0012-0106 ●
32 CONNECTOR; SPR CHAMBER
FINAL GEAR 16.5"<B2Y> DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0012-0106 ●
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0107- ●
32 CONNECTOR; SPR CHAMBER 1-09660-741-0 02 1 9601-9803 ● ●
32 CONNECTOR; SPR CHAMBER 1-09660-741-0 02 1 9601-9803 ● ●
32 CONNECTOR; SPR CHAMBER
DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 9804-0011 ●
32 CONNECTOR; SPR CHAMBER
DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 9804-0011 ●
32 CONNECTOR; SPR CHAMBER
EXC. FINAL GEAR 16.5"<B2Y> DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0012-0106 ●
32 CONNECTOR; SPR CHAMBER
EXC. FINAL GEAR 16.5"<B2Y> DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0012-0106 ●
33 RETAINER; DIAPH
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-044-0 04 1 0012-0106 ●
33 RETAINER; DIAPH 1-48259-044-0 04 1 0107- ●
34 DIAPHRAGM
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48252-056-0 02 1 0012-0106 ●
34 DIAPHRAGM 1-48252-056-0 02 1 0107- ●
35 PLATE; ROD END,SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48253-010-0 02 1 0012-0106 ●
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 0107- ●
36 RETAINER; SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-043-0 02 1 0012-0106 ●
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 0107- ●
37 SPRING; LWR,SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48255-016-0 02 1 0012-0106 ●
37 SPRING; LWR,SPR CHAMBER 1-48255-016-0 02 1 0107- ●
38 COVER; ROD & PLATE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-066-0 02 1 0012-0106 ●
38 COVER; ROD & PLATE 1-48259-066-0 02 1 0107- ●
39 COVER; ROD & PLATE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-065-0 02 1 0012-0106 ●
39 COVER; ROD & PLATE 1-48259-065-0 02 1 0107- ●
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-068-1 01 1 0012-0106 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 01 1 0107- ●
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-067-1 01 1 0012-0106 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-067-1 01 1 0107- ●
41 PIPE ASM; LWR COVER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-075-0 02 1 0012-0106 ●
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 0107- ●
67 GASKET; SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-053-0 02 1 0012-0106 ●
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 0107- ●
69 HOSE; PRESSURE PLATE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-051-0 02 1 0012-0106 ●
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 0107- ●
70 COVER; EXH,SPR CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48259-052-0 02 1 0012-0106 ●
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 0107- ●
