◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#24812) — 57 parça

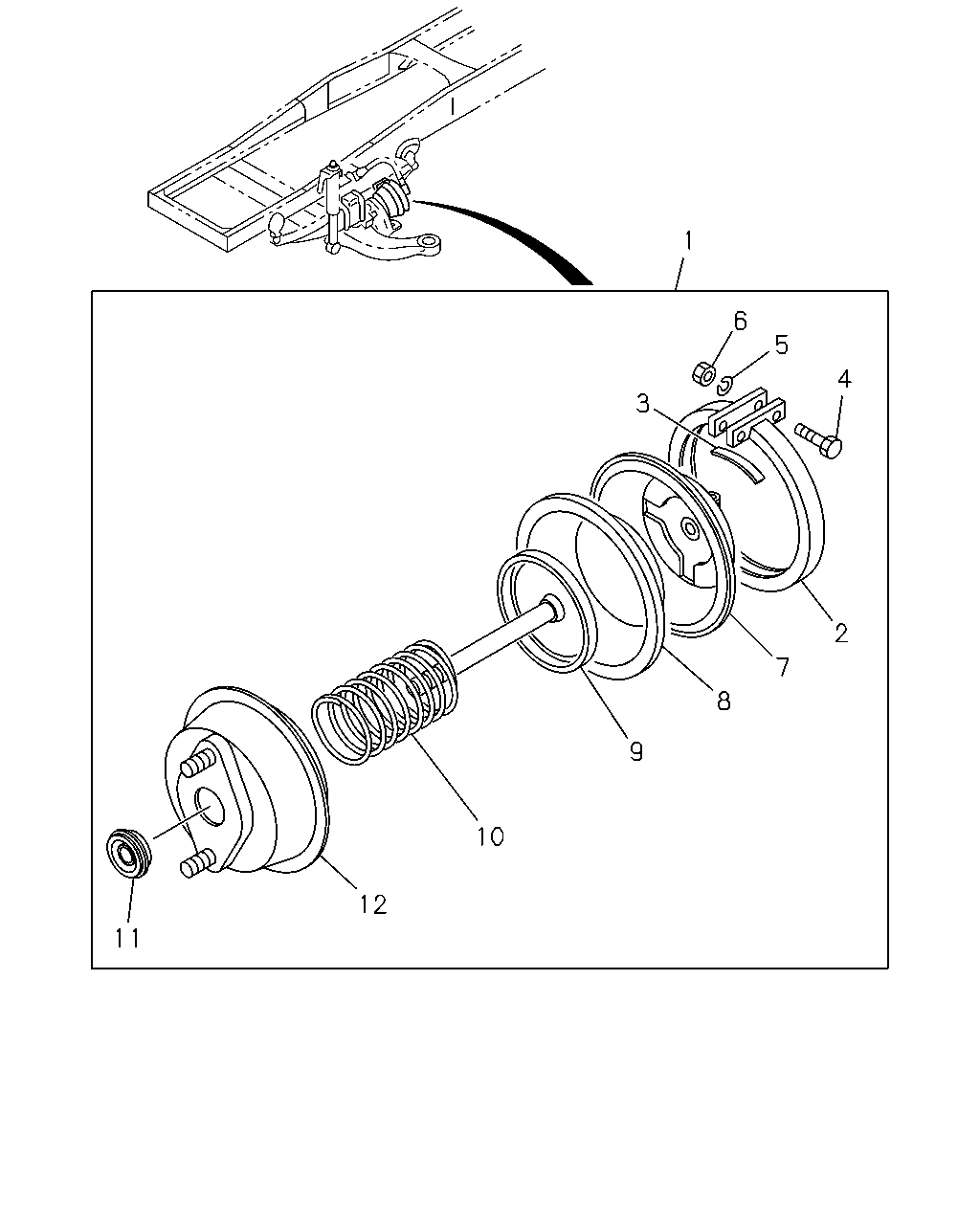

çizim 104228
1 6 5 4 3 2 7 8 9 10 12 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48250-338-0 02 1 0012-0106 ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-338-0 02 1 0107-0203 ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-062-2 02 1 0204- ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-560-0 01 1 9601-9803 ● ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-560-0 01 1 9804-0011 ●
1 CHAMBER ASM; POWER,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-48250-560-0 01 1 0012-0106 ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-561-0 01 1 9601-9803 ● ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-561-0 01 1 9804-0011 ●
1 CHAMBER ASM; POWER,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-48250-561-0 01 1 0012-0106 ●
2 RING; CLAMP,SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48259-001-0 02 1 0012-0106 ●
2 RING; CLAMP,SPR CHAMBER 1-48259-001-0 02 1 0107- ●
3 RETAINER; DIAPH
EXC. HUB LUBRICATION OIL BATH<C5K> 		9-48259-016-0 04 1 0012-0106 ●
3 RETAINER; DIAPH 9-48259-016-0 04 1 0107-0203 ●
3 RETAINER; DIAPH 9-48259-016-0 02 1 0204- ●
4 BOLT; CLAMP RING
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48259-002-0 04 1 0012-0106 ●
4 BOLT; CLAMP RING 1-48259-002-0 04 1 0107- ●
5 WASHER; LK,CLAMP RING
EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2 		9-09150-510-0 04 1 0012-0106 ●
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 0107- ●
6 NUT; CLAMP RING
EXC. HUB LUBRICATION OIL BATH<C5K> M10 		9-09110-010-0 04 1 0012-0106 ●
6 NUT; CLAMP RING
M10 		9-09110-010-0 04 1 0107- ●
7 COVER ASM; UPR,SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48251-039-0 02 1 0012-0106 ●
7 COVER ASM; UPR,SPR CHAMBER 1-48251-039-0 02 1 0107- ●
8 DIAPHRAGM; SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48252-006-0 02 1 0012-0106 ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-006-0 02 1 0107-0203 ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-054-0 02 1 0204- ●
9 PISTON; SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48253-001-0 02 1 0012-0106 ●
9 PISTON; SPR CHAMBER 1-48253-001-0 02 1 0107- ●
10 SPRING; PISTON,SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48255-001-0 02 1 0012-0106 ●
10 SPRING; PISTON,SPR CHAMBER 1-48255-001-0 02 1 0107- ●
11 SEAL; PISTON,SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48252-025-0 02 1 0012-0106 ●
11 SEAL; PISTON,SPR CHAMBER 1-48252-025-0 02 1 0107- ●
12 COVER ASM; LWR,SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48251-019-0 02 1 0012-0106 ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-019-0 02 1 0107- ●

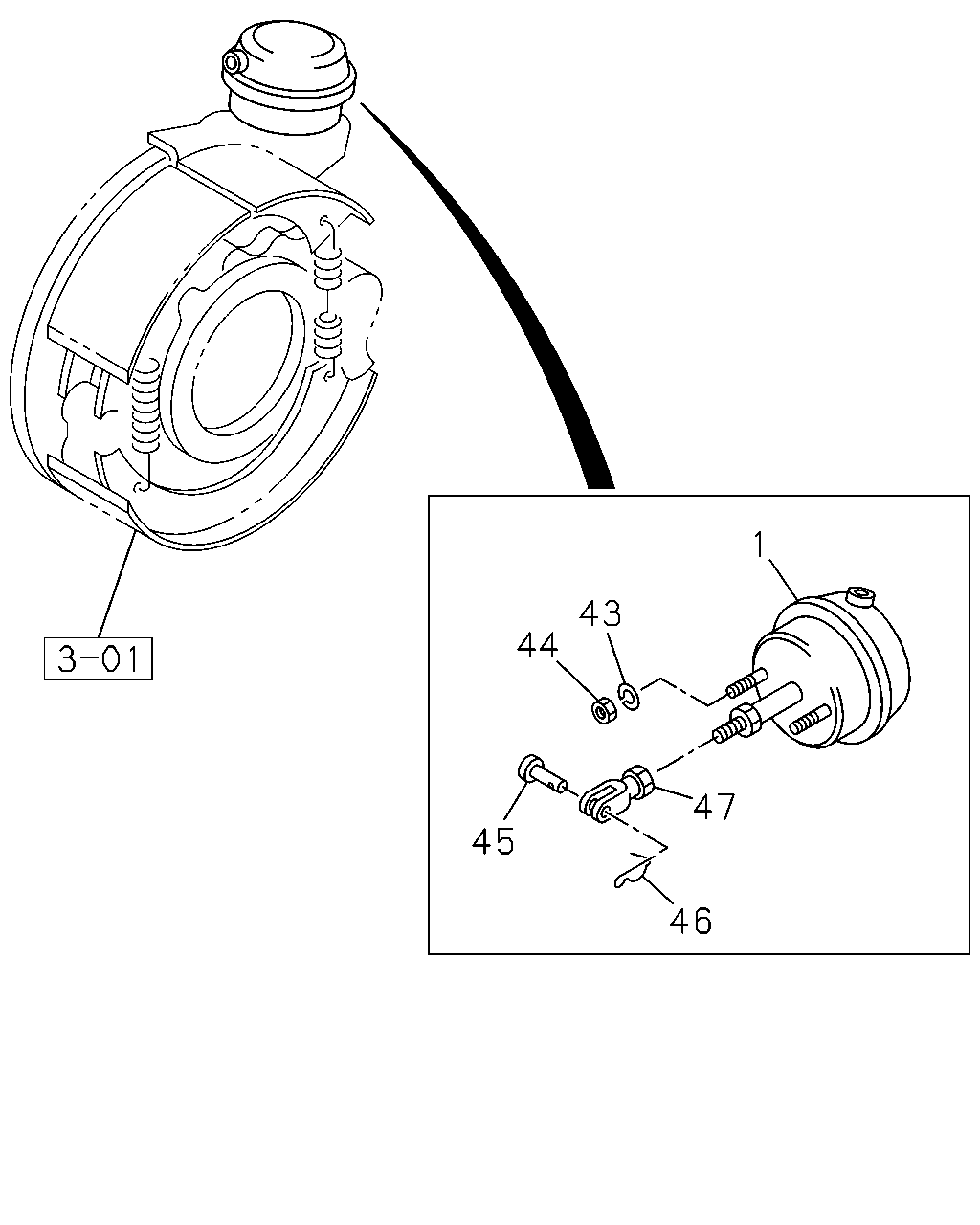

çizim 104234
1 43 44 47 45 46
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48250-338-0 02 1 0012-0106 ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-338-0 02 1 0107-0203 ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-062-2 02 1 0204- ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-560-0 01 1 9601-9803 ● ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-560-0 01 1 9804-0011 ●
1 CHAMBER ASM; POWER,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-48250-560-0 01 1 0012-0106 ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-561-0 01 1 9601-9803 ● ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-561-0 01 1 9804-0011 ●
1 CHAMBER ASM; POWER,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-48250-561-0 01 1 0012-0106 ●
43 WASHER; LK,POWER CHAMBER 1-48259-282-0 04 1 9601-9803 ● ●
43 WASHER; LK,POWER CHAMBER 1-48259-282-0 04 1 9804-0011 ●
43 WASHER; LK,POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48259-282-0 04 1 0012-0106 ●
44 NUT; POWER CHAMBER 1-48259-283-0 04 1 9601-9803 ● ●
44 NUT; POWER CHAMBER 1-48259-283-0 04 1 9804-0011 ●
44 NUT; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48259-283-0 04 1 0012-0106 ●
45 PIN; JAW JOINT,POWER CHAMBER 1-48259-285-0 02 1 9601-9803 ● ●
45 PIN; JAW JOINT,POWER CHAMBER 1-48259-285-0 02 1 9804-0011 ●
45 PIN; JAW JOINT,POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48259-285-0 02 1 0012-0106 ●
46 PIN; SPLIT,JAW JOINT 1-48259-284-0 02 1 9601-9803 ● ●
46 PIN; SPLIT,JAW JOINT 1-48259-284-0 02 1 9804-0011 ●
46 PIN; SPLIT,JAW JOINT
HUB LUBRICATION OIL BATH<C5K> 		1-48259-284-0 02 1 0012-0106 ●
47 JOINT; JAW,POWER CHAMBER 1-48259-286-0 02 1 9601-9803 ● ●
47 JOINT; JAW,POWER CHAMBER 1-48259-286-0 02 1 9804-0011 ●
47 JOINT; JAW,POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48259-286-0 02 1 0012-0106 ●
