◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 3 - Brakes, Brake System ▶ 3-34 - BRAKE VALVE; AIR ▶
3-34 — BRAKE VALVE; AIR (#24811) — 82 parça

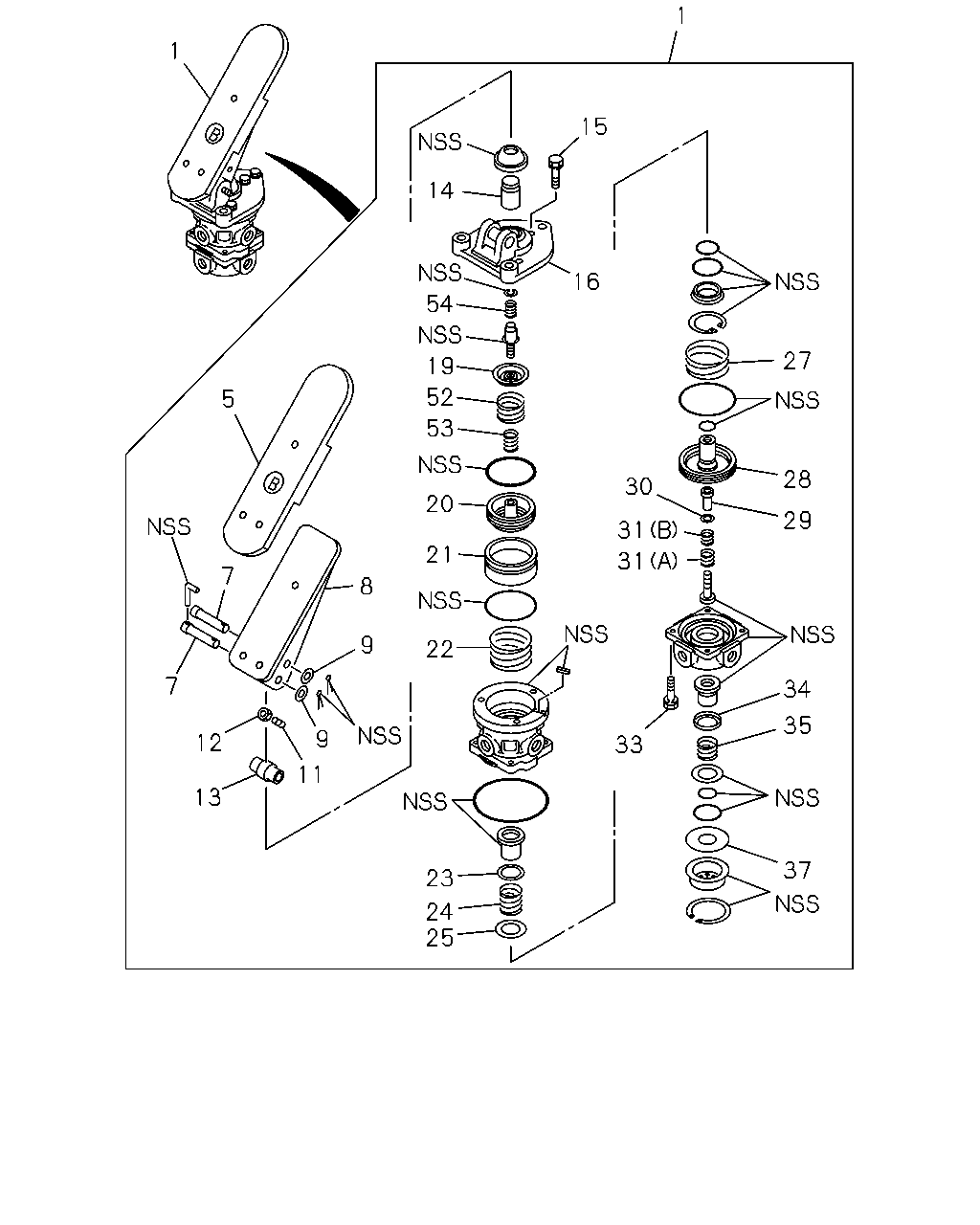

çizim 85648
1 1 15 14 16 54 27 19 52 5 53 28 30 20 29 31 21 31 7 8 9 22 7 34 35 9 12 33 11 13 37 23 24 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; BRK 1-48100-727-2 01 1 9601-9606 ● ●
1 VALVE; BRK 1-48100-775-0 01 1 9607-9803 ● ●
1 VALVE; BRK 1-48100-775-0 01 1 9804-0201 ●
1 VALVE; BRK 1-48100-844-0 01 1 0202-1211 ●
1 VALVE; BRK 8-98222-791-0 01 1 1212- ●
5 COVER; PEDAL,BRK VLV 1-48119-333-0 01 1 9601-9803 ● ●
5 COVER; PEDAL,BRK VLV 1-48119-333-0 01 1 9804-0201 ●
5 COVER; PEDAL,BRK VLV 1-48119-432-0 01 1 0202- ●
7 PIN; PEDAL,BRK VLV 1-48119-244-0 02 1 9601-9803 ● ●
7 PIN; PEDAL,BRK VLV 1-48119-244-0 02 1 9804-0201 ●
7 PIN; PEDAL,BRK VLV 1-48119-431-0 02 1 0202- ●
8 PEDAL; BRK VLV 1-48119-332-0 01 1 9601-9803 ● ●
8 PEDAL; BRK VLV 1-48119-332-0 01 1 9804-0201 ●
8 PEDAL; BRK VLV 1-48119-428-0 01 1 0202- ●
9 WASHER; PIN,BRK VLV 1-48119-106-0 02 1 9601-9803 ● ●
9 WASHER; PIN,BRK VLV 1-48119-106-0 02 1 9804-0201 ●
11 SCREW; SET,BRK VLV 1-48119-245-0 01 1 9601-9803 ● ●
11 SCREW; SET,BRK VLV 1-48119-245-0 01 1 9804-0201 ●
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 0202- ●
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 9601-9803 ● ●
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 9804- ●
13 ROLLER; PEDAL,BRK VLV 1-48119-243-0 01 1 9601-9803 ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-243-0 01 1 9804-0201 ●
13 ROLLER; PEDAL,BRK VLV 1-48119-430-0 01 1 0202- ●
14 PLUNGER; BRK VLV 1-48119-362-0 01 1 9601-9606 ● ●
14 PLUNGER; BRK VLV 1-48119-383-0 01 1 9607-9803 ● ●
14 PLUNGER; BRK VLV 1-48119-383-0 01 1 9804-0201 ●
14 PLUNGER; BRK VLV 1-48119-561-0 01 1 0202- ●
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 9601-9803 ● ●
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 9804- ●
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 9601-9803 ● ●
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 9804-0201 ●
16 PLATE; MTG,BRKT VLV 1-48119-547-0 01 1 0202- ●
19 SEAT; SPRING,BRK VLV 1-48123-041-0 01 1 9601-9803 ● ●
19 SEAT; SPRING,BRK VLV 1-48123-041-0 01 1 9804- ●
20 PISTON; UPR,BRK VLV 1-48119-336-0 01 1 9601-9606 ● ●
20 PISTON; UPR,BRK VLV 1-48119-381-0 01 1 9607-9803 ● ●
20 PISTON; UPR,BRK VLV 1-48119-381-0 01 1 9804-0201 ●
20 PISTON; UPR,BRK VLV 1-48119-560-0 01 1 0202- ●
21 BUSHING; UPR BODY 1-48119-293-0 01 1 9601-9606 ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48143-009-0 01 1 9601-9606 ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48123-071-0 01 1 9607-9803 ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48123-071-0 01 1 9804- ●
23 WASHER; UPR,BRK VLV 1-48129-145-0 01 1 9601-9803 ● ●
23 WASHER; UPR,BRK VLV 1-48129-145-0 01 1 9804- ●
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 9601-9803 ● ●
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 9804- ●
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 9601-9803 ● ●
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 9804- ●
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 9601-9803 ● ●
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 9804- ●
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 9601-9803 ● ●
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 9804-0201 ●
28 PISTON; LWR,BRK VLV 1-48129-313-0 01 1 0202- ●
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 9601-9803 ● ●
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 9804- ●
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 9601-9803 ● ●
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 9804- ●
31 SPRING; VLV,BRK VLV
(B) 		1-48123-032-0 01 1 9601-9803 ● ●
31 SPRING; VLV,BRK VLV
(B) 		1-48123-032-0 01 1 9804- ●
31 SPRING; VLV,BRK VLV
(A) 		1-48123-033-0 01 1 9601-9803 ● ●
31 SPRING; VLV,BRK VLV
(A) 		1-48123-033-0 01 1 9804- ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 9601-9803 ● ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 9804- ●
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 9601-9803 ● ●
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 9804- ●
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 9601-9803 ● ●
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 9804- ●
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 9601-9803 ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 9804- ●
52 SPRING; PISTON,OUTER,BRK VLV 1-48123-040-0 01 1 9601-9606 ● ●
52 SPRING; PISTON,OUTER,BRK VLV 1-48123-074-0 01 1 9607-9803 ● ●
52 SPRING; PISTON,OUTER,BRK VLV 1-48123-074-0 01 1 9804- ●
53 SPRING; PISTON,INNER,BRK VLV 1-48123-068-0 01 1 9601-9803 ● ●
53 SPRING; PISTON,INNER,BRK VLV 1-48123-068-0 01 1 9804- ●
54 SPRING; PISTON,UPR,BRK VLV 1-48123-067-0 01 1 9601-9803 ● ●
54 SPRING; PISTON,UPR,BRK VLV 1-48123-067-0 01 1 9804- ●
çizim 104145
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; BRK VLV 1-85576-147-0 01 1 9601-9606 ● ●
2 REPAIR KIT; BRK VLV 1-85576-182-0 01 1 9607-9803 ● ●
2 REPAIR KIT; BRK VLV 1-85576-182-0 01 1 9804-0201 ●
2 REPAIR KIT; BRK VLV 1-85576-285-0 01 1 0202-1211 ●
2 REPAIR KIT; BRK VLV 8-98222-819-0 01 1 1212- ●
