3-26 — TRAILER CONTROL (#24810) — 65 parça

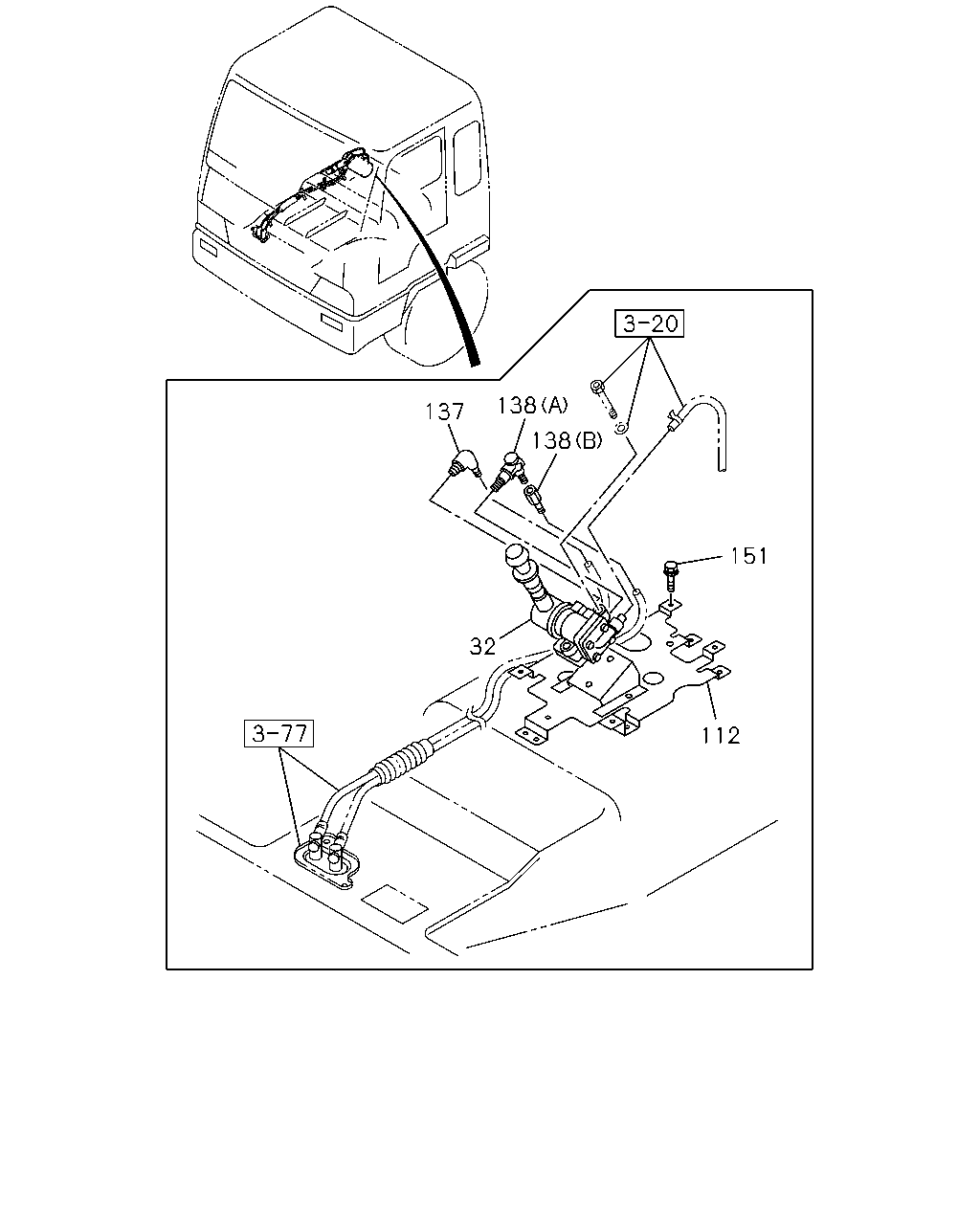

138 137 138 151 32 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	9601-9803	●	●
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	9804-	●
112	BRACKET; CONT VLV	1-73908-054-1	01	1	9601-9803	●	●
112	BRACKET; CONT VLV	1-73908-054-7	01	1	9804-	●
137	CONNECTOR; SUPPLY DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9803	●	●
137	CONNECTOR; SUPPLY DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-9811	●
137	CONNECTOR; SUPPLY DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9812-	●
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0005-	●
138	CONNECTOR; DELIVERY (A)	1-09650-240-1	01	1	9601-9803	●	●
138	CONNECTOR; DELIVERY (A)	1-09650-240-1	01	1	9804-	●
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9601-9803	●	●
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9804-0004	●
151	BOLT; VLV BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9601-9803	●	●
151	BOLT; VLV BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9804-	●

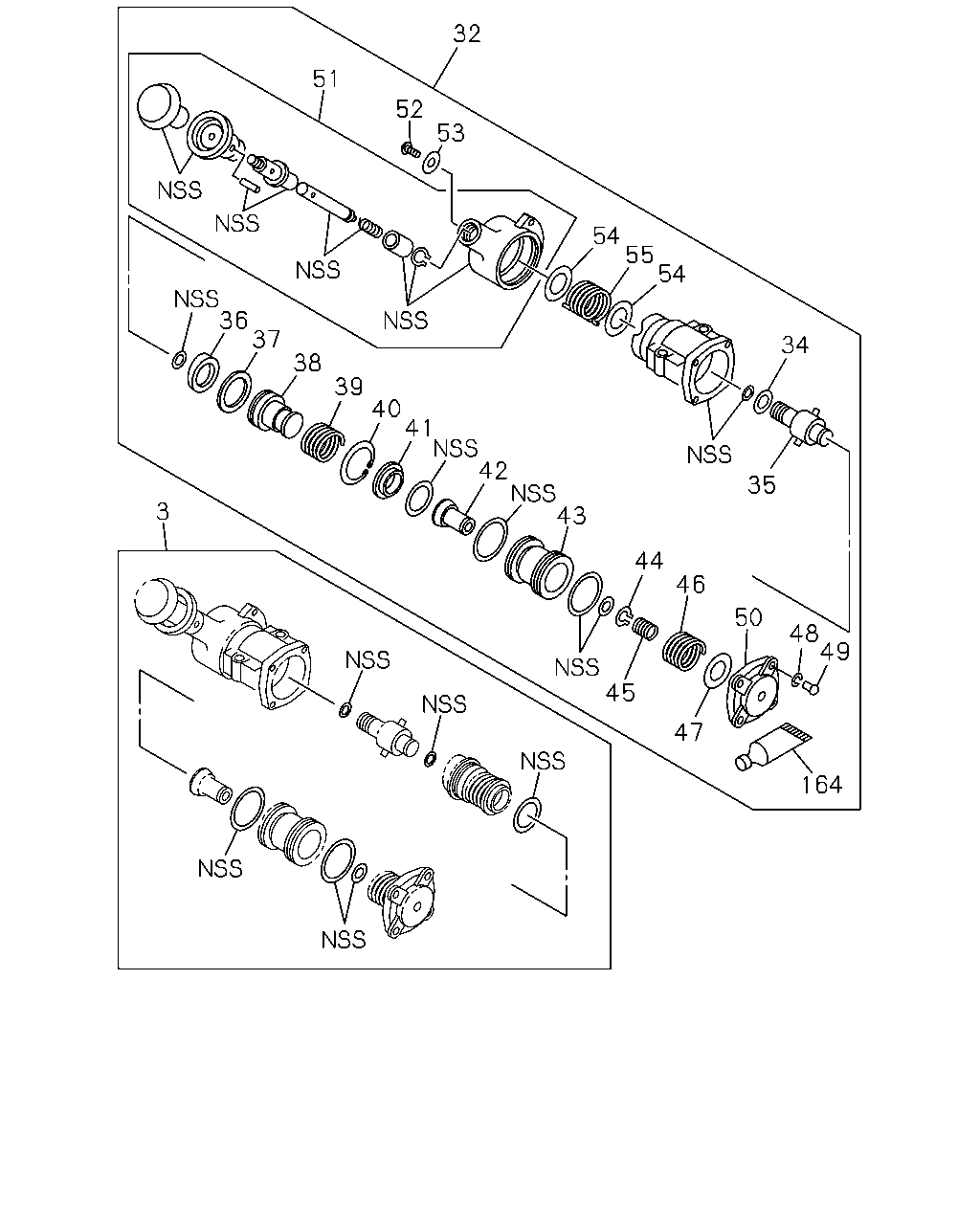

32 51 52 53 54 55 54 36 37 34 38 39 40 41 42 43 35 3 44 46 50 48 49 45 47 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV	1-48469-096-0	01	1	9601-9803	●	●
3	REPAIR KIT; HAND BRK VLV	1-48469-096-0	01	1	9804-	●
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	9601-9803	●	●
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	9804-	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	9601-9803	●	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	9804-	●
35	HOLDER; CAM	1-48469-054-0	01	1	9601-9803	●	●
35	HOLDER; CAM	1-48469-054-0	01	1	9804-	●
36	RING; CAM	1-48469-056-0	01	1	9601-9803	●	●
36	RING; CAM	1-48469-056-0	01	1	9804-	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	9601-9803	●	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	9804-	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	9601-9803	●	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	9804-	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	9601-9803	●	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	9804-	●
40	RING; SNAP	1-48469-067-0	01	1	9601-9803	●	●
40	RING; SNAP	1-48469-067-0	01	1	9804-	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	9601-9803	●	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	9804-	●
42	VALVE; FEED	1-48469-065-0	01	1	9601-9803	●	●
42	VALVE; FEED	1-48469-065-0	01	1	9804-	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	9601-9803	●	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	9804-	●
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	9601-9803	●	●
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	9804-	●
45	SPRING; FEED VLV	1-48469-070-0	01	1	9601-9803	●	●
45	SPRING; FEED VLV	1-48469-070-0	01	1	9804-	●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	9601-9803	●	●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	9804-	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	9601-9803	●	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	9804-	●
48	WASHER; COVER	1-48469-091-0	04	1	9601-9803	●	●
48	WASHER; COVER	1-48469-091-0	04	1	9804-	●
49	SCREW; COVER	1-48469-092-0	04	1	9601-9803	●	●
49	SCREW; COVER	1-48469-092-0	04	1	9804-	●
50	COVER; HAND BRK VLV	1-48469-090-0	01	1	9601-9803	●	●
50	COVER; HAND BRK VLV	1-48469-090-0	01	1	9804-	●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	9601-9803	●	●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	9804-	●
52	SCREW; HANDLE	1-48469-062-0	01	1	9601-9803	●	●
52	SCREW; HANDLE	1-48469-062-0	01	1	9804-	●
53	WASHER; HANDLE	1-48469-061-0	01	1	9601-9803	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	9804-	●
54	SEAT; SPRING	1-48469-082-0	02	1	0107-	●
54	SEAT; SPRING	1-48469-123-0	02	1	9601-9803	●	●
54	SEAT; SPRING	1-48469-123-0	02	1	9804-0106	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	9601-9803	●	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	9804-	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	9601-9803	●	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	9804-	●
