Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#24809) — 272 parça

31 30 34 93 93 33 38 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9601-9803	●	●
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9804-0004	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0005-	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28080-830-0	02	1	9601-9602	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9804-0512	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
33	BRACKET; GOV,AIR CONT	1-48359-045-0	01	1	9601-9803	●	●
33	BRACKET; GOV,AIR CONT	1-48359-045-0	01	1	9804-0004	●
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0005-	●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28080-825-0	02	1	9601-9602	●	●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28680-835-0	02	1	9607-9803	●	●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28680-830-0	02	1	9804-0512	●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9601-9606	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9804-0602	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●
38	NUT; BRKT,GOV M8	9-09110-408-0	02	1	9601-9606	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	9804-0602	●
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0603-	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-	●

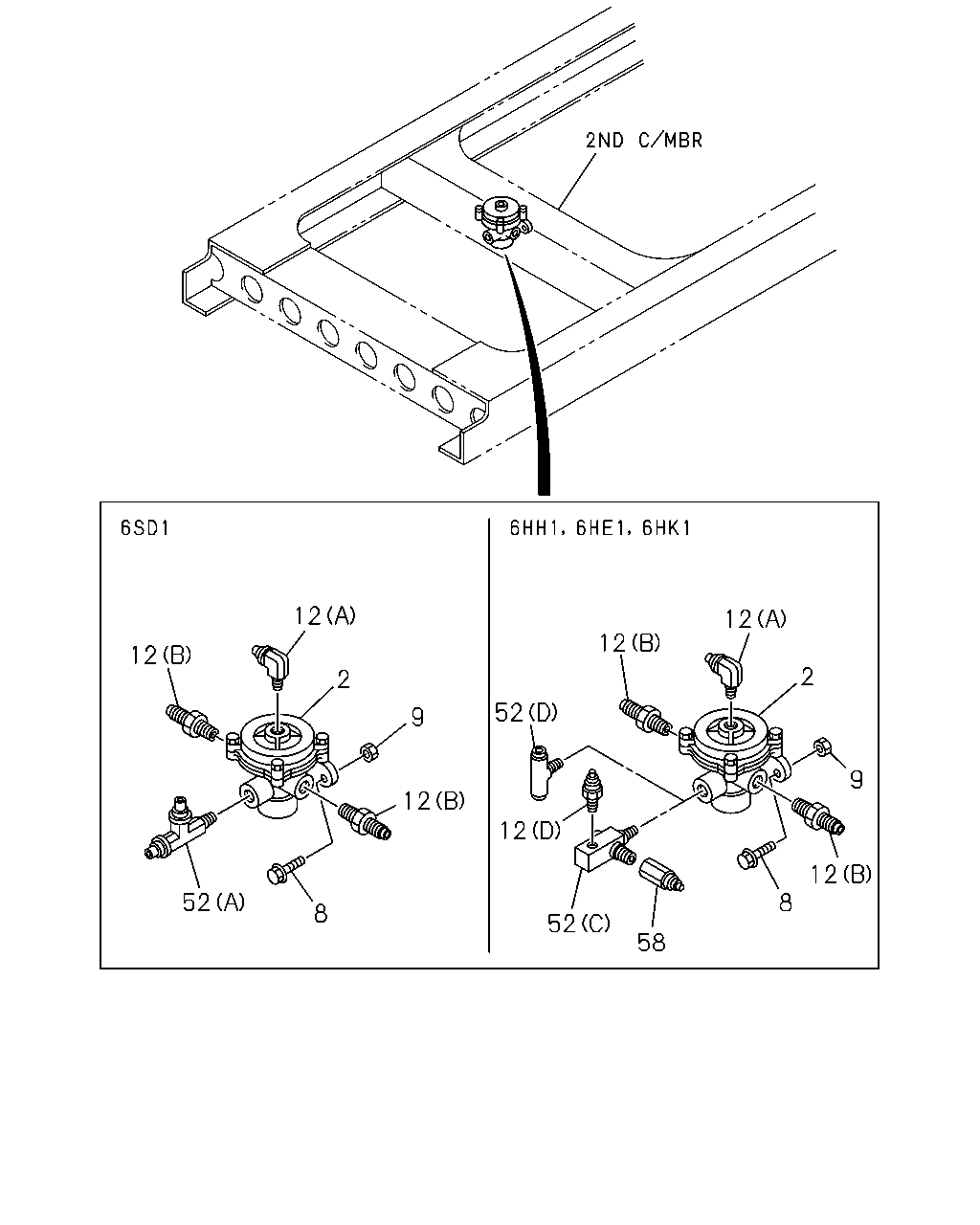

12 12 12 12 2 2 52 9 9 12 12 12 52 8 8 52 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY	1-48210-278-0	01	1	9601-9803	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9601-9803	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9804-0004	●
2	VALVE; RELAY	1-48210-278-0	01	1	9804-0004	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●
8	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	02	1	9601-9702	●	●
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9703-9803	●	●
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9804-0512	●
8	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
9	NUT M10	9-09110-510-0	02	1	9601-9606	●	●
9	NUT M10 FLANGE	0-91150-210-0	02	1	9607-9803	●	●
9	NUT M10 FLANGE	0-91150-210-0	02	1	9804-0602	●
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-	●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	9601-9609	●	●
12	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (B) M16	1-09650-245-1	02	1	9610-9612	●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	9610-9612		●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	9701-9803	●	●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	9804-	●
12	CONNECTOR; RELAY VLV (C) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9609	●	●
12	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9610-9612	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9610-9612		●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9701-9803	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-	●
12	CONNECTOR; RELAY VLV (H) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (H) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-	●
12	CONNECTOR; RELAY VLV (G) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9804-	●
12	CONNECTOR; RELAY VLV (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9601-9612		●
12	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L) (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9701-9803	●
12	CONNECTOR; RELAY VLV (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9701-9803		●
12	CONNECTOR; RELAY VLV (G) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-	●
52	CONNECTOR; RELAY VLV (B)	1-09656-475-1	01	1	9601-9803	●	●
52	CONNECTOR; RELAY VLV (E)	1-09656-476-0	01	1	9804-	●
52	CONNECTOR; RELAY VLV (A)	1-09660-719-1	01	1	9601-9601	●	●
52	CONNECTOR; RELAY VLV (A)	1-09660-719-1	01	1	9601-9609	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (A)	1-09660-719-1	01	1	9610-9803	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-	●
52	CONNECTOR; RELAY VLV (C)	1-09656-548-1	01	1	9601-9612		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L) (C)	1-09656-548-1	01	1	9701-9803	●
52	CONNECTOR; RELAY VLV (C)	1-09656-548-1	01	1	9701-9803		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9804-0106	●
52	CONNECTOR; RELAY VLV 6HK1 TCS ENG(80L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0107-	●
58	ADAPTER DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9601-9612		●
58	ADAPTER 6HE1 TC ENG(57L) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9701-9803	●
58	ADAPTER DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9701-9803		●

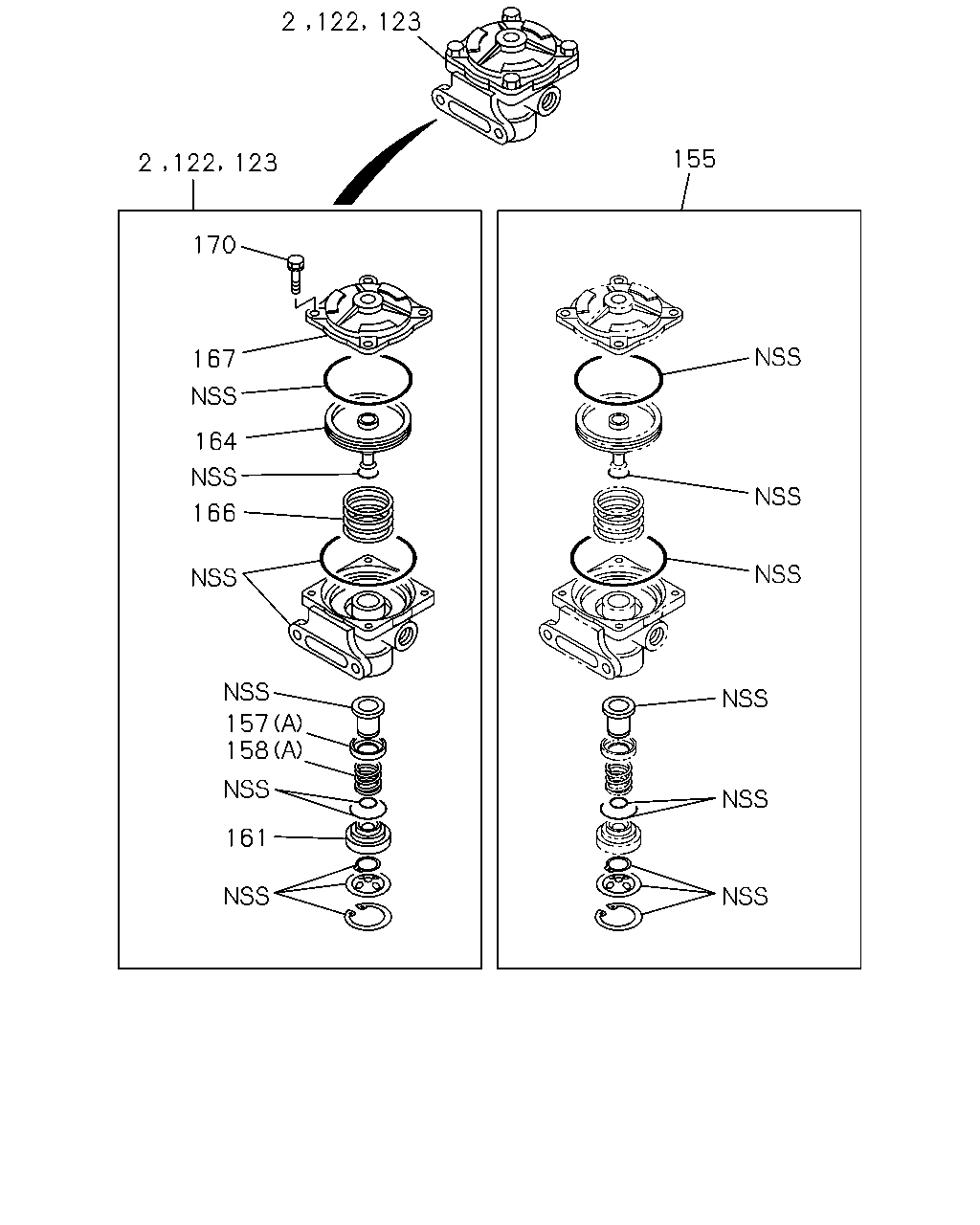

2 122 123 155 123 2 122 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY	1-48210-278-0	01	1	9601-9803	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9601-9803	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9804-0004	●
2	VALVE; RELAY	1-48210-278-0	01	1	9804-0004	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9612-9803	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9804-0004	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-	●
123	CONNECTOR; PARKING VLV	1-48210-278-0	01	1	9601-9611	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	9601-9803	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	9804-	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	9601-9609	●	●
155	REPAIR KIT; RELAY VALVE 6SD1 TCN ENG(31L)	1-85576-033-0	01	1	9610-9612	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	9610-9612		●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	9701-9803	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	9804-	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0110-	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	9601-9803	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	9804-	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9601-9609	●	●
157	RETAINER; VALVE 6SD1 TCN ENG(31L) (A)	1-48213-002-0	01	1	9610-9612	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9610-9612		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9701-9803	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9804-	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0110-	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9601-9803	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9804-	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9601-9609	●	●
158	SPRING; VALVE 6SD1 TCN ENG(31L) (A)	1-47819-089-0	01	1	9610-9612	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9610-9612		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9701-9803	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9804-	●
161	GUIDE; VALVE	1-48129-014-0	02	1	9601-9803	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	9804-	●
161	GUIDE; VALVE	1-48129-014-0	01	1	9601-9609	●	●
161	GUIDE; VALVE 6SD1 TCN ENG(31L)	1-48129-014-0	01	1	9610-9612	●
161	GUIDE; VALVE	1-48129-014-0	01	1	9610-9612		●
161	GUIDE; VALVE	1-48129-014-0	01	1	9701-9803	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	9804-	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	9601-9803	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	9804-	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	9601-9609	●	●
164	PISTON; RELAY VALVE 6SD1 TCN ENG(31L)	1-48219-071-0	01	1	9610-9612	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	9610-9612		●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	9701-9803	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	9804-	●
166	SPRING; PISTON	1-47819-090-0	02	1	9601-9803	●	●
166	SPRING; PISTON	1-47819-090-0	02	1	9804-	●
166	SPRING; PISTON	1-47819-090-0	01	1	9601-9609	●	●
166	SPRING; PISTON 6SD1 TCN ENG(31L)	1-47819-090-0	01	1	9610-9612	●
166	SPRING; PISTON	1-47819-090-0	01	1	9610-9612		●
166	SPRING; PISTON	1-47819-090-0	01	1	9701-9803	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	9804-	●
167	COVER; VALVE	1-48219-070-0	02	1	9601-9803	●	●
167	COVER; VALVE	1-48219-070-0	02	1	9804-	●
167	COVER; VALVE	1-48219-070-0	01	1	9601-9609	●	●
167	COVER; VALVE 6SD1 TCN ENG(31L)	1-48219-070-0	01	1	9610-9612	●
167	COVER; VALVE	1-48219-070-0	01	1	9610-9612		●
167	COVER; VALVE	1-48219-070-0	01	1	9701-9803	●	●
167	COVER; VALVE	1-48219-070-0	01	1	9804-	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	9601-9803	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	9804-	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	9601-9609	●	●
170	SCREW; COVER TO BODY 6SD1 TCN ENG(31L)	1-48219-039-0	04	1	9610-9612	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	9610-9612		●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	9701-9803	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	9804-	●

240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0107-	●
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	0005-0106	●
240	REPAIR KIT; AIR CONT GOV	1-85576-207-0	01	1	9601-9803	●	●
240	REPAIR KIT; AIR CONT GOV	1-85576-207-0	01	1	9804-0004	●

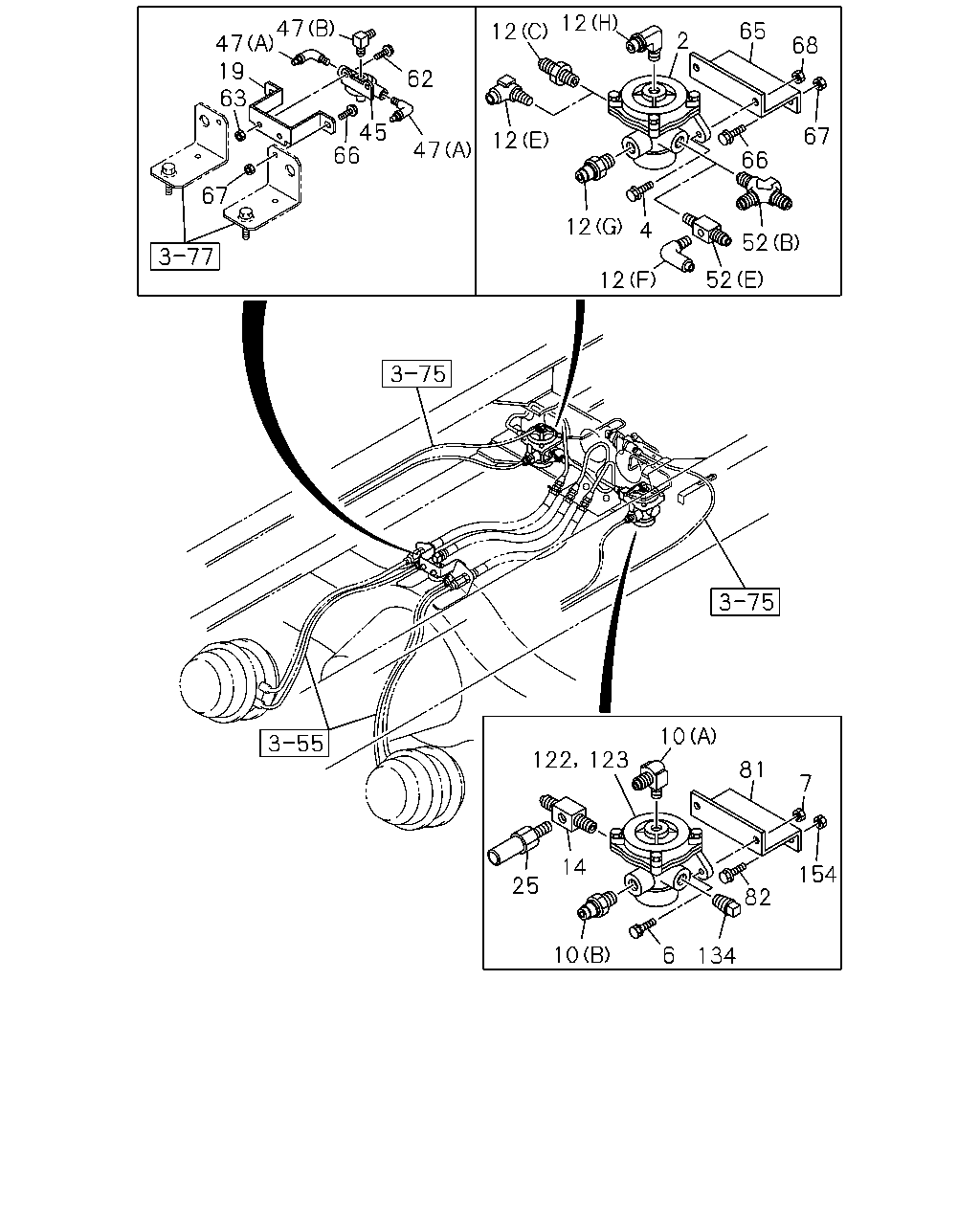

12 47 65 12 2 47 19 63 68 62 45 66 67 12 47 66 67 12 4 52 52 12 10 122 123 81 7 14 154 25 82 10 6 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY	1-48210-278-0	01	1	9601-9803	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9601-9803	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9804-0004	●
2	VALVE; RELAY	1-48210-278-0	01	1	9804-0004	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28081-030-0	02	1	9601-9702	●	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	9703-9803	●	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	9804-0512	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
6	BOLT; VLV M10X30 FLANGE	0-28081-030-0	02	1	9601-9702	●	●
6	BOLT; VLV M10X30 FLANGE	0-28681-030-0	02	1	9703-9803	●	●
6	BOLT; VLV M10X30 FLANGE	0-28681-030-0	02	1	9804-0512	●
6	BOLT; VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
7	NUT; RELAY VLV M10	9-09110-510-0	02	1	9601-9606	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9607-9803	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9804-0602	●
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-	●
10	CONNECTOR (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9803	●	●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-	●
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9803	●	●
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-	●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	9601-9609	●	●
12	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (B) M16	1-09650-245-1	02	1	9610-9612	●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	9610-9612		●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	9701-9803	●	●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	9804-	●
12	CONNECTOR; RELAY VLV (C) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9609	●	●
12	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9610-9612	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9610-9612		●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9701-9803	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-	●
12	CONNECTOR; RELAY VLV (H) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (H) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-	●
12	CONNECTOR; RELAY VLV (G) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9804-	●
12	CONNECTOR; RELAY VLV (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9601-9612		●
12	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L) (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9701-9803	●
12	CONNECTOR; RELAY VLV (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9701-9803		●
12	CONNECTOR; RELAY VLV (G) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-	●
14	CONNECTOR; RELAY VLV	1-09656-476-0	01	1	9601-9803	●	●
14	CONNECTOR; RELAY VLV	1-09656-476-0	01	1	9804-	●
19	BRACKET; QUICK RELEASE VLV	1-47477-518-0	01	1	9601-9803	●	●
19	BRACKET; QUICK RELEASE VLV	1-47477-518-0	01	1	9804-	●
25	SWITCH; PRESSURE	1-82410-163-0	01	1	9601-9803	●	●
25	SWITCH; PRESSURE	1-82410-163-1	01	1	9804-	●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	9601-9803	●	●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	9804-0109	●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0110-	●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9601-9803	●	●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9804-	●
47	CONNECTOR; RELAY VLV,CONT (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9601-9803	●	●
47	CONNECTOR; RELAY VLV,CONT (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9804-	●
52	CONNECTOR; RELAY VLV (B)	1-09656-475-1	01	1	9601-9803	●	●
52	CONNECTOR; RELAY VLV (E)	1-09656-476-0	01	1	9804-	●
52	CONNECTOR; RELAY VLV (A)	1-09660-719-1	01	1	9601-9601	●	●
52	CONNECTOR; RELAY VLV (A)	1-09660-719-1	01	1	9601-9609	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (A)	1-09660-719-1	01	1	9610-9803	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-	●
52	CONNECTOR; RELAY VLV (C)	1-09656-548-1	01	1	9601-9612		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L) (C)	1-09656-548-1	01	1	9701-9803	●
52	CONNECTOR; RELAY VLV (C)	1-09656-548-1	01	1	9701-9803		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9804-0106	●
52	CONNECTOR; RELAY VLV 6HK1 TCS ENG(80L) (D) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0107-	●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	9601-9803	●	●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	9804-0106	●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	0107-0512	●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	9601-9803	●	●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	9804-0512	●
63	NUT; BRKT FIX M8	0-91110-508-0	02	1	0601-	●
65	BRACKET; RELAY VLV RR	1-48495-132-0	01	1	9601-9803	●	●
65	BRACKET; RELAY VLV RR	1-47477-964-0	01	1	9804-	●
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	9804-0207	●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28681-030-0	02	1	0208-0512	●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
66	BOLT; BRKT,RELAY VLV RR M8X20 FLANGE	0-28080-820-0	05	1	9601-9606	●	●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	05	1	9607-9803	●	●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	02	1	9804-0512	●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	9804-0602	●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91180-210-0	02	1	0603-	●
67	NUT; BRKT,RELAY VLV RR M8	9-09110-408-0	02	1	9601-9606	●	●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91150-108-0	02	1	9804-0602	●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91180-108-0	02	1	0603-	●
68	NUT; RELAY VLV TO BRKT M10	9-09110-510-0	02	1	9601-9606	●	●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9803	●	●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	9804-0602	●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●
81	BRACKET; RELAY VLV,PARKING BRK	1-48495-132-0	01	1	9601-9803	●	●
81	BRACKET; RELAY VLV,PARKING BRK	1-47477-964-0	01	1	9804-	●
82	BOLT; BRKT,RELAY VLV M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●	●
82	BOLT; BRKT,RELAY VLV M8X25 FLANGE	0-28680-825-0	03	1	9607-9803	●	●
82	BOLT; BRKT,RELAY VLV M10X25 FLANGE	0-28681-025-0	02	1	9804-0207	●
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28681-030-0	02	1	0208-0512	●
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9612-9803	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9804-0004	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-	●
123	CONNECTOR; PARKING VLV	1-48210-278-0	01	1	9601-9611	●	●
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	9601-9803	●	●
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	9804-	●
154	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9804-0602	●
154	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●

45 157 216 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	9601-9803	●	●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	9804-0109	●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0110-	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0110-	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	9601-9803	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	9804-	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9601-9609	●	●
157	RETAINER; VALVE 6SD1 TCN ENG(31L) (A)	1-48213-002-0	01	1	9610-9612	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9610-9612		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9701-9803	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9804-	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0110-	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9601-9803	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9804-	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9601-9609	●	●
158	SPRING; VALVE 6SD1 TCN ENG(31L) (A)	1-47819-089-0	01	1	9610-9612	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9610-9612		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9701-9803	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9804-	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0110-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
