3-05 — REAR WHEEL BRAKE (#24805) — 372 parça

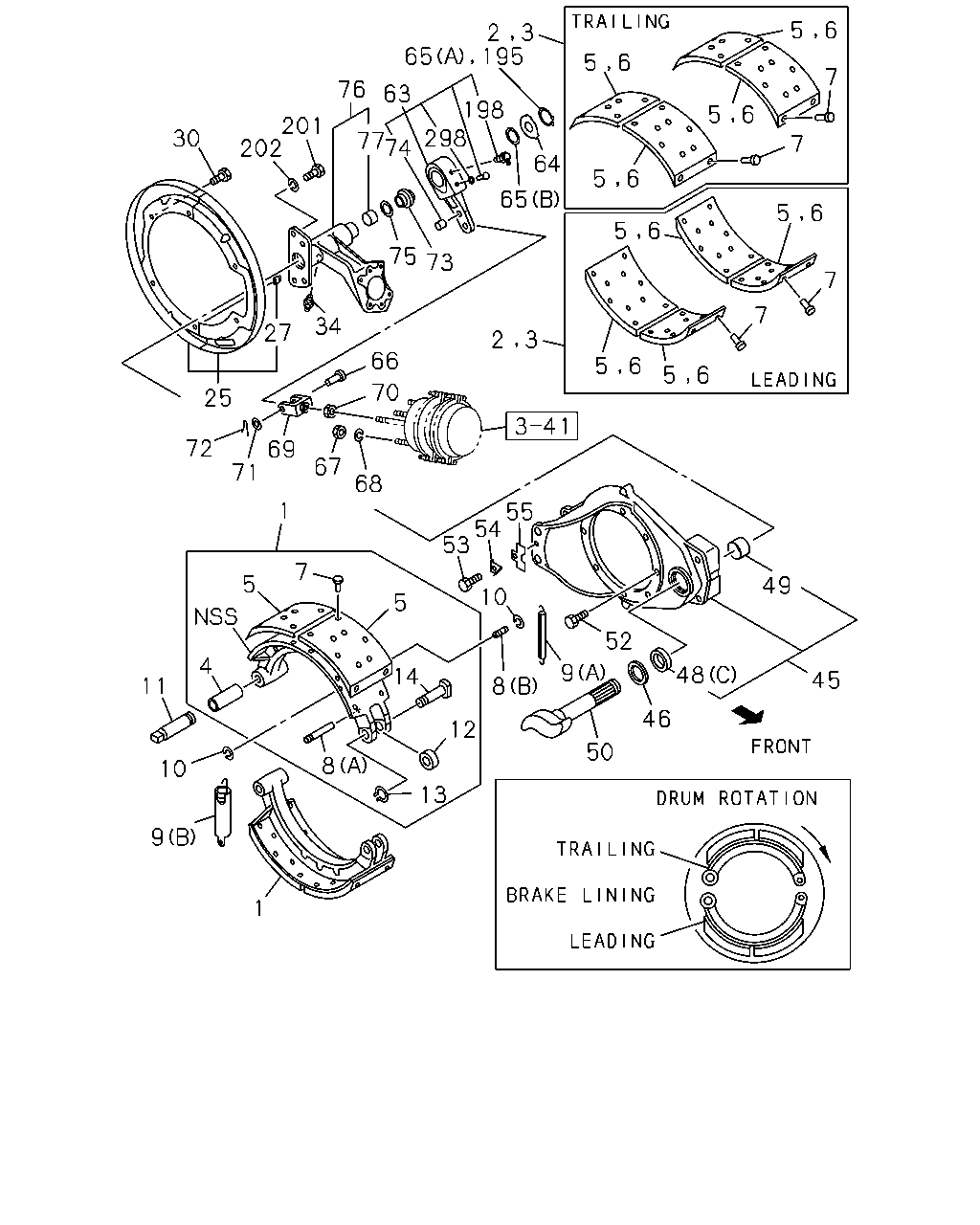

çizim 104229
5 6 195 65 5 6 7 76 63 198 298 5 6 201 202 30 77 74 7 64 5 6 65 5 6 5 6 75 73 7 7 34 27 2 3 66 5 6 5 6 70 25 72 69 67 71 68 1 55 54 53 7 5 49 10 5 52 48 14 4 9 45 8 11 46 12 50 8 10 13 9 1 2 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) LEADING 		1-47120-715-0 01 1 0012-0106 ●
1 SHOE; BRK,RR
LEADING 		1-47120-715-0 01 1 0107- ●
1 SHOE; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) TRAILING 		1-47120-716-0 01 1 0012-0106 ●
1 SHOE; BRK,RR
TRAILING 		1-47120-716-0 01 1 0107- ●
1 SHOE; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) LEADING 		1-47120-713-0 01 1 0012-0106 ●
1 SHOE; BRK,RR
LEADING 		1-47120-713-0 01 1 0107- ●
1 SHOE; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) TRAILING 		1-47120-714-0 01 1 0012-0106 ●
1 SHOE; BRK,RR
TRAILING 		1-47120-714-0 01 1 0107- ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) LEADING 		1-88310-521-0 01 1 0012-0106 ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88310-521-0 01 1 0107- ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) TRAILING 		1-88310-523-0 01 1 0012-0106 ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88310-523-0 01 1 0107- ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) LEADING 		1-88310-522-0 01 1 0012-0106 ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88310-522-0 01 1 0107- ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) TRAILING 		1-88310-524-0 01 1 0012-0106 ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88310-524-0 01 1 0107- ●
4 BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47112-012-0 04 1 0012-0106 ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0107- ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) LEADING 		1-47125-797-0 04 1 0012-0106 ●
5 LINING; RR BRK SHOE,STANDARD
LEADING 		1-47125-797-0 04 1 0107- ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) TRAILING 		1-47125-799-0 04 1 0012-0106 ●
5 LINING; RR BRK SHOE,STANDARD
TRAILING 		1-47125-799-0 04 1 0107- ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) LEADING 		1-47125-798-0 04 1 0012-0106 ●
6 LINING; RR BRK SHOE,OVER SIZE
LEADING 		1-47125-798-0 04 1 0107- ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) TRAILING 		1-47125-800-0 04 1 0012-0106 ●
6 LINING; RR BRK SHOE,OVER SIZE
TRAILING 		1-47125-800-0 04 1 0107- ●
7 RIVET; LINING,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) L=18.5 		1-09732-034-0 AR 1 0012-0106 ●
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 0107- ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (B) 		1-47119-021-0 04 1 0012-0106 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-021-0 04 1 0107-1209 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (A) 		1-47119-029-0 04 1 0012-0106 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-029-0 04 1 0107- ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-116-0 04 1 9601-9803 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-116-0 04 1 9804-0004 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (C) 		1-47119-116-0 04 1 0005-0106 ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (B) 		1-09583-175-0 02 1 0012-0106 ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 0107-1209 ●
9 SPRING; RETURN,BRK SHOE
(B) 		8-98219-175-0 02 1 1210- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (A) 		1-09583-196-0 02 1 0012-0106 ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-196-0 02 1 0107-1209 ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-47119-114-0 04 1 9601-9803 ● ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-47119-114-0 04 1 9804-0004 ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (C) 		1-47119-114-0 04 1 0005-0106 ●
9 SPRING; RETURN,BRK SHOE
(D) 		1-47119-115-0 02 1 9601-9803 ● ●
9 SPRING; RETURN,BRK SHOE
(D) 		1-47119-115-0 02 1 9804-0004 ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (D) 		1-47119-115-0 02 1 0005-0106 ●
10 RING; SNAP,SPR PIN
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) ID=10 		9-09185-410-0 08 1 0012-0106 ●
10 RING; SNAP,SPR PIN
ID=10 		9-09185-410-0 08 1 0107-0604 ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 08 1 0605-1209 ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) L=121.5 		1-47131-039-0 04 1 0012-0106 ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0107- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-046-0 04 1 9601-9803 ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-046-0 04 1 9804-0004 ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47131-046-0 04 1 0005-0106 ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47113-005-0 04 1 0012-0106 ●
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 0107- ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 04 1 9601-9803 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 04 1 9804-0004 ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47119-117-0 04 1 0005-0106 ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		9-47119-022-0 04 1 0012-0106 ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 0107- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 9601-9803 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 9804-0004 ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47119-118-0 04 1 0005-0106 ●
14 PIN; CAM ROLLER,BRK SHOE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-09744-061-0 04 1 0012-0106 ●
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 04 1 0107- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47151-462-1 02 1 0012-0106 ●
25 COVER SET; RR BRK DRUM 1-47151-462-1 02 1 0107- ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 01 1 9601-9803 ● ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 01 1 9804-0004 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47151-641-0 01 1 0005-0106 ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 01 1 9601-9803 ● ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 01 1 9804-0004 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47151-640-0 01 1 0005-0106 ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-09333-151-0 04 1 0012-0106 ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0107- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 9601-9803 ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 9804-0004 ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-87050-011-0 04 1 0005-0106 ●
30 BOLT; DRUM COVER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M10X16 W/LK WASHER 		0-50041-016-0 12 1 0012-0106 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0107-0906 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-1209 ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1210- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 9601-9803 ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 9804-0004 ●
30 BOLT; DRUM COVER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47159-176-0 12 1 0005-0106 ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0012-0106 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0107-0512 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 9601-9803 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 9804-0004 ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-48259-253-0 02 1 0005-0106 ●
45 BRACKET; ANCHOR PIN,W/BUSHING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47137-120-2 02 1 0012-0106 ●
45 BRACKET; ANCHOR PIN,W/BUSHING 1-47137-120-2 02 1 0107- ●
46 RING; SPACER,CM/SHF,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47143-005-0 02 1 0012-0106 ●
46 RING; SPACER,CM/SHF,RR BRK 1-47143-005-0 02 1 0107- ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (C) 		1-09625-228-0 02 1 0012-0106 ●
48 SEAL; OIL,CM/SHF,RR BRK
(C) 		1-09625-228-0 02 1 0107- ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 9601-9803 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 9804-0004 ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (A) 		1-47149-056-0 02 1 0005-0106 ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 9601-9803 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 9804-0004 ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (B) 		1-47149-057-0 04 1 0005-0106 ●
49 BUSHING; CM/SHF,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47146-003-1 02 1 0012-0106 ●
49 BUSHING; CM/SHF,RR BRK 1-47146-003-1 02 1 0107- ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47141-053-0 01 1 0012-0106 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 01 1 0107- ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47141-054-0 01 1 0012-0106 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 01 1 0107- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-098-0 01 1 9601-9803 ● ●
50 CAMSHAFT; BRK,RR BRK 1-47141-098-0 01 1 9804-0004 ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47141-098-0 01 1 0005-0106 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-099-0 01 1 9601-9803 ● ●
50 CAMSHAFT; BRK,RR BRK 1-47141-099-0 01 1 9804-0004 ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47141-099-0 01 1 0005-0106 ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M14X50 		1-09040-066-0 02 1 0012-0106 ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0107-1209 ●
52 BOLT; ANCHOR BRKT
M16X50 		1-42119-077-0 32 1 9601-9803 ● ●
52 BOLT; ANCHOR BRKT
M16X50 		1-42119-077-0 32 1 9804-0004 ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) M16X50 		1-42119-077-0 32 1 0005-0106 ●
53 BOLT; LOCK PLATE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M10X16 		0-20801-016-0 02 1 0012-0106 ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0107-0512 ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0601-1209 ●
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 1210- ●
54 WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47133-011-0 02 1 0012-0106 ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0107- ●
55 PLATE; LK,RR WHEEL CYL
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47133-005-0 02 1 0012-0106 ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0107- ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48270-045-0 01 1 0012-0106 ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 01 1 0107- ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48270-046-0 01 1 0012-0106 ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 01 1 0107- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-079-0 02 1 9601-9803 ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-079-0 02 1 9804-0004 ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-48270-079-0 02 1 0005-0106 ●
64 PLATE; STOPPER,CM/SHF
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47149-022-0 02 1 0012-0106 ●
64 PLATE; STOPPER,CM/SHF 1-47149-022-0 02 1 0107- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (B) 		1-47143-004-0 02 1 0012-0106 ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47143-004-0 02 1 0107- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (A) 		9-09180-038-0 01 1 0012-0106 ●
65 SPACER; SLACK ADJ,BRK
(A) 		9-09180-038-0 01 1 0107- ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-058-0 02 1 9601-9803 ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-058-0 02 1 9804-0004 ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (C) 		1-47149-058-0 02 1 0005-0106 ●
65 SPACER; SLACK ADJ,BRK
(E) 		1-47149-059-0 02 1 9601-9803 ● ●
65 SPACER; SLACK ADJ,BRK
(E) 		1-47149-059-0 02 1 9804-0004 ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (E) 		1-47149-059-0 02 1 0005-0106 ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 04 1 9601-9803 ● ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 04 1 9804-0004 ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (D) T=0.03" 		1-47149-060-0 04 1 0005-0106 ●
66 PIN; JAW JOINT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-09744-088-0 02 1 0012-0106 ●
66 PIN; JAW JOINT 1-09744-088-0 02 1 0107- ●
67 NUT; POWER CHAMBER FIX
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M16 		9-99110-416-0 08 1 0012-0106 ●
67 NUT; POWER CHAMBER FIX
M16 		9-99110-416-0 08 1 0107-0512 ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 08 1 0601- ●
68 WASHER; LK,CHAMBER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) ID=16.2 		9-09150-516-0 08 1 0012-0106 ●
68 WASHER; LK,CHAMBER
ID=16.2 		9-09150-516-0 08 1 0107-0603 ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-516-0 08 1 0604-0802 ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 08 1 0803- ●
69 JOINT; JAW
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-09768-060-1 02 1 0012-0106 ●
69 JOINT; JAW 1-09768-060-1 02 1 0107- ●
70 NUT; LK,JAW JOINT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M16 		9-99111-416-0 02 1 0012-0106 ●
70 NUT; LK,JAW JOINT
M16 		9-99111-416-0 02 1 0107-0512 ●
70 NUT; LK,JAW JOINT
M16 		0-91111-516-0 02 1 0601- ●
71 WASHER; PL,JAW JOINT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) ID=17 OD=32 		9-09160-616-0 02 1 0012-0106 ●
71 WASHER; PL,JAW JOINT
ID=17 OD=32 		9-09160-616-0 02 1 0107- ●
72 PIN; SPLIT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) OD=3.7 L=28 		9-08114-028-0 02 1 0012-0106 ●
72 PIN; SPLIT
OD=3.7 L=28 		9-08114-028-0 02 1 0107-0606 ●
72 PIN; SPLIT
OD=3.7 L=28 		0-81124-028-0 02 1 0607- ●
73 COLLAR; FELT RING,CM/SHF
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47143-016-0 02 1 0012-0106 ●
73 COLLAR; FELT RING,CM/SHF 1-47143-016-0 02 1 0107- ●
74 BUSHING; SLACK ADJ
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-09330-041-0 02 1 0012-0106 ●
74 BUSHING; SLACK ADJ 1-09330-041-0 02 1 0107- ●
75 RING; FELT,CM/SHF
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-09620-009-0 02 1 0012-0106 ●
75 RING; FELT,CM/SHF 1-09620-009-0 02 1 0107- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48258-083-0 01 1 0012-0106 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 01 1 0107-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-248-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48258-084-0 01 1 0012-0106 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 01 1 0107-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-249-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-158-0 01 1 9601-9803 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-158-0 01 1 9804-0004 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-48258-158-0 01 1 0005-0106 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-159-0 01 1 9601-9803 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-159-0 01 1 9804-0004 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-48258-159-0 01 1 0005-0106 ●
77 BUSHING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47146-003-1 02 1 0012-0106 ●
77 BUSHING 1-47146-003-1 02 1 0107- ●
77 BUSHING 1-47146-014-0 04 1 9601-9803 ● ●
77 BUSHING 1-47146-014-0 04 1 9804-0004 ●
77 BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47146-014-0 04 1 0005-0106 ●
195 RING; SNAP,CM/SHF
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		9-09180-038-0 01 1 0012-0106 ●
195 RING; SNAP,CM/SHF 9-09180-038-0 01 1 0107- ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 9601-9803 ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 9804-0004 ●
195 RING; SNAP,CM/SHF
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-87050-005-0 02 1 0005-0106 ●
198 NIPPLE; GREASE,SLACK ADJ
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0012-0106 ●
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0107-0512 ●
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-28081-435-0 08 1 0202-1209 ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-20851-435-0 08 1 1210- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-116-0 08 1 9601-9803 ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-116-0 08 1 9804-0004 ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47139-116-0 08 1 0005-0106 ●
202 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 08 1 0202-0603 ●
202 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 0604- ●
298 GASKET
ID=23.3 		9-09561-223-0 02 1 0107- ●

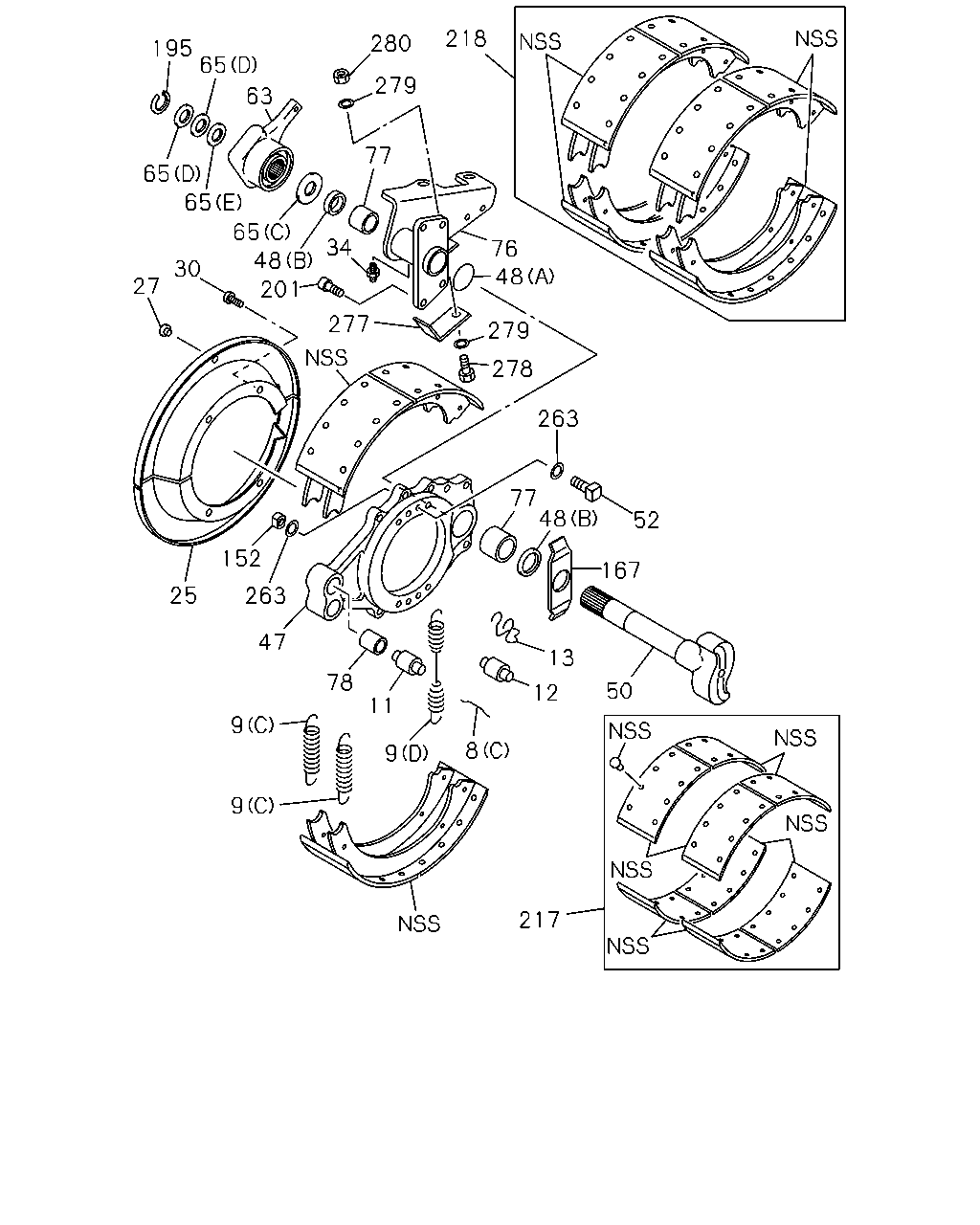

çizim 104314
218 280 195 65 279 63 77 65 65 65 48 34 76 48 30 27 201 277 279 278 263 77 48 52 152 167 25 263 47 13 78 50 12 11 9 8 9 9 217
BalonParca AdiParca NoAdetTipApplied Date A B
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (B) 		1-47119-021-0 04 1 0012-0106 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-021-0 04 1 0107-1209 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (A) 		1-47119-029-0 04 1 0012-0106 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-029-0 04 1 0107- ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-116-0 04 1 9601-9803 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-116-0 04 1 9804-0004 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (C) 		1-47119-116-0 04 1 0005-0106 ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (B) 		1-09583-175-0 02 1 0012-0106 ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 0107-1209 ●
9 SPRING; RETURN,BRK SHOE
(B) 		8-98219-175-0 02 1 1210- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (A) 		1-09583-196-0 02 1 0012-0106 ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-196-0 02 1 0107-1209 ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-47119-114-0 04 1 9601-9803 ● ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-47119-114-0 04 1 9804-0004 ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (C) 		1-47119-114-0 04 1 0005-0106 ●
9 SPRING; RETURN,BRK SHOE
(D) 		1-47119-115-0 02 1 9601-9803 ● ●
9 SPRING; RETURN,BRK SHOE
(D) 		1-47119-115-0 02 1 9804-0004 ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (D) 		1-47119-115-0 02 1 0005-0106 ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) L=121.5 		1-47131-039-0 04 1 0012-0106 ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0107- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-046-0 04 1 9601-9803 ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-046-0 04 1 9804-0004 ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47131-046-0 04 1 0005-0106 ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47113-005-0 04 1 0012-0106 ●
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 0107- ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 04 1 9601-9803 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 04 1 9804-0004 ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47119-117-0 04 1 0005-0106 ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		9-47119-022-0 04 1 0012-0106 ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 0107- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 9601-9803 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 9804-0004 ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47119-118-0 04 1 0005-0106 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47151-462-1 02 1 0012-0106 ●
25 COVER SET; RR BRK DRUM 1-47151-462-1 02 1 0107- ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 01 1 9601-9803 ● ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 01 1 9804-0004 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47151-641-0 01 1 0005-0106 ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 01 1 9601-9803 ● ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 01 1 9804-0004 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47151-640-0 01 1 0005-0106 ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-09333-151-0 04 1 0012-0106 ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0107- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 9601-9803 ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 9804-0004 ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-87050-011-0 04 1 0005-0106 ●
30 BOLT; DRUM COVER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M10X16 W/LK WASHER 		0-50041-016-0 12 1 0012-0106 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0107-0906 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-1209 ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1210- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 9601-9803 ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 9804-0004 ●
30 BOLT; DRUM COVER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47159-176-0 12 1 0005-0106 ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0012-0106 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0107-0512 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 9601-9803 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 9804-0004 ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-48259-253-0 02 1 0005-0106 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-332-0 02 1 9601-9803 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-332-0 02 1 9804-0004 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47137-332-0 02 1 0005-0106 ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (C) 		1-09625-228-0 02 1 0012-0106 ●
48 SEAL; OIL,CM/SHF,RR BRK
(C) 		1-09625-228-0 02 1 0107- ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 9601-9803 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 9804-0004 ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (A) 		1-47149-056-0 02 1 0005-0106 ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 9601-9803 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 9804-0004 ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (B) 		1-47149-057-0 04 1 0005-0106 ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47141-053-0 01 1 0012-0106 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 01 1 0107- ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47141-054-0 01 1 0012-0106 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 01 1 0107- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-098-0 01 1 9601-9803 ● ●
50 CAMSHAFT; BRK,RR BRK 1-47141-098-0 01 1 9804-0004 ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47141-098-0 01 1 0005-0106 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-099-0 01 1 9601-9803 ● ●
50 CAMSHAFT; BRK,RR BRK 1-47141-099-0 01 1 9804-0004 ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47141-099-0 01 1 0005-0106 ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M14X50 		1-09040-066-0 02 1 0012-0106 ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0107-1209 ●
52 BOLT; ANCHOR BRKT
M16X50 		1-42119-077-0 32 1 9601-9803 ● ●
52 BOLT; ANCHOR BRKT
M16X50 		1-42119-077-0 32 1 9804-0004 ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) M16X50 		1-42119-077-0 32 1 0005-0106 ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48270-045-0 01 1 0012-0106 ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 01 1 0107- ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48270-046-0 01 1 0012-0106 ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 01 1 0107- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-079-0 02 1 9601-9803 ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-079-0 02 1 9804-0004 ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-48270-079-0 02 1 0005-0106 ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (B) 		1-47143-004-0 02 1 0012-0106 ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47143-004-0 02 1 0107- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (A) 		9-09180-038-0 01 1 0012-0106 ●
65 SPACER; SLACK ADJ,BRK
(A) 		9-09180-038-0 01 1 0107- ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-058-0 02 1 9601-9803 ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-058-0 02 1 9804-0004 ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (C) 		1-47149-058-0 02 1 0005-0106 ●
65 SPACER; SLACK ADJ,BRK
(E) 		1-47149-059-0 02 1 9601-9803 ● ●
65 SPACER; SLACK ADJ,BRK
(E) 		1-47149-059-0 02 1 9804-0004 ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (E) 		1-47149-059-0 02 1 0005-0106 ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 04 1 9601-9803 ● ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 04 1 9804-0004 ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (D) T=0.03" 		1-47149-060-0 04 1 0005-0106 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48258-083-0 01 1 0012-0106 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 01 1 0107-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-248-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-48258-084-0 01 1 0012-0106 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 01 1 0107-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-249-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-158-0 01 1 9601-9803 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-158-0 01 1 9804-0004 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-48258-158-0 01 1 0005-0106 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-159-0 01 1 9601-9803 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-159-0 01 1 9804-0004 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-48258-159-0 01 1 0005-0106 ●
77 BUSHING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		1-47146-003-1 02 1 0012-0106 ●
77 BUSHING 1-47146-003-1 02 1 0107- ●
77 BUSHING 1-47146-014-0 04 1 9601-9803 ● ●
77 BUSHING 1-47146-014-0 04 1 9804-0004 ●
77 BUSHING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47146-014-0 04 1 0005-0106 ●
78 BUSHING; BRKT 1-47139-117-0 04 1 9601-9803 ● ●
78 BUSHING; BRKT 1-47139-117-0 04 1 9804-0004 ●
78 BUSHING; BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47139-117-0 04 1 0005-0106 ●
152 NUT; ANCHOR BRKT 1-47139-126-0 32 1 9601-9803 ● ●
152 NUT; ANCHOR BRKT 1-47139-126-0 32 1 9804-0004 ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47139-126-0 32 1 0005-0106 ●
167 WASHER; ADJ CAM 1-47149-061-0 02 1 9601-9608 ● ●
167 WASHER; ADJ CAM 1-47149-064-0 02 1 9610-9803 ● ●
167 WASHER; ADJ CAM 1-47149-064-0 02 1 9804-0004 ●
167 WASHER; ADJ CAM
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47149-064-0 02 1 0005-0106 ●
195 RING; SNAP,CM/SHF
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) 		9-09180-038-0 01 1 0012-0106 ●
195 RING; SNAP,CM/SHF 9-09180-038-0 01 1 0107- ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 9601-9803 ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 9804-0004 ●
195 RING; SNAP,CM/SHF
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-87050-005-0 02 1 0005-0106 ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-28081-435-0 08 1 0202-1209 ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-20851-435-0 08 1 1210- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-116-0 08 1 9601-9803 ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-116-0 08 1 9804-0004 ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47139-116-0 08 1 0005-0106 ●
217 LINING KIT; RR BRK 1-87050-154-0 01 1 9601-9803 ● ●
217 LINING KIT; RR BRK 1-87050-154-0 01 1 9804-0004 ●
217 LINING KIT; RR BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-87050-154-0 01 1 0005-0106 ●
218 SHOE KIT; BRK,RR 1-47120-460-0 01 1 9601-9803 ● ●
218 SHOE KIT; BRK,RR 1-47120-460-0 01 1 9804-0004 ●
218 SHOE KIT; BRK,RR
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47120-460-0 01 1 0005-0106 ●
263 WASHER; PL,ANCHOR BRKT 1-47139-125-0 64 1 9601-9803 ● ●
263 WASHER; PL,ANCHOR BRKT 1-47139-125-0 64 1 9804-0004 ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47139-125-0 64 1 0005-0106 ●
277 SUPPORT; BRKT 1-48259-287-0 02 1 9601-9803 ● ●
277 SUPPORT; BRKT 1-48259-287-0 02 1 9804-0004 ●
277 SUPPORT; BRKT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-48259-287-0 02 1 0005-0106 ●
278 BOLT; SUPPORT
M16X50 		1-42119-077-0 02 1 9601-9803 ● ●
278 BOLT; SUPPORT
M16X50 		1-42119-077-0 02 1 9804-0004 ●
278 BOLT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) M16X50 		1-42119-077-0 02 1 0005-0106 ●
279 WASHER; SUPPORT 1-47139-125-0 04 1 9601-9803 ● ●
279 WASHER; SUPPORT 1-47139-125-0 04 1 9804-0004 ●
279 WASHER; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47139-125-0 04 1 0005-0106 ●
280 NUT; SUPPORT 1-47139-126-0 02 1 9601-9803 ● ●
280 NUT; SUPPORT 1-47139-126-0 02 1 9804-0004 ●
280 NUT; SUPPORT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) 		1-47139-126-0 02 1 0005-0106 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
