2-85B — POWER TAKE OFF CONTROL (#24803) — 19 parça

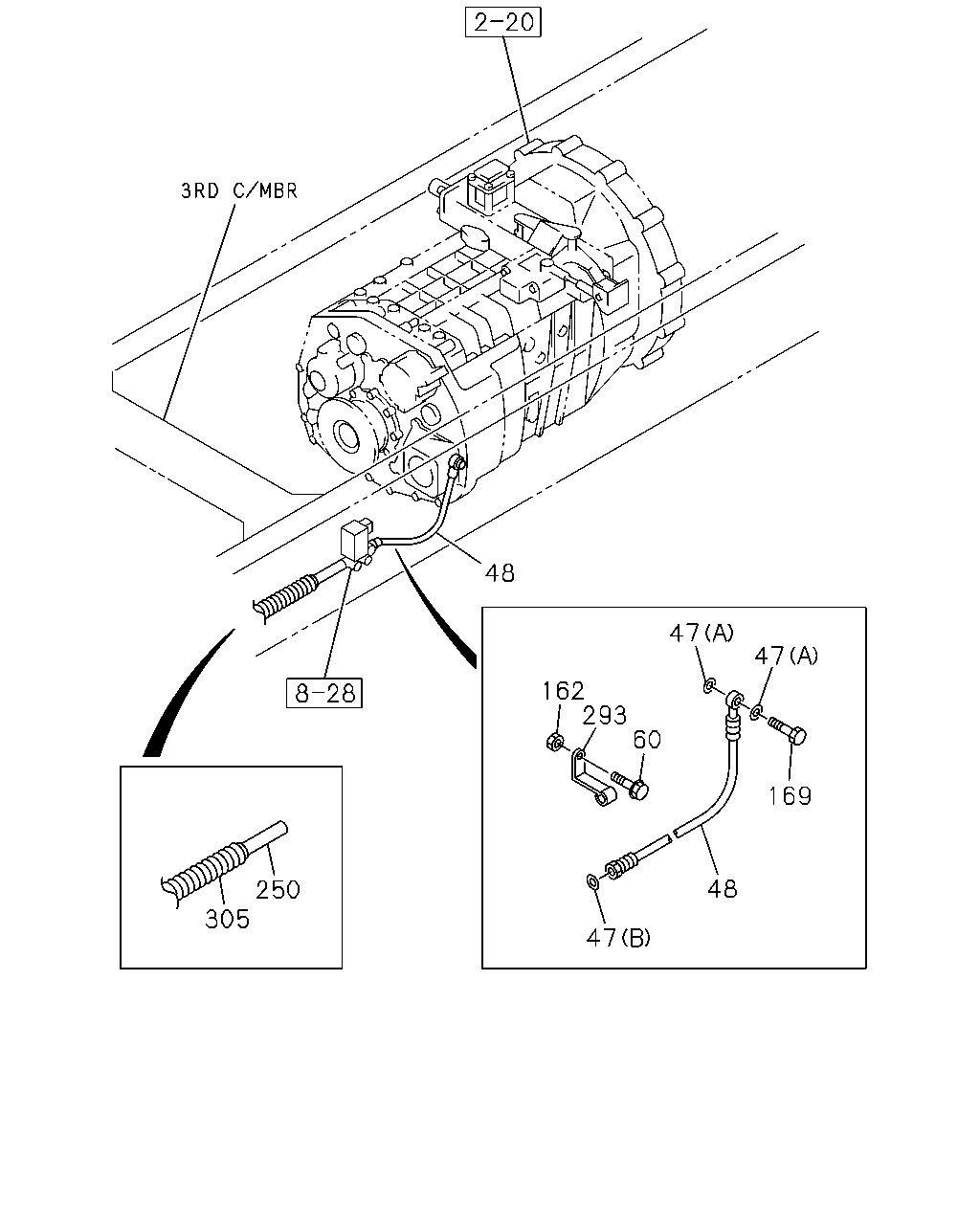

çizim 85919
48 47 47 162 293 60 169 48 250 305 47
BalonParca AdiParca NoAdetTipApplied Date A B
47 GASKET; FLEX HOSE
PTO CONTROL<SV6> (A) ID=12.2 		9-09572-012-0 02 1 9707-0106 ●
47 GASKET; FLEX HOSE
PTO CONTROL<SV6> (B) ID=11 OD=18 		9-09572-510-0 01 1 9707-0106 ●
48 HOSE; FLEX,PTO
PTO CONTROL<SV6> L=960 		1-09363-591-0 01 1 9707-9711 ●
48 HOSE; FLEX,PTO
PTO CONTROL<SV6> L=1060 		1-09363-724-0 01 1 9712-0106 ●
60 BOLT; CLIP FIX
PTO CONTROL<SV6> M8X25 FLANGE 		0-28680-825-0 02 1 9707-0106 ●
162 NUT; CLIP
PTO CONTROL<SV6> M8 FLANGE 		0-91150-108-0 01 1 9707-0106 ●
169 BOLT; EYE
PTO CONTROL<SV6> M12X24 EYE-BOLT 		1-09675-229-0 01 1 9707-0106 ●
250 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9804-9805 ●
250 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9707-9709 ●
293 CLIP; HOSE
PTO CONTROL<SV6> ID=13 H=75 L=25 		1-09700-601-0 01 1 9707-9711 ●
293 CLIP; HOSE
PTO CONTROL<SV6> ID=13 H=75 L=25 		1-09700-601-0 02 1 9712-0106 ●
293 CLIP; HOSE
PTO CONTROL<SV6> ID=13 H=40 L=25 		1-09700-620-0 01 1 9707-9711 ●
305 TUBE; CORRUGATE
PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9707-9709 ●
çizim 86002
3 3 1 55
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 9706-9803 ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9706-9803 ●
55 GROMMET; CABLE 1-09983-068-0 01 1 9601-9803 ●
55 GROMMET; CABLE 1-09983-068-0 01 1 9804-0004 ● ●
55 GROMMET; CABLE 1-09983-068-0 01 1 0005-0106 ●
55 GROMMET; CABLE 1-09983-068-0 01 1 0107- ●
