2-39A — POWER ASSISTOR (#24800) — 162 parça

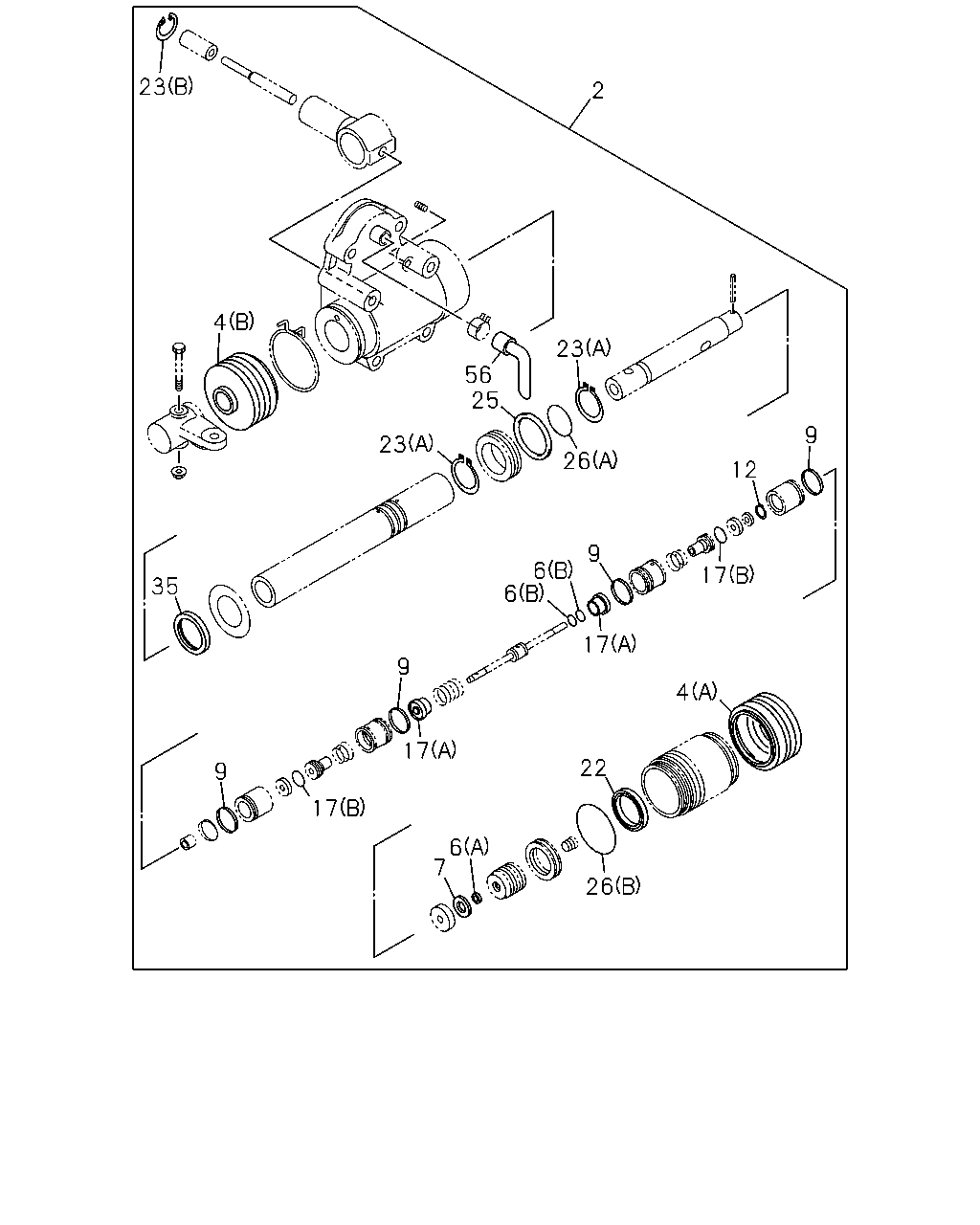

23 2 4 23 56 25 9 23 26 12 9 6 6 17 35 17 9 4 17 22 9 17 6 7 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-593-0	01	1	9601-9803	●	●	●	●
2	REPAIR KIT; POWER SHIFTER	1-33739-593-0	01	1	9804-0106	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	9601-9803	●	●	●	●
4	BOOT; POWER SHIFTER (A)	1-33739-038-0	01	1	9804-0106	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	9601-9803	●	●	●	●
4	BOOT; POWER SHIFTER (B)	1-33739-571-0	01	1	9804-0106	●
6	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-013-0	01	1	9601-9803	●	●	●	●
6	GASKET (A)	1-33739-013-0	01	1	9804-0106	●
6	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-583-0	02	1	9601-9803	●	●	●	●
6	GASKET (B)	1-33739-583-0	02	1	9804-0106	●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8>	1-33739-033-0	01	1	9601-9803	●	●	●	●
7	FILTER; AIR	1-33739-033-0	01	1	9804-0106	●
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9601-9803	●	●	●	●
9	RING; SQUARE	1-33739-086-0	04	1	9804-0106	●
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9601-9803	●	●	●	●
12	RING; RET	1-33739-016-0	01	1	9804-0004	●
12	RING; RET	1-33739-016-0	02	1	0005-0106	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-584-0	02	1	9601-9803	●	●	●	●
17	SEAL ASM; VALVE (B)	1-33739-584-0	02	1	9804-0106	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	9-83335-055-0	02	1	9601-9803	●	●	●	●
17	SEAL ASM; VALVE (A)	9-83335-055-0	02	1	9804-0106	●
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9601-9803	●	●	●	●
22	SEAL; OIL	1-33739-353-0	01	1	9804-0106	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	9601-9803	●	●	●	●
23	RING; RET (A)	1-33739-022-0	02	1	9804-0106	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9601-9803	●	●	●	●
23	RING; RET (B)	1-33739-564-0	01	1	9804-0106	●
25	RING; "X",PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-420-0	01	1	9601-9803	●	●	●	●
25	RING; "X",PISTON	1-33739-420-0	01	1	9804-0106	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-496-0	01	1	9601-9803	●	●	●	●
26	GASKET (A)	1-33739-496-0	01	1	9804-0106	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-573-0	01	1	9601-9803	●	●	●	●
26	GASKET (B)	1-33739-573-0	01	1	9804-0106	●
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	9601-9803	●	●	●	●
35	GASKET; CUP	1-33739-073-0	01	1	9804-0106	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9601-9803	●	●	●	●
56	HOSE; POWER SHIFTER	1-33739-570-0	01	1	9804-0106	●

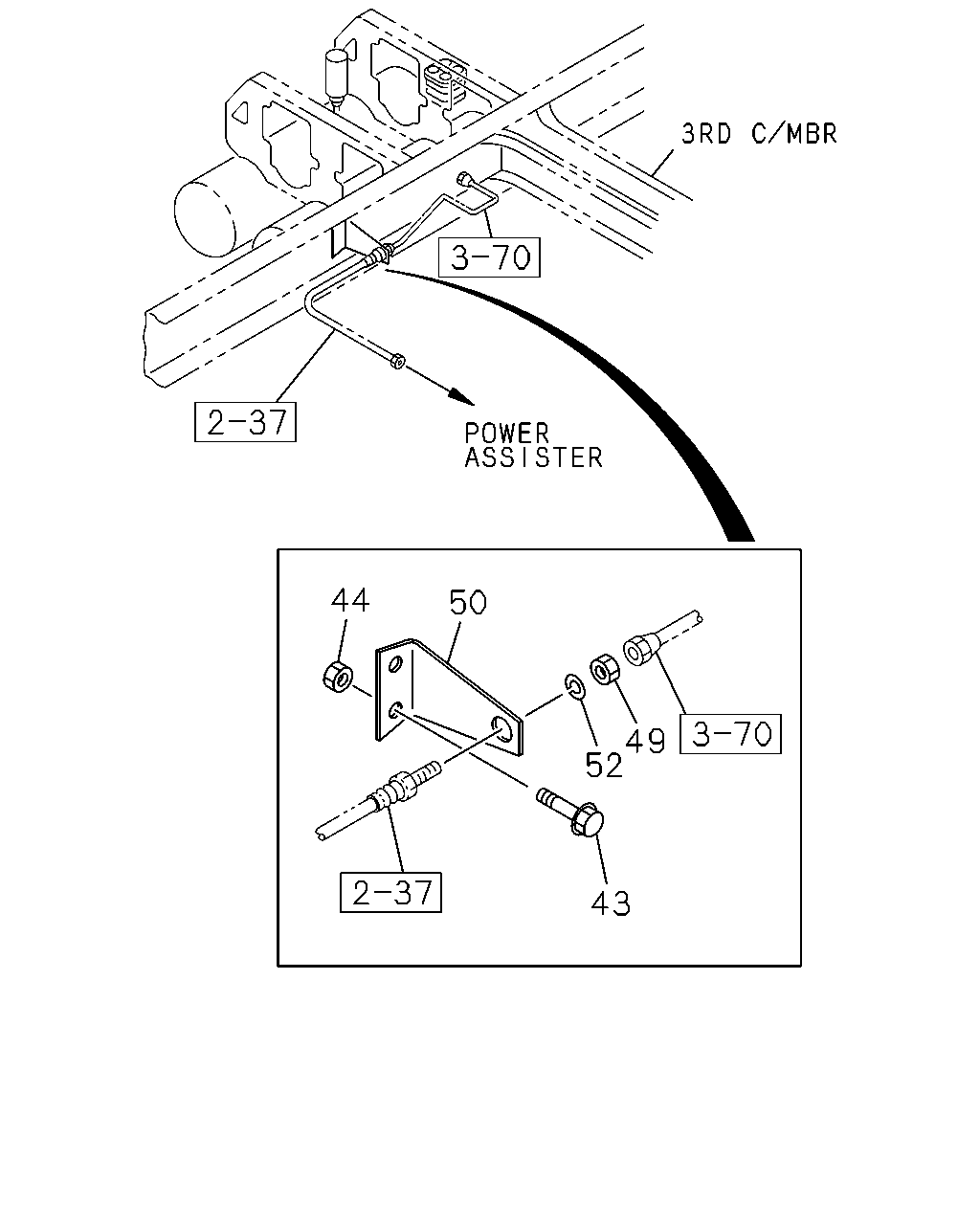

44 50 49 52 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
43	BOLT; BRKT,FRAME ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●	●	●
43	BOLT; BRKT,FRAME ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28680-830-0	02	1	9607-9609	●	●	●	●
43	BOLT; BRKT,FRAME ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28680-830-0	02	1	9610-9803		●	●	●
43	BOLT; BRKT,FRAME WIDE CAB(FV*F) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	02	1	9610-9803	●
43	BOLT; BRKT,FRAME STD CAB(FV*M) ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28680-830-0	02	1	9610-9803	●
43	BOLT; BRKT,FRAME EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	02	1	9804-0106	●
44	NUT; BRKT,FRAME ASSISTOR SHIFT CONTROL<WX8> M8	9-09110-408-0	02	1	9601-9606	●	●	●	●
44	NUT; BRKT,FRAME ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91150-108-0	02	1	9607-9609	●	●	●	●
44	NUT; BRKT,FRAME ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91150-108-0	02	1	9610-9803		●	●	●
44	NUT; BRKT,FRAME WIDE CAB(FV*F) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	02	1	9610-9803	●
44	NUT; BRKT,FRAME STD CAB(FV*M) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91150-108-0	02	1	9610-9803	●
44	NUT; BRKT,FRAME EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	02	1	9804-0106	●
49	NUT; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	9601-9609	●	●	●	●
49	NUT; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	9610-9803		●	●	●
49	NUT; FLEX HOSE WIDE CAB(FV*F) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> M12	9-09840-280-0	01	1	9610-9803	●
49	NUT; FLEX HOSE STD CAB(FV*M) ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	9610-9803	●
49	NUT; FLEX HOSE EXC. AIR ASSIST CLUTCH<PK1> M12	9-09840-280-0	01	1	9804-0106	●
50	BRACKET; POWER ASSIST ASSISTOR SHIFT CONTROL<WX8>	1-47475-028-0	01	1	9601-9609	●	●	●	●
50	BRACKET; POWER ASSIST ASSISTOR SHIFT CONTROL<WX8>	1-47475-028-0	01	1	9610-9803		●	●	●
50	BRACKET; POWER ASSIST WIDE CAB(FV*F) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1>	1-47475-028-0	01	1	9610-9803	●
50	BRACKET; POWER ASSIST STD CAB(FV*M) ASSISTOR SHIFT CONTROL<WX8>	1-47475-028-0	01	1	9610-9803	●
50	BRACKET; POWER ASSIST EXC. AIR ASSIST CLUTCH<PK1>	1-47475-028-0	01	1	9804-0106	●
52	WASHER; LK,FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9601-9609	●	●	●	●
52	WASHER; LK,FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9610-9803		●	●	●
52	WASHER; LK,FLEX HOSE WIDE CAB(FV*F) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> ID=12.2	9-09150-512-0	01	1	9610-9803	●
52	WASHER; LK,FLEX HOSE STD CAB(FV*M) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9610-9803	●
52	WASHER; LK,FLEX HOSE EXC. AIR ASSIST CLUTCH<PK1> ID=12.2	9-09150-512-0	01	1	9804-0106	●

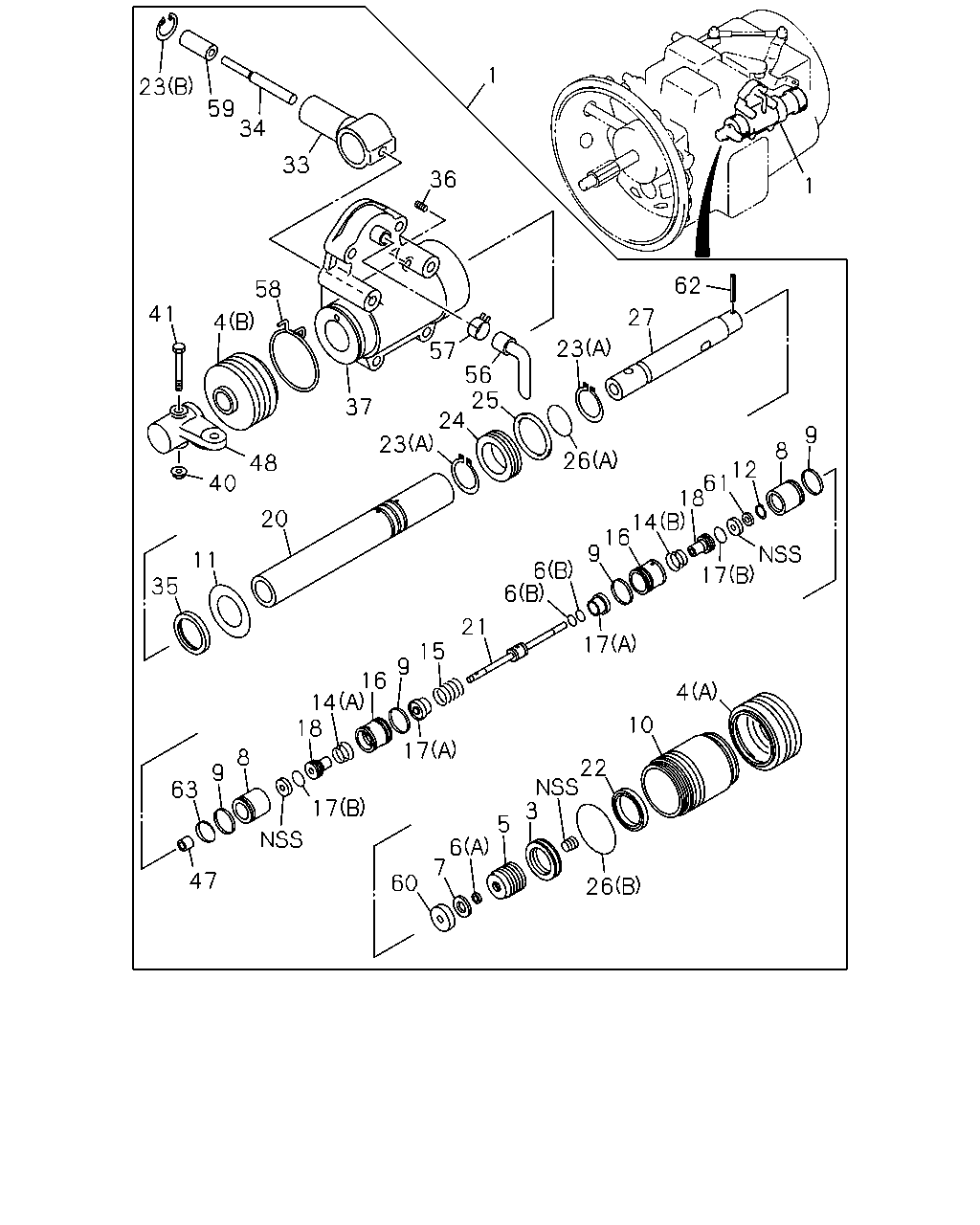

1 23 59 34 33 36 1 62 58 41 27 4 57 56 25 24 23 37 9 23 8 26 48 12 61 18 14 16 9 40 20 11 6 6 17 35 21 17 15 9 16 4 14 18 10 17 8 22 3 9 63 17 5 6 7 47 60 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-127-0	01	1	9601-9803	●	●	●	●
1	ASSISTOR ASM; POWER,SHIFT	1-33730-127-1	01	1	9804-0106	●
3	NUT; LK,ROD ASSISTOR SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9601-9803	●	●	●	●
3	NUT; LK,ROD	1-33739-025-0	01	1	9804-0106	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	9601-9803	●	●	●	●
4	BOOT; POWER SHIFTER (A)	1-33739-038-0	01	1	9804-0106	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	9601-9803	●	●	●	●
4	BOOT; POWER SHIFTER (B)	1-33739-571-0	01	1	9804-0106	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-017-0	01	1	9601-9803	●	●	●	●
5	CONNECTOR; CYL	1-33739-017-0	01	1	9804-0106	●
6	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-013-0	01	1	9601-9803	●	●	●	●
6	GASKET (A)	1-33739-013-0	01	1	9804-0106	●
6	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-583-0	02	1	9601-9803	●	●	●	●
6	GASKET (B)	1-33739-583-0	02	1	9804-0106	●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8>	1-33739-033-0	01	1	9601-9803	●	●	●	●
7	FILTER; AIR	1-33739-033-0	01	1	9804-0106	●
8	TUBE ASSISTOR SHIFT CONTROL<WX8>	1-33739-560-0	02	1	9601-9803	●	●	●	●
8	TUBE	1-33739-560-0	02	1	9804-0106	●
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9601-9803	●	●	●	●
9	RING; SQUARE	1-33739-086-0	04	1	9804-0106	●
10	CYLINDER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-572-0	01	1	9601-9803	●	●	●	●
10	CYLINDER; POWER SHIFTER	1-33739-572-0	01	1	9804-0106	●
11	PLATE; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-576-0	01	1	9601-9803	●	●	●	●
11	PLATE; CYL	1-33739-576-0	01	1	9804-0106	●
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9601-9803	●	●	●	●
12	RING; RET	1-33739-016-0	01	1	9804-0004	●
12	RING; RET	1-33739-016-0	02	1	0005-0106	●
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-066-0	01	1	9601-9803	●	●	●	●
14	SPRING; VALVE LIFTER (A)	1-33739-066-0	01	1	9804-0106	●
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-568-0	01	1	9601-9803	●	●	●	●
14	SPRING; VALVE LIFTER (B)	1-33739-568-0	01	1	9804-0106	●
15	SPRING; VALVE SEAL ASSISTOR SHIFT CONTROL<WX8>	1-33739-582-0	01	1	9601-9803	●	●	●	●
15	SPRING; VALVE SEAL	1-33739-582-0	01	1	9804-0106	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8>	1-33739-585-0	02	1	9601-9803	●	●	●	●
16	SEAT; VALVE	1-33739-585-0	02	1	9804-0106	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-584-0	02	1	9601-9803	●	●	●	●
17	SEAL ASM; VALVE (B)	1-33739-584-0	02	1	9804-0106	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	9-83335-055-0	02	1	9601-9803	●	●	●	●
17	SEAL ASM; VALVE (A)	9-83335-055-0	02	1	9804-0106	●
18	LIFTER; VALVE ASSISTOR SHIFT CONTROL<WX8>	1-33739-586-0	02	1	9601-9803	●	●	●	●
18	LIFTER; VALVE	1-33739-586-0	02	1	9804-0106	●
20	ROD ASM; W/CAP ASSISTOR SHIFT CONTROL<WX8>	1-33739-765-0	01	1	9601-9803	●	●	●	●
20	ROD ASM; W/CAP	1-33739-765-0	01	1	9804-0106	●
21	PIPE; AIR,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-587-0	01	1	9601-9803	●	●	●	●
21	PIPE; AIR,POWER SHIFTER	1-33739-587-0	01	1	9804-0106	●
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9601-9803	●	●	●	●
22	SEAL; OIL	1-33739-353-0	01	1	9804-0106	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	9601-9803	●	●	●	●
23	RING; RET (A)	1-33739-022-0	02	1	9804-0106	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9601-9803	●	●	●	●
23	RING; RET (B)	1-33739-564-0	01	1	9804-0106	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-578-0	01	1	9601-9803	●	●	●	●
24	PISTON	1-33739-578-0	01	1	9804-0106	●
25	RING; "X",PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-420-0	01	1	9601-9803	●	●	●	●
25	RING; "X",PISTON	1-33739-420-0	01	1	9804-0106	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-496-0	01	1	9601-9803	●	●	●	●
26	GASKET (A)	1-33739-496-0	01	1	9804-0106	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-573-0	01	1	9601-9803	●	●	●	●
26	GASKET (B)	1-33739-573-0	01	1	9804-0106	●
27	ROD; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-580-0	01	1	9601-9803	●	●	●	●
27	ROD; POWER SHIFTER	1-33739-580-0	01	1	9804-0106	●
33	STRIKER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-577-0	01	1	9601-9803	●	●	●	●
33	STRIKER; POWER SHIFTER	1-33739-577-0	01	1	9804-0106	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-575-0	01	1	9601-9803	●	●	●	●
34	PIN; STRAIGHT,POWER SHIFTER	1-33739-575-0	01	1	9804-0106	●
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	9601-9803	●	●	●	●
35	GASKET; CUP	1-33739-073-0	01	1	9804-0106	●
36	SCREW; SET ASSISTOR SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9601-9803	●	●	●	●
36	SCREW; SET	1-33739-040-0	01	1	9804-0106	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-574-0	01	1	9601-9803	●	●	●	●
37	HOUSING; POWER SHIFTER	1-33739-574-0	01	1	9804-0106	●
40	NUT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-363-0	01	1	9601-9803	●	●	●	●
40	NUT; LEVER	1-33739-363-0	01	1	9804-9805	●
40	NUT; LEVER	1-33739-940-0	01	1	9806-0106	●
41	BOLT; SET,LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9601-9803	●	●	●	●
41	BOLT; SET,LEVER	1-33739-339-0	01	1	9804-9805	●
41	BOLT; SET,LEVER	1-33739-939-0	01	1	9806-0106	●
47	BUSHING; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-567-0	01	1	9601-9803	●	●	●	●
47	BUSHING; CYL	1-33739-567-0	01	1	9804-0106	●
48	LEVER; CONT,CABLE ASSISTOR SHIFT CONTROL<WX8>	1-33739-559-0	01	1	9601-9803	●	●	●	●
48	LEVER; CONT,CABLE	1-33739-559-0	01	1	9804-0106	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9601-9803	●	●	●	●
56	HOSE; POWER SHIFTER	1-33739-570-0	01	1	9804-0106	●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-569-0	01	1	9601-9803	●	●	●	●
57	CLAMP; HOSE	1-33739-569-0	01	1	9804-0106	●
58	CLAMP; BOOT ASSISTOR SHIFT CONTROL<WX8>	1-33739-562-0	01	1	9601-9803	●	●	●	●
58	CLAMP; BOOT	1-33739-562-0	01	1	9804-0106	●
59	SHIM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-563-0	01	1	9601-9803	●	●	●	●
59	SHIM; POWER SHIFTER	1-33739-563-0	01	1	9804-0106	●
60	COLLAR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-561-0	01	1	9601-9803	●	●	●	●
60	COLLAR; CYL	1-33739-561-0	01	1	9804-0106	●
61	PLATE; VLV LIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-581-0	01	1	9601-9803	●	●	●	●
61	PLATE; VLV LIFTER	1-33739-581-0	01	1	9804-0004	●
61	PLATE; VLV LIFTER	1-33739-581-0	02	1	0005-0106	●
62	PIN; PIPE ASSISTOR SHIFT CONTROL<WX8>	1-33739-566-0	01	1	9601-9803	●	●	●	●
62	PIN; PIPE	1-33739-566-0	01	1	9804-0106	●
63	CLAMP; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-565-0	01	1	9601-9803	●	●	●	●
63	CLAMP; CYL	1-33739-565-0	01	1	9804-0106	●
