◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37B - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37B — MANUAL TRANSMISSION CONT; MISSION SIDE (#24798) — 56 parça

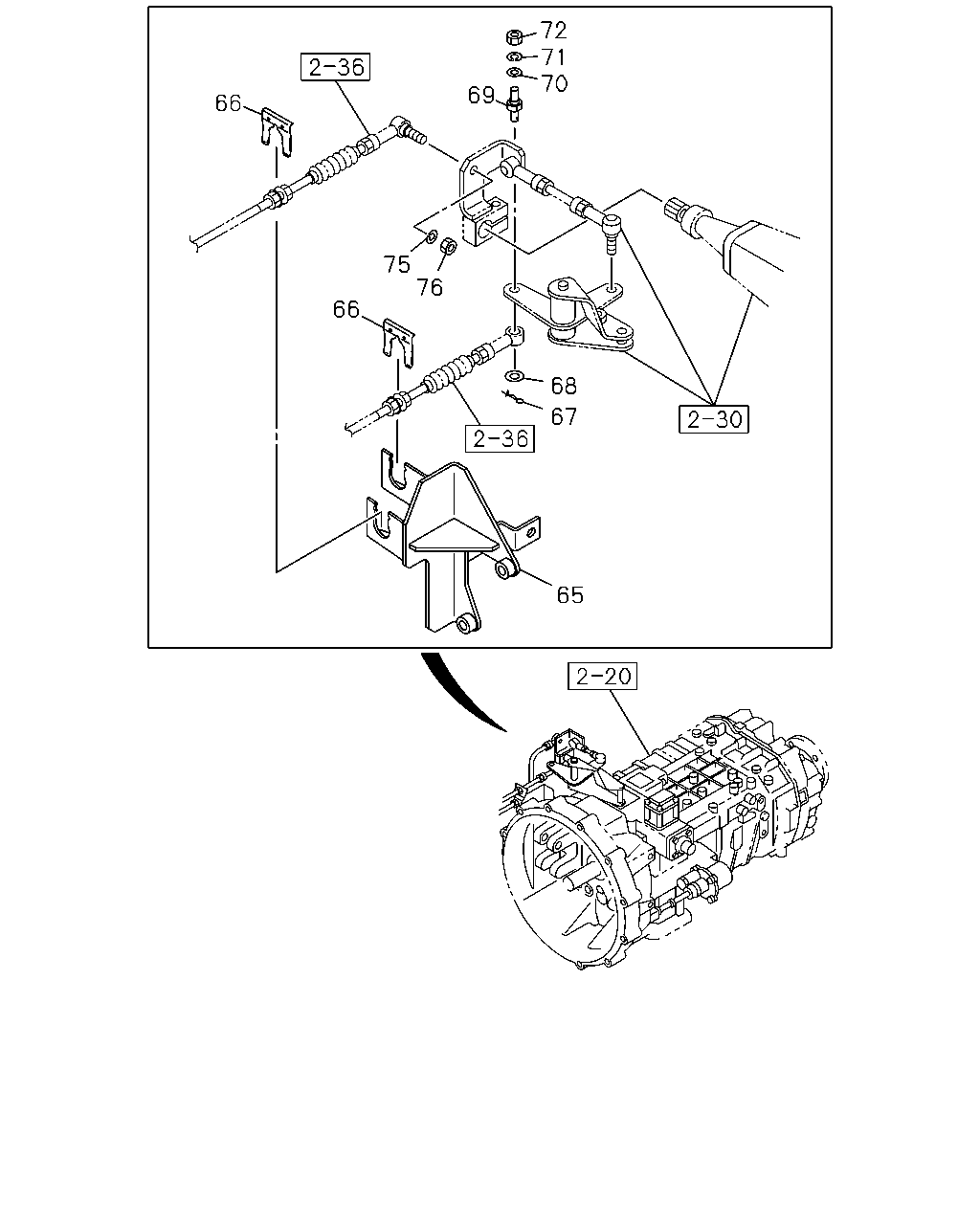

çizim 86068
72 71 70 69 66 75 76 66 68 67 65
BalonParca AdiParca NoAdetTipApplied Date A B
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6SD1 TCN ENG(31L) 		1-33657-610-1 01 1 0107- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-610-1 01 1 9601-9903 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-610-1 01 1 9904-0004 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-610-1 01 1 0005-0106 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1 TCS ENG(80L) 		1-33657-794-0 01 1 0107- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9601-9803 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804-0004 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 0005-0106 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0107- ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9601-9803 ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9804-0004 ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 0005-0106 ●
67 PIN; SNAP,SELECT WIRE
6SD1 TCN ENG(31L) L=27.7 		8-94157-841-0 01 1 0107- ●
68 WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9702 ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9601-9803 ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9804-0004 ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 0005-0106 ●
69 PIN; TRANS CONT,SELECT
6SD1 TCN ENG(31L) 		1-33659-116-1 01 1 0107- ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9601-9803 ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9804-0004 ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 0005-0106 ●
70 WASHER; PL,SELECT WIRE
6SD1 TCN ENG(31L) ID=8.4 OD=18 		9-09164-608-0 01 1 0107-0605 ●
70 WASHER; PL,SELECT WIRE
6SD1 TCN ENG(31L) ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ●
71 WASHER; LK,TRANS CONT,SELECT
ID=8.2 		9-09150-508-0 01 1 9601-9702 ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9601-9609 ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9610-9803 ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 9811-0004 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 0005-0106 ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 0107- ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
ID=10.2 		9-09150-510-0 01 1 9601-9803 ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9601-9803 ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-056-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-061-0 01 1 9811-0004 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-061-0 01 1 0005-0106 ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-061-0 01 1 0107- ●

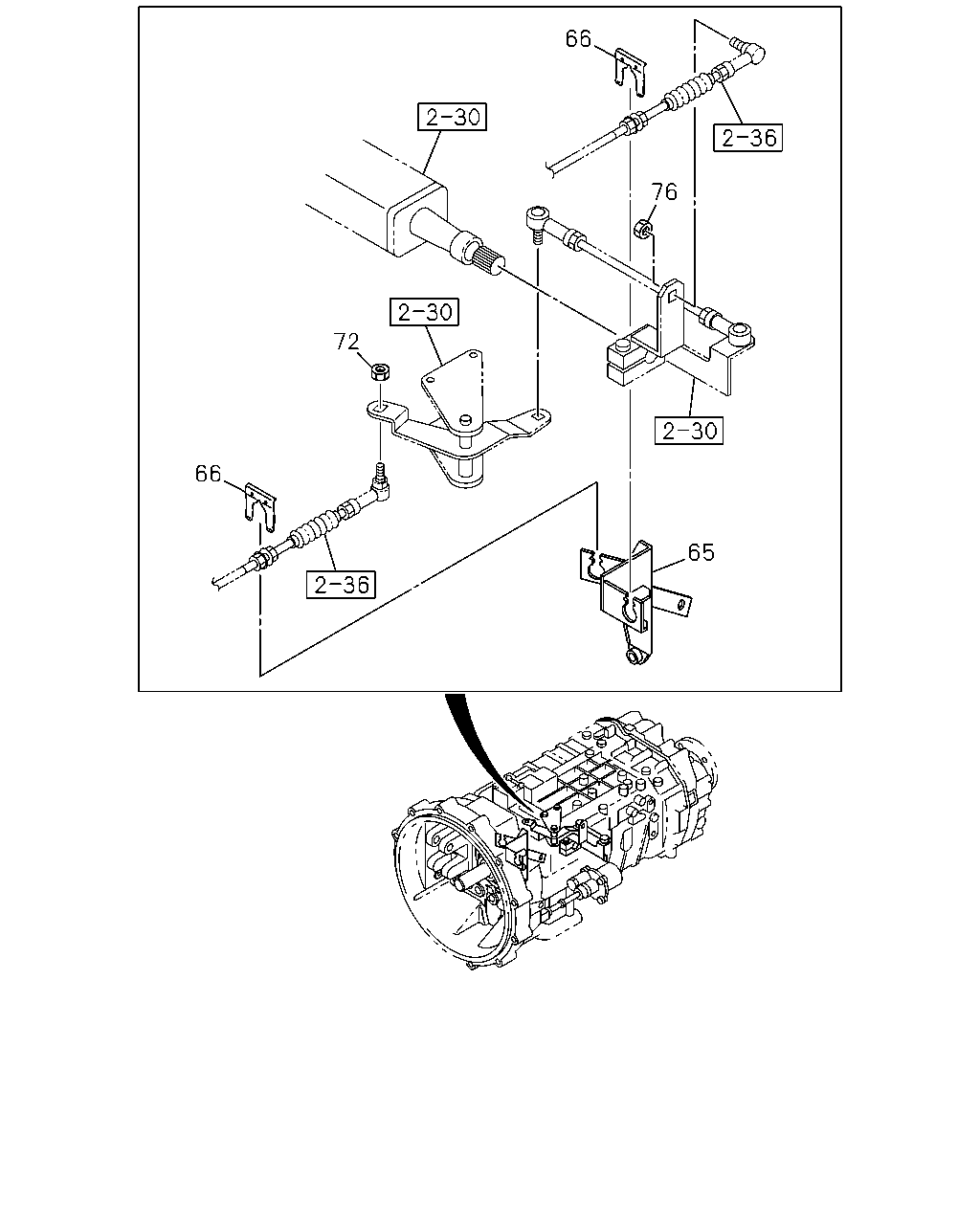

çizim 104035
66 76 72 66 65
BalonParca AdiParca NoAdetTipApplied Date A B
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6SD1 TCN ENG(31L) 		1-33657-610-1 01 1 0107- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-610-1 01 1 9601-9903 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-610-1 01 1 9904-0004 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-610-1 01 1 0005-0106 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1 TCS ENG(80L) 		1-33657-794-0 01 1 0107- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9601-9803 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 9804-0004 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 0005-0106 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0107- ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9601-9609 ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9610-9803 ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9804-9810 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 9811-0004 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 0005-0106 ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 0107- ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9601-9803 ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-056-0 01 1 9804-9810 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-061-0 01 1 9811-0004 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-061-0 01 1 0005-0106 ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-061-0 01 1 0107- ●
