Sayfa 2-37A - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37A - MANUAL TRANSMISSION CONT; MISSION SIDE ▶

2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#24797) — 178 parça

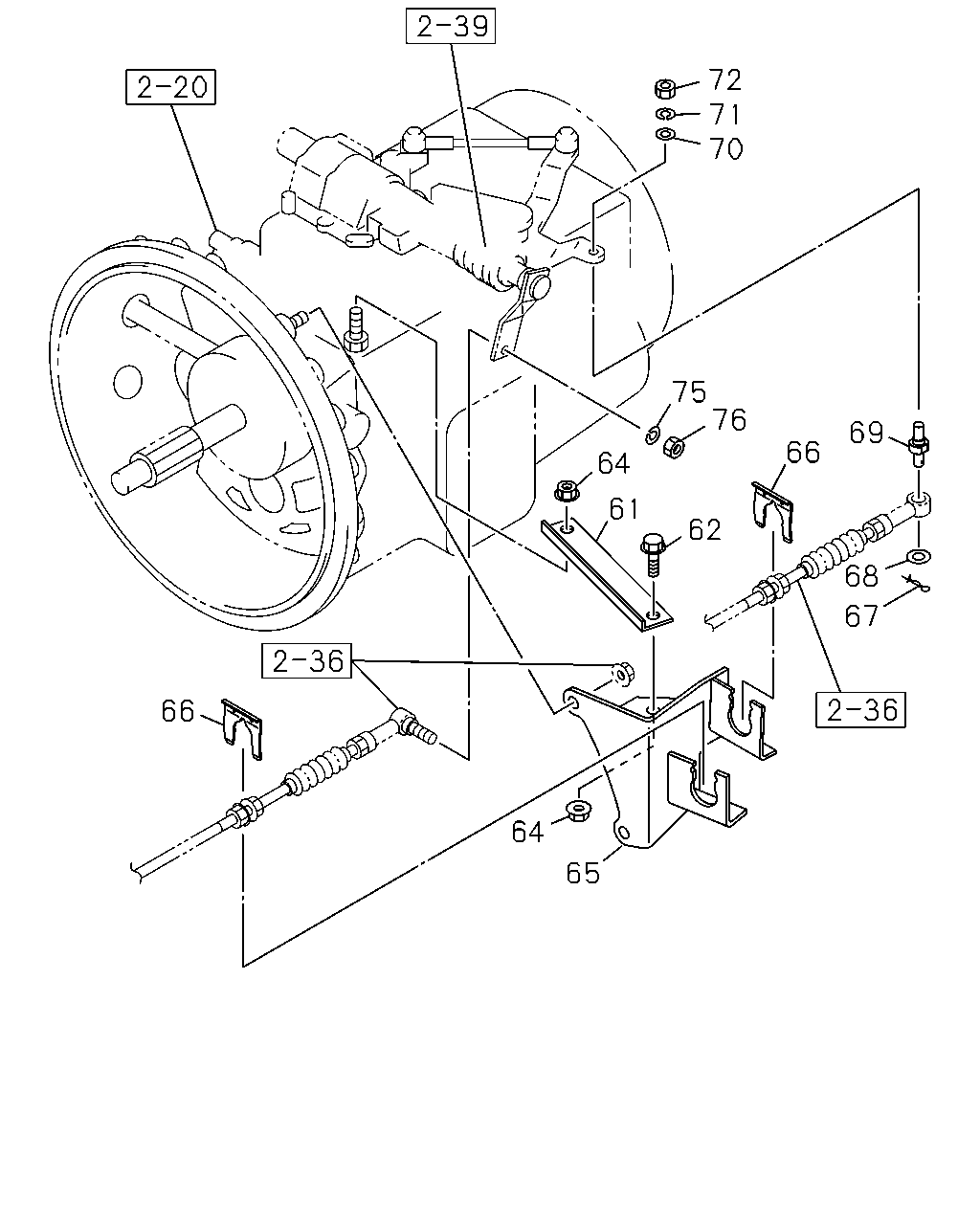

72 71 70 75 76 69 66 64 61 62 68 67 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
61	STAY; BRKT,TRANS CONT STD CAB(FV*M) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	9601-9803	●	●
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	9601-9803	●	●	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9804-0106			●
61	STAY; BRKT,TRANS CONT	1-33657-349-0	01	1	0012-					●
62	BOLT; STAY M10X20 FLANGE	0-28681-020-0	01	1	9601-9605	●	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9803	●	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9804-9804			●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0011			●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	0012-0106			●		●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	0012-0106					●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	02	1	0107-0512					●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	02	1	0601-					●
64	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	9601-9803	●	●	●	●
64	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	9804-0106			●
64	NUT; STAY M10 FLANGE	0-91150-210-0	01	1	0012-0602					●
64	NUT; STAY M10 FLANGE	0-91180-210-0	01	1	0603-					●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-534-2	01	1	9601-9803	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-554-2	01	1	9601-9803	●	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-554-2	01	1	9804-0106			●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-646-1	01	1	0012-					●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9601-9803	●	●	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	9804-0004			●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	0005-0106			●		●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0107-					●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9601-9803	●	●	●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9804-0004			●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	0005-0106			●		●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	0107-					●
68	WASHER; PL,TRANS CONT,SELECT ID=8.4 OD=18	9-09164-608-0	01	1	9601-9702	●	●	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9601-9803	●	●	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9804-0004			●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	0005-0106			●		●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	0107-					●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9601-9803	●	●	●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9804-0004			●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	0005-0106			●		●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	0107-0605					●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	0-91614-608-0	01	1	0606-					●
71	WASHER; LK,TRANS CONT,SELECT ID=8.2	9-09150-508-0	01	1	9601-9702	●	●	●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9601-9609	●	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-9803	●	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9804-9810			●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	9811-0004			●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0005-0106			●		●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0107-					●
75	WASHER; LK,BALL JOINT,SELECT WIRE ID=10.2	9-09150-510-0	01	1	9601-9803	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9601-9803	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-056-0	01	1	9804-9810			●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	9811-0004			●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0005-0106			●		●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0107-					●

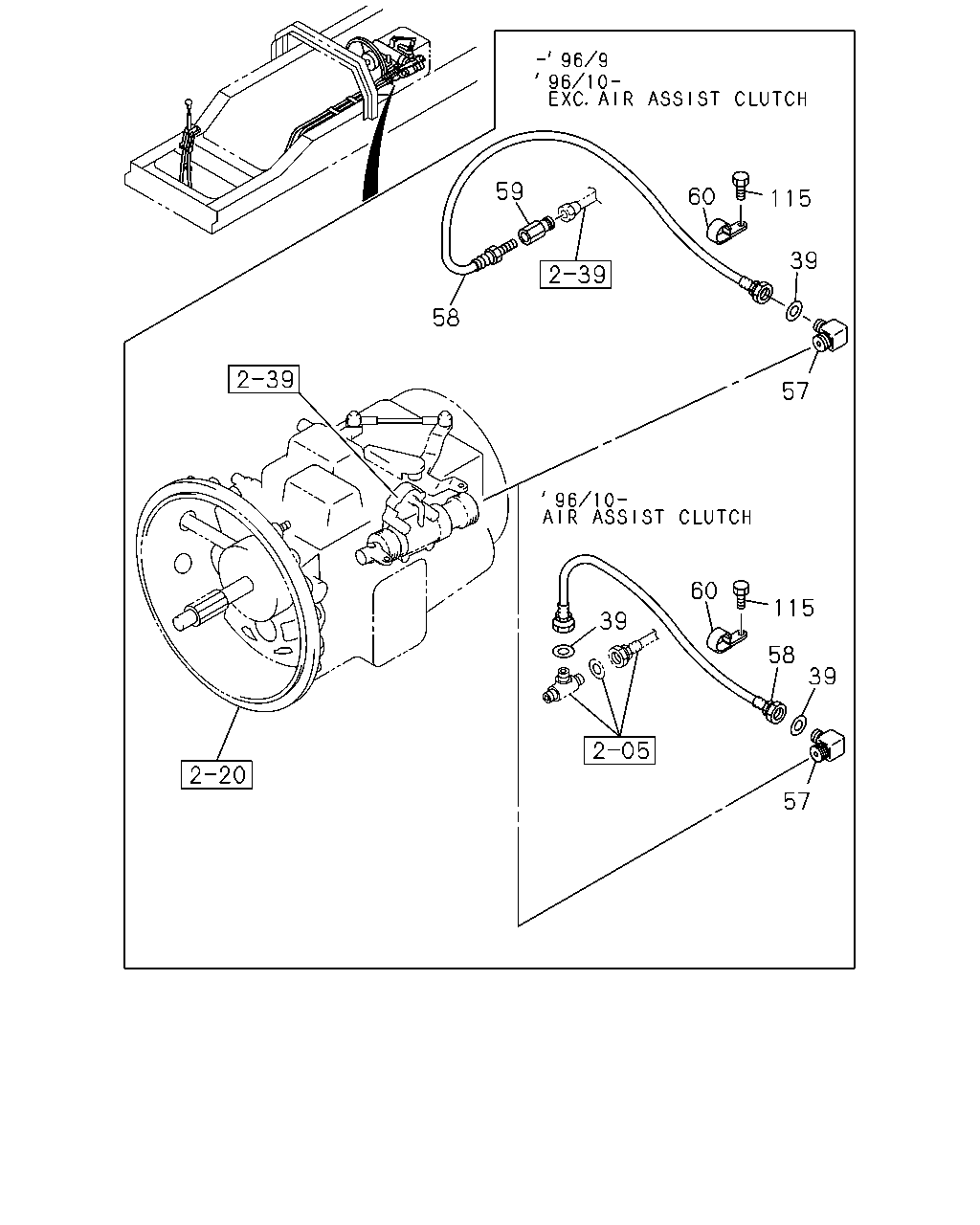

59 60 115 39 58 57 60 115 39 58 39 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
39	GASKET; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	9601-9609	●	●	●	●
39	GASKET; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	9610-9803	●	●		●
39	GASKET; FLEX HOSE WIDE CAB(FV*F) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> ID=11 OD=18	9-09572-510-0	01	1	9610-9803			●
39	GASKET; FLEX HOSE STD CAB(FV*M) ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	9610-9803			●
39	GASKET; FLEX HOSE EXC. AIR ASSIST CLUTCH<PK1> ID=11 OD=18	9-09572-510-0	01	1	9804-0106			●
39	GASKET; FLEX HOSE WIDE CAB(FV*F) ASSISTOR SHIFT CONTROL<WX8> AIR ASSIST CLUTCH<PK1> ID=11 OD=18	9-09572-510-0	02	1	9610-9803			●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8>	1-09660-704-0	01	1	9601-9803	●	●	●	●
57	NIPPLE; POWER ASSISTOR M12 & PT1/4 ELBOW	1-09661-001-1	01	1	9804-0106			●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=790	0-07120-790-0	01	1	9601-9609	●	●	●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=790	0-07120-790-0	01	1	9610-9803	●	●		●
58	HOSE; FLEX,POWER ASSISTOR WIDE CAB(FV*F) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> L=790	0-07120-790-0	01	1	9610-9803			●
58	HOSE; FLEX,POWER ASSISTOR STD CAB(FV*M) ASSISTOR SHIFT CONTROL<WX8> L=790	0-07120-790-0	01	1	9610-9803			●
58	HOSE; FLEX,POWER ASSISTOR EXC. AIR ASSIST CLUTCH<PK1> L=800	1-09363-695-0	01	1	9804-0105			●
58	HOSE; FLEX,POWER ASSISTOR EXC. AIR ASSIST CLUTCH<PK1> L=660	1-09363-719-0	01	1	0106-0106			●
58	HOSE; FLEX,POWER ASSISTOR WIDE CAB(FV*F) ASSISTOR SHIFT CONTROL<WX8> AIR ASSIST CLUTCH<PK1> L=820	1-09363-565-1	01	1	9610-9803			●
58	HOSE; FLEX,POWER ASSISTOR AIR ASSIST CLUTCH<PK1> L=780	1-09363-620-0	01	1	9804-0106			●
59	CONNECTOR; AIR HOSE,SHIFT POWER ASSIST ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9601-9803	●	●		●
59	CONNECTOR; AIR HOSE,SHIFT POWER ASSIST WIDE CAB(FV*F) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9601-9803			●
59	CONNECTOR; AIR HOSE,SHIFT POWER ASSIST STD CAB(FV*M) ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9601-9803			●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20	9-09525-235-0	02	1	9601-9803	●	●	●	●
60	CLIP; FLEX HOSE ID=13 L=20	9-09525-235-0	02	1	9804-0106			●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	02	1	9601-9703	●	●	●	●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28680-820-0	02	1	9704-9803	●	●	●	●
115	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9804-9812			●
115	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9901-0106			●

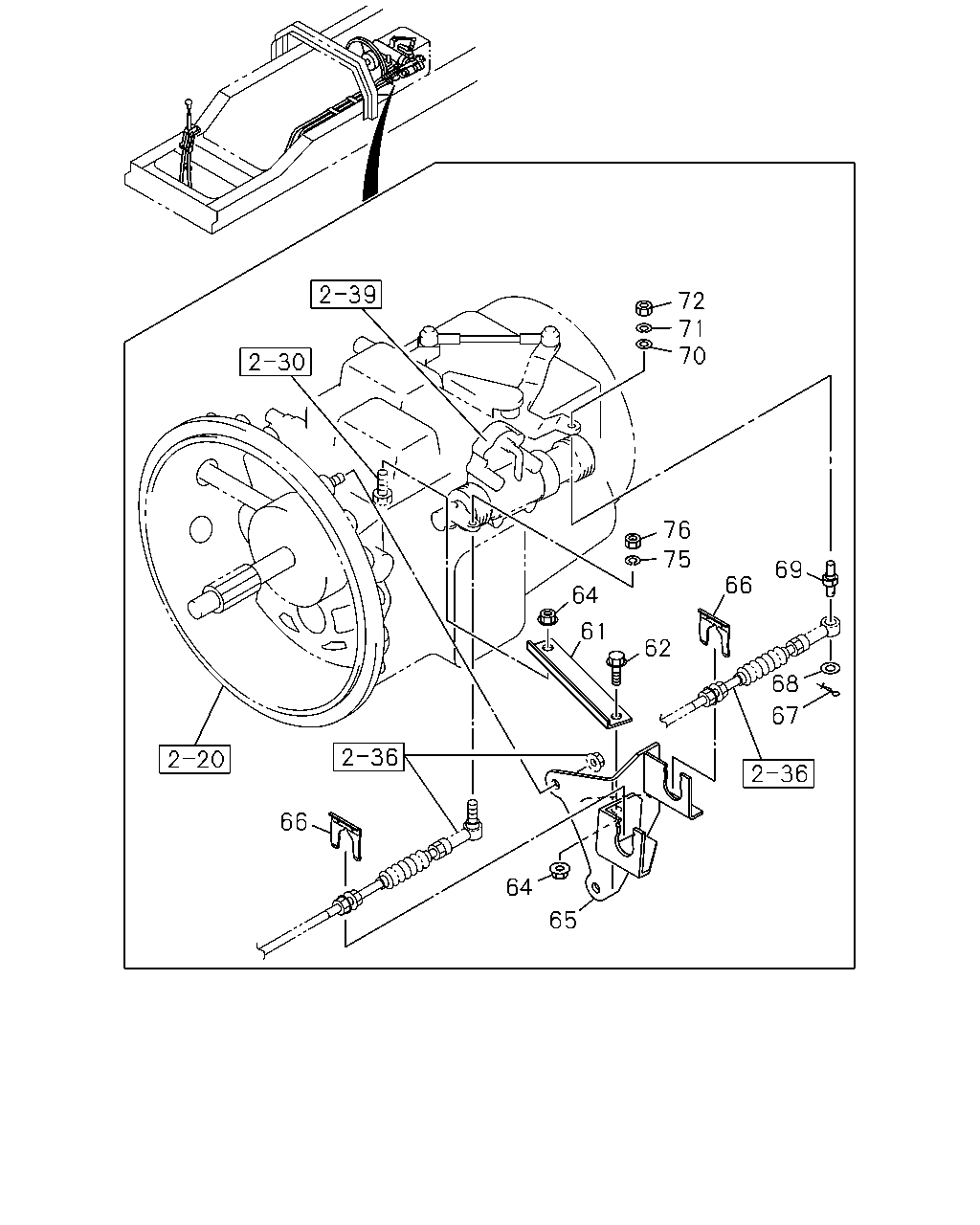

72 71 70 76 75 69 66 64 61 62 68 67 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
61	STAY; BRKT,TRANS CONT STD CAB(FV*M) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	9601-9803	●	●
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	9601-9803	●	●	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9804-0106			●
61	STAY; BRKT,TRANS CONT	1-33657-349-0	01	1	0012-					●
62	BOLT; STAY M10X20 FLANGE	0-28681-020-0	01	1	9601-9605	●	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9803	●	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9804-9804			●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0011			●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	0012-0106			●		●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	0012-0106					●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	02	1	0107-0512					●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	02	1	0601-					●
64	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	9601-9803	●	●	●	●
64	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	9804-0106			●
64	NUT; STAY M10 FLANGE	0-91150-210-0	01	1	0012-0602					●
64	NUT; STAY M10 FLANGE	0-91180-210-0	01	1	0603-					●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-534-2	01	1	9601-9803	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-554-2	01	1	9601-9803	●	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-554-2	01	1	9804-0106			●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-646-1	01	1	0012-					●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9601-9803	●	●	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	9804-0004			●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	0005-0106			●		●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0107-					●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9601-9803	●	●	●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9804-0004			●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	0005-0106			●		●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	0107-					●
68	WASHER; PL,TRANS CONT,SELECT ID=8.4 OD=18	9-09164-608-0	01	1	9601-9702	●	●	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9601-9803	●	●	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9804-0004			●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	0005-0106			●		●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	0107-					●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9601-9803	●	●	●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9804-0004			●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	0005-0106			●		●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	0107-0605					●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	0-91614-608-0	01	1	0606-					●
71	WASHER; LK,TRANS CONT,SELECT ID=8.2	9-09150-508-0	01	1	9601-9702	●	●	●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9601-9609	●	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-9803	●	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9804-9810			●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	9811-0004			●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0005-0106			●		●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0107-					●
75	WASHER; LK,BALL JOINT,SELECT WIRE ID=10.2	9-09150-510-0	01	1	9601-9803	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9601-9803	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-056-0	01	1	9804-9810			●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	9811-0004			●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0005-0106			●		●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0107-					●

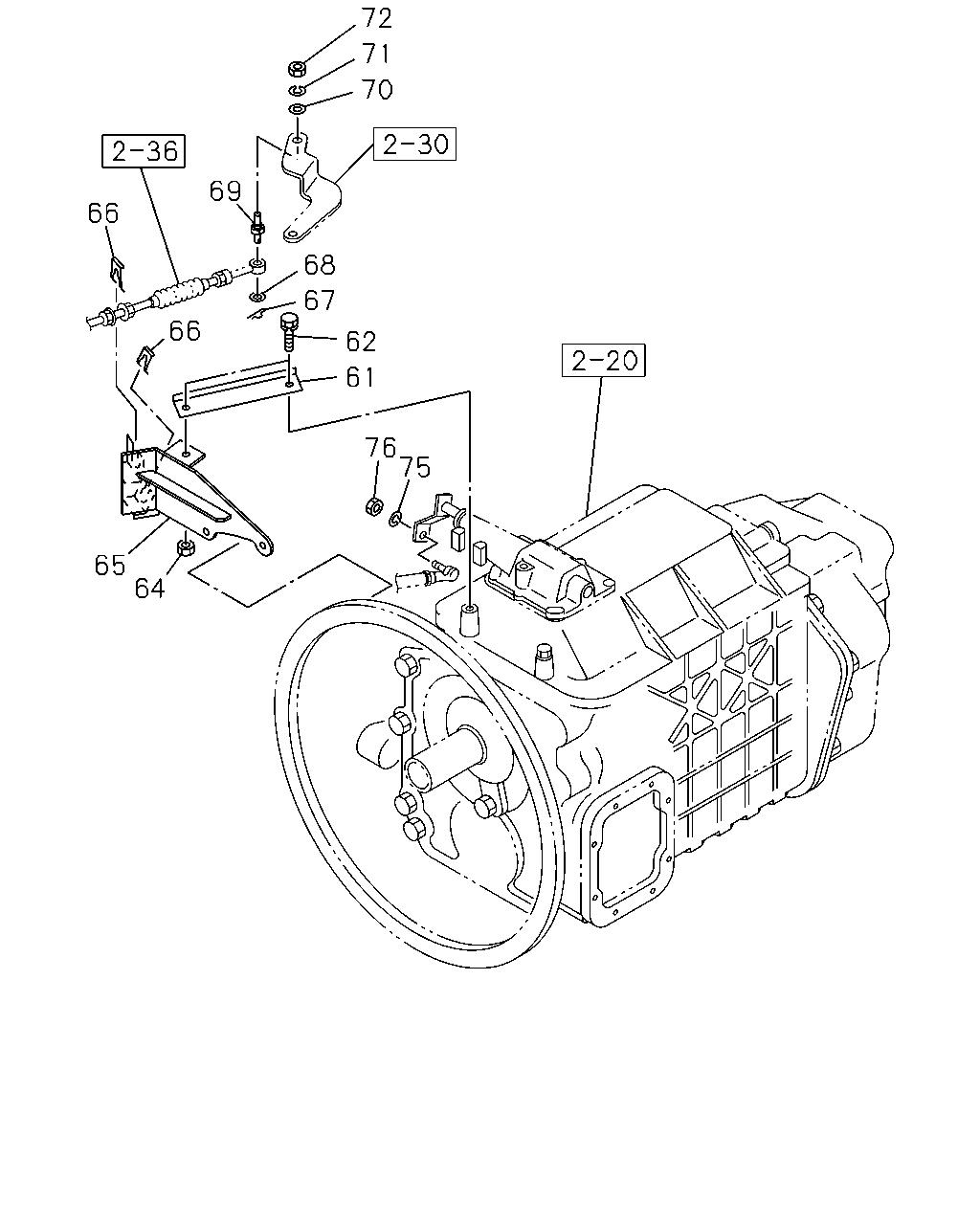

72 71 70 69 66 68 67 66 62 61 76 75 65 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
61	STAY; BRKT,TRANS CONT STD CAB(FV*M) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	9601-9803	●	●
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	9601-9803	●	●	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9804-0106			●
61	STAY; BRKT,TRANS CONT	1-33657-349-0	01	1	0012-					●
62	BOLT; STAY M10X20 FLANGE	0-28681-020-0	01	1	9601-9605	●	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9803	●	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9804-9804			●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0011			●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	0012-0106			●		●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	0012-0106					●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	02	1	0107-0512					●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	02	1	0601-					●
64	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	9601-9803	●	●	●	●
64	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	9804-0106			●
64	NUT; STAY M10 FLANGE	0-91150-210-0	01	1	0012-0602					●
64	NUT; STAY M10 FLANGE	0-91180-210-0	01	1	0603-					●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-534-2	01	1	9601-9803	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-554-2	01	1	9601-9803	●	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-554-2	01	1	9804-0106			●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-646-1	01	1	0012-					●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9601-9803	●	●	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	9804-0004			●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	0005-0106			●		●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0107-					●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9601-9803	●	●	●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9804-0004			●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	0005-0106			●		●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	0107-					●
68	WASHER; PL,TRANS CONT,SELECT ID=8.4 OD=18	9-09164-608-0	01	1	9601-9702	●	●	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9601-9803	●	●	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9804-0004			●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	0005-0106			●		●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	0107-					●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9601-9803	●	●	●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9804-0004			●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	0005-0106			●		●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	0107-0605					●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	0-91614-608-0	01	1	0606-					●
71	WASHER; LK,TRANS CONT,SELECT ID=8.2	9-09150-508-0	01	1	9601-9702	●	●	●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9601-9609	●	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-9803	●	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9804-9810			●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	9811-0004			●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0005-0106			●		●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0107-					●
75	WASHER; LK,BALL JOINT,SELECT WIRE ID=10.2	9-09150-510-0	01	1	9601-9803	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9601-9803	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-056-0	01	1	9804-9810			●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	9811-0004			●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0005-0106			●		●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0107-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
