2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#24796) — 169 parça

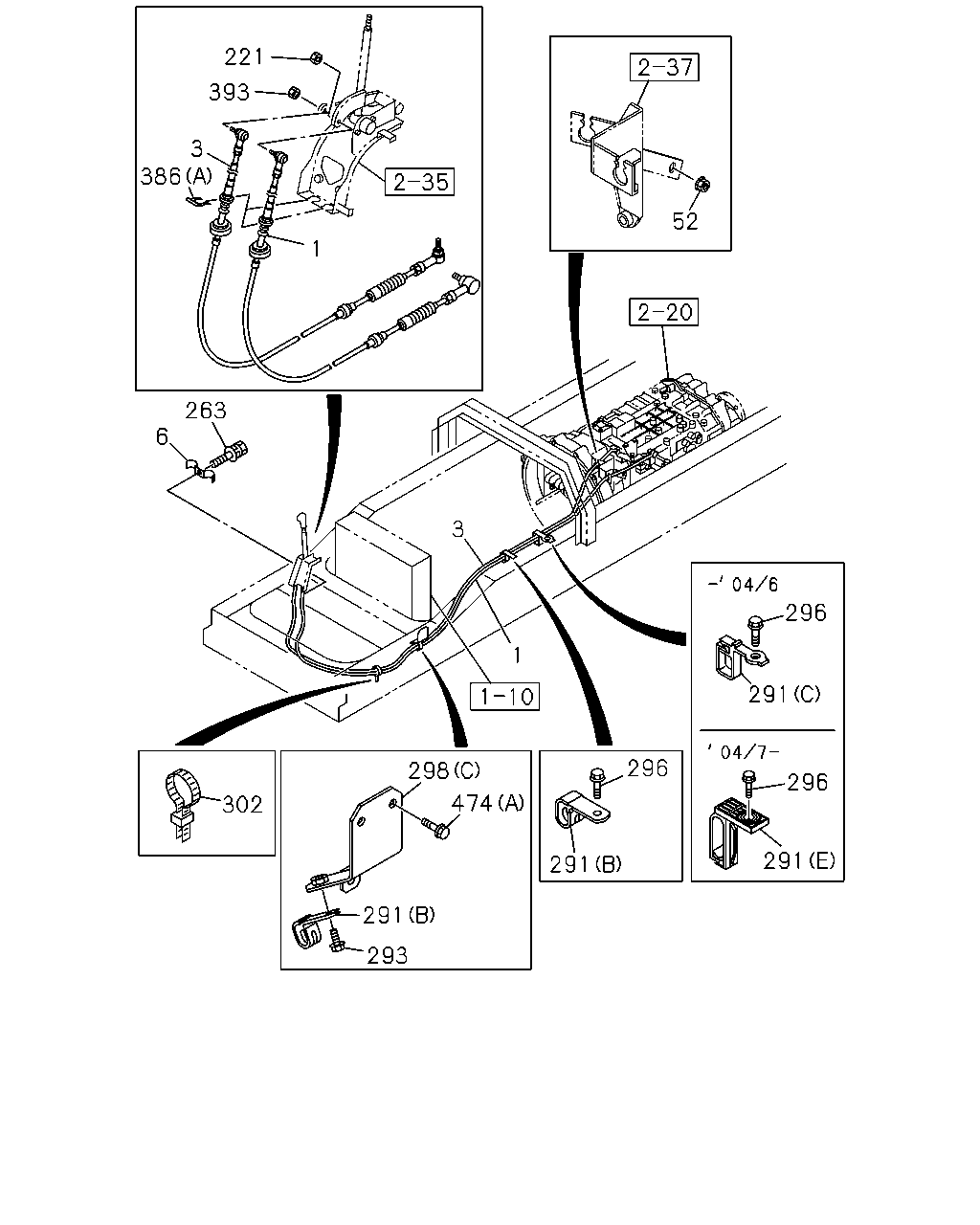

221 393 3 386 52 1 263 6 3 296 1 291 296 298 296 474 302 291 291 291 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT 6SD1 TCN ENG(31L) L=3685	1-33671-187-1	01	1	0107-	●
1	CABLE; SHIFT,TRANS CONT L=3734	1-33670-952-0	01	1	9601-9602	●
1	CABLE; SHIFT,TRANS CONT L=3664	1-33670-975-0	01	1	9603-9701	●
1	CABLE; SHIFT,TRANS CONT L=3672	1-33671-050-0	01	1	9702-9709	●
1	CABLE; SHIFT,TRANS CONT L=3685	1-33671-187-1	01	1	9710-9903	●
1	CABLE; SHIFT,TRANS CONT L=3685	1-33671-187-1	01	1	9904-0004	●	●
1	CABLE; SHIFT,TRANS CONT L=3685	1-33671-187-1	01	1	0005-0106	●
1	CABLE; SHIFT,TRANS CONT 6HK1 TCS ENG(80L) L=3725	1-33671-749-1	01	1	0107-	●
3	CABLE; SELECT,TRANS CONT 6SD1 TCN ENG(31L) L=3560	1-33671-189-1	01	1	0107-	●
3	CABLE; SELECT,TRANS CONT L=3618	1-33670-956-0	01	1	9601-9602	●
3	CABLE; SELECT,TRANS CONT L=3548	1-33670-978-0	01	1	9603-9709	●
3	CABLE; SELECT,TRANS CONT L=3560	1-33671-189-1	01	1	9710-9903	●
3	CABLE; SELECT,TRANS CONT L=3560	1-33671-189-1	01	1	9904-0004	●	●
3	CABLE; SELECT,TRANS CONT L=3560	1-33671-189-1	01	1	0005-0106	●
3	CABLE; SELECT,TRANS CONT 6HK1 TCS ENG(80L) L=3698	1-33671-750-1	01	1	0107-	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9601-9803	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9804-0004	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0005-0106	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0107-	●
52	NUT; BRKT 6HK1 TCS ENG(80L) M10 FLANGE	0-91150-210-0	01	1	0107-0602	●
52	NUT; BRKT 6HK1 TCS ENG(80L) M10 FLANGE	0-91180-210-0	01	1	0603-	●
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9601-9803	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	9804-0004	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0005-0106	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0107-1011	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-	●
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9803	●
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9804-9812	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9901-0004	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0005-0106	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0107-	●
291	CLIP; SHIFT TO SELECT,FRAME 6HK1 TCS ENG(80L) (B) ID=13X2 L=32	1-09701-245-0	02	1	0107-0506	●
291	CLIP; SHIFT TO SELECT,FRAME 6HK1 TCS ENG(80L) (B) ID=13X2 L=32	1-09701-312-0	02	1	0507-	●
291	CLIP; SHIFT TO SELECT,FRAME 6HK1 TCS ENG(80L) (C) ID=10 & 10 M8	1-09701-220-0	01	1	0107-0406	●
291	CLIP; SHIFT TO SELECT,FRAME 6HK1 TCS ENG(80L) (E)	1-09701-307-2	01	1	0407-	●
293	BOLT; CLIP,SHIFT TO SELECT 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512	●
293	BOLT; CLIP,SHIFT TO SELECT 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
296	BOLT; CLIP,SHIFT & SELECT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512	●
296	BOLT; CLIP,SHIFT & SELECT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	02	1	9601-9803	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	02	1	9804-0004	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	02	1	0005-0106	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	04	1	0107-0512	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
298	BRACKET 6HK1 TCS ENG(80L) (C)	1-47478-354-0	01	1	0107-	●
298	BRACKET (A)	1-47477-519-2	01	1	9601-9609	●
298	BRACKET (A)	1-47477-519-2	01	1	9610-9701	●
298	BRACKET (A)	1-47477-519-2	01	1	9702-9803	●
298	BRACKET (A)	1-47477-519-2	01	1	9804-0004	●	●
298	BRACKET (A)	1-47477-519-2	01	1	0005-0106	●
298	BRACKET 6SD1 TCN ENG(31L) (A)	1-47477-519-2	01	1	0107-	●
298	BRACKET (B)	1-47477-520-0	01	1	9601-9803	●
298	BRACKET (B)	1-47477-520-0	01	1	9804-0004	●	●
298	BRACKET (B)	1-47477-520-0	01	1	0005-0106	●
298	BRACKET 6SD1 TCN ENG(31L) (B)	1-47477-520-0	01	1	0107-	●
302	CLIP; BAND 6HK1 TCS ENG(80L) L=300	1-09707-001-1	01	1	0107-	●
386	CLIP; CONT CABLE & TUBE (A)	1-09700-966-1	02	1	9601-9803	●
386	CLIP; CONT CABLE & TUBE (A)	1-09700-966-1	02	1	9804-0004	●	●
386	CLIP; CONT CABLE & TUBE (A)	1-09700-966-1	02	1	0005-0106	●
386	CLIP; CONT CABLE & TUBE (A)	1-09700-966-1	02	1	0107-	●
386	CLIP; CONT CABLE & TUBE 6SD1 TCN ENG(31L) (B) L=140	5-09707-031-1	03	1	0107-	●
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9601-9803	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	9804-0004	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0005-0106	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0107-1011	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-	●
474	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9601-9606	●
474	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9610	●
474	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	02	1	9611-9803	●
474	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9804-0004	●	●
474	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	0005-0106	●
474	BOLT; BRKT 6SD1 TCN ENG(31L) (B) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512	●
474	BOLT; BRKT 6SD1 TCN ENG(31L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
474	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9607-9609	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9610-9803	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9804-0004	●	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0005-0106	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0107-	●

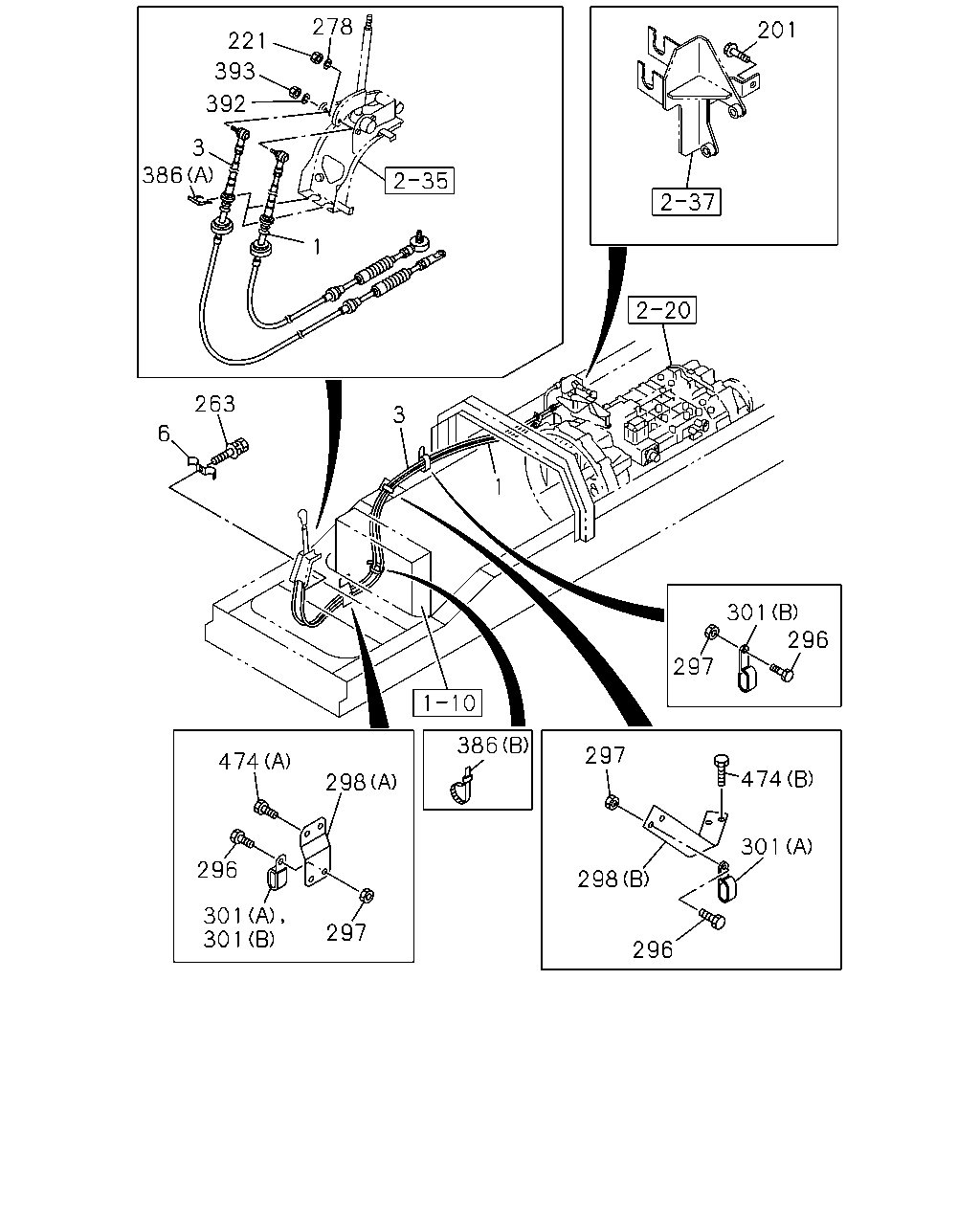

278 201 221 393 392 3 386 1 263 3 6 1 301 296 297 386 297 474 474 298 301 296 298 301 301 297 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT 6SD1 TCN ENG(31L) L=3685	1-33671-187-1	01	1	0107-	●
1	CABLE; SHIFT,TRANS CONT L=3734	1-33670-952-0	01	1	9601-9602	●
1	CABLE; SHIFT,TRANS CONT L=3664	1-33670-975-0	01	1	9603-9701	●
1	CABLE; SHIFT,TRANS CONT L=3672	1-33671-050-0	01	1	9702-9709	●
1	CABLE; SHIFT,TRANS CONT L=3685	1-33671-187-1	01	1	9710-9903	●
1	CABLE; SHIFT,TRANS CONT L=3685	1-33671-187-1	01	1	9904-0004	●	●
1	CABLE; SHIFT,TRANS CONT L=3685	1-33671-187-1	01	1	0005-0106	●
1	CABLE; SHIFT,TRANS CONT 6HK1 TCS ENG(80L) L=3725	1-33671-749-1	01	1	0107-	●
3	CABLE; SELECT,TRANS CONT 6SD1 TCN ENG(31L) L=3560	1-33671-189-1	01	1	0107-	●
3	CABLE; SELECT,TRANS CONT L=3618	1-33670-956-0	01	1	9601-9602	●
3	CABLE; SELECT,TRANS CONT L=3548	1-33670-978-0	01	1	9603-9709	●
3	CABLE; SELECT,TRANS CONT L=3560	1-33671-189-1	01	1	9710-9903	●
3	CABLE; SELECT,TRANS CONT L=3560	1-33671-189-1	01	1	9904-0004	●	●
3	CABLE; SELECT,TRANS CONT L=3560	1-33671-189-1	01	1	0005-0106	●
3	CABLE; SELECT,TRANS CONT 6HK1 TCS ENG(80L) L=3698	1-33671-750-1	01	1	0107-	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9601-9803	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9804-0004	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0005-0106	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0107-	●
201	BOLT; BRKT M10X20 FLANGE	0-28781-020-0	01	1	9601-9903	●
201	BOLT; BRKT M10X20 FLANGE	0-28781-020-0	01	1	9904-0004	●	●
201	BOLT; BRKT M10X20 FLANGE	0-28781-020-0	01	1	0005-0106	●
201	BOLT; BRKT 6SD1 TCN ENG(31L) M10X20 FLANGE	0-28781-020-0	01	1	0107-0512	●
201	BOLT; BRKT 6SD1 TCN ENG(31L) M10X20 FLANGE	0-28751-020-0	01	1	0601-	●
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9601-9803	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	9804-0004	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0005-0106	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0107-1011	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-	●
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9803	●
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9804-9812	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9901-0004	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0005-0106	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0107-	●
278	WASHER; LK,SHIFT WIRE ID=8.2	9-09150-508-0	01	1	9601-9803	●
296	BOLT; CLIP,SHIFT & SELECT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512	●
296	BOLT; CLIP,SHIFT & SELECT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	02	1	9601-9803	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	02	1	9804-0004	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	02	1	0005-0106	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	04	1	0107-0512	●
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
297	NUT; CLIP M8	9-09110-408-0	02	1	9601-9606	●
297	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
297	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
297	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0106	●
297	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0107-0602	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-	●
298	BRACKET 6HK1 TCS ENG(80L) (C)	1-47478-354-0	01	1	0107-	●
298	BRACKET (A)	1-47477-519-2	01	1	9601-9609	●
298	BRACKET (A)	1-47477-519-2	01	1	9610-9701	●
298	BRACKET (A)	1-47477-519-2	01	1	9702-9803	●
298	BRACKET (A)	1-47477-519-2	01	1	9804-0004	●	●
298	BRACKET (A)	1-47477-519-2	01	1	0005-0106	●
298	BRACKET 6SD1 TCN ENG(31L) (A)	1-47477-519-2	01	1	0107-	●
298	BRACKET (B)	1-47477-520-0	01	1	9601-9803	●
298	BRACKET (B)	1-47477-520-0	01	1	9804-0004	●	●
298	BRACKET (B)	1-47477-520-0	01	1	0005-0106	●
298	BRACKET 6SD1 TCN ENG(31L) (B)	1-47477-520-0	01	1	0107-	●
301	CLIP; WIRE (B) ID=11X2 L=32	9-09535-066-0	03	1	0107-0606	●
301	CLIP; WIRE 6SD1 TCN ENG(31L) (B) ID=11X2 L=32	0-95325-066-0	03	1	0607-	●
301	CLIP; WIRE (A) ID=11X2 L=16	9-09535-026-0	02	1	9601-9803	●
301	CLIP; WIRE (A) ID=11X2 L=16	9-09535-026-0	02	1	9804-0004	●	●
301	CLIP; WIRE (A) ID=11X2 L=16	9-09535-026-0	02	1	0005-0106	●
301	CLIP; WIRE 6SD1 TCN ENG(31L) (A) ID=11X2 L=16	9-09535-026-0	01	1	0107-0606	●
301	CLIP; WIRE 6SD1 TCN ENG(31L) (A) ID=11X2 L=16	0-95325-026-0	01	1	0607-	●
386	CLIP; CONT CABLE & TUBE (A)	1-09700-966-1	02	1	9601-9803	●
386	CLIP; CONT CABLE & TUBE (A)	1-09700-966-1	02	1	9804-0004	●	●
386	CLIP; CONT CABLE & TUBE (A)	1-09700-966-1	02	1	0005-0106	●
386	CLIP; CONT CABLE & TUBE (A)	1-09700-966-1	02	1	0107-	●
386	CLIP; CONT CABLE & TUBE 6SD1 TCN ENG(31L) (B) L=140	5-09707-031-1	03	1	0107-	●
392	WASHER; LK,SELECT CABLE,CAB ID=8.2	9-09150-508-0	01	1	9601-9803	●
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9601-9803	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	9804-0004	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0005-0106	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0107-1011	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-	●
474	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9601-9606	●
474	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9610	●
474	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	02	1	9611-9803	●
474	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9804-0004	●	●
474	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	0005-0106	●
474	BOLT; BRKT 6SD1 TCN ENG(31L) (B) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512	●
474	BOLT; BRKT 6SD1 TCN ENG(31L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
474	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9607-9609	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9610-9803	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9804-0004	●	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0005-0106	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0107-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
