◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36A - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#24795) — 103 parça

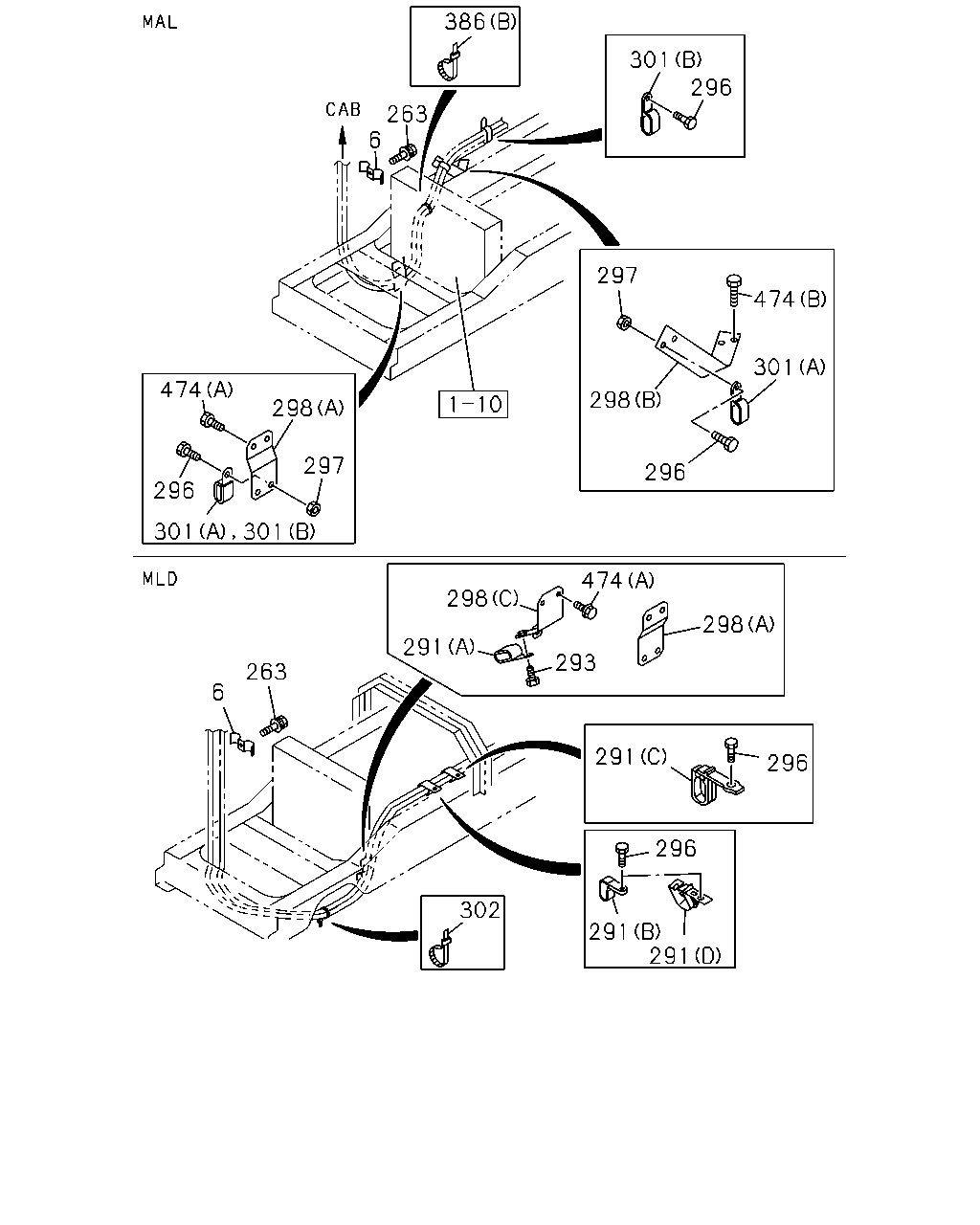

çizim 85614
386 301 296 263 6 297 474 301 474 298 298 297 296 296 301 474 298 298 291 293 263 6 291 296 296 302 291 291 301
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9601-9803 ● ● ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9804-0004 ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0005-0106 ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0107- ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9803 ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9804-9812 ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9901-0004 ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0005-0106 ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0107- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		1-09700-621-2 01 1 9601-9602 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9603-9701 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) 		1-09701-258-0 01 1 9702-9702 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9703-9803 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 9804-0005 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 0006-0106 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 0006-0106 ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9601-9803 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 9804-0106 ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 9601-9803 ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 9804-0005 ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9803 ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0106 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 02 1 9601-9803 ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 02 1 9804-0106 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0106 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 04 1 0107-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0106 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0107-0602 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
298 BRACKET
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) 		1-47477-922-0 01 1 9702-9803 ●
298 BRACKET
(C) 		1-47477-922-0 01 1 9804-9810 ●
298 BRACKET
(C) 		1-47478-354-0 01 1 9811-0106 ●
298 BRACKET
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) 		1-47477-519-2 01 1 9610-9701 ●
298 BRACKET
(A) 		1-47477-519-2 01 1 0005-0106 ●
298 BRACKET
(A) 		1-47477-519-2 01 1 0107- ●
298 BRACKET
(B) 		1-47477-520-0 01 1 0005-0106 ●
298 BRACKET
(B) 		1-47477-520-0 01 1 0107- ●
301 CLIP; WIRE
(B) ID=11X2 L=32 		9-09535-066-0 03 1 0107-0606 ●
301 CLIP; WIRE
(B) ID=11X2 L=32 		0-95325-066-0 03 1 0607- ●
301 CLIP; WIRE
(A) ID=11X2 L=16 		9-09535-026-0 02 1 0005-0106 ●
301 CLIP; WIRE
(A) ID=11X2 L=16 		9-09535-026-0 01 1 0107-0606 ●
301 CLIP; WIRE
(A) ID=11X2 L=16 		0-95325-026-0 01 1 0607- ●
302 CLIP; BAND
L=300 		1-09707-001-0 01 1 9601-9803 ● ● ● ●
302 CLIP; BAND
L=300 		1-09707-001-1 01 1 9804-0103 ●
302 CLIP; BAND
L=300 		1-09707-001-1 02 1 0104-0106 ●
386 CLIP; CONT CABLE & TUBE
(A) 		1-09700-966-1 02 1 9601-9803 ● ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) 		1-09700-966-1 02 1 9804-0004 ●
386 CLIP; CONT CABLE & TUBE
(A) 		1-09700-966-1 02 1 0005-0106 ● ●
386 CLIP; CONT CABLE & TUBE
(A) 		1-09700-966-1 02 1 0107- ●
386 CLIP; CONT CABLE & TUBE
(B) L=140 		5-09707-031-1 03 1 0107- ●
474 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0106 ●
474 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512 ●
474 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
474 BOLT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9610-9803 ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9804-0004 ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005-0106 ● ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0107- ●

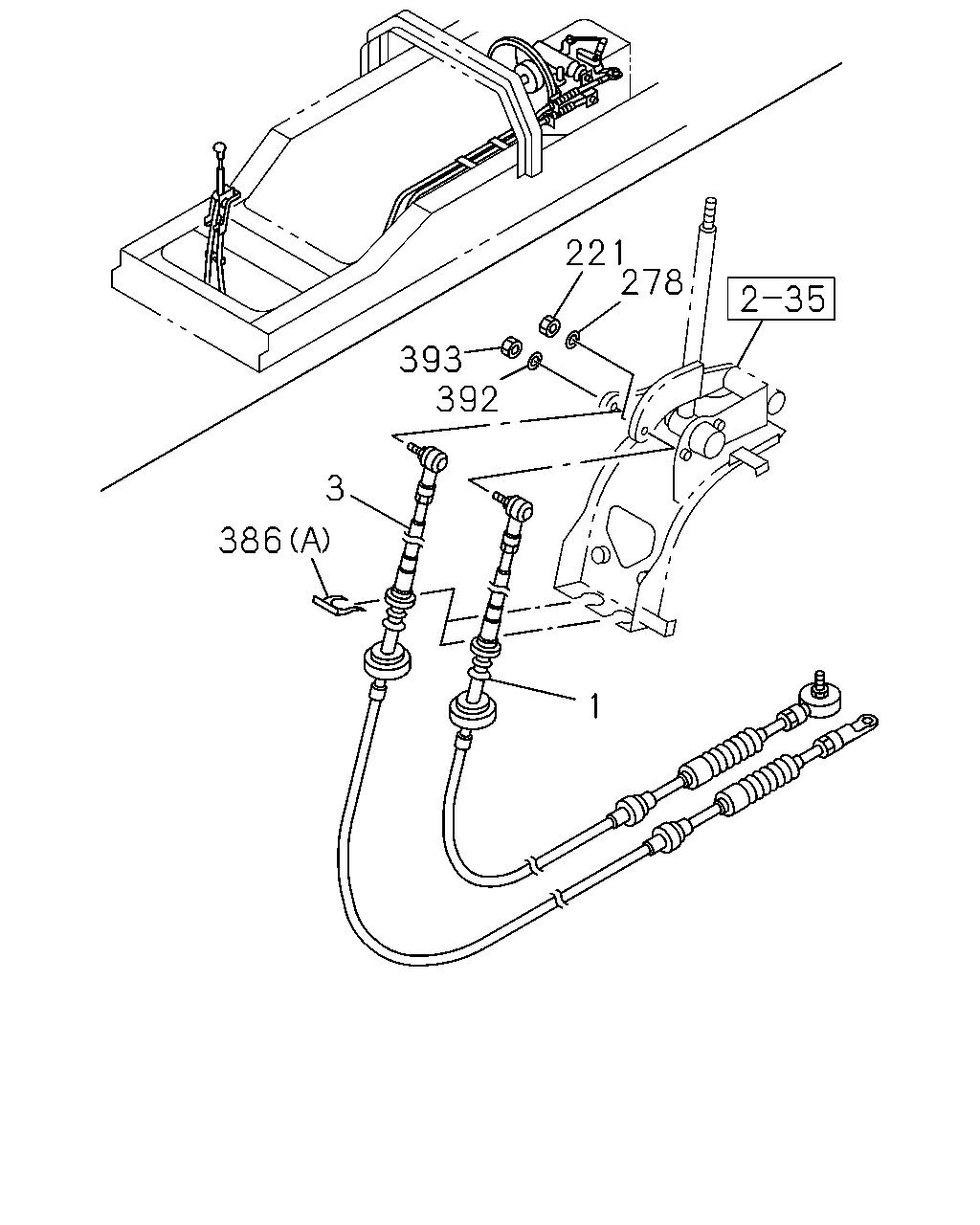

çizim 85622
221 278 393 392 3 386 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CABLE; SHIFT,TRANS CONT
L=3564 		1-33670-848-0 01 1 9601-9803 ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3564 		1-33670-848-0 01 1 9601-9803 ● ●
1 CABLE; SHIFT,TRANS CONT
WIDE CAB(FV**F*) ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3787 		1-33671-021-0 01 1 9610-9701 ●
1 CABLE; SHIFT,TRANS CONT
WIDE CAB(FV**F*) ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3590 		1-33671-054-0 01 1 9702-9803 ●
1 CABLE; SHIFT,TRANS CONT
L=3590 		1-33671-054-1 01 1 9804-0106 ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3437 		1-33670-847-0 01 1 9601-9609 ● ●
1 CABLE; SHIFT,TRANS CONT
WIDE CAB(FV**F*) ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3437 		1-33670-847-0 01 1 9610-9803 ●
1 CABLE; SHIFT,TRANS CONT
STD CAB(FV**M*) ASSISTOR SHIFT CONTROL<WX8> L=3437 		1-33670-847-0 01 1 9610-9803 ●
1 CABLE; SHIFT,TRANS CONT
L=3437 		1-33670-847-0 01 1 9610-9803 ●
1 CABLE; SHIFT,TRANS CONT
L=3573.5 		1-33671-753-0 01 1 0012-0211 ●
1 CABLE; SHIFT,TRANS CONT
L=3573.5 		1-33671-892-0 01 1 0212- ●
3 CABLE; SELECT,TRANS CONT
L=3661 		1-33670-860-1 01 1 9601-9803 ● ●
3 CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3661 		1-33670-860-1 01 1 9601-9803 ● ●
3 CABLE; SELECT,TRANS CONT
WIDE CAB(FV**F*) ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=4029 		1-33671-022-0 01 1 9610-9701 ●
3 CABLE; SELECT,TRANS CONT
WIDE CAB(FV**F*) ASSISTOR SHIFT CONTROL<WX8> EURO2 SPECIFICATION<THN> L=3830 		1-33671-055-0 01 1 9702-9803 ●
3 CABLE; SELECT,TRANS CONT
L=3830 		1-33671-055-1 01 1 9804-0106 ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3679 		1-33670-859-1 01 1 9601-9609 ● ●
3 CABLE; SELECT,TRANS CONT
WIDE CAB(FV**F*) ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> L=3679 		1-33670-859-1 01 1 9610-9803 ●
3 CABLE; SELECT,TRANS CONT
STD CAB(FV**M*) ASSISTOR SHIFT CONTROL<WX8> L=3679 		1-33670-859-1 01 1 9610-9803 ●
3 CABLE; SELECT,TRANS CONT
L=3679 		1-33670-859-1 01 1 9610-9803 ●
3 CABLE; SELECT,TRANS CONT
L=3505.5 		1-33671-754-0 01 1 0012- ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9601-9803 ● ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 9804-0004 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0005-0106 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0107-1011 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) 		1-09700-966-1 02 1 9601-9803 ● ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) 		1-09700-966-1 02 1 9804-0004 ●
386 CLIP; CONT CABLE & TUBE
(A) 		1-09700-966-1 02 1 0005-0106 ● ●
386 CLIP; CONT CABLE & TUBE
(A) 		1-09700-966-1 02 1 0107- ●
386 CLIP; CONT CABLE & TUBE
(B) L=140 		5-09707-031-1 03 1 0107- ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9601-9803 ● ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 9804-0004 ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0005-0106 ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0107-1011 ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ●

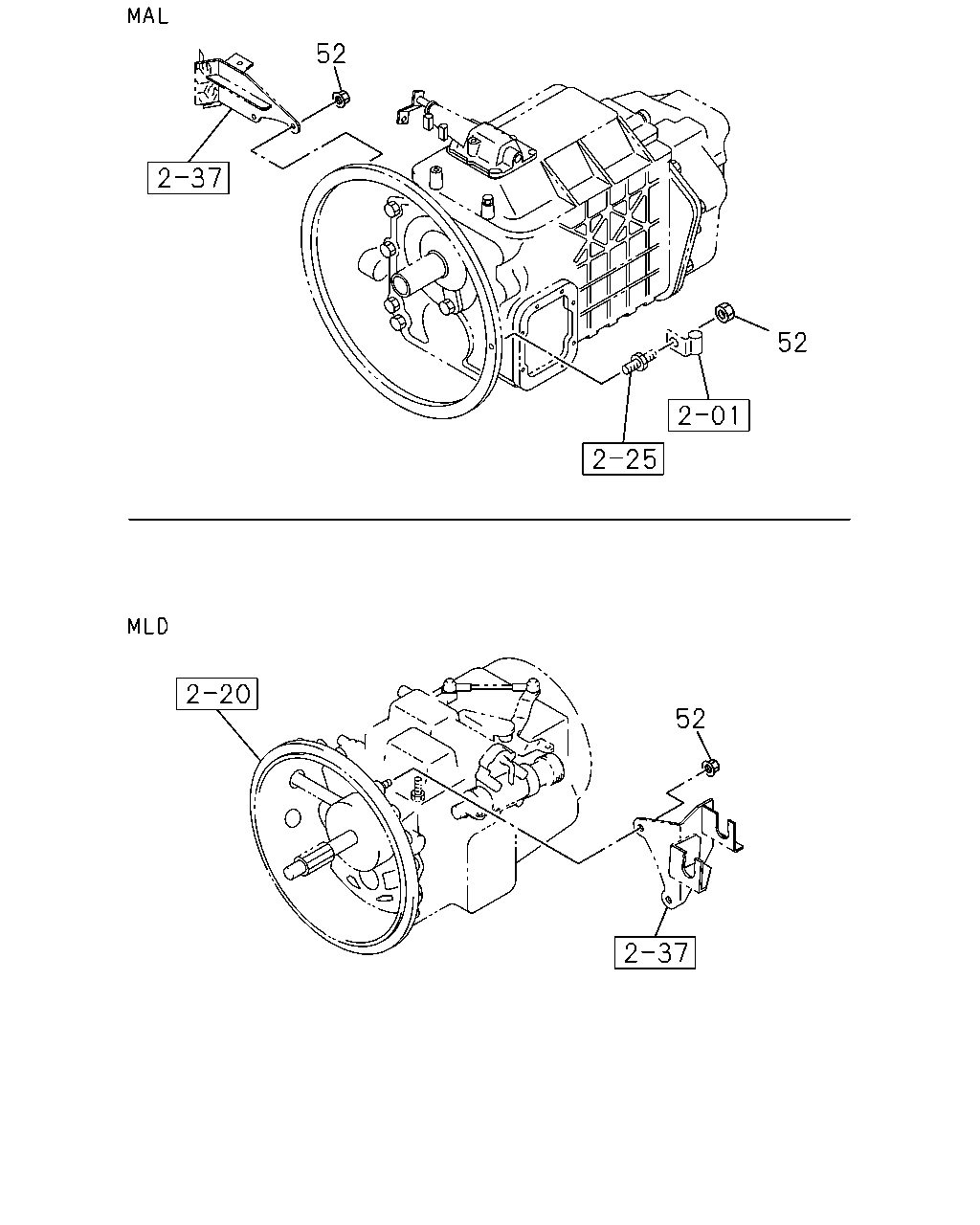

çizim 104031
52 52 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E
52 NUT; BRKT
M10 FLANGE 		0-91150-110-0 02 1 9601-9605 ● ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9606-9803 ● ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9804-0004 ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0106 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0107-0112 ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 03 1 0201-0602 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0603- ●
