◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35A - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35A — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#24793) — 156 parça

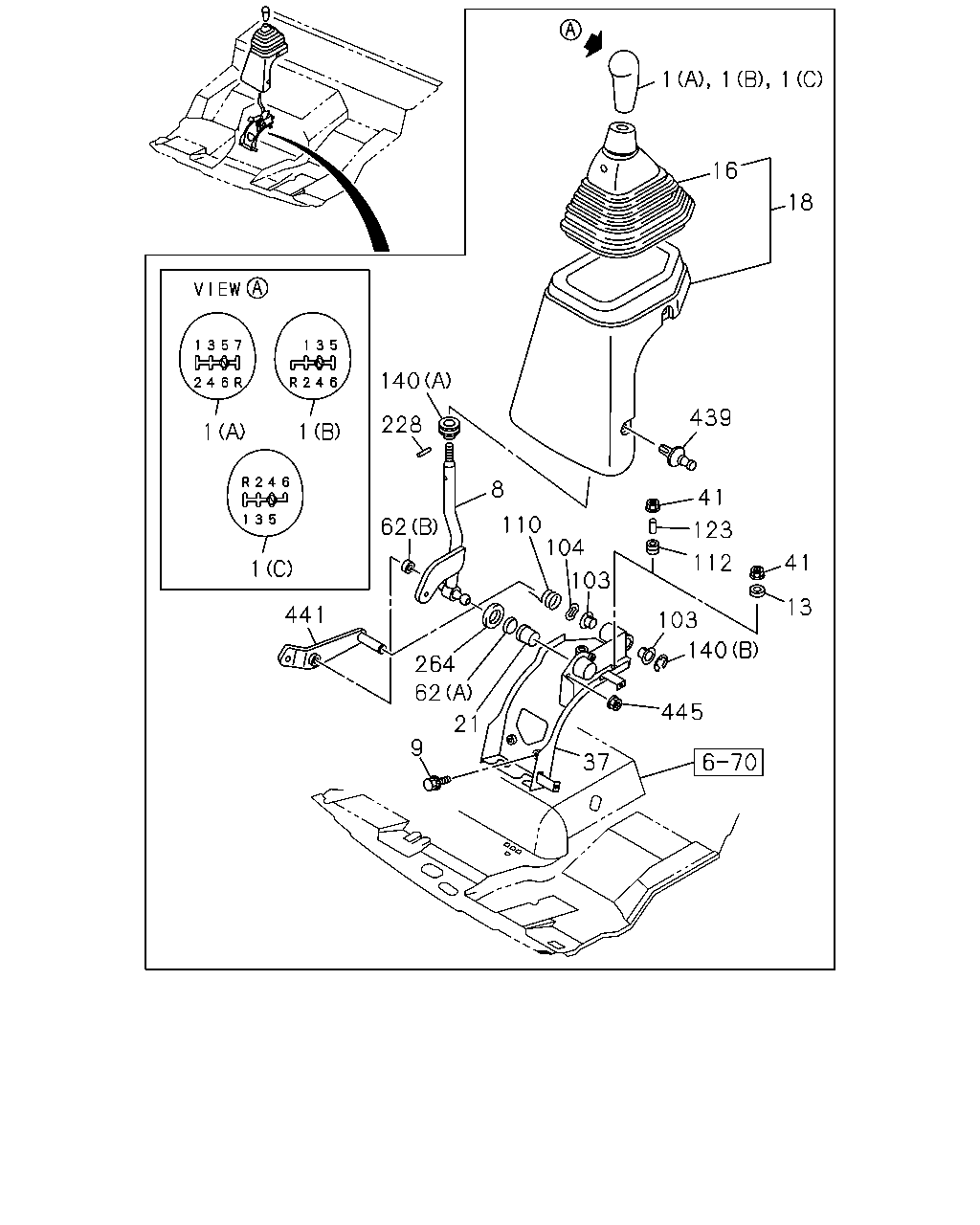

çizim 85916
1 1 1 16 18 140 439 228 1 1 8 41 110 104 62 123 112 41 1 103 13 103 441 140 264 62 445 21 37 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 KNOB; CHANGE LEVER
(B) 		1-33611-070-0 01 1 9601-9803 ● ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-092-0 01 1 9601-9803 ● ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-092-0 01 1 9804-0106 ●
1 KNOB; CHANGE LEVER
(C) 		1-33611-068-1 01 1 0012- ●
8 LEVER; CHANGE 1-33619-502-0 01 1 9601-9605 ● ● ● ●
8 LEVER; CHANGE 1-33619-553-0 01 1 9606-9701 ● ● ● ●
8 LEVER; CHANGE 1-33619-553-0 01 1 9702-9704 ● ● ●
8 LEVER; CHANGE
STD CAB(FV**M*) 		1-33619-553-0 01 1 9702-9704 ●
8 LEVER; CHANGE 1-33619-553-0 01 1 9705-9803 ● ● ● ●
8 LEVER; CHANGE 1-33619-553-0 01 1 9804-0011 ●
8 LEVER; CHANGE 1-33619-553-0 01 1 0012-0106 ● ●
8 LEVER; CHANGE 1-33619-553-0 01 1 0107-0211 ●
8 LEVER; CHANGE
WIDE CAB(FV**F*) 		1-33619-599-0 01 1 9702-9704 ●
8 LEVER; CHANGE 1-33619-599-0 01 1 0212- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 9601-9803 ● ● ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 9804-0004 ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0005-0106 ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0107- ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.5 OD=22 T=4 		9-09851-649-0 04 1 0212- ●
16 BOOT; CHANGE LEVER 1-79998-751-3 01 1 9601-9803 ● ● ● ●
16 BOOT; CHANGE LEVER 1-79998-751-3 01 1 9804-0004 ●
16 BOOT; CHANGE LEVER 1-79998-751-3 01 1 0005-0106 ● ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0107- ●
18 BOOT; CHANGE LEVER 1-79998-761-4 01 1 9601-9803 ● ● ●
18 BOOT; CHANGE LEVER
STD CAB(FV**M*) 		1-79998-761-4 01 1 9601-9803 ●
18 BOOT; CHANGE LEVER
WIDE CAB(FV**F*) 		1-79998-859-4 01 1 9601-9803 ●
18 BOOT; CHANGE LEVER 1-79998-859-5 01 1 9804-0004 ●
18 BOOT; CHANGE LEVER 1-79996-396-1 01 1 0005-0106 ● ●
18 BOOT; CHANGE LEVER 1-79996-396-3 01 1 0107- ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9601-9701 ● ● ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9702-9702 ● ● ●
21 SEAT; CHANGE LEVER
STD CAB(FV**M*) 		1-33619-429-0 01 1 9702-9702 ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9703-9803 ● ● ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9804-9903 ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9904-0004 ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0005-0011 ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0012-0106 ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0107- ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 9601-9803 ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT
STD CAB(FV**M*) 		1-33619-444-2 01 1 9601-9803 ●
37 BRACKET; CHANGE LEVER SUPPORT
WIDE CAB(FV**F*) 		1-33619-445-2 01 1 9601-9702 ●
37 BRACKET; CHANGE LEVER SUPPORT
WIDE CAB(FV**F*) 		1-33619-598-0 01 1 9703-9704 ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-598-0 01 1 0212- ●
37 BRACKET; CHANGE LEVER SUPPORT
WIDE CAB(FV**F*) 		1-33619-445-2 01 1 9705-9803 ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-445-2 01 1 9804-0011 ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-445-2 01 1 0012-0106 ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-445-2 01 1 0107-0211 ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9601-9803 ● ● ● ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9804-0004 ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 0005-0106 ● ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 0107-0107 ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0108-0805 ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9601-9803 ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9804-9903 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9904-0004 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0005-0011 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0012-0106 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0107- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9601-9701 ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9702-9704 ● ● ●
62 SEAT; BALL,CHANGE LEVER
STD CAB(FV**M*) (B) 		8-97011-900-0 01 1 9702-9704 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9705-9803 ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9804-0011 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0012-0106 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0107-0211 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9601-9803 ● ● ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9804-9903 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9904-0004 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0005-0011 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0012-0106 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0107- ●
104 WASHER; WAVED 1-09550-009-0 01 1 9601-9803 ● ● ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 9804-9903 ●
104 WASHER; WAVED 1-09550-009-0 01 1 9904-0004 ●
104 WASHER; WAVED 1-09550-009-0 01 1 0005-0011 ●
104 WASHER; WAVED 1-09550-009-0 01 1 0012-0106 ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 0107- ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 9601-9702 ● ● ●
110 SPRING; RETURN,CHANGE LEVER
STD CAB(FV**M*) 		1-33619-435-0 01 1 9601-9702 ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 9703-9803 ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0012- ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9601-9701 ● ● ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9702-9704 ● ● ●
112 RUBBER; CUSHION
STD CAB(FV**M*) 		1-33619-442-0 04 1 9702-9704 ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9705-9803 ● ● ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9804-0011 ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0012-0106 ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0107-0211 ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9601-9701 ● ● ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9702-9704 ● ● ●
123 COLLAR; DIST,CHANGE LEVER
STD CAB(FV**M*) 		1-33619-443-0 04 1 9702-9704 ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9705-9803 ● ● ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9804-0011 ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0012-0106 ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0107-0211 ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 9601-9701 ● ● ● ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 9702-9704 ● ● ●
140 RING; SNAP
STD CAB(FV**M*) (A) 		1-33619-504-0 01 1 9702-9704 ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 9705-9803 ● ● ● ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 9804-0011 ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 0012-0106 ● ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 0107-0211 ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 9601-9701 ● ● ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 9702-9702 ● ● ●
140 RING; SNAP
STD CAB(FV**M*) (B) ID=10 		9-09185-410-0 01 1 9702-9702 ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 9703-9803 ● ● ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 9804-9903 ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 9904-0004 ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 0005-0011 ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 0012-0106 ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 0107-0604 ●
140 RING; SNAP
(B) ID=10 		0-91805-510-0 01 1 0605- ●
140 RING; SNAP
WIDE CAB(FV**F*) (A) 		1-33619-600-0 01 1 9703-9704 ●
140 RING; SNAP
(A) 		1-33619-600-0 01 1 0212- ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 9601-9701 ● ● ● ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 9702-9702 ● ● ●
228 PIN; SPR,CHANGE LEVER
STD CAB(FV**M*) 		1-33619-505-0 01 1 9702-9702 ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 9703-9803 ● ● ● ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 9804-9903 ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 9904-0004 ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 0005-0011 ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 0012-0106 ● ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 0107- ●
264 PLATE; COVER 1-33619-430-0 01 1 9601-9701 ● ● ● ●
264 PLATE; COVER 1-33619-430-0 01 1 9702-9702 ● ● ●
264 PLATE; COVER
STD CAB(FV**M*) 		1-33619-430-0 01 1 9702-9702 ●
264 PLATE; COVER 1-33619-430-0 01 1 9703-9803 ● ● ● ●
264 PLATE; COVER 1-33619-430-0 01 1 9804-9903 ●
264 PLATE; COVER 1-33619-430-0 01 1 9904-0004 ●
264 PLATE; COVER 1-33619-430-0 01 1 0005-0011 ●
264 PLATE; COVER 1-33619-430-0 01 1 0012-0106 ● ●
264 PLATE; COVER 1-33619-430-0 01 1 0107- ●
439 FASTENER; COVER 1-09987-245-1 04 1 9601-9803 ● ● ● ●
439 FASTENER; COVER 1-09987-245-1 04 1 9804-0004 ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0005-0106 ● ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0107- ●
441 LEVER; SELECT 1-33619-437-1 01 1 9601-9701 ● ● ● ●
441 LEVER; SELECT 1-33619-437-1 01 1 9702-9704 ● ● ●
441 LEVER; SELECT
STD CAB(FV**M*) 		1-33619-437-1 01 1 9702-9704 ●
441 LEVER; SELECT 1-33619-437-1 01 1 9705-9803 ● ● ● ●
441 LEVER; SELECT 1-33619-437-2 01 1 9804-0011 ●
441 LEVER; SELECT 1-33619-437-2 01 1 0012-0106 ● ●
441 LEVER; SELECT 1-33619-437-2 01 1 0107-0211 ●
441 LEVER; SELECT
WIDE CAB(FV**F*) 		8-97500-223-0 01 1 9703-9704 ●
441 LEVER; SELECT 8-97500-223-1 01 1 0212- ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9601-9701 ● ● ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9702-9702 ● ● ●
445 NUT; PLATE
STD CAB(FV**M*) M6 FLANGE 		0-91150-106-0 02 1 9702-9702 ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9703-9803 ● ● ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9804-9903 ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9904-0004 ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0005-0011 ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0012-0106 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0107-0602 ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0603- ●
