◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30A - GEAR SHIFTER AND QUADRANT BOX ▶
2-30A — GEAR SHIFTER AND QUADRANT BOX (#24791) — 991 parça

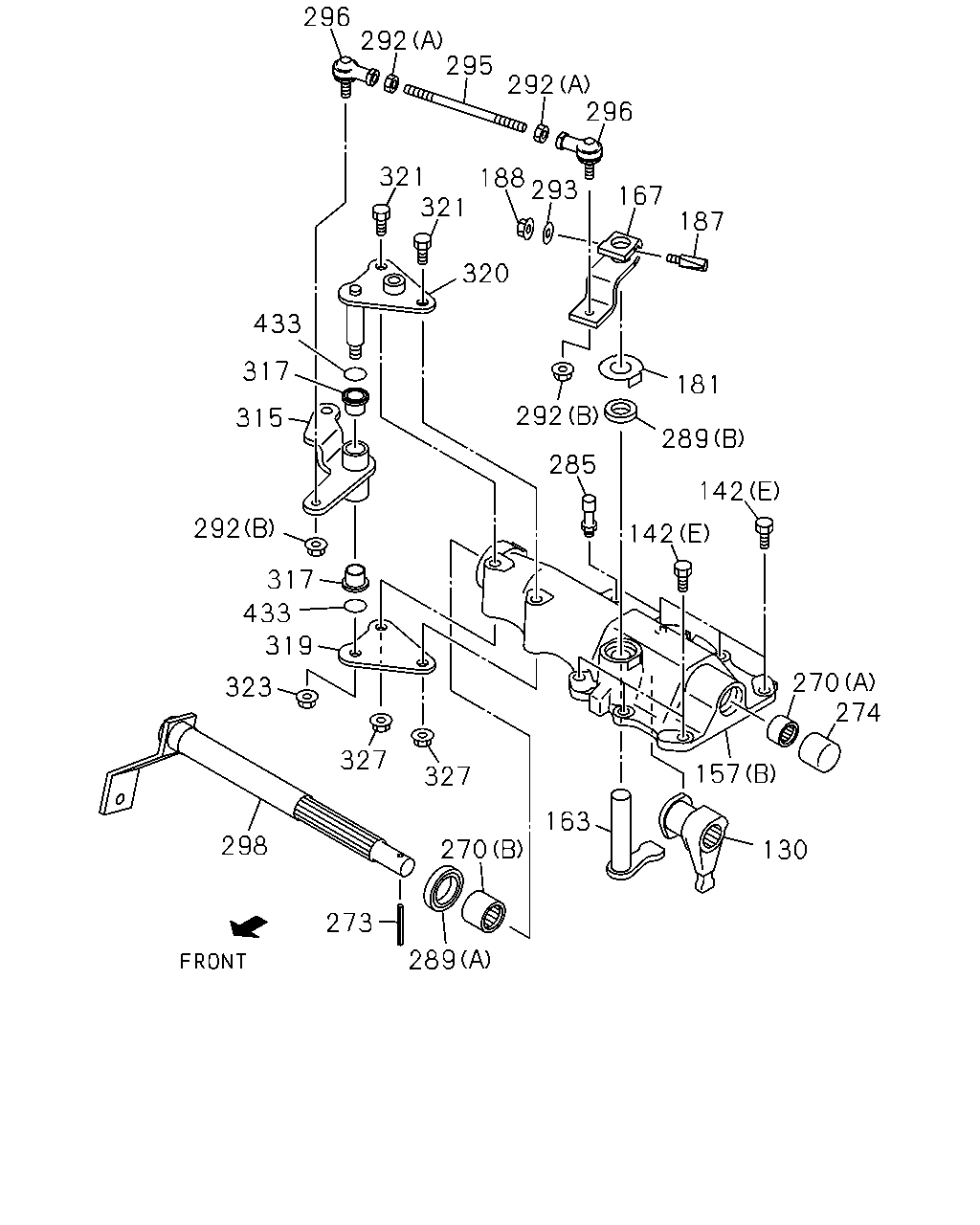

çizim 104024
296 292 295 292 296 321 321 188 293 167 187 320 433 317 181 292 315 289 285 142 292 142 317 433 319 270 274 323 327 157 327 163 298 270 130 273 289
BalonParca AdiParca NoAdetTipApplied Date A B C D E
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9601-9803 ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-146-0 01 1 9601-9803 ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-146-0 01 1 9804-0106 ●
130 LEVER; SHIFT,INTERNAL 1-33521-119-0 01 1 0012- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9804-0106 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9804-0106 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9804-0011 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0012-0106 ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107-0805 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9804-0106 ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0012-0805 ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		8-98044-944-0 11 1 0806- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0012-0805 ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0012-0805 ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0012-0805 ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0012-0805 ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-295-6 01 1 9601-9601 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-480-0 01 1 9602-9803 ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-365-0 01 1 9601-9603 ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 9604-9803 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-297-6 01 1 9601-9601 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9602-9803 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9804-0106 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-444-0 01 1 9601-9803 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-451-0 01 1 9601-9803 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-451-0 01 1 9804-0106 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0012- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-345-2 01 1 0012- ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-133-0 01 1 9601-9803 ● ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-3 01 1 9601-9803 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9601-9803 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9804-0011 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0012-0106 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0107- ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-145-0 01 1 9601-9803 ● ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-0 01 1 9601-9803 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9601-9803 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9804-0011 ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 0012-0106 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-1 01 1 0107- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9601-9803 ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9804-0011 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0012-0106 ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0107- ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9601-9803 ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9804-0011 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0012-0106 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0107- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9601-9803 ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9804-9804 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0011 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0012-0106 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0107- ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 0012- ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 0012- ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 0012- ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 0012- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9601-9803 ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9804-0011 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0012-0106 ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0107- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9601-9803 ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9804-0106 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0012- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9601-9803 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9804-0011 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0012-0106 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0107-0307 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9601-9803 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9804-0011 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0012-0106 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0107- ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9601-9803 ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9804-9804 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9805-9903 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9904-0004 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005-0011 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0012-0106 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0107- ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9601-9803 ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9804-9903 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9904-0004 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005-0011 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0012-0106 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0107-0512 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9601-9803 ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9804-0011 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0012-0106 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0107-0605 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9601-9803 ● ●
295 ROD; LINK,RELAY LEVER
L=222 		9-08400-818-0 01 1 9601-9803 ● ●
295 ROD; LINK,RELAY LEVER
L=222 		9-08400-818-0 01 1 9804-0106 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0012- ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0307-0309 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9601-9803 ● ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9804-9903 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9904-0004 ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0011 ●
296 ROD END
L=48 		1-09760-038-1 02 1 0012-0106 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0107-0309 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310- ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-125-0 01 1 9601-9803 ● ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-122-0 01 1 9601-9803 ● ●
298 SHAFT; SHIFT LEVER 1-33522-136-0 01 1 9601-9803 ● ●
298 SHAFT; SHIFT LEVER 1-33522-136-0 01 1 9804-0106 ●
298 SHAFT; SHIFT LEVER 1-33522-145-1 01 1 0012- ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-650-0 01 1 9601-9803 ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-648-1 01 1 9601-9803 ● ●
315 LEVER; SELECT 1-33651-640-1 01 1 9601-9803 ● ●
315 LEVER; SELECT 1-33651-640-1 01 1 9804-0106 ●
315 LEVER; SELECT 1-33651-669-0 01 1 0012- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9601-9803 ● ● ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9804-9903 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9904-0004 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0011 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0012-0106 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0107- ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-515-0 01 1 9601-9803 ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-603-0 01 1 9601-9803 ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-603-0 01 1 9804-0106 ●
319 BRACKET; SELECT LEVER 1-33657-628-0 01 1 0012- ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-474-0 01 1 9601-9803 ● ●
320 SHAFT; LEVER 1-33619-537-0 01 1 0012- ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9601-9803 ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 9601-9803 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9804-0106 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 0012-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9601-9803 ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9804-9903 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9904-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0011 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0012-0106 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0107- ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-210-0 02 1 9601-9803 ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 0012-0602 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9601-9803 ● ● ● ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9804-9903 ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9904-0004 ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0005-0011 ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0012-0106 ● ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0107- ●

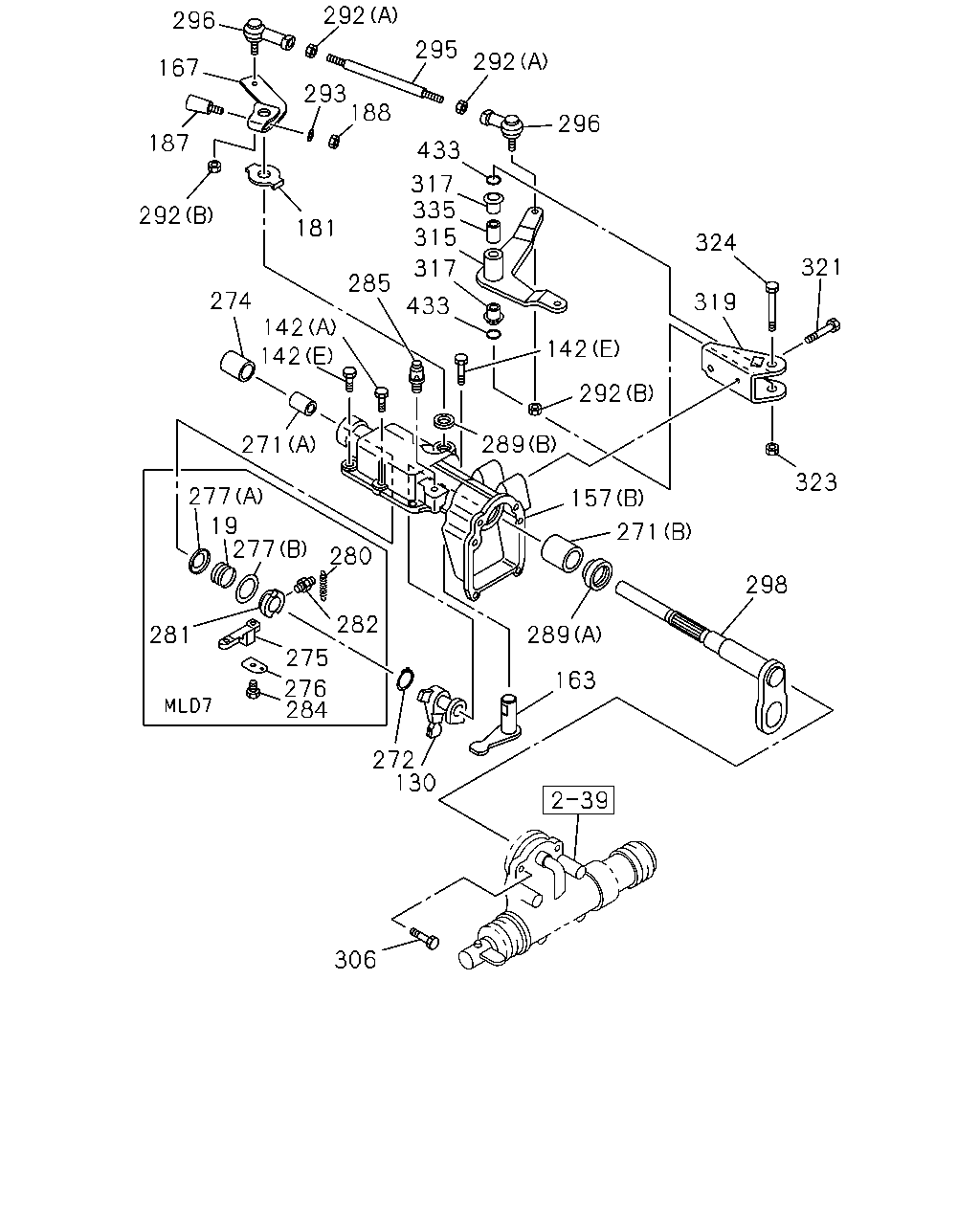

çizim 104025
292 296 295 292 167 293 188 296 187 433 317 335 315 292 181 324 321 317 285 274 319 433 142 142 142 292 289 271 323 277 157 19 277 271 280 298 282 275 289 281 163 276 284 7 272 130 306
BalonParca AdiParca NoAdetTipApplied Date A B C D E
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 9601-9803 ● ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 9804-0011 ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0012-0106 ● ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0107- ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9601-9803 ● ●
19 SPRING; COIL COMP 1-09580-531-0 01 1 9601-9803 ● ●
19 SPRING; COIL COMP 1-09580-531-0 01 1 9804-0106 ●
19 SPRING; COIL COMP 1-09580-438-0 01 1 0012- ●
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9601-9803 ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-146-0 01 1 9601-9803 ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-146-0 01 1 9804-0106 ●
130 LEVER; SHIFT,INTERNAL 1-33521-119-0 01 1 0012- ●

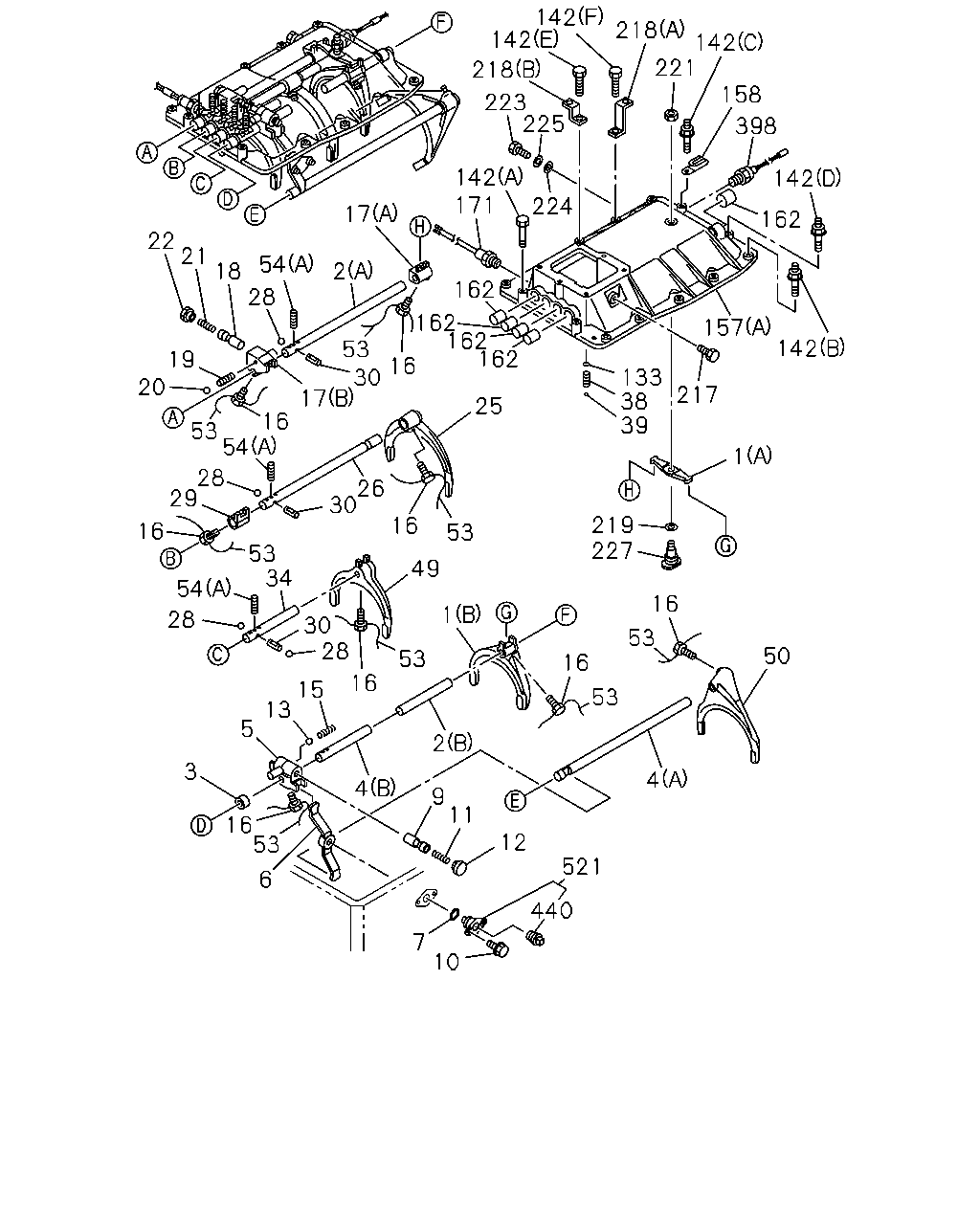

142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9804-0106 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9804-0106 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9804-0011 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0012-0106 ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107-0805 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9804-0106 ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0012-0805 ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		8-98044-944-0 11 1 0806- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0012-0805 ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0012-0805 ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0012-0805 ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0012-0805 ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ●

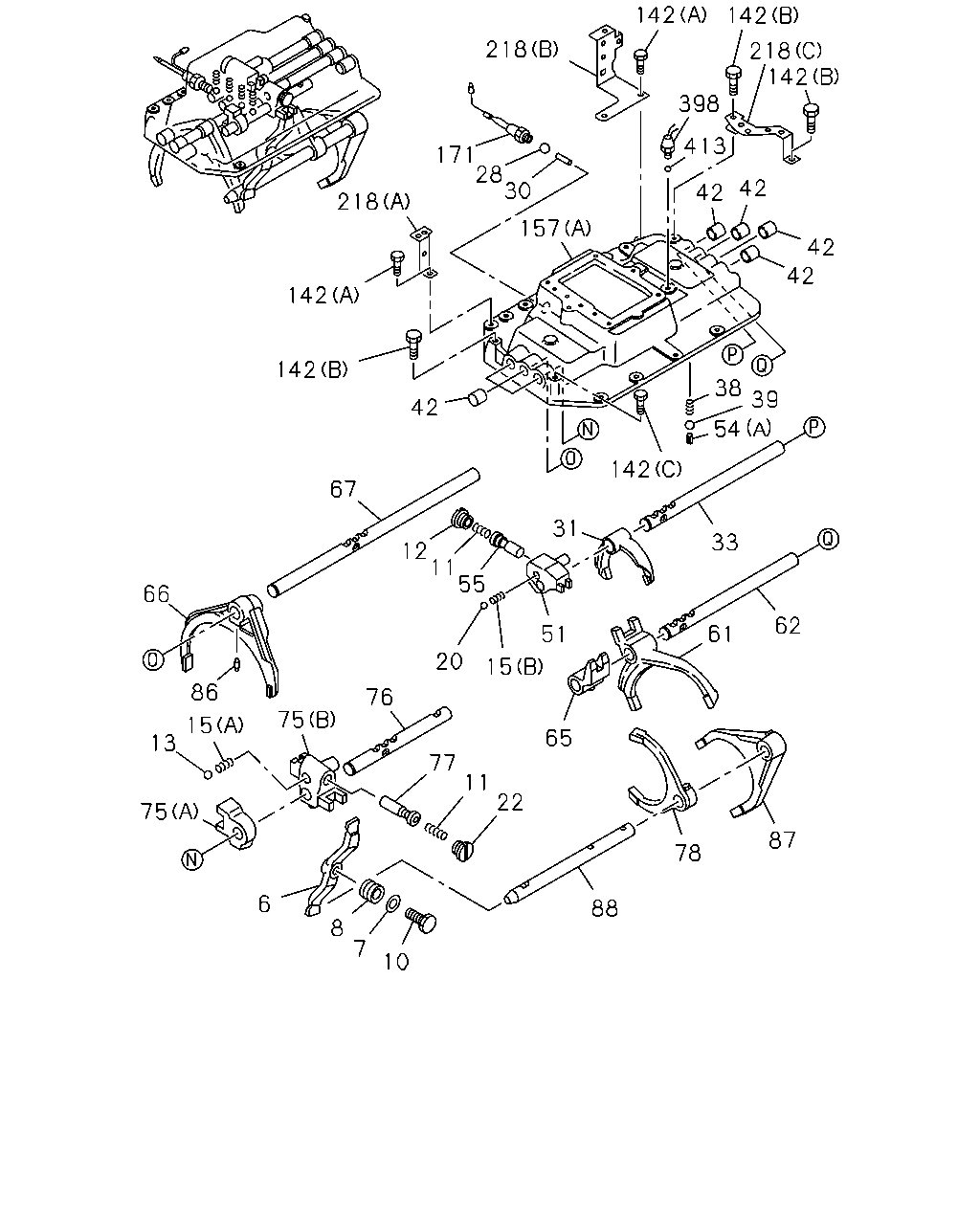

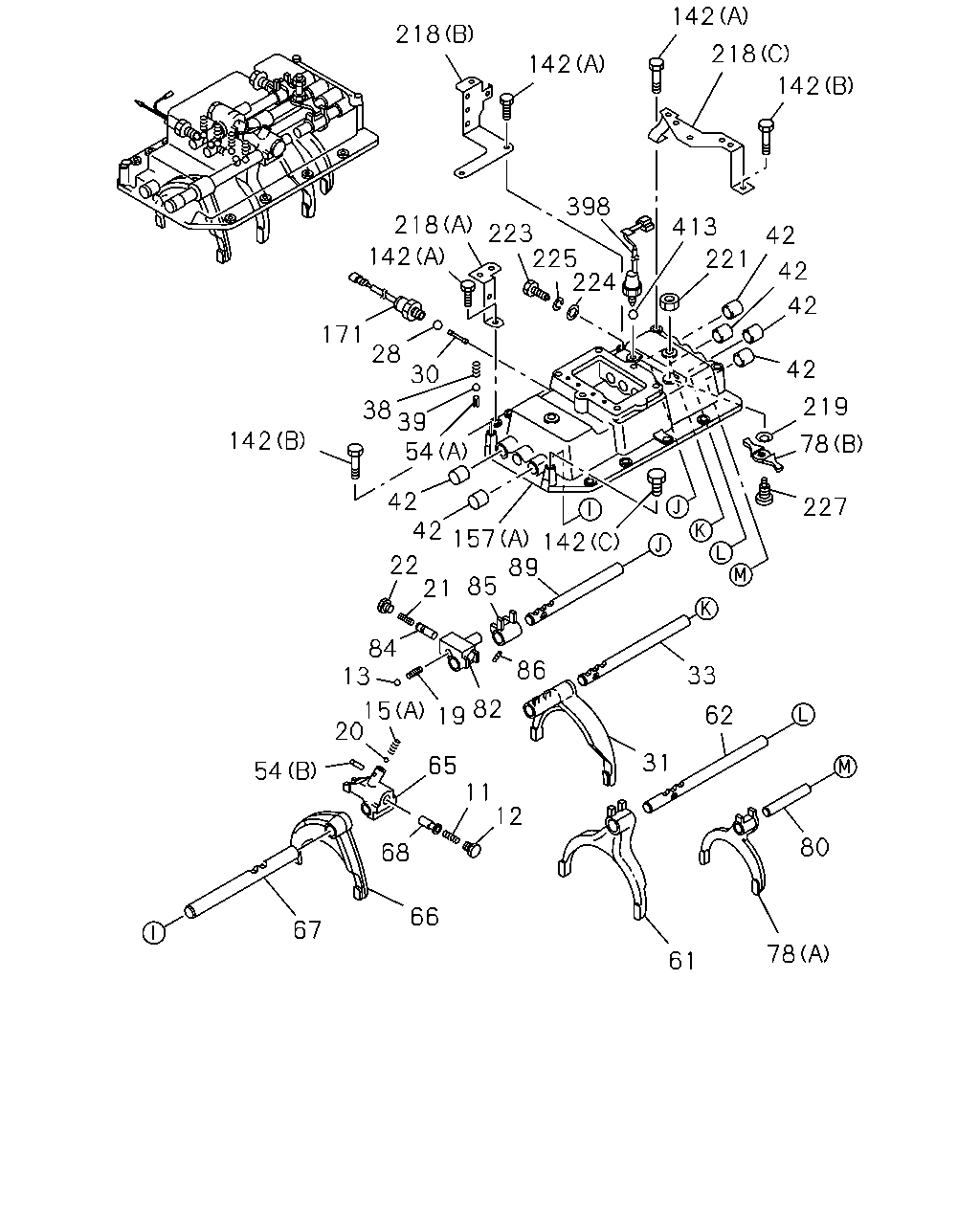

157 BOX; QUAD,TRANS
(A) 		1-33541-295-6 01 1 9601-9601 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-480-0 01 1 9602-9803 ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-365-0 01 1 9601-9603 ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 9604-9803 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-297-6 01 1 9601-9601 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9602-9803 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9804-0106 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-444-0 01 1 9601-9803 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-451-0 01 1 9601-9803 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-451-0 01 1 9804-0106 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0012- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-345-2 01 1 0012- ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-133-0 01 1 9601-9803 ● ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-3 01 1 9601-9803 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9601-9803 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9804-0011 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0012-0106 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0107- ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-145-0 01 1 9601-9803 ● ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-0 01 1 9601-9803 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9601-9803 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9804-0011 ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 0012-0106 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-1 01 1 0107- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9601-9803 ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9804-0011 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0012-0106 ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0107- ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9601-9803 ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9804-0011 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0012-0106 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0107- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9601-9803 ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9804-9804 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0011 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0012-0106 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0107- ●
271 BUSHING; QUAD BOX
(A) ID=20 OD=23 		1-33549-016-0 01 1 9601-9803 ● ● ● ●
271 BUSHING; QUAD BOX
(A) ID=20 OD=23 		1-33549-016-0 01 1 9804-0106 ●
271 BUSHING; QUAD BOX
(B) ID=28 OD=32 		1-33549-104-0 01 1 9601-9803 ● ● ● ●
271 BUSHING; QUAD BOX
(B) ID=28 OD=32 		1-33549-104-0 01 1 9804-0106 ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 9601-9803 ● ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 9804-0106 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9601-9803 ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9804-0011 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0012-0106 ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0107- ●
275 BLOCK; OBSTRUCT,QUAD BOX 1-33529-063-0 01 1 9601-9803 ● ●
275 BLOCK; OBSTRUCT,QUAD BOX 1-33529-063-0 01 1 9804-0106 ●
276 PLATE; SPRING RET 1-33529-010-0 01 1 9601-9803 ● ●
276 PLATE; SPRING RET 1-33529-010-0 01 1 9804-0106 ●
277 PLATE; SPRING SEAT
(A) 		1-33529-061-0 01 1 9601-9803 ● ●
277 PLATE; SPRING SEAT
(A) 		1-33529-061-0 01 1 9804-0106 ●
277 PLATE; SPRING SEAT
(B) 		9-38216-008-0 01 1 9601-9803 ● ●
277 PLATE; SPRING SEAT
(B) 		1-09503-198-0 01 1 9804-0106 ●
280 SPRING; COIL TENSION 1-09583-227-0 01 1 9601-9803 ● ●
280 SPRING; COIL TENSION 1-09583-227-0 01 1 9804-0106 ●
281 PLATE; OBSTRUCT,QUAD BOX 1-33529-060-0 01 1 9601-9803 ● ●
281 PLATE; OBSTRUCT,QUAD BOX 1-33529-060-0 01 1 9804-0106 ●
282 BOLT; SPRING REAMER 1-33529-024-0 01 1 9601-9803 ● ●
282 BOLT; SPRING REAMER 1-33529-024-0 01 1 9804-0106 ●
284 BOLT; REAMER,QUAD BOX 1-09040-075-1 02 1 9601-9803 ● ●
284 BOLT; REAMER,QUAD BOX 1-09040-075-1 02 1 9804-0106 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9601-9803 ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9804-0106 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0012- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9601-9803 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9804-0011 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0012-0106 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0107-0307 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9601-9803 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9804-0011 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0012-0106 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0107- ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9601-9803 ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9804-9804 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9805-9903 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9904-0004 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005-0011 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0012-0106 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0107- ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9601-9803 ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9804-9903 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9904-0004 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005-0011 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0012-0106 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0107-0512 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9601-9803 ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9804-0011 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0012-0106 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0107-0605 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ●

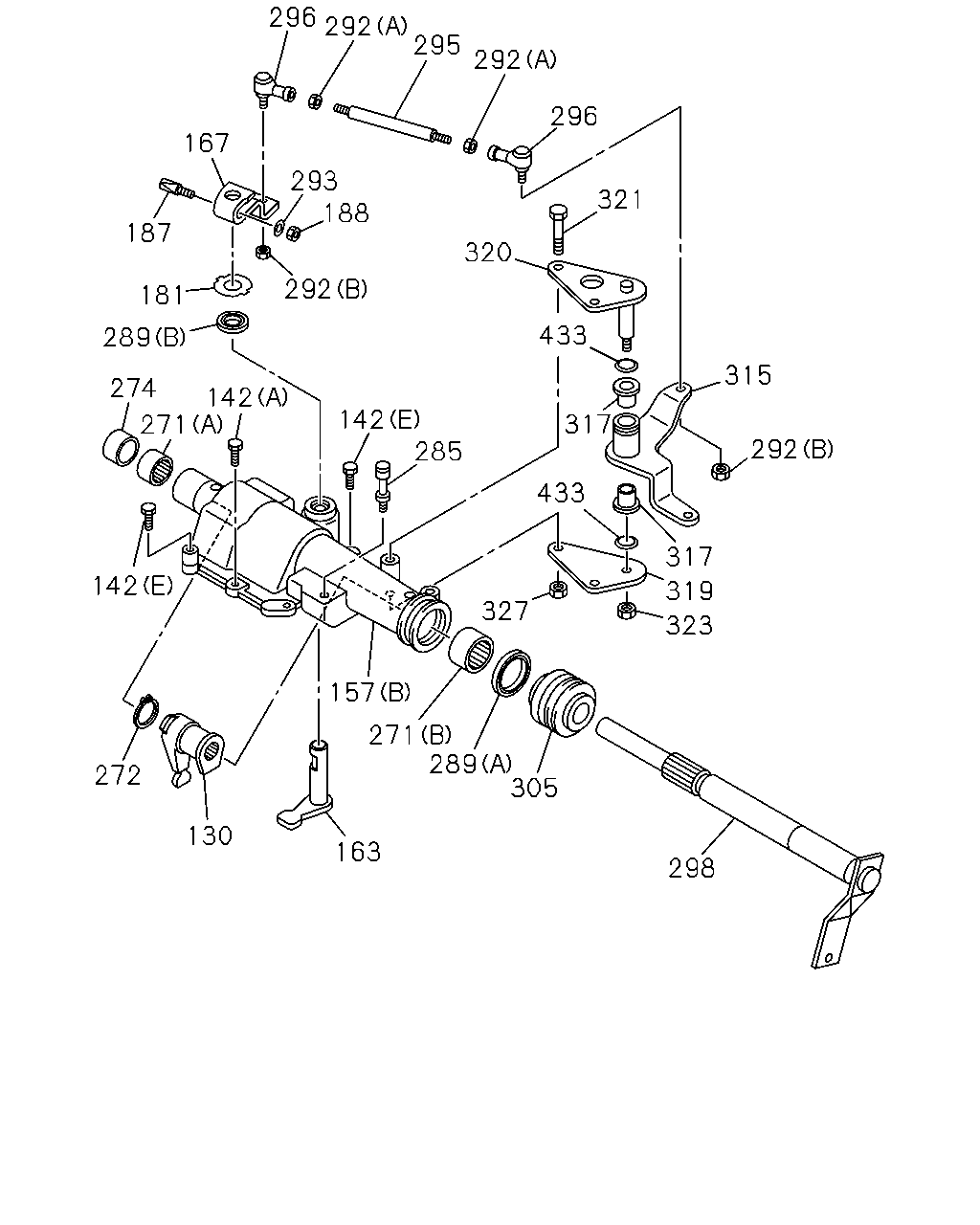

295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9601-9803 ● ●
295 ROD; LINK,RELAY LEVER
L=222 		9-08400-818-0 01 1 9601-9803 ● ●
295 ROD; LINK,RELAY LEVER
L=222 		9-08400-818-0 01 1 9804-0106 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0012- ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0307-0309 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9601-9803 ● ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9804-9903 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9904-0004 ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0011 ●
296 ROD END
L=48 		1-09760-038-1 02 1 0012-0106 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0107-0309 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310- ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-125-0 01 1 9601-9803 ● ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-122-0 01 1 9601-9803 ● ●
298 SHAFT; SHIFT LEVER 1-33522-136-0 01 1 9601-9803 ● ●
298 SHAFT; SHIFT LEVER 1-33522-136-0 01 1 9804-0106 ●
298 SHAFT; SHIFT LEVER 1-33522-145-1 01 1 0012- ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28181-045-0 02 1 9601-9803 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 9804-0106 ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X70 FLANGE 		0-28181-070-0 04 1 9601-9803 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X70 FLANGE 		0-28181-070-0 04 1 9804-0106 ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-650-0 01 1 9601-9803 ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-648-1 01 1 9601-9803 ● ●
315 LEVER; SELECT 1-33651-640-1 01 1 9601-9803 ● ●
315 LEVER; SELECT 1-33651-640-1 01 1 9804-0106 ●
315 LEVER; SELECT 1-33651-669-0 01 1 0012- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9601-9803 ● ● ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9804-9903 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9904-0004 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0011 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0012-0106 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0107- ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-515-0 01 1 9601-9803 ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-603-0 01 1 9601-9803 ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-603-0 01 1 9804-0106 ●
319 BRACKET; SELECT LEVER 1-33657-628-0 01 1 0012- ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9601-9803 ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 9601-9803 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9804-0106 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 0012-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9601-9803 ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9804-9903 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9904-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0011 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0012-0106 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0107- ●
324 BOLT; SHAFT
ASSISTOR SHIFT CONTROL<WX8> M10X60 		0-10811-060-0 01 1 9601-9803 ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 9601-9803 ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 9804-0106 ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-192-0 01 1 9601-9803 ● ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-192-0 01 1 9804-0106 ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9601-9803 ● ● ● ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9804-9903 ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9904-0004 ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0005-0011 ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0012-0106 ● ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0107- ●
çizim 104028
142 142 218 218 142 398 413 171 28 30 42 42 218 157 42 42 142 142 38 39 42 54 142 67 31 33 12 11 55 66 62 61 51 20 15 86 76 75 15 65 13 77 11 22 75 87 78 6 88 8 7 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 LEVER; RELAY 1-33511-009-1 01 1 9601-9803 ● ●
6 LEVER; RELAY 1-33511-009-1 01 1 9804-0106 ●
6 LEVER; RELAY 9-33511-402-1 01 1 0012- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 9601-9803 ● ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 9804-0011 ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0012-0106 ● ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0107- ●
8 SPINDLE; REV & 7TH 9-33513-022-1 01 1 9601-9803 ● ●
8 SPINDLE; REV & 7TH 9-33513-022-1 01 1 9804-0106 ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 9601-9803 ● ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 9804-0011 ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 0012-0106 ● ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 0107- ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9601-9803 ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 02 1 9601-9803 ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 02 1 9804-0106 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0012- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9601-9604 ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9601-9604 ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9605-9803 ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9804-0106 ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0012- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9601-9803 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9804-0011 ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0012-0106 ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0107- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-442-0 01 1 9601-9702 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-442-0 01 1 9703-9803 ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-440-0 01 1 9601-9803 ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-440-0 01 1 9804-0106 ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-553-0 01 1 9703-9803 ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-553-0 01 1 9804-0106 ●
15 SPRING; LK,SHIFT SLEEVE 9-09941-007-0 01 1 0012- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9601-9803 ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9804-0011 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0012-0106 ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0107- ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9601-9803 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9601-9803 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9804-0011 ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0012-0106 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0107- ●
28 BALL; INTER LK 9-00097-501-0 04 1 9601-9803 ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 9804-0011 ●
28 BALL; INTER LK 9-00097-501-0 04 1 0012-0106 ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0107- ●
30 PIN; INTER LK 9-33534-003-0 03 1 9601-9803 ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9804-0011 ●
30 PIN; INTER LK 9-33534-003-0 03 1 0012-0106 ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0107- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9601-9803 ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-426-0 01 1 9601-9803 ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-426-0 01 1 9804-0106 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9601-9803 ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-246-2 01 1 9601-9803 ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-246-2 01 1 9804-0106 ●
38 SPRING; DETENT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09580-419-0 04 1 9601-9803 ● ●
38 SPRING; DETENT
ASSISTOR SHIFT CONTROL<WX8> 		1-09580-379-0 04 1 9601-9803 ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9804-0011 ●
38 SPRING; DETENT 1-09580-379-0 04 1 0012-0106 ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0107- ●
39 BALL; DETENT 1-09843-012-0 04 1 9601-9803 ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9804-0011 ●
39 BALL; DETENT 1-09843-012-0 04 1 0012-0106 ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0107- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9601-9803 ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 9601-9803 ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 9804-0106 ●
51 BLOCK; SHIFT,1ST & 2ND 1-33511-311-2 01 1 9601-9803 ● ●
51 BLOCK; SHIFT,1ST & 2ND 1-33511-311-2 01 1 9804-0106 ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9601-9803 ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9601-9803 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9804-0011 ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 0012-0106 ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 0107- ●
55 SLEEVE; 1ST & 2ND 1-33516-025-0 01 1 9601-9803 ● ●
55 SLEEVE; 1ST & 2ND 1-33516-025-0 01 1 9804-0106 ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9601-9803 ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-491-1 01 1 9601-9803 ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-491-1 01 1 9804-0106 ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9601-9803 ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-247-0 01 1 9601-9803 ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-247-0 01 1 9804-0106 ●
65 BLOCK ASM; SHIFT,5TH & 6TH 1-33511-357-1 01 1 9601-9602 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH 1-33511-513-0 01 1 9603-9803 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH 1-33511-331-3 01 1 9601-9803 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH 1-33511-331-3 01 1 9804-0106 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-488-1 01 1 9601-9803 ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-489-1 01 1 9601-9803 ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-489-1 01 1 9804-0106 ●
67 ROD; SHIFT,5TH & 6TH
L=278 		1-33531-255-1 01 1 9601-9803 ● ●
67 ROD; SHIFT,5TH & 6TH
L=407 		1-33531-248-0 01 1 9601-9803 ● ●
67 ROD; SHIFT,5TH & 6TH
L=407 		1-33531-248-0 01 1 9804-0106 ●
75 BLOCK ASM; SHIFT,REV & 7TH
(A) 		1-33511-202-3 01 1 9601-9803 ● ●
75 BLOCK ASM; SHIFT,REV & 7TH
(A) 		1-33511-202-3 01 1 9804-0106 ●
75 BLOCK ASM; SHIFT,REV & 7TH
(B) 		1-33511-309-1 01 1 9601-9803 ● ●
75 BLOCK ASM; SHIFT,REV & 7TH
(B) 		1-33511-309-1 01 1 9804-0106 ●
76 ROD; SHIFT,REV & 7TH BLOCK 1-33531-249-0 01 1 9601-9803 ● ●
76 ROD; SHIFT,REV & 7TH BLOCK 1-33531-249-0 01 1 9804-0106 ●
77 SLEEVE; REV & 7TH 1-33516-025-0 01 1 9601-9803 ● ●
77 SLEEVE; REV & 7TH 1-33516-025-0 01 1 9804-0106 ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9601-9803 ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9601-9803 ● ●
78 ARM; SHIFT,REV 1-33511-232-5 01 1 9601-9803 ● ●
78 ARM; SHIFT,REV 1-33511-232-5 01 1 9804-0106 ●
86 SCREW; TAPER,ARM TO ROD
M12X20 NO-HOLE 		1-09052-032-1 07 1 9601-9601 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 07 1 9601-9803 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 NO-HOLE 		1-09052-032-1 09 1 9601-9601 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9601-9803 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9804-0106 ●
87 ARM; SHIFT,7TH 1-33511-229-4 01 1 9601-9803 ● ●
87 ARM; SHIFT,7TH 1-33511-229-4 01 1 9804-0106 ●
88 ROD; SHIFT,REV & 7TH ARM 1-33531-250-0 01 1 9601-9803 ● ●
88 ROD; SHIFT,REV & 7TH ARM 1-33531-250-0 01 1 9804-0106 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9804-0106 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9804-0106 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9804-0011 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0012-0106 ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107-0805 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9804-0106 ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0012-0805 ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		8-98044-944-0 11 1 0806- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0012-0805 ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0012-0805 ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0012-0805 ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0012-0805 ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-295-6 01 1 9601-9601 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-480-0 01 1 9602-9803 ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-365-0 01 1 9601-9603 ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 9604-9803 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-297-6 01 1 9601-9601 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9602-9803 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9804-0106 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-444-0 01 1 9601-9803 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-451-0 01 1 9601-9803 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-451-0 01 1 9804-0106 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0012- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-345-2 01 1 0012- ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9601-9803 ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9804-0011 ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 0012-0106 ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0107-0702 ●
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703-0801 ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9601-9803 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9804-0106 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9601-9803 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9804-0106 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9601-9803 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9804-0106 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0012- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0012- ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9601-9803 ● ● ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9804-0106 ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0012- ●
413 BALL; BACK SW 9-00097-013-0 01 1 9601-9803 ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9804-0106 ●
çizim 104034
296 292 295 292 296 167 293 188 321 187 320 292 181 433 289 315 142 271 274 142 285 317 292 433 317 142 319 327 323 157 271 289 305 272 130 163 298
BalonParca AdiParca NoAdetTipApplied Date A B C D E
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9601-9803 ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-146-0 01 1 9601-9803 ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-146-0 01 1 9804-0106 ●
130 LEVER; SHIFT,INTERNAL 1-33521-119-0 01 1 0012- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9804-0106 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9804-0106 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9804-0011 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0012-0106 ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107-0805 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9804-0106 ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0012-0805 ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		8-98044-944-0 11 1 0806- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0012-0805 ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0012-0805 ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0012-0805 ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0012-0805 ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-295-6 01 1 9601-9601 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-480-0 01 1 9602-9803 ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-365-0 01 1 9601-9603 ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 9604-9803 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-297-6 01 1 9601-9601 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9602-9803 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9804-0106 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-444-0 01 1 9601-9803 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-451-0 01 1 9601-9803 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-451-0 01 1 9804-0106 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0012- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-345-2 01 1 0012- ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-133-0 01 1 9601-9803 ● ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-3 01 1 9601-9803 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9601-9803 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9804-0011 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0012-0106 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0107- ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-145-0 01 1 9601-9803 ● ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-0 01 1 9601-9803 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9601-9803 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9804-0011 ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 0012-0106 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-1 01 1 0107- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9601-9803 ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9804-0011 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0012-0106 ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0107- ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9601-9803 ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9804-0011 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0012-0106 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0107- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9601-9803 ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9804-9804 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0011 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0012-0106 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0107- ●
271 BUSHING; QUAD BOX
(A) ID=20 OD=23 		1-33549-016-0 01 1 9601-9803 ● ● ● ●
271 BUSHING; QUAD BOX
(A) ID=20 OD=23 		1-33549-016-0 01 1 9804-0106 ●
271 BUSHING; QUAD BOX
(B) ID=28 OD=32 		1-33549-104-0 01 1 9601-9803 ● ● ● ●
271 BUSHING; QUAD BOX
(B) ID=28 OD=32 		1-33549-104-0 01 1 9804-0106 ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 9601-9803 ● ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 9804-0106 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9601-9803 ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9804-0011 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0012-0106 ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0107- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9601-9803 ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9804-0106 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0012- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9601-9803 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9804-0011 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0012-0106 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0107-0307 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9601-9803 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9804-0011 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0012-0106 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0107- ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9601-9803 ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9804-9804 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9805-9903 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9904-0004 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005-0011 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0012-0106 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0107- ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9601-9803 ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9804-9903 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9904-0004 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005-0011 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0012-0106 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0107-0512 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9601-9803 ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9804-0011 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0012-0106 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0107-0605 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9601-9803 ● ●
295 ROD; LINK,RELAY LEVER
L=222 		9-08400-818-0 01 1 9601-9803 ● ●
295 ROD; LINK,RELAY LEVER
L=222 		9-08400-818-0 01 1 9804-0106 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0012- ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0307-0309 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9601-9803 ● ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9804-9903 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9904-0004 ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0011 ●
296 ROD END
L=48 		1-09760-038-1 02 1 0012-0106 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0107-0309 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310- ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-125-0 01 1 9601-9803 ● ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-122-0 01 1 9601-9803 ● ●
298 SHAFT; SHIFT LEVER 1-33522-136-0 01 1 9601-9803 ● ●
298 SHAFT; SHIFT LEVER 1-33522-136-0 01 1 9804-0106 ●
298 SHAFT; SHIFT LEVER 1-33522-145-1 01 1 0012- ●
305 BOOT; LEVER SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33529-028-0 01 1 9601-9803 ● ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-650-0 01 1 9601-9803 ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-648-1 01 1 9601-9803 ● ●
315 LEVER; SELECT 1-33651-640-1 01 1 9601-9803 ● ●
315 LEVER; SELECT 1-33651-640-1 01 1 9804-0106 ●
315 LEVER; SELECT 1-33651-669-0 01 1 0012- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9601-9803 ● ● ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9804-9903 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9904-0004 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0011 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0012-0106 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0107- ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-515-0 01 1 9601-9803 ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-603-0 01 1 9601-9803 ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-603-0 01 1 9804-0106 ●
319 BRACKET; SELECT LEVER 1-33657-628-0 01 1 0012- ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-474-0 01 1 9601-9803 ● ●
320 SHAFT; LEVER 1-33619-537-0 01 1 0012- ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9601-9803 ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 9601-9803 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9804-0106 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 0012-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9601-9803 ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9804-9903 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9904-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0011 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0012-0106 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0107- ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-210-0 02 1 9601-9803 ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 0012-0602 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9601-9803 ● ● ● ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9804-9903 ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9904-0004 ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0005-0011 ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0012-0106 ● ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0107- ●
çizim 104139
142 142 218 142 221 218 158 223 225 398 142 171 142 224 17 162 22 21 54 18 28 2 162 162 162 162 157 142 53 30 17 19 20 16 133 38 39 217 25 16 53 54 1 28 29 26 30 219 227 16 16 53 53 34 49 54 16 1 28 30 28 53 50 53 16 16 15 13 53 5 2 3 4 9 11 4 16 53 12 521 6 440 7 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 0012- ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 0012- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-400-1 01 1 0012- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-415-1 01 1 0012- ●
3 STOPPER; 6TH SHIFT ROD 9-33537-018-0 01 1 0012- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-405-1 01 1 0012- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-407-1 01 1 0012- ●
5 BLOCK; SHIFT,6TH 1-33511-372-2 01 1 0012- ●
6 LEVER; RELAY 1-33511-009-1 01 1 9601-9803 ● ●
6 LEVER; RELAY 1-33511-009-1 01 1 9804-0106 ●
6 LEVER; RELAY 9-33511-402-1 01 1 0012- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 9601-9803 ● ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 9804-0011 ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0012-0106 ● ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0107- ●
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-022-1 01 1 0012- ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 9601-9803 ● ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 9804-0011 ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 0012-0106 ● ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 0107- ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9601-9803 ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 02 1 9601-9803 ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 02 1 9804-0106 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0012- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9601-9604 ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9601-9604 ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9605-9803 ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9804-0106 ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0012- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9601-9803 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9804-0011 ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0012-0106 ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0107- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-442-0 01 1 9601-9702 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-442-0 01 1 9703-9803 ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-440-0 01 1 9601-9803 ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-440-0 01 1 9804-0106 ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-553-0 01 1 9703-9803 ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-553-0 01 1 9804-0106 ●
15 SPRING; LK,SHIFT SLEEVE 9-09941-007-0 01 1 0012- ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 08 1 0012- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 0012- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 0012- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0012- ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9601-9803 ● ●
19 SPRING; COIL COMP 1-09580-531-0 01 1 9601-9803 ● ●
19 SPRING; COIL COMP 1-09580-531-0 01 1 9804-0106 ●
19 SPRING; COIL COMP 1-09580-438-0 01 1 0012- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9601-9803 ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9804-0011 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0012-0106 ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0107- ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 9601-9803 ● ●
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 0012- ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9601-9803 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9601-9803 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9804-0011 ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0012-0106 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0107- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 0012- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 0012- ●
28 BALL; INTER LK 9-00097-501-0 04 1 9601-9803 ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 9804-0011 ●
28 BALL; INTER LK 9-00097-501-0 04 1 0012-0106 ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0107- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0012- ●
30 PIN; INTER LK 9-33534-003-0 03 1 9601-9803 ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9804-0011 ●
30 PIN; INTER LK 9-33534-003-0 03 1 0012-0106 ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0107- ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-402-1 01 1 0012- ●
38 SPRING; DETENT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09580-419-0 04 1 9601-9803 ● ●
38 SPRING; DETENT
ASSISTOR SHIFT CONTROL<WX8> 		1-09580-379-0 04 1 9601-9803 ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9804-0011 ●
38 SPRING; DETENT 1-09580-379-0 04 1 0012-0106 ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0107- ●
39 BALL; DETENT 1-09843-012-0 04 1 9601-9803 ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9804-0011 ●
39 BALL; DETENT 1-09843-012-0 04 1 0012-0106 ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0107- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-461-0 01 1 0012- ●
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 0012- ●
53 WIRE; BOLT
L=180 		1-09780-024-0 06 1 0012- ●
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 0012- ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9601-9803 ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9601-9803 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9804-0011 ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 0012-0106 ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 0107- ●
133 SEAT; SPR 1-33549-072-0 04 1 0012- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9804-0106 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9804-0106 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9804-0011 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0012-0106 ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107-0805 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9804-0106 ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0012-0805 ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		8-98044-944-0 11 1 0806- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0012-0805 ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0012-0805 ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0012-0805 ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0012-0805 ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-295-6 01 1 9601-9601 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-480-0 01 1 9602-9803 ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-365-0 01 1 9601-9603 ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 9604-9803 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-297-6 01 1 9601-9601 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9602-9803 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9804-0106 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-444-0 01 1 9601-9803 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-451-0 01 1 9601-9803 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-451-0 01 1 9804-0106 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0012- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-345-2 01 1 0012- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0012- ●
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 0012- ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9601-9803 ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9804-0011 ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 0012-0106 ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0107-0702 ●
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703-0801 ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 0012- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9601-9803 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9804-0106 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9601-9803 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9804-0106 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9601-9803 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9804-0106 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0012- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0012- ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9601-9803 ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0012- ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9601-9803 ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0012-0602 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9601-9803 ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0012- ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9601-9803 ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0012-0605 ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0606- ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9601-9803 ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0012-0603 ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0604- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9601-9803 ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0012- ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9601-9803 ● ● ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9804-0106 ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0012- ●
440 PLUG; OIL
PT1/4 		9-99204-513-0 01 1 0012- ●
521 SPINDLE; 6TH 1-33119-255-0 01 1 0012- ●
çizim 104526
142 218 218 142 142 398 218 413 223 225 224 42 142 221 42 42 171 28 30 42 219 38 39 54 142 78 42 42 227 157 142 89 22 21 85 84 13 86 33 82 19 15 20 62 31 65 11 12 54 80 68 66 67 78 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9601-9803 ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 02 1 9601-9803 ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 02 1 9804-0106 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0012- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9601-9604 ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9601-9604 ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9605-9803 ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9804-0106 ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0012- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9601-9803 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9804-0011 ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0012-0106 ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0107- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-442-0 01 1 9601-9702 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-442-0 01 1 9703-9803 ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-440-0 01 1 9601-9803 ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-440-0 01 1 9804-0106 ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-553-0 01 1 9703-9803 ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-553-0 01 1 9804-0106 ●
15 SPRING; LK,SHIFT SLEEVE 9-09941-007-0 01 1 0012- ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9601-9803 ● ●
19 SPRING; COIL COMP 1-09580-531-0 01 1 9601-9803 ● ●
19 SPRING; COIL COMP 1-09580-531-0 01 1 9804-0106 ●
19 SPRING; COIL COMP 1-09580-438-0 01 1 0012- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9601-9803 ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9804-0011 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0012-0106 ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0107- ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 9601-9803 ● ●
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 0012- ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9601-9803 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9601-9803 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9804-0011 ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0012-0106 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0107- ●
28 BALL; INTER LK 9-00097-501-0 04 1 9601-9803 ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 9804-0011 ●
28 BALL; INTER LK 9-00097-501-0 04 1 0012-0106 ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0107- ●
30 PIN; INTER LK 9-33534-003-0 03 1 9601-9803 ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9804-0011 ●
30 PIN; INTER LK 9-33534-003-0 03 1 0012-0106 ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0107- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9601-9803 ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-426-0 01 1 9601-9803 ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-426-0 01 1 9804-0106 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9601-9803 ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-246-2 01 1 9601-9803 ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-246-2 01 1 9804-0106 ●
38 SPRING; DETENT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09580-419-0 04 1 9601-9803 ● ●
38 SPRING; DETENT
ASSISTOR SHIFT CONTROL<WX8> 		1-09580-379-0 04 1 9601-9803 ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9804-0011 ●
38 SPRING; DETENT 1-09580-379-0 04 1 0012-0106 ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0107- ●
39 BALL; DETENT 1-09843-012-0 04 1 9601-9803 ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9804-0011 ●
39 BALL; DETENT 1-09843-012-0 04 1 0012-0106 ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0107- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9601-9803 ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 9601-9803 ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 9804-0106 ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9601-9803 ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9601-9803 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9804-0011 ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 0012-0106 ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 0107- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9601-9803 ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-491-1 01 1 9601-9803 ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-491-1 01 1 9804-0106 ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9601-9803 ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-247-0 01 1 9601-9803 ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-247-0 01 1 9804-0106 ●
65 BLOCK ASM; SHIFT,5TH & 6TH 1-33511-357-1 01 1 9601-9602 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH 1-33511-513-0 01 1 9603-9803 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH 1-33511-331-3 01 1 9601-9803 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH 1-33511-331-3 01 1 9804-0106 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-488-1 01 1 9601-9803 ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-489-1 01 1 9601-9803 ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-489-1 01 1 9804-0106 ●
67 ROD; SHIFT,5TH & 6TH
L=278 		1-33531-255-1 01 1 9601-9803 ● ●
67 ROD; SHIFT,5TH & 6TH
L=407 		1-33531-248-0 01 1 9601-9803 ● ●
67 ROD; SHIFT,5TH & 6TH
L=407 		1-33531-248-0 01 1 9804-0106 ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 9601-9803 ● ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9601-9803 ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9601-9803 ● ●
78 ARM; SHIFT,REV 1-33511-232-5 01 1 9601-9803 ● ●
78 ARM; SHIFT,REV 1-33511-232-5 01 1 9804-0106 ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 9601-9803 ● ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 9601-9803 ● ●
84 SLEEVE; REV 1-33516-025-0 01 1 9601-9803 ● ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 9601-9803 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 NO-HOLE 		1-09052-032-1 07 1 9601-9601 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 07 1 9601-9803 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 NO-HOLE 		1-09052-032-1 09 1 9601-9601 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9601-9803 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9804-0106 ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 9601-9803 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9804-0106 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9804-0106 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9804-0011 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0012-0106 ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107-0805 ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9601-9803 ● ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9804-0106 ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0012-0805 ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		8-98044-944-0 11 1 0806- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0012-0805 ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0012-0805 ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0012-0805 ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0012-0805 ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-295-6 01 1 9601-9601 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-480-0 01 1 9602-9803 ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-365-0 01 1 9601-9603 ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 9604-9803 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-297-6 01 1 9601-9601 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9602-9803 ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9804-0106 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-444-0 01 1 9601-9803 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-451-0 01 1 9601-9803 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-451-0 01 1 9804-0106 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0012- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-345-2 01 1 0012- ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9601-9803 ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9804-0011 ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 0012-0106 ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0107-0702 ●
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703-0801 ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9601-9803 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9804-0106 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9601-9803 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9804-0106 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9601-9803 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9804-0106 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0012- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0012- ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9601-9803 ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0012- ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9601-9803 ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0012-0602 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9601-9803 ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0012- ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9601-9803 ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0012-0605 ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0606- ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9601-9803 ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0012-0603 ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0604- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9601-9803 ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0012- ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9601-9803 ● ● ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9804-0106 ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0012- ●
413 BALL; BACK SW 9-00097-013-0 01 1 9601-9803 ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9804-0106 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
