Sayfa 3-45 - Isuzu EPC

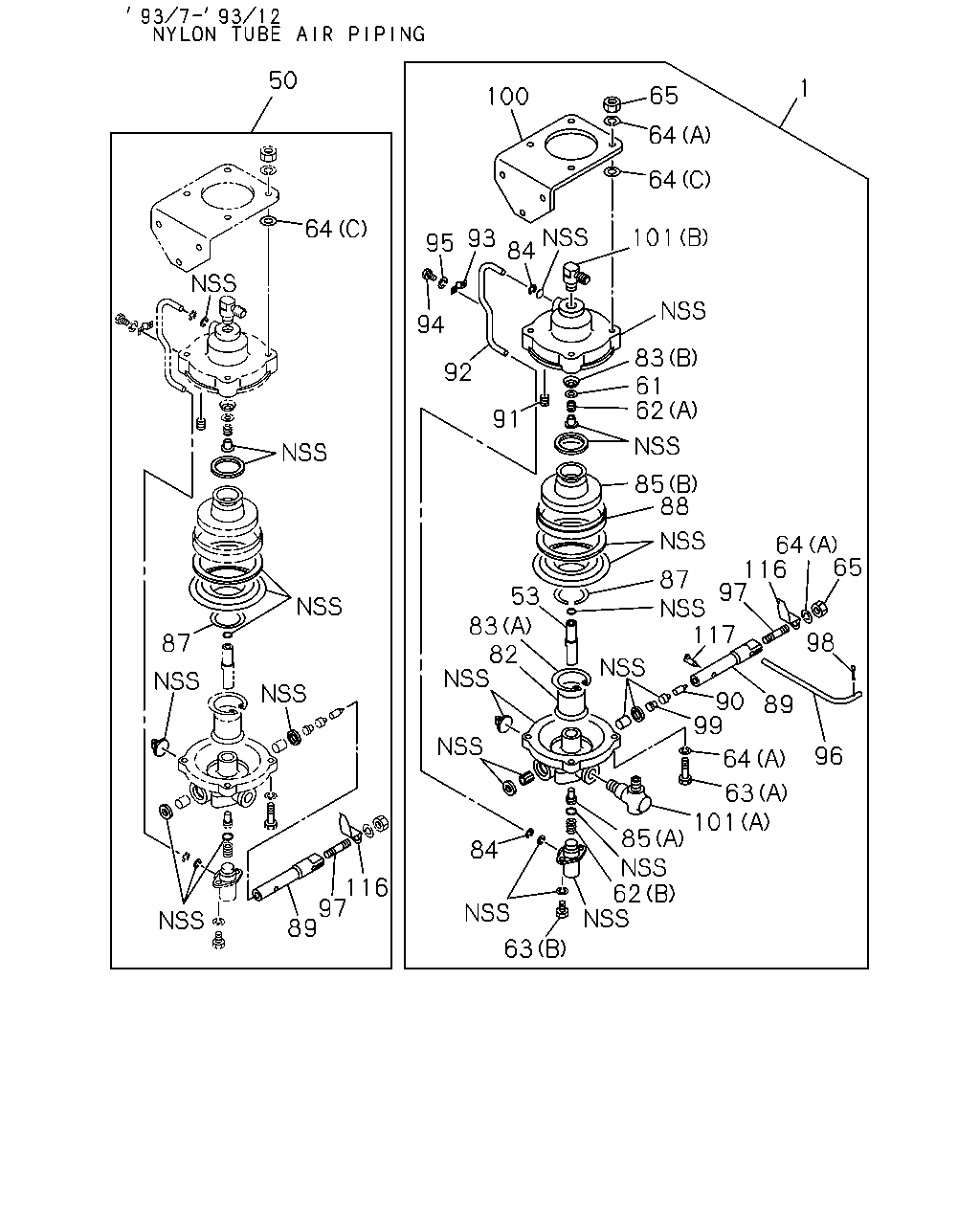

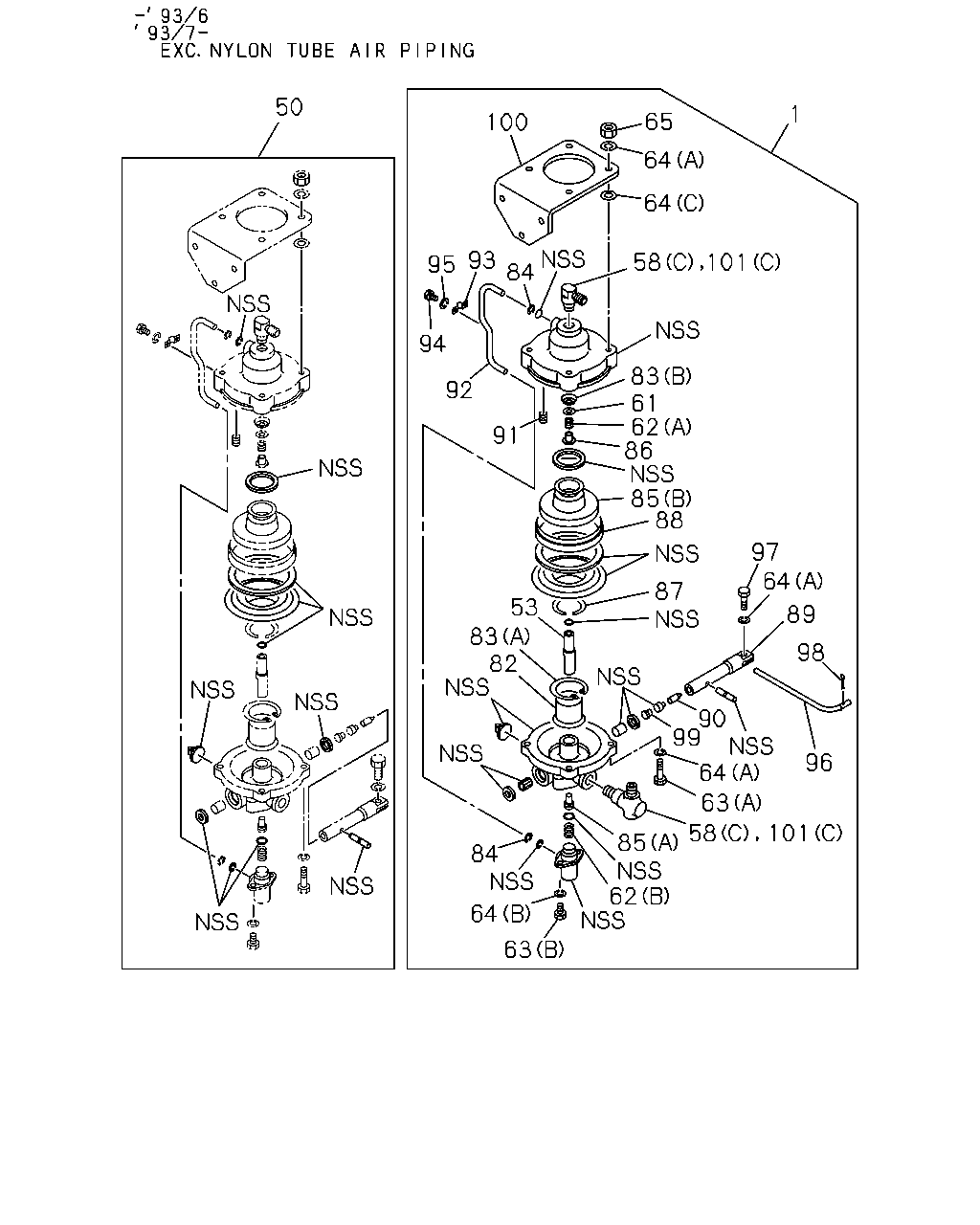

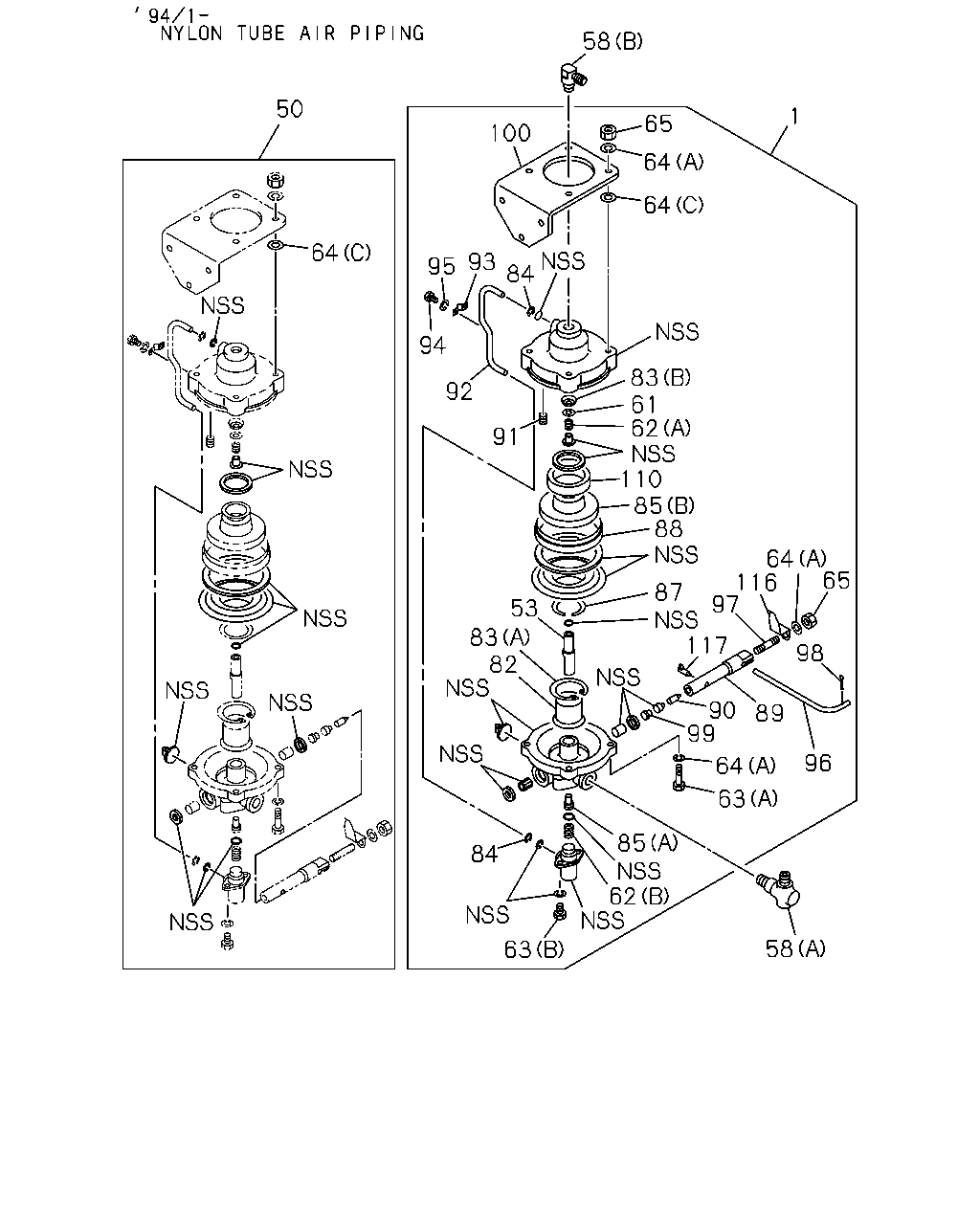

3-45 — LOAD SENSING PROPORTIONING VALVE (#2479) — 292 parça

50 1 65 100 64 64 84 93 58 101 95 94 83 61 62 86 85 88 92 91 97 64 87 53 83 82 89 98 90 99 64 96 63 58 101 85 62 84 64 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-043-0	01	1	9002-9306
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-048-0	01	1	9307-9312
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-059-0	01	1	9401-
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. NYLON TUBE AIR PIPING<Z29>	1-47720-053-0	01	1	9002-
50	REPAIR KIT; LSPV	1-87830-263-0	01	1	9002-9306
50	REPAIR KIT; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-088-0	01	1	9307-9312
50	REPAIR KIT; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-142-0	01	1	9401-
50	REPAIR KIT; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-87830-263-0	01	1	9312-
53	PLUNGER; LSPV	1-47769-033-0	01	1	9002-9312
53	PLUNGER; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-033-0	01	1	9401-
53	PLUNGER; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-141-0	01	1	9401-
58	CONNECTOR; LSPV NYLON TUBE AIR PIPING<Z29> (A)	1-09660-570-0	01	1	9401-
58	CONNECTOR; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-610-0	01	1	9401-
58	CONNECTOR; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9307-
61	RETAINER; SPRING	1-47769-091-0	01	1	9002-9306
61	RETAINER; SPRING NYLON TUBE AIR PIPING<Z29>	1-47769-026-0	01	1	9307-9312
61	RETAINER; SPRING NYLON TUBE AIR PIPING<Z29>	1-47769-138-0	01	1	9401-
61	RETAINER; SPRING EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-091-0	01	1	9312-
62	SPRING; LSPV (A)	1-47769-025-0	01	1	9002-
62	SPRING; LSPV (B)	1-47769-042-0	01	1	9002-
63	BOLT; LSPV (A)	1-47769-094-0	04	1	9002-9312
63	BOLT; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47769-094-0	04	1	9401-9409
63	BOLT; LSPV (A)	1-47769-094-0	04	1	9401-
63	BOLT; LSPV (B)	1-47769-098-0	02	1	9002-9306
63	BOLT; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-47769-045-0	02	1	9307-
63	BOLT; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47769-098-0	02	1	9312-
64	WASHER; LSPV (A)	1-47769-036-0	09	1	9002-9306
64	WASHER; LSPV (B)	1-47769-099-0	02	1	9002-9306
64	WASHER; LSPV (C)	1-47769-107-0	04	1	9002-9306
64	WASHER; LSPV NYLON TUBE AIR PIPING<Z29> (A)	1-47769-036-0	05	1	9307-
64	WASHER; LSPV NYLON TUBE AIR PIPING<Z29> (C)	1-47769-079-0	04	1	9307-
64	WASHER; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47769-036-0	09	1	9307-
64	WASHER; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47769-099-0	02	1	9307-
64	WASHER; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47769-107-0	04	1	9307-
65	NUT; LSPV	1-47769-095-0	03	1	9002-9306
65	NUT; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-095-0	05	1	9307-
65	NUT; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-095-0	03	1	9307-
82	GUIDE; PISTON,LSPV	1-47769-016-0	01	1	9002-9312
82	GUIDE; PISTON,LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-016-0	01	1	9401-
82	GUIDE; PISTON,LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-131-0	01	1	9401-
83	RING; SNAP,RET (A)	1-47769-089-0	01	1	9002-9306
83	RING; SNAP,RET (B)	1-47769-092-0	01	1	9002-9306
83	RING; SNAP,RET NYLON TUBE AIR PIPING<Z29> (A)	1-47769-017-0	01	1	9307-
83	RING; SNAP,RET NYLON TUBE AIR PIPING<Z29> (B)	1-47769-027-0	01	1	9307-9312
83	RING; SNAP,RET NYLON TUBE AIR PIPING<Z29> (B)	1-47769-139-0	01	1	9401-
83	RING; SNAP,RET EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47769-089-0	01	1	9307-
83	RING; SNAP,RET EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47769-092-0	01	1	9307-
84	RETAINER; GASKET	1-47769-021-0	02	1	9002-
85	PISTON; LSPV (A)	1-47769-043-0	01	1	9002-
85	PISTON; LSPV (B)	1-47769-090-0	01	1	9002-9306
85	PISTON; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-47769-023-0	01	1	9307-9312
85	PISTON; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-47769-136-0	01	1	9401-
85	PISTON; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47769-090-0	01	1	9307-
86	VALVE; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-024-0	01	1	9307-
86	VALVE; LSPV	1-47769-024-0	01	1	9002-9306
87	RETAINER; DIAPH	1-47769-031-0	01	1	9002-9306
87	RETAINER; DIAPH NYLON TUBE AIR PIPING<Z29>	1-47769-086-0	01	1	9307-
87	RETAINER; DIAPH EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-031-0	01	1	9307-
88	GUIDE; DIAPH	1-47769-093-0	01	1	9002-9306
88	GUIDE; DIAPH NYLON TUBE AIR PIPING<Z29>	1-47769-032-0	01	1	9307-
88	GUIDE; DIAPH EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-093-0	01	1	9307-
89	ROD; CONN,LSPV	1-47769-096-0	01	1	9002-9306
89	ROD; CONN,LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-083-0	01	1	9307-
89	ROD; CONN,LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-076-0	01	1	9307-
90	SCREW; CAM	1-47769-097-0	01	1	9002-9306
90	SCREW; CAM NYLON TUBE AIR PIPING<Z29>	1-47769-039-0	01	1	9307-
90	SCREW; CAM EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-097-0	01	1	9307-
91	FILTER; LSPV	1-47769-100-0	01	1	9002-9306
91	FILTER; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-047-0	01	1	9307-
91	FILTER; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-100-0	01	1	9307-
92	PIPE; LSPV	1-47769-101-0	01	1	9002-9306
92	PIPE; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-048-0	01	1	9307-
92	PIPE; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-101-0	01	1	9307-
93	CLIP; PIPE	1-47769-102-0	01	1	9002-9306
93	CLIP; PIPE NYLON TUBE AIR PIPING<Z29>	1-47769-050-0	01	1	9307-
93	CLIP; PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-102-0	01	1	9307-
94	SCREW; CLIP	1-47769-051-0	02	1	9002-
95	WASHER; CLIP	1-47769-052-0	02	1	9002-
96	ARM; OPERATING	1-47769-110-0	01	1	9002-
97	BOLT; OPERATING ARM	1-47769-104-0	01	1	9002-9306
97	BOLT; OPERATING ARM NYLON TUBE AIR PIPING<Z29>	1-47769-081-0	01	1	9307-
97	BOLT; OPERATING ARM EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-104-0	01	1	9307-
98	PIN; SPLIT	1-47769-105-0	01	1	9002-9306
98	PIN; SPLIT NYLON TUBE AIR PIPING<Z29> OD=1.8 L=15	9-08112-015-0	01	1	9307-
98	PIN; SPLIT EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-105-0	01	1	9307-
99	CAP; SCREW	1-47769-055-0	01	1	9002-
100	BRACKET; LSPV	1-47769-106-0	01	1	9002-9306
100	BRACKET; LSPV	1-47769-111-0	01	1	9307-
101	CONNECTOR; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT3/8 ELBOW	1-09650-180-1	02	1	9002-9302
101	CONNECTOR; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9303-9306
101	CONNECTOR; LSPV NYLON TUBE AIR PIPING<Z29> (C) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9002-9306
101	CONNECTOR; LSPV NYLON TUBE AIR PIPING<Z29> (A)	1-09660-570-0	01	1	9307-9312
101	CONNECTOR; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-610-0	01	1	9307-9312

50 1 65 100 64 64 64 84 101 93 95 94 83 61 62 92 91 85 88 64 116 97 65 87 117 53 83 82 98 87 90 99 89 96 64 63 101 85 62 84 116 97 89 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-043-0	01	1	9002-9306
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-048-0	01	1	9307-9312
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-059-0	01	1	9401-
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. NYLON TUBE AIR PIPING<Z29>	1-47720-053-0	01	1	9002-
50	REPAIR KIT; LSPV	1-87830-263-0	01	1	9002-9306
50	REPAIR KIT; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-088-0	01	1	9307-9312
50	REPAIR KIT; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-142-0	01	1	9401-
50	REPAIR KIT; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-87830-263-0	01	1	9312-
53	PLUNGER; LSPV	1-47769-033-0	01	1	9002-9312
53	PLUNGER; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-033-0	01	1	9401-
53	PLUNGER; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-141-0	01	1	9401-
61	RETAINER; SPRING	1-47769-091-0	01	1	9002-9306
61	RETAINER; SPRING NYLON TUBE AIR PIPING<Z29>	1-47769-026-0	01	1	9307-9312
61	RETAINER; SPRING NYLON TUBE AIR PIPING<Z29>	1-47769-138-0	01	1	9401-
61	RETAINER; SPRING EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-091-0	01	1	9312-
62	SPRING; LSPV (A)	1-47769-025-0	01	1	9002-
62	SPRING; LSPV (B)	1-47769-042-0	01	1	9002-
63	BOLT; LSPV (A)	1-47769-094-0	04	1	9002-9312
63	BOLT; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47769-094-0	04	1	9401-9409
63	BOLT; LSPV (A)	1-47769-094-0	04	1	9401-
63	BOLT; LSPV (B)	1-47769-098-0	02	1	9002-9306
63	BOLT; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-47769-045-0	02	1	9307-
63	BOLT; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47769-098-0	02	1	9312-
64	WASHER; LSPV (A)	1-47769-036-0	09	1	9002-9306
64	WASHER; LSPV (B)	1-47769-099-0	02	1	9002-9306
64	WASHER; LSPV (C)	1-47769-107-0	04	1	9002-9306
64	WASHER; LSPV NYLON TUBE AIR PIPING<Z29> (A)	1-47769-036-0	05	1	9307-
64	WASHER; LSPV NYLON TUBE AIR PIPING<Z29> (C)	1-47769-079-0	04	1	9307-
64	WASHER; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47769-036-0	09	1	9307-
64	WASHER; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47769-099-0	02	1	9307-
64	WASHER; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47769-107-0	04	1	9307-
65	NUT; LSPV	1-47769-095-0	03	1	9002-9306
65	NUT; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-095-0	05	1	9307-
65	NUT; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-095-0	03	1	9307-
82	GUIDE; PISTON,LSPV	1-47769-016-0	01	1	9002-9312
82	GUIDE; PISTON,LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-016-0	01	1	9401-
82	GUIDE; PISTON,LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-131-0	01	1	9401-
83	RING; SNAP,RET (A)	1-47769-089-0	01	1	9002-9306
83	RING; SNAP,RET (B)	1-47769-092-0	01	1	9002-9306
83	RING; SNAP,RET NYLON TUBE AIR PIPING<Z29> (A)	1-47769-017-0	01	1	9307-
83	RING; SNAP,RET NYLON TUBE AIR PIPING<Z29> (B)	1-47769-027-0	01	1	9307-9312
83	RING; SNAP,RET NYLON TUBE AIR PIPING<Z29> (B)	1-47769-139-0	01	1	9401-
83	RING; SNAP,RET EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47769-089-0	01	1	9307-
83	RING; SNAP,RET EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47769-092-0	01	1	9307-
84	RETAINER; GASKET	1-47769-021-0	02	1	9002-
85	PISTON; LSPV (A)	1-47769-043-0	01	1	9002-
85	PISTON; LSPV (B)	1-47769-090-0	01	1	9002-9306
85	PISTON; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-47769-023-0	01	1	9307-9312
85	PISTON; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-47769-136-0	01	1	9401-
85	PISTON; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47769-090-0	01	1	9307-
87	RETAINER; DIAPH	1-47769-031-0	01	1	9002-9306
87	RETAINER; DIAPH NYLON TUBE AIR PIPING<Z29>	1-47769-086-0	01	1	9307-
87	RETAINER; DIAPH EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-031-0	01	1	9307-
88	GUIDE; DIAPH	1-47769-093-0	01	1	9002-9306
88	GUIDE; DIAPH NYLON TUBE AIR PIPING<Z29>	1-47769-032-0	01	1	9307-
88	GUIDE; DIAPH EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-093-0	01	1	9307-
89	ROD; CONN,LSPV	1-47769-096-0	01	1	9002-9306
89	ROD; CONN,LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-083-0	01	1	9307-
89	ROD; CONN,LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-076-0	01	1	9307-
90	SCREW; CAM	1-47769-097-0	01	1	9002-9306
90	SCREW; CAM NYLON TUBE AIR PIPING<Z29>	1-47769-039-0	01	1	9307-
90	SCREW; CAM EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-097-0	01	1	9307-
91	FILTER; LSPV	1-47769-100-0	01	1	9002-9306
91	FILTER; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-047-0	01	1	9307-
91	FILTER; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-100-0	01	1	9307-
92	PIPE; LSPV	1-47769-101-0	01	1	9002-9306
92	PIPE; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-048-0	01	1	9307-
92	PIPE; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-101-0	01	1	9307-
93	CLIP; PIPE	1-47769-102-0	01	1	9002-9306
93	CLIP; PIPE NYLON TUBE AIR PIPING<Z29>	1-47769-050-0	01	1	9307-
93	CLIP; PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-102-0	01	1	9307-
94	SCREW; CLIP	1-47769-051-0	02	1	9002-
95	WASHER; CLIP	1-47769-052-0	02	1	9002-
96	ARM; OPERATING	1-47769-110-0	01	1	9002-
97	BOLT; OPERATING ARM	1-47769-104-0	01	1	9002-9306
97	BOLT; OPERATING ARM NYLON TUBE AIR PIPING<Z29>	1-47769-081-0	01	1	9307-
97	BOLT; OPERATING ARM EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-104-0	01	1	9307-
98	PIN; SPLIT	1-47769-105-0	01	1	9002-9306
98	PIN; SPLIT NYLON TUBE AIR PIPING<Z29> OD=1.8 L=15	9-08112-015-0	01	1	9307-
98	PIN; SPLIT EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-105-0	01	1	9307-
99	CAP; SCREW	1-47769-055-0	01	1	9002-
100	BRACKET; LSPV	1-47769-106-0	01	1	9002-9306
100	BRACKET; LSPV	1-47769-111-0	01	1	9307-
101	CONNECTOR; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT3/8 ELBOW	1-09650-180-1	02	1	9002-9302
101	CONNECTOR; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9303-9306
101	CONNECTOR; LSPV NYLON TUBE AIR PIPING<Z29> (C) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9002-9306
101	CONNECTOR; LSPV NYLON TUBE AIR PIPING<Z29> (A)	1-09660-570-0	01	1	9307-9312
101	CONNECTOR; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-610-0	01	1	9307-9312
116	INDICATOR; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-078-0	01	1	9307-
117	CAM; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-038-0	01	1	9307-

58 50 1 65 100 64 64 84 64 93 95 94 83 61 62 110 85 88 92 91 64 116 97 65 87 117 53 83 82 98 90 99 89 96 64 63 85 62 84 58 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-043-0	01	1	9002-9306
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-048-0	01	1	9307-9312
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-059-0	01	1	9401-
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. NYLON TUBE AIR PIPING<Z29>	1-47720-053-0	01	1	9002-
50	REPAIR KIT; LSPV	1-87830-263-0	01	1	9002-9306
50	REPAIR KIT; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-088-0	01	1	9307-9312
50	REPAIR KIT; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-142-0	01	1	9401-
50	REPAIR KIT; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-87830-263-0	01	1	9312-
53	PLUNGER; LSPV	1-47769-033-0	01	1	9002-9312
53	PLUNGER; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-033-0	01	1	9401-
53	PLUNGER; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-141-0	01	1	9401-
58	CONNECTOR; LSPV NYLON TUBE AIR PIPING<Z29> (A)	1-09660-570-0	01	1	9401-
58	CONNECTOR; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-610-0	01	1	9401-
58	CONNECTOR; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9307-
61	RETAINER; SPRING	1-47769-091-0	01	1	9002-9306
61	RETAINER; SPRING NYLON TUBE AIR PIPING<Z29>	1-47769-026-0	01	1	9307-9312
61	RETAINER; SPRING NYLON TUBE AIR PIPING<Z29>	1-47769-138-0	01	1	9401-
61	RETAINER; SPRING EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-091-0	01	1	9312-
62	SPRING; LSPV (A)	1-47769-025-0	01	1	9002-
62	SPRING; LSPV (B)	1-47769-042-0	01	1	9002-
63	BOLT; LSPV (A)	1-47769-094-0	04	1	9002-9312
63	BOLT; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47769-094-0	04	1	9401-9409
63	BOLT; LSPV (A)	1-47769-094-0	04	1	9401-
63	BOLT; LSPV (B)	1-47769-098-0	02	1	9002-9306
63	BOLT; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-47769-045-0	02	1	9307-
63	BOLT; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47769-098-0	02	1	9312-
64	WASHER; LSPV (A)	1-47769-036-0	09	1	9002-9306
64	WASHER; LSPV (B)	1-47769-099-0	02	1	9002-9306
64	WASHER; LSPV (C)	1-47769-107-0	04	1	9002-9306
64	WASHER; LSPV NYLON TUBE AIR PIPING<Z29> (A)	1-47769-036-0	05	1	9307-
64	WASHER; LSPV NYLON TUBE AIR PIPING<Z29> (C)	1-47769-079-0	04	1	9307-
64	WASHER; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47769-036-0	09	1	9307-
64	WASHER; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47769-099-0	02	1	9307-
64	WASHER; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47769-107-0	04	1	9307-
65	NUT; LSPV	1-47769-095-0	03	1	9002-9306
65	NUT; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-095-0	05	1	9307-
65	NUT; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-095-0	03	1	9307-
82	GUIDE; PISTON,LSPV	1-47769-016-0	01	1	9002-9312
82	GUIDE; PISTON,LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-016-0	01	1	9401-
82	GUIDE; PISTON,LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-131-0	01	1	9401-
83	RING; SNAP,RET (A)	1-47769-089-0	01	1	9002-9306
83	RING; SNAP,RET (B)	1-47769-092-0	01	1	9002-9306
83	RING; SNAP,RET NYLON TUBE AIR PIPING<Z29> (A)	1-47769-017-0	01	1	9307-
83	RING; SNAP,RET NYLON TUBE AIR PIPING<Z29> (B)	1-47769-027-0	01	1	9307-9312
83	RING; SNAP,RET NYLON TUBE AIR PIPING<Z29> (B)	1-47769-139-0	01	1	9401-
83	RING; SNAP,RET EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47769-089-0	01	1	9307-
83	RING; SNAP,RET EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47769-092-0	01	1	9307-
84	RETAINER; GASKET	1-47769-021-0	02	1	9002-
85	PISTON; LSPV (A)	1-47769-043-0	01	1	9002-
85	PISTON; LSPV (B)	1-47769-090-0	01	1	9002-9306
85	PISTON; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-47769-023-0	01	1	9307-9312
85	PISTON; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-47769-136-0	01	1	9401-
85	PISTON; LSPV EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47769-090-0	01	1	9307-
87	RETAINER; DIAPH	1-47769-031-0	01	1	9002-9306
87	RETAINER; DIAPH NYLON TUBE AIR PIPING<Z29>	1-47769-086-0	01	1	9307-
87	RETAINER; DIAPH EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-031-0	01	1	9307-
88	GUIDE; DIAPH	1-47769-093-0	01	1	9002-9306
88	GUIDE; DIAPH NYLON TUBE AIR PIPING<Z29>	1-47769-032-0	01	1	9307-
88	GUIDE; DIAPH EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-093-0	01	1	9307-
89	ROD; CONN,LSPV	1-47769-096-0	01	1	9002-9306
89	ROD; CONN,LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-083-0	01	1	9307-
89	ROD; CONN,LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-076-0	01	1	9307-
90	SCREW; CAM	1-47769-097-0	01	1	9002-9306
90	SCREW; CAM NYLON TUBE AIR PIPING<Z29>	1-47769-039-0	01	1	9307-
90	SCREW; CAM EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-097-0	01	1	9307-
91	FILTER; LSPV	1-47769-100-0	01	1	9002-9306
91	FILTER; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-047-0	01	1	9307-
91	FILTER; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-100-0	01	1	9307-
92	PIPE; LSPV	1-47769-101-0	01	1	9002-9306
92	PIPE; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-048-0	01	1	9307-
92	PIPE; LSPV EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-101-0	01	1	9307-
93	CLIP; PIPE	1-47769-102-0	01	1	9002-9306
93	CLIP; PIPE NYLON TUBE AIR PIPING<Z29>	1-47769-050-0	01	1	9307-
93	CLIP; PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-102-0	01	1	9307-
94	SCREW; CLIP	1-47769-051-0	02	1	9002-
95	WASHER; CLIP	1-47769-052-0	02	1	9002-
96	ARM; OPERATING	1-47769-110-0	01	1	9002-
97	BOLT; OPERATING ARM	1-47769-104-0	01	1	9002-9306
97	BOLT; OPERATING ARM NYLON TUBE AIR PIPING<Z29>	1-47769-081-0	01	1	9307-
97	BOLT; OPERATING ARM EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-104-0	01	1	9307-
98	PIN; SPLIT	1-47769-105-0	01	1	9002-9306
98	PIN; SPLIT NYLON TUBE AIR PIPING<Z29> OD=1.8 L=15	9-08112-015-0	01	1	9307-
98	PIN; SPLIT EXC. NYLON TUBE AIR PIPING<Z29>	1-47769-105-0	01	1	9307-
99	CAP; SCREW	1-47769-055-0	01	1	9002-
100	BRACKET; LSPV	1-47769-106-0	01	1	9002-9306
100	BRACKET; LSPV	1-47769-111-0	01	1	9307-
110	BUSHING; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-134-0	01	1	9401-
116	INDICATOR; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-078-0	01	1	9307-
117	CAM; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-038-0	01	1	9307-

13 1 21 30 30 33 8 3 6 5 7 2 4 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-043-0	01	1	9002-9306
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-048-0	01	1	9307-9312
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-059-0	01	1	9401-
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. NYLON TUBE AIR PIPING<Z29>	1-47720-053-0	01	1	9002-
2	DAMPER	1-47725-012-0	01	1	9002-
3	ROD; UPR	1-09765-071-0	01	1	9002-
4	ROD; LWR	1-09765-212-0	01	1	9002-
5	JOINT	1-09768-004-0	01	1	9002-
6	NUT; LK,UPR M8	9-09111-408-0	01	1	9002-
7	NUT; LK,LWR LH THREAD	1-09409-002-0	01	1	9002-
8	ROD END	1-47723-001-0	01	1	9002-
13	NUT; LSPV TO BRKT M8	9-09110-408-0	03	1	9002-
21	BOLT; BRKT M8X30 W/LK WASHER	9-01910-830-0	03	1	9002-9005
21	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	03	1	9006-9302
21	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	03	1	9303-
26	BOLT; DAMPER M8X18 W/LK WASHER	9-01910-818-0	02	1	9002-9005
26	BOLT; DAMPER M8X18 W/LK WASHER	0-50040-818-0	02	1	9006-9302
26	BOLT; DAMPER M8X20 FLANGE	0-28080-820-0	02	1	9303-
30	WASHER; PL ID=8.4	9-09160-508-0	02	1	9002-
33	PIN; SPLIT OD=1.8 L=25	9-08112-025-0	01	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
