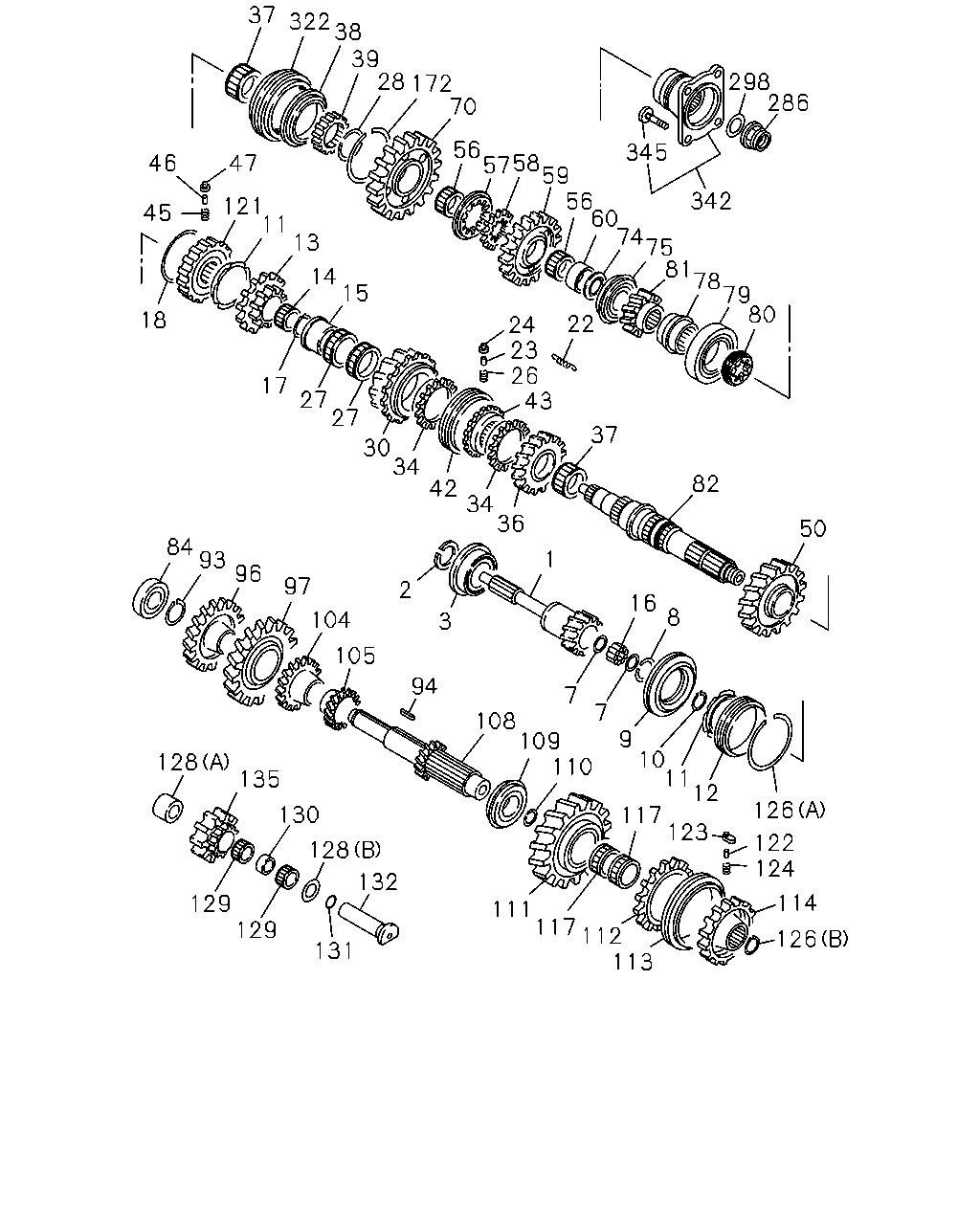

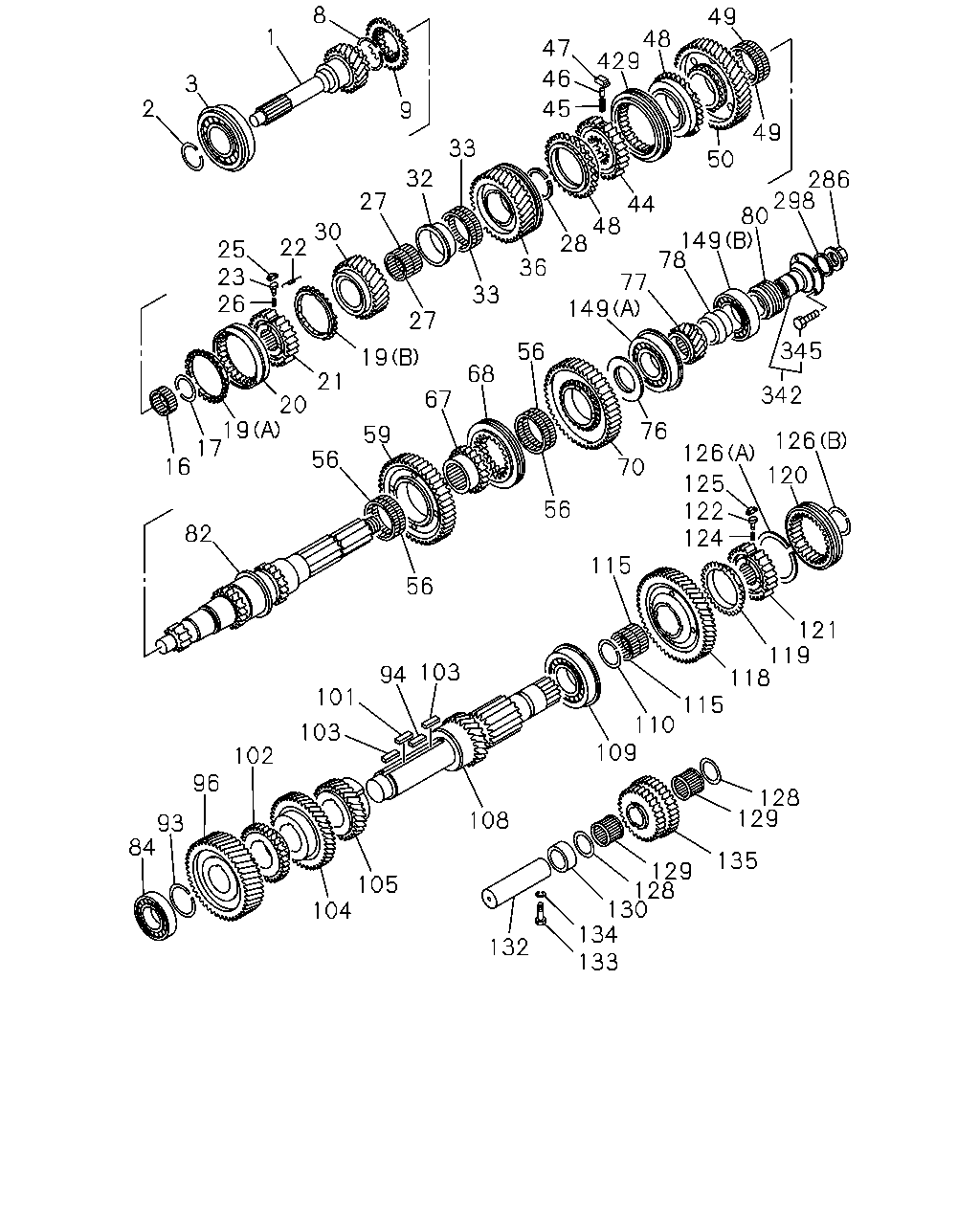

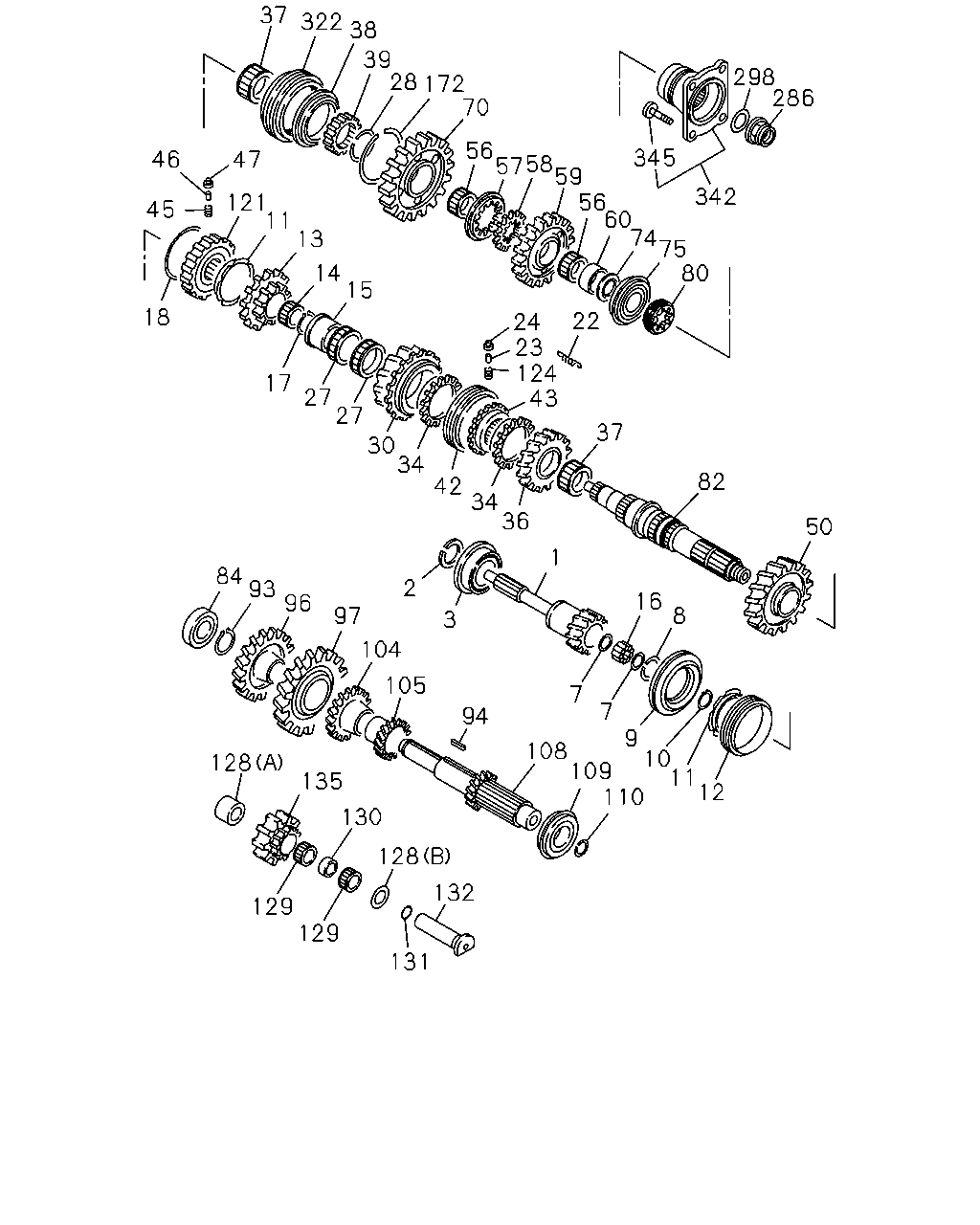

2-26A — MANUAL TRANSMISSION GEAR (#24789) — 681 parça

8 49 1 48 429 47 46 3 2 45 9 49 33 50 32 286 298 80 149 78 27 44 48 28 30 22 25 23 26 36 77 149 33 27 345 56 19 68 21 342 67 20 19 17 16 76 59 126 126 56 70 120 125 122 124 56 82 115 56 121 119 118 115 110 109 103 94 101 103 102 96 128 129 108 93 84 135 129 128 130 134 133 105 104 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9601-9803	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9601-9803		●	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	9601-0006				●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-0106				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-897-0	01	1	0012-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9601-9803	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9804-0106				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9601-9803	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9804-0106				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9601-9803	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9804-0106				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9601-9803	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9804-0106				●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0012-					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0012-					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0012-					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0012-					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9601-9803	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9804-0106				●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0012-					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0012-					●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9601-9803	●	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9804-0106				●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0012-					●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9601-9803	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9804-0106				●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0012-					●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9601-9803	●	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9804-0106				●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0012-					●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0012-					●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9601-9803	●	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9804-0106				●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0012-					●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-8	01	1	0012-					●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	0012-					●
20	SLEEVE	1-33262-097-1	01	1	0012-					●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0012-					●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9601-9803	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9804-0106				●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0012-					●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9601-9803	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9804-0106				●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0012-					●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0012-					●
26	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9601-9803		●		●
26	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9804-0106				●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	0012-					●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9601-9803	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9804-0106				●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0012-1311					●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0012-					●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9601-9803	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9804-0106				●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0012-					●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9601-9803	●			●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9804-0106				●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9601-9803		●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-606-0	01	1	0012-					●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0012-					●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0012-					●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0012-					●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9601-9803	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9804-0106				●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	0012-					●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0012-					●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9601-9803	●	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9804-0106				●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	0012-					●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9601-9803	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9804-0106				●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0012-					●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9601-9803	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9804-0106				●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0012-					●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0012-0407					●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-					●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0012-					●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0012-					●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9601-9803	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9804-0106				●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	0012-					●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9601-9803	●	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9804-0106				●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0012-					●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0012-					●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9601-9803	●	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9804-0106				●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0012-					●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0012-					●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0012-					●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9601-9803	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9804-0106				●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0012-					●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0012-					●
77	GEAR; 6TH,MAINSHAFT Z=19	1-33253-474-0	01	1	0012-					●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-085-0	01	1	9601-9803		●		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-085-0	01	1	9804-0106				●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	0012-					●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9601-9803	●	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9804-0106				●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0012-					●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9601-9803	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9601-9803		●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9804-0106				●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	0012-					●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9601-9803	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9804-0106				●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0012-1405					●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-0	01	1	1406-					●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0012-1405					●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9601-9803	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9804-0106				●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0012-					●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9601-9803	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9804-0106				●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9601-9803	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9804-0106				●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0012-					●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9601-9803	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9601-9803		●	●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	9601-0106				●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	0012-					●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0012-					●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0012-					●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	0012-					●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	0012-					●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9601-9803	●			●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9804-9805				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-0106				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9601-9803		●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-291-0	01	1	0012-					●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9601-9803	●	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9804-9805				●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-0106				●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	0012-					●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9601-9803	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9601-9803		●		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9804-0106				●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	0012-					●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9601-9803	●	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9804-0106				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9601-9803	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9804-0106				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	0012-					●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	0012-					●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9601-9803	●	●	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9804-0106				●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0012-					●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	0012-1311					●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	0012-					●
118	GEAR; 6TH,COUNTER Z=44	1-33338-307-0	01	1	0012-					●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	0012-					●
120	SLEEVE	1-33262-098-2	01	1	0012-					●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9601-9803	●	●	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9804-0106				●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0012-					●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9601-9803		●		●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9804-0106				●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0012-					●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9601-9803	●	●	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9804-0106				●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0012-					●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	0012-					●
126	RING; SNAP,CLU HUB (A) OD=121.2	1-09587-031-0	01	1	9601-9803		●		●
126	RING; SNAP,CLU HUB (A) OD=121.2	1-09587-031-0	01	1	9804-0106				●
126	RING; SNAP,CLU HUB (B) OD=55.8	1-09588-043-0	01	1	9601-9803		●		●
126	RING; SNAP,CLU HUB (B) OD=55.8	1-09588-043-0	01	1	9804-0106				●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0012-					●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0012-					●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9601-9803	●	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9804-0106				●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9601-9803	●	●	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9804-0106				●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0012-					●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9601-9803	●	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9804-0106				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9601-9803	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9804-0106				●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0012-					●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0012-					●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9601-9803	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9804-0106				●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0012-					●
132	SHAFT; REV	1-33351-017-0	01	1	9601-9803	●	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9804-0106				●
132	SHAFT; REV	1-33351-012-2	01	1	0012-					●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0012-					●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0012-0603					●
134	WASHER; LK,REV SHAFT ID=8.2	0-91510-508-0	01	1	0604-					●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9601-9803	●	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9804-0106				●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	0012-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0012-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0012-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0012-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0012-					●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9601-9803	●	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9804-0106				●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0012-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9601-9803	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9804-0106				●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0012-					●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9601-9803	●	●	●	●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9804-0106				●
342	FLANGE; OUTPUT	1-37243-306-0	01	1	0012-1204					●
342	FLANGE; OUTPUT	8-98213-222-0	01	1	1205-					●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9601-9803	●	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9804-0011				●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0012-0106				●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0107-					●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0012-					●

37 322 38 39 28 172 70 298 286 56 57 58 59 56 60 74 75 81 78 79 80 345 46 47 342 121 11 45 13 14 15 18 22 24 23 26 43 17 27 27 37 30 34 42 34 36 82 50 84 93 96 1 97 2 16 8 104 3 105 94 7 7 108 109 110 9 10 11 12 128 135 126 130 117 123 122 124 128 132 114 129 129 111 117 112 113 126 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9601-9803	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9601-9803		●	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	9601-0006				●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-0106				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-897-0	01	1	0012-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9601-9803	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9804-0106				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9601-9803	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9804-0106				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9601-9803	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9804-0106				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9601-9803	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9804-0106				●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0012-					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0012-					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0012-					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0012-					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9601-9803	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9804-0106				●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0012-					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0012-					●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9601-9803	●	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9804-0106				●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9601-9803	●	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9804-0106				●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0012-					●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9601-9803	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9804-0106				●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0012-					●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9601-9803	●	●	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9804-0106				●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9601-9803	●	●	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9804-0106				●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9601-9803	●	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9804-0106				●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9601-9803	●			●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9804-9908				●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	9909-0106				●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9601-9803		●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9601-9803	●	●	●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9804-0106				●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9601-9803	●	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9804-0106				●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9601-9803	●	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9804-0106				●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0012-					●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0012-					●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9601-9803	●	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9804-0106				●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0012-					●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9601-9803	●	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9804-0106				●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9601-9803	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9804-0106				●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0012-					●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9601-9803	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9804-0106				●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0012-					●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9601-9803	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9804-0106				●
26	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9601-9803		●		●
26	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9804-0106				●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	0012-					●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9601-9803	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9804-0106				●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0012-1311					●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0012-					●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9601-9803	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9804-0106				●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0012-					●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9601-9803	●			●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9804-0106				●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9601-9803		●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-606-0	01	1	0012-					●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9601-9803	●	●	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9804-0106				●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9601-9803	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9804-0106				●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	0012-					●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9601-9803	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9804-0106				●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9601-9803	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9804-0106				●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9601-9803	●	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9804-0106				●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9601-9803	●	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9804-0106				●
42	SLEEVE Z=54	1-33262-154-0	01	1	9601-9803	●	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9804-0106				●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9601-9803	●	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9804-0106				●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9601-9803	●	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9804-0106				●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	0012-					●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9601-9803	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9804-0106				●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0012-					●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9601-9803	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9804-0106				●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0012-					●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9601-9803	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9804-0106				●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	0012-					●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9601-9803	●	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9804-0106				●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0012-					●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0012-					●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9601-9803	●	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9804-0106				●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9601-9803	●	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9804-0106				●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9601-9803	●	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9804-0106				●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0012-					●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9601-9803	●	●	●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9804-0009				●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-0106				●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9601-9803	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9804-0106				●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0012-					●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9601-9803	●	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9804-0106				●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9601-9803	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9804-0106				●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9601-9803	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9804-0106				●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-085-0	01	1	9601-9803		●		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-085-0	01	1	9804-0106				●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	0012-					●
79	BEARING; BALL,MAINSHAFT JTEKT	1-09800-150-0	01	1	9601-9803		●		●
79	BEARING; BALL,MAINSHAFT JTEKT	1-09800-150-0	01	1	9804-0106				●
79	BEARING; BALL,MAINSHAFT NTN	1-09800-151-0	01	1	9601-9803		●		●
79	BEARING; BALL,MAINSHAFT NTN	1-09800-151-0	01	1	9804-0106				●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9601-9803	●	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9804-0106				●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0012-					●
81	GEAR; 7TH,MAIN Z=19	1-33254-013-0	01	1	9601-9803		●		●
81	GEAR; 7TH,MAIN Z=19	1-33254-013-0	01	1	9804-0106				●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9601-9803	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9601-9803		●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9804-0106				●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	0012-					●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9601-9803	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9804-0106				●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0012-1405					●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-0	01	1	1406-					●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0012-1405					●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9601-9803	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9804-0106				●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0012-					●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9601-9803	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9804-0106				●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9601-9803	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9804-0106				●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0012-					●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9601-9803	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9601-9803		●	●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	9601-0106				●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	0012-					●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9601-9803	●			●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9804-0106				●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9601-9803		●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9601-9803	●			●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9804-9805				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-0106				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9601-9803		●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-291-0	01	1	0012-					●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9601-9803	●	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9804-9805				●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-0106				●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	0012-					●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9601-9803	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9601-9803		●		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9804-0106				●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	0012-					●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9601-9803	●	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9804-0106				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9601-9803	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9804-0106				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	0012-					●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	0012-					●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9601-9803	●	●	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9804-0106				●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0012-					●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-311-1	01	1	9601-9803		●		●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-311-1	01	1	9804-0106				●
112	RING; BLOCK,7TH SYN Z=36	1-33265-281-1	01	1	9601-9803		●		●
112	RING; BLOCK,7TH SYN Z=36	1-33265-281-1	01	1	9804-0106				●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-111-3	01	1	9601-9803		●		●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-111-3	01	1	9804-0106				●
114	HUB; CLU,7TH	1-33261-159-1	01	1	9601-9803		●		●
114	HUB; CLU,7TH	1-33261-159-1	01	1	9804-0106				●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-105-0	02	1	9601-9803		●		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-105-0	02	1	9804-0106				●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9601-9803	●	●	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9804-0106				●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0012-					●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9601-9803		●		●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9804-0106				●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0012-					●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9601-9803		●		●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9804-0106				●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9601-9803	●	●	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9804-0106				●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0012-					●
126	RING; SNAP,CLU HUB (A) OD=121.2	1-09587-031-0	01	1	9601-9803		●		●
126	RING; SNAP,CLU HUB (A) OD=121.2	1-09587-031-0	01	1	9804-0106				●
126	RING; SNAP,CLU HUB (B) OD=55.8	1-09588-043-0	01	1	9601-9803		●		●
126	RING; SNAP,CLU HUB (B) OD=55.8	1-09588-043-0	01	1	9804-0106				●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0012-					●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0012-					●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9601-9803	●	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9804-0106				●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9601-9803	●	●	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9804-0106				●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0012-					●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9601-9803	●	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9804-0106				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9601-9803	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9804-0106				●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0012-					●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0012-					●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9601-9803	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9804-0106				●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0012-					●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9601-9803	●	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9804-0106				●
132	SHAFT; REV	1-33351-017-0	01	1	9601-9803	●	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9804-0106				●
132	SHAFT; REV	1-33351-012-2	01	1	0012-					●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9601-9803	●	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9804-0106				●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	0012-					●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9601-9803	●	●	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9804-0106				●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9601-9803	●	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9804-0106				●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0012-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9601-9803	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9804-0106				●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0012-					●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9601-9803	●	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9804-0106				●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9601-9803	●	●	●	●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9804-0106				●
342	FLANGE; OUTPUT	1-37243-306-0	01	1	0012-1204					●
342	FLANGE; OUTPUT	8-98213-222-0	01	1	1205-					●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9601-9803	●	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9804-0011				●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0012-0106				●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0107-					●

37 322 38 39 28 172 70 298 286 56 57 58 59 56 60 74 75 80 345 46 47 342 121 11 45 13 14 15 18 22 24 23 124 43 17 27 27 37 30 34 42 34 36 82 50 1 84 93 96 2 16 8 97 3 104 105 7 7 94 9 10 11 12 108 109 110 128 135 130 128 132 129 129 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9601-9803	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9601-9803		●	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	9601-0006				●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-0106				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-897-0	01	1	0012-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9601-9803	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9804-0106				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9601-9803	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9804-0106				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9601-9803	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9804-0106				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9601-9803	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9804-0106				●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0012-					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0012-					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0012-					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0012-					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9601-9803	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9804-0106				●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0012-					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0012-					●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9601-9803	●	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9804-0106				●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9601-9803	●	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9804-0106				●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0012-					●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9601-9803	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9804-0106				●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0012-					●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9601-9803	●	●	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9804-0106				●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9601-9803	●	●	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9804-0106				●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9601-9803	●	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9804-0106				●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9601-9803	●			●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9804-9908				●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	9909-0106				●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9601-9803		●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9601-9803	●	●	●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9804-0106				●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9601-9803	●	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9804-0106				●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9601-9803	●	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9804-0106				●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0012-					●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0012-					●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9601-9803	●	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9804-0106				●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0012-					●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9601-9803	●	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9804-0106				●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9601-9803	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9804-0106				●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0012-					●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9601-9803	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9804-0106				●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0012-					●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9601-9803	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9804-0106				●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9601-9803	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9804-0106				●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0012-1311					●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0012-					●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9601-9803	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9804-0106				●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0012-					●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9601-9803	●			●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9804-0106				●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9601-9803		●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-606-0	01	1	0012-					●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9601-9803	●	●	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9804-0106				●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9601-9803	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9804-0106				●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	0012-					●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9601-9803	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9804-0106				●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9601-9803	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9804-0106				●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9601-9803	●	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9804-0106				●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9601-9803	●	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9804-0106				●
42	SLEEVE Z=54	1-33262-154-0	01	1	9601-9803	●	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9804-0106				●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9601-9803	●	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9804-0106				●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9601-9803	●	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9804-0106				●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	0012-					●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9601-9803	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9804-0106				●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0012-					●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9601-9803	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9804-0106				●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0012-					●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9601-9803	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9804-0106				●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	0012-					●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9601-9803	●	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9804-0106				●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0012-					●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0012-					●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9601-9803	●	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9804-0106				●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9601-9803	●	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9804-0106				●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9601-9803	●	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9804-0106				●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0012-					●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9601-9803	●	●	●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9804-0009				●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-0106				●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9601-9803	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9804-0106				●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0012-					●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9601-9803	●	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9804-0106				●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9601-9803	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9804-0106				●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9601-9803	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9804-0106				●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9601-9803	●	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9804-0106				●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0012-					●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9601-9803	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9601-9803		●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9804-0106				●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	0012-					●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9601-9803	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9804-0106				●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0012-1405					●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-0	01	1	1406-					●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0012-1405					●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9601-9803	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9804-0106				●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0012-					●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9601-9803	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9804-0106				●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9601-9803	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9804-0106				●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0012-					●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9601-9803	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9601-9803		●	●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	9601-0106				●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	0012-					●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9601-9803	●			●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9804-0106				●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9601-9803		●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9601-9803	●			●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9804-9805				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-0106				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9601-9803		●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-291-0	01	1	0012-					●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9601-9803	●	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9804-9805				●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-0106				●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	0012-					●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9601-9803	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9601-9803		●		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9804-0106				●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	0012-					●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9601-9803	●	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9804-0106				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9601-9803	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9804-0106				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	0012-					●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	0012-					●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9601-9803	●	●	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9804-0106				●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0012-					●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9601-9803	●	●	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9804-0106				●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0012-					●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9601-9803	●	●	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9804-0106				●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0012-					●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9601-9803	●	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9804-0106				●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9601-9803	●	●	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9804-0106				●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0012-					●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9601-9803	●	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9804-0106				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9601-9803	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9804-0106				●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0012-					●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0012-					●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9601-9803	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9804-0106				●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0012-					●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9601-9803	●	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9804-0106				●
132	SHAFT; REV	1-33351-017-0	01	1	9601-9803	●	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9804-0106				●
132	SHAFT; REV	1-33351-012-2	01	1	0012-					●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9601-9803	●	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9804-0106				●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	0012-					●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9601-9803	●	●	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9804-0106				●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9601-9803	●	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9804-0106				●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0012-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9601-9803	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9804-0106				●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0012-					●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9601-9803	●	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9804-0106				●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9601-9803	●	●	●	●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9804-0106				●
342	FLANGE; OUTPUT	1-37243-306-0	01	1	0012-1204					●
342	FLANGE; OUTPUT	8-98213-222-0	01	1	1205-					●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9601-9803	●	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9804-0011				●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0012-0106				●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0107-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
