2-20B — MANUAL TRANSMISSION ASM AND CASE (#24786) — 224 parça

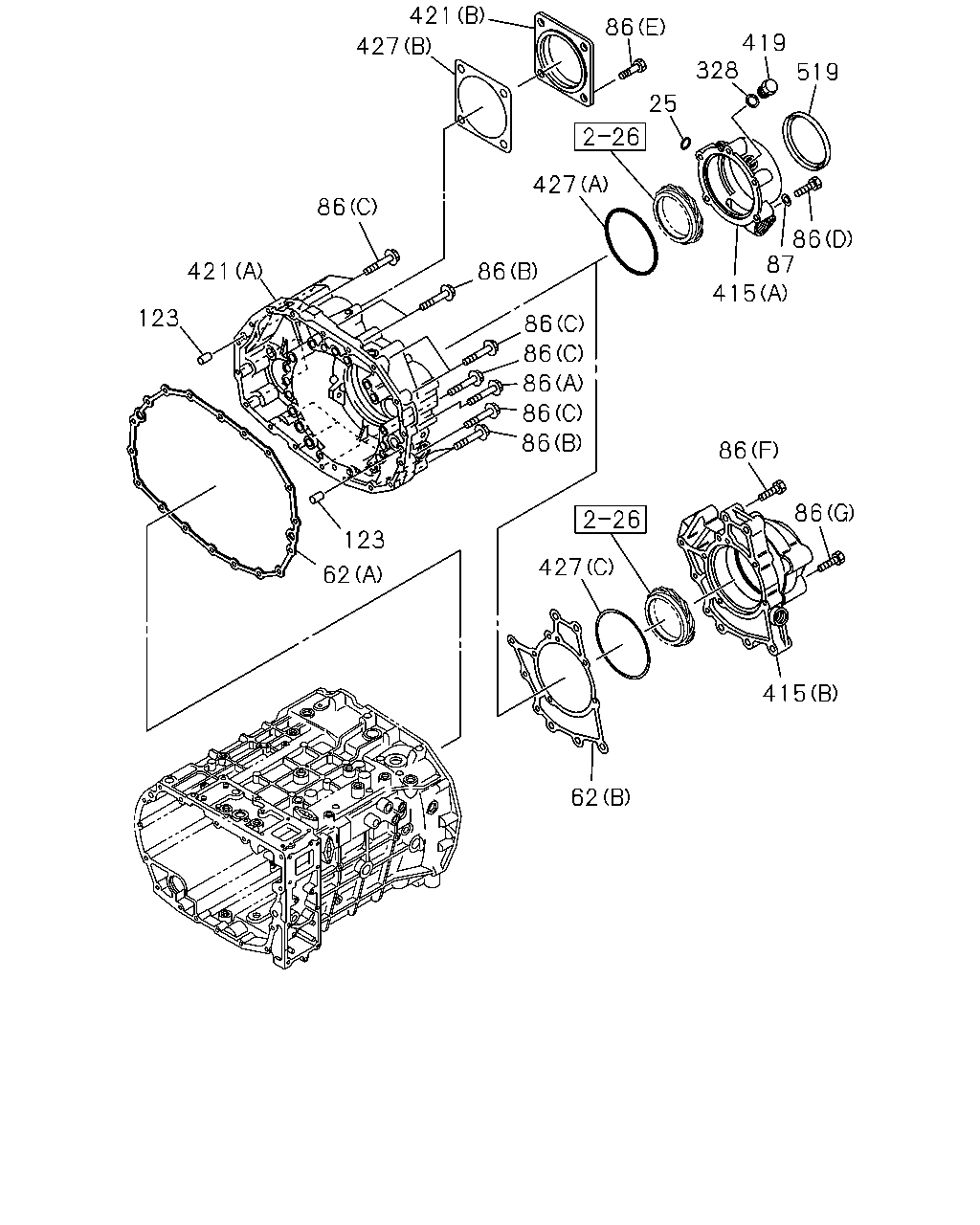

421 86 419 328 427 519 25 427 86 86 87 415 421 86 86 123 86 86 86 86 86 86 123 427 62 415 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33139-060-0	01	1	9601-9903	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33139-060-0	01	1	9904-0004	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33139-060-0	01	1	0005-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33132-077-0	01	1	9601-9903	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33132-077-0	01	1	9904-0004	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33132-077-0	01	1	0005-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33132-076-0	01	1	9904-0004		●
86	BOLT; RR COVER (C)	1-33119-266-0	13	1	9601-9903	●
86	BOLT; RR COVER (C)	1-33119-266-0	13	1	9904-0004	●	●
86	BOLT; RR COVER (C)	1-33119-266-0	13	1	0005-	●
86	BOLT; RR COVER (E) M12X28	1-33139-051-0	04	1	9601-9903	●
86	BOLT; RR COVER (E) M12X28	1-33139-051-0	04	1	9904-0004	●	●
86	BOLT; RR COVER (E) M12X28	1-33139-051-0	04	1	0005-	●
86	BOLT; RR COVER (D)	1-33139-054-0	03	1	9601-	●
86	BOLT; RR COVER (B) M10X110	1-33139-057-0	04	1	9601-9903	●
86	BOLT; RR COVER (B) M10X110	1-33139-057-0	04	1	9904-0004	●	●
86	BOLT; RR COVER (B) M10X110	1-33139-057-0	04	1	0005-	●
86	BOLT; RR COVER (A) M10X50	1-33139-058-0	01	1	9601-9903	●
86	BOLT; RR COVER (A) M10X50	1-33139-058-0	01	1	9904-0004	●	●
86	BOLT; RR COVER (A) M10X50	1-33139-058-0	01	1	0005-	●
86	BOLT; RR COVER (F)	1-33139-061-0	08	1	9904-0004		●
86	BOLT; RR COVER (G)	1-33139-062-0	05	1	9904-0004		●
87	WASHER; LK,RR COVER	1-09469-010-0	03	1	9601-	●
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	9601-9903	●
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	9904-0004	●	●
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	0005-	●
328	GASKET; PLUG	1-33119-249-0	01	1	9601-	●
415	COVER; BRG (A)	1-33131-203-0	01	1	9601-	●
415	COVER; BRG (B)	1-33131-204-0	01	1	9904-0004		●
419	PLUG; RR COVER	1-33119-171-0	01	1	9601-	●
421	COVER; RR,TRANS (B)	1-33131-165-0	01	1	9601-9903	●
421	COVER; RR,TRANS (B)	1-33131-165-0	01	1	9904-0004	●	●
421	COVER; RR,TRANS (B)	1-33131-165-0	01	1	0005-	●
421	COVER; RR,TRANS (A)	1-33131-214-0	01	1	9601-9903	●
421	COVER; RR,TRANS (A)	1-33131-214-0	01	1	9904-0004	●	●
421	COVER; RR,TRANS (A)	1-33131-214-0	01	1	0005-	●
427	GASKET; RR COVER (B)	1-33132-054-0	01	1	9601-9903	●
427	GASKET; RR COVER (B)	1-33132-054-0	01	1	9904-0004	●	●
427	GASKET; RR COVER (B)	1-33132-054-0	01	1	0005-	●
427	GASKET; RR COVER (A)	1-33132-074-0	01	1	9601-9604	●
427	GASKET; RR COVER (A)	1-33132-078-0	01	1	9605-	●
427	GASKET; RR COVER (C)	1-33132-075-0	01	1	9904-0004		●
519	GASKET; SHAFT	1-33139-059-0	01	1	9601-	●

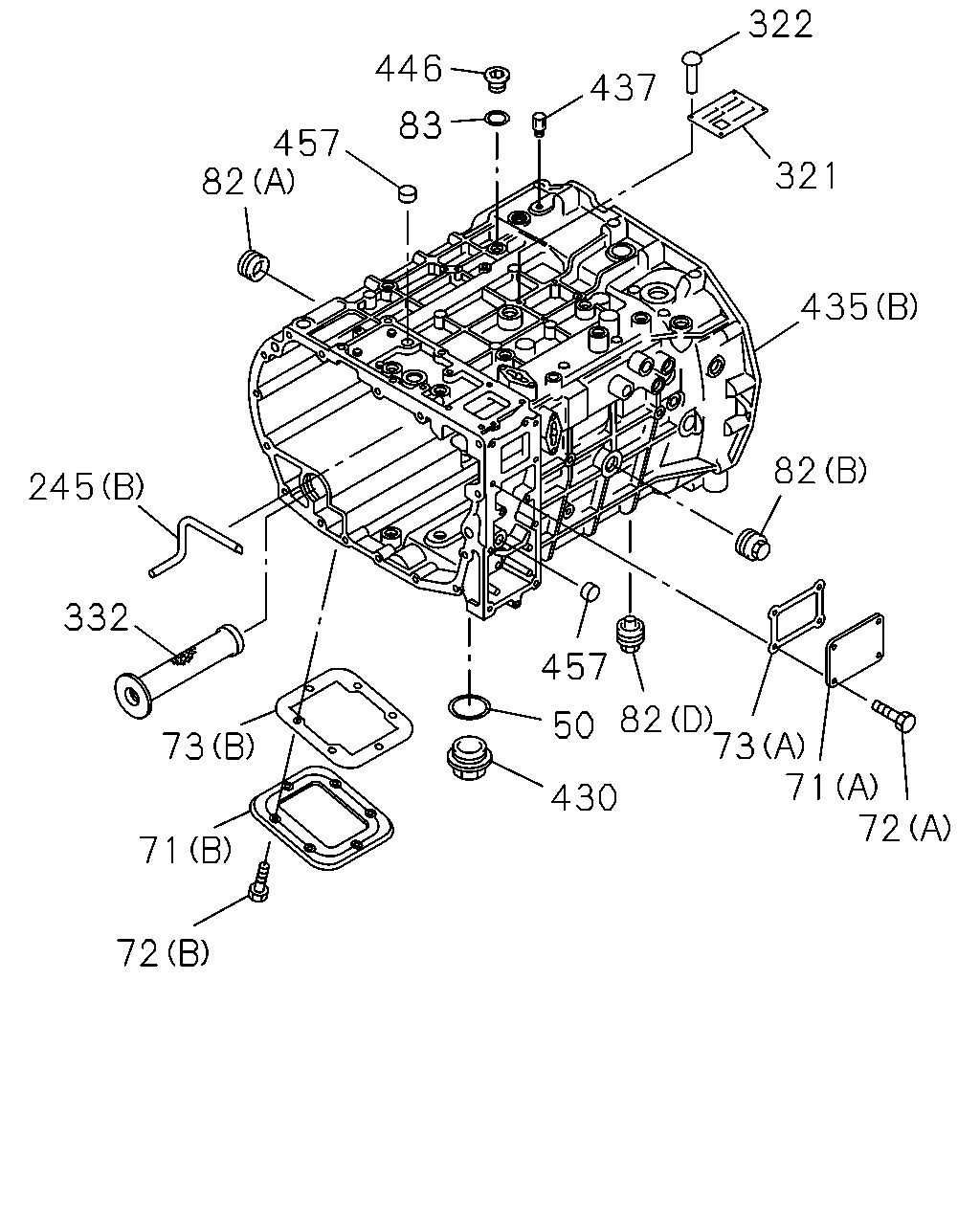

322 446 437 83 457 82 321 435 82 245 332 457 82 73 71 72 50 73 430 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-293-0	01	1	9601-9903	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-293-0	01	1	9904-0004	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-293-0	01	1	0005-	●
71	COVER; SIDE,TRANS CASE (B)	1-33119-235-0	01	1	9601-9903	●
71	COVER; SIDE,TRANS CASE (B)	1-33119-235-0	01	1	9904-0004	●	●
71	COVER; SIDE,TRANS CASE (B)	1-33119-235-0	01	1	0005-	●
71	COVER; SIDE,TRANS CASE (A)	1-33119-294-0	01	1	9601-9903	●
71	COVER; SIDE,TRANS CASE (A)	1-33119-294-0	01	1	9904-0004	●	●
71	COVER; SIDE,TRANS CASE (A)	1-33119-294-0	01	1	0005-	●
72	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	9601-9903	●
72	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	9904-0004	●	●
72	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	0005-	●
72	BOLT; SIDE COVER (B) M10X22	1-36129-014-1	06	1	9601-9903	●
72	BOLT; SIDE COVER (B) M10X22	1-36129-014-1	06	1	9904-0004	●	●
72	BOLT; SIDE COVER (B) M10X22	1-36129-014-1	06	1	0005-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33119-237-0	01	1	9601-9903	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33119-237-0	01	1	9904-0004	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33119-237-0	01	1	0005-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-295-0	01	1	9601-9903	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-295-0	01	1	9904-0004	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-295-0	01	1	0005-	●
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	9601-9903	●
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	9904-0004	●	●
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	0005-	●
82	PLUG; SCREW,CASE (A)	1-36119-003-0	01	1	9601-9903	●
82	PLUG; SCREW,CASE (A)	1-36119-003-0	01	1	9904-0004	●	●
82	PLUG; SCREW,CASE (A)	1-36119-003-0	01	1	0005-	●
82	PLUG; SCREW,CASE (B)	1-36119-004-0	01	1	9601-	●
82	PLUG; SCREW,CASE (D)	1-36119-014-0	01	1	9601-9903	●
82	PLUG; SCREW,CASE (D)	1-36119-014-0	01	1	9904-0004	●	●
82	PLUG; SCREW,CASE (D)	1-36119-014-0	01	1	0005-	●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	9601-9903	●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	9904-0004	●	●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	0005-	●
245	PIPE; OIL (A)	1-33119-287-0	01	1	9601-9903	●
245	PIPE; OIL (A)	1-33119-287-0	01	1	9904-0004	●	●
245	PIPE; OIL (A)	1-33119-287-0	01	1	0005-	●
245	PIPE; OIL (B)	1-33119-289-0	01	1	9601-9903	●
245	PIPE; OIL (B)	1-33119-289-0	01	1	9904-0004	●	●
245	PIPE; OIL (B)	1-33119-289-0	01	1	0005-	●
321	PLATE; NAME	1-33119-277-0	01	1	9601-9903	●
321	PLATE; NAME	1-33119-277-0	01	1	9904-0004	●	●
321	PLATE; NAME	1-33119-277-0	01	1	0005-	●
322	RIVET; NAME PLATE	1-36119-006-0	04	1	9601-9903	●
322	RIVET; NAME PLATE	1-36119-006-0	04	1	9904-0004	●	●
322	RIVET; NAME PLATE	1-36119-006-0	04	1	0005-	●
332	FILTER; OIL	1-33119-157-0	01	1	9601-9903	●
332	FILTER; OIL	1-33119-157-0	01	1	9904-0004	●	●
332	FILTER; OIL	1-33119-157-0	01	1	0005-	●
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	9601-9903	●
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	9904-0004	●	●
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	0005-	●
435	CASE; TRANS (B)	1-33111-264-0	01	1	9601-9903	●
435	CASE; TRANS (B)	1-33111-264-0	01	1	9904-0004	●	●
435	CASE; TRANS (B)	1-33111-264-0	01	1	0005-	●
435	CASE; TRANS (A)	1-33111-279-0	01	1	9601-9903	●
435	CASE; TRANS (A)	1-33111-279-0	01	1	9904-0004	●	●
435	CASE; TRANS (A)	1-33111-279-0	01	1	0005-	●
437	BREATHER; TRANS	1-36122-004-0	01	1	9601-9903	●
437	BREATHER; TRANS	1-36122-004-0	01	1	9904-0004	●	●
437	BREATHER; TRANS	1-36122-004-0	01	1	0005-	●
446	PLUG; CASE,TRANS	1-33119-171-0	01	1	9601-9903	●
446	PLUG; CASE,TRANS	1-33119-171-0	01	1	9904-0004	●	●
446	PLUG; CASE,TRANS	1-33119-171-0	01	1	0005-	●
457	CUP; SEALING,CASE	1-33119-297-0	02	1	9601-9903	●
457	CUP; SEALING,CASE	1-33119-297-0	02	1	9904-0004	●	●
457	CUP; SEALING,CASE	1-33119-297-0	02	1	0005-	●

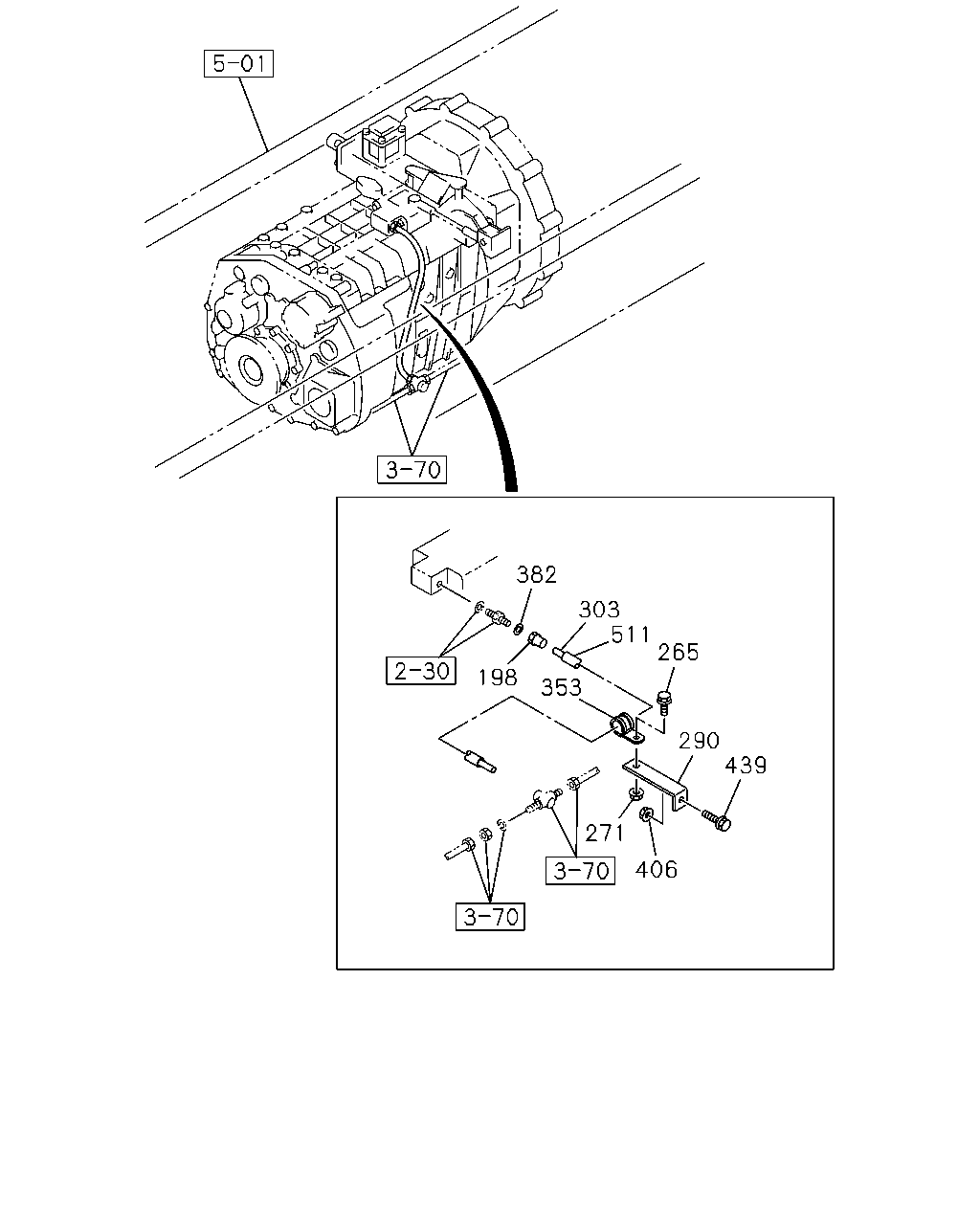

382 303 511 265 198 353 290 439 271 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
198	ADAPTER; NYLON TUBE DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9601-9903	●
198	ADAPTER; NYLON TUBE DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9904-0004	●	●
198	ADAPTER; NYLON TUBE DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0005-0407	●
198	ADAPTER; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0408-	●
265	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0007-0512	●
265	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
271	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0007-0602	●
271	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●
290	BRACKET; CLIP L=95	1-82699-085-0	01	1	0007-	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9601-9903	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9904-0004	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0106	●
303	TUBE; NYLON 6SD1 TCN ENG(31L) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0107-	●
353	CLIP; NYLON TUBE ID=15 L=28	1-09701-216-0	01	1	0007-0208	●
353	CLIP; NYLON TUBE ID=18 L=28	1-09701-067-0	01	1	0209-	●
382	GASKET; ADAPTER ID=11 OD=18	9-09572-510-0	01	1	9603-9903	●
382	GASKET; ADAPTER ID=11 OD=18	9-09572-510-0	01	1	9904-0004	●	●
382	GASKET; ADAPTER ID=11 OD=18	9-09572-510-0	01	1	0005-0407	●
406	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0007-0602	●
406	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●
439	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0007-0512	●
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
511	TUBE; CORRUGATE 6SD1 TCN ENG(31L) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0209-	●

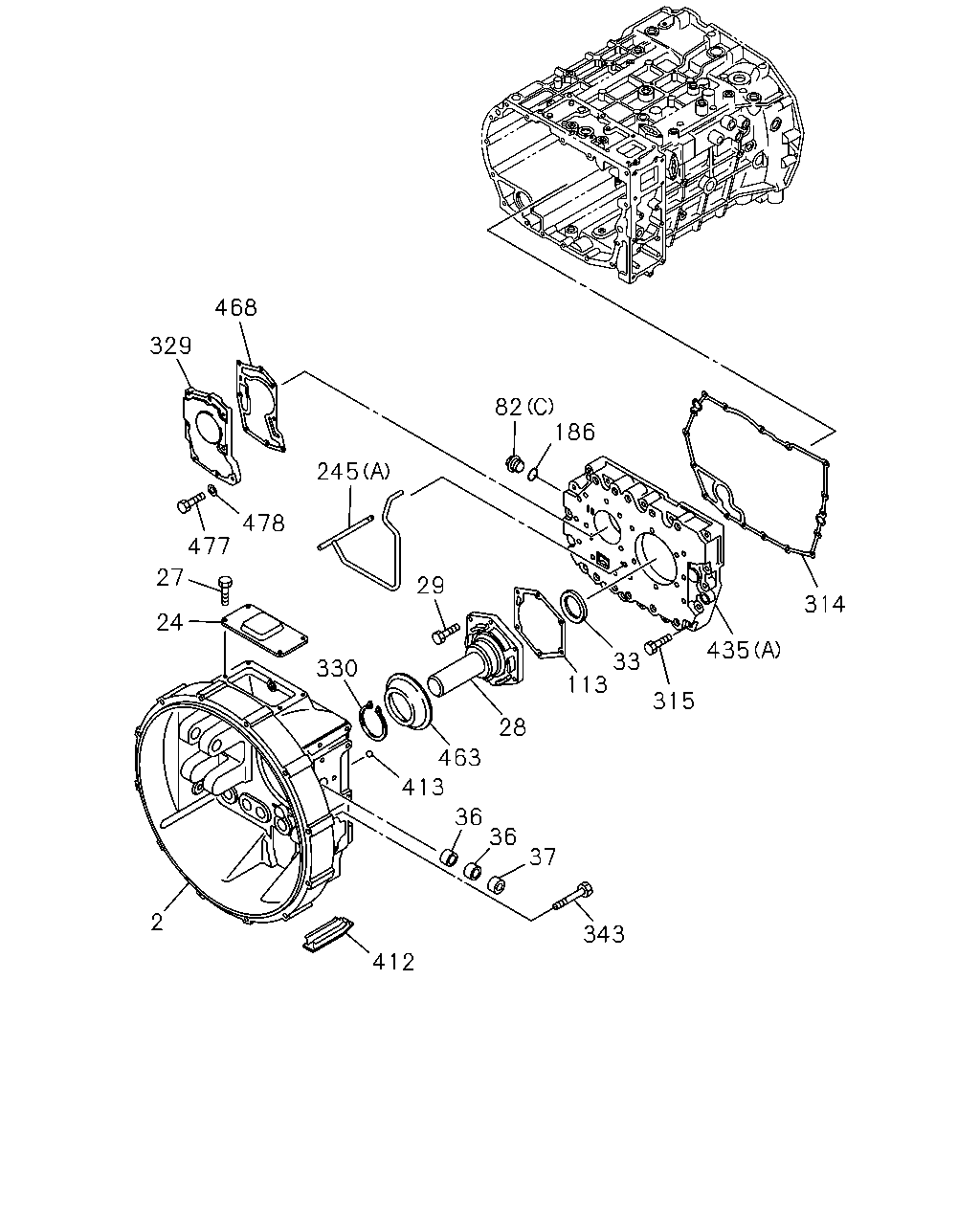

468 329 82 186 245 478 477 27 29 314 24 435 33 113 330 315 28 463 413 36 36 37 2 343 412

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	1-31111-183-0	01	1	9601-9903	●
2	HOUSING; CLU	1-31111-183-0	01	1	9904-0004	●	●
2	HOUSING; CLU	1-31111-183-0	01	1	0005-	●
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	9601-9903	●
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	9904-0004	●	●
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	0005-	●
27	BOLT; COVER TO CLU HSG	1-31119-025-0	04	1	9601-9903	●
27	BOLT; COVER TO CLU HSG	1-31119-025-0	04	1	9904-0004	●	●
27	BOLT; COVER TO CLU HSG	1-31119-025-0	04	1	0005-	●
28	COVER; FRT,TRANS CASE	1-33121-139-0	01	1	9601-9903	●
28	COVER; FRT,TRANS CASE	1-33121-139-0	01	1	9904-0004	●	●
28	COVER; FRT,TRANS CASE	1-33121-139-0	01	1	0005-	●
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	9601-9903	●
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	9904-0004	●	●
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	0005-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-101-0	01	1	9601-9903	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-101-0	01	1	9904-0004	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-101-0	01	1	0005-	●
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	9601-9903	●
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	9904-0004	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	0005-	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9601-9803	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9804-9903	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9904-0004	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0005-0011	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0012-0106	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0107-	●
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	9601-9903	●
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	9904-0004	●	●
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	0005-	●
82	PLUG; SCREW,CASE (A)	1-36119-003-0	01	1	9601-9903	●
82	PLUG; SCREW,CASE (A)	1-36119-003-0	01	1	9904-0004	●	●
82	PLUG; SCREW,CASE (A)	1-36119-003-0	01	1	0005-	●
82	PLUG; SCREW,CASE (B)	1-36119-004-0	01	1	9601-	●
82	PLUG; SCREW,CASE (D)	1-36119-014-0	01	1	9601-9903	●
82	PLUG; SCREW,CASE (D)	1-36119-014-0	01	1	9904-0004	●	●
82	PLUG; SCREW,CASE (D)	1-36119-014-0	01	1	0005-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-020-0	01	1	9601-9903	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-020-0	01	1	9904-0004	●	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-020-0	01	1	0005-	●
186	RING; SEAL	1-33119-286-0	02	1	9601-9903	●
186	RING; SEAL	1-33119-286-0	02	1	9904-0004	●	●
186	RING; SEAL	1-33119-286-0	02	1	0005-	●
245	PIPE; OIL (A)	1-33119-287-0	01	1	9601-9903	●
245	PIPE; OIL (A)	1-33119-287-0	01	1	9904-0004	●	●
245	PIPE; OIL (A)	1-33119-287-0	01	1	0005-	●
245	PIPE; OIL (B)	1-33119-289-0	01	1	9601-9903	●
245	PIPE; OIL (B)	1-33119-289-0	01	1	9904-0004	●	●
245	PIPE; OIL (B)	1-33119-289-0	01	1	0005-	●
314	GASKET; CASE	1-33112-049-0	01	1	9601-9611	●
315	BOLT; CASE	1-33119-266-0	17	1	9601-9903	●
315	BOLT; CASE	1-33119-266-0	17	1	9904-0004	●	●
315	BOLT; CASE	1-33119-266-0	17	1	0005-	●
329	PUMP ASM; OIL	1-34150-074-0	01	1	9601-9903	●
329	PUMP ASM; OIL	1-34150-074-0	01	1	9904-0004	●	●
329	PUMP ASM; OIL	1-34150-074-0	01	1	0005-	●
330	RING; RET	1-33129-005-0	01	1	9601-9903	●
330	RING; RET	1-33129-005-0	01	1	9904-0004	●	●
330	RING; RET	1-33129-005-0	01	1	0005-	●
343	BOLT; CLU HSG TO PLATE M10X80	0-16806-080-0	01	1	9604-9607	●
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	9608-9903	●
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	9904-0004	●	●
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	0005-	●
412	CAP; CLU HSG	1-31119-026-0	01	1	9601-9903	●
412	CAP; CLU HSG	1-31119-026-0	01	1	9904-0004	●	●
412	CAP; CLU HSG	1-31119-026-0	01	1	0005-	●
413	BALL; CLU HSG	1-31119-014-0	04	1	9601-9903	●
413	BALL; CLU HSG	1-31119-014-0	04	1	9904-0004	●	●
413	BALL; CLU HSG	1-31119-014-0	04	1	0005-	●
435	CASE; TRANS (B)	1-33111-264-0	01	1	9601-9903	●
435	CASE; TRANS (B)	1-33111-264-0	01	1	9904-0004	●	●
435	CASE; TRANS (B)	1-33111-264-0	01	1	0005-	●
435	CASE; TRANS (A)	1-33111-279-0	01	1	9601-9903	●
435	CASE; TRANS (A)	1-33111-279-0	01	1	9904-0004	●	●
435	CASE; TRANS (A)	1-33111-279-0	01	1	0005-	●
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	9601-9903	●
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	9904-0004	●	●
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	0005-	●
468	GASKET; OIL PUMP	1-34159-063-0	01	1	9601-9903	●
468	GASKET; OIL PUMP	1-34159-063-0	01	1	9904-0004	●	●
468	GASKET; OIL PUMP	1-34159-063-0	01	1	0005-	●
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	9601-9903	●
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	9904-0004	●	●
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	0005-	●
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	9601-9903	●
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	9904-0004	●	●
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	0005-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

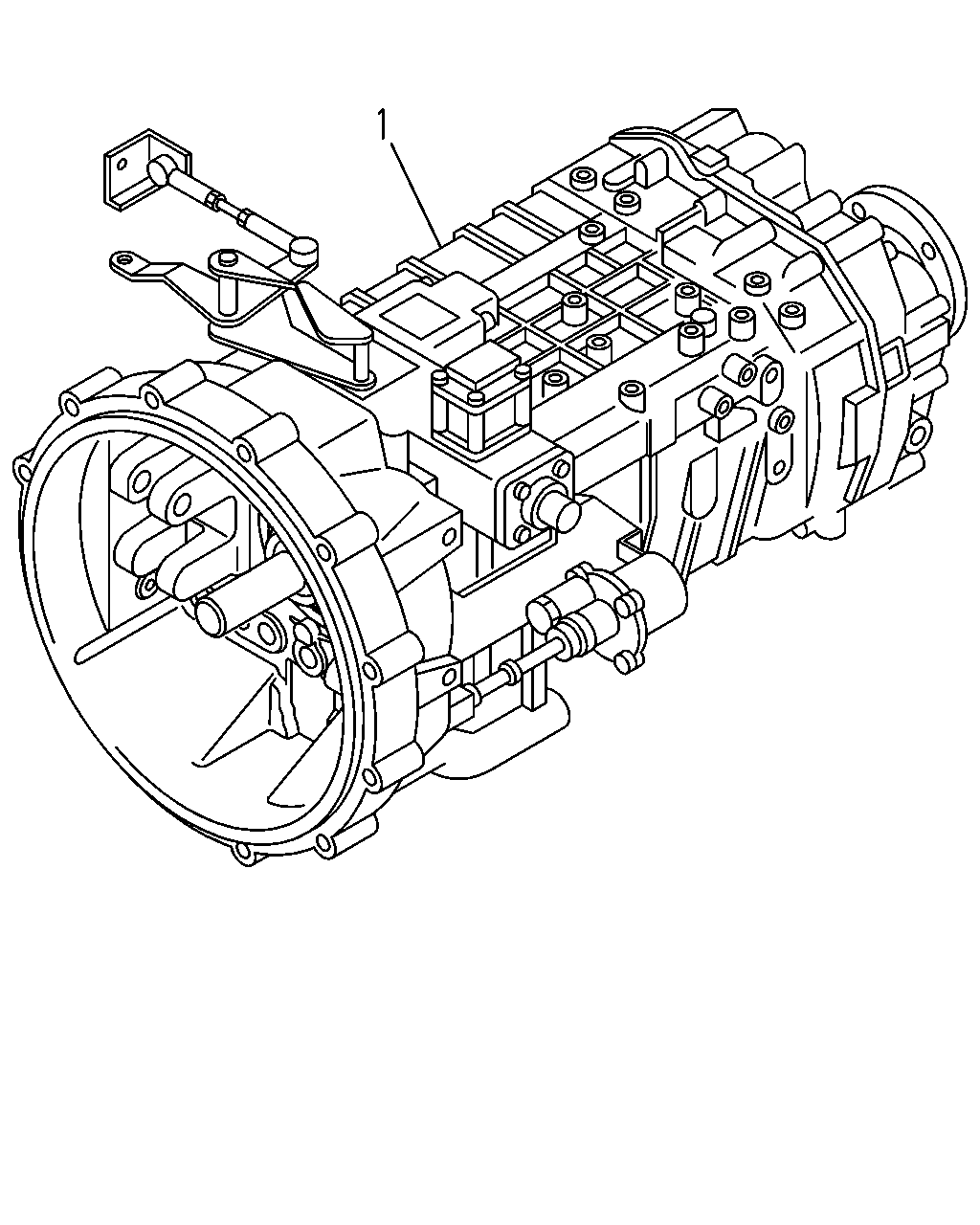

1	TRANSMISSION ASM; MANUAL 6HK1 TCS ENG(80L)	1-33043-036-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL	1-33039-959-3	01	1	9601-0106	●
1	TRANSMISSION ASM; MANUAL 6SD1 TCN ENG(31L)	1-33039-959-3	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL	1-33040-571-3	01	1	9904-0004		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
