Isuzu WW
▶
TRUCKS
▶
FVR
▶
10893 - FVR(HONG KONG)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-10B - REPAIR KIT; TRANSMISSION OVERHAUL
▶
2-10B — REPAIR KIT; TRANSMISSION OVERHAUL
(#24784) — 15 parça
Tümü

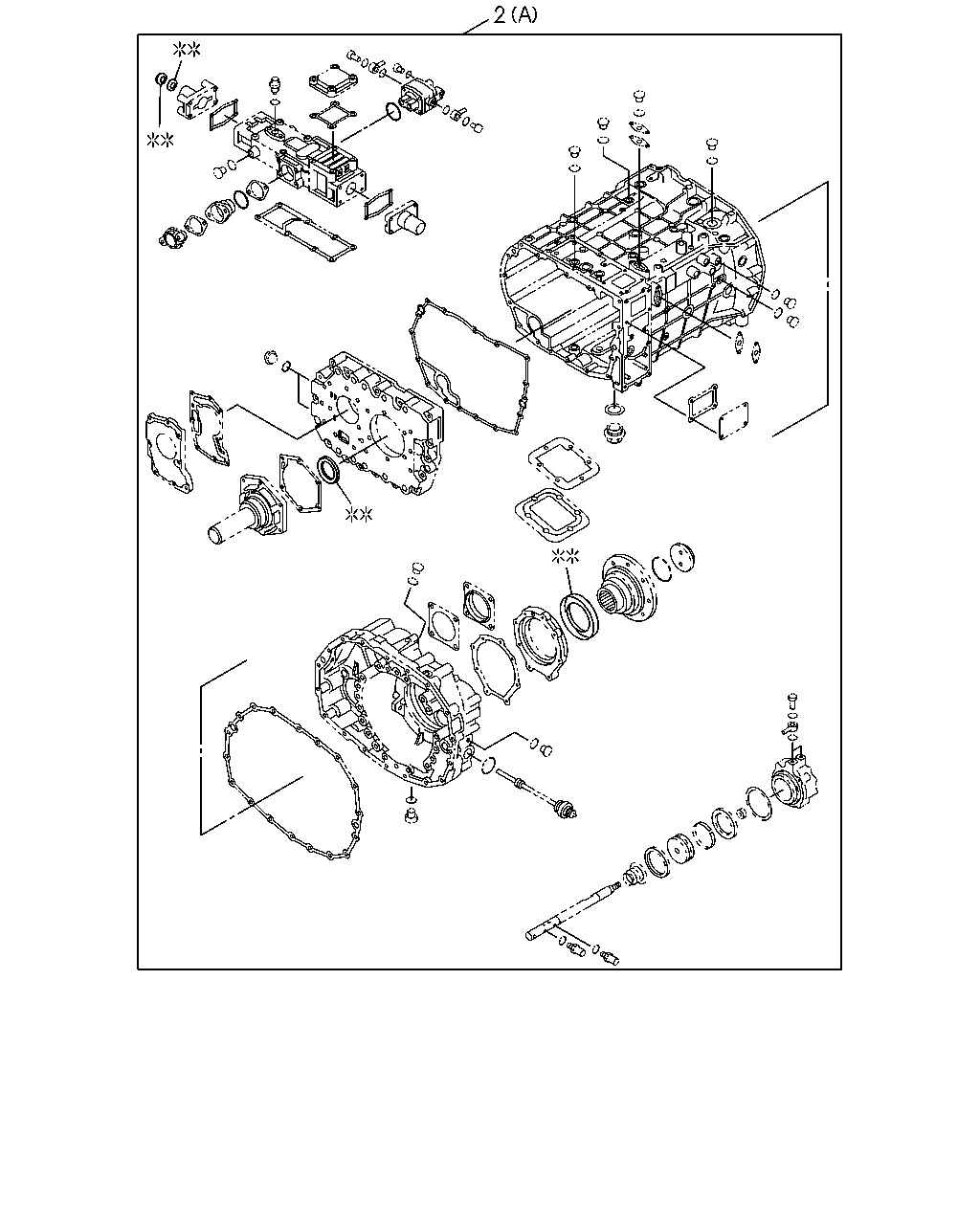

A - ZF 9S109 OD M/T

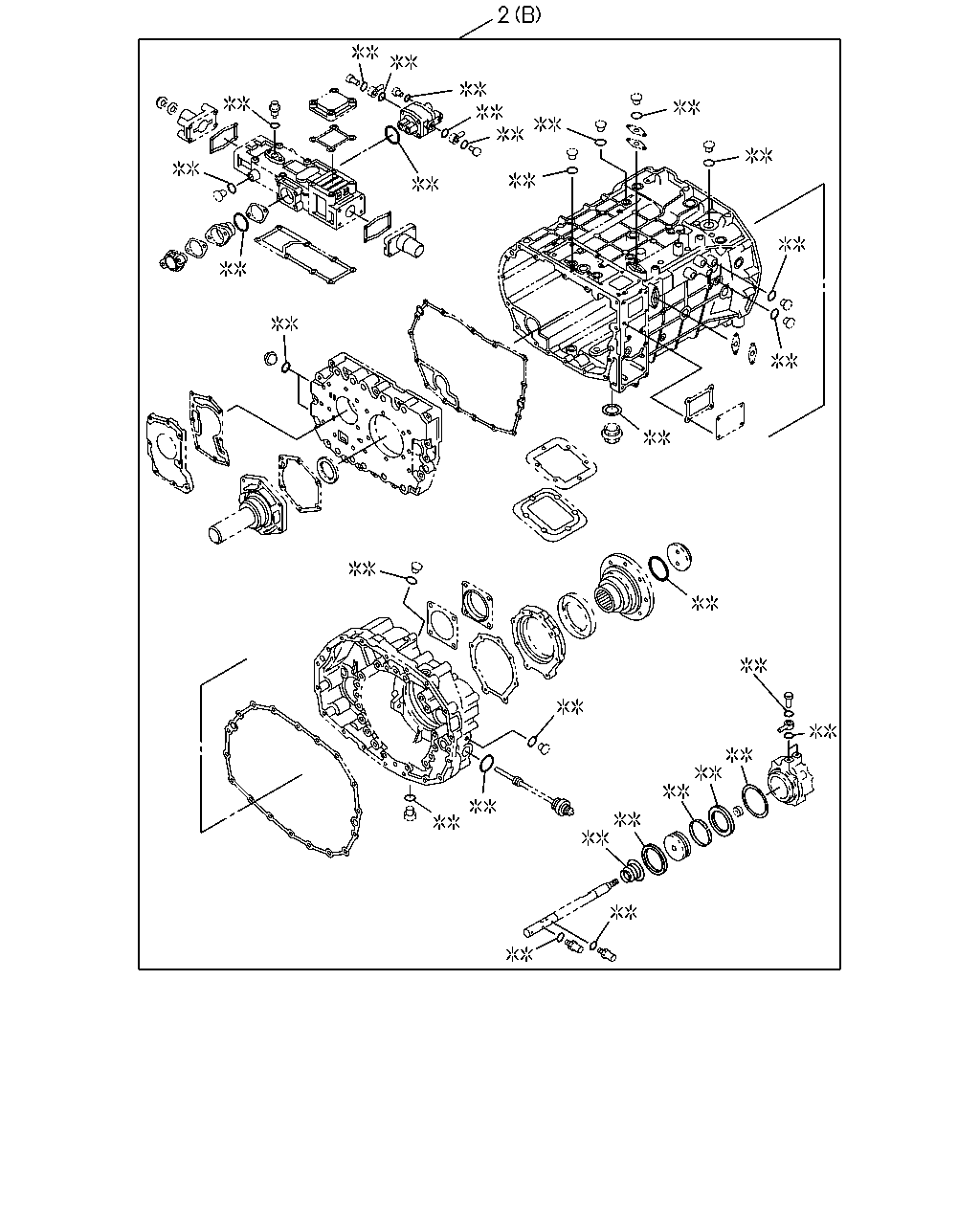

B - ZF 9S109 OD M/T
◀
[210B] SEAL SET NO.1 (6 parça)
[210B] SEAL SET NO.2 (6 parça)

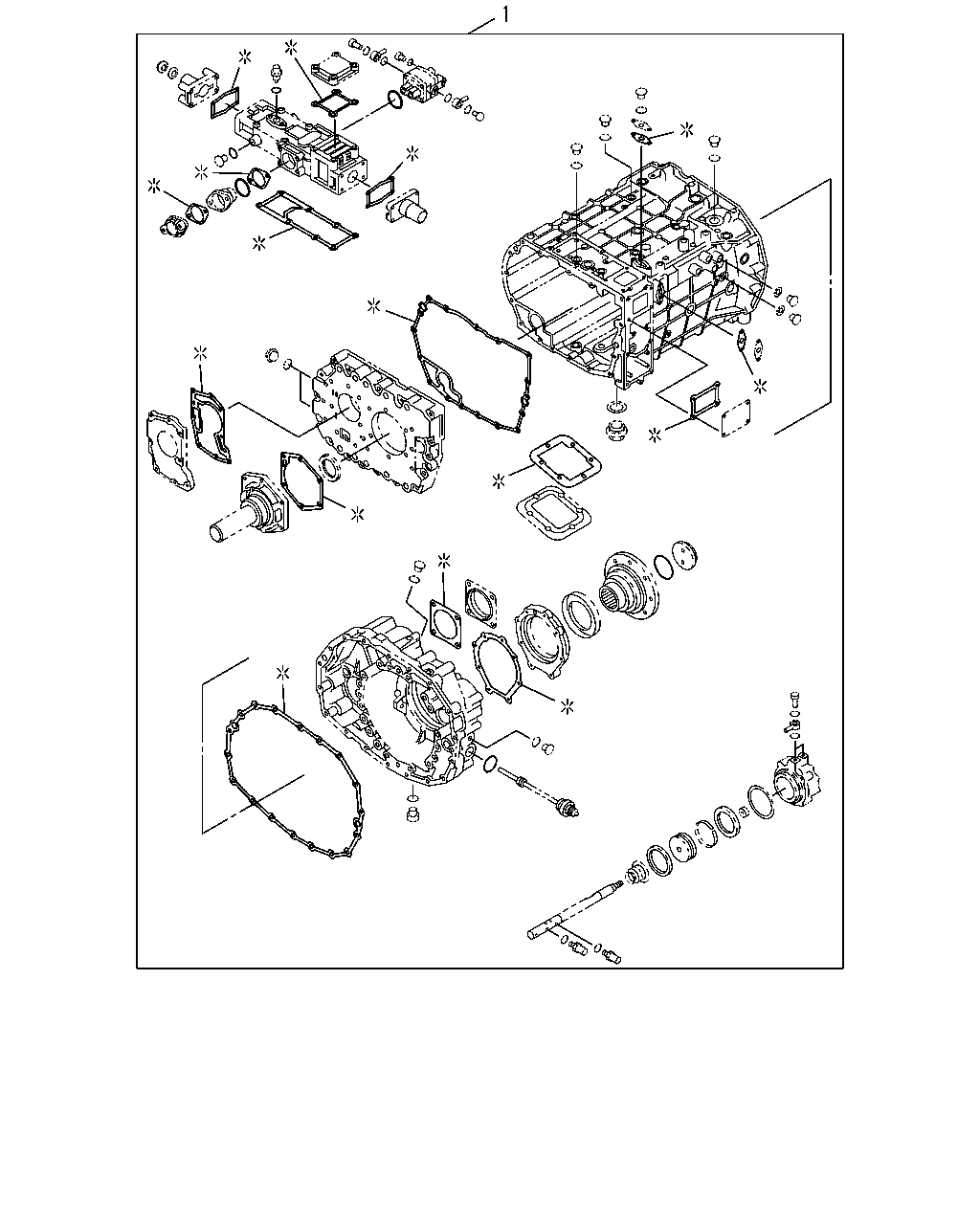

[210B] GASKET SET (3 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
SEAL SET; TRANS OVERHAUL
(A)
1-85572-104-0
01
1
9601-9903
●
2
SEAL SET; TRANS OVERHAUL
(A)
1-85572-104-0
01
1
9904-0004
●
●
2
SEAL SET; TRANS OVERHAUL
(A)
1-85572-104-0
01
1
0005-
●
2
SEAL SET; TRANS OVERHAUL
(B)
1-85572-105-0
01
1
9601-9903
●
2
SEAL SET; TRANS OVERHAUL
(B)
1-85572-105-0
01
1
9904-0004
●
●
2
SEAL SET; TRANS OVERHAUL
(B)
1-85572-105-0
01
1
0005-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
SEAL SET; TRANS OVERHAUL
(A)
1-85572-104-0
01
1
9601-9903
●
2
SEAL SET; TRANS OVERHAUL
(A)
1-85572-104-0
01
1
9904-0004
●
●
2
SEAL SET; TRANS OVERHAUL
(A)
1-85572-104-0
01
1
0005-
●
2
SEAL SET; TRANS OVERHAUL
(B)
1-85572-105-0
01
1
9601-9903
●
2
SEAL SET; TRANS OVERHAUL
(B)
1-85572-105-0
01
1
9904-0004
●
●
2
SEAL SET; TRANS OVERHAUL
(B)
1-85572-105-0
01
1
0005-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GASKET SET; TRANS OVERHAUL
1-85572-103-0
01
1
9601-9903
●
1
GASKET SET; TRANS OVERHAUL
1-85572-103-0
01
1
9904-0004
●
●
1
GASKET SET; TRANS OVERHAUL
1-85572-103-0
01
1
0005-
●
