◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06A - CLUTCH SLAVE CYLINDER ▶
2-06A — CLUTCH SLAVE CYLINDER (#24779) — 30 parça

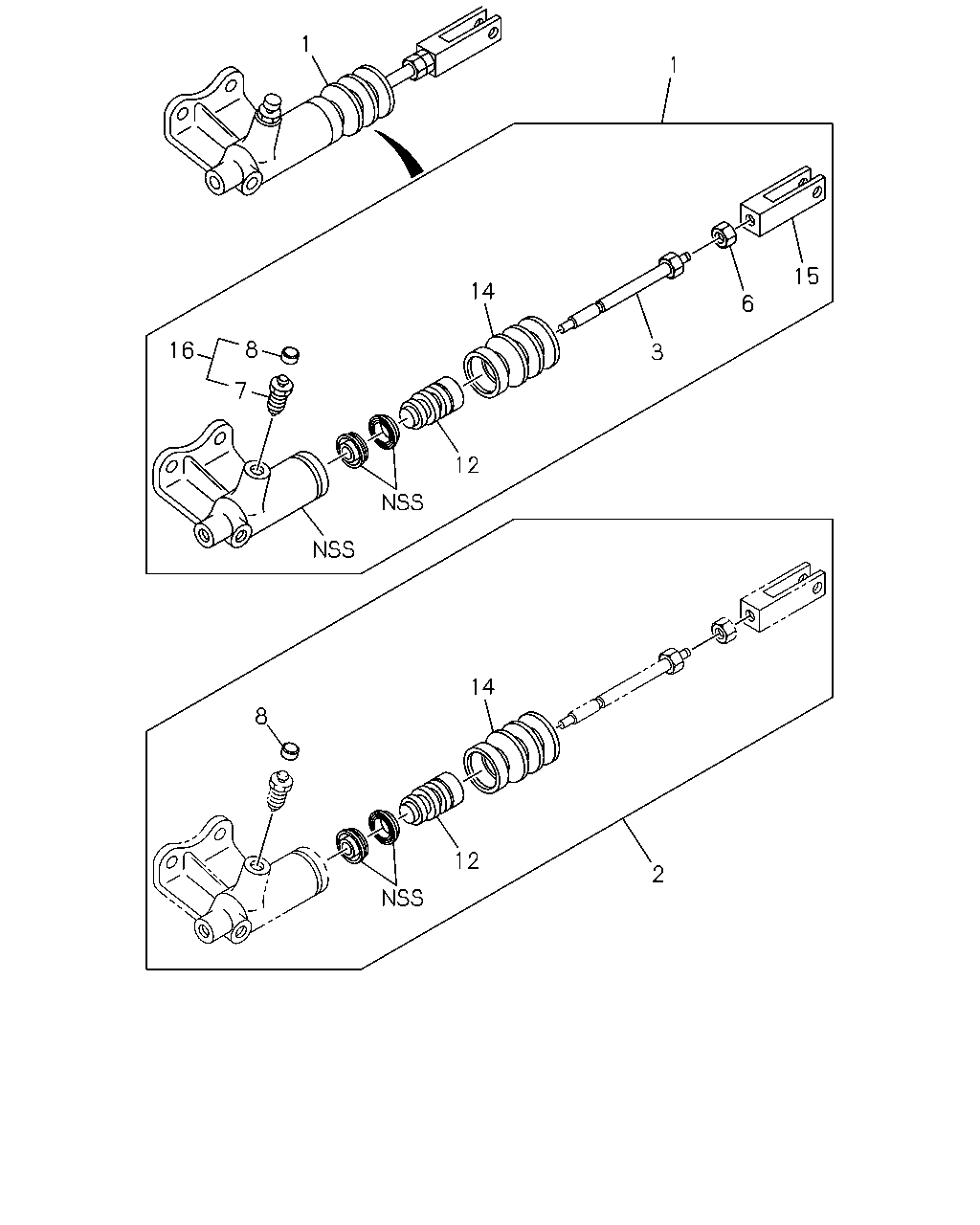

çizim 85858
1 1 15 14 6 8 16 3 7 12 14 8 12 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER; SLAVE,CLU 1-47570-050-2 01 1 9601-9705 ● ● ● ●
1 CYLINDER; SLAVE,CLU 1-47570-050-2 01 1 9706-9803 ● ● ●
1 CYLINDER; SLAVE,CLU
6HH1 STD ENG(65L) 		1-47570-050-2 01 1 9706-9803 ●
2 REPAIR KIT; CLU SLAVE CYL 1-87830-533-0 01 1 9601-9705 ● ● ● ●
2 REPAIR KIT; CLU SLAVE CYL 1-87830-533-0 01 1 9706-9803 ● ● ●
2 REPAIR KIT; CLU SLAVE CYL
6HH1 STD ENG(65L) 		1-87830-533-0 01 1 9706-9803 ●
3 ROD; PUSH,SLAVE CYL 1-47573-005-0 01 1 9601-9705 ● ● ● ●
3 ROD; PUSH,SLAVE CYL 1-47573-005-0 01 1 9706-9803 ● ● ●
3 ROD; PUSH,SLAVE CYL
6HH1 STD ENG(65L) 		1-47573-005-0 01 1 9706-9803 ●
6 NUT; LK,ROD END
M10 		9-09111-410-0 01 1 9601-9705 ● ● ● ●
6 NUT; LK,ROD END
M10 		9-09111-410-0 01 1 9706-9803 ● ● ●
6 NUT; LK,ROD END
6HH1 STD ENG(65L) M10 		9-09111-410-0 01 1 9706-9803 ●
7 SCREW; BLEEDER,SLAVE CYL 1-47615-019-0 01 1 9601-9705 ● ● ● ●
7 SCREW; BLEEDER,SLAVE CYL 1-47615-019-0 01 1 9706-9803 ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
6HH1 STD ENG(65L) 		1-47615-019-0 01 1 9706-9803 ●
8 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9601-9705 ● ● ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9706-9803 ● ● ●
8 CAP; BLEEDER,SLAVE CYL
6HH1 STD ENG(65L) OD=9.5 		9-47619-005-0 01 1 9706-9803 ●
12 PISTON; SLAVE CYL 1-47572-006-0 01 1 9601-9705 ● ● ● ●
12 PISTON; SLAVE CYL 1-47572-006-0 01 1 9706-9803 ● ● ●
12 PISTON; SLAVE CYL
6HH1 STD ENG(65L) 		1-47572-006-0 01 1 9706-9803 ●
14 BOOT; SLAVE CYL 1-47579-048-0 01 1 9601-9705 ● ● ● ●
14 BOOT; SLAVE CYL 1-47579-048-0 01 1 9706-9803 ● ● ●
14 BOOT; SLAVE CYL
6HH1 STD ENG(65L) 		1-47579-048-0 01 1 9706-9803 ●
15 JOINT; JAW,SLAVE CYL 1-47579-014-1 01 1 9601-9705 ● ● ● ●
15 JOINT; JAW,SLAVE CYL 1-47579-014-1 01 1 9706-9803 ● ● ●
15 JOINT; JAW,SLAVE CYL
6HH1 STD ENG(65L) 		1-47579-014-1 01 1 9706-9803 ●
16 VALVE; SLAVE CYL 9-48410-037-0 01 1 9601-9705 ● ● ● ●
16 VALVE; SLAVE CYL 9-48410-037-0 01 1 9706-9803 ● ● ●
16 VALVE; SLAVE CYL
6HH1 STD ENG(65L) 		9-48410-037-0 01 1 9706-9803 ●
