Sayfa 2-05B - Isuzu EPC

2-05B — CLUTCH PIPING (#24778) — 351 parça

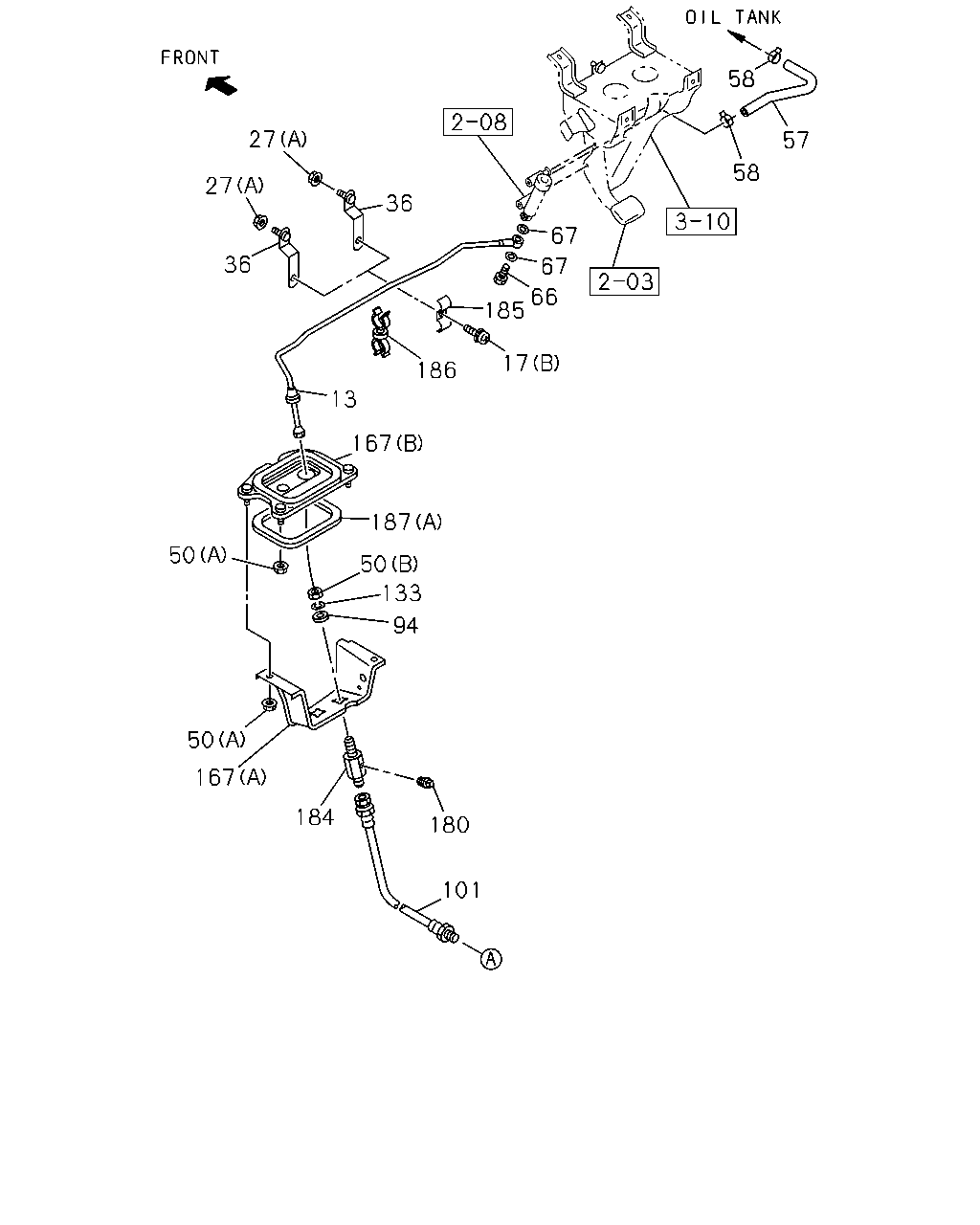

58 27 57 58 27 36 67 36 67 66 185 17 186 13 167 187 50 50 133 94 50 167 184 180 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47424-110-4	01	1	9601-9803	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47424-110-4	01	1	9804-0004	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47424-110-4	01	1	0005-0106	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47424-110-4	01	1	0107-	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9803	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0106	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9705	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9706-9803	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0106	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9705	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9706-9803	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9804-0004	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0106	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0106	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●
36	BRACKET; CLIP	1-79738-186-1	02	1	9601-9705	●
36	BRACKET; CLIP	1-79738-186-1	02	1	9706-9803	●
36	BRACKET; CLIP	1-79738-186-1	02	1	9804-0004	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	0005-0106	●
36	BRACKET; CLIP	1-79738-186-1	02	1	0107-	●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9601-9611	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-9803	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9804-0004	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0106	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0107-	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9601-9803	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9804-0004	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0106	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0107-0512	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9601-9803	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9804-0004	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0005-0106	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0107-	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9601-9803	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9804-0004	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0005-0106	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0107-	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9601-9803	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9804-0004	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0005-0106	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0107-0805	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9803	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0106	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9601-9803	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9804-0004	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0005-0106	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0107-0605	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-9803	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9804-0004	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	0005-0106	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0107-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9601-9803	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9804-0004	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0106	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0107-0603	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●
167	BRACKET; UNION (A)	1-79738-193-4	01	1	9601-9803	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	9804-0004	●	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0005-0106	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0107-	●
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9601-9803	●
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9804-9911	●	●
167	BRACKET; UNION (B)	1-79738-845-0	01	1	9912-0004	●	●
167	BRACKET; UNION (B)	1-79738-845-0	01	1	0005-0106	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0107-	●
180	PLUG; PIPE	9-09204-510-0	01	1	9601-9803	●
180	PLUG; PIPE	9-09204-510-0	01	1	9804-0004	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0005-0106	●
180	PLUG; PIPE	9-09204-510-0	01	1	0107-0804	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9601-9803	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9804-0004	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0005-0106	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0107-0804	●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9601-9705	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9706-9803	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9804-0004	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0005-0106	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0107-	●
186	HOLDER; CLIP ID=4.75 & 6	8-94165-403-0	02	1	9601-9705	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	02	1	9706-9706	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	9707-9803	●
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	02	1	9804-0004	●	●
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	02	1	0005-0106	●
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	02	1	0107-	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9601-9803	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9804-0004	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0005-0106	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0107-	●

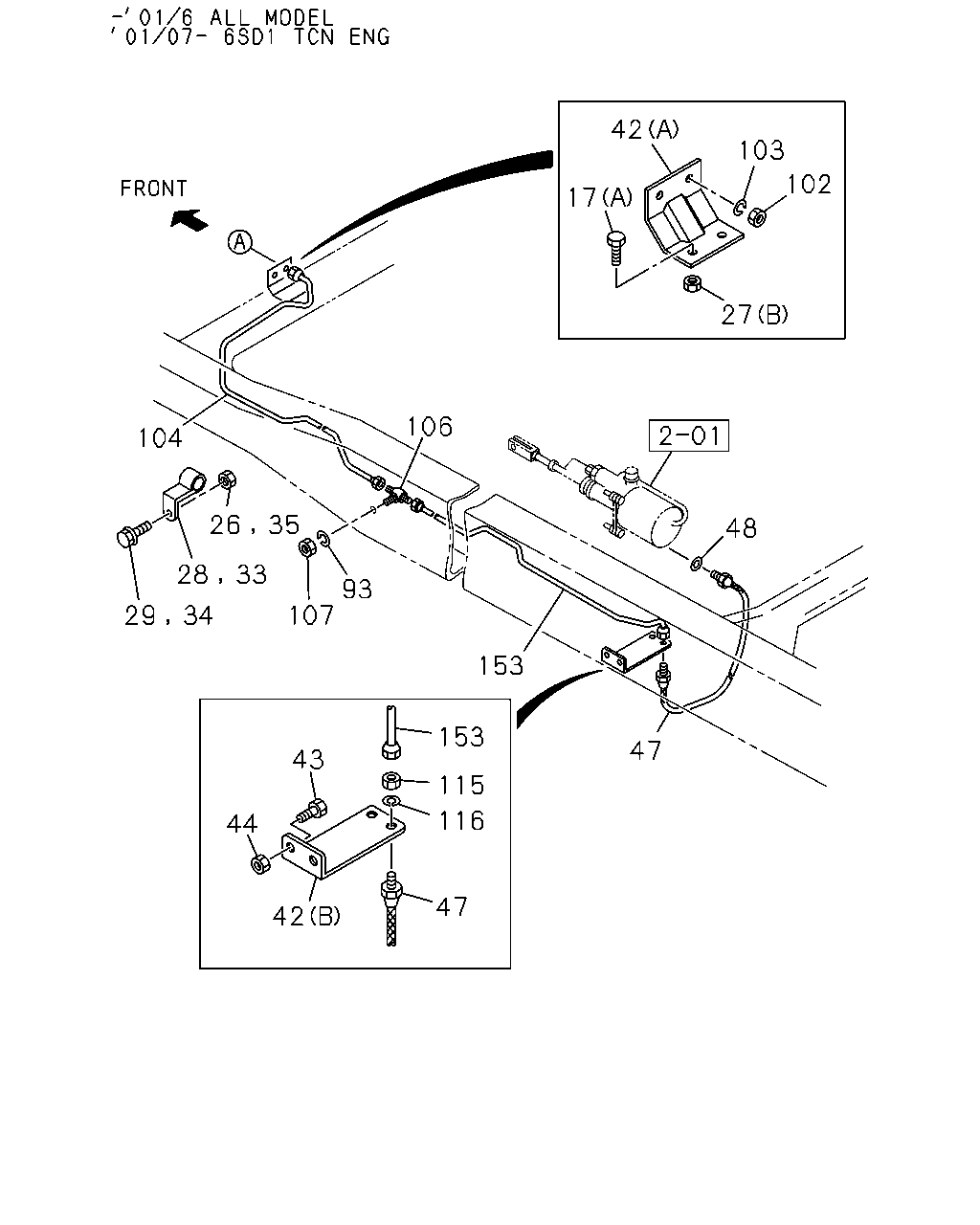

42 103 102 17 27 106 104 26 35 48 28 33 93 107 34 29 153 153 47 43 115 116 44 47 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9803	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0106	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9705	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9706-9803	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0106	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-	●
26	NUT; CLIP,OIL PIPE 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	06	1	0107-0602	●
26	NUT; CLIP,OIL PIPE 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	06	1	0603-	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0106	●
26	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
26	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9705	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9706-9803	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9804-0004	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0106	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0106	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●
28	CLIP; OIL PIPE 6HK1 TCS ENG(80L) ID=8 H=20 L=20	1-09700-604-0	06	1	0107-	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9601-9803	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9808-0004	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0005-0106	●
28	CLIP; OIL PIPE 6SD1 TCN ENG(31L) ID=8 H=20 L=20	1-09700-604-0	02	1	0107-	●
29	BOLT; CLIP,OIL PIPE 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	06	1	0107-0512	●
29	BOLT; CLIP,OIL PIPE 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	06	1	0601-	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9808-0004	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0005-0106	●
29	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512	●
29	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9601-9803	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	05	1	9804-9807	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9808-0004	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0011	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0012-0106	●
33	CLIP; OIL PIPE 6SD1 TCN ENG(31L) ID=8 H=20 L=20	1-09700-604-0	03	1	0107-	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9607-9803	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	05	1	9804-9807	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9808-0004	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0005-0011	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0012-0106	●
34	BOLT; PIPE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	03	1	0107-0512	●
34	BOLT; PIPE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●
35	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9601-9606	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9803	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9804-0004	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0011	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0012-0106	●
35	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	03	1	0107-0602	●
35	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	03	1	0603-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9803	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9804-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0106	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0107-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9601-9612	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9701-9702	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9703-9803	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9804-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0107-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9607-9803	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9804-0004	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0005-0106	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6SD1 TCN ENG(31L) M8X35 FLANGE	0-28680-835-0	02	1	0107-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6SD1 TCN ENG(31L) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0106	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●
47	HOSE; FLEX,CLU CONT L=350	1-09364-446-0	01	1	9601-9903	●
47	HOSE; FLEX,CLU CONT L=350	1-09364-446-0	01	1	9904-0004	●	●
47	HOSE; FLEX,CLU CONT L=350	1-09364-446-0	01	1	0005-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-9609	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9610-9705	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9706-9803	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9804-0004	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0106	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0107-	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9601-9803	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9804-0004	●	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	0005-0106	●
93	WASHER; LK,UNION,OIL PIPE 6SD1 TCN ENG(31L) ID=12.2	9-09150-512-0	01	1	0107-0603	●
93	WASHER; LK,UNION,OIL PIPE 6SD1 TCN ENG(31L) ID=12.2	0-91510-512-0	01	1	0604-	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0004	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0106	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0004	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0106	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	9601-9803	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	9804-0004	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	0005-0106	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6SD1 TCN ENG(31L) L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	0107-	●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	9601-9803	●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	9804-0004	●	●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	0005-0106	●
106	UNION; OIL PIPE 6SD1 TCN ENG(31L) M14 2WAY	1-09654-176-2	01	1	0107-	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9601-9803	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9804-0004	●	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	0005-0106	●
107	NUT; UNION,OIL PIPE 6SD1 TCN ENG(31L) M12	9-99111-412-0	01	1	0107-0512	●
107	NUT; UNION,OIL PIPE 6SD1 TCN ENG(31L) M12	0-91111-512-0	01	1	0601-	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0004	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0106	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0004	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0106	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
153	PIPE ASM; CLU,UNION TO FLEX L=1328 SERVICED BY L=1400	1-47426-389-0	01	1	9601-9602	●
153	PIPE ASM; CLU,UNION TO FLEX L=1322 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9803	●
153	PIPE ASM; CLU,UNION TO FLEX L=1322 SERVICED BY L=1400	1-47426-389-0	01	1	9804-0004	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1349 SERVICED BY L=1400	1-47426-389-0	01	1	0005-0011	●
153	PIPE ASM; CLU,UNION TO FLEX L=1349 SERVICED BY L=1400	1-47426-389-0	01	1	0012-0106	●
153	PIPE ASM; CLU,UNION TO FLEX 6SD1 TCN ENG(31L) L=1381 SERVICED BY L=1400	1-47426-389-0	01	1	0107-	●

26 28 29 49 42 103 102 101 17 27 49 115 116 44 42 43 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9803	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0106	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9705	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9706-9803	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0106	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-	●
26	NUT; CLIP,OIL PIPE 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	06	1	0107-0602	●
26	NUT; CLIP,OIL PIPE 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	06	1	0603-	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0106	●
26	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
26	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9705	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9706-9803	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9804-0004	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0106	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0106	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●
28	CLIP; OIL PIPE 6HK1 TCS ENG(80L) ID=8 H=20 L=20	1-09700-604-0	06	1	0107-	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9601-9803	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9808-0004	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0005-0106	●
28	CLIP; OIL PIPE 6SD1 TCN ENG(31L) ID=8 H=20 L=20	1-09700-604-0	02	1	0107-	●
29	BOLT; CLIP,OIL PIPE 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	06	1	0107-0512	●
29	BOLT; CLIP,OIL PIPE 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	06	1	0601-	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9808-0004	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0005-0106	●
29	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512	●
29	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9803	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9804-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0106	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0107-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9601-9612	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9701-9702	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9703-9803	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9804-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0107-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9607-9803	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9804-0004	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0005-0106	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6SD1 TCN ENG(31L) M8X35 FLANGE	0-28680-835-0	02	1	0107-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 6SD1 TCN ENG(31L) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0106	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●
47	HOSE; FLEX,CLU CONT L=350	1-09364-446-0	01	1	9601-9903	●
47	HOSE; FLEX,CLU CONT L=350	1-09364-446-0	01	1	9904-0004	●	●
47	HOSE; FLEX,CLU CONT L=350	1-09364-446-0	01	1	0005-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-9609	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9610-9705	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9706-9803	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9804-0004	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0106	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0107-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HK1 TCS ENG(80L) L=2836 SERVICED BY L=3000	1-47426-397-0	01	1	0107-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-9803	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9804-0004	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	0005-0106	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0107-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0004	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0106	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0004	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0106	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0004	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0106	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0004	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0106	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
