Sayfa 2-05A - Isuzu EPC

2-05A — CLUTCH PIPING (#24777) — 546 parça

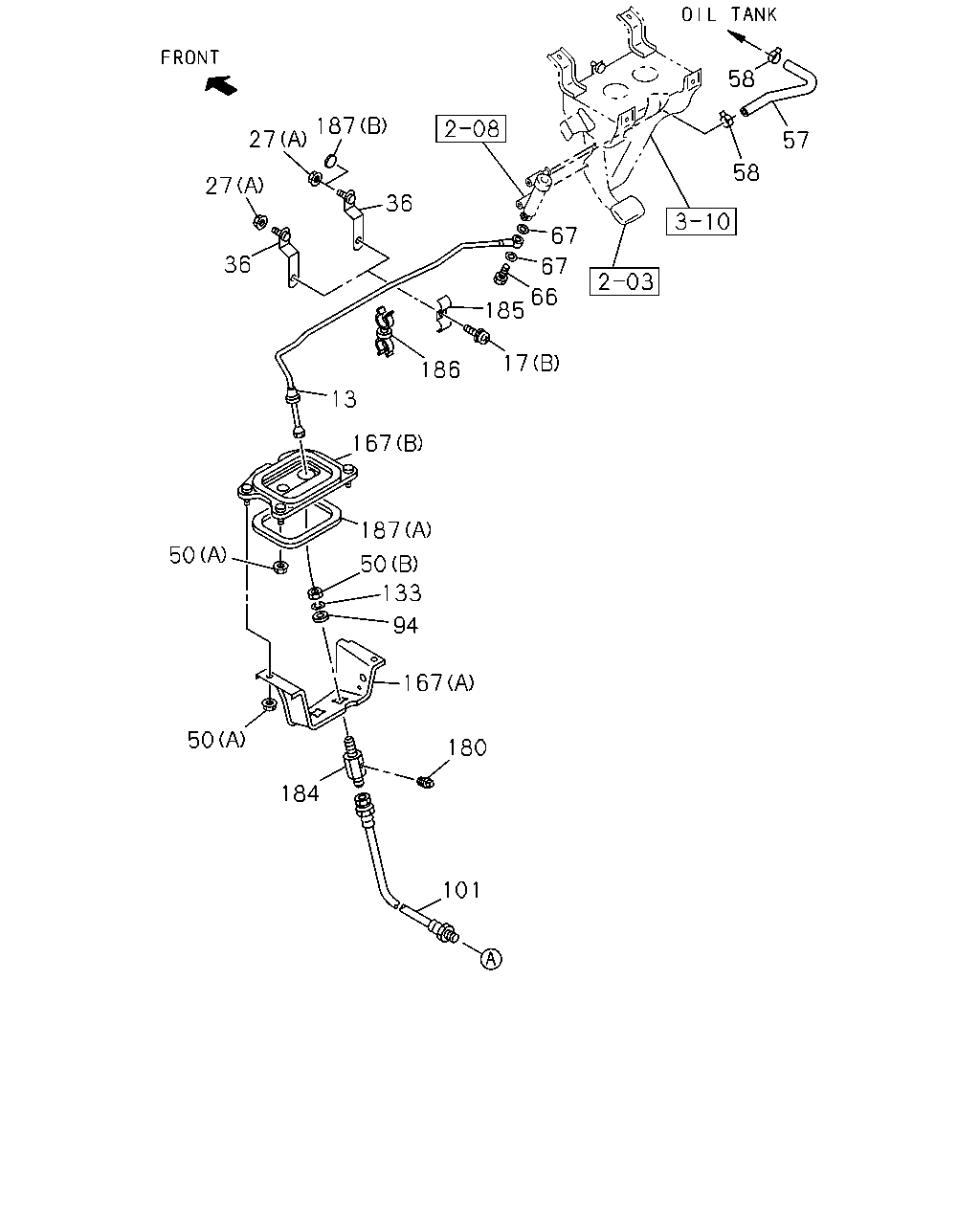

58 187 27 57 58 27 36 67 36 67 66 185 17 186 13 167 187 50 50 133 94 167 50 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9601-9803	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL STD CAB(FV*M)	1-47423-750-4	01	1	9601-9803				●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL WIDE CAB(FV*F)	1-47424-110-4	01	1	9601-9803				●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47424-110-4	01	1	9804-0004				●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47424-110-4	01	1	0005-0106				●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47424-110-4	01	1	0107-					●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9803	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004				●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0106				●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512					●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-					●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9705	●	●	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9706-9803	●	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004				●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0106				●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-					●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-9803	●	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9705	●	●	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9706-9803	●	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9804-0004				●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0106				●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-					●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9804-0004				●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0106				●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0107-0602					●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-					●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9706-9803	●	●	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	9601-9705	●	●	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	02	1	9706-9803	●	●	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	9804-0004				●
36	BRACKET; CLIP	1-79738-186-1	02	1	0005-0106				●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	0107-					●
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	9706-9803	●	●	●	●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9601-9611	●	●	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-9803	●	●	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9804-0004				●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0106				●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0107-					●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9601-9803	●	●	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9804-0004				●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0106				●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0107-0512					●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-					●
50	NUT; UNION 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) M12	9-09840-280-0	01	1	9703-9710				●
50	NUT; UNION 6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> (C) M12	9-09840-280-0	01	1	9711-9803				●
50	NUT; UNION AIR ASSIST CLUTCH<PK1> (C) M12	9-09840-280-0	01	1	9804-0106				●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9601-9803	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9804-0004				●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0005-0106				●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0107-					●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9601-9803	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9804-0004				●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0005-0106				●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0107-					●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9601-9803	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9804-0004				●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0005-0106				●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0107-0805					●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-					●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9803	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004				●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0106				●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312					●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-					●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9601-9803	●	●	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9804-0004				●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0005-0106				●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0107-0605					●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-					●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-9803	●	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9804-0004				●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	0005-0106				●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0107-0703					●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-					●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9804-0004				●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0106				●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0107-0603					●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-					●
167	BRACKET; UNION (A)	1-79738-193-4	01	1	9601-9803	●	●	●	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	9804-0004				●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0005-0106				●	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0107-					●
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9601-9803	●	●	●	●
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9804-9911				●
167	BRACKET; UNION (B)	1-79738-845-0	01	1	9912-0004				●
167	BRACKET; UNION (B)	1-79738-845-0	01	1	0005-0106				●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0107-					●
180	PLUG; PIPE	9-09204-510-0	01	1	9601-9803	●	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9804-0004				●
180	PLUG; PIPE	9-09204-510-0	01	1	0005-0106				●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0107-0804					●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9601-9803	●	●	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9804-0004				●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0005-0106				●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0107-0804					●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-					●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9601-9705	●	●	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	02	1	9706-9803	●	●	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9804-0004				●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0005-0106				●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0107-					●
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	9706-9803	●	●	●	●
186	HOLDER; CLIP ID=4.75 & 6	8-94165-403-0	02	1	9601-9705	●	●	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	02	1	9706-9706	●	●	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	9707-9803	●	●	●	●
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	02	1	9804-0004				●
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	02	1	0005-0106				●	●
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	02	1	0107-					●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9601-9803	●	●	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9804-0004				●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0005-0106				●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0107-					●
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	9706-9803	●	●	●	●

104 107 93 106 26 35 153 28 33 29 34 42 153 115 103 102 116 44 9 17 42 27 48 43 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0012-0602					●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-					●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9803	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004				●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0106				●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512					●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-					●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9705	●	●	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9706-9803	●	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004				●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0106				●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-					●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-9803	●	●	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	04	1	9601-9606	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9607-9803	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9804-0106				●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	01	1	9705-9803				●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9804-0106				●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0106					●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0107-0602					●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-					●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9705	●	●	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9706-9803	●	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9804-0004				●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0106				●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-					●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9804-0004				●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0106				●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0107-0602					●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-					●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9706-9803	●	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9601-9803	●	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9804-0106				●
28	CLIP; OIL PIPE AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	01	1	9705-9803				●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9804-0106				●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0005-0106					●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0107-					●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9601-9704	●	●	●	●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	01	1	9705-9803				●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9804-0106				●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9607-9704	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9705-9803	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9804-0106				●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0005-0106					●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0107-0512					●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-					●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0011					●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0012-					●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0005-0011					●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0012-0512					●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-					●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0011					●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0012-0602					●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-					●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9601-9705	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9706-9803	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B)	1-47475-709-0	01	1	9706-9803				●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9803	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9804-0004				●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0106				●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0107-					●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47476-047-0	01	1	9701-9702				●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	9703-9803				●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	9804-0004				●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	0005-0106				●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0005-0106					●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0107-					●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9609	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9610-9803	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER STD CAB(FV*M) M8X30 FLANGE	0-28680-830-0	02	1	9610-9803				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9804-0106				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0005-0106					●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0107-0512					●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-					●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9804-0004				●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0106				●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0107-0602					●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-					●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) (A) L=500	0-07120-500-0	01	1	9610-9612				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) (A) L=450	0-07120-450-0	01	1	9701-9706				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> (A) L=450	0-07120-450-0	01	1	9707-9803				●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (A) OD=12.7 L=450	1-09363-631-0	01	1	9804-0106				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) (B) L=450	1-09364-369-0	01	1	9610-9612				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) (B) L=470	1-09364-692-0	01	1	9701-9708				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) (B) L=500	1-09364-329-0	01	1	9709-9803				●
47	HOSE; FLEX,CLU CONT (B) L=500	1-09364-329-0	01	1	9804-0106				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=560	0-07030-560-0	01	1	9707-9803				●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=520	1-09363-657-0	01	1	9804-0106				●
47	HOSE; FLEX,CLU CONT L=430	1-09364-725-0	01	1	0012-					●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9601-9803	●	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (A) ID=10.5	1-09630-074-1	01	1	9601-9803				●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=14.2	9-09851-004-0	01	1	9601-9803	●	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B) ID=14.2	9-09851-004-0	01	1	9601-9803				●
48	GASKET; FLEX HOSE,CLU CONT 6HE1 TC ENG(57L) ID=10.2 OD=16.0	9-09571-410-0	01	1	9610-9705				●
48	GASKET; FLEX HOSE,CLU CONT 6HE1 TC ENG(57L) ID=10.2 OD=16.0	9-09571-410-0	01	1	9706-9803				●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9804-0004				●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0106				●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0107-					●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	0005-0106					●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	0107-0603					●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	0-91510-512-0	01	1	0604-					●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0004				●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0106				●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512					●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-					●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0004				●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0106				●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603					●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-					●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1607 SERVICED BY L=1700	1-47426-391-0	01	1	0012-0106					●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1605 SERVICED BY L=1700	1-47426-391-0	01	1	0107-					●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	0005-0106					●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	0107-					●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	0005-0106					●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	0107-0512					●
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0601-					●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0004				●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0106				●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512					●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-					●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0004				●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0106				●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603					●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-					●
153	PIPE ASM; CLU,UNION TO FLEX L=1334 SERVICED BY L=1400	1-47426-389-0	01	1	0012-0106					●
153	PIPE ASM; CLU,UNION TO FLEX L=1335 SERVICED BY L=1400	1-47426-389-0	01	1	0107-0411					●
153	PIPE ASM; CLU,UNION TO FLEX L=1336 SERVICED BY L=1400	1-47426-389-0	01	1	0412-					●
153	PIPE ASM; CLU,UNION TO FLEX L=1349 SERVICED BY L=1400	1-47426-389-0	01	1	0005-0011					●

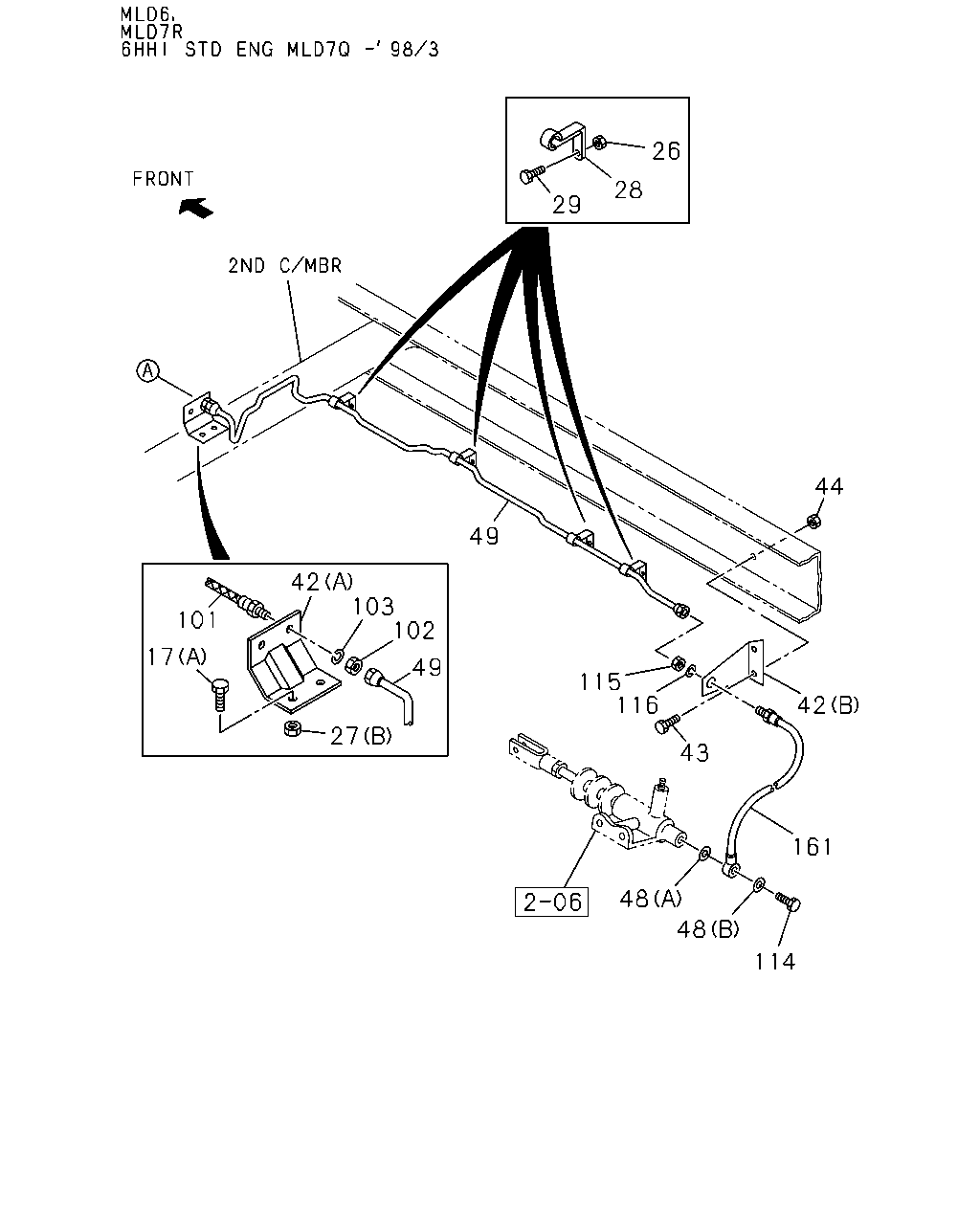

26 28 29 44 49 42 103 102 101 17 49 115 116 42 27 43 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9803	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004				●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0106				●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512					●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-					●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9705	●	●	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9706-9803	●	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004				●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0106				●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-					●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-9803	●	●	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	04	1	9601-9606	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9607-9803	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9804-0106				●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	01	1	9705-9803				●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9804-0106				●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0106					●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0107-0602					●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-					●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9705	●	●	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9706-9803	●	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9804-0004				●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0106				●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-					●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9804-0004				●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0106				●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0107-0602					●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-					●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9706-9803	●	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9601-9803	●	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9804-0106				●
28	CLIP; OIL PIPE AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	01	1	9705-9803				●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9804-0106				●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0005-0106					●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0107-					●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9601-9704	●	●	●	●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	01	1	9705-9803				●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9804-0106				●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9607-9704	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9705-9803	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9804-0106				●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0005-0106					●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0107-0512					●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-					●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9601-9705	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9706-9803	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B)	1-47475-709-0	01	1	9706-9803				●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9803	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9804-0004				●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0106				●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0107-					●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47476-047-0	01	1	9701-9702				●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	9703-9803				●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	9804-0004				●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	0005-0106				●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0005-0106					●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0107-					●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9609	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9610-9803	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER STD CAB(FV*M) M8X30 FLANGE	0-28680-830-0	02	1	9610-9803				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9804-0106				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0005-0106					●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0107-0512					●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-					●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9804-0004				●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0106				●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0107-0602					●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-					●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9601-9803	●	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (A) ID=10.5	1-09630-074-1	01	1	9601-9803				●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=14.2	9-09851-004-0	01	1	9601-9803	●	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B) ID=14.2	9-09851-004-0	01	1	9601-9803				●
48	GASKET; FLEX HOSE,CLU CONT 6HE1 TC ENG(57L) ID=10.2 OD=16.0	9-09571-410-0	01	1	9610-9705				●
48	GASKET; FLEX HOSE,CLU CONT 6HE1 TC ENG(57L) ID=10.2 OD=16.0	9-09571-410-0	01	1	9706-9803				●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9804-0004				●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0106				●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0107-					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=2384 SERVICED BY L=2400	1-47426-395-0	01	1	9601-9803	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HH1 STD ENG(65L) L=2384 SERVICED BY L=2400	1-47426-395-0	01	1	9601-9803				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L) (A) L=3032 SERVICED BY L=3300	1-47426-398-0	01	1	9610-9612				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L) (A) L=2992 SERVICED BY L=3000	1-47426-397-0	01	1	9701-9803				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2992 SERVICED BY L=3000	1-47426-397-0	01	1	9804-0106				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L) (B) L=216	1-47493-418-1	01	1	9703-9710				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> (B) L=216	1-47493-418-1	01	1	9711-9803				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	9804-0106				●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-9803	●	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9804-0004				●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	0005-0106				●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0107-0703					●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-					●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0004				●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0106				●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512					●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-					●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0004				●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0106				●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603					●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-					●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	9601-9705	●	●	●	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	9706-9803	●	●	●
114	BOLT; EYE,FLEX HOSE 6HH1 STD ENG(65L)	1-09675-158-0	01	1	9706-9803				●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0004				●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0106				●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512					●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-					●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0004				●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0106				●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603					●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-					●
161	HOSE; FLEX,SLAVE CYL L=400	1-09364-597-0	01	1	9601-9705	●	●	●	●
161	HOSE; FLEX,SLAVE CYL L=400	1-09364-597-0	01	1	9706-9803	●	●	●
161	HOSE; FLEX,SLAVE CYL 6HH1 STD ENG(65L) L=400	1-09364-597-0	01	1	9706-9803				●

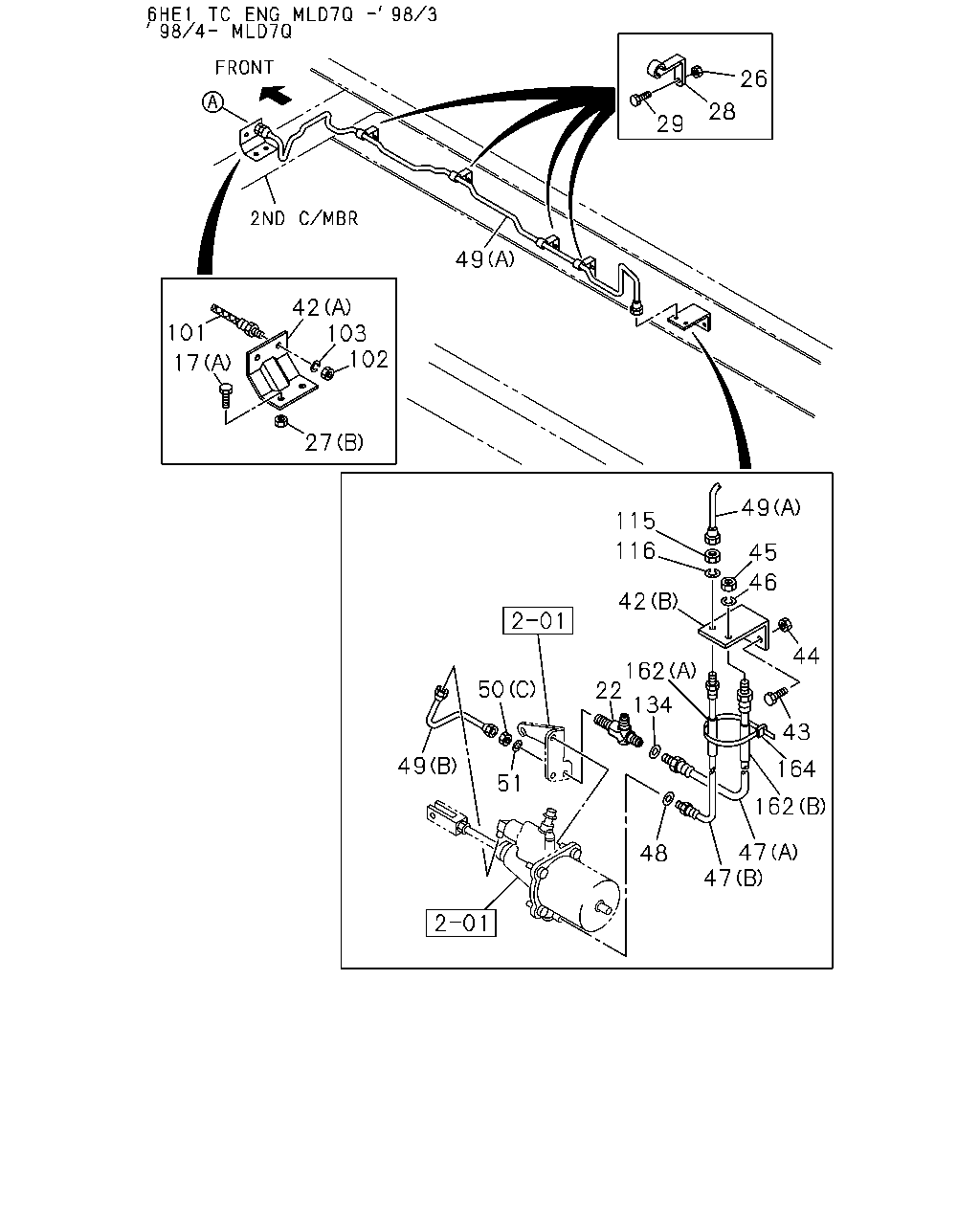

26 28 29 49 42 103 102 101 17 27 49 115 116 45 46 42 44 162 22 50 134 43 49 164 51 162 47 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9803	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004				●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0106				●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512					●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-					●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9705	●	●	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9706-9803	●	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004				●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0106				●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-					●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-9803	●	●	●	●
22	UNION; CLU PIPE 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M12 & M20X2 3WAY	1-09656-395-3	01	1	9703-9710				●
22	UNION; CLU PIPE 6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> M12 & M20X2 3WAY	1-09656-395-3	01	1	9711-9803				●
22	UNION; CLU PIPE AIR ASSIST CLUTCH<PK1> M12 3WAY	9-09228-706-1	01	1	9804-0106				●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	04	1	9601-9606	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9607-9803	●	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9804-0106				●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	01	1	9705-9803				●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9804-0106				●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0106					●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0107-0602					●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-					●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9705	●	●	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9706-9803	●	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9804-0004				●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0106				●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-					●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9804-0004				●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0106				●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0107-0602					●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-					●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9706-9803	●	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9601-9803	●	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9804-0106				●
28	CLIP; OIL PIPE AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	01	1	9705-9803				●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9804-0106				●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0005-0106					●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0107-					●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9601-9704	●	●	●	●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	01	1	9705-9803				●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9804-0106				●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9607-9704	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9705-9803	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9804-0106				●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0005-0106					●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0107-0512					●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-					●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9601-9705	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9706-9803	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B)	1-47475-709-0	01	1	9706-9803				●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9803	●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9804-0004				●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0106				●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0107-					●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47476-047-0	01	1	9701-9702				●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	9703-9803				●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	9804-0004				●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	0005-0106				●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0005-0106					●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0107-					●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9609	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9610-9803	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER STD CAB(FV*M) M8X30 FLANGE	0-28680-830-0	02	1	9610-9803				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9804-0106				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0005-0106					●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0107-0512					●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-					●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9804-0004				●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0106				●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0107-0602					●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-					●
45	NUT; FLEX HOSE,CLU CONT 6HE1 TC ENG(57L) M12	9-09840-280-0	01	1	9610-9706				●
45	NUT; FLEX HOSE,CLU CONT 6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	9707-9803				●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	9804-0106				●
45	NUT; FLEX HOSE,CLU CONT 6HE1 TC ENG(57L) EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	02	1	9707-9803				●
46	WASHER; LK,FLEX HOSE,CLU CONT 6HE1 TC ENG(57L) ID=12.2	9-09150-512-0	01	1	9610-9706				●
46	WASHER; LK,FLEX HOSE,CLU CONT 6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9707-9803				●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	9804-0106				●
46	WASHER; LK,FLEX HOSE,CLU CONT 6HE1 TC ENG(57L) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	02	1	9707-9803				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) (A) L=500	0-07120-500-0	01	1	9610-9612				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) (A) L=450	0-07120-450-0	01	1	9701-9706				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) ASSISTOR SHIFT CONTROL<WX8> (A) L=450	0-07120-450-0	01	1	9707-9803				●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (A) OD=12.7 L=450	1-09363-631-0	01	1	9804-0106				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) (B) L=450	1-09364-369-0	01	1	9610-9612				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) (B) L=470	1-09364-692-0	01	1	9701-9708				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) (B) L=500	1-09364-329-0	01	1	9709-9803				●
47	HOSE; FLEX,CLU CONT (B) L=500	1-09364-329-0	01	1	9804-0106				●
47	HOSE; FLEX,CLU CONT 6HE1 TC ENG(57L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=560	0-07030-560-0	01	1	9707-9803				●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=520	1-09363-657-0	01	1	9804-0106				●
47	HOSE; FLEX,CLU CONT L=430	1-09364-725-0	01	1	0012-					●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9601-9803	●	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (A) ID=10.5	1-09630-074-1	01	1	9601-9803				●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=14.2	9-09851-004-0	01	1	9601-9803	●	●	●
48	GASKET; FLEX HOSE,CLU CONT 6HH1 STD ENG(65L) (B) ID=14.2	9-09851-004-0	01	1	9601-9803				●
48	GASKET; FLEX HOSE,CLU CONT 6HE1 TC ENG(57L) ID=10.2 OD=16.0	9-09571-410-0	01	1	9610-9705				●
48	GASKET; FLEX HOSE,CLU CONT 6HE1 TC ENG(57L) ID=10.2 OD=16.0	9-09571-410-0	01	1	9706-9803				●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9804-0004				●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0106				●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0107-					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=2384 SERVICED BY L=2400	1-47426-395-0	01	1	9601-9803	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HH1 STD ENG(65L) L=2384 SERVICED BY L=2400	1-47426-395-0	01	1	9601-9803				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L) (A) L=3032 SERVICED BY L=3300	1-47426-398-0	01	1	9610-9612				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L) (A) L=2992 SERVICED BY L=3000	1-47426-397-0	01	1	9701-9803				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2992 SERVICED BY L=3000	1-47426-397-0	01	1	9804-0106				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L) (B) L=216	1-47493-418-1	01	1	9703-9710				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> (B) L=216	1-47493-418-1	01	1	9711-9803				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	9804-0106				●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9601-9611	●	●	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-9803	●	●	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9804-0004				●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0106				●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0107-					●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9601-9803	●	●	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9804-0004				●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0106				●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0107-0512					●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-					●
50	NUT; UNION 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) M12	9-09840-280-0	01	1	9703-9710				●
50	NUT; UNION 6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> (C) M12	9-09840-280-0	01	1	9711-9803				●
50	NUT; UNION AIR ASSIST CLUTCH<PK1> (C) M12	9-09840-280-0	01	1	9804-0106				●
51	WASHER; LK 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	01	1	9703-9710				●
51	WASHER; LK 6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> ID=12.2	9-09150-512-0	01	1	9711-9803				●
51	WASHER; LK AIR ASSIST CLUTCH<PK1> ID=12.2	9-09150-512-0	01	1	9804-0106				●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-9803	●	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9804-0004				●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	0005-0106				●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0107-0703					●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-					●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0004				●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0106				●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512					●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-					●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0004				●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0106				●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603					●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-					●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9803	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9804-0004				●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0106				●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512					●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-					●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9803	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9804-0004				●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0106				●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603					●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-					●
134	GASKET 6HE1 TC ENG(57L) ID=11 OD=18	9-09572-510-0	01	1	9610-9803				●
134	GASKET ID=11 OD=18	9-09572-510-0	01	1	9804-9912				●
162	COVER; RUBBER,FLEX HOSE 6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	9705-9803				●
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	9804-0106				●
162	COVER; RUBBER,FLEX HOSE 6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9705-9803				●
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9804-0106				●
164	CLIP; BAND,FLEX HOSE 6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> L=140	5-09707-031-0	01	1	9705-9803				●
164	CLIP; BAND,FLEX HOSE AIR ASSIST CLUTCH<PK1> L=140	5-09707-031-1	01	1	9804-0106				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
