◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01A - CLUTCH ▶
2-01A — CLUTCH (#24774) — 477 parça

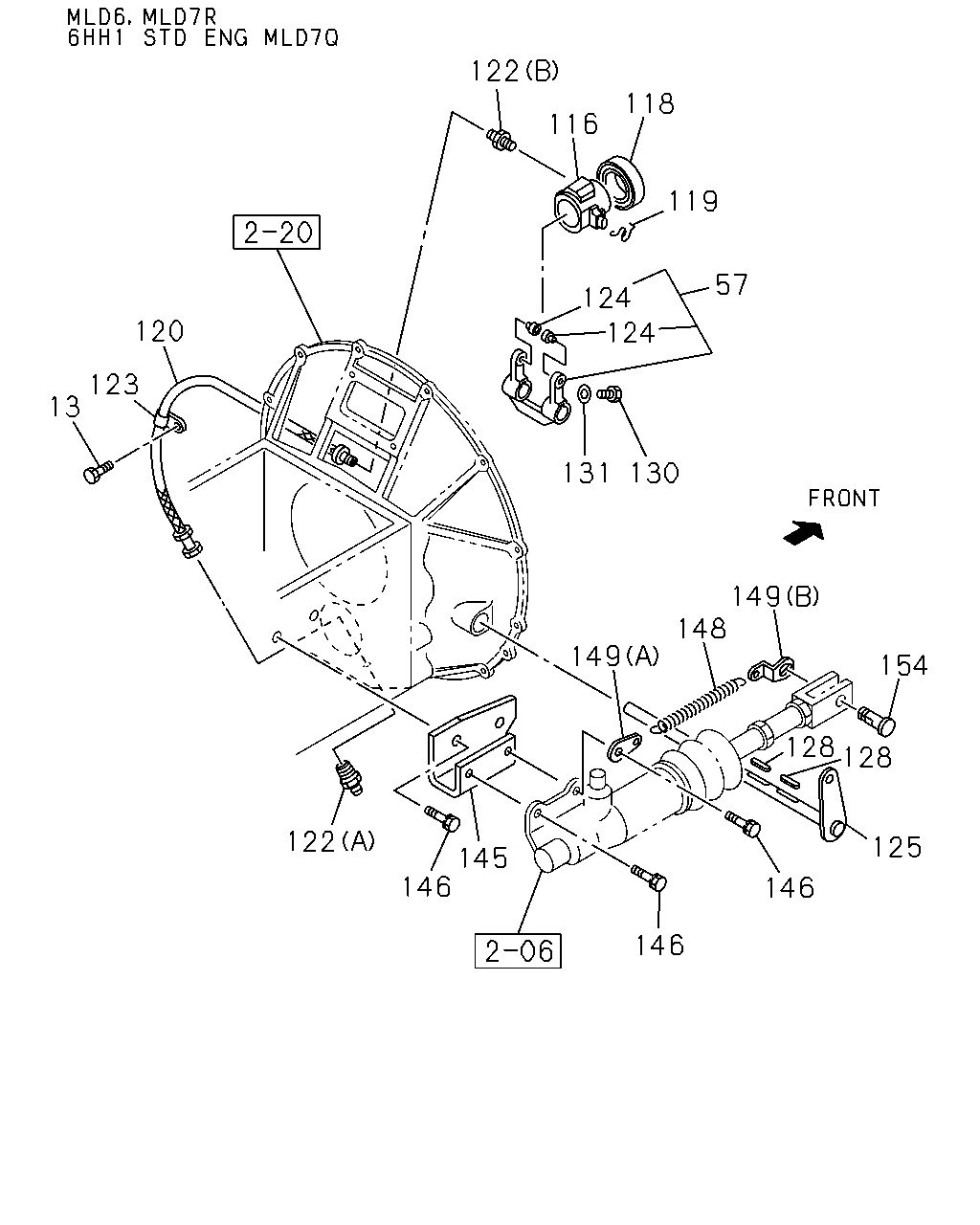

çizim 85884
122 118 116 119 57 124 124 120 123 13 131 130 149 148 149 154 128 128 122 125 145 146 146 146
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9803 ● ● ● ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0106 ●
57 FORK; SHIFT,CLU 1-31340-056-0 01 1 9601-9803 ● ● ● ●
57 FORK; SHIFT,CLU 1-31340-056-0 01 1 9804-0106 ●
57 FORK; SHIFT,CLU 1-31340-060-0 01 1 0012-1306 ●
57 FORK; SHIFT,CLU 1-31340-077-0 01 1 1307- ●
116 BLOCK; SHIFT,CLU 1-31321-052-2 01 1 9601-9803 ● ● ● ●
116 BLOCK; SHIFT,CLU 1-31321-052-2 01 1 9804-0106 ●
116 BLOCK; SHIFT,CLU 1-31321-075-1 01 1 0012-1205 ●
116 BLOCK; SHIFT,CLU 1-31321-113-0 01 1 1206-1306 ●
116 BLOCK; SHIFT,CLU 1-31321-114-0 01 1 1307- ●
118 BEARING; CLU RELEASE 1-09820-008-0 01 1 9601-9803 ● ● ● ●
118 BEARING; CLU RELEASE 1-09820-008-0 01 1 9804-0106 ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0111-0111 ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0112- ●
118 BEARING; CLU RELEASE 1-09820-081-0 01 1 0012-0110 ●
119 SPRING; SHIFT FORK 1-09585-054-0 01 1 9601-9803 ● ● ● ●
119 SPRING; SHIFT FORK 1-09585-054-0 01 1 9804-0011 ●
119 SPRING; SHIFT FORK 1-09585-054-0 01 1 0012-0106 ● ●
119 SPRING; SHIFT FORK 1-09585-054-1 01 1 0107- ●
119 SPRING; SHIFT FORK 1-09585-053-0 01 1 9601-9803 ● ● ● ●
119 SPRING; SHIFT FORK 1-09585-053-0 01 1 9804-0011 ●
119 SPRING; SHIFT FORK 1-09585-053-0 01 1 0012-0106 ● ●
119 SPRING; SHIFT FORK 1-09585-053-1 01 1 0107- ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09364-870-0 01 1 9601-9803 ● ● ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09364-870-0 01 1 9804-0003 ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 0004-0106 ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=405 		1-09364-449-0 01 1 0012- ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9601-9803 ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9804-9903 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9904-0004 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0005-0106 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-9803 ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9804-0011 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0012-0106 ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0512 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		9-09524-835-0 01 1 9601-9803 ● ● ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		9-09524-835-0 01 1 9804-0106 ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=22 		1-09700-644-1 01 1 0012- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=15.5 		9-09917-613-0 01 1 0012- ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 9601-9803 ● ● ● ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 9804-0011 ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 0012-0106 ● ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 0107- ●
125 SHAFT; CLU 1-31342-271-0 01 1 9601-9803 ● ● ●
125 SHAFT; CLU
6HH1 STD ENG(65L) 		1-31342-271-0 01 1 9601-9803 ●
125 SHAFT; CLU
6HE1 TC ENG(57L) 		1-31342-169-1 01 1 9610-0011 ●
125 SHAFT; CLU 1-31342-169-1 01 1 0012-0106 ● ●
125 SHAFT; CLU 1-31342-169-1 01 1 0107- ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9601-9803 ● ● ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9804-9903 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9904-0004 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0005-0011 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0012-0106 ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0107- ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 9601-9803 ● ● ● ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 9804-0011 ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 0012-0106 ● ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 0107-0512 ●
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 0601- ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9804-9903 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9904-0004 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 0005-0011 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 0012-0106 ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 0107-0603 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0604- ●
145 BRACKET; SLAVE CYL,OIL CLU 1-47579-052-0 01 1 9601-9803 ● ● ●
145 BRACKET; SLAVE CYL,OIL CLU
6HH1 STD ENG(65L) 		1-47579-052-0 01 1 9601-9803 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE 		0-28181-025-0 04 1 9601-9803 ● ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
6HH1 STD ENG(65L) M10X25 FLANGE 		0-28181-025-0 04 1 9601-9803 ●
148 SPRING; CLU RETURN 1-09583-249-0 01 1 9601-9803 ● ● ●
148 SPRING; CLU RETURN
6HH1 STD ENG(65L) 		1-09583-249-0 01 1 9601-9803 ●
148 SPRING; CLU RETURN
6HE1 TC ENG(57L) 		9-09942-530-1 01 1 9610-9803 ●
148 SPRING; CLU RETURN 1-09583-212-0 01 1 0012- ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 9804-9903 ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 9904-0004 ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0005-0106 ●
149 EYE; SPRING,RETURN SPRING
(B) 		1-31426-019-1 01 1 9601-9803 ● ● ●
149 EYE; SPRING,RETURN SPRING
6HH1 STD ENG(65L) (B) 		1-31426-019-1 01 1 9601-9803 ●
149 EYE; SPRING,RETURN SPRING
(A) T=2.3 		1-47324-005-1 01 1 9601-9803 ● ● ●
149 EYE; SPRING,RETURN SPRING
6HH1 STD ENG(65L) (A) T=2.3 		1-47324-005-1 01 1 9601-9803 ●
149 EYE; SPRING,RETURN SPRING 1-31426-019-1 01 1 0012- ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 9601-9803 ● ● ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 0012- ●

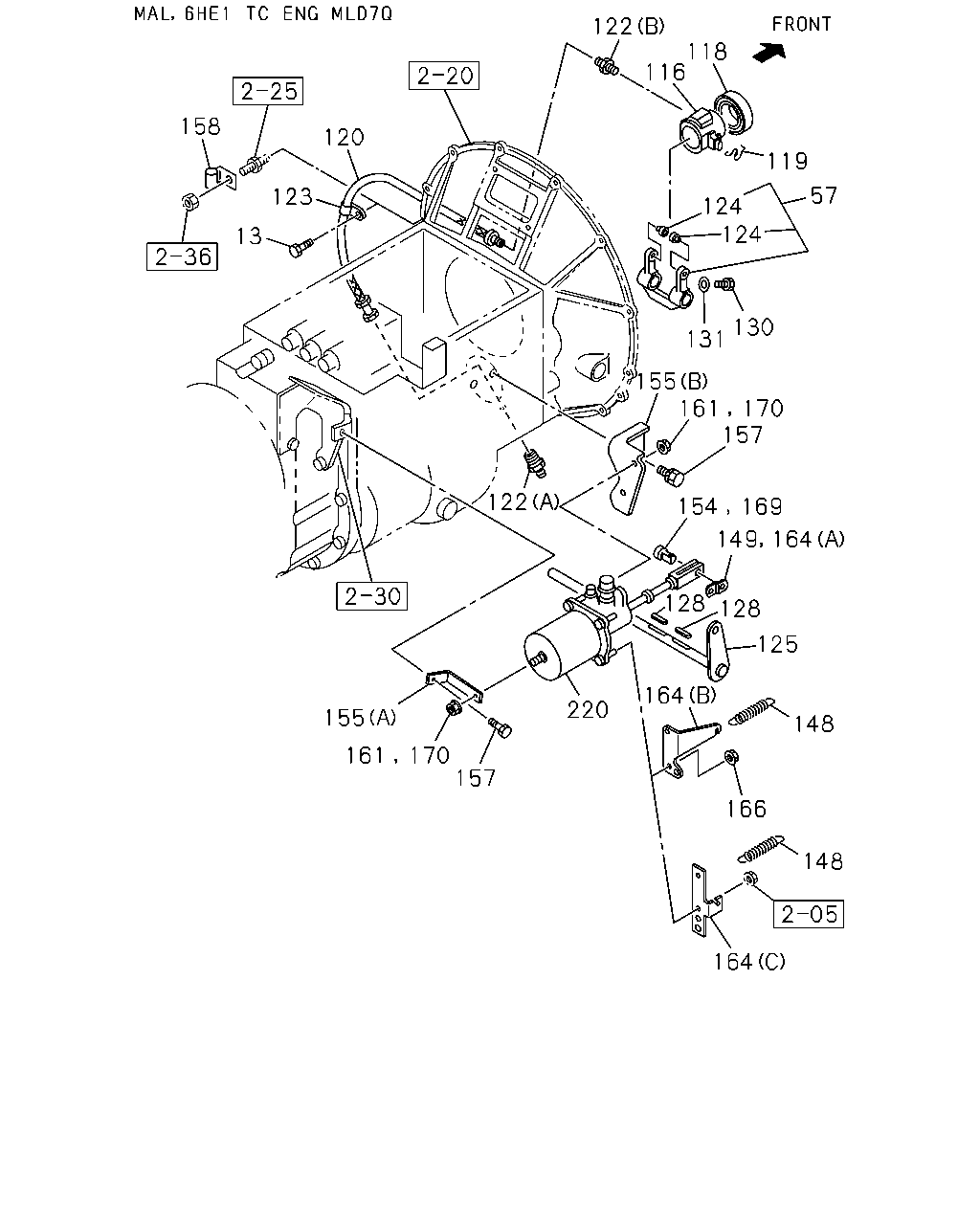

çizim 103838
122 118 116 158 120 119 57 123 124 124 13 130 131 155 161 170 157 122 154 169 149 164 128 128 125 164 220 155 148 161 170 157 166 148 164
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9803 ● ● ● ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0106 ●
57 FORK; SHIFT,CLU 1-31340-056-0 01 1 9601-9803 ● ● ● ●
57 FORK; SHIFT,CLU 1-31340-056-0 01 1 9804-0106 ●
57 FORK; SHIFT,CLU 1-31340-060-0 01 1 0012-1306 ●
57 FORK; SHIFT,CLU 1-31340-077-0 01 1 1307- ●
116 BLOCK; SHIFT,CLU 1-31321-052-2 01 1 9601-9803 ● ● ● ●
116 BLOCK; SHIFT,CLU 1-31321-052-2 01 1 9804-0106 ●
116 BLOCK; SHIFT,CLU 1-31321-075-1 01 1 0012-1205 ●
116 BLOCK; SHIFT,CLU 1-31321-113-0 01 1 1206-1306 ●
116 BLOCK; SHIFT,CLU 1-31321-114-0 01 1 1307- ●
118 BEARING; CLU RELEASE 1-09820-008-0 01 1 9601-9803 ● ● ● ●
118 BEARING; CLU RELEASE 1-09820-008-0 01 1 9804-0106 ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0111-0111 ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0112- ●
118 BEARING; CLU RELEASE 1-09820-081-0 01 1 0012-0110 ●
119 SPRING; SHIFT FORK 1-09585-054-0 01 1 9601-9803 ● ● ● ●
119 SPRING; SHIFT FORK 1-09585-054-0 01 1 9804-0011 ●
119 SPRING; SHIFT FORK 1-09585-054-0 01 1 0012-0106 ● ●
119 SPRING; SHIFT FORK 1-09585-054-1 01 1 0107- ●
119 SPRING; SHIFT FORK 1-09585-053-0 01 1 9601-9803 ● ● ● ●
119 SPRING; SHIFT FORK 1-09585-053-0 01 1 9804-0011 ●
119 SPRING; SHIFT FORK 1-09585-053-0 01 1 0012-0106 ● ●
119 SPRING; SHIFT FORK 1-09585-053-1 01 1 0107- ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09364-870-0 01 1 9601-9803 ● ● ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09364-870-0 01 1 9804-0003 ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 0004-0106 ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=405 		1-09364-449-0 01 1 0012- ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9601-9803 ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9804-9903 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 9904-0004 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0005-0106 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-9803 ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9804-0011 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0012-0106 ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0512 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		9-09524-835-0 01 1 9601-9803 ● ● ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		9-09524-835-0 01 1 9804-0106 ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=22 		1-09700-644-1 01 1 0012- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=15.5 		9-09917-613-0 01 1 0012- ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 9601-9803 ● ● ● ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 9804-0011 ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 0012-0106 ● ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 0107- ●
125 SHAFT; CLU 1-31342-271-0 01 1 9601-9803 ● ● ●
125 SHAFT; CLU
6HH1 STD ENG(65L) 		1-31342-271-0 01 1 9601-9803 ●
125 SHAFT; CLU
6HE1 TC ENG(57L) 		1-31342-169-1 01 1 9610-0011 ●
125 SHAFT; CLU 1-31342-169-1 01 1 0012-0106 ● ●
125 SHAFT; CLU 1-31342-169-1 01 1 0107- ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9601-9803 ● ● ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9804-9903 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9904-0004 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0005-0011 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0012-0106 ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0107- ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 9601-9803 ● ● ● ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 9804-0011 ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 0012-0106 ● ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 0107-0512 ●
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 0601- ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9804-9903 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9904-0004 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 0005-0011 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 0012-0106 ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 0107-0603 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0604- ●
148 SPRING; CLU RETURN 1-09583-249-0 01 1 9601-9803 ● ● ●
148 SPRING; CLU RETURN
6HH1 STD ENG(65L) 		1-09583-249-0 01 1 9601-9803 ●
148 SPRING; CLU RETURN
6HE1 TC ENG(57L) 		9-09942-530-1 01 1 9610-9803 ●
148 SPRING; CLU RETURN 1-09583-212-0 01 1 0012- ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 9804-9903 ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 9904-0004 ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0005-0106 ●
149 EYE; SPRING,RETURN SPRING
(B) 		1-31426-019-1 01 1 9601-9803 ● ● ●
149 EYE; SPRING,RETURN SPRING
6HH1 STD ENG(65L) (B) 		1-31426-019-1 01 1 9601-9803 ●
149 EYE; SPRING,RETURN SPRING
(A) T=2.3 		1-47324-005-1 01 1 9601-9803 ● ● ●
149 EYE; SPRING,RETURN SPRING
6HH1 STD ENG(65L) (A) T=2.3 		1-47324-005-1 01 1 9601-9803 ●
149 EYE; SPRING,RETURN SPRING 1-31426-019-1 01 1 0012- ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 9601-9803 ● ● ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 0012- ●
155 BRACKET; MINIPACK
6HE1 TC ENG(57L) (B) 		1-31429-175-2 01 1 9610-9803 ●
155 BRACKET; MINIPACK
(B) 		1-31429-175-2 01 1 9804-0106 ●
155 BRACKET; MINIPACK
6HE1 TC ENG(57L) (A) 		1-31429-176-0 01 1 9610-0106 ●
155 BRACKET; MINIPACK
(B) 		1-31429-368-0 01 1 0012- ●
155 BRACKET; MINIPACK
(A) 		1-31429-369-0 01 1 0012- ●
157 BOLT; BRKT
6HE1 TC ENG(57L) M10X18 FLANGE 		0-28181-018-0 03 1 9610-0011 ●
157 BOLT; BRKT
M10X18 FLANGE 		0-28181-018-0 03 1 0012-0106 ● ●
157 BOLT; BRKT
M10X18 FLANGE 		0-28181-018-0 03 1 0107- ●
158 CLIP; FLEX HOSE 9-09917-576-0 01 1 0201- ●
161 NUT; BRKT
6HE1 TC ENG(57L) M8 FLANGE 		0-91150-208-0 03 1 9610-0106 ●
164 EYE; SPRING
6HE1 TC ENG(57L) (A) 		1-31426-019-1 01 1 9610-9803 ●
164 EYE; SPRING
6HE1 TC ENG(57L) (A) 		1-31426-041-0 01 1 9804-0106 ●
164 EYE; SPRING
6HE1 TC ENG(57L) (B) L=85 		1-47477-788-0 01 1 9610-9803 ●
164 EYE; SPRING
6HE1 TC ENG(57L) (B) 		1-47477-789-0 01 1 9804-0106 ●
164 EYE; SPRING
(C) 		1-47475-372-0 01 1 0012- ●
166 NUT; SPRING EYE
6HE1 TC ENG(57L) M8 FLANGE 		0-91150-208-0 02 1 9610-0106 ●
169 PIN; JOINT,MINIPACK
6HE1 TC ENG(57L) 		1-31424-009-0 01 1 9610-0106 ●
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91150-210-0 03 1 0012-0602 ●
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91180-210-0 03 1 0603- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-515-1 01 1 0601- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 6HE1 TC ENG(57L) 		1-31800-383-0 01 1 9610-0106 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-387-3 01 1 0012-0512 ●

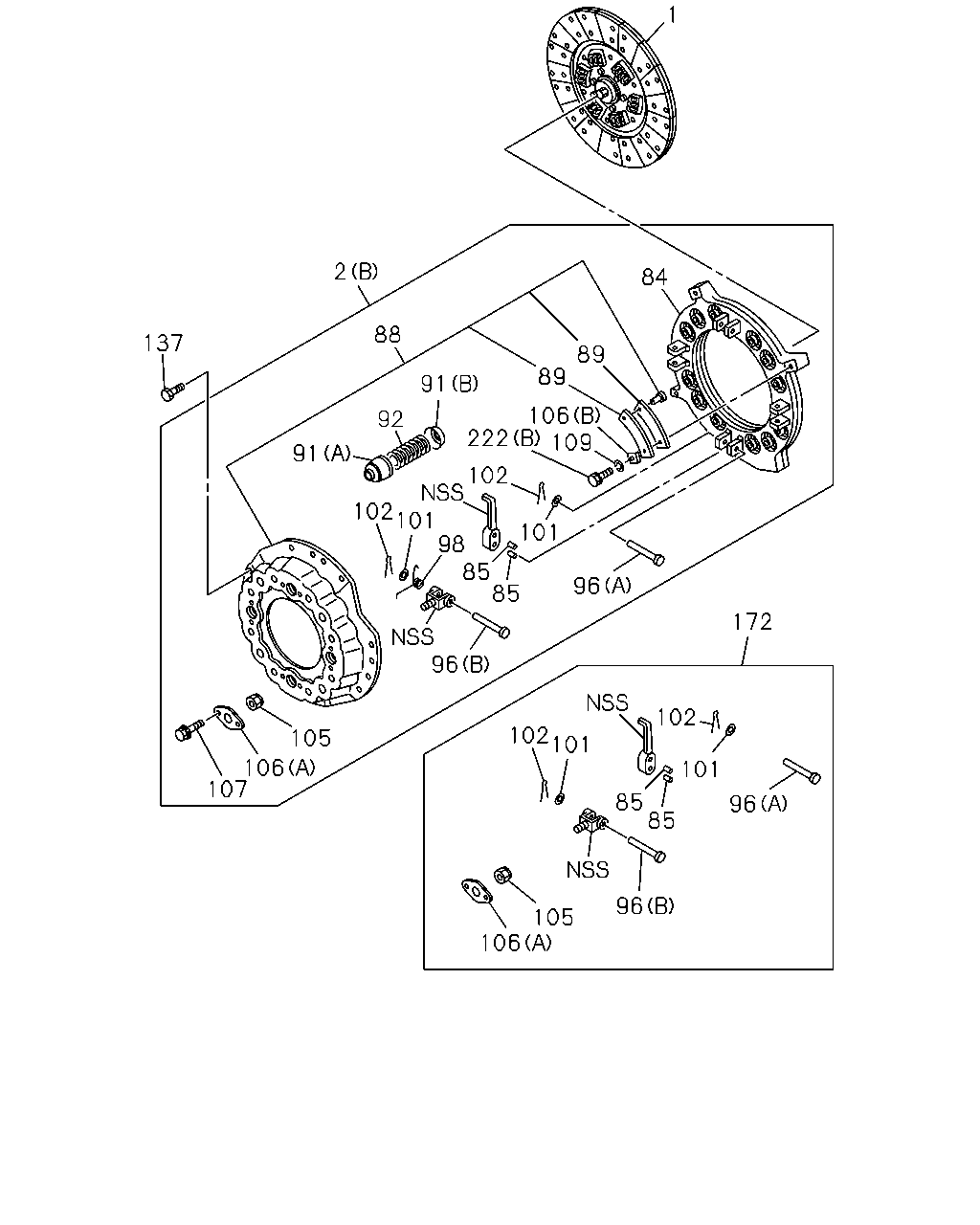

çizim 103841
1 2 84 88 137 89 89 91 106 222 109 92 91 102 102 101 98 85 85 101 96 172 96 102 102 101 105 106 107 101 85 85 96 96 105 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DISC; CLUTCH
14" 		1-31240-671-0 01 1 9601-9705 ● ● ● ●
1 DISC; CLUTCH
14" 		1-31240-671-0 01 1 9706-9803 ● ● ●
1 DISC; CLUTCH
6HH1 STD ENG(65L) 14" 		1-31240-671-0 01 1 9706-9803 ●
1 DISC; CLUTCH
6HE1 TC ENG(57L) 15" 		1-31240-676-0 01 1 9610-0009 ●
1 DISC; CLUTCH
6HE1 TC ENG(57L) 15" 		1-31240-875-0 01 1 0010-0106 ●
1 DISC; CLUTCH
15" 		1-31240-735-2 01 1 0012-0106 ●
1 DISC; CLUTCH
15" 		1-31240-735-2 01 1 0107- ●
2 PLATE ASM; PRESSURE,CLU
(B) 14" 		1-31220-291-0 01 1 9601-9705 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
(B) 14" 		1-31220-291-0 01 1 9706-9803 ● ● ●
2 PLATE ASM; PRESSURE,CLU
6HH1 STD ENG(65L) (B) 14" 		1-31220-291-0 01 1 9706-9803 ●
2 PLATE ASM; PRESSURE,CLU
6HE1 TC ENG(57L) (A) 		1-31220-305-1 01 1 9610-0106 ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-306-0 01 1 0012-0106 ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-306-0 01 1 0107-0109 ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-380-2 01 1 0110- ●
84 PLATE; PRESSURE
14" 		1-31221-082-0 01 1 9601-9705 ● ● ● ●
84 PLATE; PRESSURE
14" 		1-31221-082-0 01 1 9706-9803 ● ● ●
84 PLATE; PRESSURE
6HH1 STD ENG(65L) 14" 		1-31221-082-0 01 1 9706-9803 ●
84 PLATE; PRESSURE
6HE1 TC ENG(57L) 15" 		1-31221-051-0 01 1 9610-9810 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 9811-0004 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0005-0011 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0012-0106 ● ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0107- ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9601-9803 ● ● ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9804-0004 ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0005-0011 ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0012-0106 ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0107- ●
88 COVER SUB ASM; CLU 1-31211-036-0 01 1 9601-9705 ● ● ● ●
88 COVER SUB ASM; CLU 1-31211-036-0 01 1 9706-9803 ● ● ●
88 COVER SUB ASM; CLU
6HH1 STD ENG(65L) 		1-31211-036-0 01 1 9706-9803 ●
89 PLATE; STRAP 1-31229-001-0 08 1 9601-9705 ● ● ● ●
89 PLATE; STRAP 1-31229-001-0 08 1 9706-9803 ● ● ●
89 PLATE; STRAP
6HH1 STD ENG(65L) 		1-31229-001-0 08 1 9706-9803 ●
89 PLATE; STRAP
6HE1 TC ENG(57L) 		1-31229-001-0 12 1 9610-9810 ●
89 PLATE; STRAP 1-31229-050-0 16 1 9811-0004 ●
89 PLATE; STRAP 1-31229-050-0 16 1 0005-0011 ●
89 PLATE; STRAP 1-31229-050-0 16 1 0012-0106 ● ●
89 PLATE; STRAP 1-31229-050-0 16 1 0107- ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9601-9803 ● ● ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9804-0004 ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0005-0011 ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0012-0106 ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0107- ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9601-9803 ● ● ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9804-0004 ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0005-0011 ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0012-0106 ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0107- ●
92 SPRING; CLU 1-09580-234-0 12 1 9601-9705 ● ● ● ●
92 SPRING; CLU 1-09580-234-0 12 1 9706-9803 ● ● ●
92 SPRING; CLU
6HH1 STD ENG(65L) 		1-09580-234-0 12 1 9706-9803 ●
92 SPRING; CLU
6HE1 TC ENG(57L) 		1-31214-039-0 12 1 9610-0106 ●
92 SPRING; CLU 1-31214-053-0 12 1 0012-0106 ●
92 SPRING; CLU 1-31214-053-0 12 1 0107- ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 9601-9803 ● ● ● ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 9804-0106 ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0309- ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 9601-9705 ● ● ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 9706-9803 ● ● ●
96 PIN; RELEASE LEVER
6HH1 STD ENG(65L) (A) L=57.0 		1-31232-014-0 04 1 9706-9803 ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 9811-0106 ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0309- ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9610-9803 ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9804-9810 ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 0012-0106 ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 0107-0308 ●
96 PIN; RELEASE LEVER
(B) 		1-31232-016-0 04 1 0012-0106 ●
96 PIN; RELEASE LEVER
(B) 		1-31232-016-0 04 1 0107-0308 ●
98 SPRING; RETURN 1-31233-003-0 04 1 9601-9803 ● ● ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 9804-0004 ●
98 SPRING; RETURN 1-31233-003-0 04 1 0005-0011 ●
98 SPRING; RETURN 1-31233-003-0 04 1 0012-0106 ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 0107- ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9601-9803 ● ● ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9804-0004 ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 0005-0011 ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 0012-0106 ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 0107-0109 ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0110- ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08113-022-0 08 1 9601-9705 ● ● ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08113-022-0 08 1 9706-9803 ● ● ●
102 PIN; SPLIT,RELEASE LEVER
6HH1 STD ENG(65L) OD=2.7 L=22 		9-08113-022-0 08 1 9706-9803 ●
102 PIN; SPLIT,RELEASE LEVER
6HE1 TC ENG(57L) OD=2.7 L=22 		9-08103-022-0 08 1 9610-9803 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9804-0004 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0005-0011 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0012-0106 ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0107- ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9601-9803 ● ● ● ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9804-0004 ●
105 NUT; SUPPORT 9-31235-061-0 04 1 0005-0011 ●
105 NUT; SUPPORT 9-31235-061-0 04 1 0012-0106 ● ●
105 NUT; SUPPORT 9-31235-061-0 04 1 0107-0109 ●
105 NUT; SUPPORT 1-31235-012-0 04 1 0110-0308 ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0309- ●
106 PLATE; LK,LEVER SUPPORT
(B) 		1-31235-008-0 08 1 9601-9705 ● ● ● ●
106 PLATE; LK,LEVER SUPPORT
(B) 		1-31235-008-0 08 1 9706-9803 ● ● ●
106 PLATE; LK,LEVER SUPPORT
6HH1 STD ENG(65L) (B) 		1-31235-008-0 08 1 9706-9803 ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 9601-9803 ● ● ● ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 9804-0004 ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0005-0011 ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0012-0106 ● ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0107- ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9601-9803 ● ● ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9804-0004 ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0005-0011 ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0012-0106 ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0107-0308 ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0309- ●
109 WASHER; LK,STRAP
ID=10.2 		9-09150-510-0 04 1 9601-9705 ● ● ● ●
109 WASHER; LK,STRAP
ID=10.2 		9-09150-510-0 04 1 9706-9803 ● ● ●
109 WASHER; LK,STRAP
6HH1 STD ENG(65L) ID=10.2 		9-09150-510-0 04 1 9706-9803 ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9601-9803 ● ● ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9804-0004 ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 0005-0106 ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 0107-0512 ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0601- ●
172 LEVER KIT; RELEASE,CLU 1-87830-620-0 01 1 9601-9705 ● ● ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-620-0 01 1 9706-9803 ● ● ●
172 LEVER KIT; RELEASE,CLU
6HH1 STD ENG(65L) 		1-87830-620-0 01 1 9706-9803 ●
172 LEVER KIT; RELEASE,CLU
6HE1 TC ENG(57L) 		1-87830-808-0 01 1 9610-0106 ●
172 LEVER KIT; RELEASE,CLU 1-87830-813-0 01 1 0012-0106 ●
172 LEVER KIT; RELEASE,CLU 1-87830-813-1 01 1 0107-0307 ●
172 LEVER KIT; RELEASE,CLU 1-87831-172-1 01 1 0308- ●
222 BOLT; STRAP
(B) M10X26 HEX SOKET 		1-09040-101-0 04 1 9601-9705 ● ● ● ●
222 BOLT; STRAP
(B) M10X26 HEX SOKET 		1-09040-101-0 04 1 9706-9803 ● ● ●
222 BOLT; STRAP
6HH1 STD ENG(65L) (B) M10X26 HEX SOKET 		1-09040-101-0 04 1 9706-9803 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9610-9803 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9804-0004 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0005-0011 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0012-0106 ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0107- ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9610-9803 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9804-0004 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0005-0011 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0012-0106 ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0107- ●

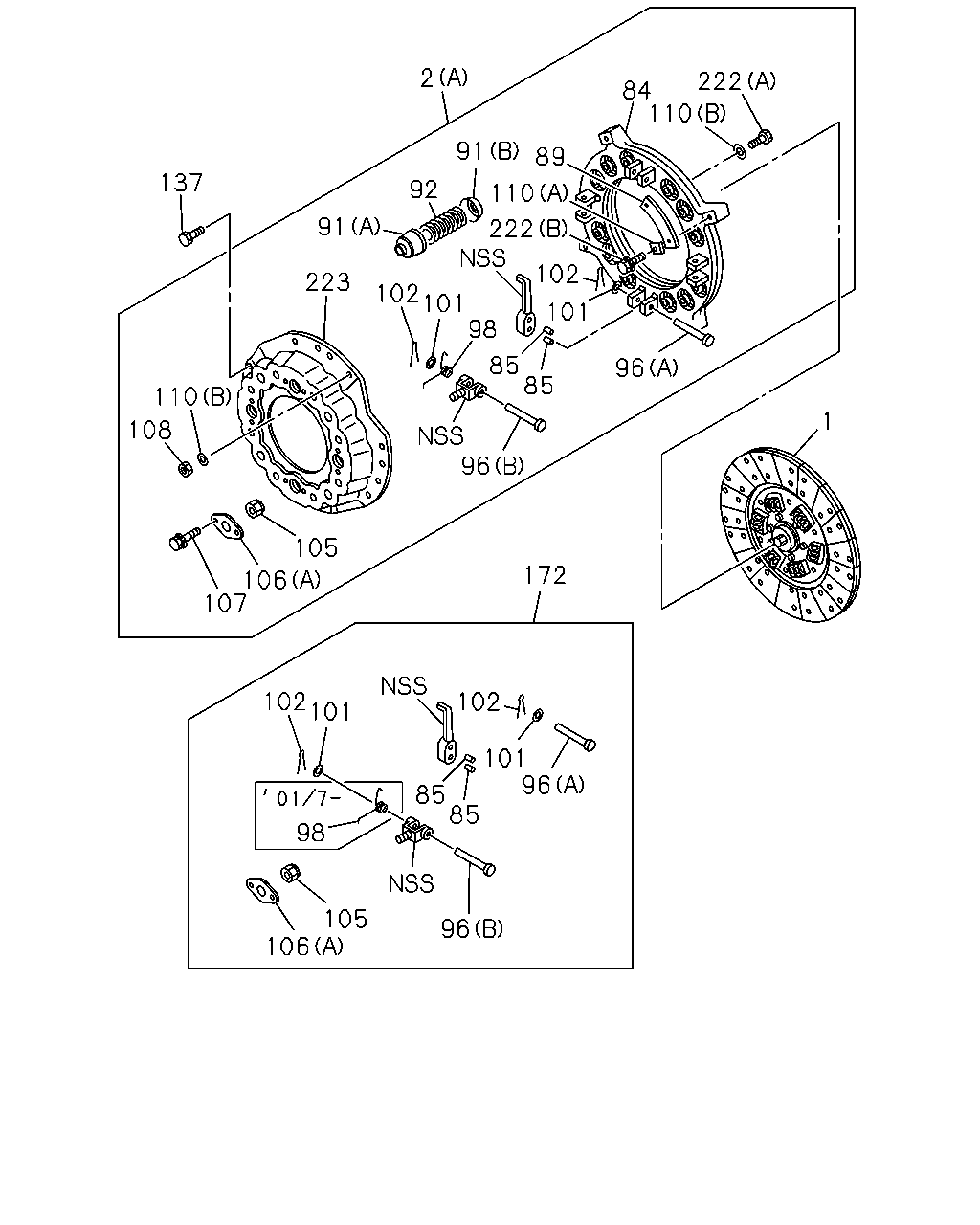

çizim 103842
2 222 84 110 91 89 137 92 110 91 222 102 223 102 101 98 101 85 85 96 110 1 108 96 105 172 106 107 102 101 102 101 96 85 85 98 105 106 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DISC; CLUTCH
14" 		1-31240-671-0 01 1 9601-9705 ● ● ● ●
1 DISC; CLUTCH
14" 		1-31240-671-0 01 1 9706-9803 ● ● ●
1 DISC; CLUTCH
6HH1 STD ENG(65L) 14" 		1-31240-671-0 01 1 9706-9803 ●
1 DISC; CLUTCH
6HE1 TC ENG(57L) 15" 		1-31240-676-0 01 1 9610-0009 ●
1 DISC; CLUTCH
6HE1 TC ENG(57L) 15" 		1-31240-875-0 01 1 0010-0106 ●
1 DISC; CLUTCH
15" 		1-31240-735-2 01 1 0012-0106 ●
1 DISC; CLUTCH
15" 		1-31240-735-2 01 1 0107- ●
2 PLATE ASM; PRESSURE,CLU
(B) 14" 		1-31220-291-0 01 1 9601-9705 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
(B) 14" 		1-31220-291-0 01 1 9706-9803 ● ● ●
2 PLATE ASM; PRESSURE,CLU
6HH1 STD ENG(65L) (B) 14" 		1-31220-291-0 01 1 9706-9803 ●
2 PLATE ASM; PRESSURE,CLU
6HE1 TC ENG(57L) (A) 		1-31220-305-1 01 1 9610-0106 ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-306-0 01 1 0012-0106 ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-306-0 01 1 0107-0109 ●
2 PLATE ASM; PRESSURE,CLU
(A) 		1-31220-380-2 01 1 0110- ●
84 PLATE; PRESSURE
14" 		1-31221-082-0 01 1 9601-9705 ● ● ● ●
84 PLATE; PRESSURE
14" 		1-31221-082-0 01 1 9706-9803 ● ● ●
84 PLATE; PRESSURE
6HH1 STD ENG(65L) 14" 		1-31221-082-0 01 1 9706-9803 ●
84 PLATE; PRESSURE
6HE1 TC ENG(57L) 15" 		1-31221-051-0 01 1 9610-9810 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 9811-0004 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0005-0011 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0012-0106 ● ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0107- ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9601-9803 ● ● ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9804-0004 ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0005-0011 ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0012-0106 ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0107- ●
89 PLATE; STRAP 1-31229-001-0 08 1 9601-9705 ● ● ● ●
89 PLATE; STRAP 1-31229-001-0 08 1 9706-9803 ● ● ●
89 PLATE; STRAP
6HH1 STD ENG(65L) 		1-31229-001-0 08 1 9706-9803 ●
89 PLATE; STRAP
6HE1 TC ENG(57L) 		1-31229-001-0 12 1 9610-9810 ●
89 PLATE; STRAP 1-31229-050-0 16 1 9811-0004 ●
89 PLATE; STRAP 1-31229-050-0 16 1 0005-0011 ●
89 PLATE; STRAP 1-31229-050-0 16 1 0012-0106 ● ●
89 PLATE; STRAP 1-31229-050-0 16 1 0107- ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9601-9803 ● ● ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9804-0004 ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0005-0011 ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0012-0106 ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0107- ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9601-9803 ● ● ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9804-0004 ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0005-0011 ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0012-0106 ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0107- ●
92 SPRING; CLU 1-09580-234-0 12 1 9601-9705 ● ● ● ●
92 SPRING; CLU 1-09580-234-0 12 1 9706-9803 ● ● ●
92 SPRING; CLU
6HH1 STD ENG(65L) 		1-09580-234-0 12 1 9706-9803 ●
92 SPRING; CLU
6HE1 TC ENG(57L) 		1-31214-039-0 12 1 9610-0106 ●
92 SPRING; CLU 1-31214-053-0 12 1 0012-0106 ●
92 SPRING; CLU 1-31214-053-0 12 1 0107- ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 9601-9803 ● ● ● ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 9804-0106 ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0309- ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 9601-9705 ● ● ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 9706-9803 ● ● ●
96 PIN; RELEASE LEVER
6HH1 STD ENG(65L) (A) L=57.0 		1-31232-014-0 04 1 9706-9803 ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 9811-0106 ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0309- ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9610-9803 ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9804-9810 ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 0012-0106 ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 0107-0308 ●
96 PIN; RELEASE LEVER
(B) 		1-31232-016-0 04 1 0012-0106 ●
96 PIN; RELEASE LEVER
(B) 		1-31232-016-0 04 1 0107-0308 ●
98 SPRING; RETURN 1-31233-003-0 04 1 9601-9803 ● ● ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 9804-0004 ●
98 SPRING; RETURN 1-31233-003-0 04 1 0005-0011 ●
98 SPRING; RETURN 1-31233-003-0 04 1 0012-0106 ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 0107- ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9601-9803 ● ● ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9804-0004 ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 0005-0011 ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 0012-0106 ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 0107-0109 ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0110- ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08113-022-0 08 1 9601-9705 ● ● ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08113-022-0 08 1 9706-9803 ● ● ●
102 PIN; SPLIT,RELEASE LEVER
6HH1 STD ENG(65L) OD=2.7 L=22 		9-08113-022-0 08 1 9706-9803 ●
102 PIN; SPLIT,RELEASE LEVER
6HE1 TC ENG(57L) OD=2.7 L=22 		9-08103-022-0 08 1 9610-9803 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9804-0004 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0005-0011 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0012-0106 ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0107- ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9601-9803 ● ● ● ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9804-0004 ●
105 NUT; SUPPORT 9-31235-061-0 04 1 0005-0011 ●
105 NUT; SUPPORT 9-31235-061-0 04 1 0012-0106 ● ●
105 NUT; SUPPORT 9-31235-061-0 04 1 0107-0109 ●
105 NUT; SUPPORT 1-31235-012-0 04 1 0110-0308 ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0309- ●
106 PLATE; LK,LEVER SUPPORT
(B) 		1-31235-008-0 08 1 9601-9705 ● ● ● ●
106 PLATE; LK,LEVER SUPPORT
(B) 		1-31235-008-0 08 1 9706-9803 ● ● ●
106 PLATE; LK,LEVER SUPPORT
6HH1 STD ENG(65L) (B) 		1-31235-008-0 08 1 9706-9803 ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 9601-9803 ● ● ● ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 9804-0004 ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0005-0011 ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0012-0106 ● ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0107- ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9601-9803 ● ● ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9804-0004 ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0005-0011 ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0012-0106 ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0107-0308 ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0309- ●
108 NUT; STRAP 1-09449-036-0 04 1 9610-9803 ●
108 NUT; STRAP 1-09449-036-0 04 1 9804-0004 ●
108 NUT; STRAP 1-09449-036-0 04 1 0005-0011 ●
108 NUT; STRAP 1-09449-036-0 04 1 0012-0106 ● ●
108 NUT; STRAP 1-09449-036-0 04 1 0107- ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 9610-9803 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 9804-0004 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 0005-0011 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 0012-0106 ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 0107-0403 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0404- ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 9610-9803 ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 9804-0004 ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0005-0011 ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0012-0106 ● ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0107- ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9601-9803 ● ● ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9804-0004 ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 0005-0106 ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 0107-0512 ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0601- ●
172 LEVER KIT; RELEASE,CLU 1-87830-620-0 01 1 9601-9705 ● ● ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-620-0 01 1 9706-9803 ● ● ●
172 LEVER KIT; RELEASE,CLU
6HH1 STD ENG(65L) 		1-87830-620-0 01 1 9706-9803 ●
172 LEVER KIT; RELEASE,CLU
6HE1 TC ENG(57L) 		1-87830-808-0 01 1 9610-0106 ●
172 LEVER KIT; RELEASE,CLU 1-87830-813-0 01 1 0012-0106 ●
172 LEVER KIT; RELEASE,CLU 1-87830-813-1 01 1 0107-0307 ●
172 LEVER KIT; RELEASE,CLU 1-87831-172-1 01 1 0308- ●
222 BOLT; STRAP
(B) M10X26 HEX SOKET 		1-09040-101-0 04 1 9601-9705 ● ● ● ●
222 BOLT; STRAP
(B) M10X26 HEX SOKET 		1-09040-101-0 04 1 9706-9803 ● ● ●
222 BOLT; STRAP
6HH1 STD ENG(65L) (B) M10X26 HEX SOKET 		1-09040-101-0 04 1 9706-9803 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9610-9803 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9804-0004 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0005-0011 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0012-0106 ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0107- ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9610-9803 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9804-0004 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0005-0011 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0012-0106 ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0107- ●
223 COVER; CLU 1-31211-019-1 01 1 9610-9803 ●
223 COVER; CLU 1-31211-019-1 01 1 9804-0004 ●
223 COVER; CLU 1-31211-019-1 01 1 0005-0011 ●
223 COVER; CLU 1-31211-019-1 01 1 0012-0106 ● ●
223 COVER; CLU 1-31211-019-1 01 1 0107- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
