◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#24773) — 150 parça
çizim 85974
87 92 87 87 86 87
BalonParca AdiParca NoAdetTipApplied Date A B C D
86 VALVE; MAG,EXH BRK 1-82563-602-1 01 1 9601-9609 ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-2 01 1 9610-9803 ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 9804-0011 ● ●
86 VALVE; MAG,EXH BRK
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-82563-602-4 01 1 0012-0106 ●
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 0012-0106 ●
86 VALVE; MAG,EXH BRK
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-82563-602-6 01 1 0107- ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 03 1 0107- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9601-9609 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9610-9803 ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9804-0106 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0107- ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9609 ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9803 ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0004 ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0005 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ● ●
87 CONNECTOR
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0106 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0106 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0107- ● ●
87 CONNECTOR
(C) 		1-09660-718-1 01 1 9601-9803 ●
87 CONNECTOR
(C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9804-0011 ●
87 CONNECTOR
ZF 9S109 OD M/T(Y2L) (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0012- ●
87 CONNECTOR
(D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0005-0005 ●
87 CONNECTOR
MAL6S M/T(Y1V) (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0012- ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9610-9712 ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9801-9803 ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9804-0106 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 02 1 0107-0512 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0601- ●
92 BOLT; MAG VLV
(A) M8X30 FLANGE 		0-28080-830-0 02 1 9601-0512 ●
92 BOLT; MAG VLV
(A) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●

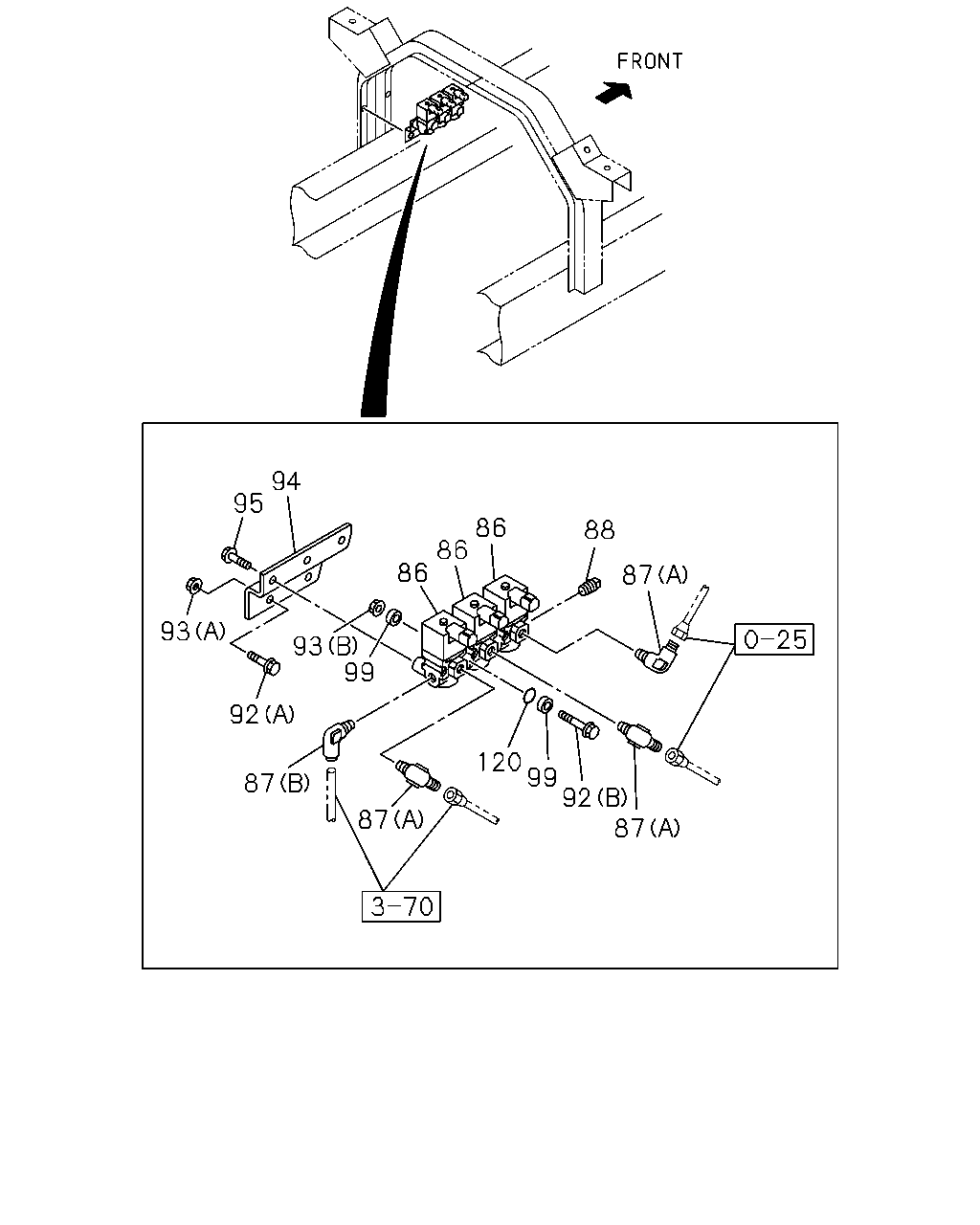

çizim 86035
94 95 86 86 86 88 87 93 93 99 92 120 99 92 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C D
86 VALVE; MAG,EXH BRK 1-82563-602-1 01 1 9601-9609 ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-2 01 1 9610-9803 ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 9804-0011 ● ●
86 VALVE; MAG,EXH BRK
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-82563-602-4 01 1 0012-0106 ●
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 0012-0106 ●
86 VALVE; MAG,EXH BRK
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-82563-602-6 01 1 0107- ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 03 1 0107- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9601-9609 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9610-9803 ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9804-0106 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0107- ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9609 ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9803 ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0004 ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0005 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ● ●
87 CONNECTOR
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0106 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0106 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0107- ● ●
87 CONNECTOR
(C) 		1-09660-718-1 01 1 9601-9803 ●
87 CONNECTOR
(C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9804-0011 ●
87 CONNECTOR
ZF 9S109 OD M/T(Y2L) (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0012- ●
87 CONNECTOR
(D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0005-0005 ●
87 CONNECTOR
MAL6S M/T(Y1V) (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0012- ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0107- ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9610-9712 ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9801-9803 ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9804-0106 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 02 1 0107-0512 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0601- ●
92 BOLT; MAG VLV
(A) M8X30 FLANGE 		0-28080-830-0 02 1 9601-0512 ●
92 BOLT; MAG VLV
(A) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
93 NUT; MAG VLV
(A) M8 		9-09110-408-0 02 1 9601-9606 ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 9610-9803 ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 9804-0106 ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91150-106-0 02 1 0107-0602 ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 9601-9609 ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 9610-9803 ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 9804-0106 ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47478-888-0 01 1 0107- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9609 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9610-9803 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9804-9902 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 9903-0106 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 03 1 0107-0512 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
99 WASHER; MAG VLV 1-82569-266-0 04 1 0107- ●
120 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0107- ●

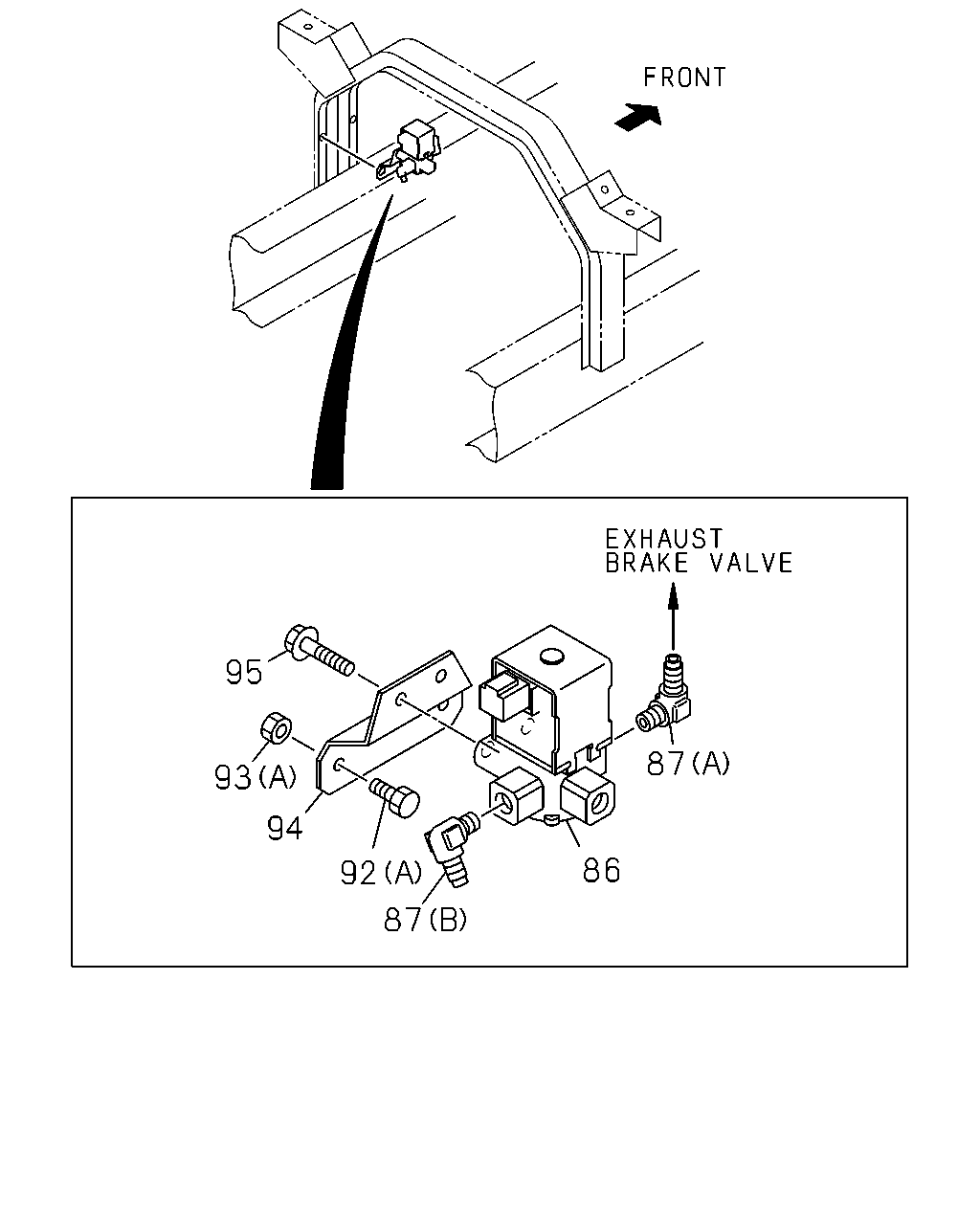

çizim 86337
95 87 93 94 86 92 87
BalonParca AdiParca NoAdetTipApplied Date A B C D
86 VALVE; MAG,EXH BRK 1-82563-602-1 01 1 9601-9609 ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-2 01 1 9610-9803 ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 9804-0011 ● ●
86 VALVE; MAG,EXH BRK
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-82563-602-4 01 1 0012-0106 ●
86 VALVE; MAG,EXH BRK 1-82563-602-4 01 1 0012-0106 ●
86 VALVE; MAG,EXH BRK
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-82563-602-6 01 1 0107- ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 03 1 0107- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9601-9609 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9610-9803 ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9804-0106 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0107- ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9609 ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9610-9803 ● ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0004 ● ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0005 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ● ●
87 CONNECTOR
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0106 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0106 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0107- ● ●
87 CONNECTOR
(C) 		1-09660-718-1 01 1 9601-9803 ●
87 CONNECTOR
(C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9804-0011 ●
87 CONNECTOR
ZF 9S109 OD M/T(Y2L) (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0012- ●
87 CONNECTOR
(D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0005-0005 ●
87 CONNECTOR
MAL6S M/T(Y1V) (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0012- ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9610-9712 ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9801-9803 ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9804-0106 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 02 1 0107-0512 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0601- ●
92 BOLT; MAG VLV
(A) M8X30 FLANGE 		0-28080-830-0 02 1 9601-0512 ●
92 BOLT; MAG VLV
(A) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
93 NUT; MAG VLV
(A) M8 		9-09110-408-0 02 1 9601-9606 ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 9610-9803 ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 9804-0106 ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91150-106-0 02 1 0107-0602 ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 9601-9609 ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 9610-9803 ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47477-266-0 01 1 9804-0106 ●
94 BRACKET; MAG VLV,EXH BRAKE 1-47478-888-0 01 1 0107- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9609 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9610-9803 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9804-9902 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 9903-0106 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 03 1 0107-0512 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●

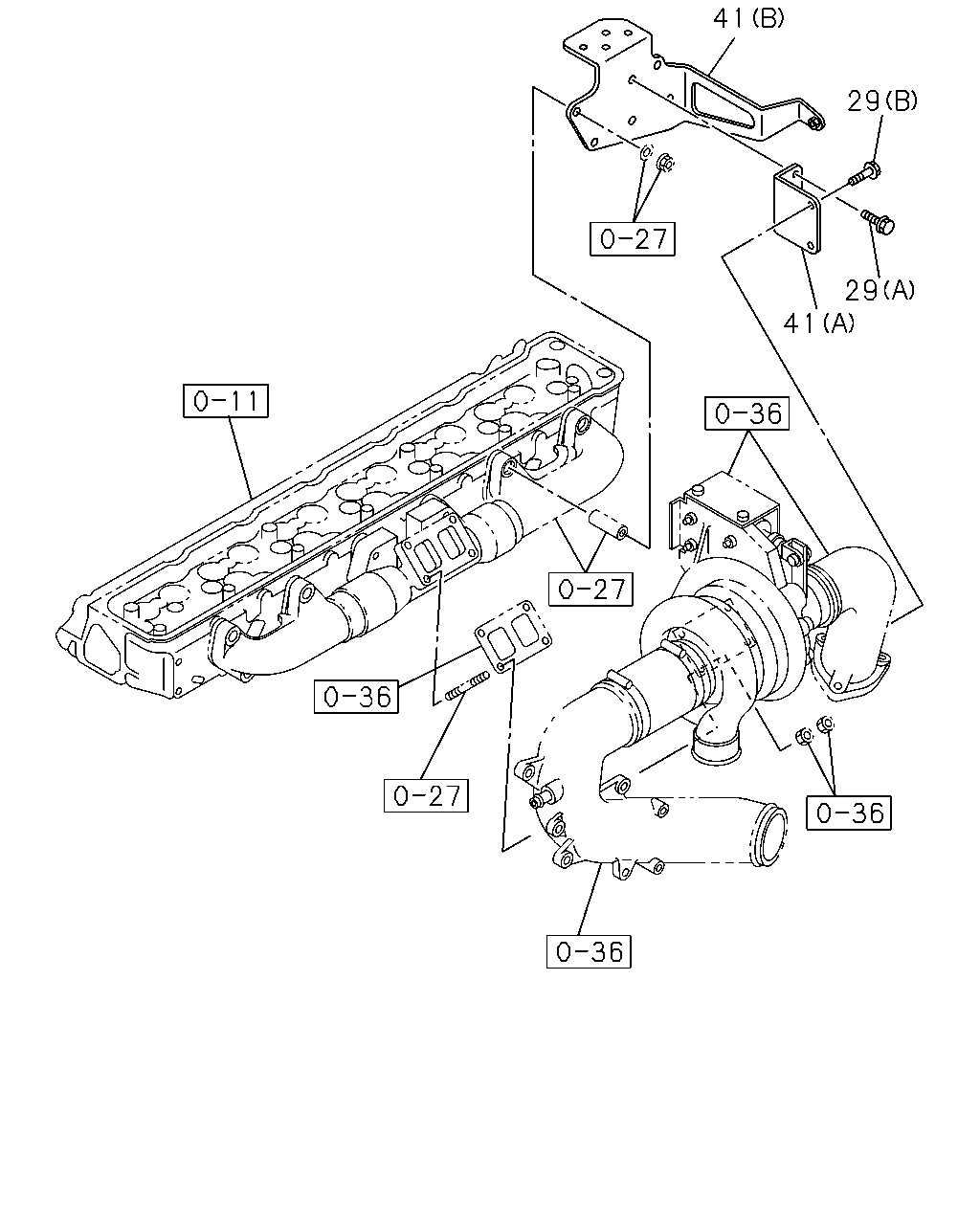

çizim 103844
41 29 29 41
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 BOLT; CONT CYL
(A) M10X25 FLANGE 		0-28681-025-0 02 1 0107-0512 ●
29 BOLT; CONT CYL
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
29 BOLT; CONT CYL
(B) M10X20 FLANGE 		0-28781-020-0 02 1 0107-0512 ●
29 BOLT; CONT CYL
(B) M10X20 FLANGE 		0-28751-020-0 02 1 0601- ●
41 BRACKET
(A) 		1-14149-243-0 01 1 0107- ●
41 BRACKET
(B) 		1-14149-248-1 01 1 0107- ●
