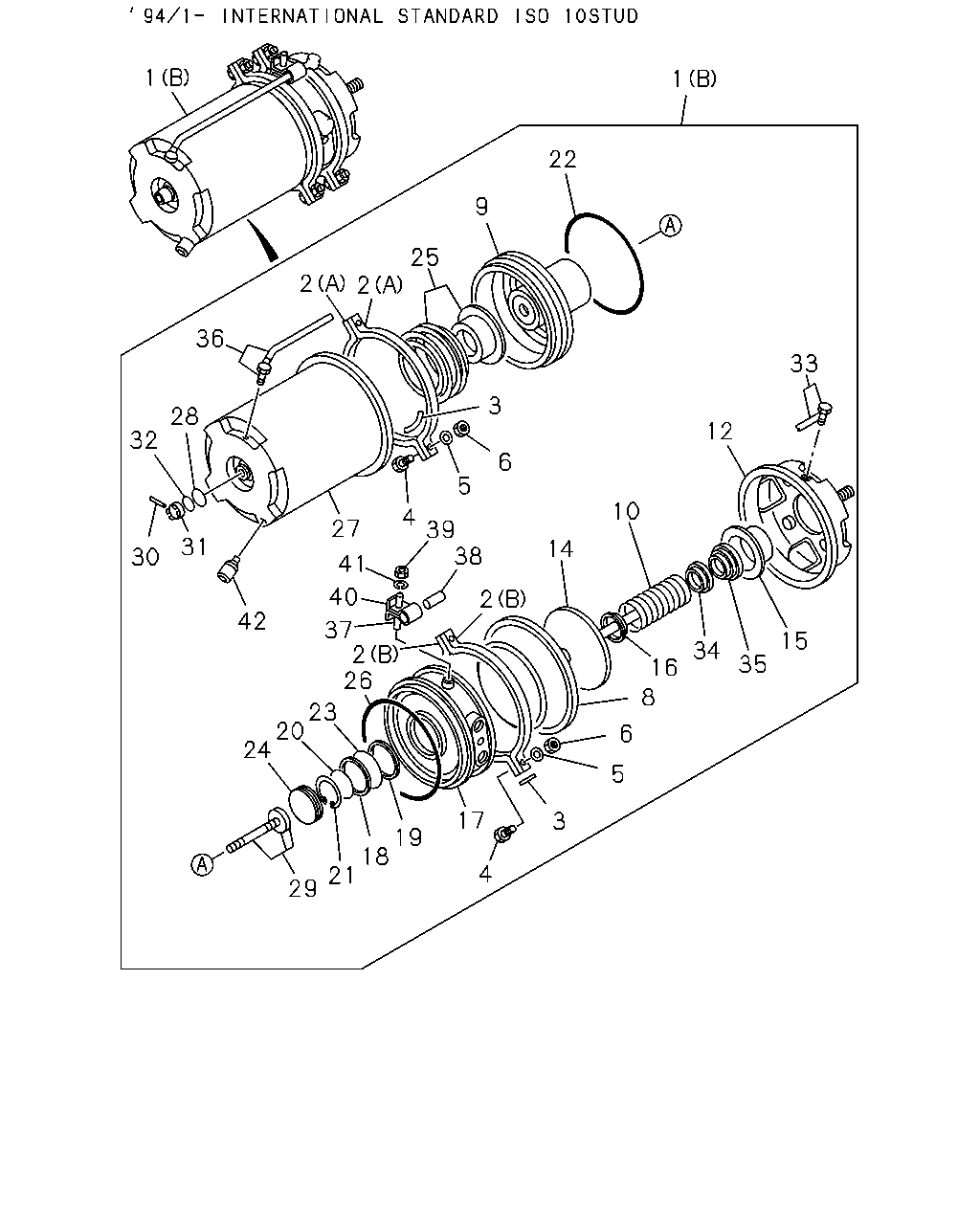

3-40 — FRONT BRAKE POWER CHAMBER (#2477) — 103 parça

1 1 22 9 25 2 2 36 33 3 28 12 32 6 5 10 4 39 38 27 31 14 30 41 40 2 42 37 2 26 15 34 35 16 8 23 20 24 6 5 17 3 19 18 4 21 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-062-1	02	1	9002-9312
1	CHAMBER ASM; POWER,FRT BRK EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-48250-062-2	02	1	9401-
1	CHAMBER ASM; POWER,FRT BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-48250-496-1	01	1	9401-
1	CHAMBER ASM; POWER,FRT BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-48250-495-1	01	1	9401-
2	RING; CLAMP,SPR CHAMBER (C)	1-48259-001-0	02	1	9002-9312
2	RING; CLAMP,SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (C)	1-48259-001-0	02	1	9401-
2	RING; CLAMP,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-48259-016-0	04	1	9401-
2	RING; CLAMP,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-48259-031-0	04	1	9401-
3	RETAINER; DIAPH	1-48259-016-0	02	1	9002-9306
3	RETAINER; DIAPH	9-48259-016-0	02	1	9307-9312
3	RETAINER; DIAPH EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	9-48259-016-0	02	1	9401-
3	RETAINER; DIAPH INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48250-044-0	04	1	9401-
4	BOLT; CLAMP RING	1-48259-002-0	04	1	9002-9312
4	BOLT; CLAMP RING EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-002-0	04	1	9401-
4	BOLT; CLAMP RING INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-092-0	08	1	9401-
5	WASHER; LK,CLAMP RING ID=10.2	9-09150-510-0	04	1	9002-9312
5	WASHER; LK,CLAMP RING EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> ID=10.2	9-09150-510-0	04	1	9401-
5	WASHER; LK,CLAMP RING INTERNATIONAL STANDARD ISO 10STUD<B3V> ID=10.2	9-09150-510-0	08	1	9401-
6	NUT; CLAMP RING M10	9-09110-010-0	04	1	9002-9312
6	NUT; CLAMP RING EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M10	9-09110-010-0	04	1	9401-
6	NUT; CLAMP RING INTERNATIONAL STANDARD ISO 10STUD<B3V>	9-83315-080-0	08	1	9401-
8	DIAPHRAGM; SPR CHAMBER	1-48252-006-0	02	1	9002-9312
8	DIAPHRAGM; SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48252-006-0	02	1	9401-
8	DIAPHRAGM; SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-011-0	02	1	9401-
9	PISTON; SPR CHAMBER	1-48253-001-0	02	1	9002-9312
9	PISTON; SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48253-001-0	02	1	9401-
9	PISTON; SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48262-005-0	02	1	9401-
10	SPRING; PISTON,SPR CHAMBER	1-48255-001-0	02	1	9002-9312
10	SPRING; PISTON,SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48255-001-0	02	1	9401-
10	SPRING; PISTON,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48255-003-0	02	1	9401-
12	COVER ASM; LWR,SPR CHAMBER	1-48251-019-0	02	1	9002-9312
12	COVER ASM; LWR,SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48251-019-0	02	1	9401-
12	COVER ASM; LWR,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-082-1	01	1	9401-
12	COVER ASM; LWR,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-081-1	01	1	9401-
14	PLATE; ROD END,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48253-011-0	02	1	9401-
15	RETAINER; SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-043-0	02	1	9401-
16	RETAINER; SPRING,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-033-0	02	1	9401-
17	PLATE; PRESS,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-087-0	01	1	9401-
17	PLATE; PRESS,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-088-0	01	1	9401-
18	RING; BACKUP,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-019-0	02	1	9401-
19	BEARING; SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-020-0	02	1	9401-
20	GASKET; SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-047-0	02	1	9401-
21	RING; SNAP,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-060-0	02	1	9401-
22	GASKET; PISTON,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-048-0	02	1	9401-
23	GASKET; COVER,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-049-0	02	1	9401-
24	COVER; PISTON,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48269-011-0	02	1	9401-
25	SPRING & SEAT SET INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-037-1	02	1	9401-
26	GASKET; PRESS PLATE INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-053-0	02	1	9401-
27	SHELL; CYL,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48251-034-0	01	1	9401-
27	SHELL; CYL,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48251-035-0	01	1	9401-
28	GASKET; SHELL INTERNATIONAL STANDARD ISO 10STUD<B3V>	9-09920-268-0	02	1	9401-
29	BOLT ASM; EMARGENCY INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-073-0	02	1	9401-
30	PIN; STRAIGHT,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-056-0	04	1	9401-
31	NUT; SHELL INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-054-0	02	1	9401-
32	GASKET; BOLT INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-055-0	02	1	9401-
33	PIPE ASM; LWR COVER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-080-0	02	1	9401-
34	COVER; RETAINER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-065-0	02	1	9401-
35	COVER; ROD & PLATE INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-066-0	02	1	9401-
36	PIPE ASM; SHELL INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-89922-126-1	02	1	9401-
37	STUD; BRKT INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-050-0	02	1	9401-
38	HOSE; AIR INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-051-0	02	1	9401-
39	NUT; BRKT INTERNATIONAL STANDARD ISO 10STUD<B3V>	8-94311-428-0	04	1	9401-
40	BRACKET; AIR HOSE INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-059-0	02	1	9401-
41	WASHER; LK,BRKT INTERNATIONAL STANDARD ISO 10STUD<B3V> ID=8.2	9-09150-508-0	02	1	9401-
42	COVER; EXH INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-89966-127-3	02	1	9401-

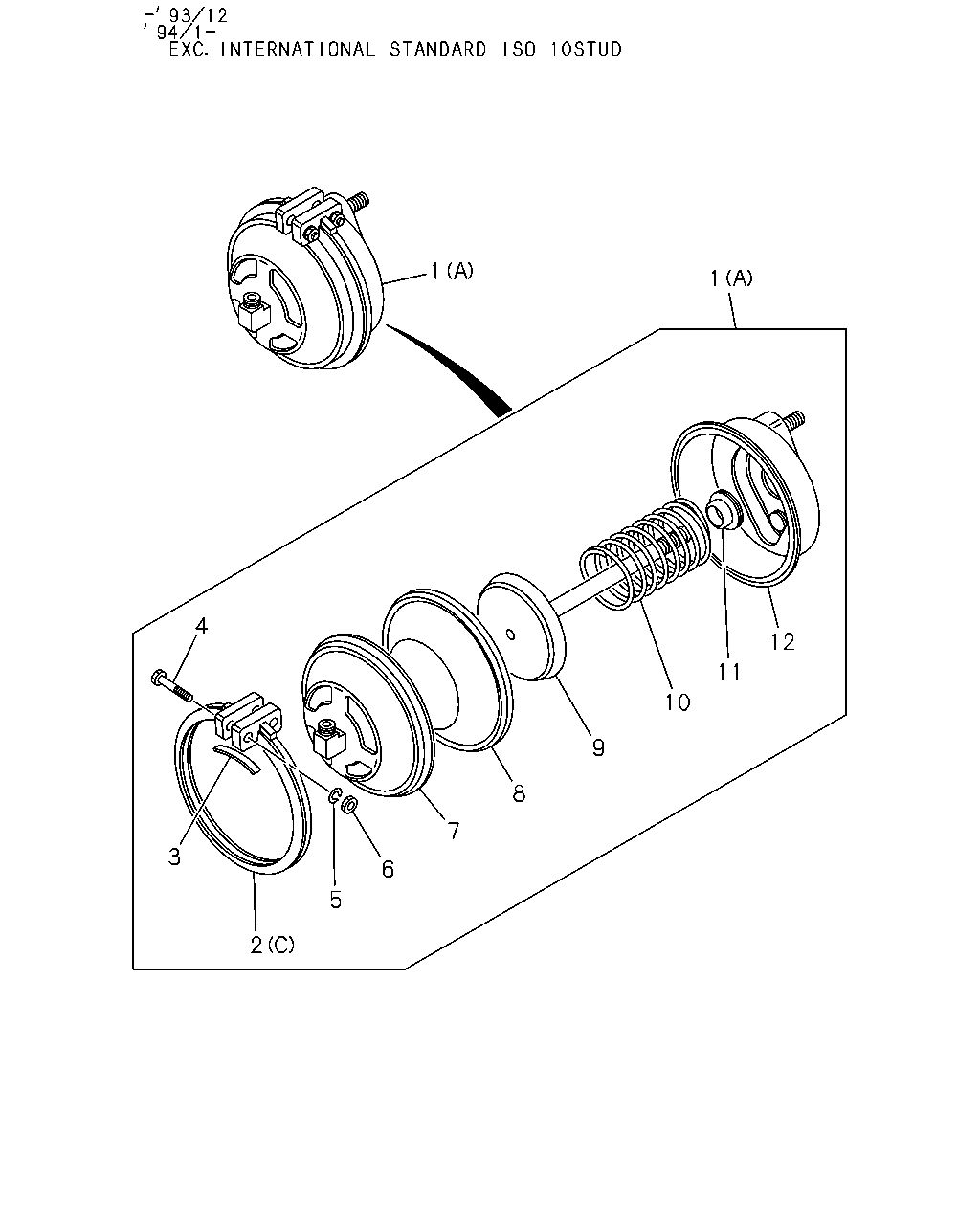

1 1 4 12 11 10 9 8 7 3 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-062-1	02	1	9002-9312
1	CHAMBER ASM; POWER,FRT BRK EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-48250-062-2	02	1	9401-
1	CHAMBER ASM; POWER,FRT BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-48250-496-1	01	1	9401-
1	CHAMBER ASM; POWER,FRT BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-48250-495-1	01	1	9401-
2	RING; CLAMP,SPR CHAMBER (C)	1-48259-001-0	02	1	9002-9312
2	RING; CLAMP,SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (C)	1-48259-001-0	02	1	9401-
2	RING; CLAMP,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-48259-016-0	04	1	9401-
2	RING; CLAMP,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-48259-031-0	04	1	9401-
3	RETAINER; DIAPH	1-48259-016-0	02	1	9002-9306
3	RETAINER; DIAPH	9-48259-016-0	02	1	9307-9312
3	RETAINER; DIAPH EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	9-48259-016-0	02	1	9401-
3	RETAINER; DIAPH INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48250-044-0	04	1	9401-
4	BOLT; CLAMP RING	1-48259-002-0	04	1	9002-9312
4	BOLT; CLAMP RING EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-002-0	04	1	9401-
4	BOLT; CLAMP RING INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-092-0	08	1	9401-
5	WASHER; LK,CLAMP RING ID=10.2	9-09150-510-0	04	1	9002-9312
5	WASHER; LK,CLAMP RING EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> ID=10.2	9-09150-510-0	04	1	9401-
5	WASHER; LK,CLAMP RING INTERNATIONAL STANDARD ISO 10STUD<B3V> ID=10.2	9-09150-510-0	08	1	9401-
6	NUT; CLAMP RING M10	9-09110-010-0	04	1	9002-9312
6	NUT; CLAMP RING EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M10	9-09110-010-0	04	1	9401-
6	NUT; CLAMP RING INTERNATIONAL STANDARD ISO 10STUD<B3V>	9-83315-080-0	08	1	9401-
7	COVER ASM; UPR,SPR CHAMBER	1-48251-002-0	02	1	9002-9312
7	COVER ASM; UPR,SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48251-002-0	02	1	9401-
8	DIAPHRAGM; SPR CHAMBER	1-48252-006-0	02	1	9002-9312
8	DIAPHRAGM; SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48252-006-0	02	1	9401-
8	DIAPHRAGM; SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-011-0	02	1	9401-
9	PISTON; SPR CHAMBER	1-48253-001-0	02	1	9002-9312
9	PISTON; SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48253-001-0	02	1	9401-
9	PISTON; SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48262-005-0	02	1	9401-
10	SPRING; PISTON,SPR CHAMBER	1-48255-001-0	02	1	9002-9312
10	SPRING; PISTON,SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48255-001-0	02	1	9401-
10	SPRING; PISTON,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48255-003-0	02	1	9401-
11	SEAL; PISTON,SPR CHAMBER	1-48252-025-0	02	1	9002-9312
11	SEAL; PISTON,SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48252-025-0	02	1	9401-
12	COVER ASM; LWR,SPR CHAMBER	1-48251-019-0	02	1	9002-9312
12	COVER ASM; LWR,SPR CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48251-019-0	02	1	9401-
12	COVER ASM; LWR,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-082-1	01	1	9401-
12	COVER ASM; LWR,SPR CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48259-081-1	01	1	9401-
