9-01 — TOOLS (#24767) — 120 parça

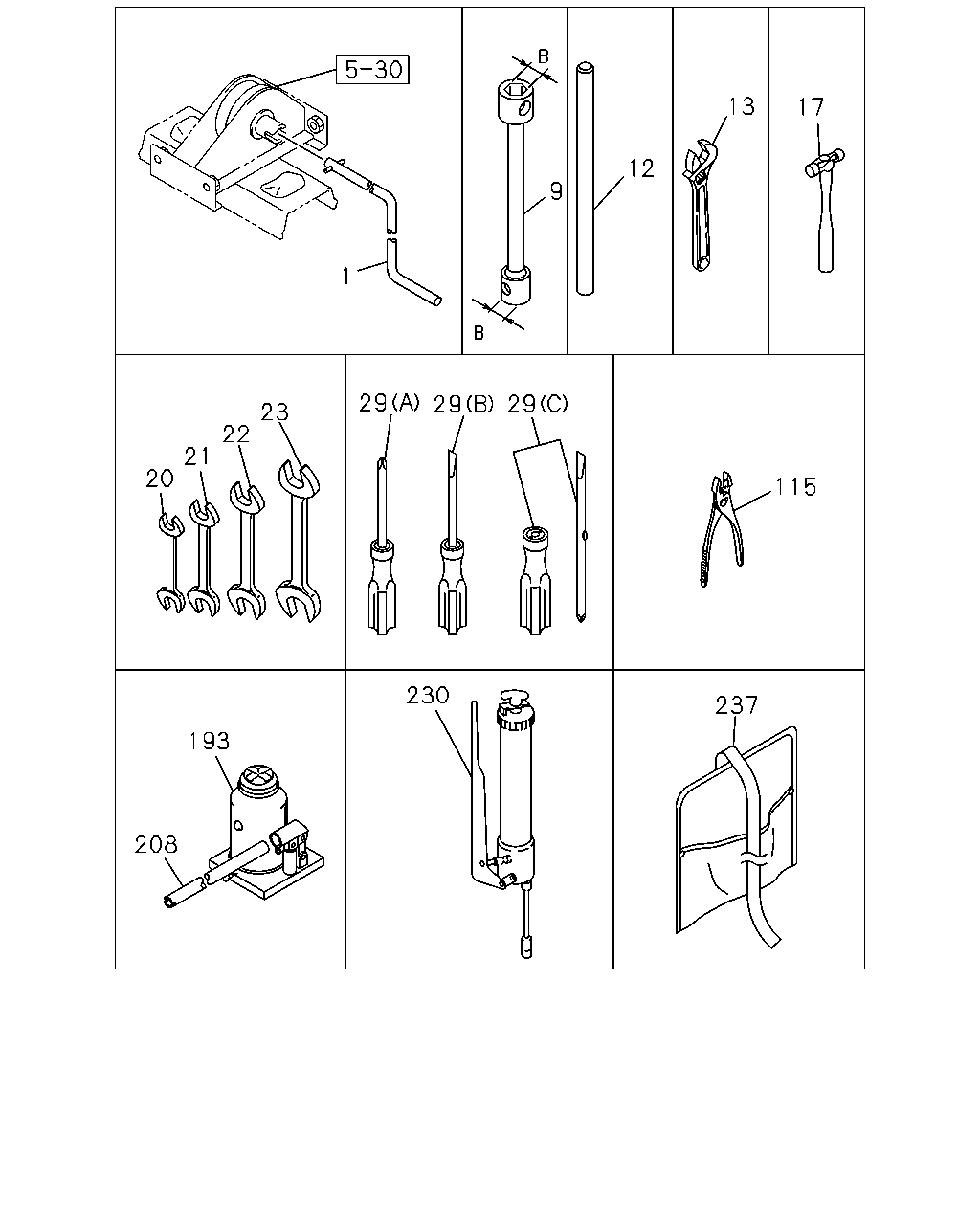

çizim 80389
13 17 12 9 1 29 29 29 23 22 21 20 115 230 237 193 208
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-018-0 01 1 9811-
9 WRENCH; WHEEL PIN
B=41X21 L=440 		1-85113-015-1 01 1 9811-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9811-1501
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502-
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0908-1407
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408-
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9811-0907
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0908-
17 HAMMER 9-85121-406-0 01 1 9811-
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9811-0607
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 0608-
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9811-0607
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0608-
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9811-0607
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 0608-
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9811-0607
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 0608-
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 9811-
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9811-
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 9811-
115 PLIER 5-85171-002-0 01 1 9811-1410
115 PLIER 8-98282-845-0 01 1 1411-
193 JACK ASM
10TON 		1-85510-013-1 01 1 9811-0504
193 JACK ASM
10TON 		8-97607-599-0 01 1 0505-
208 HANDLE; JACK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=600 		8-98181-437-0 01 1 1108-
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9811-0105
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-1107
208 HANDLE; JACK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=600 		1-85515-009-0 01 1 1108-
230 PUMP; GREASE 1-85556-007-5 01 1 9811-
237 BAG; TOOL 8-97130-902-1 01 1 9811-

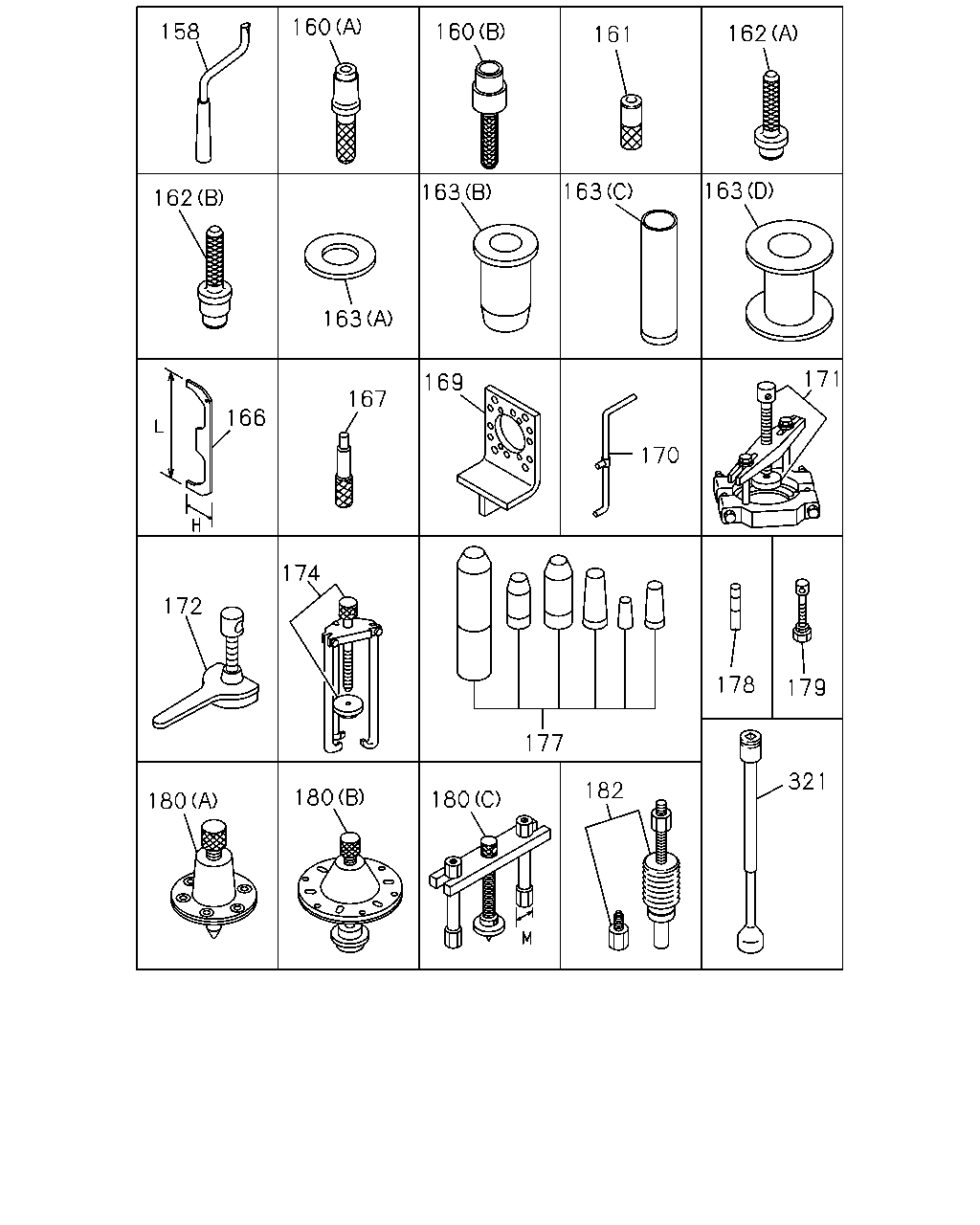

çizim 80759
160 158 160 162 161 163 163 163 162 163 171 169 167 166 170 174 172 178 179 177 321 182 180 180 180
BalonParca AdiParca NoAdetTipApplied Date
158 SETTING TOOL; RETURN SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-85221-231-0 01 1 0202-
160 REMOVER; NEEDLE BRG
(A) L=228 		1-85238-010-0 01 1 9811-0201
160 REMOVER; NEEDLE BRG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=228 		1-85238-010-0 01 1 0202-
160 REMOVER; NEEDLE BRG
FRONT AXLE F063(FS7) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=220 		1-85238-001-0 01 1 0202-
161 REMOVER; TIE ROD ARM 9-85141-603-0 01 1 9811-0201
161 REMOVER; TIE ROD ARM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-85141-603-0 01 1 0202-0203
161 REMOVER; TIE ROD ARM
FRONT AXLE F063(FS7) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85176-001-0 01 1 0202-
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 9811-
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 9811-
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 9811-0203
163 TOOL; SETTING
(D) L=150 		1-85221-163-0 01 1 9811-0203
163 TOOL; SETTING
(A) OD=120 		1-85221-164-0 01 1 9811-0203
163 TOOL; SETTING
(B) L=150 		9-85221-248-0 01 1 9811-0203
163 TOOL; SETTING
(C) L=350 		9-85221-310-0 01 1 9811-0203
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 9811-0203
167 ALIGNER; CLU PILOT
OD=35-30.6-25 L=185 		1-85253-012-0 01 1 9811-
167 ALIGNER; CLU PILOT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=35-32.5-25 L=185 		1-85253-008-0 01 1 0202-
169 BRACKET; SPLINE YOKE 9-85221-243-1 02 1 9811-0201
169 BRACKET; SPLINE YOKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-85221-243-1 02 1 0202-0203
169 BRACKET; SPLINE YOKE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-85221-243-1 01 1 0202-0203
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9811-0203
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9811-0201
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9811-0201
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 0202-0203
171 PULLER ASM; PINION BRG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-85210-172-0 01 1 0202-0203
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9811-0201
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9811-0201
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 0202-0203
172 PULLER ASM; BRG DIFF PILOT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-85210-173-0 01 1 0202-0203
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9811-
177 SETTING TOOL KIT 9-85220-040-0 01 1 9811-0203
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9811-
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9811-0203
180 PULLER; FRT & RR HUB
(B) 		1-85210-002-0 01 1 9811-0201
180 PULLER; FRT & RR HUB
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-85210-002-0 01 1 0202-
180 PULLER; FRT & RR HUB
(A) M20 		9-85210-187-0 01 1 9811-0201
180 PULLER; FRT & RR HUB
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M24 		1-85210-057-0 01 1 0202-0203
180 PULLER; FRT & RR HUB
(C) M20 		9-85210-187-0 01 1 0202-0203
182 REMOVER ASM 9-85210-095-0 01 1 9811-0203
321 SOCKET; PROP SHAFT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=300 		1-85115-024-0 01 1 0202-0203

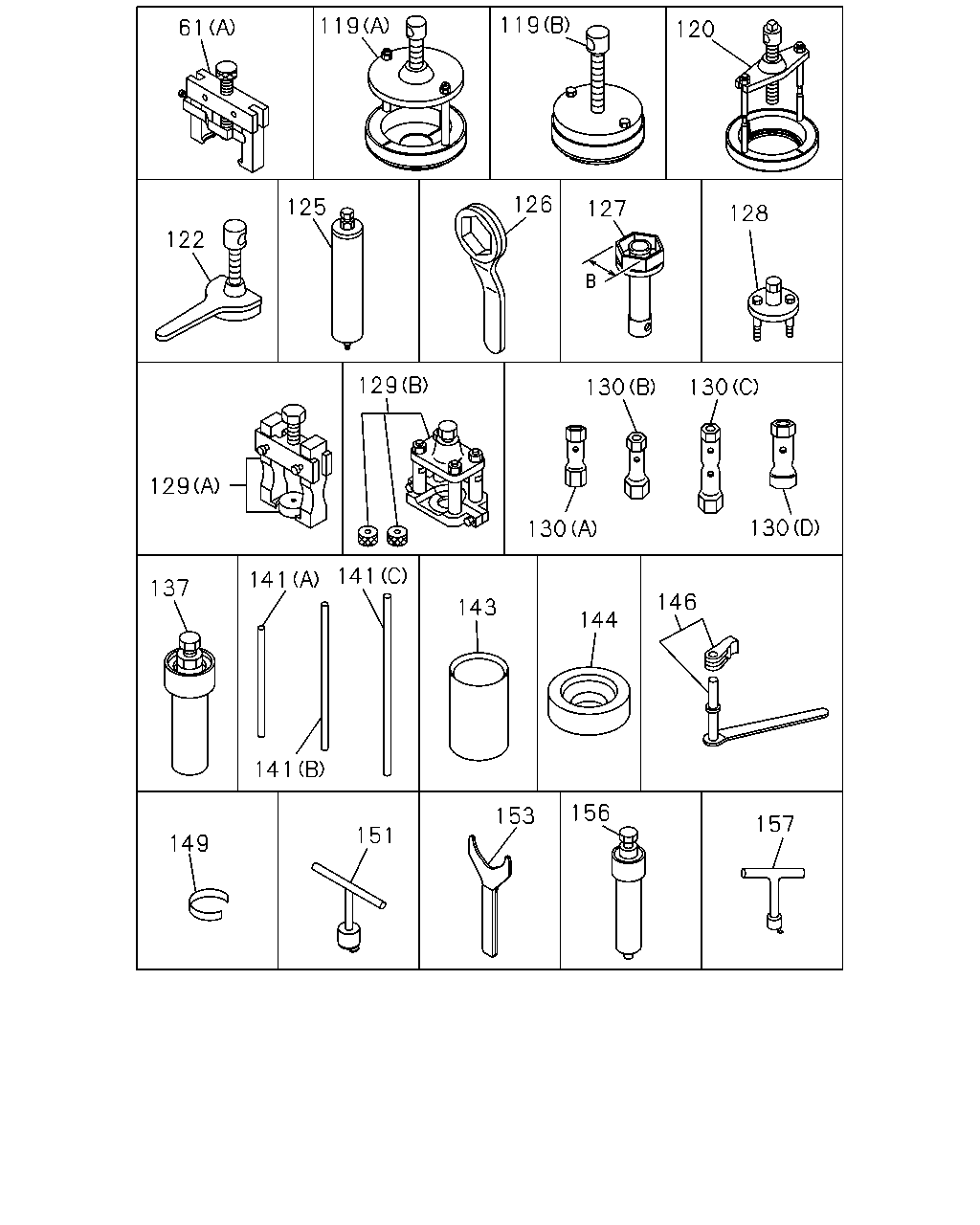

çizim 81872
119 119 61 120 126 125 127 128 122 129 130 130 129 130 130 141 141 137 146 143 144 141 156 153 157 151 149
BalonParca AdiParca NoAdetTipApplied Date
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9811-
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9811-0203
119 PULLER ASM; TOP GEAR BRG
(A) 		9-85210-185-0 01 1 9811-0203
119 PULLER ASM; TOP GEAR BRG
(B) 		9-85210-186-0 01 1 9811-0203
120 PULLER ASM; MAIN REAR BRG 9-85210-192-0 01 1 9811-0203
122 PULLER ASM; COUNTER FRT 9-85210-129-1 01 1 9811-0203
125 PULLER ASM; KING PIN
L=360 		9-85210-151-0 01 1 9811-0203
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 9811-0201
126 WRENCH; FRT HUB BRG NUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=257 B=63 		9-85111-373-0 01 1 0202-0203
126 WRENCH; FRT HUB BRG NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT AXLE F063(FS7) L=257 B=63 		9-85111-373-0 01 1 0202-0203
127 WRENCH ASM; HUB BRG NUT
B=98 L=305 		9-85113-533-0 01 1 9811-
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9811-
129 PULLER ASM; PITMAN ARM
(A) 		1-85210-011-0 01 1 9811-0201
129 PULLER ASM; PITMAN ARM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		9-85210-147-0 01 1 0202-0203
129 PULLER ASM; PITMAN ARM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-85210-011-0 01 1 0202-
129 PULLER ASM; PITMAN ARM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT AXLE F063(FS7) (A) 		1-85210-011-0 01 1 0202-
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 9811-0203
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9811-0203
130 WRENCH; BOX
(C) B=36 & 41 L=200 		9-85112-330-0 01 1 9811-0203
130 WRENCH; BOX
(B) B=41 & 46 L=165 		9-85113-401-0 01 1 9811-0203
137 PLIER; SHOE,RETURN SPRING 1-85210-025-0 01 1 9811-0201
137 PLIER; SHOE,RETURN SPRING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-85210-025-0 01 1 0202-
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 9811-1501
141 HANDLE; WRENCH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) OD=25 L=480 		8-98257-407-0 01 1 1502-
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9811-0203
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9811-0203
143 GUIDE; BOOT,TIE ROD END
FRONT AXLE F063(FS7) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85229-013-0 01 1 0202-
144 BASE; BOOT GUIDE,TIE ROD END
FRONT AXLE F063(FS7) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85229-009-0 01 1 0202-
146 REPLACER KIT; LEAF SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85237-017-0 01 1 0202-
149 PLATE; PILOT BRG PULLER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85219-009-0 01 1 0202-0203
151 REMOVER; OIL BRK,FRT RETURN SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16 		1-85237-002-0 01 1 0202-
153 DRIVER; WASHER,THRUST WASHER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85238-002-0 01 1 0202-
156 PULLER; ANCHOR PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85210-025-0 01 1 0202-
157 REPLACER KIT; RETURN SPR
ID=16 		1-85237-002-0 01 1 9811-0201
157 REPLACER KIT; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16 		1-85237-002-0 01 1 0202-

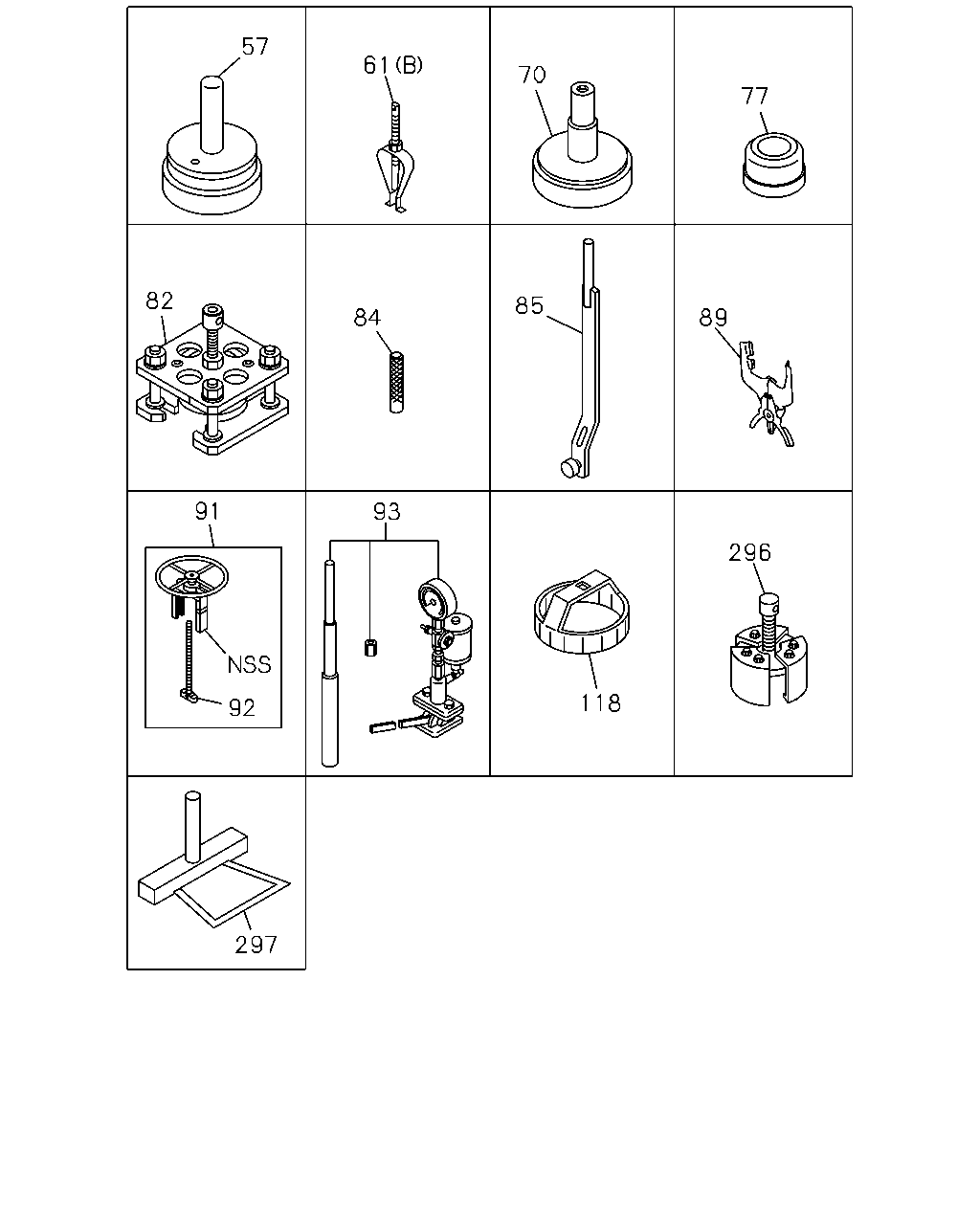

çizim 82654
57 61 70 77 82 85 84 89 91 93 296 118 92 297
BalonParca AdiParca NoAdetTipApplied Date
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 9811-0203
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9811-
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9811-0203
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 9811-0203
77 TOOL; SETTING,CYL LINER 8-94396-816-0 01 1 9811-
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 9811-0203
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 9811-
85 REPLACER ASM; VALVE SPR 8-94396-861-0 01 1 9811-0203
89 TOOL; PISTON RING 1-85221-029-0 01 1 9811-0203
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 9811-
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 9811-
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9811-
118 WRENCH; OIL FILTER 1-85221-097-0 01 1 9811-0203
296 REPLACER; SLINGER 8-94396-858-0 01 1 9811-0203
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 9811-0203
