8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#24761) — 17 parça

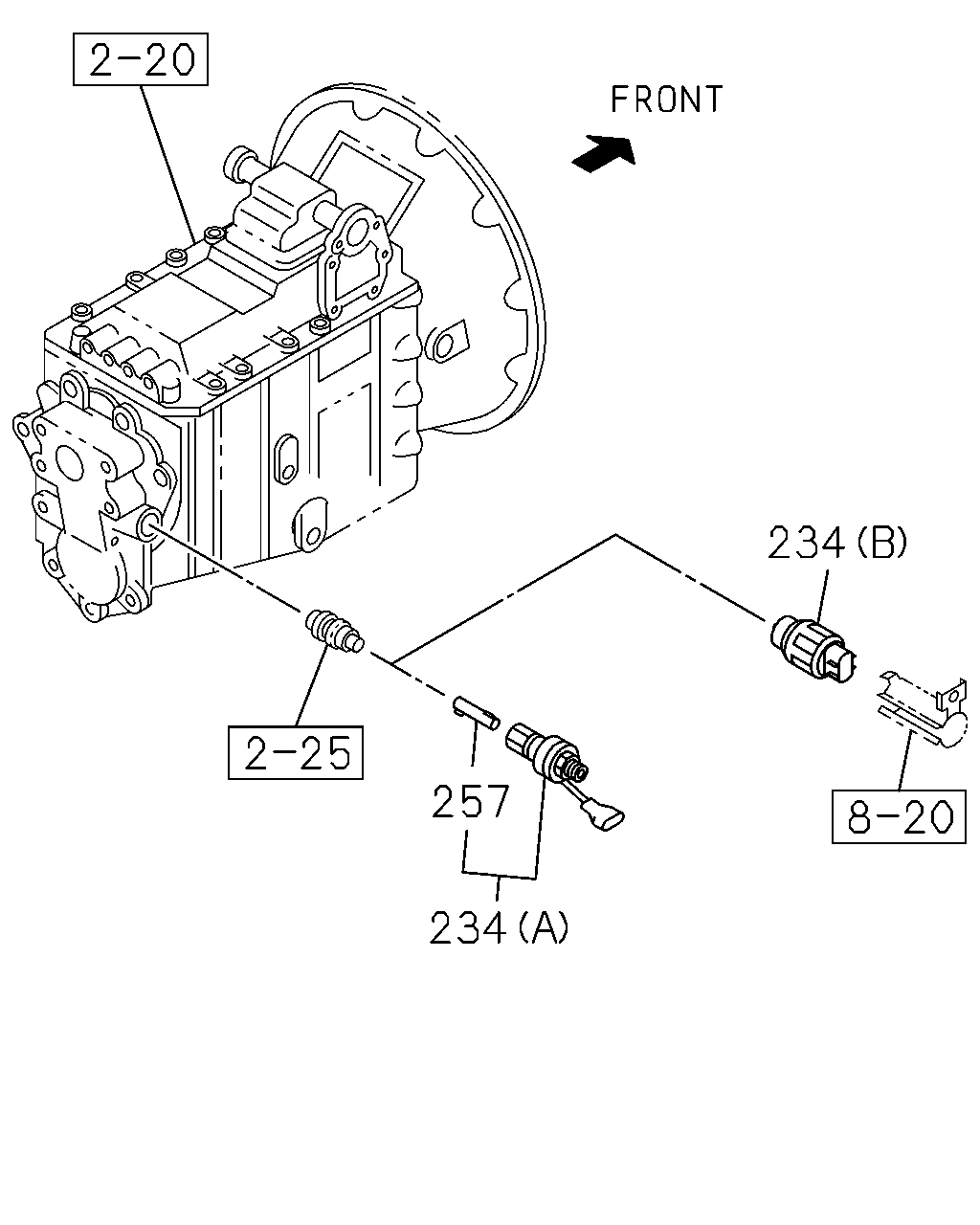

çizim 24086
234 257 234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
(A) 		1-83127-241-3 01 1 9811-0201
234 SENSOR; VEHICLE SPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-83127-241-3 01 1 0202-
234 SENSOR; VEHICLE SPD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-80240-001-1 01 1 0202-0202
234 SENSOR; VEHICLE SPD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0203-
257 KEY; SPEED SENSOR 1-83129-126-0 01 1 9811-0201
257 KEY; SPEED SENSOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83129-126-0 01 1 0202-

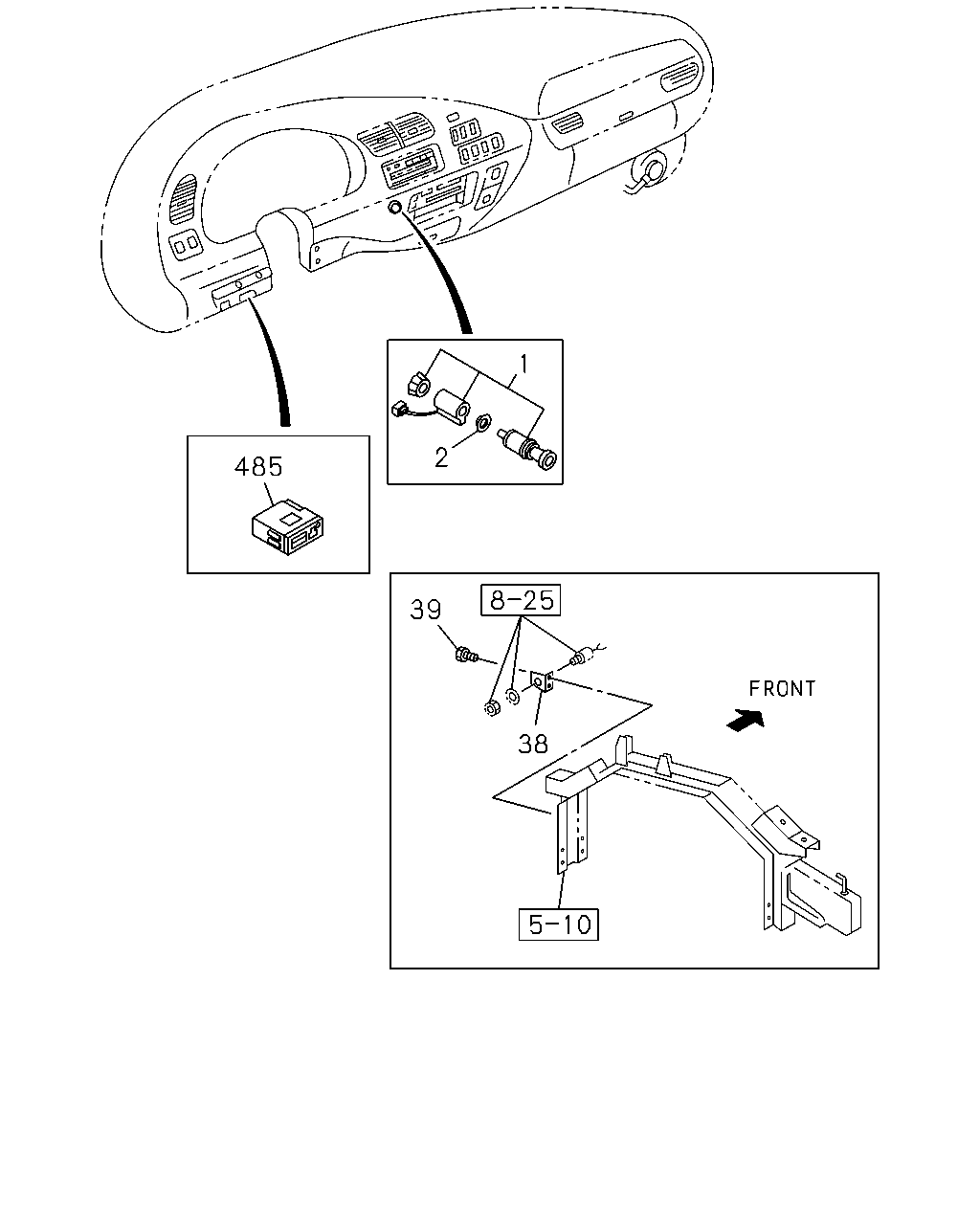

çizim 25500
1 2 485 39 38
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9811-0108
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9811-
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 9811-
39 BOLT; BRKT,STARTER SUB SW
M8X25 FLANGE 		0-28680-825-0 02 1 9811-0512
39 BOLT; BRKT,STARTER SUB SW
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9811-0201
485 CONTROL UNIT; SPEED SENSOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82540-065-0 01 1 0202-
485 CONTROL UNIT; SPEED SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-80190-038-1 01 1 0202-0402
485 CONTROL UNIT; SPEED SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-80190-149-0 01 1 0403-0410
485 CONTROL UNIT; SPEED SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-80190-158-0 01 1 0411-
