◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 3 - Brakes, Brake System ▶ 3-34 - BRAKE VALVE; AIR ▶
3-34 — BRAKE VALVE; AIR (#2476) — 47 parça

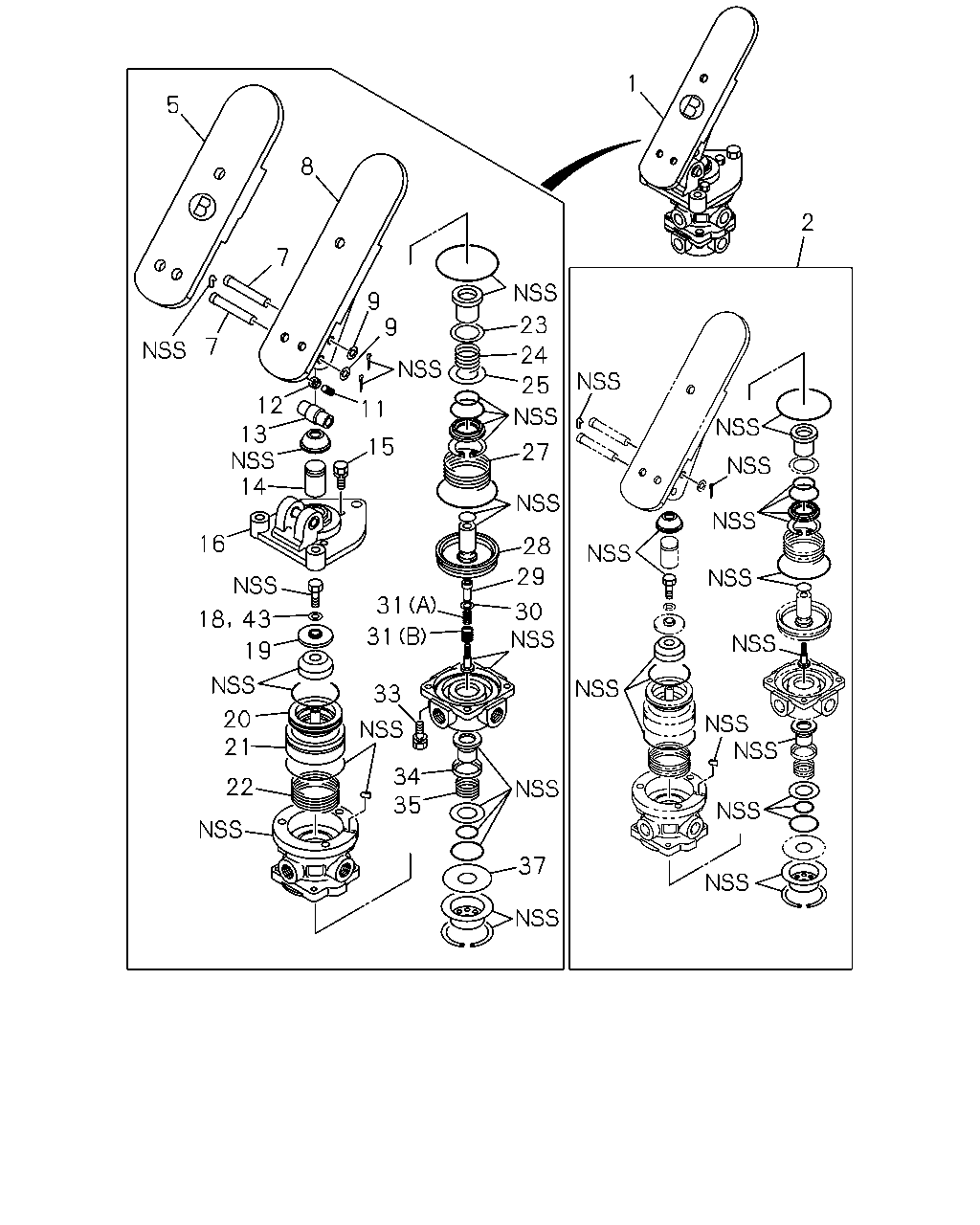

çizim 93672
1 5 8 2 7 9 9 23 7 24 25 12 13 14 11 15 27 16 28 29 31 30 31 19 33 20 21 34 35 22 37 18 43
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; BRK 1-48100-653-0 01 1 9002-9306
1 VALVE; BRK
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48100-653-1 01 1 9307-
1 VALVE; BRK
NEW ZEALAND EQUIPMENT(PK5) 		1-48100-697-0 01 1 9307-
2 REPAIR KIT; BRK VLV 1-85576-054-0 01 1 9002-
5 COVER; PEDAL,BRK VLV 1-48119-246-0 01 1 9002-9404
5 COVER; PEDAL,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-246-0 01 1 9405-9408
5 COVER; PEDAL,BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48119-246-0 01 1 9409-
5 COVER; PEDAL,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-333-0 01 1 9409-
7 PIN; PEDAL,BRK VLV 1-48119-244-0 02 1 9002-
8 PEDAL; BRK VLV 1-48119-296-0 01 1 9002-9404
8 PEDAL; BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-296-0 01 1 9405-9408
8 PEDAL; BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48119-296-0 01 1 9409-
8 PEDAL; BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-332-0 01 1 9409-
9 WASHER; PIN,BRK VLV 1-48119-106-0 02 1 9002-
11 SCREW; SET,BRK VLV 1-48119-245-0 01 1 9002-
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 9002-
13 ROLLER; PEDAL,BRK VLV 1-48119-243-0 01 1 9002-
14 PLUNGER; BRK VLV 1-48119-306-0 01 1 9002-
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 9002-
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 9002-
18 WASHER; LK,SEAT,BRK VLV 1-48419-002-0 01 1 9002-9306
19 SEAT; SPRING,BRK VLV 1-48123-058-0 01 1 9002-9404
19 SEAT; SPRING,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48123-058-0 01 1 9405-
20 PISTON; UPR,BRK VLV 1-48119-295-0 01 1 9002-9306
20 PISTON; UPR,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-295-0 01 1 9307-
20 PISTON; UPR,BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48119-294-0 01 1 9307-
21 BUSHING; UPR BODY 1-48119-293-0 01 1 9002-
22 SPRING; PISTON,LWR,BRK VLV 1-48143-009-0 01 1 9002-
23 WASHER; UPR,BRK VLV 1-48129-145-0 01 1 9002-
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 9002-
25 WASHER; PISTON,BRK VLV 1-48129-287-0 01 1 9002-9306
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 9307-
27 SPRING; PISTON,LWR,BRK VLV 1-48123-020-0 01 1 9002-9306
27 SPRING; PISTON,LWR,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48123-020-0 01 1 9307-
27 SPRING; PISTON,LWR,BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48123-052-0 01 1 9307-
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 9002-9306
28 PISTON; LWR,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-140-0 01 1 9307-
28 PISTON; LWR,BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48129-292-0 01 1 9307-
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 9002-
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 9002-
31 SPRING; VLV,BRK VLV
(A) 		1-48123-032-0 01 1 9002-
31 SPRING; VLV,BRK VLV
(B) 		1-48123-033-0 01 1 9002-
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 9002-
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 9002-
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 9002-
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 9002-
43 WASHER; SPR SEAT,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48419-002-0 01 1 9307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
