Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#24757) — 322 parça

128 16 16 48 16 171 48 48 16 48 121 171 223 229 231 470 16 48 223 581 48 223 48 213 223 230 48 16 48 128 16 128 48 171 421 148 235 148 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

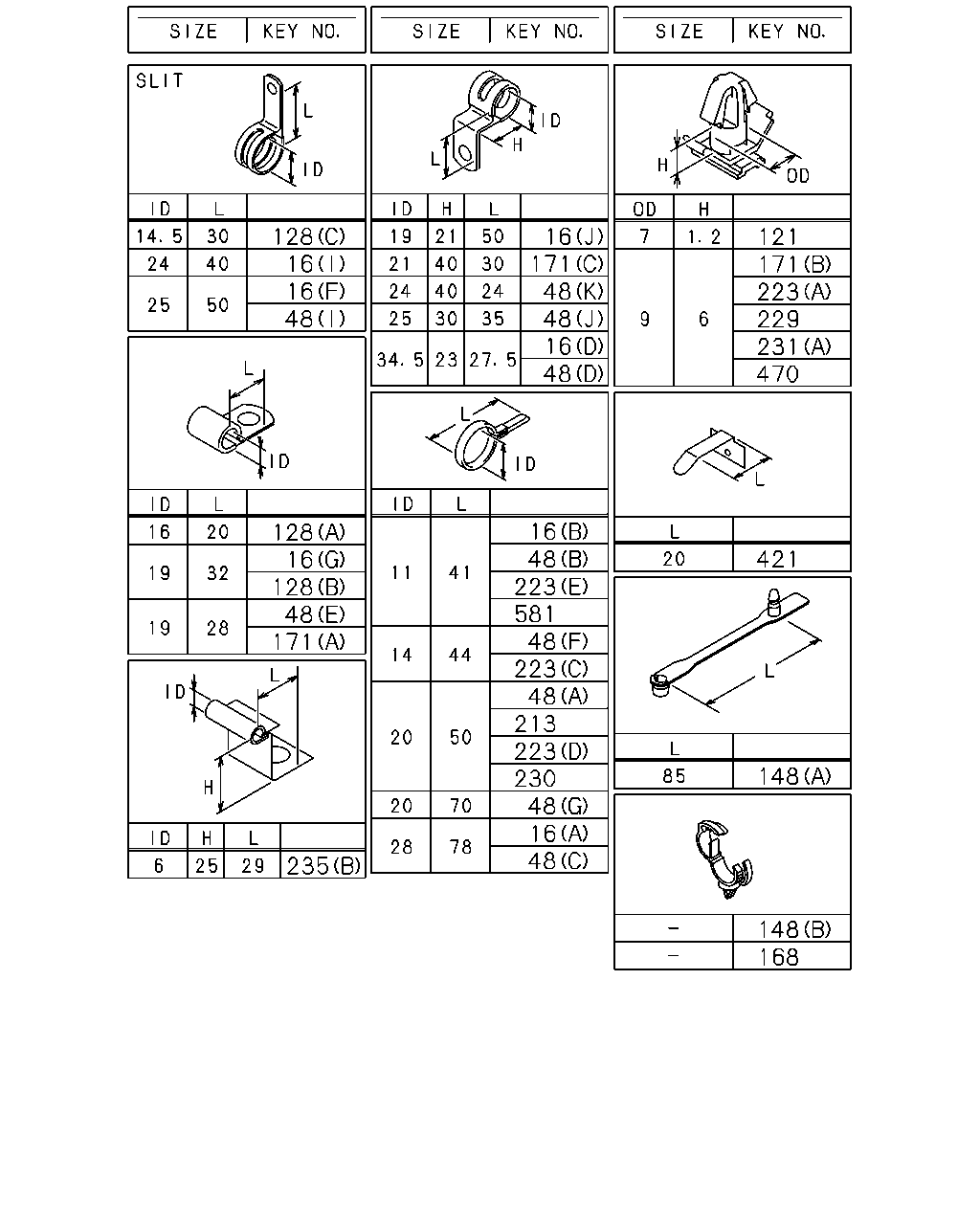

16	CLIP; HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9811-
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9811-
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9811-
16	CLIP; HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9811-
16	CLIP; HARNESS (F) ID=25 L=50	1-09701-019-0	01	1	9811-9902
16	CLIP; HARNESS (F) ID=25 L=50	1-09701-019-0	01	1	9903-0203
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (F) ID=25 L=50	1-09701-019-0	01	1	9903-0203
16	CLIP; HARNESS (F) ID=25 L=50	1-09701-019-0	01	1	0204-
16	CLIP; HARNESS (F) ID=25 L=50	1-09701-019-0	01	1	0204-
16	CLIP; HARNESS (C) ID=19 H=33 L=45	1-09701-045-0	01	1	9811-0201
16	CLIP; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=19 H=33 L=45	1-09701-045-0	01	1	0202-0203
16	CLIP; HARNESS (H) L=300	1-09707-001-1	01	1	9811-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	01	1	9811-
16	CLIP; HARNESS (G) ID=19 L=32	9-09525-866-0	01	1	9811-0203
16	CLIP; HARNESS (I) ID=24 L=40	1-09701-139-0	01	1	0204-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (J) ID=19 H=21 L=50	1-09700-910-1	01	1	9903-
16	CLIP; HARNESS 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (I) ID=24 L=40	1-09701-139-0	01	1	9903-0201
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (I) ID=24 L=40	1-09701-139-0	01	1	0202-0203
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (G) ID=19 L=32	9-09525-866-0	01	1	0204-0606
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (G) ID=19 L=32	0-95235-866-0	01	1	0607-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9811-
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	04	1	9811-
48	CLIP; FRAME HARNESS (C) ID=28 L=78	1-09700-858-0	04	1	9811-
48	CLIP; FRAME HARNESS (E) ID=19 L=28	9-09525-856-0	01	1	9811-0606
48	CLIP; FRAME HARNESS (E) ID=19 L=28	0-95235-856-0	01	1	0607-
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	02	1	9811-0201
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) ID=14 L=44	9-09917-427-0	02	1	0202-
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	14	1	9811-0201
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=50	9-09917-430-0	14	1	0202-
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	9811-0201
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	9811-0201
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=50	9-09917-430-0	01	1	0202-0203
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=50	9-09917-430-0	01	1	0202-0203
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	0204-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9811-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) ID=25 L=50	1-09700-976-0	01	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) ID=25 L=50	1-09700-976-0	01	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) L=350	1-09707-183-0	01	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (M) L=140	5-09707-031-1	03	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) ID=14 L=44	9-09917-427-0	01	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=50	9-09917-430-0	18	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=50	9-09917-430-0	02	1	0202-0203
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=50	9-09917-430-0	02	1	0202-0203
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	02	1	0204-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (J) ID=25 H=30 L=35	1-09700-875-0	01	1	9903-0201
48	CLIP; FRAME HARNESS 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (J) ID=25 H=30 L=35	1-09700-875-0	01	1	0202-0203
48	CLIP; FRAME HARNESS 6HE1 TCC ENG(76L) (J) ID=25 H=30 L=35	1-09700-875-0	01	1	0204-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (I) ID=25 L=50	1-09700-976-0	02	1	9903-0201
48	CLIP; FRAME HARNESS 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (I) ID=25 L=50	1-09700-976-0	02	1	0202-0203
48	CLIP; FRAME HARNESS 6HE1 TCC ENG(76L) (I) ID=25 L=50	1-09700-976-0	02	1	0204-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	9903-0201
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	0202-0203
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=24 H=40 L=24	1-09701-243-0	01	1	0202-0203
48	CLIP; FRAME HARNESS (K) ID=24 H=40 L=24	1-09701-243-1	01	1	0204-
48	CLIP; FRAME HARNESS 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	9903-0201
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	0202-0203
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) L=250	5-09707-030-1	01	1	0202-0203
48	CLIP; FRAME HARNESS (H) L=250	5-09707-030-1	01	1	0204-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) L=250	5-09707-030-1	01	1	0204-
121	CLIP; FACIA HARNESS OD=7 H=1.2	8-94364-750-0	02	1	9811-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	9811-0606
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0607-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=19 L=32	9-09525-862-0	01	1	9811-0011
128	CLIP; COMB SW HARNESS,STRG COLUMN (C) ID=14.5 L=30	9-09916-893-1	01	1	0012-
148	CLIP; BAND,HEADLAMP HARNESS (A) L=85	8-94232-611-0	01	1	9811-
148	CLIP; BAND,HEADLAMP HARNESS (B) ID=6 & 10-13	8-97069-515-0	01	1	9811-
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	05	1	9811-
171	CLIP; STARTER HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	9811-0201
171	CLIP; STARTER HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	9811-0201
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	0202-
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	0202-
171	CLIP; STARTER HARNESS (A) ID=19 L=28	9-09525-856-0	01	1	9811-0201
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	9-09525-856-0	01	1	0202-0203
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	9-09525-856-0	03	1	0204-0606
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	0-95235-856-0	03	1	0607-
171	CLIP; STARTER HARNESS (A) ID=19 L=28	9-09525-856-0	03	1	9811-0201
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	9-09525-856-0	03	1	0202-0203
171	CLIP; STARTER HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=19 L=28	9-09525-856-0	04	1	0204-0606
171	CLIP; STARTER HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=19 L=28	0-95235-856-0	04	1	0607-
171	CLIP; STARTER HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=21 L=30 H=40	1-09700-991-1	01	1	0202-
171	CLIP; STARTER HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=300	1-09707-001-1	01	1	0202-
171	CLIP; STARTER HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OD=9 H=6	1-09709-178-0	02	1	0202-
171	CLIP; STARTER HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=19 L=28	9-09525-856-0	04	1	0202-0203
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	9-09525-856-0	01	1	0204-0606
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	0-95235-856-0	01	1	0607-
213	CLIP; END CROSS HARNESS ID=20 L=50	9-09917-430-0	03	1	9811-
223	CLIP; AIR TANK HARNESS (E) ID=11 L=41	1-09700-403-0	01	1	9811-0201
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=11 L=41	1-09700-403-0	01	1	0202-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	03	1	9811-
223	CLIP; AIR TANK HARNESS (B) L=140	5-09707-031-1	01	1	9811-
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	9811-0201
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14 L=44	9-09917-427-0	02	1	0202-
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	03	1	9811-0201
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50	9-09917-430-0	03	1	0202-
229	CLIP; STARTER SUB SW HARNESS OD=9 H=6	1-09709-178-0	01	1	9811-
230	CLIP; C/MBR HARNESS ID=20 L=50	9-09917-430-0	02	1	9811-
231	CLIP; BAND,OIL PRESS (B) L=180	1-09707-162-1	01	1	9811-0201
231	CLIP; BAND,OIL PRESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=180	1-09707-162-1	01	1	0202-
231	CLIP; BAND,OIL PRESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OD=9 H=6	1-09709-178-0	01	1	0202-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) ID=6 H=25 L=21	1-09700-432-0	01	1	9811-0201
235	CLIP; HARNESS,SPD SENSOR,SSPS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=6 H=25 L=21	1-09700-432-0	01	1	0202-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) L=250	5-09707-030-1	01	1	9811-0201
235	CLIP; HARNESS,SPD SENSOR,SSPS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=250	5-09707-030-1	01	1	0202-
235	CLIP; HARNESS,SPD SENSOR,SSPS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=12 L=35	5-09700-206-0	01	1	0202-
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	9811-0201
421	CLIP; FLOOR HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=20 SET=10 PIECE	1-09987-246-2	05	1	0202-
421	CLIP; FLOOR HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=20 SET=10 PIECE	1-09987-246-2	01	1	0202-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	9811-
581	CLIP; HARNESS,REAR SUSP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 L=41	1-09700-403-0	03	1	0202-

312 53 335 154 53 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=95	1-82699-085-0	04	1	0202-
53	BRACKET; HARNESS EURO2 SPECIFICATION<THN> (A)	1-47476-812-1	01	1	9903-
59	BRACKET; FRAME HARNESS L=95	1-82699-085-0	01	1	9811-
154	BRACKET; STARTER EARTH CABLE	1-47465-518-0	01	1	9811-9902
154	BRACKET; STARTER EARTH CABLE 6HE1 TC ENG(57L)	1-47465-518-0	01	1	9903-0203
312	BRACKET; CLIP HARNESS	1-82699-588-0	01	1	9811-0201
312	BRACKET; CLIP HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82699-588-0	01	1	0202-
335	BRACKET; CONNECTOR	1-82699-517-0	01	1	9811-0201
335	BRACKET; CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82699-517-0	01	1	0202-
335	BRACKET; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82698-167-0	01	1	0202-

38 313 38 38 38 139 38 239 516 239 38 239 38 173 133 524 219 294 239 133 210 520 184 313 38 133 239 239 38 173 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

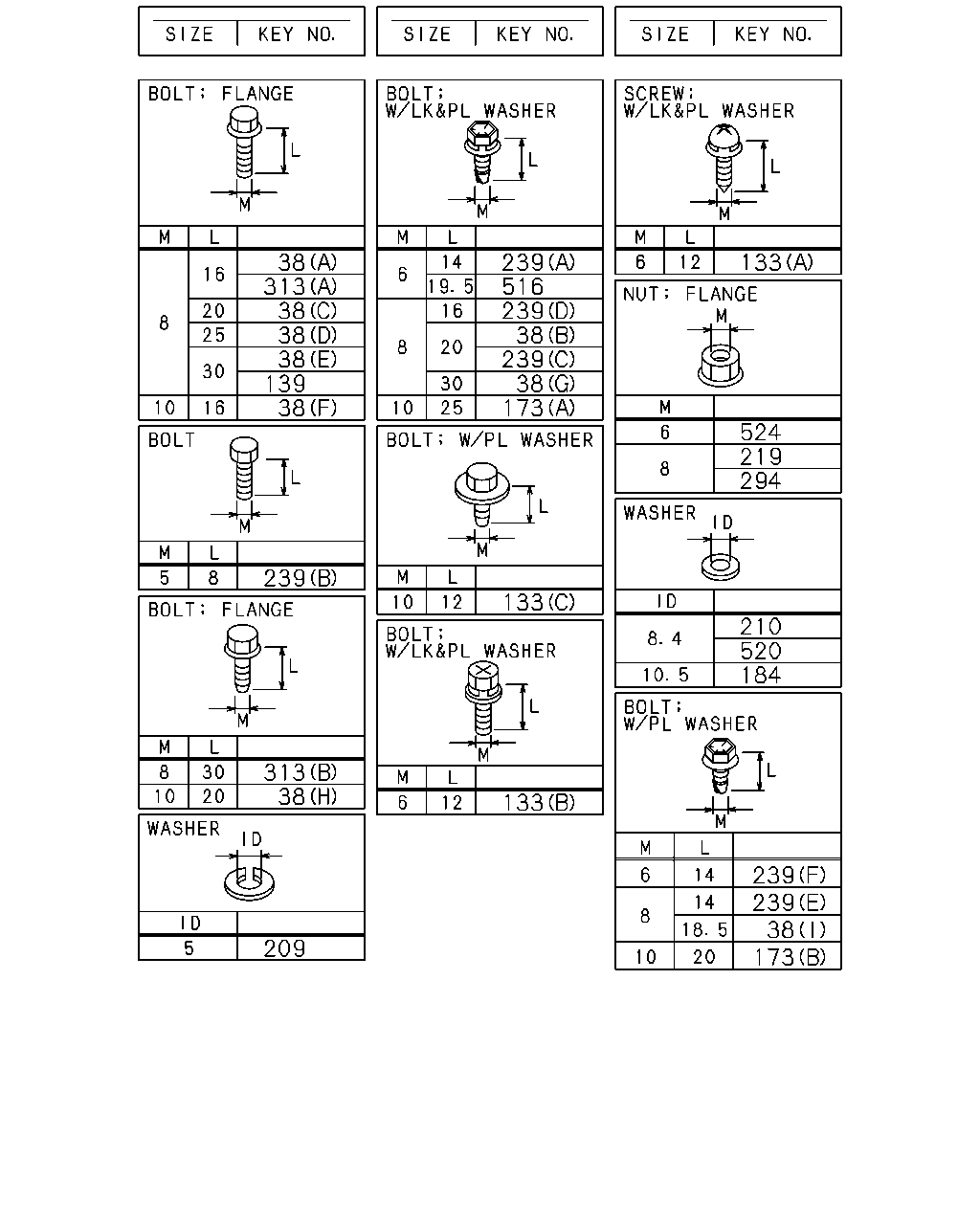

38	BOLT; CLIP,HARNESS (I) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	04	1	9811-0512
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-
38	BOLT; CLIP,HARNESS (F) M10X16 FLANGE	0-28181-016-0	01	1	9811-0201
38	BOLT; CLIP,HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M10X16 FLANGE	0-28181-016-0	01	1	0202-0512
38	BOLT; CLIP,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M10X16 FLANGE	0-28151-016-0	01	1	0601-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28680-820-0	02	1	9811-0512
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	02	1	9811-0512
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	02	1	0601-
38	BOLT; CLIP,HARNESS (E) M8X30 FLANGE	0-28680-830-0	02	1	9811-0512
38	BOLT; CLIP,HARNESS (E) M8X30 FLANGE	0-28650-830-0	02	1	0601-
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-9902
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9903-0201
38	BOLT; CLIP,HARNESS (G) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9811-0512
38	BOLT; CLIP,HARNESS (G) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0202-0203
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0202-0203
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0204-1201
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0204-1201
38	BOLT; CLIP,HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1202-
38	BOLT; CLIP,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
38	BOLT; CLIP,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
38	BOLT; CLIP,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) M10X20 FLANGE	0-28781-020-0	01	1	0202-0512
38	BOLT; CLIP,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) M10X20 FLANGE	0-28751-020-0	01	1	0601-
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (C) M8X20 FLANGE	0-28680-820-0	04	1	9903-0203
38	BOLT; CLIP,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28680-820-0	04	1	0204-0512
38	BOLT; CLIP,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28650-820-0	04	1	0601-
38	BOLT; CLIP,HARNESS 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	03	1	9903-0201
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	03	1	0202-0203
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	03	1	0204-0512
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	03	1	0601-
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9811-0110
133	SCREW; HARNESS CLIP,STRG COLUMN (C) BOLT M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-
133	SCREW; HARNESS CLIP,STRG COLUMN (B) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0107-
139	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9811-0512
139	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-
173	BOLT; STARTER EARTH (A) M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	9811-1201
173	BOLT; STARTER EARTH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1202-
173	BOLT; STARTER EARTH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X20 W/PL WASHER	8-98164-838-0	01	1	1202-
184	WASHER; PL,STARTER EARTH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0202-
209	WASHER; LK,GEN,EARTH ID=5.1	9-09150-505-0	01	1	9811-0603
209	WASHER; LK,GEN,EARTH ID=5.1	0-91510-505-0	01	1	0604-
210	WASHER; PL,GEN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8.4	1-09503-264-0	01	1	0202-
219	NUT M8 FLANGE	0-91150-108-0	02	1	9811-0602
219	NUT M8 FLANGE	0-91180-108-0	02	1	0603-
219	NUT M8 FLANGE	0-91150-108-0	04	1	9811-9902
219	NUT EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	04	1	9903-0201
219	NUT M8 FLANGE	0-91150-108-0	04	1	0202-0203
219	NUT EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	04	1	0202-0203
219	NUT M8 FLANGE	0-91150-108-0	04	1	0204-0602
219	NUT M8 FLANGE	0-91150-108-0	04	1	0204-0602
219	NUT M8 FLANGE	0-91180-108-0	04	1	0603-
219	NUT M8 FLANGE	0-91180-108-0	04	1	0603-
239	BOLT; GRAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-
239	BOLT; GRAND (B) M5X8	0-20800-508-0	01	1	9811-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9811-1201
239	BOLT; GRAND BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M6X14 W/PL WASHER	8-98164-836-0	02	1	1202-
239	BOLT; GRAND (C) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-0201
239	BOLT; GRAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0202-
239	BOLT; GRAND BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0202-1201
239	BOLT; GRAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1202-
294	NUT M8 FLANGE	0-91150-108-0	01	1	9811-0201
294	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0202-0602
294	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0603-
294	NUT M8 FLANGE	0-91150-108-0	02	1	9811-0201
294	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	0202-0602
294	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	04	1	0603-
294	NUT M8 FLANGE	0-91150-108-0	02	1	0202-0602
294	NUT M8 FLANGE	0-91180-108-0	02	1	0603-
313	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9811-0201
313	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
313	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
313	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28680-830-0	04	1	0202-0512
313	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28650-830-0	04	1	0601-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-
520	WASHER; PL,EARTH CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8.4	1-09503-264-0	01	1	0202-
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	01	1	9811-0602
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0603-

33 48 81 206 223 228 305 14 16 33 48 217 235 16 217 16 235 171 48 14 194 231 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=180	1-09707-162-1	01	1	0202-
14	CLIP; BAND,HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) L=250	5-09707-030-1	30	1	9906-
16	CLIP; HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9811-
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9811-
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9811-
16	CLIP; HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9811-
16	CLIP; HARNESS (F) ID=25 L=50	1-09701-019-0	01	1	9811-9902
16	CLIP; HARNESS (F) ID=25 L=50	1-09701-019-0	01	1	9903-0203
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (F) ID=25 L=50	1-09701-019-0	01	1	9903-0203
16	CLIP; HARNESS (F) ID=25 L=50	1-09701-019-0	01	1	0204-
16	CLIP; HARNESS (F) ID=25 L=50	1-09701-019-0	01	1	0204-
16	CLIP; HARNESS (C) ID=19 H=33 L=45	1-09701-045-0	01	1	9811-0201
16	CLIP; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=19 H=33 L=45	1-09701-045-0	01	1	0202-0203
16	CLIP; HARNESS (H) L=300	1-09707-001-1	01	1	9811-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	01	1	9811-
16	CLIP; HARNESS (G) ID=19 L=32	9-09525-866-0	01	1	9811-0203
16	CLIP; HARNESS (I) ID=24 L=40	1-09701-139-0	01	1	0204-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (J) ID=19 H=21 L=50	1-09700-910-1	01	1	9903-
16	CLIP; HARNESS 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (I) ID=24 L=40	1-09701-139-0	01	1	9903-0201
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (I) ID=24 L=40	1-09701-139-0	01	1	0202-0203
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (G) ID=19 L=32	9-09525-866-0	01	1	0204-0606
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (G) ID=19 L=32	0-95235-866-0	01	1	0607-
33	CLIP; HARNESS,VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=140	5-09707-031-1	01	1	0202-0810
33	CLIP; HARNESS,VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	5-09707-030-1	03	1	0811-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9811-
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	04	1	9811-
48	CLIP; FRAME HARNESS (C) ID=28 L=78	1-09700-858-0	04	1	9811-
48	CLIP; FRAME HARNESS (E) ID=19 L=28	9-09525-856-0	01	1	9811-0606
48	CLIP; FRAME HARNESS (E) ID=19 L=28	0-95235-856-0	01	1	0607-
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	02	1	9811-0201
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) ID=14 L=44	9-09917-427-0	02	1	0202-
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	14	1	9811-0201
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=50	9-09917-430-0	14	1	0202-
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	9811-0201
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	9811-0201
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=50	9-09917-430-0	01	1	0202-0203
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=50	9-09917-430-0	01	1	0202-0203
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	0204-
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9811-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) ID=25 L=50	1-09700-976-0	01	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) ID=25 L=50	1-09700-976-0	01	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) L=350	1-09707-183-0	01	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (M) L=140	5-09707-031-1	03	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) ID=14 L=44	9-09917-427-0	01	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=50	9-09917-430-0	18	1	0202-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=50	9-09917-430-0	02	1	0202-0203
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=50	9-09917-430-0	02	1	0202-0203
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	02	1	0204-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (J) ID=25 H=30 L=35	1-09700-875-0	01	1	9903-0201
48	CLIP; FRAME HARNESS 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (J) ID=25 H=30 L=35	1-09700-875-0	01	1	0202-0203
48	CLIP; FRAME HARNESS 6HE1 TCC ENG(76L) (J) ID=25 H=30 L=35	1-09700-875-0	01	1	0204-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (I) ID=25 L=50	1-09700-976-0	02	1	9903-0201
48	CLIP; FRAME HARNESS 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (I) ID=25 L=50	1-09700-976-0	02	1	0202-0203
48	CLIP; FRAME HARNESS 6HE1 TCC ENG(76L) (I) ID=25 L=50	1-09700-976-0	02	1	0204-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	9903-0201
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	0202-0203
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=24 H=40 L=24	1-09701-243-0	01	1	0202-0203
48	CLIP; FRAME HARNESS (K) ID=24 H=40 L=24	1-09701-243-1	01	1	0204-
48	CLIP; FRAME HARNESS 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	9903-0201
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	0202-0203
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) L=250	5-09707-030-1	01	1	0202-0203
48	CLIP; FRAME HARNESS (H) L=250	5-09707-030-1	01	1	0204-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) L=250	5-09707-030-1	01	1	0204-
81	CLIP; HARNESS L=140	5-09707-031-1	02	1	9811-
171	CLIP; STARTER HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	9811-0201
171	CLIP; STARTER HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	9811-0201
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	0202-
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	0202-
171	CLIP; STARTER HARNESS (A) ID=19 L=28	9-09525-856-0	01	1	9811-0201
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	9-09525-856-0	01	1	0202-0203
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	9-09525-856-0	03	1	0204-0606
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	0-95235-856-0	03	1	0607-
171	CLIP; STARTER HARNESS (A) ID=19 L=28	9-09525-856-0	03	1	9811-0201
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	9-09525-856-0	03	1	0202-0203
171	CLIP; STARTER HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=19 L=28	9-09525-856-0	04	1	0204-0606
171	CLIP; STARTER HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=19 L=28	0-95235-856-0	04	1	0607-
171	CLIP; STARTER HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=21 L=30 H=40	1-09700-991-1	01	1	0202-
171	CLIP; STARTER HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=300	1-09707-001-1	01	1	0202-
171	CLIP; STARTER HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OD=9 H=6	1-09709-178-0	02	1	0202-
171	CLIP; STARTER HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=19 L=28	9-09525-856-0	04	1	0202-0203
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	9-09525-856-0	01	1	0204-0606
171	CLIP; STARTER HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	0-95235-856-0	01	1	0607-
194	CLIP; BAND L=180	1-09707-162-1	01	1	9811-0201
194	CLIP; BAND BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=180	1-09707-162-1	02	1	0202-
194	CLIP; BAND L=180	1-09707-162-1	01	1	0202-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	9811-
217	CLIP; RR BODY HARNESS (A) ID=15 L=70	1-09700-980-0	02	1	9811-
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-1	02	1	9811-
223	CLIP; AIR TANK HARNESS (E) ID=11 L=41	1-09700-403-0	01	1	9811-0201
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=11 L=41	1-09700-403-0	01	1	0202-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	03	1	9811-
223	CLIP; AIR TANK HARNESS (B) L=140	5-09707-031-1	01	1	9811-
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	9811-0201
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14 L=44	9-09917-427-0	02	1	0202-
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	03	1	9811-0201
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50	9-09917-430-0	03	1	0202-
228	CLIP; COOLER HARNESS L=140	5-09707-031-1	01	1	9811-0203
228	CLIP; COOLER HARNESS EURO2 SPECIFICATION<THN> L=140	5-09707-031-1	01	1	0204-
231	CLIP; BAND,OIL PRESS (B) L=180	1-09707-162-1	01	1	9811-0201
231	CLIP; BAND,OIL PRESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=180	1-09707-162-1	01	1	0202-
231	CLIP; BAND,OIL PRESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OD=9 H=6	1-09709-178-0	01	1	0202-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) ID=6 H=25 L=21	1-09700-432-0	01	1	9811-0201
235	CLIP; HARNESS,SPD SENSOR,SSPS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=6 H=25 L=21	1-09700-432-0	01	1	0202-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) L=250	5-09707-030-1	01	1	9811-0201
235	CLIP; HARNESS,SPD SENSOR,SSPS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=250	5-09707-030-1	01	1	0202-
235	CLIP; HARNESS,SPD SENSOR,SSPS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=12 L=35	5-09700-206-0	01	1	0202-
305	CLIP; ENG HARNESS (A) L=180	1-09707-162-1	01	1	9811-9902
305	CLIP; ENG HARNESS 6HE1 TC ENG(57L) (A) L=180	1-09707-162-1	01	1	9903-0203
305	CLIP; ENG HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=180	1-09707-162-1	01	1	0204-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<THN> (B) L=140	5-09707-031-1	02	1	9903-0201
305	CLIP; ENG HARNESS 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) L=140	5-09707-031-1	02	1	0202-0203
305	CLIP; ENG HARNESS 6HE1 TCC ENG(76L) (B) L=140	5-09707-031-1	02	1	0204-

224 224 503 513 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
178	GROMMET; HARNESS (B) ID=19 OD=23 T=24	1-09332-103-0	01	1	9811-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	9811-
224	SLEEVE; RUBBER,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=32 OD=36 L=50	1-09337-023-0	01	1	0202-
224	SLEEVE; RUBBER,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0202-
503	CONNECTOR	1-82690-668-0	01	1	9811-0201
503	CONNECTOR	1-82690-668-0	01	1	9811-0201
503	CONNECTOR	1-82690-668-0	01	1	0202-
503	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82690-668-0	01	1	0202-
513	TAPE; SOFT,HARNESS 100X30	1-72498-014-1	02	1	9811-9902
513	TAPE; SOFT,HARNESS 100X40	1-72498-022-0	02	1	9903-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
