Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#24756) — 202 parça

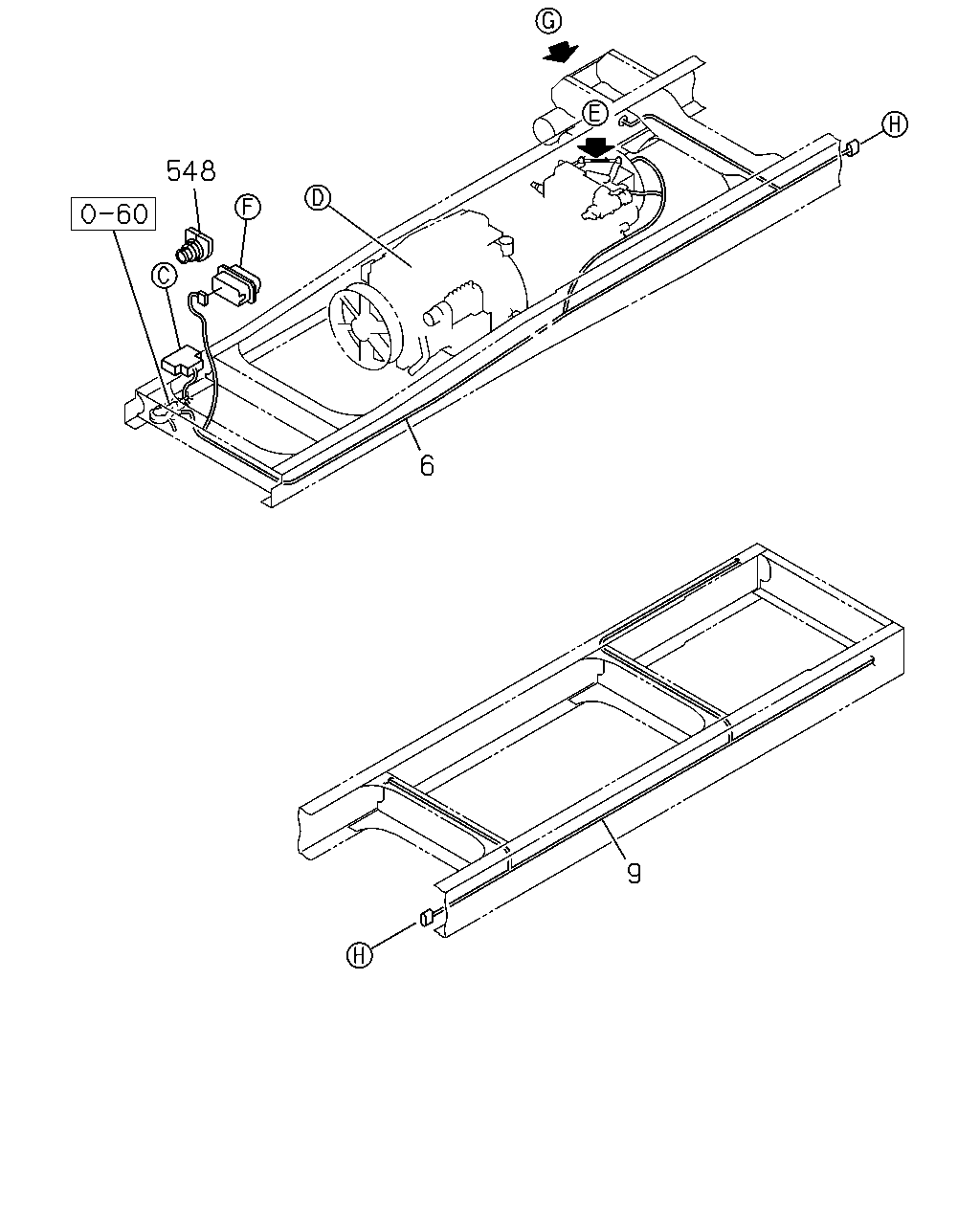

548 6 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME	1-82639-022-2	01	1	9811-9902
6	HARNESS; FRAME EXC. EURO2 SPECIFICATION<THN>	1-82639-022-2	01	1	9903-0201
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN>	1-82639-022-2	01	1	0202-0203
6	HARNESS; FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82673-004-2	01	1	0202-
6	HARNESS; FRAME EURO2 SPECIFICATION<THN>	1-82670-825-0	01	1	9903-0201
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN>	1-82670-825-0	01	1	0202-0203
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82670-825-0	01	1	0204-
9	HARNESS; FRAME,RR	1-82639-039-0	01	1	9811-0201
9	HARNESS; FRAME,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82639-039-0	01	1	0202-
9	HARNESS; FRAME,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82673-008-1	01	1	0202-
548	GROMMET 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> ID=28 H=45 L=30	1-09333-061-0	01	1	9903-0201
548	GROMMET EURO2 SPECIFICATION<THN> ID=28 H=45 L=30	1-09333-061-0	01	1	0202-0203
548	GROMMET ID=28 H=45 L=30	1-09333-061-0	01	1	0204-

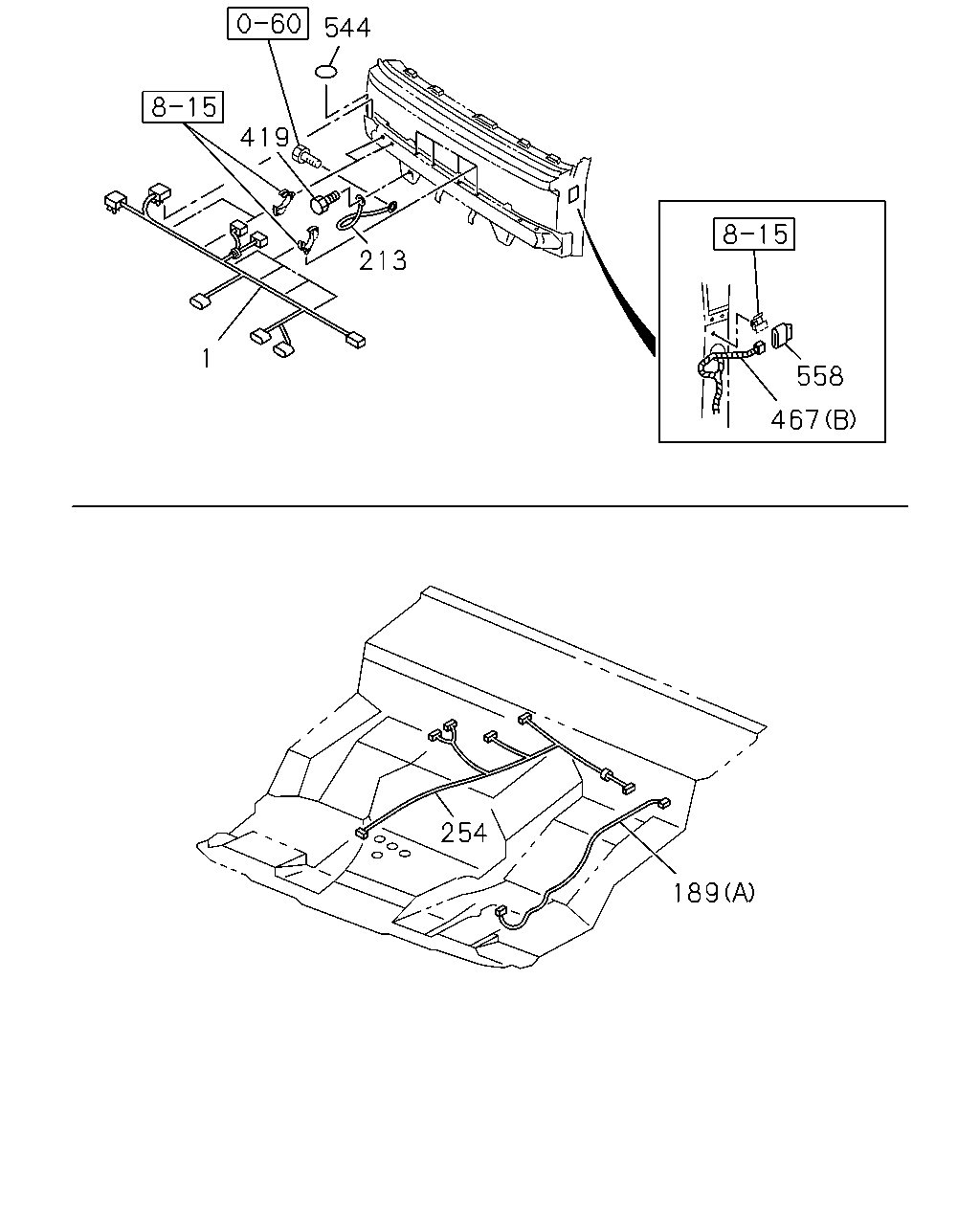

544 419 213 1 558 467 254 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB	1-82625-725-3	01	1	9811-
189	HARNESS; EXT (A)	1-82625-673-2	02	1	9811-
189	HARNESS; EXT SPEED LIMITER CABLE STROKE CONTROL<TDT> (B)	1-82629-048-0	01	1	9906-0201
189	HARNESS; EXT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPEED LIMITER CABLE STROKE CONTROL<TDT> (B)	1-82629-048-0	01	1	0202-
213	CABLE; EARTH,CAB TO FRAME	1-82657-055-1	01	1	9811-
254	HARNESS; CAB FLOOR	1-82625-711-4	01	1	9811-0201
254	HARNESS; CAB FLOOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82625-711-5	01	1	0202-
254	HARNESS; CAB FLOOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82629-307-3	01	1	0202-
419	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-0201
419	BOLT; CAB EARTH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0202-
419	BOLT; CAB EARTH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0202-1201
419	BOLT; CAB EARTH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-
467	HARNESS; FACIA (B) LOWER	1-82625-705-8	01	1	9811-9905
467	HARNESS; FACIA EXC. EURO2 SPECIFICATION<THN> (B) LOWER	1-82625-705-8	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (B) LOWER	1-82625-705-8	01	1	0202-0203
467	HARNESS; FACIA (A) UPPER	1-82625-709-4	01	1	9811-9905
467	HARNESS; FACIA EXC. EURO2 SPECIFICATION<THN> (A) UPPER	1-82625-709-5	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (A) UPPER	1-82625-709-4	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LOWER	1-82629-287-4	01	1	0202-
467	HARNESS; FACIA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) UPPER	1-82629-296-1	01	1	0202-
467	HARNESS; FACIA EURO2 SPECIFICATION<THN> (A) UPPER	1-82627-294-1	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (A) UPPRR	1-82627-294-0	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) UPPER	1-82627-294-1	01	1	0204-
467	HARNESS; FACIA EURO2 SPECIFICATION<THN> (B) LOWER	1-82627-295-4	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (B) LOWER	1-82627-295-4	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LOWER	1-82627-295-4	01	1	0204-
544	SEAL; FRT MTG RAIL OD=25 BLACK	1-76798-019-0	01	1	9811-
558	CONNECTOR; HARNESS	1-82690-666-0	02	1	9811-

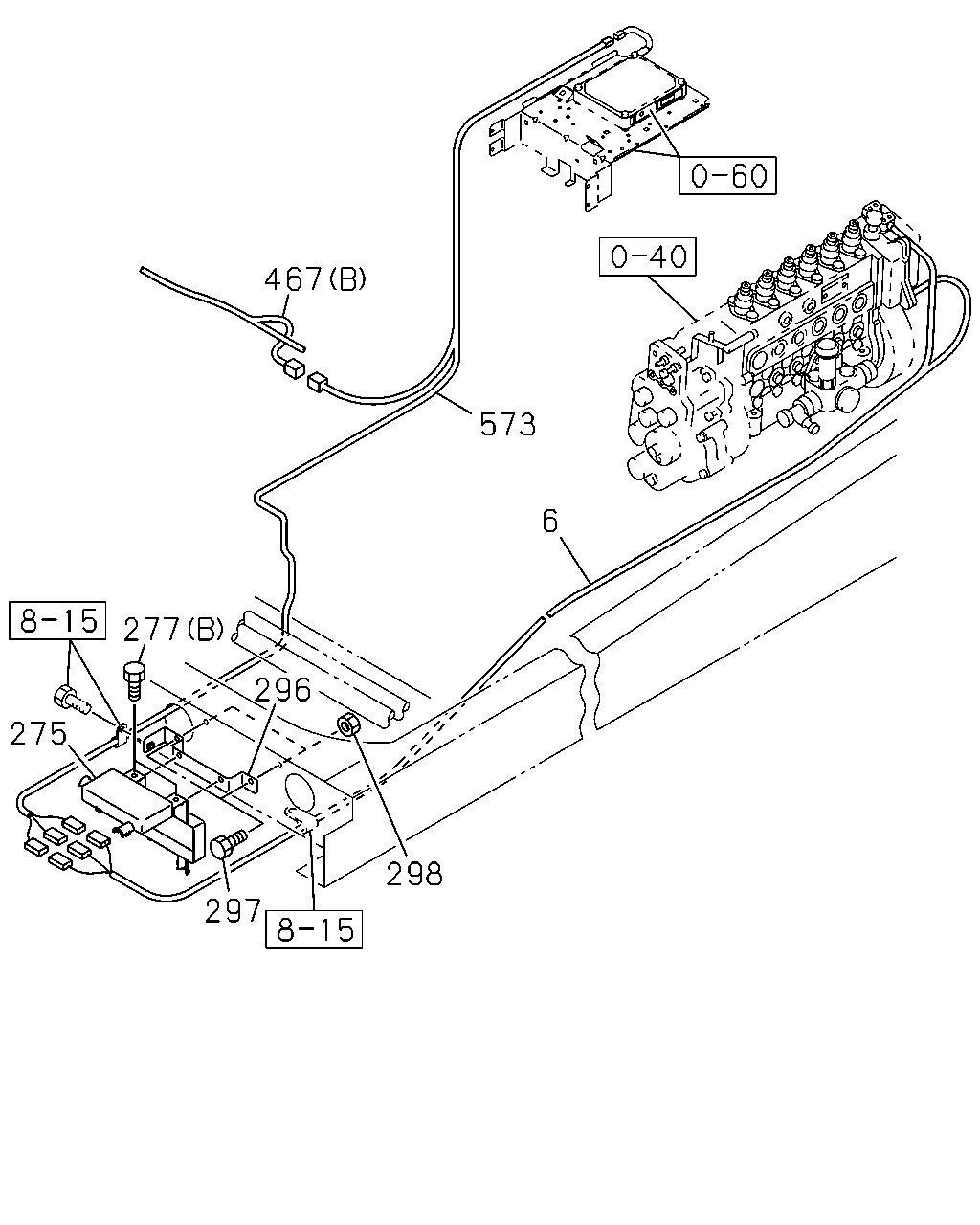

467 573 6 277 296 275 298 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME	1-82639-022-2	01	1	9811-9902
6	HARNESS; FRAME EXC. EURO2 SPECIFICATION<THN>	1-82639-022-2	01	1	9903-0201
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN>	1-82639-022-2	01	1	0202-0203
6	HARNESS; FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82673-004-2	01	1	0202-
6	HARNESS; FRAME EURO2 SPECIFICATION<THN>	1-82670-825-0	01	1	9903-0201
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN>	1-82670-825-0	01	1	0202-0203
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82670-825-0	01	1	0204-
275	BOX ASM; FRAME HARNESS 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN>	1-82699-378-0	01	1	9903-0201
275	BOX ASM; FRAME HARNESS EURO2 SPECIFICATION<THN>	1-82699-378-0	01	1	0202-0203
275	BOX ASM; FRAME HARNESS	1-82699-378-0	01	1	0204-
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	9811-0512
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-
277	BOLT; BOX ASM FIX 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE	0-28680-825-0	02	1	9903-0201
277	BOLT; BOX ASM FIX EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE	0-28680-825-0	02	1	0202-0203
277	BOLT; BOX ASM FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512
277	BOLT; BOX ASM FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
296	BRACKET; HARNESS BOX 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN>	1-82699-923-0	01	1	9903-0201
296	BRACKET; HARNESS BOX EURO2 SPECIFICATION<THN>	1-82699-923-0	01	1	0202-0203
296	BRACKET; HARNESS BOX	1-82699-923-0	01	1	0204-
297	BOLT; BOX BRKT 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	9903-0201
297	BOLT; BOX BRKT EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	0202-0203
297	BOLT; BOX BRKT M8X25 FLANGE	0-28680-825-0	02	1	0204-0512
297	BOLT; BOX BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
298	NUT; BOX BRKT 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9903-0201
298	NUT; BOX BRKT EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	0202-0203
298	NUT; BOX BRKT M8 FLANGE	0-91150-108-0	02	1	0204-0602
298	NUT; BOX BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
467	HARNESS; FACIA (B) LOWER	1-82625-705-8	01	1	9811-9905
467	HARNESS; FACIA EXC. EURO2 SPECIFICATION<THN> (B) LOWER	1-82625-705-8	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (B) LOWER	1-82625-705-8	01	1	0202-0203
467	HARNESS; FACIA (A) UPPER	1-82625-709-4	01	1	9811-9905
467	HARNESS; FACIA EXC. EURO2 SPECIFICATION<THN> (A) UPPER	1-82625-709-5	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (A) UPPER	1-82625-709-4	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LOWER	1-82629-287-4	01	1	0202-
467	HARNESS; FACIA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) UPPER	1-82629-296-1	01	1	0202-
467	HARNESS; FACIA EURO2 SPECIFICATION<THN> (A) UPPER	1-82627-294-1	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (A) UPPRR	1-82627-294-0	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) UPPER	1-82627-294-1	01	1	0204-
467	HARNESS; FACIA EURO2 SPECIFICATION<THN> (B) LOWER	1-82627-295-4	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (B) LOWER	1-82627-295-4	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LOWER	1-82627-295-4	01	1	0204-
573	HARNESS; CONTROL UNIT EURO2 SPECIFICATION<THN>	1-82627-297-2	01	1	9903-0203
573	HARNESS; CONTROL UNIT	1-82627-297-3	01	1	0204-

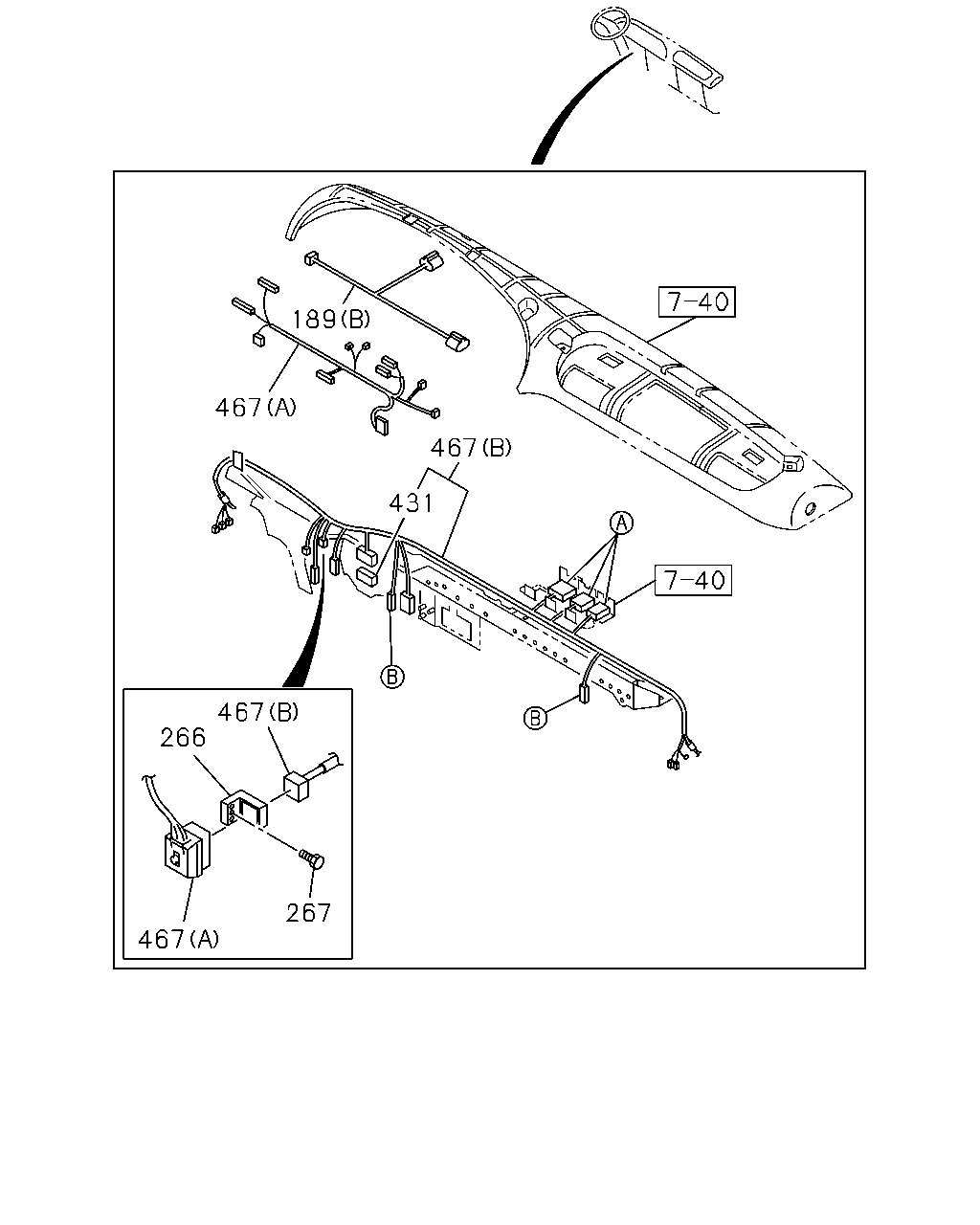

189 467 467 431 467 266 267 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
189	HARNESS; EXT (A)	1-82625-673-2	02	1	9811-
189	HARNESS; EXT SPEED LIMITER CABLE STROKE CONTROL<TDT> (B)	1-82629-048-0	01	1	9906-0201
189	HARNESS; EXT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPEED LIMITER CABLE STROKE CONTROL<TDT> (B)	1-82629-048-0	01	1	0202-
266	BRACKET; CONN BOX	1-82699-580-0	01	1	9811-
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	9811-
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	04	1	9811-0201
431	CONNECTOR; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10P BROWN	1-82699-601-0	04	1	0202-
431	CONNECTOR; JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 10P BROWN	1-82699-601-0	02	1	0202-
467	HARNESS; FACIA (B) LOWER	1-82625-705-8	01	1	9811-9905
467	HARNESS; FACIA EXC. EURO2 SPECIFICATION<THN> (B) LOWER	1-82625-705-8	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (B) LOWER	1-82625-705-8	01	1	0202-0203
467	HARNESS; FACIA (A) UPPER	1-82625-709-4	01	1	9811-9905
467	HARNESS; FACIA EXC. EURO2 SPECIFICATION<THN> (A) UPPER	1-82625-709-5	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (A) UPPER	1-82625-709-4	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LOWER	1-82629-287-4	01	1	0202-
467	HARNESS; FACIA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) UPPER	1-82629-296-1	01	1	0202-
467	HARNESS; FACIA EURO2 SPECIFICATION<THN> (A) UPPER	1-82627-294-1	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (A) UPPRR	1-82627-294-0	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) UPPER	1-82627-294-1	01	1	0204-
467	HARNESS; FACIA EURO2 SPECIFICATION<THN> (B) LOWER	1-82627-295-4	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (B) LOWER	1-82627-295-4	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LOWER	1-82627-295-4	01	1	0204-

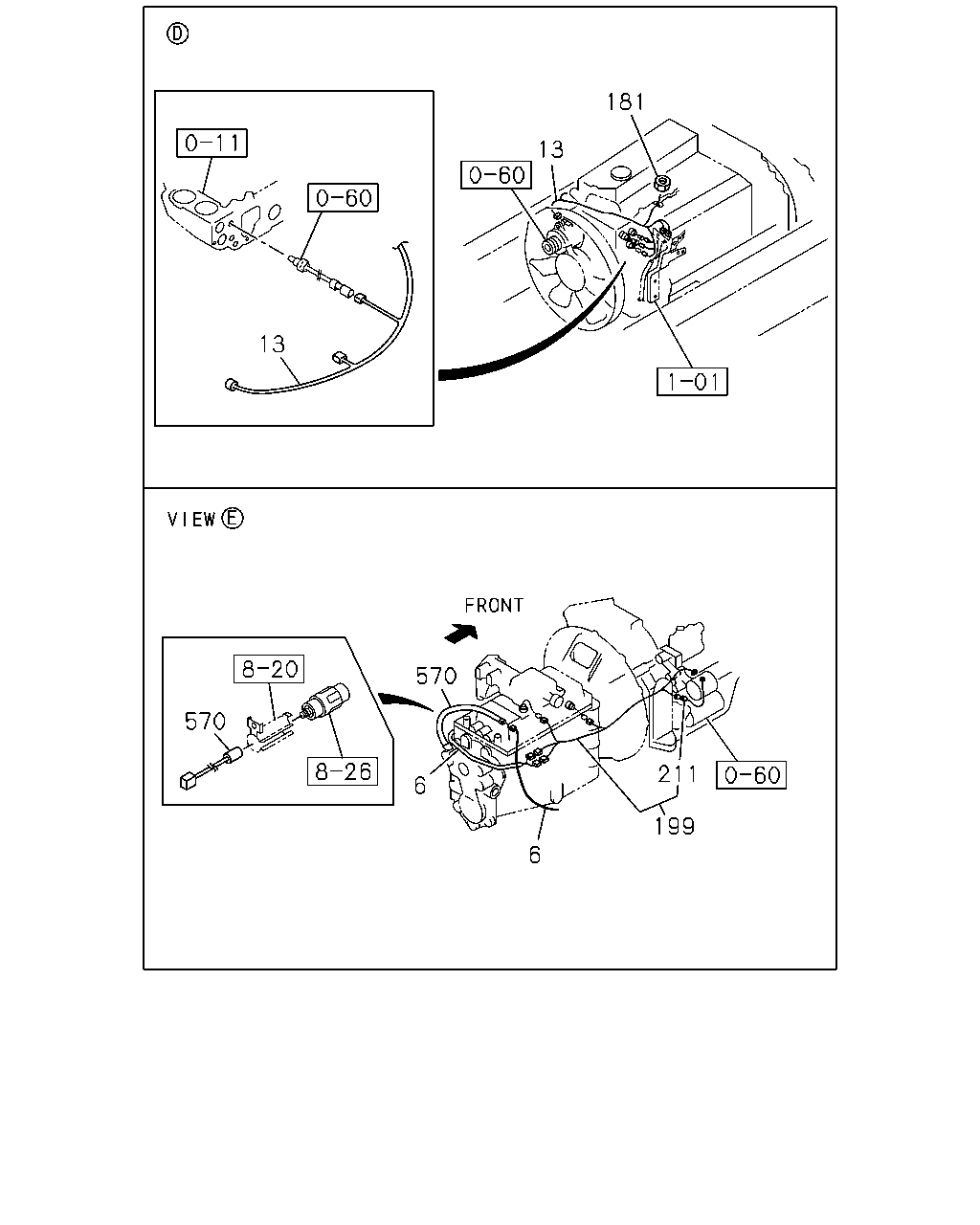

181 13 13 570 570 211 6 199 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME	1-82639-022-2	01	1	9811-9902
6	HARNESS; FRAME EXC. EURO2 SPECIFICATION<THN>	1-82639-022-2	01	1	9903-0201
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN>	1-82639-022-2	01	1	0202-0203
6	HARNESS; FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82673-004-2	01	1	0202-
6	HARNESS; FRAME EURO2 SPECIFICATION<THN>	1-82670-825-0	01	1	9903-0201
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN>	1-82670-825-0	01	1	0202-0203
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82670-825-0	01	1	0204-
13	HARNESS; ENG	1-82640-714-0	01	1	9811-9902
13	HARNESS; ENG 6HE1 TC ENG(57L)	1-82640-714-0	01	1	9903-0201
13	HARNESS; ENG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN>	1-82640-714-0	01	1	0202-0203
13	HARNESS; ENG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82640-982-0	01	1	0202-
13	HARNESS; ENG 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN>	1-82640-793-1	01	1	9903-0201
13	HARNESS; ENG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN>	1-82640-793-1	01	1	0202-0203
13	HARNESS; ENG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82640-793-1	01	1	0204-
181	NUT; GLOW PLUG HARNESS M4 FLANGE	5-09440-007-0	01	1	9811-
199	HARNESS; STARTER	1-82640-974-0	01	1	9811-9902
199	HARNESS; STARTER 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>	1-82640-974-0	01	1	9903-0201
199	HARNESS; STARTER 6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN>	1-82640-974-0	01	1	0202-0203
199	HARNESS; STARTER EURO2 SPECIFICATION<THN>	1-82640-668-3	01	1	9903-0201
199	HARNESS; STARTER 6HE1 TCC ENG(76L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN>	1-82640-668-3	01	1	0202-0203
199	HARNESS; STARTER 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN>	1-82640-668-3	01	1	0202-0203
199	HARNESS; STARTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82640-668-4	01	1	0204-
211	WIRE; FUSIBLE LINK,STARTER WHITE	1-82659-124-0	01	1	9811-0203
211	WIRE; FUSIBLE LINK,STARTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHITE	1-82659-124-0	01	1	0204-
570	HARNESS; SPEED SENSOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82670-012-0	01	1	0202-

467 41 5 4 5 4 62 62 10 6 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOX ASM; FUSE,HARNESS (B) 15AX13	1-82510-475-0	01	1	9811-0207
4	BOX ASM; FUSE,HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 15AX13	1-82510-475-0	01	1	0208-
4	BOX ASM; FUSE,HARNESS (A) 7.5AX14	1-82510-486-0	01	1	9811-
4	BOX ASM; FUSE,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 15AX14	1-82510-472-0	01	1	0208-
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	AR	1	9811-
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	AR	1	9811-
6	HARNESS; FRAME	1-82639-022-2	01	1	9811-9902
6	HARNESS; FRAME EXC. EURO2 SPECIFICATION<THN>	1-82639-022-2	01	1	9903-0201
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN>	1-82639-022-2	01	1	0202-0203
6	HARNESS; FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82673-004-2	01	1	0202-
6	HARNESS; FRAME EURO2 SPECIFICATION<THN>	1-82670-825-0	01	1	9903-0201
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN>	1-82670-825-0	01	1	0202-0203
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82670-825-0	01	1	0204-
10	BOX; FUSE,HARNESS	1-82510-409-0	01	1	9811-
27	FUSE UNIT (A) 40A GREEN	8-94468-662-0	03	1	9811-
27	FUSE UNIT (B) 60A YELLOW	8-94468-669-0	01	1	9811-
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	9811-
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	02	1	9811-0201
62	DIODE; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0202-
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	02	1	0202-
62	DIODE; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) BLACK 3P-1.5A	8-94416-438-1	01	1	0208-
467	HARNESS; FACIA (B) LOWER	1-82625-705-8	01	1	9811-9905
467	HARNESS; FACIA EXC. EURO2 SPECIFICATION<THN> (B) LOWER	1-82625-705-8	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (B) LOWER	1-82625-705-8	01	1	0202-0203
467	HARNESS; FACIA (A) UPPER	1-82625-709-4	01	1	9811-9905
467	HARNESS; FACIA EXC. EURO2 SPECIFICATION<THN> (A) UPPER	1-82625-709-5	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (A) UPPER	1-82625-709-4	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LOWER	1-82629-287-4	01	1	0202-
467	HARNESS; FACIA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) UPPER	1-82629-296-1	01	1	0202-
467	HARNESS; FACIA EURO2 SPECIFICATION<THN> (A) UPPER	1-82627-294-1	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (A) UPPRR	1-82627-294-0	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) UPPER	1-82627-294-1	01	1	0204-
467	HARNESS; FACIA EURO2 SPECIFICATION<THN> (B) LOWER	1-82627-295-4	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (B) LOWER	1-82627-295-4	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LOWER	1-82627-295-4	01	1	0204-

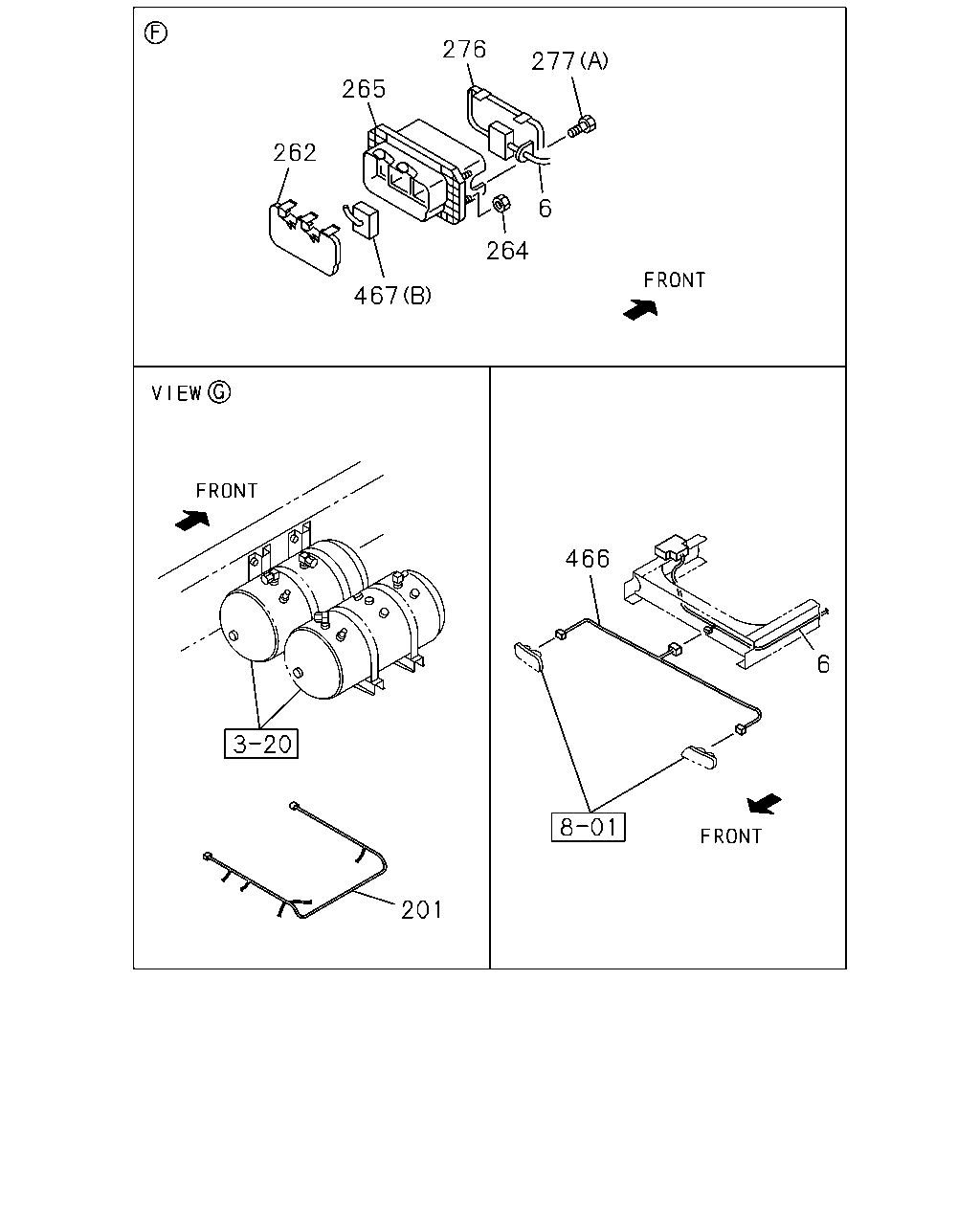

276 277 265 262 6 264 467 466 6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME	1-82639-022-2	01	1	9811-9902
6	HARNESS; FRAME EXC. EURO2 SPECIFICATION<THN>	1-82639-022-2	01	1	9903-0201
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN>	1-82639-022-2	01	1	0202-0203
6	HARNESS; FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82673-004-2	01	1	0202-
6	HARNESS; FRAME EURO2 SPECIFICATION<THN>	1-82670-825-0	01	1	9903-0201
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN>	1-82670-825-0	01	1	0202-0203
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82670-825-0	01	1	0204-
201	HARNESS; AIR TANK	1-82638-999-1	01	1	9811-0201
201	HARNESS; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82638-999-1	01	1	0202-
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	9811-
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9811-
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	9811-
276	COVER; BOX,FRAME HARNESS	1-82699-558-3	01	1	9811-
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	9811-0512
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-
277	BOLT; BOX ASM FIX 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE	0-28680-825-0	02	1	9903-0201
277	BOLT; BOX ASM FIX EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE	0-28680-825-0	02	1	0202-0203
277	BOLT; BOX ASM FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512
277	BOLT; BOX ASM FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
466	HARNESS; BUMPER	1-82638-996-1	01	1	9811-0201
466	HARNESS; BUMPER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82638-996-1	01	1	0202-
466	HARNESS; BUMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82638-758-1	01	1	0202-
467	HARNESS; FACIA (B) LOWER	1-82625-705-8	01	1	9811-9905
467	HARNESS; FACIA EXC. EURO2 SPECIFICATION<THN> (B) LOWER	1-82625-705-8	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (B) LOWER	1-82625-705-8	01	1	0202-0203
467	HARNESS; FACIA (A) UPPER	1-82625-709-4	01	1	9811-9905
467	HARNESS; FACIA EXC. EURO2 SPECIFICATION<THN> (A) UPPER	1-82625-709-5	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. EURO2 SPECIFICATION<THN> (A) UPPER	1-82625-709-4	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LOWER	1-82629-287-4	01	1	0202-
467	HARNESS; FACIA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) UPPER	1-82629-296-1	01	1	0202-
467	HARNESS; FACIA EURO2 SPECIFICATION<THN> (A) UPPER	1-82627-294-1	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (A) UPPRR	1-82627-294-0	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) UPPER	1-82627-294-1	01	1	0204-
467	HARNESS; FACIA EURO2 SPECIFICATION<THN> (B) LOWER	1-82627-295-4	01	1	9906-0201
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> (B) LOWER	1-82627-295-4	01	1	0202-0203
467	HARNESS; FACIA BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LOWER	1-82627-295-4	01	1	0204-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
