8-01 — LAMP; FRONT AND FRONT SIDE (#24753) — 89 parça

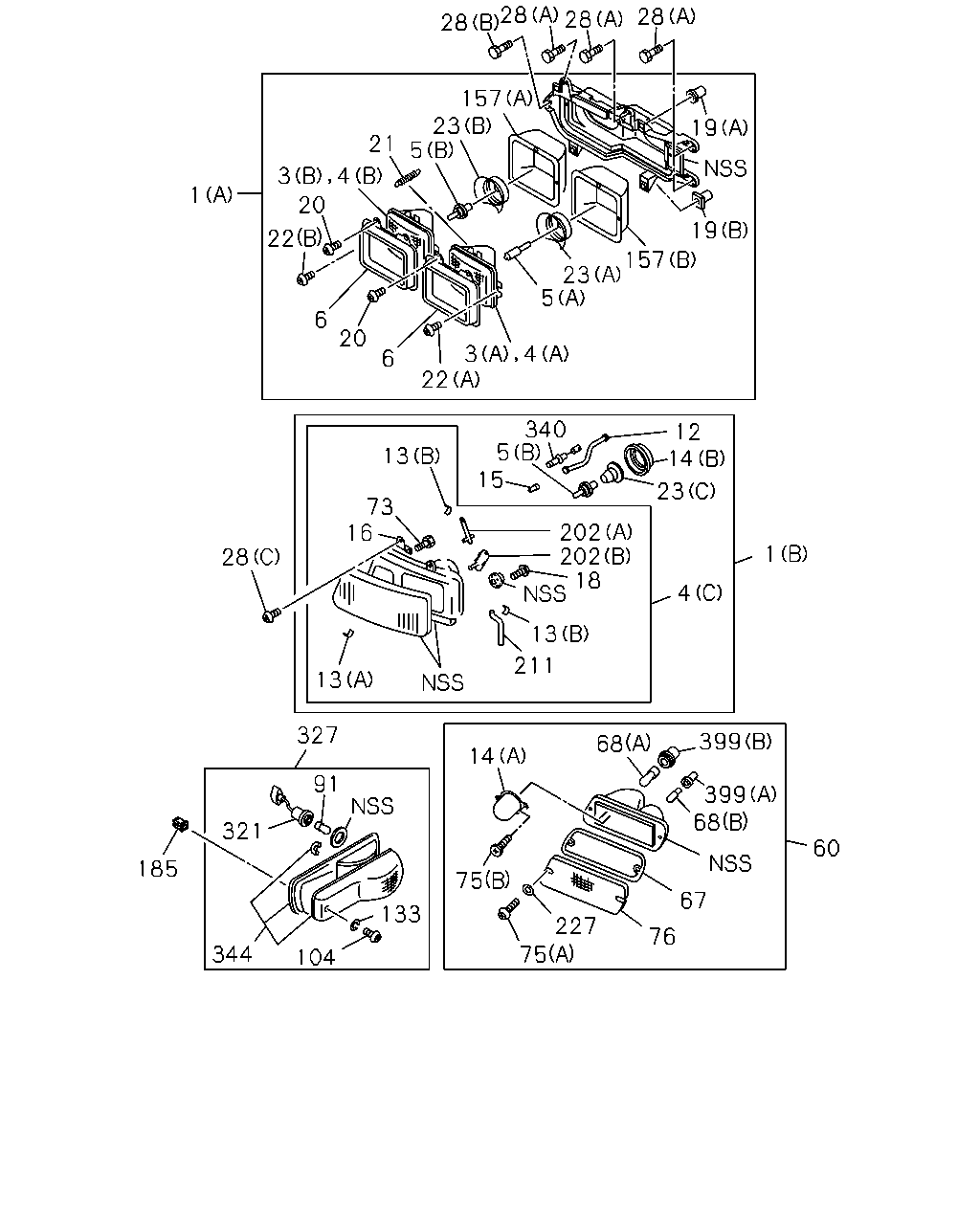

çizim 24332
28 28 28 28 157 23 5 19 21 1 20 19 22 157 23 5 6 20 3 22 4 6 340 5 15 12 14 13 23 73 16 202 202 18 1 28 4 13 211 13 327 399 68 14 91 399 68 321 60 185 75 133 67 227 76 344 75 104 3 4
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
(A) 		1-86830-174-1 01 1 9811-0201
1 LAMP ASM; HEAD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-86830-174-1 01 1 0202-0411
1 LAMP ASM; HEAD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-86830-397-1 01 1 0412-
1 LAMP ASM; HEAD
(A) 		1-86830-173-1 01 1 9811-0201
1 LAMP ASM; HEAD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-86830-173-1 01 1 0202-0411
1 LAMP ASM; HEAD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-86830-396-1 01 1 0412-
1 LAMP ASM; HEAD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-86830-176-4 01 1 0202-0509
1 LAMP ASM; HEAD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-97609-428-0 01 1 0510-
1 LAMP ASM; HEAD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-86830-175-4 01 1 0202-0509
1 LAMP ASM; HEAD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-97609-427-0 01 1 0510-
3 SEALED BEAM; HEADLAMP
(B) 24V 50/65W 		8-94111-275-0 02 1 9811-0201
3 SEALED BEAM; HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 24V 50/65W 		8-94111-275-0 02 1 0202-0411
3 SEALED BEAM; HEADLAMP
(A) 24V 55W 		8-94111-276-0 02 1 9811-0201
3 SEALED BEAM; HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 24V 55W 		8-94111-276-0 02 1 0202-0411
4 HEADLAMP UNIT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) TYPE 1 24V 70W 		1-82191-032-0 02 1 0412-
4 HEADLAMP UNIT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 0412-
4 HEADLAMP UNIT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-86830-198-1 01 1 0202-
4 HEADLAMP UNIT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-86830-197-1 01 1 0202-
5 BULB; HEADLAMP
(B) 24V 75/70W 		1-82194-063-0 02 1 0412-
5 BULB; HEADLAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 24V 75/70W 		1-82194-063-0 02 1 0202-0411
5 BULB; HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 24V 70W 		8-94405-658-0 02 1 0412-
6 RIM; HEADLAMP 8-94165-573-0 04 1 9811-0201
6 RIM; HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-94165-573-0 04 1 0202-
12 HARNESS; HEADLAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-86830-145-0 02 1 0202-
13 CLIP; HEADLAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-82119-084-0 04 1 0202-
13 CLIP; HEADLAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-94381-588-0 14 1 0202-
14 CAP; BULB,LAMP
(A) 		1-82219-030-0 02 1 9811-0201
14 CAP; BULB,LAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-86830-148-0 02 1 0202-
14 CAP; BULB,LAMP
(A) 		1-82219-030-0 02 1 0202-
15 BULB; FOG LAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 24V 55W 		1-82194-079-0 02 1 0202-
16 BRACKET; HEADLAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-86830-076-0 01 1 0202-
16 BRACKET; HEADLAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-86830-075-0 01 1 0202-
18 SCREW; GEAR CASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M4X16 TAPPING 		1-82119-067-0 08 1 0202-
19 NUT; HEADLAMP
(A) 		1-82119-117-0 08 1 9811-0201
19 NUT; HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-82119-117-0 08 1 0202-
19 NUT; HEADLAMP
(B) 		8-97044-618-0 08 1 9811-0201
19 NUT; HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		8-97044-618-0 08 1 0202-
20 SCREW; HEADLAMP
M4X8 		8-94165-886-0 16 1 9811-0201
20 SCREW; HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M4X8 		8-94165-886-0 16 1 0202-
21 SPRING; ADJ HEADLAMP 1-82119-120-0 04 1 9811-0201
21 SPRING; ADJ HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82119-120-0 04 1 0202-0411
21 SPRING; ADJ HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82119-158-0 04 1 0412-
22 SCREW; ADJ,HEADLAMP
(A) RH,LH UPPER & OUTER SIDE 		1-82119-118-0 07 1 9811-0201
22 SCREW; ADJ,HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) RH,LH UPPER & OUTER SIDE 		1-82119-118-0 07 1 0202-
22 SCREW; ADJ,HEADLAMP
(B) LH INNER SIDE 		1-82119-119-0 01 1 9811-0201
22 SCREW; ADJ,HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LH INNER SIDE 		1-82119-119-0 01 1 0202-
23 COVER; BULB,HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-82119-220-0 02 1 0412-
23 COVER; BULB,HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-82119-221-0 02 1 0412-
23 COVER; BULB,HEADLAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-86830-147-0 02 1 0202-
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9811-0201
28 BOLT; HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0202-
28 BOLT; HEADLAMP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9811-0201
28 BOLT; HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0202-
28 BOLT; HEADLAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0202-
60 LAMP ASM; FRT COMB 1-82210-221-0 01 1 9811-
60 LAMP ASM; FRT COMB 1-82210-220-0 01 1 9811-
67 GASKET; FRT COMB LAMP 1-82216-033-0 02 1 9811-
68 BULB; FRT COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 9811-
68 BULB; FRT COMB LAMP
(B) 24V 5W 		8-94135-397-0 02 1 9811-
73 BOLT; BRKT,HEADLAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-94332-050-0 04 1 0202-
75 SCREW; FRT COMB LAMP
(A) 		1-82219-026-0 04 1 9811-
75 SCREW; FRT COMB LAMP
(B) 		1-82219-031-0 04 1 9811-
76 LENS; FRT COMB LAMP 1-82215-071-0 01 1 9811-
76 LENS; FRT COMB LAMP 1-82215-070-0 01 1 9811-
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9811-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9811-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9811-0206
157 RING; MTG,HEADLAMP
(B) 		1-82119-032-0 01 1 9811-0201
157 RING; MTG,HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-82119-032-0 01 1 0202-
157 RING; MTG,HEADLAMP
(A) 		1-82119-033-0 01 1 9811-0201
157 RING; MTG,HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-82119-033-0 01 1 0202-
157 RING; MTG,HEADLAMP
(A) 		1-82119-031-0 01 1 9811-0201
157 RING; MTG,HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-82119-031-0 01 1 0202-
157 RING; MTG,HEADLAMP
(B) 		1-82119-034-0 01 1 9811-0201
157 RING; MTG,HEADLAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-82119-034-0 01 1 0202-
185 GROMMET; SCREW
D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9811-
202 GEAR UNIT; HEADLAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OUTER 		1-86830-139-0 02 1 0202-
202 GEAR UNIT; HEADLAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) INNER 		1-86830-140-0 02 1 0202-
211 TUBE; HEADLAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-86830-331-0 01 1 0202-
211 TUBE; HEADLAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-86830-330-0 01 1 0202-
227 SEAT; SET SCREW,FRT COMB LAMP 1-82216-032-0 04 1 9811-
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9811-
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 9811-
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 9811-
340 BULB; POSITION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 24V 5W 		1-82194-042-0 02 1 0202-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 9811-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 9811-
399 SOCKET; TURN SIGNAL
(B) 		1-82219-033-0 02 1 9811-
399 SOCKET; TURN SIGNAL
(A) 		1-82219-034-0 02 1 9811-
