◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#24752) — 8 parça

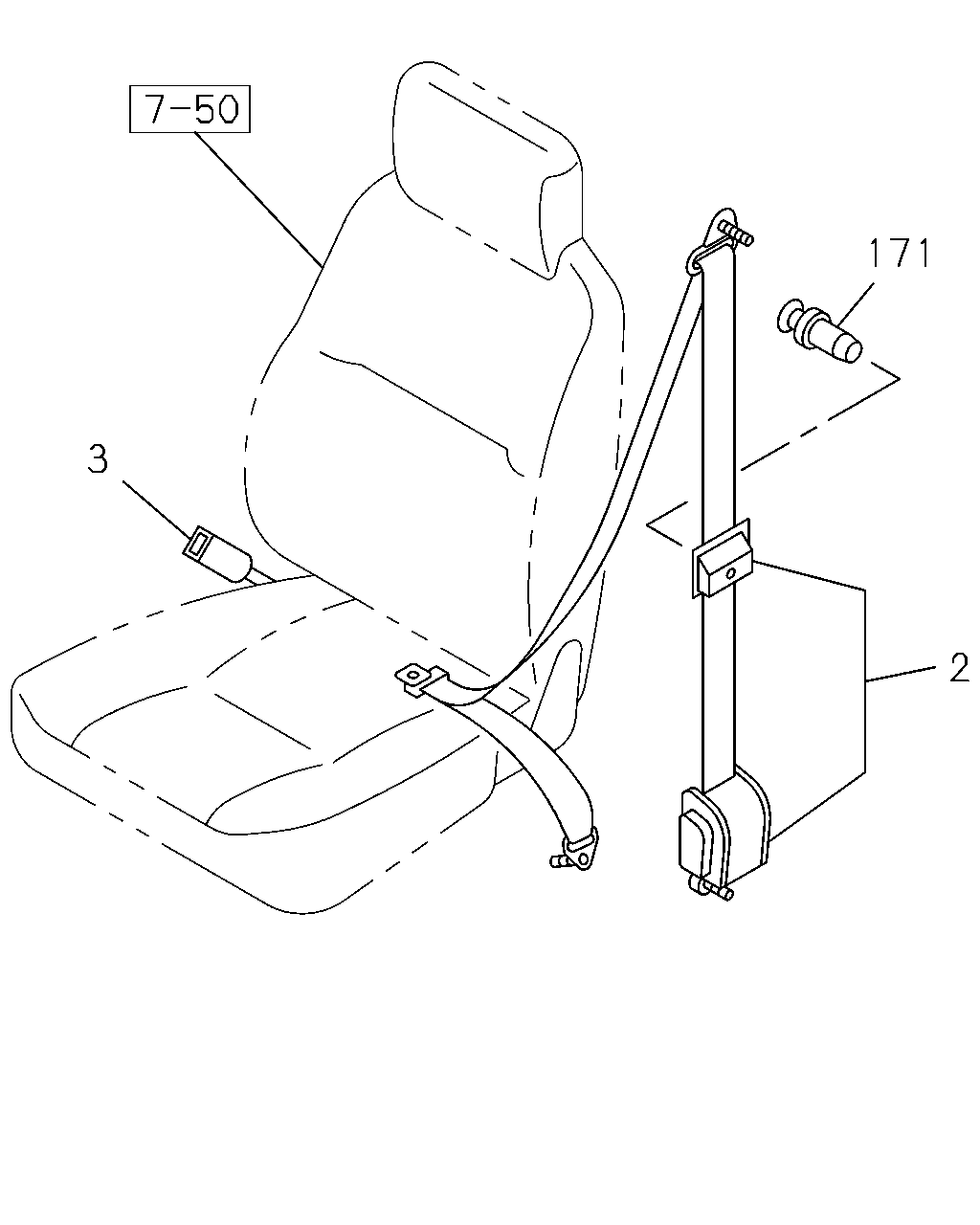

çizim 80426
171 3 2
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT SEAT BELT 3 POINT<SHY> 		1-75618-909-5 01 1 0202-0806
2 BELT; SEAT,TONGUE SIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT SEAT BELT 3 POINT<SHY> 		8-98120-810-0 01 1 0807-
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT 3 POINT<SHY> 		1-75617-514-3 01 1 9811-0201
2 BELT; SEAT,TONGUE SIDE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT SEAT BELT 3 POINT<SHY> 		1-75617-514-6 01 1 0202-
3 BELT; SEAT,BUCKLE SIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRONT SEAT BELT 3 POINT<SHY> 		1-75618-914-0 01 1 0202-
3 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BELT 3 POINT<SHY> 		1-75618-779-0 01 1 9811-0201
3 BELT; SEAT,BUCKLE SIDE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT SEAT BELT 3 POINT<SHY> 		1-75618-779-0 01 1 0202-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9811-
