◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#24751) — 58 parça

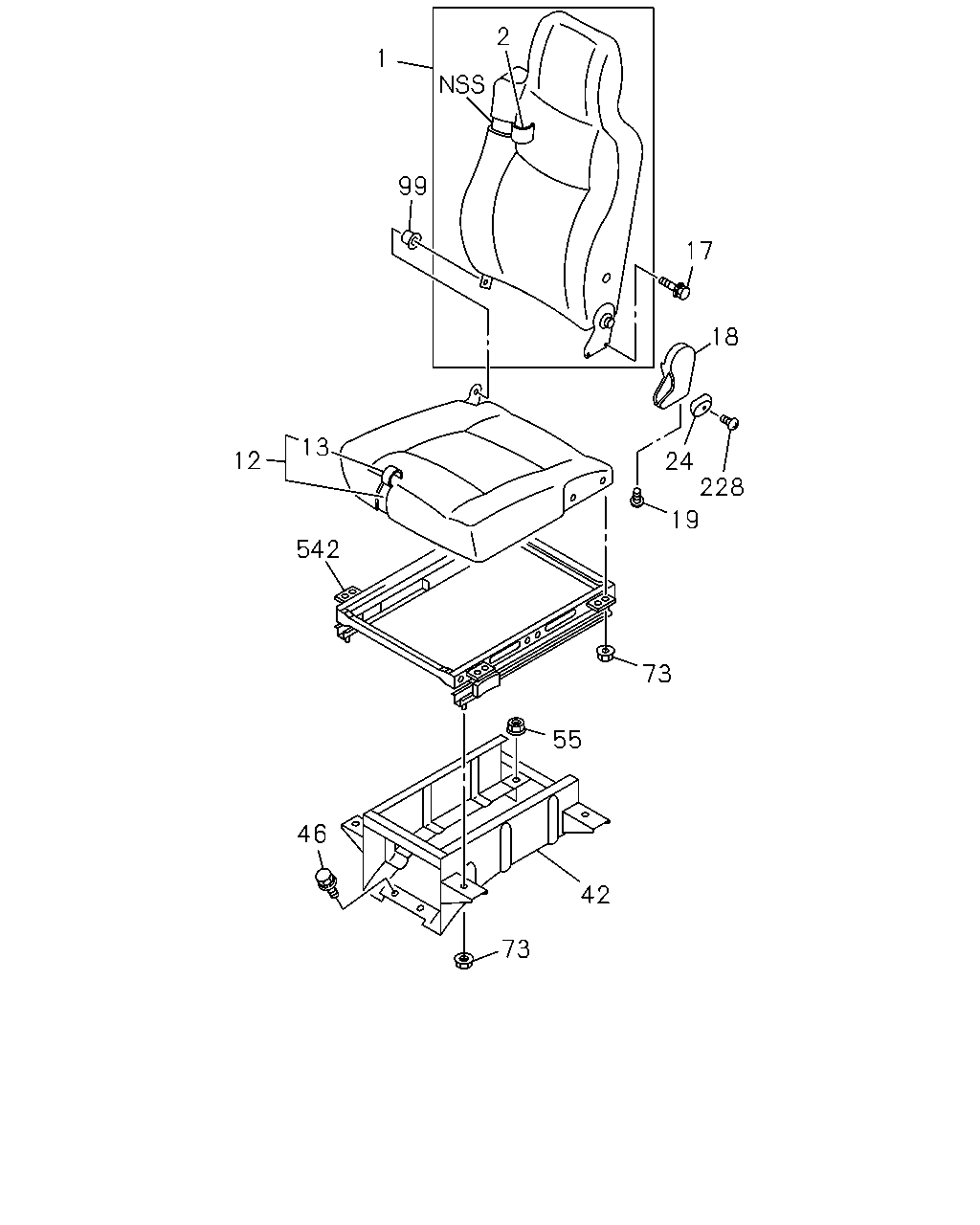

çizim 79847
2 1 99 17 18 13 24 228 12 19 542 73 55 46 42 73
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 1-75028-615-2 01 1 9811-0201
1 BACK ASM; SEAT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> 		1-75028-615-2 01 1 0202-
1 BACK ASM; SEAT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> 		1-75208-074-3 01 1 0202-
2 COVER; TRIM,FRT SEAT,BACK 1-75116-273-1 01 1 9811-0201
2 COVER; TRIM,FRT SEAT,BACK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> 		1-75116-273-1 01 1 0202-
2 COVER; TRIM,FRT SEAT,BACK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> 		1-75116-592-1 01 1 0202-
12 CUSHION; SEAT,FRT 1-75028-599-3 01 1 9811-0201
12 CUSHION; SEAT,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> 		1-75028-599-3 01 1 0202-
12 CUSHION; SEAT,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> 		1-75026-701-1 01 1 0202-
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-277-2 01 1 9811-0201
13 COVER; TRIM,FRT SEAT,CUSHION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> 		1-75116-277-2 01 1 0202-
13 COVER; TRIM,FRT SEAT,CUSHION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> 		1-75116-689-1 01 1 0202-
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9811-0201
17 BOLT; RECLINING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> M8X18 		8-94279-109-1 02 1 0202-
17 BOLT; RECLINING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> M8X20 		8-97255-906-0 02 1 0202-
18 COVER; RECLINING 1-75418-052-0 01 1 9811-0201
18 COVER; RECLINING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> 		1-75418-052-0 01 1 0202-
18 COVER; RECLINING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97859-018-0 01 1 0202-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-
24 KNOB; RECLINING,FRT,SEAT 1-75418-056-0 01 1 9811-0201
24 KNOB; RECLINING,FRT,SEAT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> 		1-75418-056-0 01 1 0202-
24 KNOB; RECLINING,FRT,SEAT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97859-019-0 01 1 0202-0710
24 KNOB; RECLINING,FRT,SEAT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> 		1-75418-067-0 01 1 0711-
42 STAND; DRIVER SEAT 1-75558-491-4 01 1 9811-0201
42 STAND; DRIVER SEAT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> 		1-75558-491-4 01 1 0202-
42 STAND; DRIVER SEAT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 0202-
46 BOLT; STAND TO FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 FLANGE 		0-28451-020-0 02 1 0704-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9811-0703
46 BOLT; STAND TO FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE 		0-91180-110-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9811-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		1-09984-153-0 02 1 0704-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9811-0201
73 NUT; ADJ,HEIGHT CONT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		8-94279-518-0 08 1 0202-
73 NUT; ADJ,HEIGHT CONT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 08 1 0202-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9811-
228 SCREW; KNOB
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 0711-
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9811-0710
228 SCREW; KNOB
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> M4X6 		8-97042-273-0 01 1 0711-
542 ADJUSTER ASM; SEAT SLIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> 		8-98291-656-0 01 1 1503-
542 ADJUSTER ASM; SEAT SLIDE 1-75518-283-0 01 1 9811-1502
542 ADJUSTER ASM; SEAT SLIDE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> 		1-75518-283-0 01 1 1503-

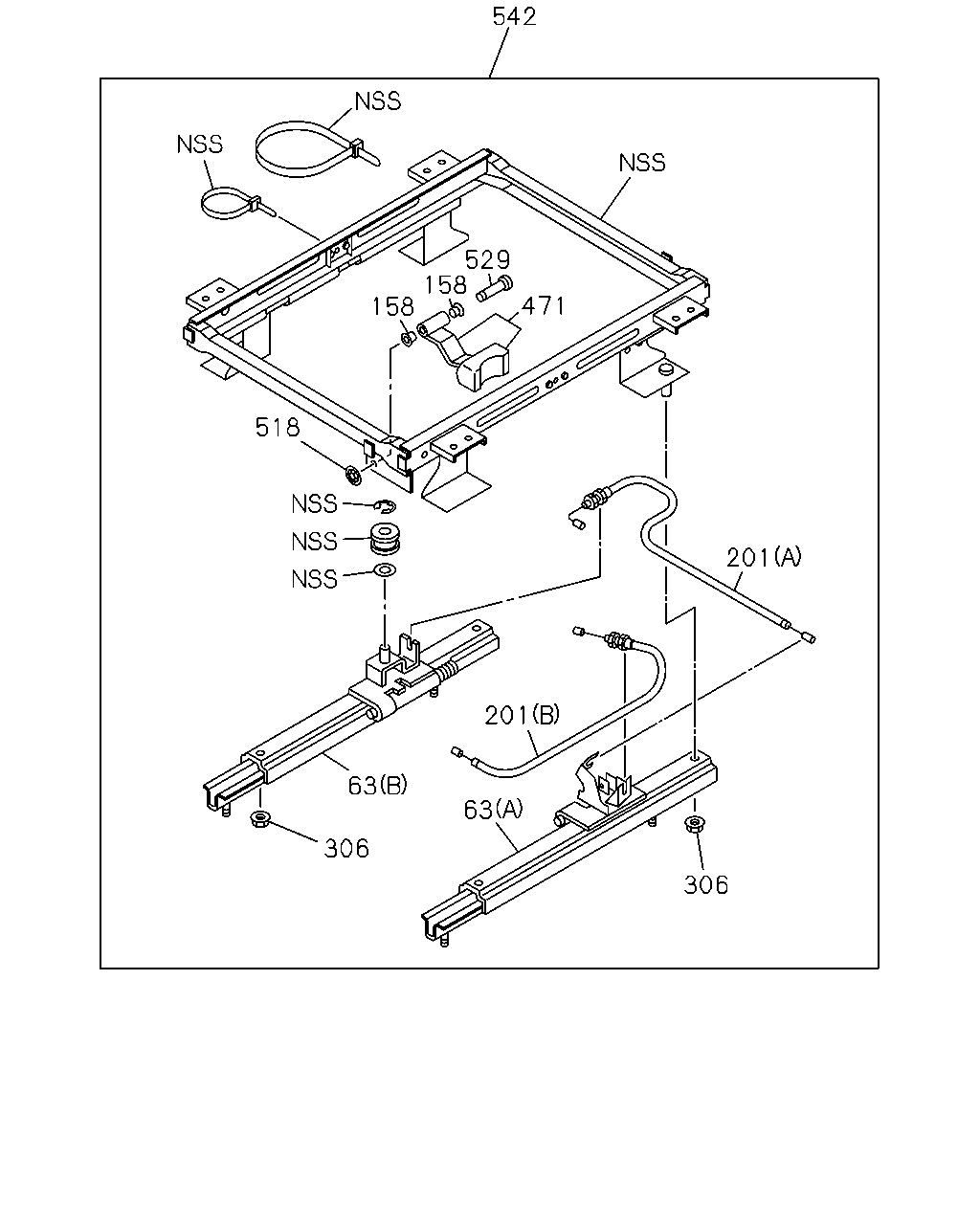

çizim 82618
542 529 158 158 471 201 201 63 306 63 306 518
BalonParca AdiParca NoAdetTipApplied Date
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-227-0 01 1 9811-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-295-0 01 1 9811-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9811-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 9811-
201 CABLE; ADJ
(B) L=605 		1-75518-289-0 01 1 9811-
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9811-0201
306 NUT; SEAT ADJ
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		8-94279-518-0 04 1 0202-
306 NUT; SEAT ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0202-
471 LEVER; SEAT ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> 		8-98107-870-0 01 1 0711-
471 LEVER; SEAT ADJ 1-75518-290-0 01 1 9811-0710
471 LEVER; SEAT ADJ
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> 		1-75518-290-0 01 1 0711-
518 NUT; TILT ADJ 1-75518-263-0 01 1 9811-
529 PIN; LINK 1-75518-262-0 01 1 9811-
542 ADJUSTER ASM; SEAT SLIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> 		8-98291-656-0 01 1 1503-
542 ADJUSTER ASM; SEAT SLIDE 1-75518-283-0 01 1 9811-1502
542 ADJUSTER ASM; SEAT SLIDE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> 		1-75518-283-0 01 1 1503-
