Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#2475) — 304 parça

1 31 31 4 31 29 5 30 7 8 30 6 31 9 10 11 31 12 13 1 14 15 20 21 22 16 25 24 17 5 18 19 23 11 25 24 26 27 13 14 28 15 18 20 22 2 21 26 27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

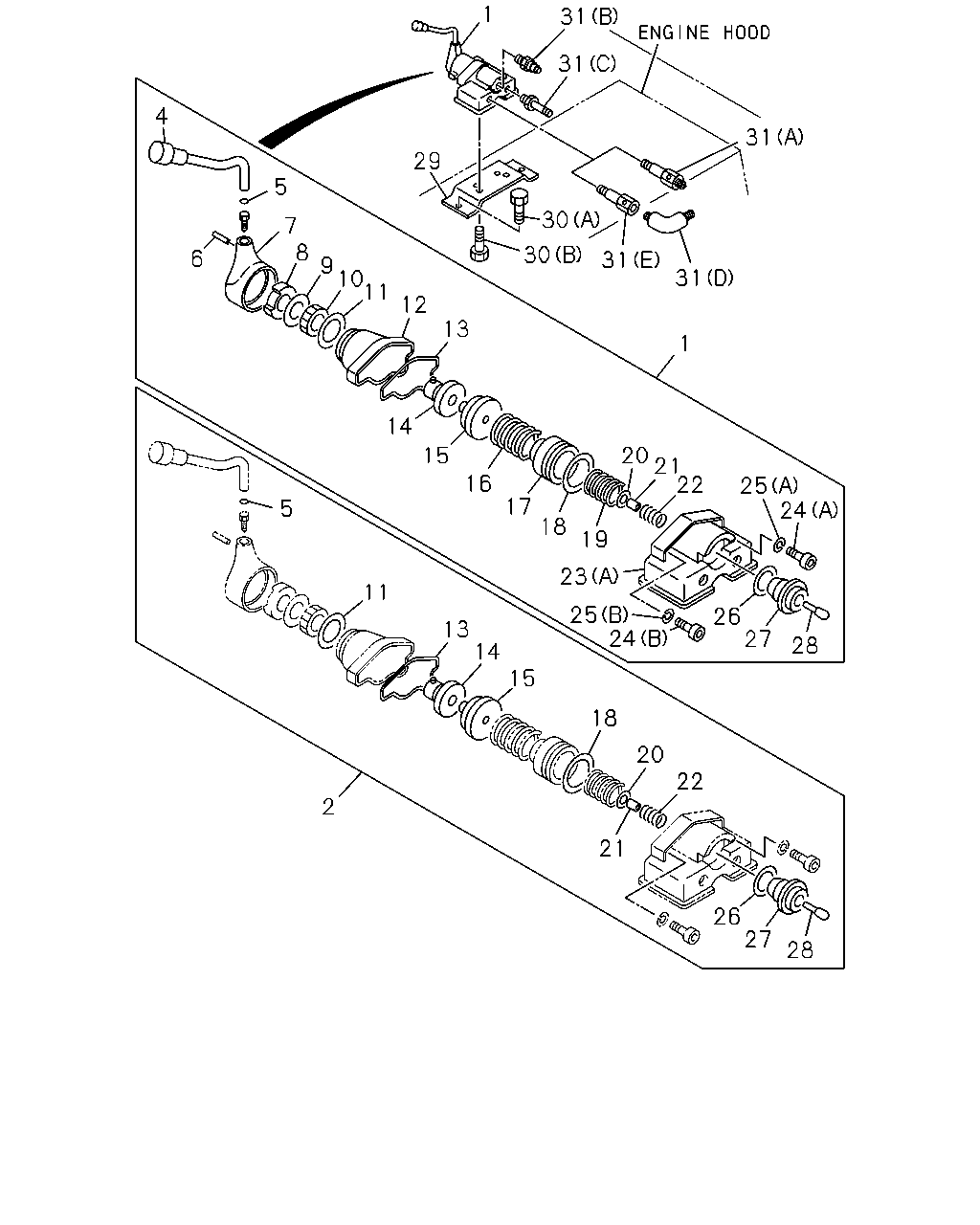

1	VALVE ASM; HAND BRK	1-48100-523-0	01	1	9002-9306
1	VALVE ASM; HAND BRK EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48100-523-0	01	1	9307-
1	VALVE ASM; HAND BRK NEW ZEALAND EQUIPMENT(PK5)	1-48460-282-0	01	1	9307-
2	REPAIR KIT; HAND BRK VLV	1-87830-499-0	01	1	9002-9306
2	REPAIR KIT; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-87830-499-0	01	1	9307-
2	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-85576-157-0	01	1	9307-
4	HANDLE ASM; BRK VLV	1-48119-240-1	01	1	9002-9306
4	HANDLE ASM; BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48119-240-1	01	1	9307-
4	HANDLE ASM; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-144-0	01	1	9307-
5	GASKET; HANDLE	1-48119-128-0	01	1	9002-
6	PIN; SPR	1-48119-132-0	01	1	9002-9306
6	PIN; SPR EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48119-132-0	01	1	9307-
6	PIN; SPR NEW ZEALAND EQUIPMENT(PK5)	1-48119-143-0	01	1	9307-
7	HEAD; BRK VLV	1-48119-131-0	01	1	9002-
8	STOPPER; BRK VLV	1-48119-239-0	01	1	9002-9306
8	STOPPER; BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48119-239-0	01	1	9307-
8	STOPPER; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-327-0	01	1	9307-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	9002-
10	RING; ADJ	1-48119-122-0	01	1	9002-
11	GASKET; HD TO COVER	1-48119-130-0	01	1	9002-9306
11	GASKET; HD TO COVER EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48119-130-0	01	1	9307-
11	GASKET; HD TO COVER NEW ZEALAND EQUIPMENT(PK5)	1-48119-328-0	01	1	9307-
12	COVER; BRK VLV	1-48129-097-0	01	1	9002-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	9002-
14	FOLLOWER; CAM	1-48129-135-0	01	1	9002-
15	CAM; FOLLOWER	1-48129-134-0	01	1	9002-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	9002-
17	PISTON; SPR	1-48129-095-0	01	1	9002-
18	GASKET; BODY	1-48129-096-0	01	1	9002-
19	SPRING; PISTON	1-48129-094-0	01	1	9002-
20	GUIDE; VLV	1-48129-090-0	01	1	9002-
21	VALVE; IN & EXH	1-48121-017-0	01	1	9002-
22	SPRING; VLV	1-48123-024-0	01	1	9002-
23	BODY; BRK VLV (A)	1-48111-030-0	01	1	9002-
23	BODY; BRK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-48461-004-0	01	1	9002-9306
24	BOLT; EXH VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48119-121-0	02	1	9307-
24	BOLT; EXH VLV NEW ZEALAND EQUIPMENT(PK5) (B)	1-48129-092-0	02	1	9307-
25	WASHER; LK,EXH VLV (A)	1-48119-134-0	02	1	9002-
25	WASHER; LK,EXH VLV (B)	1-48129-093-0	02	1	9002-
26	GASKET; BRK VLV	1-48129-091-0	01	1	9002-
27	SEAT; INL VLV	1-48122-007-0	01	1	9002-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	9002-
29	BRACKET; HAND BRK	1-47475-257-0	01	1	9002-
30	BOLT; BRKT,HAND BRK VLV (B) M10X20 W/LK WASHER	9-01901-020-0	02	1	9002-9204
30	BOLT; BRKT,HAND BRK VLV (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9205-
30	BOLT; BRKT,HAND BRK VLV (A) M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005
30	BOLT; BRKT,HAND BRK VLV (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9302
30	BOLT; BRKT,HAND BRK VLV (A) M8X20 FLANGE	0-28080-820-0	02	1	9303-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	9002-
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-226-0	01	1	9002-9306
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (D) M14 & PT1/4 ELBOW	1-09660-233-0	01	1	9002-9306
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-335-1	01	1	9002-
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-635-0	01	1	9307-
31	CONNECTOR; HAND BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) M14	1-09656-391-2	01	1	9002-
31	CONNECTOR; HAND BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9002-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-083-0	01	1	9002-

87 108 64 70 87 64 87 129 86 130 66 203 69 71 88 87 66 127 128 90 60 61 76 107 66 110 115 62 102 63 61 64 65 115 116 64 115 66 205 115 115 67 65 157 115 115 115 115 68 115 87 89 114 143 122 143 115 115 115 143 115 142 115 115 143 87 89 87 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

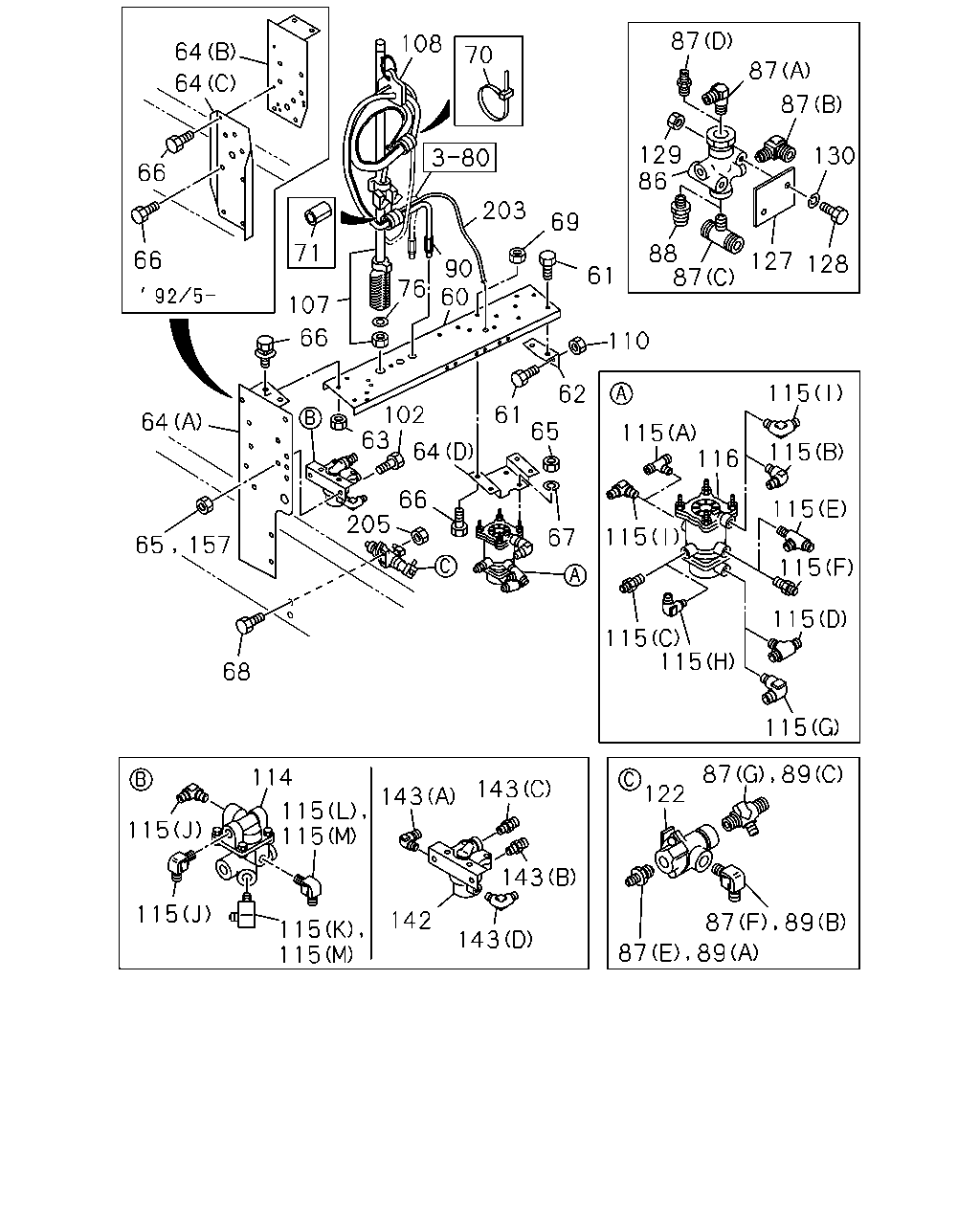

60	BOARD; STEP,TRAILER NYLON TUBE AIR PIPING<Z29>	1-53497-248-2	01	1	9002-9306
60	BOARD; STEP,TRAILER EXC. NYLON TUBE AIR PIPING<Z29>	1-53497-173-9	01	1	9002-9306
60	BOARD; STEP,TRAILER	1-53497-173-9	01	1	9307-9312
60	BOARD; STEP,TRAILER	1-53497-526-1	01	1	9401-
61	BOLT; STEP BOARD M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	9002-
61	BOLT; STEP BOARD M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005
61	BOLT; STEP BOARD M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-
61	BOLT; STEP BOARD HONG KONG EQUIPMENT(PQ1) M12X35	9-92061-235-0	02	1	9205-
61	BOLT; STEP BOARD TAIL PIPE SINGLE HORIZONTAL<NC2> M12X32 W/LK WASHER	0-50041-232-0	03	1	9307-
61	BOLT; STEP BOARD TAIL PIPE SINGLE HORIZONTAL<NC2> M12X45 W/LK WASHER	0-50041-245-0	03	1	9307-
61	BOLT; STEP BOARD TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X32 W/LK WASHER	9-01911-232-0	03	1	9002-9005
61	BOLT; STEP BOARD TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X32 W/LK WASHER	0-50041-232-0	03	1	9006-9306
61	BOLT; STEP BOARD TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X45	9-01911-245-0	03	1	9002-9005
61	BOLT; STEP BOARD TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X45 W/LK WASHER	0-50041-245-0	03	1	9006-9306
62	BRACKET; BOARD,HANGER TAIL PIPE SINGLE HORIZONTAL<NC2>	1-53497-331-1	01	1	9307-
62	BRACKET; BOARD,HANGER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-53497-148-0	01	1	9307-
62	BRACKET; BOARD,HANGER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-53497-331-1	01	1	9002-9306
62	BRACKET; BOARD,HANGER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-53497-148-0	01	1	9002-9306
63	NUT; STEP BOARD M8	9-09110-408-0	02	1	9002-
63	NUT; STEP BOARD HONG KONG EQUIPMENT(PQ1) M12	9-99110-512-0	02	1	9205-
64	BRACKET; RELAY VLV (A)	1-48495-111-0	01	1	9002-9204
64	BRACKET; RELAY VLV (B)	1-48495-133-1	01	1	9205-9306
64	BRACKET; RELAY VLV (B)	1-48495-137-2	01	1	9307-
64	BRACKET; RELAY VLV EXC. AUTO CAB TILT<WV2> (C)	1-48495-134-1	01	1	9205-9306
64	BRACKET; RELAY VLV EXC. AUTO CAB TILT<WV2> (C)	1-48495-138-0	01	1	9307-
64	BRACKET; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	1-48495-103-0	01	1	9002-
65	NUT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	04	1	9002-
65	NUT; RELAY VLV M10	9-09110-510-0	02	1	9002-
66	BOLT; VLV BRKT M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-
66	BOLT; VLV BRKT AUTO CAB TILT<WV2> M10X35 W/LK WASHER	9-01911-035-0	01	1	9002-9002
66	BOLT; VLV BRKT AUTO CAB TILT<WV2> M10X35 W/LK WASHER	0-50041-035-0	01	1	9003-9204
66	BOLT; VLV BRKT M12X30 W/LK WASHER	0-50041-230-0	04	1	9205-9306
66	BOLT; VLV BRKT AUTO CAB TILT<WV2> M10X45	9-01911-045-0	04	1	9002-9002
66	BOLT; VLV BRKT AUTO CAB TILT<WV2> M10X45 W/LK WASHER	0-50041-045-0	04	1	9003-9204
66	BOLT; VLV BRKT EXC. AUTO CAB TILT<WV2> M10X30 W/LK WASHER	9-01911-030-0	04	1	9002-9002
66	BOLT; VLV BRKT EXC. AUTO CAB TILT<WV2> M10X30 W/LK WASHER	0-50041-030-0	04	1	9003-9204
66	BOLT; VLV BRKT EXC. AUTO CAB TILT<WV2> M12X45 W/LK WASHER	0-50041-245-0	04	1	9205-
66	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	9-01910-825-0	04	1	9002-9005
66	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	0-50040-825-0	04	1	9006-9302
66	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	04	1	9303-
67	WASHER; LK,RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=8.2	9-09150-508-0	04	1	9002-
68	BOLT; DOUBLE CHECK VLV M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204
68	BOLT; DOUBLE CHECK VLV M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302
68	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28080-820-0	02	1	9303-9306
68	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28080-820-0	01	1	9307-
68	BOLT; DOUBLE CHECK VLV EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	02	1	9307-
69	NUT; VLV BRKT M12	9-99110-412-0	02	1	9310-
69	NUT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	04	1	9002-
70	CLIP; BAND,JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK> L=250	5-09707-030-0	07	1	9002-9101
70	CLIP; BAND,JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK> L=250	5-09707-030-1	08	1	9102-
71	RUBBER; STEP BOARD EXC. JUMPER HOSE & CABLE DELETE<SJK> ID=38.1 L=50	5-09360-835-0	03	1	9002-9101
71	RUBBER; STEP BOARD EXC. JUMPER HOSE & CABLE DELETE<SJK> ID=38.1 L=50	5-09360-835-0	02	1	9102-
76	WASHER; PL,HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK> ID=17 OD=32	9-09160-616-0	02	1	9111-
86	VALVE; SYN EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48460-173-0	01	1	9002-
87	CONNECTOR; DBL CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) M14	1-09650-031-0	01	1	9002-9103
87	CONNECTOR; DBL CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-
87	CONNECTOR; DBL CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302
87	CONNECTOR; DBL CHECK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (E) M14 & PT3/8 STRAIGHT	1-09660-227-0	01	1	9002-9306
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (A) M14 & PT1/4 ELBOW	1-09660-233-0	01	1	9002-9306
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (F) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9002-9306
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-238-0	01	1	9002-9306
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (G)	1-09660-245-0	01	1	9002-9306
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (C)	1-09660-304-0	01	1	9002-9306
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (F)	1-09660-535-0	01	1	9307-
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-555-0	01	1	9307-
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (G)	1-09660-563-0	01	1	9307-
88	CONNECTOR; ELBOW EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M22	1-09650-246-1	01	1	9002-
89	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9002-
89	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302
89	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
89	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (C) M16	1-09656-374-1	01	1	9002-
90	HOSE; JUMPER,TRAILER EXC. NEW ZEALAND EQUIPMENT(PK5),JUMPER HOSE & CABLEDELETE<SJK> L=4140	1-09363-149-0	01	1	9002-
102	BOLT; SUPPLY DUMP VLV HONG KONG EQUIPMENT(PQ1) M10X22	9-01911-022-0	02	1	9002-9002
102	BOLT; SUPPLY DUMP VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M10X22 W/LK WASHER	0-50041-022-0	02	1	9003-
107	HANGER; JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-011-1	01	1	9002-9101
107	HANGER; JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-014-0	01	1	9102-9110
107	HANGER; JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-017-0	01	1	9111-
108	CLAMP; HOSE HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-009-0	01	1	9002-9101
108	CLAMP; HOSE HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-016-0	01	1	9102-9110
108	CLAMP; HOSE HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-018-0	01	1	9111-
110	NUT; BRKT TO FRAME TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	02	1	9307-
110	NUT; BRKT TO FRAME TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-412-0	02	1	9002-9304
110	NUT; BRKT TO FRAME TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	02	1	9305-9306
114	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48210-157-1	01	1	9002-
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (G)	1-09650-144-1	01	1	9002-9302
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (G) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	9303-
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (F) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (H)	1-09650-266-1	01	1	9002-9302
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (H) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (I) M16 & PT1/4 ELBOW	9-09234-310-1	02	1	9002-9302
115	CONNECTOR; DUAL RELAY VLV HONG KONG EQUIPMENT(PQ1) (I) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9303-
115	CONNECTOR; DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (J) M16 & PT3/8 ELBOW	1-09650-180-1	02	1	9002-9302
115	CONNECTOR; DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (J) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9303-
115	CONNECTOR; DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (K)	1-09650-221-1	01	1	9002-9302
115	CONNECTOR; DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (K) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-
115	CONNECTOR; DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (L) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302
115	CONNECTOR; DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (L) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-
115	CONNECTOR; DUAL RELAY VLV NEW ZEALAND EQUIPMENT(PK5) (D)	1-09660-318-0	01	1	9307-
115	CONNECTOR; DUAL RELAY VLV NEW ZEALAND EQUIPMENT(PK5) (E)	1-09660-436-1	01	1	9307-
115	CONNECTOR; DUAL RELAY VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-09660-543-0	01	1	9307-
115	CONNECTOR; DUAL RELAY VLV NEW ZEALAND EQUIPMENT(PK5) (B) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
115	CONNECTOR; DUAL RELAY VLV NEW ZEALAND EQUIPMENT(PK5) (C) 17/32" PT1/4	1-09660-573-0	01	1	9307-
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (J) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9002-9306
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (M) M18 & PT1/2 ELBOW	1-09660-236-0	02	1	9002-9306
116	VALVE; DUAL RELAY NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48210-347-0	01	1	9002-
122	VALVE ASM; DOUBLE CHECK	1-48410-050-0	01	1	9002-9306
122	VALVE ASM; DOUBLE CHECK NYLON TUBE AIR PIPING<Z29>	1-48410-251-0	01	1	9307-
122	VALVE ASM; DOUBLE CHECK EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-050-0	01	1	9307-
127	DISTANCE; SYN VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48499-002-0	01	1	9002-
128	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1)	9-01055-665-0	02	1	9002-9005
128	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1)	0-10805-665-0	02	1	9006-9008
128	BOLT; VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M6X60	0-10805-660-0	02	1	9009-
129	NUT; VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M6	9-09110-406-0	02	1	9002-
129	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-
130	WASHER; LK,VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=6.1	9-09150-606-0	02	1	9002-
142	VALVE; SUPPLY DUMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48210-367-0	01	1	9002-
143	CONNECTOR; CONT HONG KONG EQUIPMENT(PQ1) (D)	1-09650-144-1	01	1	9002-9302
143	CONNECTOR; CONT HONG KONG EQUIPMENT(PQ1) (D) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	9303-
143	CONNECTOR; CONT HONG KONG EQUIPMENT(PQ1) (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-
143	CONNECTOR; CONT HONG KONG EQUIPMENT(PQ1) (C) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9002-
143	CONNECTOR; CONT HONG KONG EQUIPMENT(PQ1) (A) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302
143	CONNECTOR; CONT HONG KONG EQUIPMENT(PQ1) (A) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-
143	CONNECTOR; CONT NEW ZEALAND EQUIPMENT(PK5) (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
143	CONNECTOR; CONT NEW ZEALAND EQUIPMENT(PK5) (B)	1-09660-572-0	01	1	9307-
143	CONNECTOR; CONT NEW ZEALAND EQUIPMENT(PK5) (C) 17/32" PT1/4	1-09660-573-0	01	1	9307-
143	CONNECTOR; CONT NEW ZEALAND EQUIPMENT(PK5) (D)	1-09660-574-0	01	1	9307-
157	NUT; SUPPLY DUMP VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	9002-
203	CABLE; JUMPER EXC. JUMPER HOSE & CABLE DELETE<SJK> L=4540	1-82659-030-0	01	1	9002-9101
203	CABLE; JUMPER EXC. JUMPER HOSE & CABLE DELETE<SJK> L=6000	1-82659-035-1	01	1	9102-
205	NUT; DOUBLE CHECK VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9401-

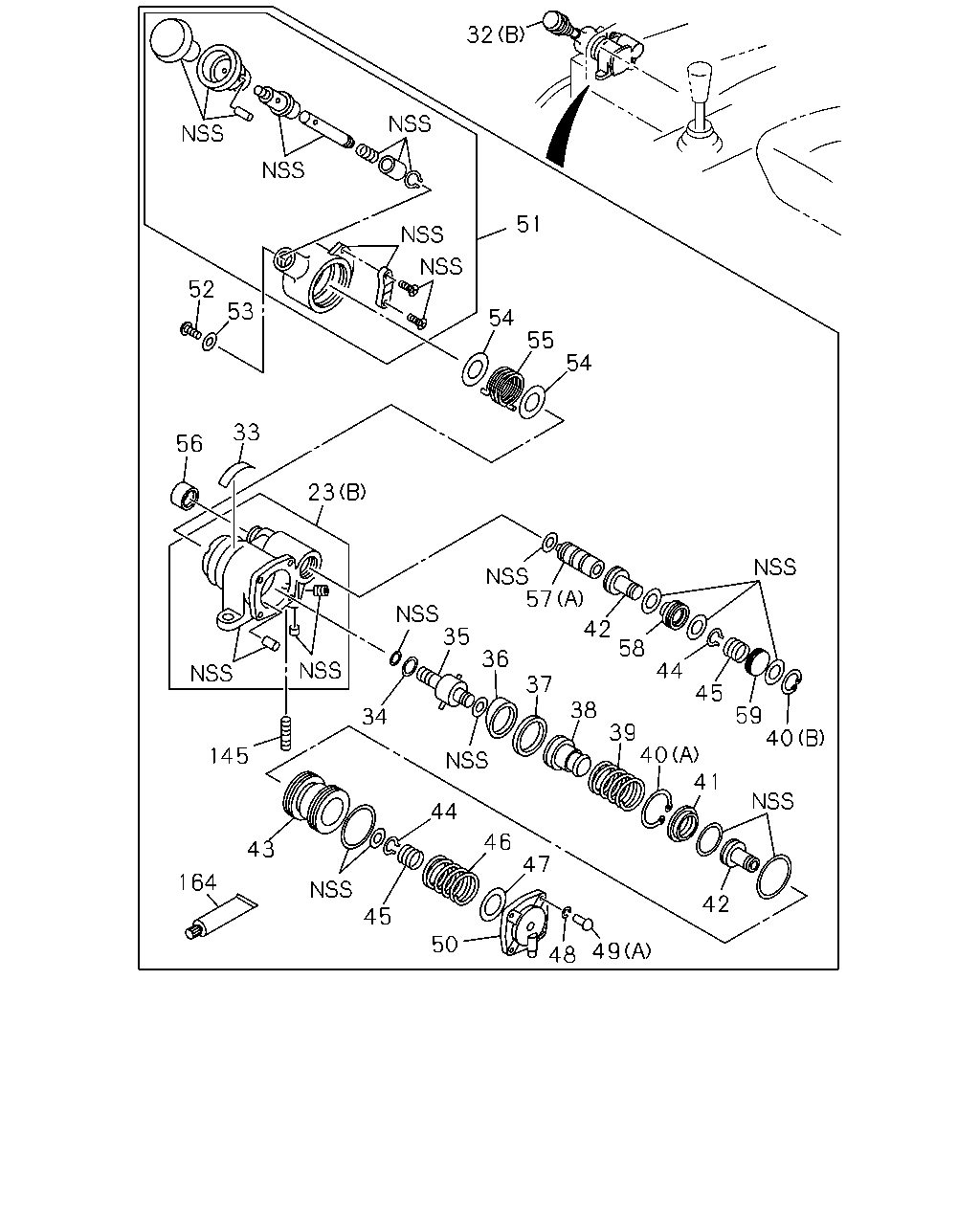

32 51 52 53 54 55 54 33 56 23 57 35 42 58 36 44 37 45 38 59 40 34 39 40 41 145 44 46 43 47 164 42 45 50 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BODY; BRK VLV (A)	1-48111-030-0	01	1	9002-
23	BODY; BRK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-48461-004-0	01	1	9002-9306
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-257-0	01	1	9002-
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (A)	1-48460-207-0	01	1	9002-9306
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (B)	1-48460-292-0	01	1	9307-
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48460-184-0	01	1	9002-
33	PLATE; CAUTION HONG KONG EQUIPMENT(PQ1)	1-48469-081-0	01	1	9002-
33	PLATE; CAUTION NEW ZEALAND EQUIPMENT(PK5)	1-48469-121-0	01	1	9307-
34	SHIM; CAM HOLDER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	AR	1	9002-
35	HOLDER; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9002-
36	RING; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	9002-
37	GUIDE; CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	9002-
38	SEAT; EXH VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	9002-
39	SPRING; RETURN,CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	9002-
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-067-0	01	1	9002-
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48469-079-0	01	1	9002-
41	SEAT; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	9002-
42	VALVE; FEED NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-065-0	02	1	9002-
43	PISTON; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	9002-
44	RING; SNAP,FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-068-0	02	1	9002-
45	SPRING; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-070-0	02	1	9002-
46	SPRING; MAIN,PISTON HONG KONG EQUIPMENT(PQ1)	1-48469-071-0	01	1	9002-
46	SPRING; MAIN,PISTON NEW ZEALAND EQUIPMENT(PK5)	1-48469-119-0	01	1	9307-
47	SHIM; MAIN SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	AR	1	9002-
48	WASHER; COVER HONG KONG EQUIPMENT(PQ1)	1-48469-074-0	04	1	9002-
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-52139-005-0	02	1	9307-
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (A)	1-48469-075-0	04	1	9002-
49	SCREW; COVER NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-120-0	04	1	9307-
50	COVER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-073-0	01	1	9002-
51	HANDLE ASM; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-060-0	01	1	9002-
52	SCREW; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	9002-
53	WASHER; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	9002-
54	SEAT; SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-082-0	02	1	9002-
55	SPRING; RETURN,HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	9002-
56	BOOT; PLUNGER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-080-0	01	1	9002-
57	PLUNGER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-076-0	01	1	9002-
57	PLUNGER; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48469-097-0	01	1	9002-
58	HOLDER; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-077-0	01	1	9002-
59	HOLDER; SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-078-0	01	1	9002-
145	STUD; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-069-0	01	1	9002-
164	GREASE; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9002-

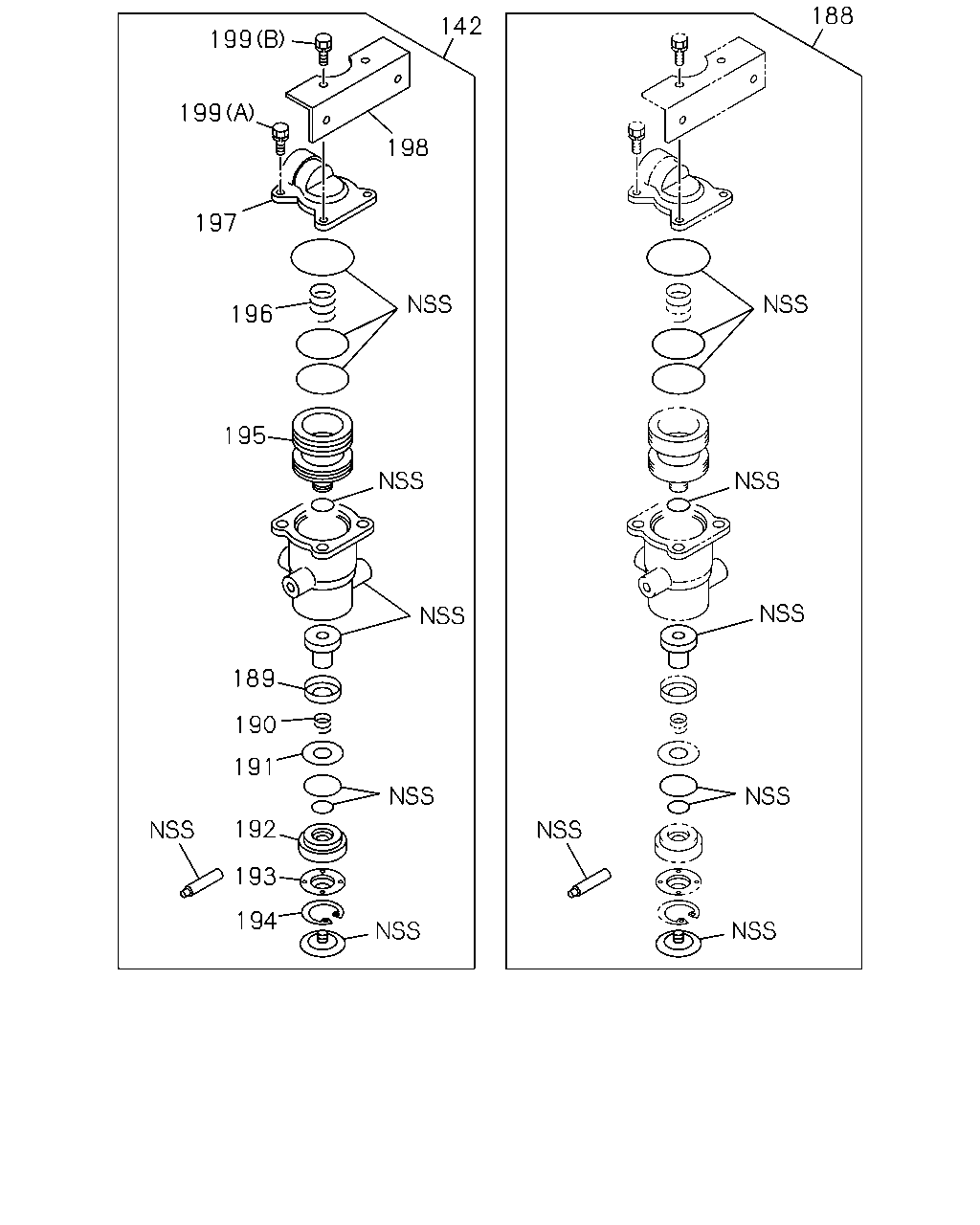

188 142 199 199 198 197 196 195 189 190 191 192 193 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
142	VALVE; SUPPLY DUMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48210-367-0	01	1	9002-
188	REPAIR KIT; DUMP VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-85576-117-0	01	1	9002-
189	RETAINER; VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-099-0	01	1	9002-
190	SPRING; VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-100-0	01	1	9002-
191	PLATE; VALVE HOLDER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-101-0	01	1	9002-
192	HOLDER; VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-102-0	01	1	9002-
193	PLATE; DUST SEAL NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-098-0	01	1	9002-
194	RING; SNAP,VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-097-0	01	1	9002-
195	PISTON; DUMP VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-103-0	01	1	9002-
196	SPRING; MAIN,VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-079-1	01	1	9002-
197	COVER; DUMP VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-104-0	01	1	9002-
198	BRACKET; DUMP VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-105-0	01	1	9002-
199	BOLT; COVER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8X22	9-01900-822-0	02	1	9002-
199	BOLT; COVER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-

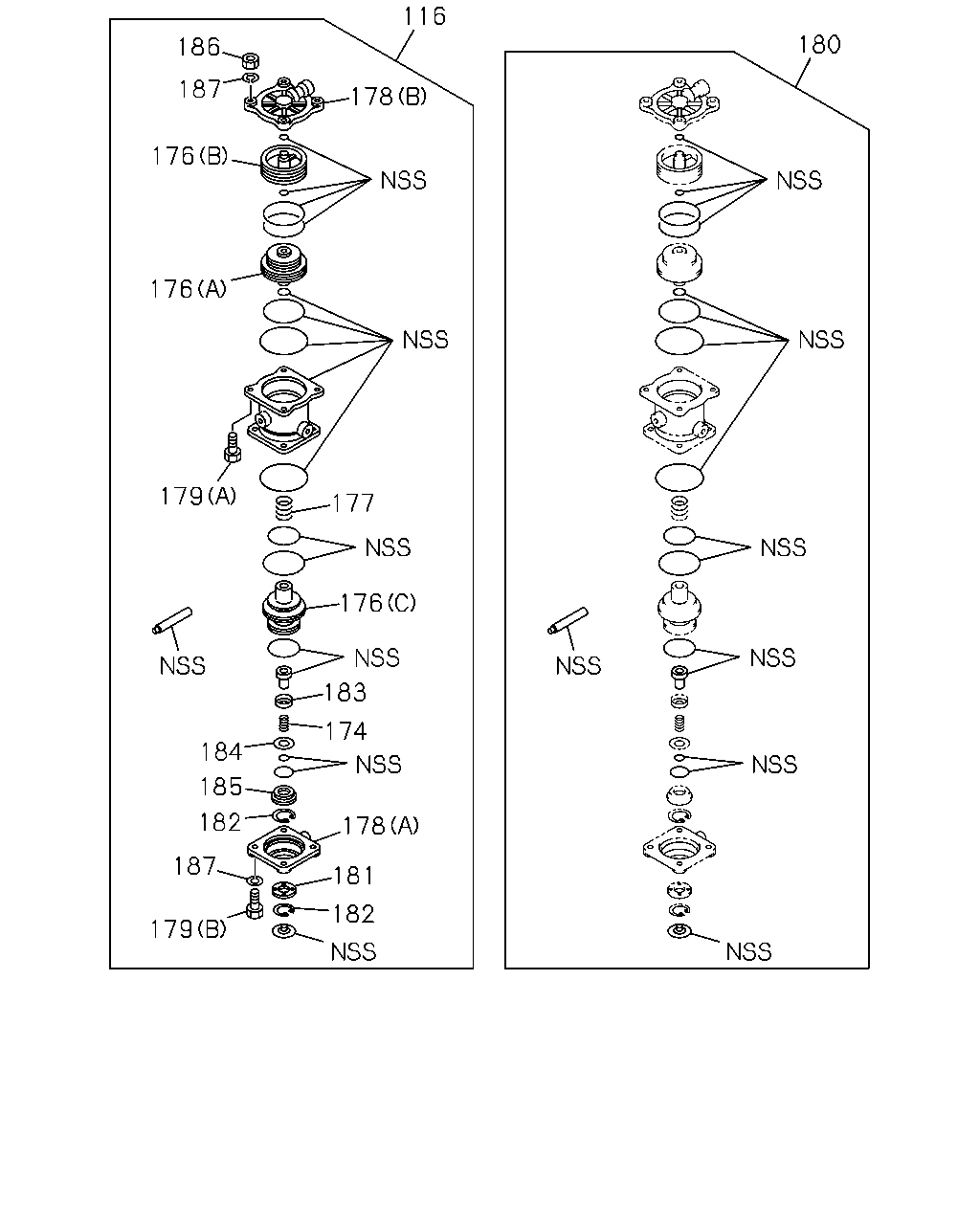

116 180 186 187 178 176 176 179 177 176 183 174 184 185 182 178 187 181 182 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	VALVE; DUAL RELAY NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48210-347-0	01	1	9002-
174	SPRING; INL VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-094-0	01	1	9002-
176	PISTON; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M14	1-48219-088-0	01	1	9002-
176	PISTON; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48219-089-0	01	1	9002-
176	PISTON; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C)	1-48219-092-0	01	1	9002-
177	SPRING; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-091-0	01	1	9002-
178	COVER; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48211-011-0	01	1	9002-
178	COVER; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48219-090-0	01	1	9002-
179	BOLT; COVER,RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8X50	9-01045-850-0	04	1	9002-
179	BOLT; COVER,RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-
180	REPAIR KIT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-85576-116-0	01	1	9002-
181	PLATE; DUST SEAL NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-098-0	01	1	9002-
182	RING; SNAP,RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-097-0	02	1	9002-
183	RETAINER; VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-093-0	01	1	9002-
184	PLATE; VALVE HOLDER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-095-0	01	1	9002-
185	HOLDER; VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48219-096-0	01	1	9002-
186	NUT; COVER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	04	1	9002-
187	WASHER; COVER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=8.2	9-09150-508-0	08	1	9002-

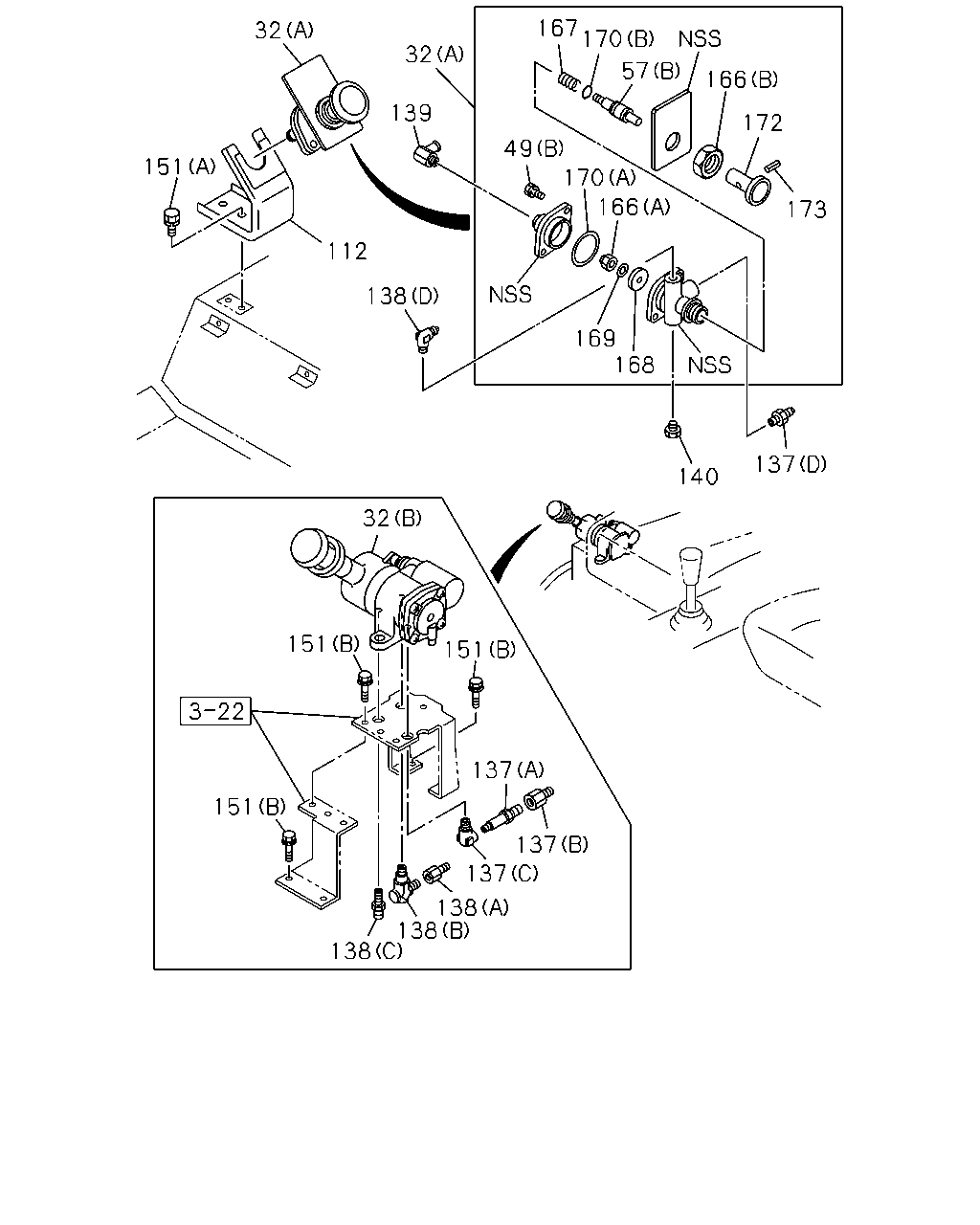

167 170 32 32 57 166 139 172 49 151 170 166 173 112 138 169 168 137 140 32 151 151 137 151 137 137 138 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-257-0	01	1	9002-
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (A)	1-48460-207-0	01	1	9002-9306
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (B)	1-48460-292-0	01	1	9307-
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48460-184-0	01	1	9002-
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-52139-005-0	02	1	9307-
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (A)	1-48469-075-0	04	1	9002-
49	SCREW; COVER NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-120-0	04	1	9307-
57	PLUNGER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-076-0	01	1	9002-
57	PLUNGER; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48469-097-0	01	1	9002-
112	BRACKET; CONT VLV EXC. HONG KONG EQUIPMENT(PQ1)	1-47475-260-2	01	1	9002-
137	CONNECTOR; SUPPLY HONG KONG EQUIPMENT(PQ1) (A)	1-09650-352-1	01	1	9002-
137	CONNECTOR; SUPPLY HONG KONG EQUIPMENT(PQ1) (C)	1-09660-505-1	01	1	9002-9302
137	CONNECTOR; SUPPLY HONG KONG EQUIPMENT(PQ1) (C) PT1/4 2WAY	1-09660-693-0	01	1	9303-9306
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) (A)	1-09660-334-0	01	1	9002-9306
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) (A)	1-09650-400-0	01	1	9307-
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) (B) M20X36	1-09660-576-0	01	1	9307-
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) PT1/4 2WAY	1-09660-693-0	01	1	9307-
137	CONNECTOR; SUPPLY EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9002-
138	CONNECTOR; DELIVERY HONG KONG EQUIPMENT(PQ1) (C) M14	1-09650-031-0	01	1	9002-9103
138	CONNECTOR; DELIVERY HONG KONG EQUIPMENT(PQ1) (C) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-
138	CONNECTOR; DELIVERY HONG KONG EQUIPMENT(PQ1) (B)	1-09650-240-1	01	1	9002-
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (A) M14 & PT1/4 ELBOW	1-09660-233-0	01	1	9002-9306
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (A)	1-09650-373-0	01	1	9307-
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (B)	1-09650-401-0	01	1	9307-
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (C) 17/32" PT1/4	1-09660-573-0	01	1	9410-
138	CONNECTOR; DELIVERY EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9002-9302
138	CONNECTOR; DELIVERY EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-
139	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1) PT1/4 ELBOW	8-94232-303-2	01	1	9002-
140	PLUG EXC. HONG KONG EQUIPMENT(PQ1) PT1/4	9-99204-513-0	01	1	9002-
151	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1) (A) M6X20	9-01910-620-0	02	1	9002-9005
151	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1) (A) M6X20 W/LK WASHER	0-50040-620-0	02	1	9006-9302
151	BOLT; VLV BRKT EXC. HONG KONG EQUIPMENT(PQ1) (A) M6X20 FLANGE	0-28080-620-0	02	1	9303-
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) M6X14 W/LK&PL WASHER	1-09980-549-0	06	1	9002-9401
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) M6X16 W/LK&PL WASHER	0-50140-616-0	06	1	9402-
166	NUT; PLUNGER EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48129-069-0	01	1	9002-
166	NUT; PLUNGER EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48469-101-0	01	1	9002-
167	SPRING; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-098-0	01	1	9002-
168	VALVE; INL EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-099-0	01	1	9002-
169	WASHER; PL,VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=6.4	9-09164-506-0	01	1	9002-
170	GASKET; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-100-0	01	1	9002-
170	GASKET; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	9-19519-094-0	01	1	9002-
172	KNOB; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-102-0	01	1	9002-
173	PIN; SPR,KNOB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	8-94124-044-0	01	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
