7-40 — INSTRUMENT PANEL AND BOX (#24748) — 106 parça

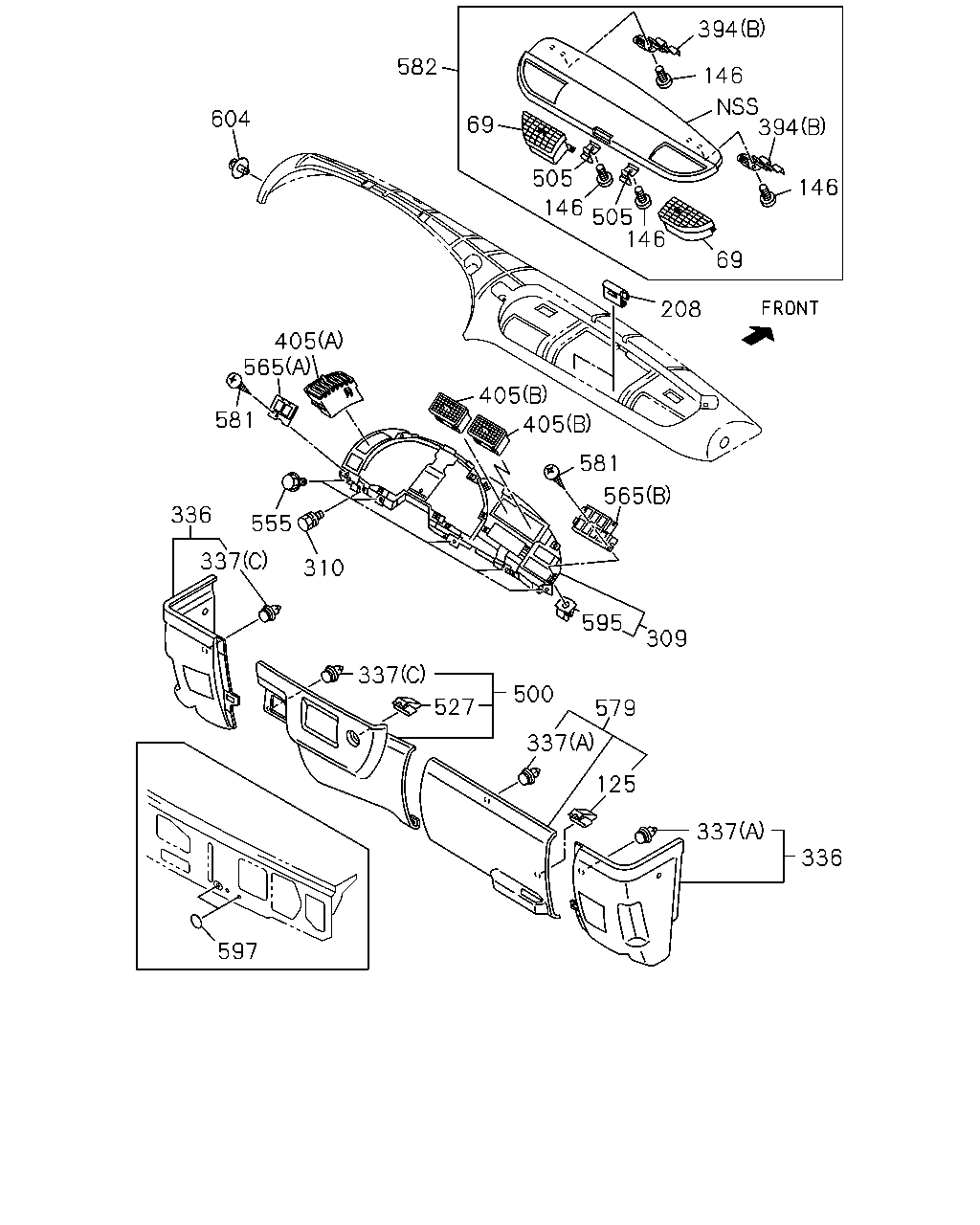

394 582 146 394 604 69 505 146 146 505 146 69 208 405 565 405 581 405 581 565 336 555 337 310 595 309 337 500 527 579 337 125 337 336 597

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	GRILLE; SIDE,AIR OUTLET	1-76368-029-5	01	1	9901-
69	GRILLE; SIDE,AIR OUTLET	1-76368-028-5	01	1	9901-
125	CLIP; INST PANEL	8-97217-066-0	09	1	9901-0207
125	CLIP; INST PANEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97217-066-0	09	1	0208-0208
125	CLIP; INST PANEL	8-97217-066-0	09	1	0209-
125	CLIP; INST PANEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97217-066-0	01	1	0208-0208
146	SCREW; TAP M5X14	8-94279-325-0	10	1	9901-
208	HOLDER; BOX,DASH SIDE	1-72558-027-2	02	1	9901-
309	PANEL; SW,INST	1-72418-018-3	01	1	9901-
310	BOLT; SW PNL M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	9901-
336	COVER; INST PANEL SIDE	1-72438-132-0	01	1	9901-0201
336	COVER; INST PANEL SIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72438-132-0	01	1	0202-
336	COVER; INST PANEL SIDE	1-72438-130-1	01	1	9901-0201
336	COVER; INST PANEL SIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72438-130-1	01	1	0202-
336	COVER; INST PANEL SIDE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-72438-194-0	01	1	0202-
336	COVER; INST PANEL SIDE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-72438-193-0	01	1	0202-
337	FASTENER; COVER (A)	1-72438-124-2	08	1	9901-
337	FASTENER; COVER (C)	1-72438-137-0	06	1	9901-
337	FASTENER; COVER (B)	1-72438-138-0	06	1	9901-
394	HOLDER; PANEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-72558-048-0	02	1	0408-
394	HOLDER; PANEL (A)	1-72438-066-0	06	1	9901-
394	HOLDER; PANEL (B)	1-72558-026-5	02	1	9901-0407
394	HOLDER; PANEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-72558-026-5	02	1	0408-
405	GRILLE ASM; METER VENT (A)	1-76368-062-0	01	1	9901-
405	GRILLE ASM; METER VENT (B) BLACK	8-94333-730-4	02	1	9901-
500	CLUSTER; INST CENTER	1-72438-126-3	01	1	9901-0201
500	CLUSTER; INST CENTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72438-126-3	01	1	0202-
500	CLUSTER; INST CENTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-72438-192-1	01	1	0202-
505	LOCK; LID	1-72558-024-2	02	1	9901-
527	CLIP; INST CLUSTER	8-97217-066-0	04	1	9901-
555	BOLT; PAD M10X25 FLANGE	0-28281-025-0	07	1	9901-0512
555	BOLT; PAD M10X25 FLANGE	0-28251-025-0	07	1	0601-0604
555	BOLT; PAD M10X25 FLANGE	8-98041-453-0	07	1	0605-
555	BOLT; PAD M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9901-
565	BEZEL; SW PANEL (A)	1-72418-021-1	01	1	9901-
565	BEZEL; SW PANEL (B)	1-72418-020-1	01	1	9901-
579	COVER; INST PNL	1-72438-128-1	01	1	9901-0201
579	COVER; INST PNL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72438-128-1	01	1	0202-
579	COVER; INST PNL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-72438-195-1	01	1	0202-
581	SCREW M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9901-0604
581	SCREW M6X20 TAPPING W/PL WASHER	0-74160-620-0	02	1	0605-
582	LID; FUSE & RELAY	1-72548-140-1	01	1	9901-0201
582	LID; FUSE & RELAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72548-140-1	01	1	0202-
582	LID; FUSE & RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-72548-146-1	01	1	0202-
595	NUT; HOOK	1-72418-013-0	10	1	9901-
597	SEAL; HOLE,DASH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=16 BLACK	1-76798-037-0	02	1	0202-
604	CLIP; INST PAD	1-09983-123-0	01	1	9901-

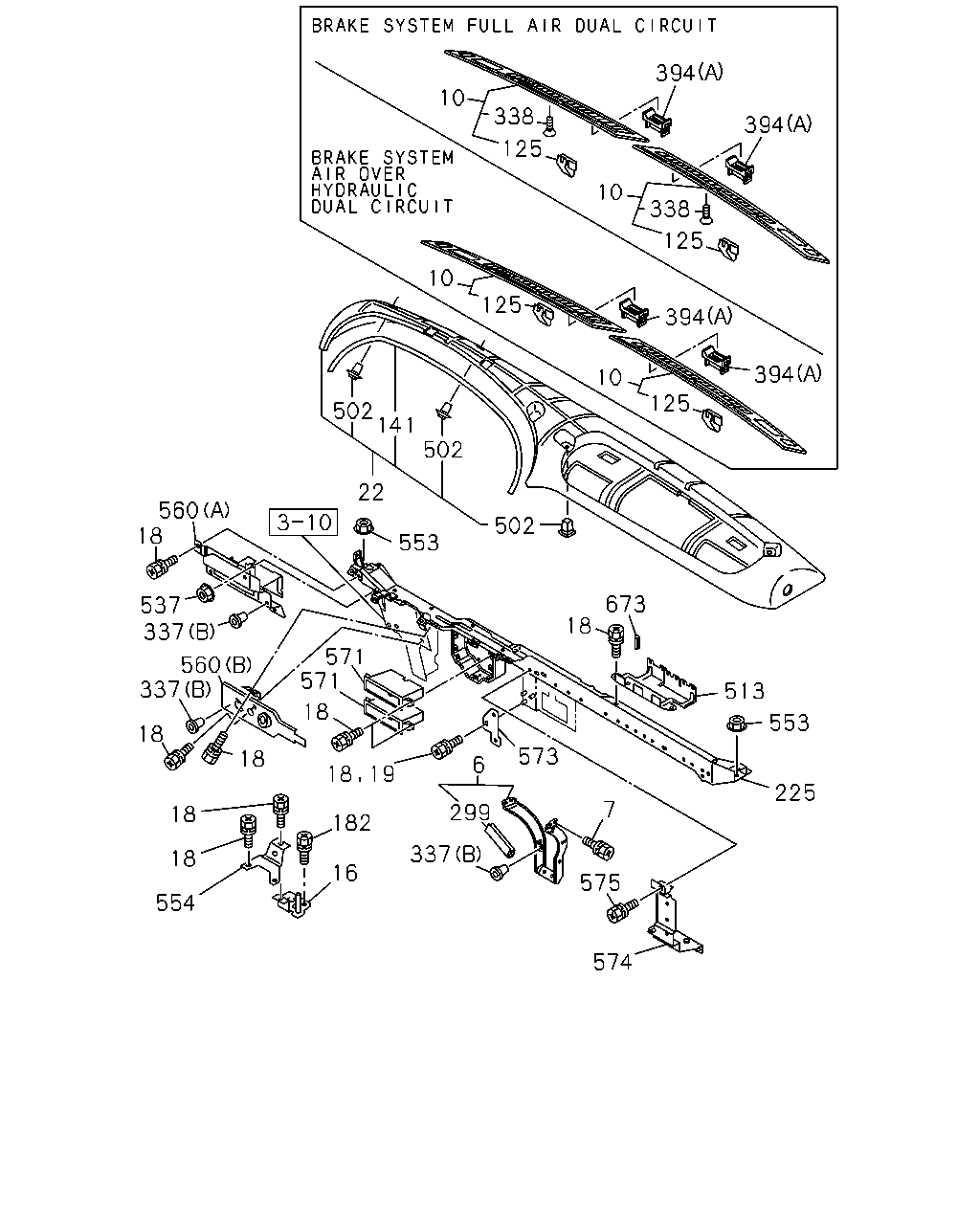

394 10 338 394 125 10 338 125 10 125 394 394 10 125 502 141 502 22 560 18 502 553 673 537 337 18 571 571 560 337 513 18 553 18 573 18 6 18 225 7 299 18 182 337 18 16 575 554 574 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	SUPPORT; INST PANEL	1-65681-035-6	01	1	9901-
7	BOLT; SUPPORT,INST PNL M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9901-
10	PANEL ASM; GARNISH	1-72438-158-1	01	1	9901-0201
10	PANEL ASM; GARNISH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72438-158-1	01	1	0202-
10	PANEL ASM; GARNISH	1-72438-157-1	01	1	9901-0201
10	PANEL ASM; GARNISH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72438-157-1	01	1	0202-
10	PANEL ASM; GARNISH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W/SPEAKER NET	1-72437-601-6	01	1	0202-
10	PANEL ASM; GARNISH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W/SPEAKER NET	1-72437-600-7	01	1	0202-
16	BRACKET; INST PNL	1-79738-802-1	01	1	9901-
18	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9901-0201
18	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0202-
18	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0202-
18	BOLT; BRKT M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9901-
19	SCREW; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M5X14	8-94279-325-0	02	1	0202-
22	PAD; INST	1-72318-415-2	01	1	9901-0201
22	PAD; INST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72318-415-4	01	1	0202-
22	PAD; INST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-72318-435-3	01	1	0202-
125	CLIP; INST PANEL	8-97217-066-0	09	1	9901-0207
125	CLIP; INST PANEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97217-066-0	09	1	0208-0208
125	CLIP; INST PANEL	8-97217-066-0	09	1	0209-
125	CLIP; INST PANEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97217-066-0	01	1	0208-0208
141	PROTECTOR; EDGE	1-72318-430-0	01	1	9901-
182	BOLT; BRKT,INST PANEL M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9901-
225	FRAME; FACIA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98142-104-0	01	1	1003-
225	FRAME; FACIA	1-65681-028-8	01	1	9901-1002
299	FINISHER; STAY,INST CENTER L=150 SERVICED BY L=190	1-71998-300-0	01	1	9811-0203
299	FINISHER; STAY,INST CENTER L=150 SERVICED BY L=314	8-94262-845-0	01	1	0204-
337	FASTENER; COVER (A)	1-72438-124-2	08	1	9901-
337	FASTENER; COVER (C)	1-72438-137-0	06	1	9901-
337	FASTENER; COVER (B)	1-72438-138-0	06	1	9901-
338	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M5X14	8-94279-325-0	10	1	0202-0207
338	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M5X14	8-94148-576-1	10	1	0209-0309
338	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M5X14	8-94279-325-0	20	1	0310-0405
338	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M5X14	8-94279-325-0	10	1	0406-0801
338	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M5X14	8-94279-325-0	15	1	0802-
394	HOLDER; PANEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-72558-048-0	02	1	0408-
394	HOLDER; PANEL (A)	1-72438-066-0	06	1	9901-
394	HOLDER; PANEL (B)	1-72558-026-5	02	1	9901-0407
394	HOLDER; PANEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-72558-026-5	02	1	0408-
502	GROMMET; SCREW,CENTER,CLUSTER D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9901-
513	BRACKET; RELAY	8-97865-168-3	01	1	9901-
537	NUT; BRKT M6 FLANGE	0-91150-106-0	01	1	9901-0602
537	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	0603-
553	NUT; FRAME M8 FLANGE	0-91150-108-0	04	1	9901-0602
553	NUT; FRAME M8 FLANGE	0-91180-108-0	04	1	0603-
554	BRACKET; CENTER BEZEL	1-65681-039-2	01	1	9901-
560	BRACKET (A)	1-65681-045-6	01	1	9901-
560	BRACKET (B)	1-65681-043-2	01	1	9901-
571	BEZEL; POCKET	1-72438-151-1	02	1	9901-0201
571	BEZEL; POCKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72438-151-3	02	1	0202-
571	BEZEL; POCKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-72438-151-3	01	1	0202-
571	BEZEL; POCKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-72438-151-3	01	1	0202-
573	BRACKET; PANEL,RELAY BOX	1-73908-200-0	01	1	9901-0201
573	BRACKET; PANEL,RELAY BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-73908-200-0	01	1	0202-
573	BRACKET; PANEL,RELAY BOX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-73908-023-2	01	1	0202-
574	PANEL; RELAY BOX	1-73908-058-6	01	1	9901-
575	BOLT; PANEL M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9901-
673	FINISHER; BRKT,RELAY L=30	8-94273-221-0	01	1	0006-0009
673	FINISHER; BRKT,RELAY L=50	8-94270-377-1	01	1	0010-
