◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#24745) — 12 parça

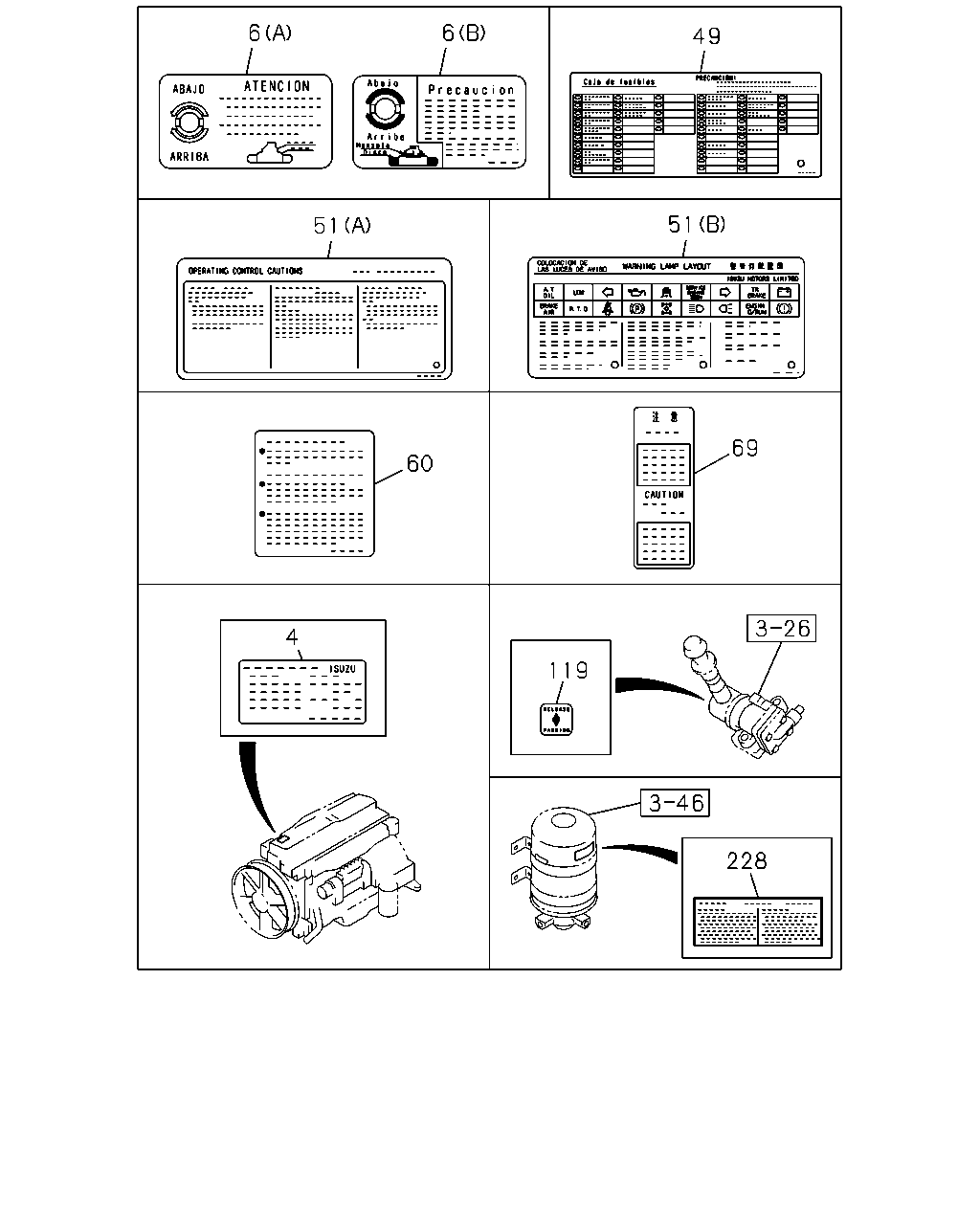

çizim 80221
6 6 49 51 51 69 60 4 119 228
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE 8-94390-957-0 01 1 9811-9902
4 LABEL; ENG MAINTENANCE
6HE1 TC ENG(57L) 		8-94390-957-0 01 1 9903-0201
4 LABEL; ENG MAINTENANCE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-94390-957-0 01 1 0202-0203
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS SPANISH<YN1> (A) 		1-53639-005-0 01 1 9811-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS SPANISH<YN1> (B) 		8-98082-439-0 01 1 0709-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85888-556-0 01 1 9811-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-707-1 01 1 9811-
51 PLATE; CAUTION,WARNING
(B) 		1-85888-559-2 01 1 9811-
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> 		1-85883-170-0 01 1 9811-
69 PLATE; CAUTION,STARTER SW
CAUTIONS SPANISH<YN1> 		9-83999-419-0 01 1 9811-
119 PLATE; CAUTION,HAND BRK LEVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85881-759-0 01 1 0202-
228 PLATE; CAUTION,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48199-325-0 01 1 0202-1001
