Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#2474) — 305 parça

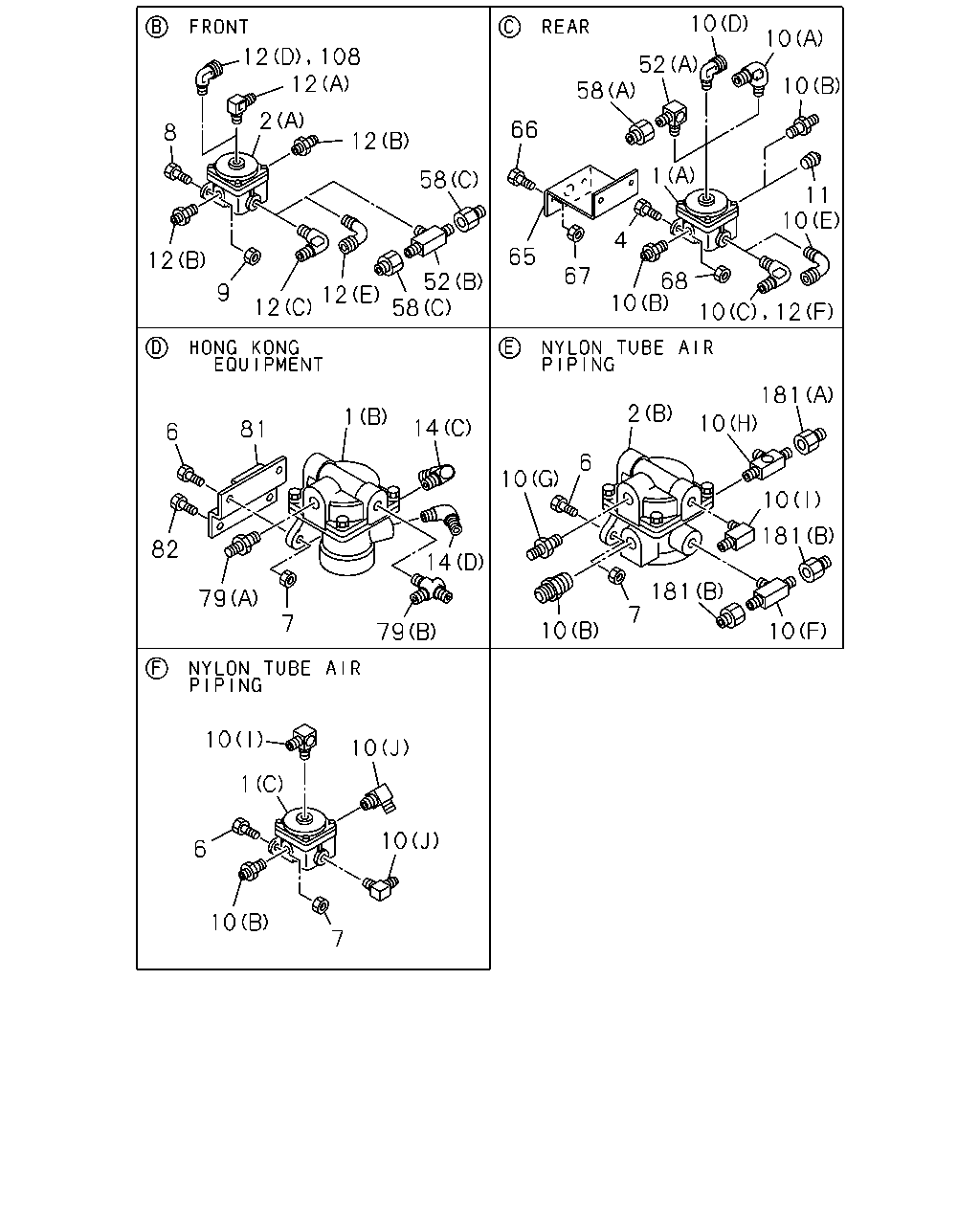

10 10 12 108 12 52 10 58 2 66 8 12 1 58 11 10 4 65 12 67 68 10 52 58 9 10 12 12 12 181 10 2 1 14 81 6 6 10 10 181 82 14 181 79 7 7 10 10 79 10 10 1 10 6 10 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	9002-9306
1	VALVE; RELAY RWD RR 6RB1 STD ENG(07L) (A)	1-48210-278-0	01	1	9307-
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9307-
1	VALVE; RELAY RWD RR 6RB1TC-N ENG(29L),10PD1 STD ENG(40L) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-48210-278-0	01	1	9307-
1	VALVE; RELAY RWD RR HONG KONG EQUIPMENT(PQ1) (B)	1-48210-157-1	01	1	9002-
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29> (C)	1-48210-278-0	01	1	9401-
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9401-
2	VALVE; RELAY (A)	1-48210-278-0	01	1	9002-9312
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9401-
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9401-
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9401-
4	BOLT; RELAY VLV TO BRKT M10X30 W/LK WASHER	9-01911-030-0	02	1	9002-9002
4	BOLT; RELAY VLV TO BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9003-
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-
6	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X35 W/LK WASHER	9-01900-835-0	02	1	9002-9204
6	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302
6	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X35 FLANGE	0-28080-835-0	02	1	9303-9306
6	BOLT; VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X35 FLANGE	0-28080-835-0	02	1	9307-
6	BOLT; VLV NYLON TUBE AIR PIPING<Z29> M10X30 W/LK WASHER	0-50041-030-0	04	1	9401-
7	NUT; RELAY VLV HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	9002-
7	NUT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	04	1	9401-
8	BOLT; BRKT M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002
8	BOLT; BRKT M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-
9	NUT M10	9-09110-510-0	02	1	9002-
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (B)	1-09660-230-0	01	1	9002-9312
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (B)	1-09660-298-0	03	1	9401-
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (D) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9002-9312
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (F)	1-09656-530-1	01	1	9401-
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (E) M18 & PT1/2 ELBOW	1-09660-236-0	01	1	9002-9312
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (G)	1-09660-569-0	01	1	9401-
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (H)	1-09656-446-0	01	1	9401-
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (I)	1-09660-570-0	02	1	9401-
10	CONNECTOR NYLON TUBE AIR PIPING<Z29> (J)	1-09660-571-0	02	1	9401-
10	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302
10	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306
10	CONNECTOR 6RB1 STD ENG(07L) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9307-
10	CONNECTOR 6RB1TC-N ENG(29L),10PD1 STD ENG(40L) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9307-
10	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (B) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9002-9306
10	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (C) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302
10	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-9306
10	CONNECTOR 6RB1 STD ENG(07L) (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9307-
10	CONNECTOR 6RB1TC-N ENG(29L),10PD1 STD ENG(40L) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9307-
10	CONNECTOR 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (B) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9307-
10	CONNECTOR 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9307-
11	PLUG PT1/2	9-09204-521-0	01	1	9002-
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-230-0	02	1	9002-9312
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-298-0	02	1	9401-
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9002-9312
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (E) M18 & PT1/2 ELBOW	1-09660-236-0	01	1	9002-9312
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (F)	1-09660-571-0	01	1	9401-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16	1-09650-245-1	02	1	9002-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (C)	1-09656-576-1	01	1	9002-
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (D) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (D) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-
14	CONNECTOR; RELAY VLV 6RB1TC-N ENG(29L) HONG KONG EQUIPMENT(PQ1) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	9307-
14	CONNECTOR; RELAY VLV 6RB1TC-N ENG(29L) HONG KONG EQUIPMENT(PQ1) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9307-
52	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09656-530-1	01	1	9401-
52	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (A)	1-09660-705-0	01	1	9401-
58	ADAPTER NYLON TUBE AIR PIPING<Z29> (B)	1-09660-548-0	01	1	9307-
58	ADAPTER NYLON TUBE AIR PIPING<Z29> (A)	1-09660-415-0	01	1	9401-
58	ADAPTER NYLON TUBE AIR PIPING<Z29> (C) M20X36	1-09660-576-0	02	1	9401-
65	BRACKET; RELAY VLV RR 6RB1TC-N ENG(29L) HONG KONG EQUIPMENT(PQ1)	1-47475-540-1	01	1	9307-
66	BOLT; BRKT,RELAY VLV RR 6RB1TC-N ENG(29L) HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	02	1	9307-
67	NUT; BRKT,RELAY VLV RR 6RB1TC-N ENG(29L) HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9307-
68	NUT; RELAY VLV TO BRKT M10	9-09110-510-0	02	1	9002-
79	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9002-
79	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M16	1-09656-374-1	01	1	9002-
81	BRACKET; RELAY VLV,PARKING BRK HONG KONG EQUIPMENT(PQ1)	1-48495-107-1	01	1	9002-9306
81	BRACKET; RELAY VLV,PARKING BRK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48495-107-1	01	1	9307-9312
81	BRACKET; RELAY VLV,PARKING BRK HONG KONG EQUIPMENT(PQ1)	1-48495-107-1	01	1	9401-
82	BOLT; BRKT,RELAY VLV HONG KONG EQUIPMENT(PQ1) M10X30 W/LK WASHER	9-01911-030-0	02	1	9002-9002
82	BOLT; BRKT,RELAY VLV HONG KONG EQUIPMENT(PQ1) M10X30 W/LK WASHER	0-50041-030-0	02	1	9003-9306
82	BOLT; BRKT,RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M10X30 W/LK WASHER	0-50041-030-0	02	1	9307-9312
82	BOLT; BRKT,RELAY VLV HONG KONG EQUIPMENT(PQ1) M10X30 W/LK WASHER	0-50041-030-0	02	1	9401-
108	CONNECTOR; ELBOW NYLON TUBE AIR PIPING<Z29>	1-09660-570-0	01	1	9401-
181	ADAPTER; PRESSURE SW NYLON TUBE AIR PIPING<Z29> (A)	1-09660-415-0	01	1	9401-
181	ADAPTER; PRESSURE SW NYLON TUBE AIR PIPING<Z29> (B) M20X36	1-09660-576-0	02	1	9401-

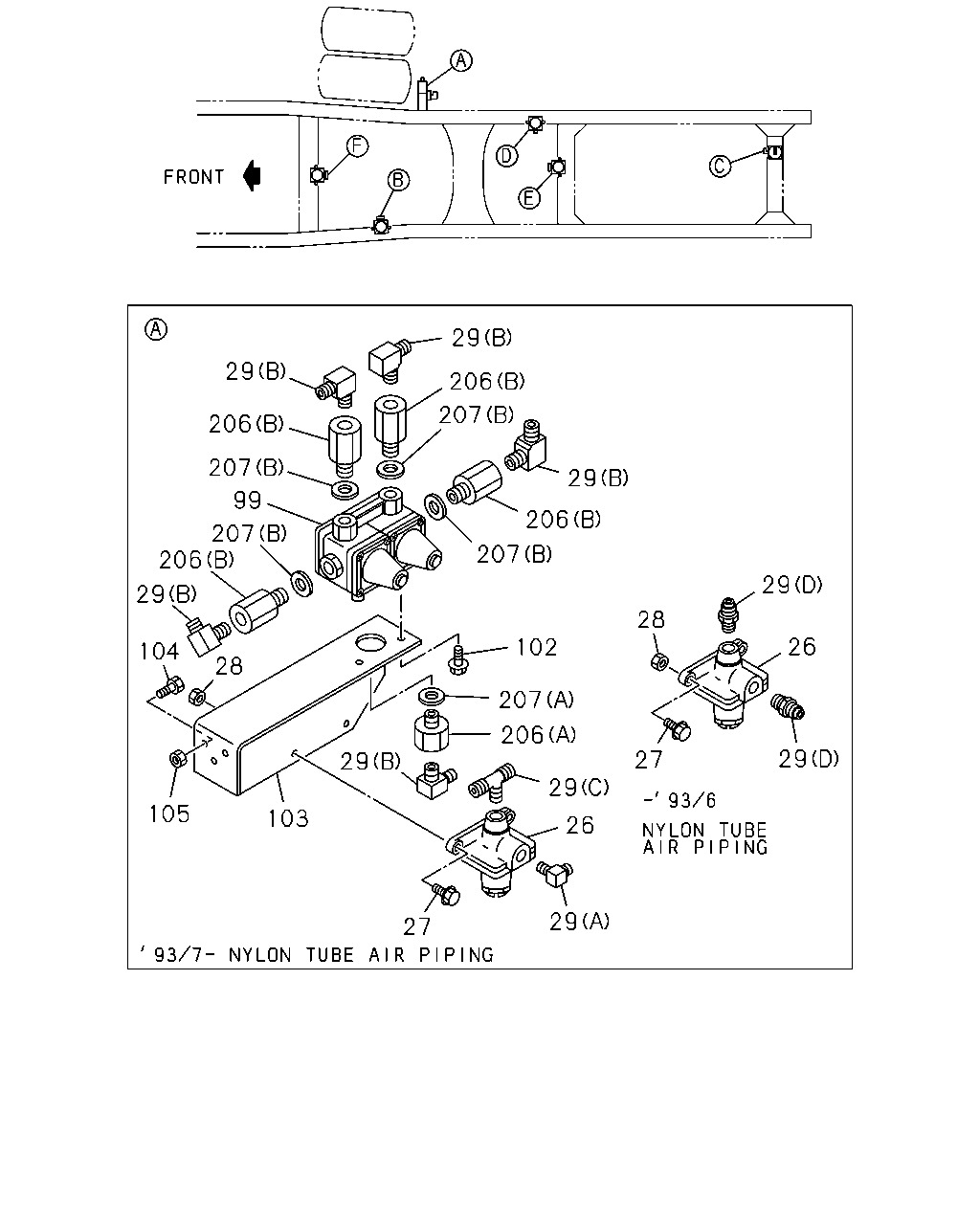

9 29 206 207 206 207 29 99 206 207 206 207 29 29 28 26 102 104 28 207 206 29 27 29 29 105 103 26 29 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT M10	9-09110-510-0	02	1	9002-
26	VALVE; AIR NYLON TUBE AIR PIPING<Z29>	1-48110-006-1	01	1	9002-
27	BOLT; AIR VLV NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005
27	BOLT; AIR VLV NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9306
27	BOLT; AIR VLV NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-
28	NUT; AIR VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-
29	CONNECTOR; AIR VLV NYLON TUBE AIR PIPING<Z29> (D) M16 & PT1/4 STRAIGHT	9-09231-810-1	02	1	9002-9306
29	CONNECTOR; AIR VLV NYLON TUBE AIR PIPING<Z29> (C)	1-09660-543-0	01	1	9307-
29	CONNECTOR; AIR VLV NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
29	CONNECTOR; AIR VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-571-0	05	1	9307-
99	VALVE; PROTECTION NYLON TUBE AIR PIPING<Z29>	1-48110-018-0	01	1	9307-
102	BOLT; PROTECTION VALVE NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	02	1	9307-
103	BRACKET; PROTECTION VALVE NYLON TUBE AIR PIPING<Z29>	1-48495-129-0	01	1	9307-
104	BOLT; BRKT,VALVE NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	0-50040-835-0	03	1	9307-9312
104	BOLT; BRKT,VALVE NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9401-
105	NUT; BRKT,VALVE NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9307-
206	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-199-1	01	1	9307-
206	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	5-09650-016-1	04	1	9307-
207	GASKET; ADAPTER NYLON TUBE AIR PIPING<Z29> (B)	9-09572-016-0	04	1	9307-
207	GASKET; ADAPTER NYLON TUBE AIR PIPING<Z29> (A)	9-09572-022-0	01	1	9307-

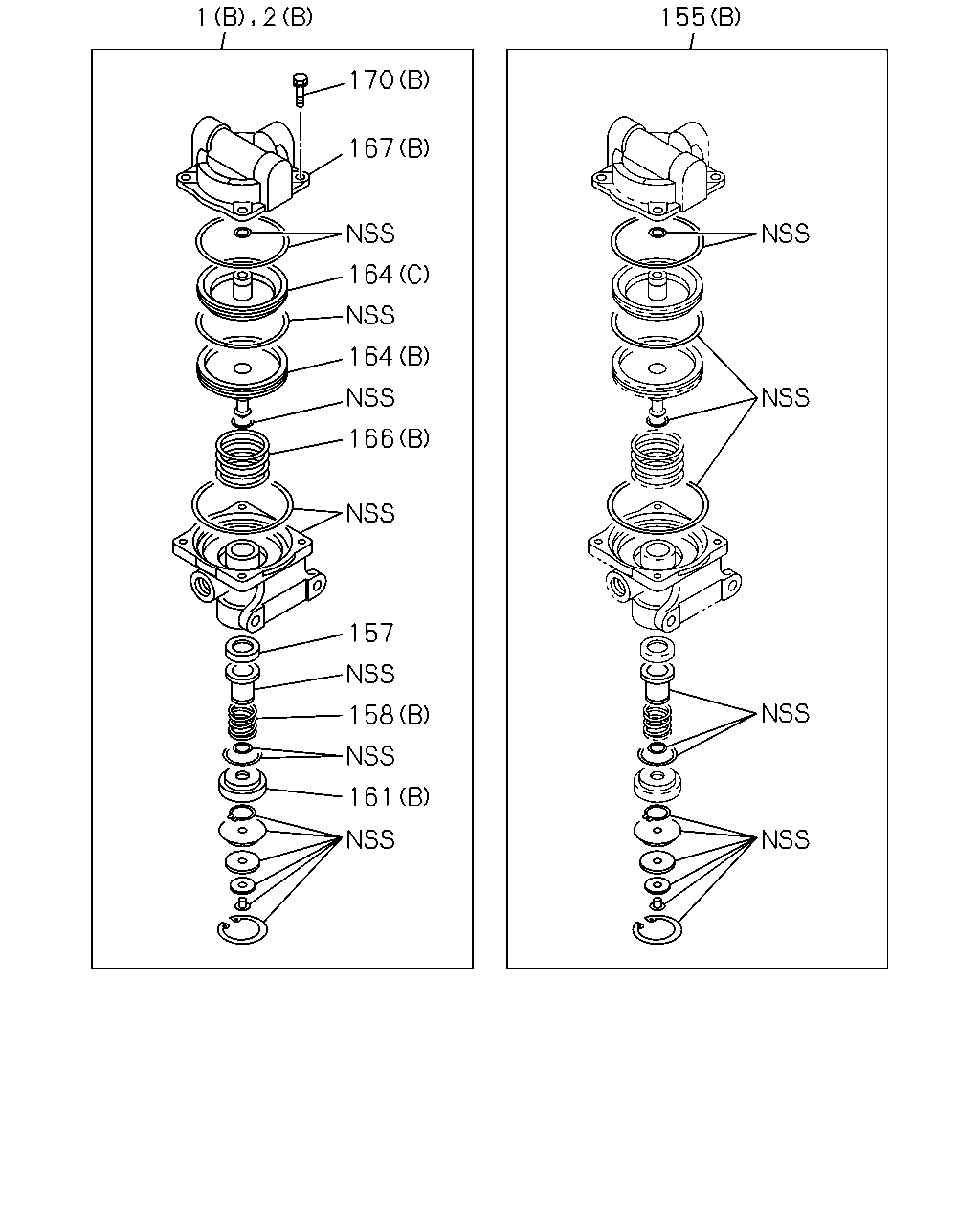

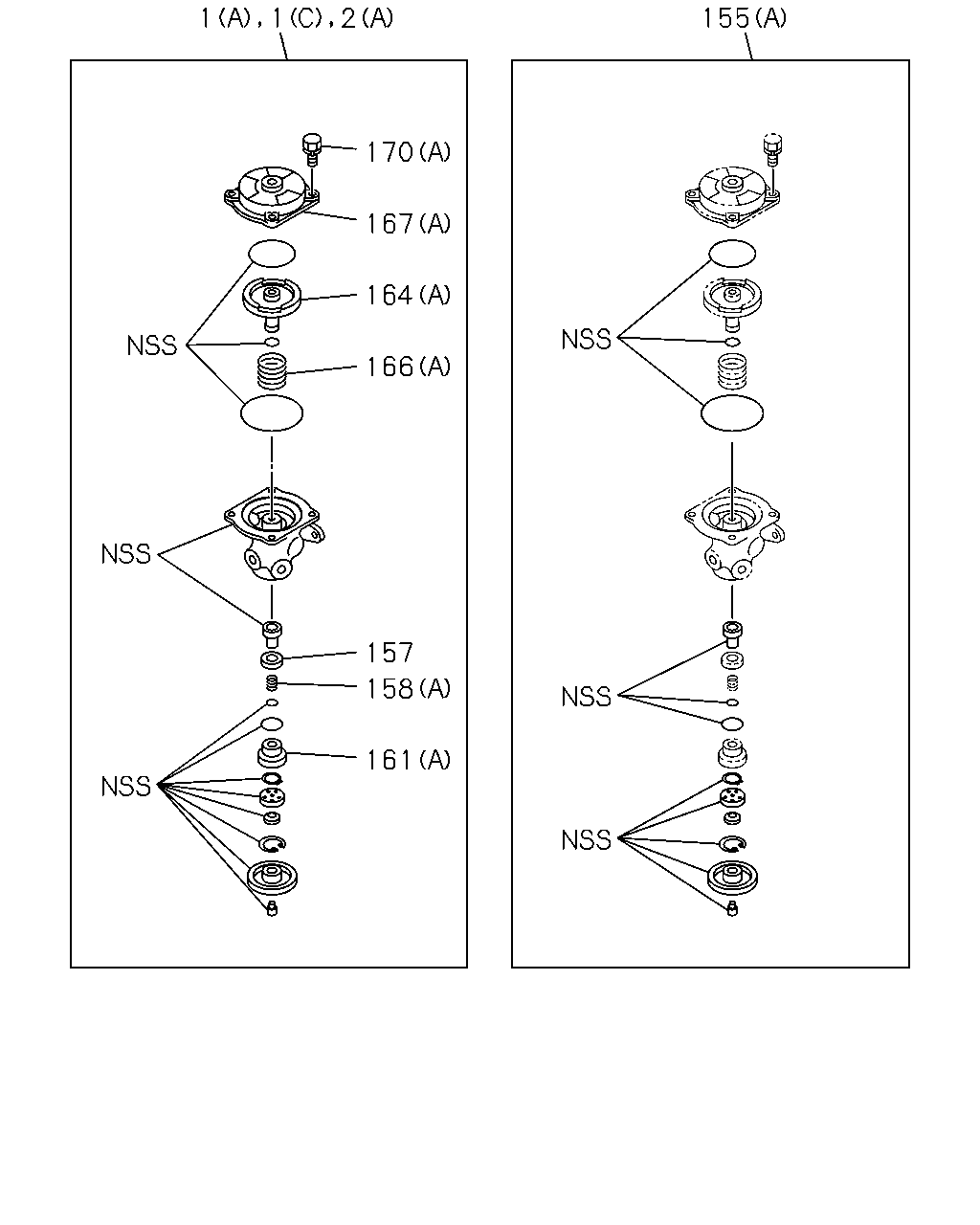

155 170 167 164 164 166 157 158 161 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	9002-9306
1	VALVE; RELAY RWD RR 6RB1 STD ENG(07L) (A)	1-48210-278-0	01	1	9307-
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9307-
1	VALVE; RELAY RWD RR 6RB1TC-N ENG(29L),10PD1 STD ENG(40L) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-48210-278-0	01	1	9307-
1	VALVE; RELAY RWD RR HONG KONG EQUIPMENT(PQ1) (B)	1-48210-157-1	01	1	9002-
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29> (C)	1-48210-278-0	01	1	9401-
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9401-
2	VALVE; RELAY (A)	1-48210-278-0	01	1	9002-9312
2	VALVE; RELAY EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9401-
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (B)	1-48210-143-0	01	1	9401-
2	VALVE; RELAY NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9401-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	02	1	9002-9312
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	03	1	9401-
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-85576-035-0	01	1	9002-9312
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-85576-035-0	01	1	9401-
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-85576-035-0	01	1	9401-
155	REPAIR KIT; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-85576-033-0	01	1	9307-
157	RETAINER; VALVE	1-48213-002-0	02	1	9002-9312
157	RETAINER; VALVE	1-48213-002-0	04	1	9401-
157	RETAINER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48213-002-0	01	1	9002-
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9002-9312
158	SPRING; VALVE (A)	1-47819-089-0	04	1	9401-
158	SPRING; VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-47819-040-0	01	1	9002-
161	GUIDE; VALVE (A)	1-48129-014-0	02	1	9002-9312
161	GUIDE; VALVE (A)	1-48129-014-0	04	1	9401-
161	GUIDE; VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48129-078-0	01	1	9002-
164	PISTON; RELAY VALVE (A)	1-48219-071-0	02	1	9002-9312
164	PISTON; RELAY VALVE (A)	1-48219-071-0	03	1	9401-
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48219-032-0	01	1	9002-9312
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48219-032-0	01	1	9401-
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-032-0	01	1	9401-
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (C)	1-48219-047-0	01	1	9002-9312
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (C)	1-48219-047-0	01	1	9401-
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (C)	1-48219-047-0	01	1	9401-
166	SPRING; PISTON (A)	1-47819-090-0	02	1	9002-9312
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (A)	1-47819-165-0	02	1	9401-
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) (B)	1-48219-048-0	01	1	9002-9312
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) (B)	1-48219-048-0	01	1	9401-
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (B)	1-48219-048-0	01	1	9401-
166	SPRING; PISTON EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	01	1	9401-
167	COVER; VALVE (A)	1-48219-070-0	02	1	9002-9312
167	COVER; VALVE (A)	1-48219-070-0	03	1	9401-
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48219-050-1	01	1	9002-9312
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48219-050-1	01	1	9401-
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-050-1	01	1	9401-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	08	1	9002-9312
170	SCREW; COVER TO BODY (A)	1-48219-039-0	12	1	9401-
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) (B)	1-48219-041-0	04	1	9002-9312
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) (B)	1-48219-041-0	04	1	9401-
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> (B)	1-48219-041-0	04	1	9401-

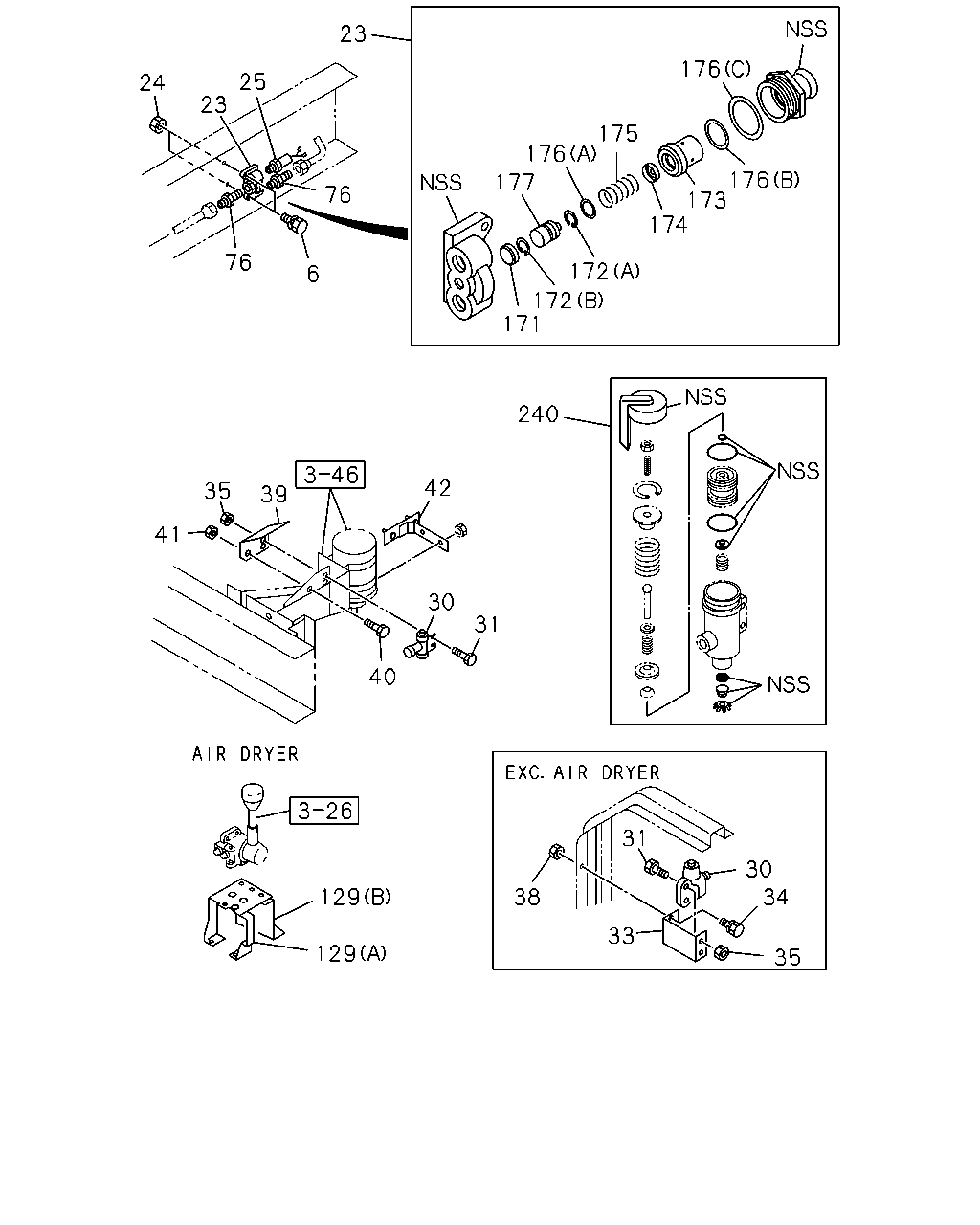

23 176 25 24 23 175 176 176 173 174 177 76 76 172 6 172 171 240 42 35 39 41 30 31 40 31 30 34 129 38 33 129 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-
6	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X35 W/LK WASHER	9-01900-835-0	02	1	9002-9204
6	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302
6	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X35 FLANGE	0-28080-835-0	02	1	9303-9306
6	BOLT; VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X35 FLANGE	0-28080-835-0	02	1	9307-
6	BOLT; VLV NYLON TUBE AIR PIPING<Z29> M10X30 W/LK WASHER	0-50041-030-0	04	1	9401-
23	VALVE; PRESSURE CONT EXC. HONG KONG EQUIPMENT(PQ1)	1-48460-067-1	01	1	9002-9306
23	VALVE; PRESSURE CONT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48460-067-1	01	1	9307-
24	NUT EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-9306
24	NUT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9307-
25	SWITCH; PRESSURE EXC. HONG KONG EQUIPMENT(PQ1)	1-48340-036-0	01	1	9002-9306
25	SWITCH; PRESSURE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48340-044-0	01	1	9307-9411
25	SWITCH; PRESSURE	1-48340-057-1	01	1	9412-
30	GOVERNOR; AIR CONT	1-48350-037-0	01	1	9002-9208
30	GOVERNOR; AIR CONT	1-48350-050-1	01	1	9209-9409
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9410-
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	9-01960-830-0	02	1	9002-9204
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9205-
33	BRACKET; GOV,AIR CONT EXC. AIR DRYER<PS7>	1-48359-035-0	01	1	9002-
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	02	1	9307-
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9002-
38	NUT; BRKT,GOV EXC. AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-
39	PROTECTOR; HEAT,GOV AIR DRYER<PS7>	1-48359-067-0	01	1	9002-
40	BOLT; HEAT PROTECTOR AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
40	BOLT; HEAT PROTECTOR AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-
41	NUT; HEAT PROTECTOR AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-
42	STAY; MUD GUARD 10PD1 STD ENG(40L) AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-53497-350-2	01	1	9002-9306
76	CONNECTOR; CONT VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M14	1-09650-031-0	02	1	9002-9103
76	CONNECTOR; CONT VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	9104-
76	CONNECTOR; CONT VLV NYLON TUBE AIR PIPING<Z29>	1-09660-226-0	02	1	9002-9306
129	BRACKET; PARKING BRK VLV BRKT HONG KONG EQUIPMENT(PQ1) (A)	1-79997-213-0	01	1	9002-9312
129	BRACKET; PARKING BRK VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-79997-213-0	01	1	9401-
129	BRACKET; PARKING BRK VLV BRKT HONG KONG EQUIPMENT(PQ1) (B)	1-79997-214-0	01	1	9002-9312
129	BRACKET; PARKING BRK VLV BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-79997-214-0	01	1	9401-
171	FILTER; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1)	9-88510-330-0	01	1	9002-9306
171	FILTER; PRESS CONT VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	9-88510-330-0	01	1	9307-
172	RING; RETAINING EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-31829-081-0	01	1	9002-9306
172	RING; RETAINING EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-31829-081-0	01	1	9307-
172	RING; RETAINING EXC. HONG KONG EQUIPMENT(PQ1) (B)	9-88510-331-0	01	1	9002-9306
172	RING; RETAINING EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	9-88510-331-0	01	1	9307-
173	PISTON; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1)	1-48469-103-0	01	1	9002-9306
173	PISTON; PRESS CONT VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-103-0	01	1	9307-
174	VALVE; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1)	1-48469-104-1	01	1	9002-9306
174	VALVE; PRESS CONT VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-104-1	01	1	9307-
175	SPRING; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1)	1-48469-105-0	01	1	9002-9306
175	SPRING; PRESS CONT VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-105-0	01	1	9307-
176	GASKET; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-47849-010-0	01	1	9002-9306
176	GASKET; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48212-004-0	01	1	9002-9306
176	GASKET; PRESS CONT VLV EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-48469-107-0	01	1	9002-9306
176	GASKET; PRESS CONT VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-47849-010-0	01	1	9307-
176	GASKET; PRESS CONT VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48212-004-0	01	1	9307-
176	GASKET; PRESS CONT VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C)	1-48469-107-0	01	1	9307-
177	RETAINER; PRESS CONT VLVE EXC. HONG KONG EQUIPMENT(PQ1)	1-48469-106-0	01	1	9002-9306
177	RETAINER; PRESS CONT VLVE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-106-0	01	1	9307-
240	REPAIR KIT; AIR CONT GOV	1-85576-293-0	01	1	9410-

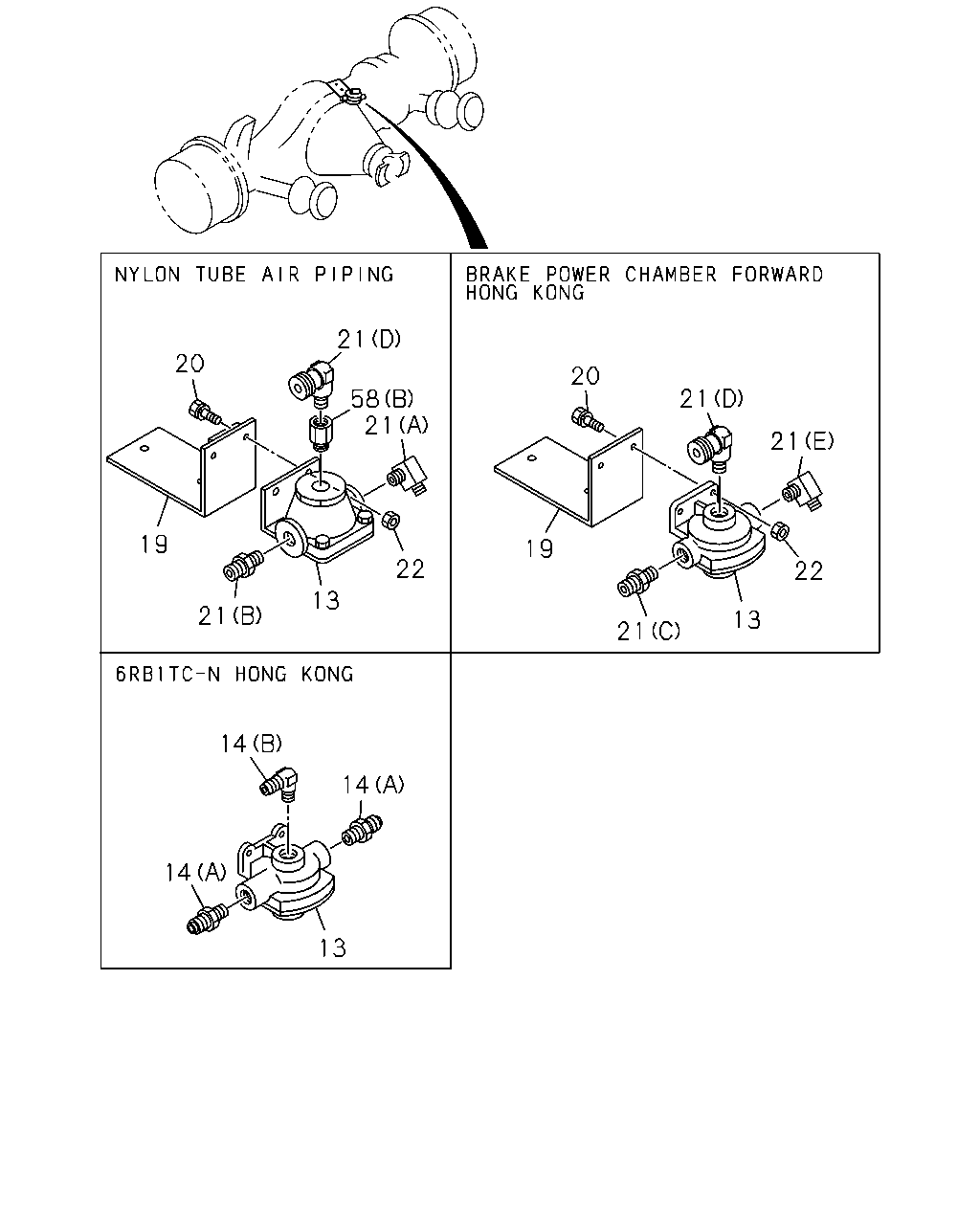

21 20 20 21 58 21 21 19 19 22 22 13 21 13 21 14 14 14 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE HONG KONG EQUIPMENT(PQ1)	1-48410-052-1	01	1	9002-9003
13	VALVE ASM; QUICK RELEASE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48410-052-1	01	1	9004-9306
13	VALVE ASM; QUICK RELEASE HONG KONG EQUIPMENT(PQ1)	1-48410-052-1	01	1	9307-9307
13	VALVE ASM; QUICK RELEASE HONG KONG EQUIPMENT(PQ1)	1-48410-320-0	01	1	9308-
13	VALVE ASM; QUICK RELEASE NEW ZEALAND EQUIPMENT(PK5)	1-48410-234-0	01	1	9307-
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (C)	1-09656-576-1	01	1	9002-
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (D) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (D) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-
14	CONNECTOR; RELAY VLV 6RB1TC-N ENG(29L) HONG KONG EQUIPMENT(PQ1) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	9307-
14	CONNECTOR; RELAY VLV 6RB1TC-N ENG(29L) HONG KONG EQUIPMENT(PQ1) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9307-
19	BRACKET; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1)	1-47465-885-1	01	1	9002-9003
19	BRACKET; QUICK RELEASE VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-47465-885-1	01	1	9004-9306
19	BRACKET; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1)	1-47465-885-1	01	1	9307-
19	BRACKET; QUICK RELEASE VLV NEW ZEALAND EQUIPMENT(PK5)	1-47476-889-0	01	1	9307-
20	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9003
20	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	9-01910-820-0	02	1	9004-9005
20	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9306
20	BOLT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	02	1	9307-
20	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8X20 W/LK WASHER	0-50040-820-0	02	1	9307-
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (D) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9307-
21	CONNECTOR; QUICK RELEASE VLV NEW ZEALAND EQUIPMENT(PK5) (D) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9307-
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (C)	1-09660-569-0	01	1	9307-
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (E)	1-09660-570-0	01	1	9307-
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) (C) M16 & PT3/8 STRAIGHT	1-09650-179-0	01	1	9002-9003
21	CONNECTOR; QUICK RELEASE VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9004-9306
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) (E) M16 & PT3/8 ELBOW	1-09650-180-0	01	1	9002-9003
21	CONNECTOR; QUICK RELEASE VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9004-9302
21	CONNECTOR; QUICK RELEASE VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) (D) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-9003
21	CONNECTOR; QUICK RELEASE VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9004-9306
21	CONNECTOR; QUICK RELEASE VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-09660-535-0	01	1	9307-
21	CONNECTOR; QUICK RELEASE VLV NEW ZEALAND EQUIPMENT(PK5) (B)	1-09660-555-0	01	1	9307-
22	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-9003
22	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9004-9306
22	NUT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9307-
22	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	02	1	9307-
58	ADAPTER NYLON TUBE AIR PIPING<Z29> (B)	1-09660-548-0	01	1	9307-
58	ADAPTER NYLON TUBE AIR PIPING<Z29> (A)	1-09660-415-0	01	1	9401-
58	ADAPTER NYLON TUBE AIR PIPING<Z29> (C) M20X36	1-09660-576-0	02	1	9401-

12 155 1 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	9002-9306
1	VALVE; RELAY RWD RR 6RB1 STD ENG(07L) (A)	1-48210-278-0	01	1	9307-
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29> (A)	1-48210-278-0	01	1	9307-
1	VALVE; RELAY RWD RR 6RB1TC-N ENG(29L),10PD1 STD ENG(40L) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-48210-278-0	01	1	9307-
1	VALVE; RELAY RWD RR HONG KONG EQUIPMENT(PQ1) (B)	1-48210-157-1	01	1	9002-
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29> (C)	1-48210-278-0	01	1	9401-
1	VALVE; RELAY RWD RR NYLON TUBE AIR PIPING<Z29> (A)	1-48210-500-0	01	1	9401-
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-230-0	02	1	9002-9312
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-298-0	02	1	9401-
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (D) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9002-9312
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (E) M18 & PT1/2 ELBOW	1-09660-236-0	01	1	9002-9312
12	CONNECTOR; RELAY VLV NYLON TUBE AIR PIPING<Z29> (F)	1-09660-571-0	01	1	9401-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) M16	1-09650-245-1	02	1	9002-
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302
12	CONNECTOR; RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	02	1	9002-9312
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	03	1	9401-
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-85576-035-0	01	1	9002-9312
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-85576-035-0	01	1	9401-
155	REPAIR KIT; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-85576-035-0	01	1	9401-
155	REPAIR KIT; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-85576-033-0	01	1	9307-
157	RETAINER; VALVE	1-48213-002-0	02	1	9002-9312
157	RETAINER; VALVE	1-48213-002-0	04	1	9401-
157	RETAINER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48213-002-0	01	1	9002-
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9002-9312
158	SPRING; VALVE (A)	1-47819-089-0	04	1	9401-
158	SPRING; VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-47819-040-0	01	1	9002-
161	GUIDE; VALVE (A)	1-48129-014-0	02	1	9002-9312
161	GUIDE; VALVE (A)	1-48129-014-0	04	1	9401-
161	GUIDE; VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48129-078-0	01	1	9002-
164	PISTON; RELAY VALVE (A)	1-48219-071-0	02	1	9002-9312
164	PISTON; RELAY VALVE (A)	1-48219-071-0	03	1	9401-
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48219-032-0	01	1	9002-9312
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48219-032-0	01	1	9401-
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-032-0	01	1	9401-
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (C)	1-48219-047-0	01	1	9002-9312
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (C)	1-48219-047-0	01	1	9401-
164	PISTON; RELAY VALVE NYLON TUBE AIR PIPING<Z29> (C)	1-48219-047-0	01	1	9401-
166	SPRING; PISTON (A)	1-47819-090-0	02	1	9002-9312
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (A)	1-47819-165-0	02	1	9401-
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) (B)	1-48219-048-0	01	1	9002-9312
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) (B)	1-48219-048-0	01	1	9401-
166	SPRING; PISTON NYLON TUBE AIR PIPING<Z29> (B)	1-48219-048-0	01	1	9401-
166	SPRING; PISTON EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47819-090-0	01	1	9401-
167	COVER; VALVE (A)	1-48219-070-0	02	1	9002-9312
167	COVER; VALVE (A)	1-48219-070-0	03	1	9401-
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48219-050-1	01	1	9002-9312
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48219-050-1	01	1	9401-
167	COVER; VALVE NYLON TUBE AIR PIPING<Z29> (B)	1-48219-050-1	01	1	9401-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	08	1	9002-9312
170	SCREW; COVER TO BODY (A)	1-48219-039-0	12	1	9401-
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) (B)	1-48219-041-0	04	1	9002-9312
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) (B)	1-48219-041-0	04	1	9401-
170	SCREW; COVER TO BODY NYLON TUBE AIR PIPING<Z29> (B)	1-48219-041-0	04	1	9401-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
