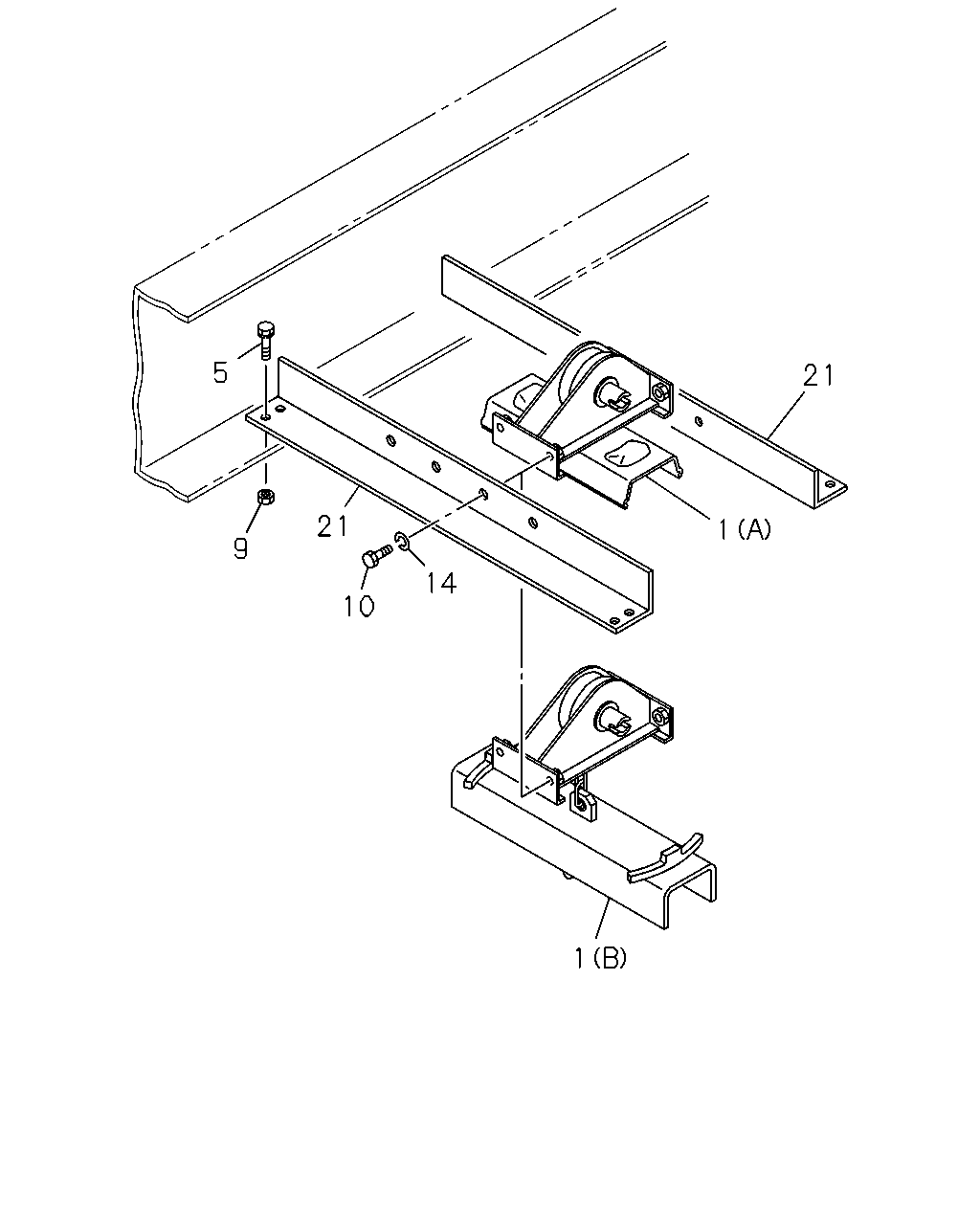

5-30 — SPARE TIRE CARRIER AND COVER (#24739) — 14 parça

5 21 21 1 9 14 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10> WHEEL 10STUD 7.00TX20(Q58) (B)	1-53630-210-4	01	1	0707-
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10> (A)	1-53630-208-1	01	1	9811-0201
1	HANGER ASM; TIRE FT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME REAR<P10> (A)	1-53630-208-1	01	1	0202-
1	HANGER ASM; TIRE FT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPARE WHEEL CARRIER FRAME REAR<P10>,WHEEL 8STUD 6.50TX20 152-11(Q50) (A)	1-53630-208-1	01	1	0202-
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	9811-0512
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28051-025-0	08	1	0601-
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91150-210-0	08	1	9811-0602
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91180-210-0	08	1	0603-
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28681-230-0	04	1	9811-0512
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28651-230-0	04	1	0601-
14	WASHER; LK,TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> ID=16.2	9-09150-516-0	04	1	9811-0201
14	WASHER; LK,TIRE HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME REAR<P10> ID=16.2	9-09150-516-0	04	1	0202-0603
14	WASHER; LK,TIRE HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SPARE WHEEL CARRIER FRAME REAR<P10> ID=16.2	0-91510-516-0	04	1	0604-
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-373-0	02	1	9811-
