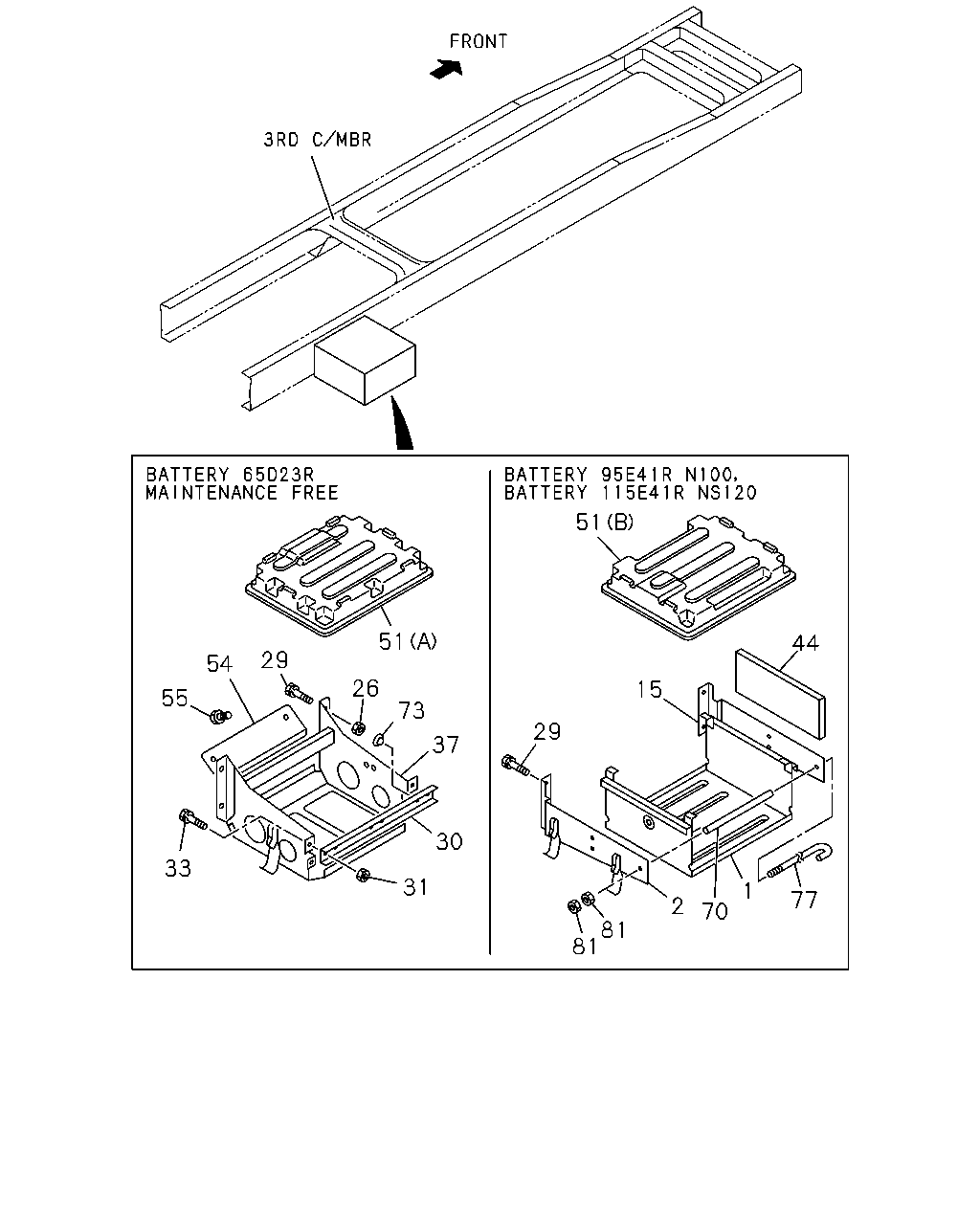

1 |
CARRIER; BATTERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
|
9-53613-584-3 |
01 |
1 |
0202- |
| |
2 |
BRACKET; BATTERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
|
1-53613-339-3 |
01 |
1 |
0202- |
| |
15 |
BRACKET; BATTERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
|
1-53613-340-3 |
01 |
1 |
0202- |
| |
26 |
NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10
|
9-09110-510-0 |
04 |
1 |
9811-0512 |
| |
26 |
NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10
|
0-91110-510-0 |
04 |
1 |
0601- |
| |
29 |
BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
9811-0201 |
| |
29 |
BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0202-0512 |
| |
29 |
BOLT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 65D23R MAINTENANCE FREE<WL4>
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0202-0512 |
| |
29 |
BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
0601- |
| |
29 |
BOLT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 65D23R MAINTENANCE FREE<WL4>
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
0601- |
| |
29 |
BOLT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
M14X35
|
0-20801-435-0 |
04 |
1 |
0202-0512 |
| |
29 |
BOLT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
M14X35
|
0-20851-435-0 |
04 |
1 |
0601- |
| |
30 |
PLATE; BATTERY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-53616-046-3 |
01 |
1 |
9811-0201 |
| |
30 |
PLATE; BATTERY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-53616-046-3 |
01 |
1 |
0202- |
| |
30 |
PLATE; BATTERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-53616-046-3 |
01 |
1 |
0202- |
| |
31 |
NUT; PLATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8
|
9-09110-408-0 |
02 |
1 |
9811-0201 |
| |
31 |
NUT; PLATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8
|
9-09110-408-0 |
02 |
1 |
0202-0512 |
| |
31 |
NUT; PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8
|
9-09110-408-0 |
02 |
1 |
0202-0512 |
| |
31 |
NUT; PLATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8
|
0-91110-508-0 |
02 |
1 |
0601- |
| |
31 |
NUT; PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8
|
0-91110-508-0 |
02 |
1 |
0601- |
| |
33 |
BOLT; PLATE TO BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9811-0201 |
| |
33 |
BOLT; PLATE TO BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0202-0512 |
| |
33 |
BOLT; PLATE TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0202-0512 |
| |
33 |
BOLT; PLATE TO BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
| |
33 |
BOLT; PLATE TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
| |
37 |
BRACKET; BATTERY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-53613-354-3 |
01 |
1 |
9811-0201 |
| |
37 |
BRACKET; BATTERY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-53613-354-3 |
01 |
1 |
0202- |
| |
37 |
BRACKET; BATTERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-53613-354-3 |
01 |
1 |
0202- |
| |
44 |
SPACER; BATTERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
|
1-53619-006-0 |
02 |
1 |
0202- |
| |
51 |
COVER; BATTERY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-53612-019-1 |
01 |
1 |
9811-0201 |
| |
51 |
COVER; BATTERY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-53612-019-1 |
01 |
1 |
0202- |
| |
51 |
COVER; BATTERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 65D23R MAINTENANCE FREE<WL4>
(A)
|
1-53612-019-1 |
01 |
1 |
0202- |
| |
51 |
COVER; BATTERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
(B)
|
1-53612-029-1 |
01 |
1 |
0202- |
| |
54 |
PROTECTOR; HEAT,BATTERY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-53619-069-1 |
01 |
1 |
9811- |
| |
55 |
BOLT; HEAT PROTECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9811-0512 |
| |
55 |
BOLT; HEAT PROTECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
| |
70 |
SPACER; BATTERY CARRIER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
|
1-53619-023-0 |
01 |
1 |
0202- |
| |
73 |
RUBBER; CUSHION,PLATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-09337-002-0 |
04 |
1 |
9811-0201 |
| |
73 |
RUBBER; CUSHION,PLATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-09337-002-0 |
04 |
1 |
0202- |
| |
73 |
RUBBER; CUSHION,PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 65D23R MAINTENANCE FREE<WL4>
|
1-09337-002-0 |
04 |
1 |
0202- |
| |
77 |
BOLT; BATTERY BRKT,FRT TO RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
|
1-53616-101-0 |
02 |
1 |
0202- |
| |
81 |
NUT; BATTERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
M8
|
9-09110-408-0 |
04 |
1 |
0202-0512 |
| |
81 |
NUT; BATTERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
M8
|
0-91110-508-0 |
04 |
1 |
0601- |
