5-01 — FRAME AND OTHER PARTS (#24736) — 113 parça

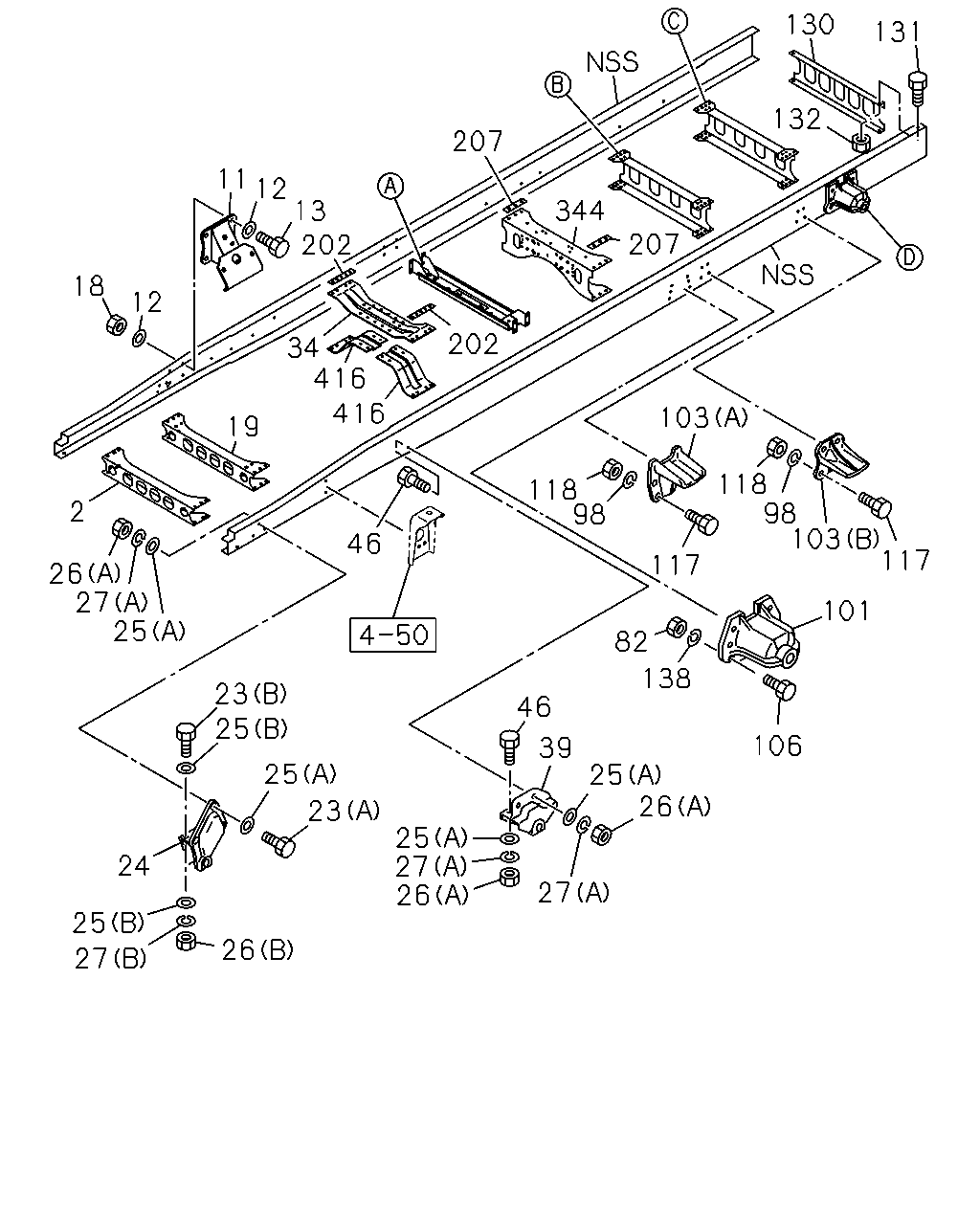

çizim 24333
130 131 132 207 11 12 13 202 344 207 34 416 416 18 12 202 103 19 118 98 103 117 118 98 2 46 117 26 27 25 101 82 138 23 25 46 106 39 25 25 26 23 25 27 26 24 27 25 26 27
BalonParca AdiParca NoAdetTipApplied Date
2 MEMBER; CROSS,1ST 1-53181-696-7 01 1 9811-
11 BRACKET; ENG MTG 1-53211-196-0 02 1 9811-
12 WASHER; PL,BRKT,ENG MTG
ID=12.5 		1-09503-171-0 16 1 9811-0201
12 WASHER; PL,BRKT,ENG MTG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.5 		1-09503-171-0 16 1 0202-
13 BOLT; BRKT,ENG MTG
M12X35 		9-92061-235-0 08 1 9811-0201
13 BOLT; BRKT,ENG MTG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 		9-92061-235-0 08 1 0202-0512
13 BOLT; BRKT,ENG MTG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 		0-20951-235-0 08 1 0601-
13 BOLT; BRKT,ENG MTG
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X35 FLANGE 		0-28691-235-0 08 1 0202-0512
13 BOLT; BRKT,ENG MTG
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X35 FLANGE 		0-28661-235-0 08 1 0601-
18 NUT; BRKT,ENG MTG
M12 		9-99110-512-0 08 1 9811-0201
18 NUT; BRKT,ENG MTG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-99110-512-0 08 1 0202-0512
18 NUT; BRKT,ENG MTG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		0-91110-512-0 08 1 0601-
18 NUT; BRKT,ENG MTG
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE 		0-91150-212-0 08 1 0202-0602
18 NUT; BRKT,ENG MTG
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE 		0-91180-212-0 08 1 0603-
19 MEMBER; CROSS,2ND 1-53181-714-8 01 1 9811-
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 9811-
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 9811-0512
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601-
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 9811-
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 9811-
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 9811-
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 9811-1201
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1202-
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 9811-0512
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601-
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 9811-0512
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601-
27 WASHER; LK,BRKT,FRT SPR
(A) ID=14.2 		9-09150-614-0 14 1 9811-0201
27 WASHER; LK,BRKT,FRT SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14.2 		9-09150-614-0 14 1 0202-0603
27 WASHER; LK,BRKT,FRT SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14.2 		0-91510-614-0 14 1 0604-
27 WASHER; LK,BRKT,FRT SPR
(B) ID=16.2 		9-09150-616-0 04 1 9811-0201
27 WASHER; LK,BRKT,FRT SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16.2 		9-09150-616-0 04 1 0202-0603
27 WASHER; LK,BRKT,FRT SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16.2 		0-91510-616-0 04 1 0604-
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 9811-
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 9811-
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 9811-
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 9811-0201
46 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X45 		9-92061-445-0 08 1 0202-
46 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X40 		9-92061-440-0 08 1 0202-0512
46 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X40 		0-20951-440-0 08 1 0601-
82 NUT; BRKT
PROVISIONAL PACKAGE SPEC<BCC> M10 FLANGE 		0-91180-110-0 04 1 0707-
82 NUT; BRKT
M14 		9-99110-514-0 20 1 9811-0512
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0601-
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9811-0603
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0604-
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 9811-
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 9811-
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 9811-
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 9811-
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9811-
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 9811-0512
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601-
130 MEMBER; CROSS,END 1-53181-151-2 01 1 9811-
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9811-0201
131 BOLT; END C/MBR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0202-0512
131 BOLT; END C/MBR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-
131 BOLT; END C/MBR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X30 FLANGE 		0-28681-230-0 04 1 0202-0512
131 BOLT; END C/MBR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X30 FLANGE 		0-28651-230-0 04 1 0601-
132 NUT; END C/MBR
M12 		9-99110-412-0 04 1 9811-0201
132 NUT; END C/MBR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-99110-412-0 04 1 0202-0512
132 NUT; END C/MBR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		0-91110-512-0 04 1 0601-
132 NUT; END C/MBR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE 		0-91150-112-0 04 1 0202-0602
132 NUT; END C/MBR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE 		0-91180-112-0 04 1 0603-
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9811-0603
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 20 1 0604-
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 9811-
207 SPACER; 4TH C/MBR 1-53168-162-2 02 1 9811-
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 9811-
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 9811-
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 9811-

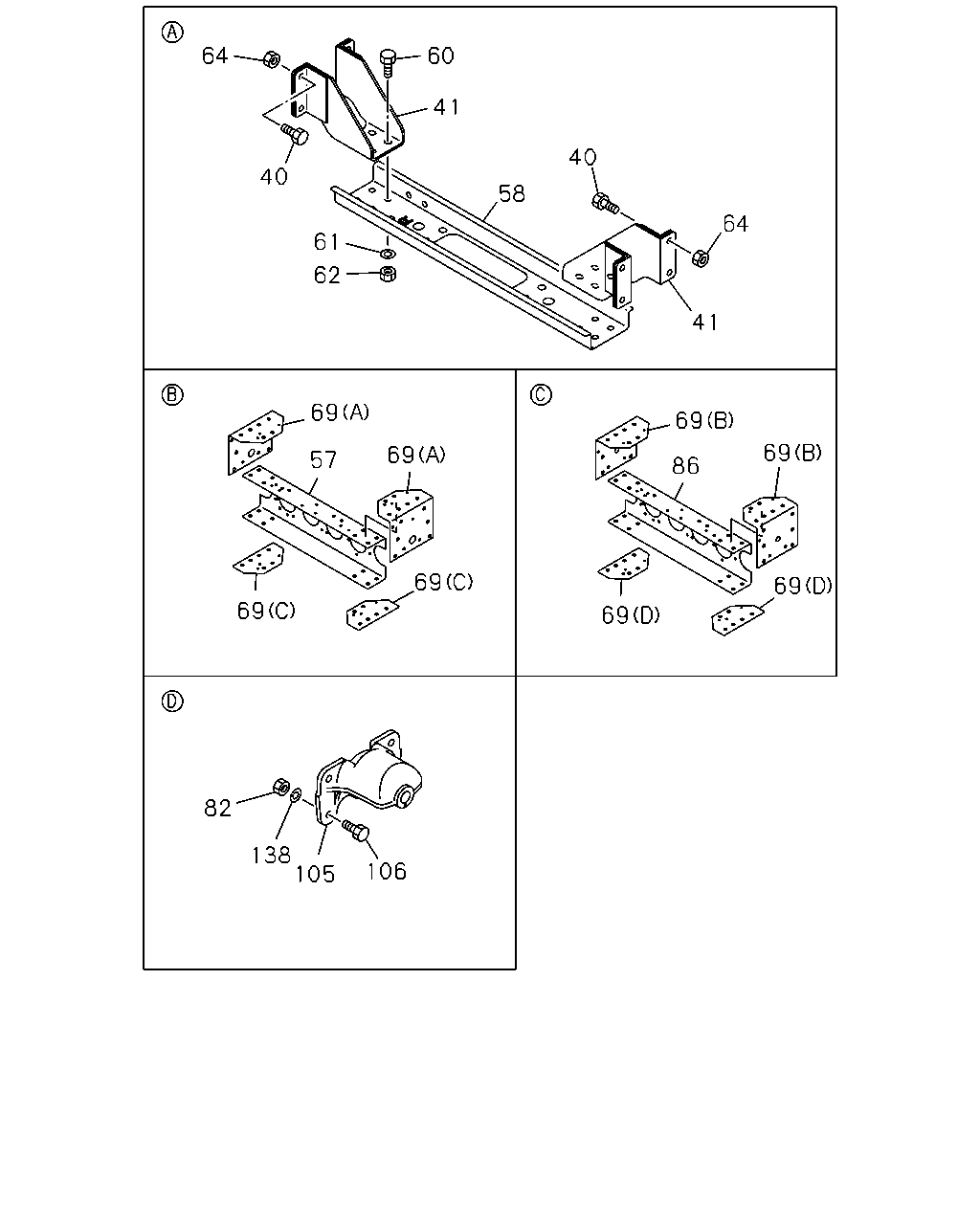

çizim 81986
64 60 41 40 40 58 64 61 62 41 69 69 69 69 57 86 69 69 69 69 82 138 105 106
BalonParca AdiParca NoAdetTipApplied Date
40 BOLT; BRKT TO FRAME
PROVISIONAL PACKAGE SPEC<BCC> M10X35 FLANGE 		0-28651-035-0 04 1 0707-
40 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50041-030-0 08 1 9811-0201
40 BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 W/LK WASHER 		0-50041-030-0 08 1 0202-0512
40 BOLT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 W/LK WASHER 		0-50541-030-0 08 1 0601-
40 BOLT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE 		0-28681-035-0 08 1 0202-0512
40 BOLT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE 		0-28651-035-0 08 1 0601-
41 BRACKET; CENTER BRG,FRAME SIDE 1-37515-085-0 02 1 9811-
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 9811-
58 MEMBER; CENTER BRG 1-37529-072-1 01 1 9811-
60 BOLT; MBR
M10X25 W/LK WASHER 		0-50041-025-0 08 1 9811-0201
60 BOLT; MBR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER 		0-50041-025-0 08 1 0202-0512
60 BOLT; MBR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER 		0-50541-025-0 08 1 0601-
60 BOLT; MBR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE 		0-28681-025-0 08 1 0202-0512
60 BOLT; MBR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE 		0-28651-025-0 08 1 0601-
61 WASHER; PL,MBR
ID=10.5 OD=22 		9-09164-610-0 08 1 9811-0201
61 WASHER; PL,MBR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.5 OD=22 		9-09164-610-0 08 1 0202-0605
61 WASHER; PL,MBR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.5 OD=22 		0-91614-610-0 08 1 0606-
62 NUT; MBR
M10 		9-09110-410-0 08 1 9811-0201
62 NUT; MBR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 		9-09110-410-0 08 1 0202-0512
62 NUT; MBR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 		0-91110-510-0 08 1 0601-
62 NUT; MBR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-110-0 08 1 0202-0602
62 NUT; MBR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91180-110-0 08 1 0603-
64 NUT; BRKT TO FRAME
M10 		9-09110-410-0 08 1 9811-0201
64 NUT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 		9-09110-410-0 08 1 0202-0512
64 NUT; BRKT TO FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 		0-91110-510-0 08 1 0601-
64 NUT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-110-0 08 1 0202-0602
64 NUT; BRKT TO FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91180-110-0 08 1 0603-
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-099-4 02 1 9811-
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-100-3 02 1 9811-
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-248-1 01 1 9811-
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-309-0 01 1 9811-
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-247-1 01 1 9811-
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-310-0 01 1 9811-
82 NUT; BRKT
PROVISIONAL PACKAGE SPEC<BCC> M10 FLANGE 		0-91180-110-0 04 1 0707-
82 NUT; BRKT
M14 		9-99110-514-0 20 1 9811-0512
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0601-
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-4 01 1 9811-0201
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-53181-691-4 01 1 0202-
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-53181-815-1 01 1 0202-
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 9811-
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 9811-
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9811-0603
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 20 1 0604-
