Sayfa 4-61 - Isuzu EPC

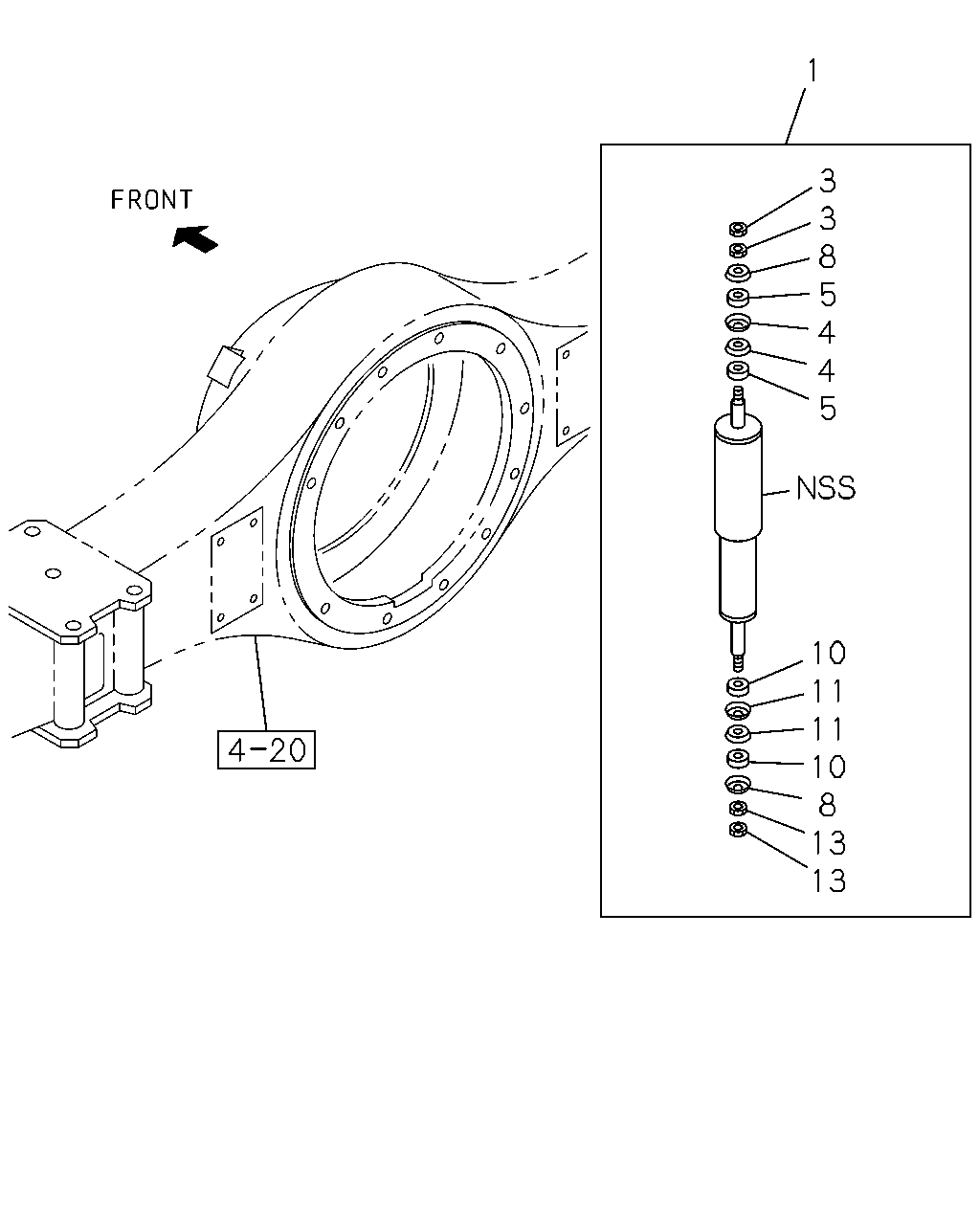

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#24733) — 8 parça

1 3 3 8 5 4 4 5 10 11 11 10 8 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ABSORBER ASM; SHOCK,RR PROVISIONAL PACKAGE SPEC<BCC>	1-51630-195-2	02	1	0707-
3	NUT; S/ABS PROVISIONAL PACKAGE SPEC<BCC> M14	9-99111-414-0	04	1	0707-
4	WASHER; CENTER,S/ABS PROVISIONAL PACKAGE SPEC<BCC> ID=20.8	9-51631-041-0	04	1	0707-
5	BUSHING; RUBBER,S/ABS,UPR PROVISIONAL PACKAGE SPEC<BCC>	9-51631-039-0	04	1	0707-
8	WASHER; S/ABS PROVISIONAL PACKAGE SPEC<BCC> ID=16.5	9-51631-040-0	06	1	0707-
10	BUSHING; RUBBER,S/ABS PROVISIONAL PACKAGE SPEC<BCC>	9-51631-039-0	04	1	0707-
11	WASHER; CENTER,LWR,RR S/ABS PROVISIONAL PACKAGE SPEC<BCC> ID=20.8	9-51631-041-0	04	1	0707-
13	NUT; LWR,RR S/ABS PROVISIONAL PACKAGE SPEC<BCC> M14	9-99111-414-0	04	1	0707-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
