◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#24732) — 54 parça

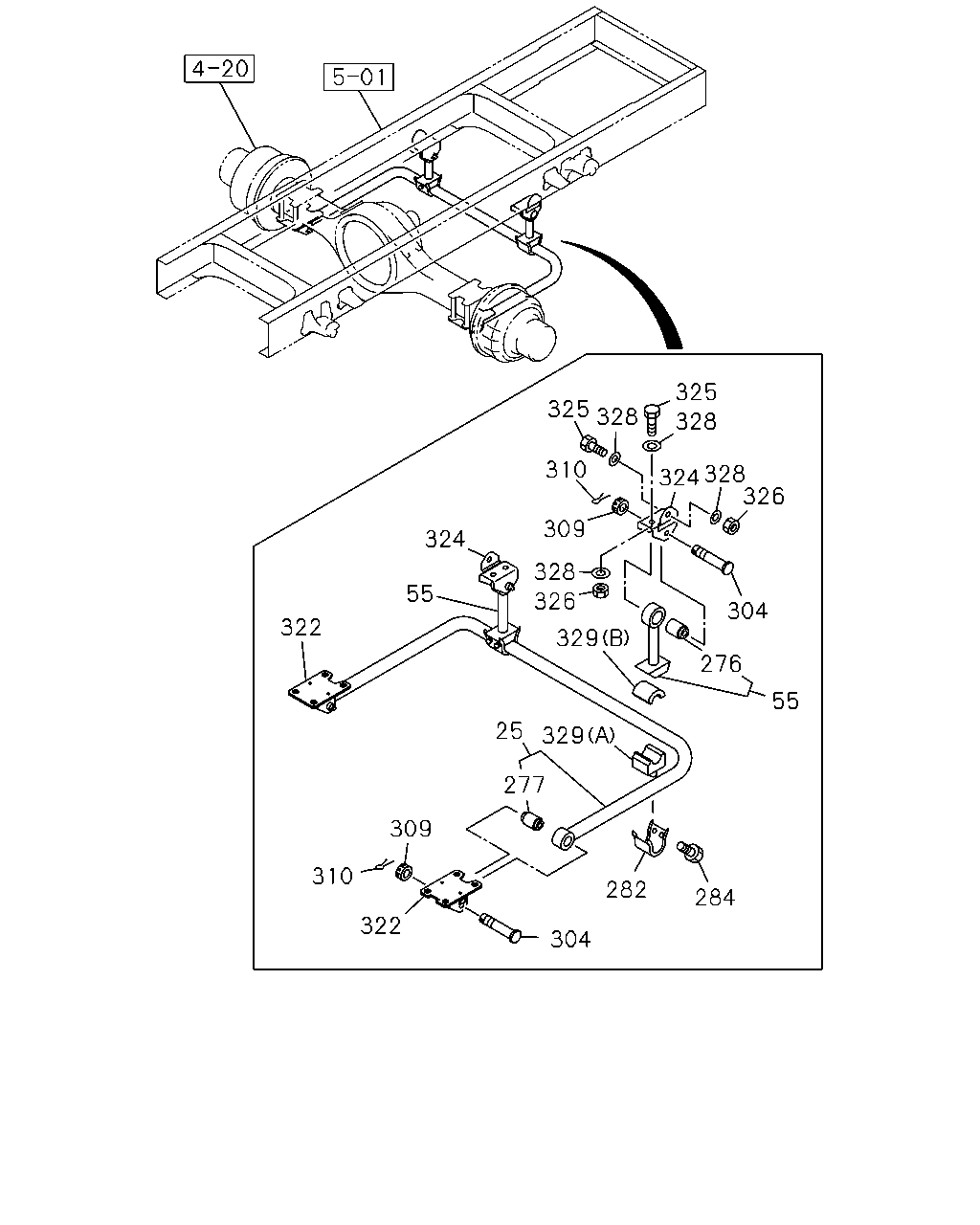

çizim 80353
325 325 328 328 310 324 328 326 309 324 328 55 326 304 322 329 276 55 25 329 277 309 310 282 284 322 304
BalonParca AdiParca NoAdetTipApplied Date
25 BAR ASM; STAB,RR SUSP 1-51770-029-1 01 1 9811-
55 ROD; STAB 1-51770-024-1 02 1 9811-
276 BUSHING; STAB ROD 1-51779-019-0 02 1 9811-
277 BUSHING; STAB,RR UPR 1-51779-067-0 02 1 9811-
282 RETAINER; STAB BAR 1-51789-015-2 02 1 9811-
284 BOLT; RET TO RET
M10X25 		8-94463-351-0 08 1 9811-
304 PIN; STAB ROD 1-51789-020-2 04 1 9811-
309 NUT; STAB ROD
M24 		9-99116-424-0 04 1 9811-
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		9-08115-045-0 04 1 9811-0606
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		0-81125-045-0 04 1 0607-
322 BRACKET; STAB BAR TO RR AXLE 1-51781-038-1 02 1 9811-
324 BRACKET; STAB BAR TO FRAME 1-51781-059-0 02 1 9811-
325 BOLT; BRKT TO FRAME
M14X45 		9-92061-445-0 06 1 9811-
326 NUT; BRKT TO FRAME
M14 		9-99110-514-0 06 1 9811-0512
326 NUT; BRKT TO FRAME
M14 		0-91110-514-0 06 1 0601-
328 WASHER; PL,BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=15 		8-98010-627-1 12 1 0911-
328 WASHER; PL,BRKT
ID=15 		9-09651-069-0 12 1 9811-0910
328 WASHER; PL,BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15 		9-09651-069-0 12 1 0911-
329 BUSHING; STAB ROD
(B) 		1-51789-051-1 02 1 9811-
329 BUSHING; STAB ROD
(A) 		1-51789-052-0 02 1 9811-

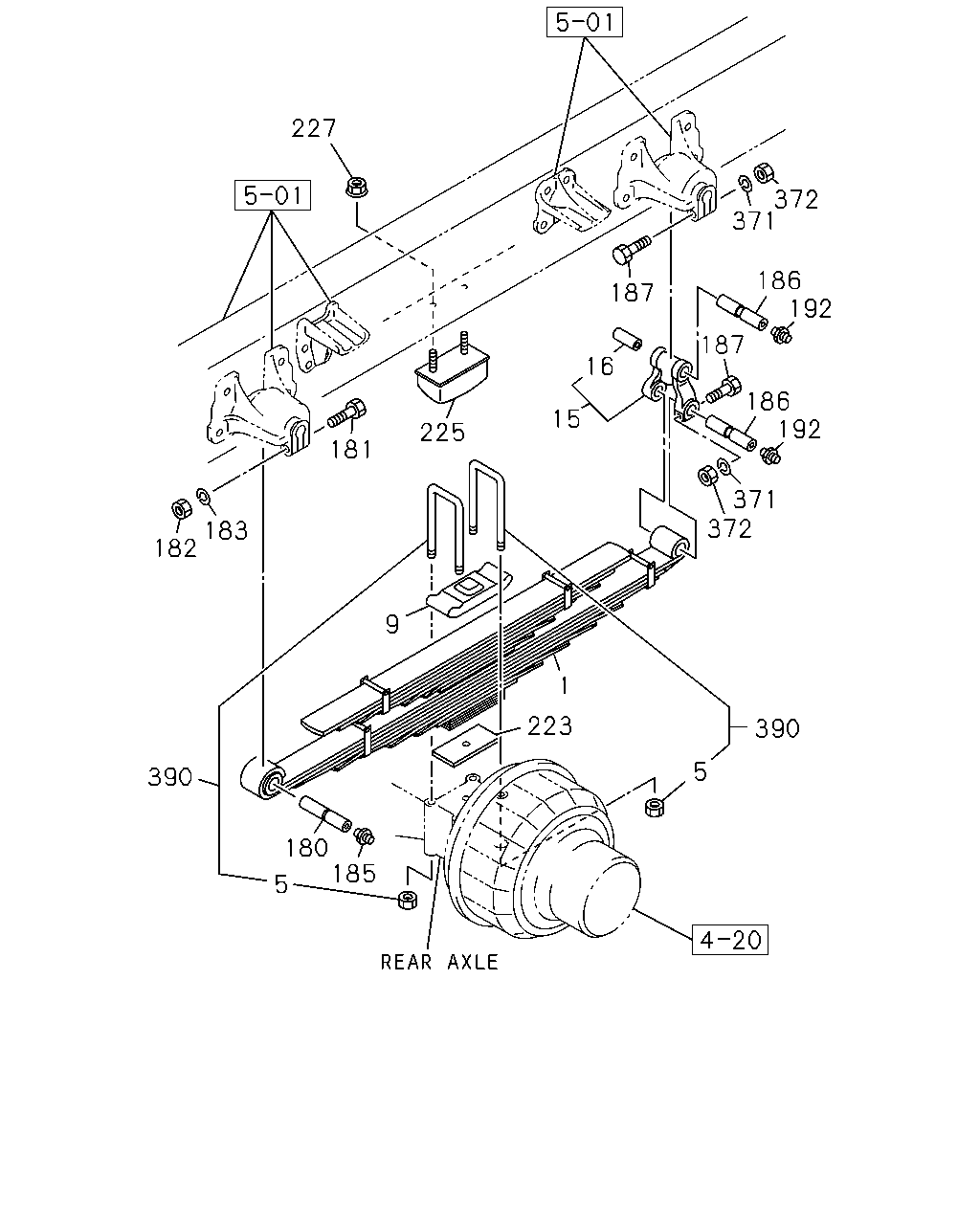

çizim 82653
227 372 371 186 192 187 187 16 186 192 15 225 181 371 372 183 182 9 1 223 390 5 390 180 185 5
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF 		1-51300-333-2 02 1 9811-
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9811-0512
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601-
9 PAD; U BOLT,RR SPR 1-51372-048-1 02 1 9811-
15 SHACKLE; RR SPR 1-51362-049-2 02 1 9811-
16 BUSHING; SHACKLE,RR SPR 9-51351-019-2 02 1 9811-0902
16 BUSHING; SHACKLE,RR SPR 8-98081-830-0 02 1 0903-
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 02 1 9811-
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 9811-
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9811-0201
182 NUT; PIN,RR SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 		9-99110-414-0 02 1 0202-0512
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0601-
182 NUT; PIN,RR SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14 		9-99110-514-0 02 1 0202-0512
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9811-0603
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0604-
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9811-0512
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-
186 PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 04 1 9811-
187 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 04 1 9811-
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9811-0512
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601-
223 SPACER; U BOLT,RR SPR 1-51377-166-0 02 1 9811-0201
223 SPACER; U BOLT,RR SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-51377-166-0 02 1 0202-0202
223 SPACER; U BOLT,RR SPR 1-51377-166-0 02 1 0203-
225 RUBBER; CUSHION,RR SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-53366-067-4 02 1 0202-
227 NUT; CUSHION RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE 		0-91150-212-0 04 1 0202-0602
227 NUT; CUSHION RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE 		0-91180-212-0 04 1 0603-
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 9811-0603
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-514-0 04 1 0604-
372 NUT; SHACKLE
M14 		9-99110-414-0 04 1 9811-0201
372 NUT; SHACKLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 		9-99110-414-0 04 1 0202-0512
372 NUT; SHACKLE
M14 		0-91110-514-0 04 1 0601-
372 NUT; SHACKLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14 		9-99110-514-0 04 1 0202-0512
390 U-BOLT SET; RR SPRING
L=455 		1-87870-268-1 04 1 9811-
