Sayfa 3-20 - Isuzu EPC

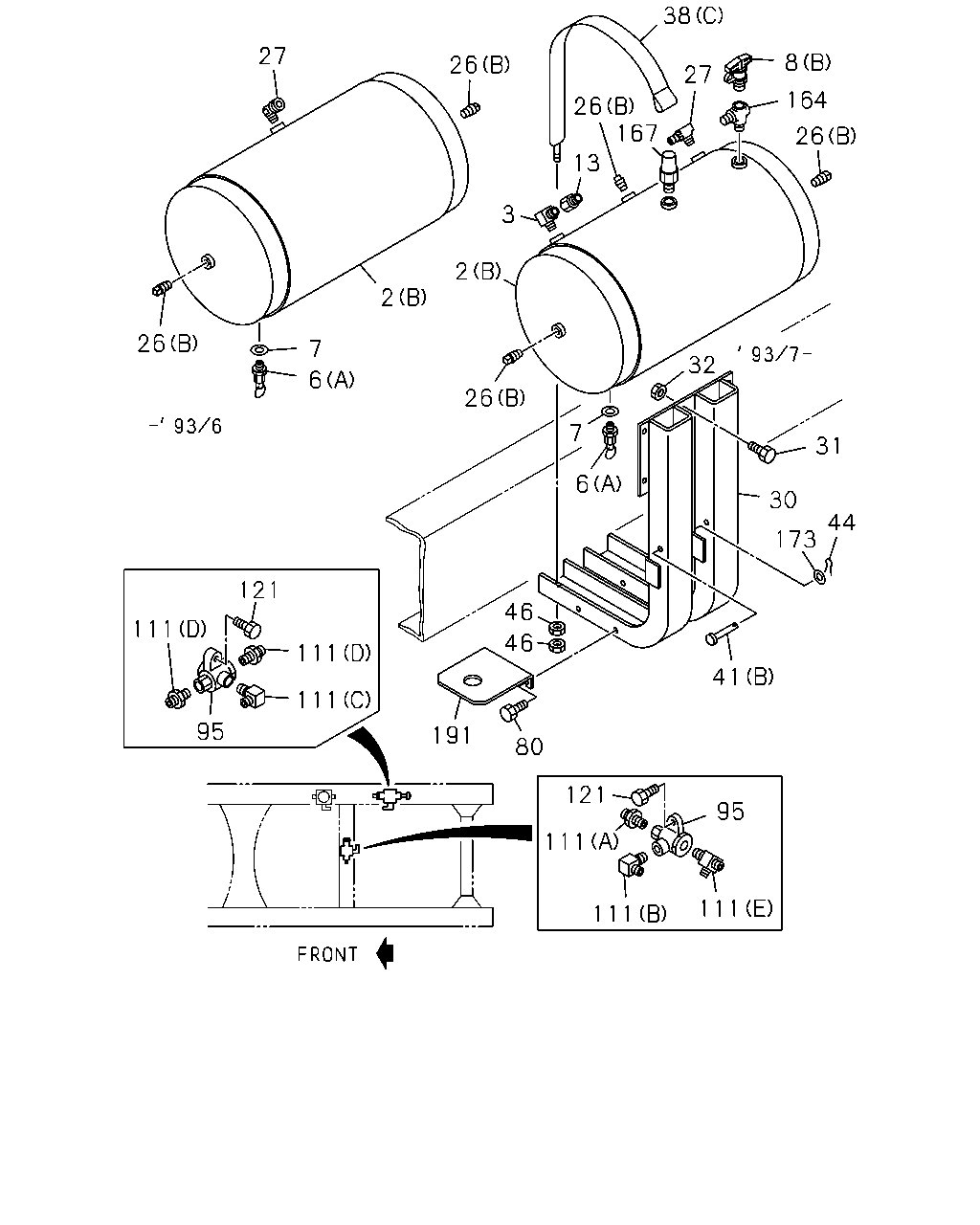

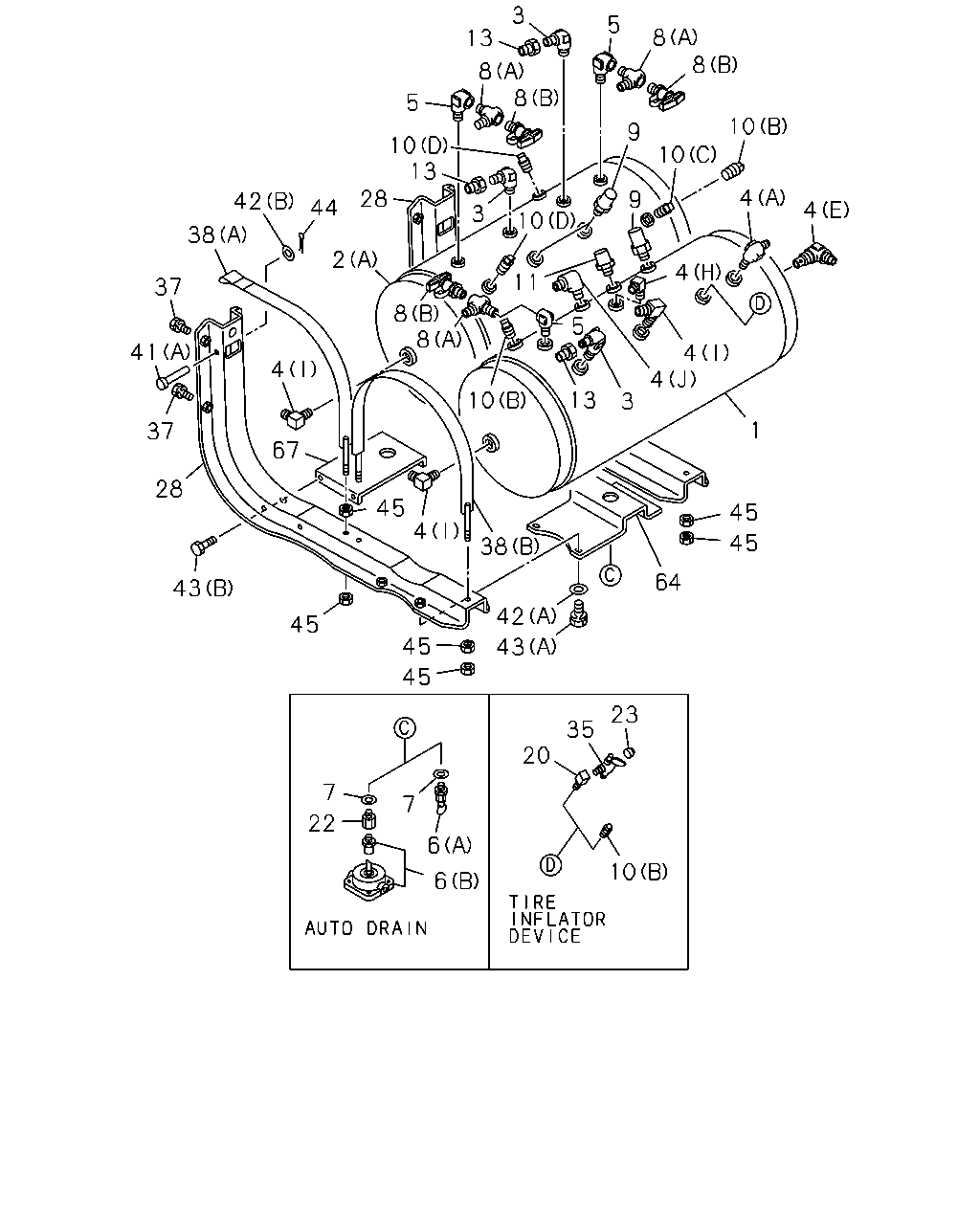

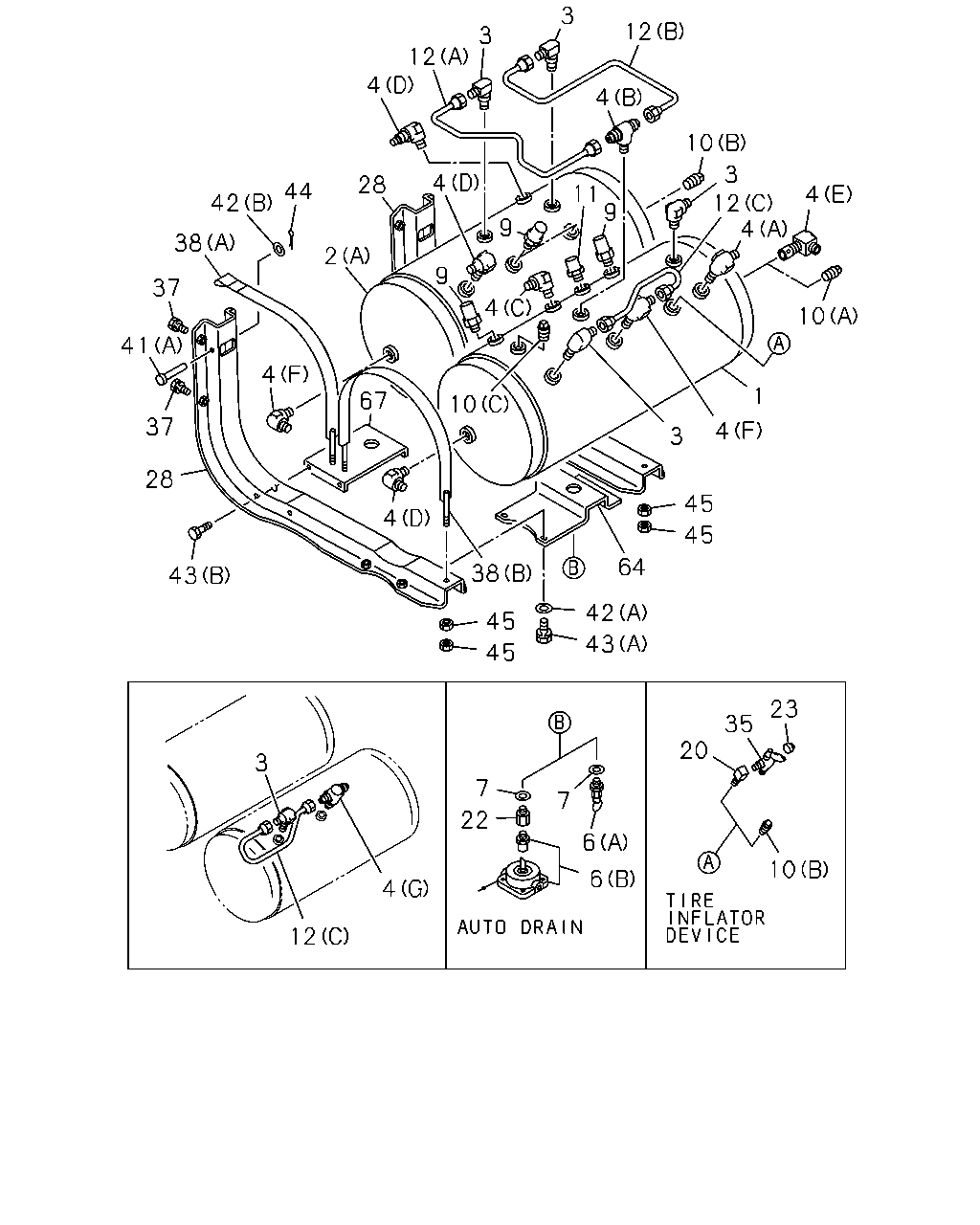

3-20 — AIR TANK (#2473) — 376 parça

3 12 3 12 4 4 10 4 3 12 4 28 44 4 11 9 42 9 38 2 9 37 4 10 41 4 1 67 10 37 4 3 28 45 4 45 64 38 43 42 45 43 45 23 35 20 3 7 7 22 6 10 6 4 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48330-674-1	01	1	9002-9407
1	TANK ASM; AIR AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48370-211-0	01	1	9408-
1	TANK ASM; AIR HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7>	1-48330-733-1	01	1	9002-9407
1	TANK ASM; AIR HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7>	1-48370-212-0	01	1	9408-
1	TANK ASM; AIR HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7>	1-48330-610-1	01	1	9002-9306
1	TANK ASM; AIR NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7>	1-48330-610-1	01	1	9307-
1	TANK ASM; AIR EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7>	1-48330-479-0	01	1	9002-9306
1	TANK ASM; AIR EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7>,NYLON TUBE AIR PIPING<Z29>	1-48330-479-0	01	1	9307-
2	TANK; AIR (A)	1-48330-228-0	01	1	9002-9306
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48330-378-1	01	1	9002-9306
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48370-024-0	01	1	9307-
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (A)	1-48370-144-0	01	1	9307-
2	TANK; AIR EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48330-228-0	01	1	9307-
2	TANK; AIR SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48330-789-0	01	1	9002-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7>	1-48410-133-2	04	1	9307-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-133-2	04	1	9002-9306
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>	1-48410-133-2	03	1	9002-
3	VALVE; CHECK,AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD>	1-48410-133-2	01	1	9002-9306
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48410-133-2	01	1	9307-
4	CONNECTOR; FLARE (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302
4	CONNECTOR; FLARE (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-
4	CONNECTOR; FLARE (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306
4	CONNECTOR; FLARE (C) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302
4	CONNECTOR; FLARE (C) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306
4	CONNECTOR; FLARE (D) M22 & PT1/2 ELBOW	9-09234-315-1	03	1	9002-9302
4	CONNECTOR; FLARE (D) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9303-9306
4	CONNECTOR; FLARE EXC. AIR DRYER<PS7> (E) M22	1-09650-277-0	01	1	9002-
4	CONNECTOR; FLARE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (F) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9307-
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (H)	1-09660-287-0	01	1	9307-
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (I)	1-09660-290-0	03	1	9307-
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (J)	1-09660-291-0	01	1	9307-
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9307-
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (D) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9307-
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9307-
4	CONNECTOR; FLARE SUB AIR TANK<SJD> (F) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (F) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302
4	CONNECTOR; FLARE SUB AIR TANK<SJD> (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306
4	CONNECTOR; FLARE SUB AIR TANK<SJD> (G)	1-09656-530-1	01	1	9002-9306
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (G)	1-09656-530-1	01	1	9002-9306
4	CONNECTOR; FLARE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9307-
4	CONNECTOR; FLARE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (G)	1-09656-530-1	01	1	9307-
4	CONNECTOR; FLARE EXC. SUB AIR TANK<SJD>,NYLON TUBE AIR PIPING<Z29> (F) M20 & PT1/2 ELBOW	1-09650-178-1	02	1	9002-9302
4	CONNECTOR; FLARE EXC. SUB AIR TANK<SJD>,NYLON TUBE AIR PIPING<Z29> (F) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9303-9306
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A) W/COVER	1-48312-004-1	03	1	9408-9509
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	03	1	9510-
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9002-9306
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9002-
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (A) W/COVER	1-48312-004-1	01	1	9002-9306
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A) W/COVER	1-48312-004-1	01	1	9002-9306
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9307-9407
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A) W/COVER	1-48312-004-1	04	1	9408-9509
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	04	1	9510-
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (A) W/COVER	1-48312-004-1	01	1	9307-9509
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A) W/COVER	1-48312-004-1	01	1	9307-9509
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (A)	1-48312-015-0	01	1	9510-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9510-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512
7	GASKET; DRAIN COCK NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-
7	GASKET; DRAIN COCK NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK HONG KONG EQUIPMENT(PQ1)	1-48340-040-0	04	1	9002-9411
9	SWITCH; LOW PRESSURE GAGE,AIR TANK HONG KONG EQUIPMENT(PQ1) 530KPA	1-48340-054-1	04	1	9412-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. HONG KONG EQUIPMENT(PQ1)	1-48340-040-0	03	1	9002-9411
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) 530KPA	1-48340-054-1	03	1	9412-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	9002-9306
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT1/4	9-99204-513-0	01	1	9002-9306
10	PLUG; AIR TANK AIR DRYER<PS7> (A) PT3/8	9-99205-517-0	01	1	9307-
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29> (A)	9-09205-513-0	01	1	9002-9008
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29> (A) PT3/8	9-99205-517-0	01	1	9009-9306
10	PLUG; AIR TANK HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> (C) PT3/8	9-09204-517-0	01	1	9305-9306
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> (C) PT3/8	9-09204-517-0	01	1	9307-9404
10	PLUG; AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD> EXC. AIR DRYER<PS7> (C) PT3/8	9-09204-517-0	01	1	9405-
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> (D) PT1/2	9-09204-521-0	02	1	9307-
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> (B) PT1/4	9-99204-513-0	02	1	9307-9404
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> (C) PT3/8	9-09204-517-0	02	1	9405-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT1/4	9-99204-513-0	01	1	9307-9404
10	PLUG; AIR TANK EXC. NYLON TUBE AIR PIPING<Z29> (B) PT1/4	9-99204-513-0	01	1	9307-9404
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	9405-
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9002-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47485-581-0	01	1	9002-9306
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47485-582-0	01	1	9002-9306
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (C)	1-47485-583-0	01	1	9002-9306
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47496-038-0	01	1	9307-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47496-039-0	01	1	9307-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47496-040-0	01	1	9307-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4	9-09903-738-0	01	1	9002-9306
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4	1-09660-501-0	01	1	9307-
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9002-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9002-
28	BRACKET; AIR TANK	1-48317-240-4	02	1	9002-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9002-
37	BOLT; AIR TANK M12X45	1-09030-052-1	08	1	9002-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9002-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9002-
38	BAND; AIR TANK NYLON TUBE AIR PIPING<Z29> (C)	1-48317-378-1	02	1	9002-
38	BAND; AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-48317-187-1	02	1	9002-
41	PIN; BAND FIX (A)	9-08221-060-0	02	1	9002-9407
41	PIN; BAND FIX NYLON TUBE AIR PIPING<Z29> (B) OD=10 L=60	9-08224-060-0	02	1	9002-9407
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	9408-
41	PIN; BAND FIX NYLON TUBE AIR PIPING<Z29> (B) OD=10 L=60	9-08224-060-0	02	1	9408-
42	WASHER; PL (A) ID=8.4 OD=22	9-09160-708-0	04	1	9002-
42	WASHER; PL (B) ID=10.5	9-09164-510-0	02	1	9002-
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9002-9204
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9205-
43	BOLT; STAY,AIR TANK,MAIN SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (C) M10X25	9-01911-025-0	04	1	9002-9002
43	BOLT; STAY,AIR TANK,MAIN SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-
44	PIN; SPLIT OD=2.8 L=18	9-08113-018-0	02	1	9002-
44	PIN; SPLIT NYLON TUBE AIR PIPING<Z29> OD=2.8 L=18	9-08113-018-0	02	1	9002-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9002-
64	STAY; AIR TANK,MAIN	1-48317-220-1	01	1	9002-
67	STAY; SUB TANK	1-48317-271-0	01	1	9002-

3 5 8 8 13 8 8 5 10 9 10 13 10 10 4 28 9 42 44 4 3 38 2 11 4 37 8 8 5 41 4 4 4 13 10 3 1 37 67 28 45 4 45 38 45 64 43 45 42 45 43 45 23 35 20 7 7 22 6 10 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48330-674-1	01	1	9002-9407
1	TANK ASM; AIR AIR DRYER<PS7> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-48370-211-0	01	1	9408-
1	TANK ASM; AIR HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7>	1-48330-733-1	01	1	9002-9407
1	TANK ASM; AIR HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7>	1-48370-212-0	01	1	9408-
1	TANK ASM; AIR HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7>	1-48330-610-1	01	1	9002-9306
1	TANK ASM; AIR NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7>	1-48330-610-1	01	1	9307-
1	TANK ASM; AIR EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7>	1-48330-479-0	01	1	9002-9306
1	TANK ASM; AIR EXC. HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7>,NYLON TUBE AIR PIPING<Z29>	1-48330-479-0	01	1	9307-
2	TANK; AIR (A)	1-48330-228-0	01	1	9002-9306
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48330-378-1	01	1	9002-9306
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48370-024-0	01	1	9307-
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (A)	1-48370-144-0	01	1	9307-
2	TANK; AIR EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48330-228-0	01	1	9307-
2	TANK; AIR SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48330-789-0	01	1	9002-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7>	1-48410-133-2	04	1	9307-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-133-2	04	1	9002-9306
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>	1-48410-133-2	03	1	9002-
3	VALVE; CHECK,AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD>	1-48410-133-2	01	1	9002-9306
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48410-133-2	01	1	9307-
4	CONNECTOR; FLARE (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302
4	CONNECTOR; FLARE (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-
4	CONNECTOR; FLARE (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306
4	CONNECTOR; FLARE (C) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302
4	CONNECTOR; FLARE (C) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306
4	CONNECTOR; FLARE (D) M22 & PT1/2 ELBOW	9-09234-315-1	03	1	9002-9302
4	CONNECTOR; FLARE (D) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9303-9306
4	CONNECTOR; FLARE EXC. AIR DRYER<PS7> (E) M22	1-09650-277-0	01	1	9002-
4	CONNECTOR; FLARE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (F) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9307-
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (H)	1-09660-287-0	01	1	9307-
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (I)	1-09660-290-0	03	1	9307-
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (J)	1-09660-291-0	01	1	9307-
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9307-
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (D) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9307-
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9307-
4	CONNECTOR; FLARE SUB AIR TANK<SJD> (F) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (F) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302
4	CONNECTOR; FLARE SUB AIR TANK<SJD> (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306
4	CONNECTOR; FLARE SUB AIR TANK<SJD> (G)	1-09656-530-1	01	1	9002-9306
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (G)	1-09656-530-1	01	1	9002-9306
4	CONNECTOR; FLARE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9307-
4	CONNECTOR; FLARE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (G)	1-09656-530-1	01	1	9307-
4	CONNECTOR; FLARE EXC. SUB AIR TANK<SJD>,NYLON TUBE AIR PIPING<Z29> (F) M20 & PT1/2 ELBOW	1-09650-178-1	02	1	9002-9302
4	CONNECTOR; FLARE EXC. SUB AIR TANK<SJD>,NYLON TUBE AIR PIPING<Z29> (F) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9303-9306
5	UNION; AIR TANK NYLON TUBE AIR PIPING<Z29> PT3/8 ELBOW	1-09660-696-0	03	1	9307-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A) W/COVER	1-48312-004-1	03	1	9408-9509
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	03	1	9510-
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9002-9306
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9002-
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (A) W/COVER	1-48312-004-1	01	1	9002-9306
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A) W/COVER	1-48312-004-1	01	1	9002-9306
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9307-9407
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A) W/COVER	1-48312-004-1	04	1	9408-9509
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	04	1	9510-
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (A) W/COVER	1-48312-004-1	01	1	9307-9509
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A) W/COVER	1-48312-004-1	01	1	9307-9509
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (A)	1-48312-015-0	01	1	9510-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9510-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512
7	GASKET; DRAIN COCK NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-
7	GASKET; DRAIN COCK NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-
8	CONNECTOR; AIR TANK NYLON TUBE AIR PIPING<Z29> (A)	1-09660-687-0	03	1	9307-
8	CONNECTOR; AIR TANK NYLON TUBE AIR PIPING<Z29> (B)	1-47459-002-0	04	1	9307-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK HONG KONG EQUIPMENT(PQ1)	1-48340-040-0	04	1	9002-9411
9	SWITCH; LOW PRESSURE GAGE,AIR TANK HONG KONG EQUIPMENT(PQ1) 530KPA	1-48340-054-1	04	1	9412-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. HONG KONG EQUIPMENT(PQ1)	1-48340-040-0	03	1	9002-9411
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. HONG KONG EQUIPMENT(PQ1) 530KPA	1-48340-054-1	03	1	9412-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	9002-9306
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT1/4	9-99204-513-0	01	1	9002-9306
10	PLUG; AIR TANK AIR DRYER<PS7> (A) PT3/8	9-99205-517-0	01	1	9307-
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29> (A)	9-09205-513-0	01	1	9002-9008
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29> (A) PT3/8	9-99205-517-0	01	1	9009-9306
10	PLUG; AIR TANK HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> (C) PT3/8	9-09204-517-0	01	1	9305-9306
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> (C) PT3/8	9-09204-517-0	01	1	9307-9404
10	PLUG; AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD> EXC. AIR DRYER<PS7> (C) PT3/8	9-09204-517-0	01	1	9405-
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> (D) PT1/2	9-09204-521-0	02	1	9307-
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> (B) PT1/4	9-99204-513-0	02	1	9307-9404
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> (C) PT3/8	9-09204-517-0	02	1	9405-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT1/4	9-99204-513-0	01	1	9307-9404
10	PLUG; AIR TANK EXC. NYLON TUBE AIR PIPING<Z29> (B) PT1/4	9-99204-513-0	01	1	9307-9404
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	9405-
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9002-
13	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M20X36	1-09660-576-0	04	1	9307-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4	9-09903-738-0	01	1	9002-9306
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4	1-09660-501-0	01	1	9307-
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9002-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9002-
28	BRACKET; AIR TANK	1-48317-240-4	02	1	9002-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9002-
37	BOLT; AIR TANK M12X45	1-09030-052-1	08	1	9002-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9002-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9002-
38	BAND; AIR TANK NYLON TUBE AIR PIPING<Z29> (C)	1-48317-378-1	02	1	9002-
38	BAND; AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-48317-187-1	02	1	9002-
41	PIN; BAND FIX (A)	9-08221-060-0	02	1	9002-9407
41	PIN; BAND FIX NYLON TUBE AIR PIPING<Z29> (B) OD=10 L=60	9-08224-060-0	02	1	9002-9407
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	9408-
41	PIN; BAND FIX NYLON TUBE AIR PIPING<Z29> (B) OD=10 L=60	9-08224-060-0	02	1	9408-
42	WASHER; PL (A) ID=8.4 OD=22	9-09160-708-0	04	1	9002-
42	WASHER; PL (B) ID=10.5	9-09164-510-0	02	1	9002-
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9002-9204
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9205-
43	BOLT; STAY,AIR TANK,MAIN SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (C) M10X25	9-01911-025-0	04	1	9002-9002
43	BOLT; STAY,AIR TANK,MAIN SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-
44	PIN; SPLIT OD=2.8 L=18	9-08113-018-0	02	1	9002-
44	PIN; SPLIT NYLON TUBE AIR PIPING<Z29> OD=2.8 L=18	9-08113-018-0	02	1	9002-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9002-
64	STAY; AIR TANK,MAIN	1-48317-220-1	01	1	9002-
67	STAY; SUB TANK	1-48317-271-0	01	1	9002-

38 27 8 26 27 164 26 167 26 13 3 2 2 26 7 32 6 26 3 7 31 6 30 44 173 121 46 111 46 111 41 111 95 191 80 121 95 111 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A)	1-48330-228-0	01	1	9002-9306
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48330-378-1	01	1	9002-9306
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48370-024-0	01	1	9307-
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (A)	1-48370-144-0	01	1	9307-
2	TANK; AIR EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48330-228-0	01	1	9307-
2	TANK; AIR SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48330-789-0	01	1	9002-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7>	1-48410-133-2	04	1	9307-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NYLON TUBE AIR PIPING<Z29>	1-48410-133-2	04	1	9002-9306
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>	1-48410-133-2	03	1	9002-
3	VALVE; CHECK,AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD>	1-48410-133-2	01	1	9002-9306
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48410-133-2	01	1	9307-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A) W/COVER	1-48312-004-1	03	1	9408-9509
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	03	1	9510-
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9002-9306
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9002-
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (A) W/COVER	1-48312-004-1	01	1	9002-9306
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A) W/COVER	1-48312-004-1	01	1	9002-9306
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9307-9407
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A) W/COVER	1-48312-004-1	04	1	9408-9509
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	04	1	9510-
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (A) W/COVER	1-48312-004-1	01	1	9307-9509
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A) W/COVER	1-48312-004-1	01	1	9307-9509
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (A)	1-48312-015-0	01	1	9510-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9510-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512
7	GASKET; DRAIN COCK NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-
7	GASKET; DRAIN COCK NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-
8	CONNECTOR; AIR TANK NYLON TUBE AIR PIPING<Z29> (A)	1-09660-687-0	03	1	9307-
8	CONNECTOR; AIR TANK NYLON TUBE AIR PIPING<Z29> (B)	1-47459-002-0	04	1	9307-
13	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M20X36	1-09660-576-0	04	1	9307-
26	PLUG; SUB AIR TANK NYLON TUBE AIR PIPING<Z29> (B) PT1/4	9-99204-513-0	02	1	9002-9306
26	PLUG; SUB AIR TANK NYLON TUBE AIR PIPING<Z29> (B) PT1/4	9-99204-513-0	03	1	9307-
26	PLUG; SUB AIR TANK SUB AIR TANK<SJD> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) PT1/2	9-09204-521-0	01	1	9002-
26	PLUG; SUB AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (B) PT1/4	9-99204-513-0	01	1	9002-
27	UNION; ELBOW,AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD> M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302
27	UNION; ELBOW,AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-
27	UNION; ELBOW,AIR TANK NYLON TUBE AIR PIPING<Z29>	1-09660-238-0	01	1	9002-9306
27	UNION; ELBOW,AIR TANK NYLON TUBE AIR PIPING<Z29>	1-09660-574-0	01	1	9307-
27	UNION; ELBOW,AIR TANK SUB AIR TANK<SJD> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-09650-261-2	01	1	9002-
30	BRACKET; AIR TANK,SUB NYLON TUBE AIR PIPING<Z29>	1-48317-377-1	01	1	9002-
30	BRACKET; AIR TANK,SUB SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29>	1-48317-461-2	01	1	9002-9204
30	BRACKET; AIR TANK,SUB SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29>	1-48317-390-8	01	1	9205-
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10X25	9-01911-025-0	03	1	9002-9002
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10X25 W/LK WASHER	0-50041-025-0	03	1	9003-
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10X32 W/LK WASHER	9-01911-032-0	03	1	9002-9002
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10X32 W/LK WASHER	0-50041-032-0	03	1	9003-
31	BOLT; BRKT TO FRAME SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M12X35	9-01911-235-0	04	1	9002-9005
31	BOLT; BRKT TO FRAME SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	0-50041-235-0	04	1	9006-
32	NUT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	06	1	9002-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9002-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9002-
38	BAND; AIR TANK NYLON TUBE AIR PIPING<Z29> (C)	1-48317-378-1	02	1	9002-
38	BAND; AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-48317-187-1	02	1	9002-
41	PIN; BAND FIX (A)	9-08221-060-0	02	1	9002-9407
41	PIN; BAND FIX NYLON TUBE AIR PIPING<Z29> (B) OD=10 L=60	9-08224-060-0	02	1	9002-9407
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	9408-
41	PIN; BAND FIX NYLON TUBE AIR PIPING<Z29> (B) OD=10 L=60	9-08224-060-0	02	1	9408-
44	PIN; SPLIT OD=2.8 L=18	9-08113-018-0	02	1	9002-
44	PIN; SPLIT NYLON TUBE AIR PIPING<Z29> OD=2.8 L=18	9-08113-018-0	02	1	9002-
46	NUT; U-BOLT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-
46	NUT; U-BOLT SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	08	1	9002-
80	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204
80	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-
95	VALVE; DOUBLE CHECK NYLON TUBE AIR PIPING<Z29>	1-48410-251-0	02	1	9307-
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (A)	1-09660-531-0	01	1	9307-
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-534-0	01	1	9307-
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (C)	1-09660-535-0	01	1	9307-
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-555-0	02	1	9307-
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-563-0	01	1	9307-
121	BOLT; DOUBLE CHECK VLV NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9307-
164	CONNECTOR; SUB AIR TANK NYLON TUBE AIR PIPING<Z29>	1-09660-687-0	01	1	9307-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB NYLON TUBE AIR PIPING<Z29>	1-48340-040-0	01	1	9307-9411
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB NYLON TUBE AIR PIPING<Z29> 530KPA	1-48340-054-1	01	1	9412-
173	WASHER; PL,AIR TANK,SUB NYLON TUBE AIR PIPING<Z29> ID=10.5	9-09164-510-0	02	1	9002-
191	BRACKET; STOPPER,AIR TANK NYLON TUBE AIR PIPING<Z29>	1-48317-379-0	01	1	9002-

38 38 27 26 2 171 26 7 31 6 170 30 82 65 65 46 43 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A)	1-48330-228-0	01	1	9002-9306
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48330-378-1	01	1	9002-9306
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48370-024-0	01	1	9307-
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (A)	1-48370-144-0	01	1	9307-
2	TANK; AIR EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48330-228-0	01	1	9307-
2	TANK; AIR SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-48330-789-0	01	1	9002-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A) W/COVER	1-48312-004-1	03	1	9408-9509
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	03	1	9510-
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9002-9306
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9002-
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (A) W/COVER	1-48312-004-1	01	1	9002-9306
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A) W/COVER	1-48312-004-1	01	1	9002-9306
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	04	1	9307-9407
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A) W/COVER	1-48312-004-1	04	1	9408-9509
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	04	1	9510-
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (A) W/COVER	1-48312-004-1	01	1	9307-9509
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A) W/COVER	1-48312-004-1	01	1	9307-9509
6	COCK; DRAIN,AIR TANK SUB AIR TANK<SJD> (A)	1-48312-015-0	01	1	9510-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9510-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512
7	GASKET; DRAIN COCK NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-
7	GASKET; DRAIN COCK NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-
7	GASKET; DRAIN COCK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-
26	PLUG; SUB AIR TANK NYLON TUBE AIR PIPING<Z29> (B) PT1/4	9-99204-513-0	02	1	9002-9306
26	PLUG; SUB AIR TANK NYLON TUBE AIR PIPING<Z29> (B) PT1/4	9-99204-513-0	03	1	9307-
26	PLUG; SUB AIR TANK SUB AIR TANK<SJD> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) PT1/2	9-09204-521-0	01	1	9002-
26	PLUG; SUB AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (B) PT1/4	9-99204-513-0	01	1	9002-
27	UNION; ELBOW,AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD> M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302
27	UNION; ELBOW,AIR TANK HONG KONG EQUIPMENT(PQ1) SUB AIR TANK<SJD> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-
27	UNION; ELBOW,AIR TANK NYLON TUBE AIR PIPING<Z29>	1-09660-238-0	01	1	9002-9306
27	UNION; ELBOW,AIR TANK NYLON TUBE AIR PIPING<Z29>	1-09660-574-0	01	1	9307-
27	UNION; ELBOW,AIR TANK SUB AIR TANK<SJD> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-09650-261-2	01	1	9002-
30	BRACKET; AIR TANK,SUB NYLON TUBE AIR PIPING<Z29>	1-48317-377-1	01	1	9002-
30	BRACKET; AIR TANK,SUB SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29>	1-48317-461-2	01	1	9002-9204
30	BRACKET; AIR TANK,SUB SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29>	1-48317-390-8	01	1	9205-
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10X25	9-01911-025-0	03	1	9002-9002
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10X25 W/LK WASHER	0-50041-025-0	03	1	9003-
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10X32 W/LK WASHER	9-01911-032-0	03	1	9002-9002
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10X32 W/LK WASHER	0-50041-032-0	03	1	9003-
31	BOLT; BRKT TO FRAME SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M12X35	9-01911-235-0	04	1	9002-9005
31	BOLT; BRKT TO FRAME SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	0-50041-235-0	04	1	9006-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9002-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9002-
38	BAND; AIR TANK NYLON TUBE AIR PIPING<Z29> (C)	1-48317-378-1	02	1	9002-
38	BAND; AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-48317-187-1	02	1	9002-
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9002-9204
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9205-
43	BOLT; STAY,AIR TANK,MAIN SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (C) M10X25	9-01911-025-0	04	1	9002-9002
43	BOLT; STAY,AIR TANK,MAIN SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-
46	NUT; U-BOLT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-
46	NUT; U-BOLT SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	08	1	9002-
65	STAY; AIR TANK,SUB SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29>	1-48317-391-0	02	1	9002-
82	NUT; STAY,AIR MASTER BRKT SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	04	1	9002-
170	DISTANCE; AIR TANK,SUB SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29>	1-48319-094-0	01	1	9002-
171	BOLT; BRKT TO DIST SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005
171	BOLT; BRKT TO DIST SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
