4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#24726) — 79 parça

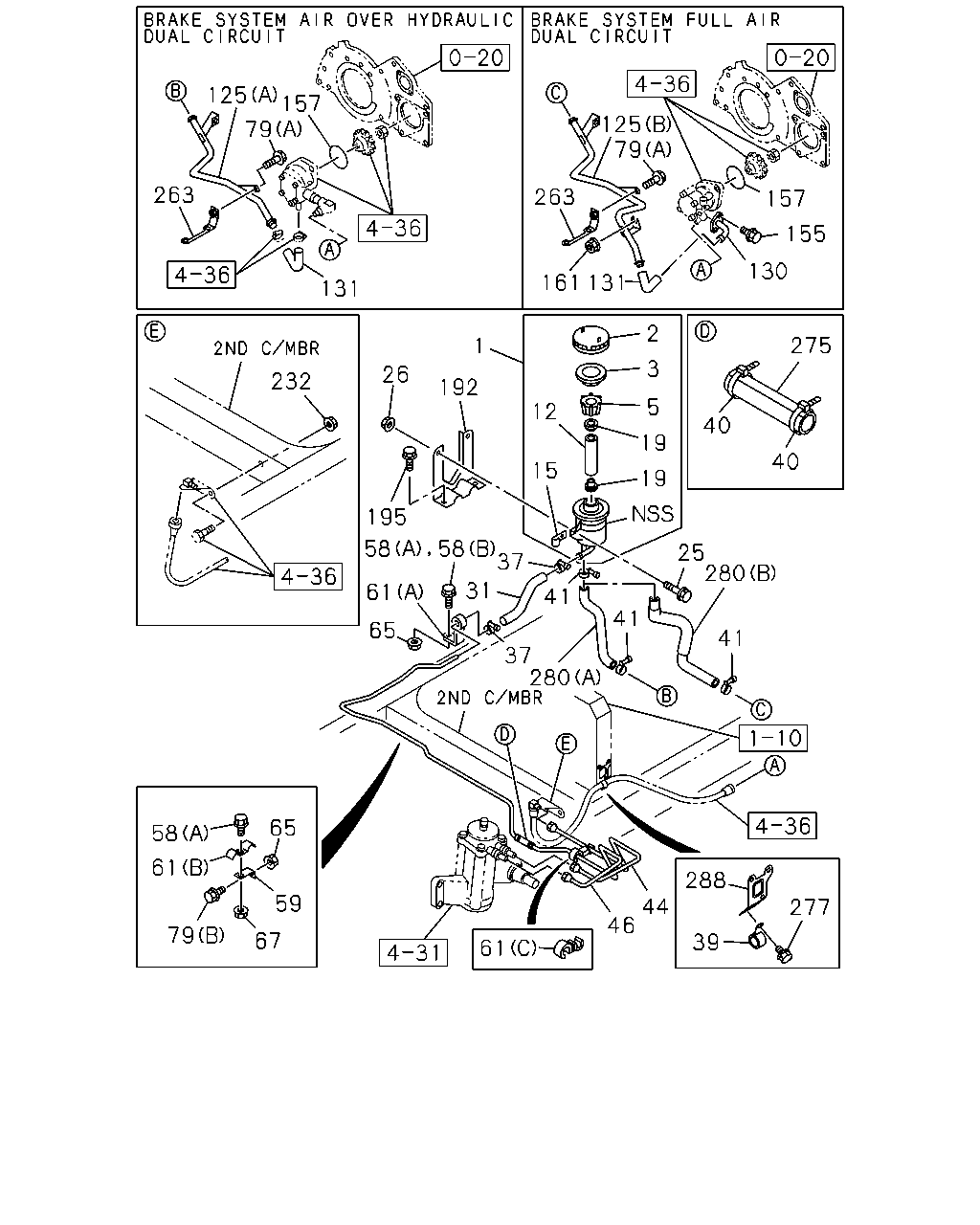

çizim 25358
157 79 125 125 79 263 263 157 155 130 161 131 131 2 275 1 3 26 232 192 5 12 40 19 40 15 19 195 58 58 37 25 280 31 61 41 41 65 41 37 280 65 58 61 288 59 44 46 277 79 67 39 61
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98166-928-0 01 1 1007-
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 9811-0508
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006
1 TANK ASM; OIL,P/S
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-21210-238-1 01 1 1007-
2 CAP; OIL TANK,P/S
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98166-876-0 01 1 1007-
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 9811-1006
2 CAP; OIL TANK,P/S
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-21241-004-4 01 1 1007-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9811-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9811-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 9811-
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 9811-0508
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509-
19 SEAT; OIL TANK 1-21249-004-0 02 1 9811-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9811-0512
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 9811-0602
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 9811-
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 9811-
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 9811-
40 CLIP; BAND
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=140 		5-09707-031-1 02 1 0202-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 9811-
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-366-0 01 1 9811-
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-023-1 01 1 9811-0201
46 PIPE; OIL,P/S UNIT TO OIL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-21116-023-1 01 1 0202-
46 PIPE; OIL,P/S UNIT TO OIL TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-21116-207-0 01 1 0202-
58 BOLT; CLIP
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0201
58 BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0202-0512
58 BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9811-0201
58 BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X30 FLANGE 		0-28680-830-0 02 1 0202-0512
58 BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
58 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE 		0-28680-825-0 03 1 0202-0512
58 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 9811-
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 02 1 9811-
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9811-
61 CLIP; OIL PIPE
(C) ID=12 & 15 		1-09709-281-1 01 1 9811-
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 9811-0602
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
67 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9811-0602
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9811-0512
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-
79 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0201
79 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0202-0512
79 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
79 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0202-0512
79 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
125 CONNECTOR; P/S PUMP
(A) 		8-94390-310-0 01 1 9811-9901
125 CONNECTOR; P/S PUMP
(A) 		8-97600-113-0 01 1 9902-0201
125 CONNECTOR; P/S PUMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97600-113-0 01 1 0202-
125 CONNECTOR; P/S PUMP
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-94390-584-1 01 1 0202-0203
125 CONNECTOR; P/S PUMP
6HE1 TC ENG(57L) (B) 		8-94390-584-1 01 1 0204-
130 ADAPTER; P/S PUMP
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-94390-583-0 01 1 0202-0203
130 ADAPTER; P/S PUMP
6HE1 TC ENG(57L) 		8-94390-583-0 01 1 0204-
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 9811-
155 BOLT; CONNECTOR
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE 		0-28080-816-0 02 1 0202-0203
155 BOLT; CONNECTOR
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28080-816-0 02 1 0204-0512
155 BOLT; CONNECTOR
6HE1 TC ENG(57L) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 9811-
161 NUT; P/S PIPE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-110-0 01 1 0202-0203
161 NUT; P/S PIPE
6HE1 TC ENG(57L) M10 FLANGE 		0-91150-110-0 01 1 0204-0602
161 NUT; P/S PIPE
6HE1 TC ENG(57L) M10 FLANGE 		0-91180-110-0 01 1 0603-
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 9811-
195 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 9811-0512
195 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9811-0602
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
263 BRACKET; P/S PIPE 8-94393-981-0 01 1 9811-9901
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 9902-
275 SLEEVE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0202-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9811-0512
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
280 HOSE; P/S OIL PUMP,INL
(A) 		1-21115-230-1 01 1 9811-0201
280 HOSE; P/S OIL PUMP,INL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-21115-230-1 01 1 0202-
280 HOSE; P/S OIL PUMP,INL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-21116-695-0 01 1 0202-
288 BRACKET; CLIP,P/S 1-82659-149-0 01 1 9811-0201
288 BRACKET; CLIP,P/S
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82659-149-0 01 1 0202-
