◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#24725) — 18 parça

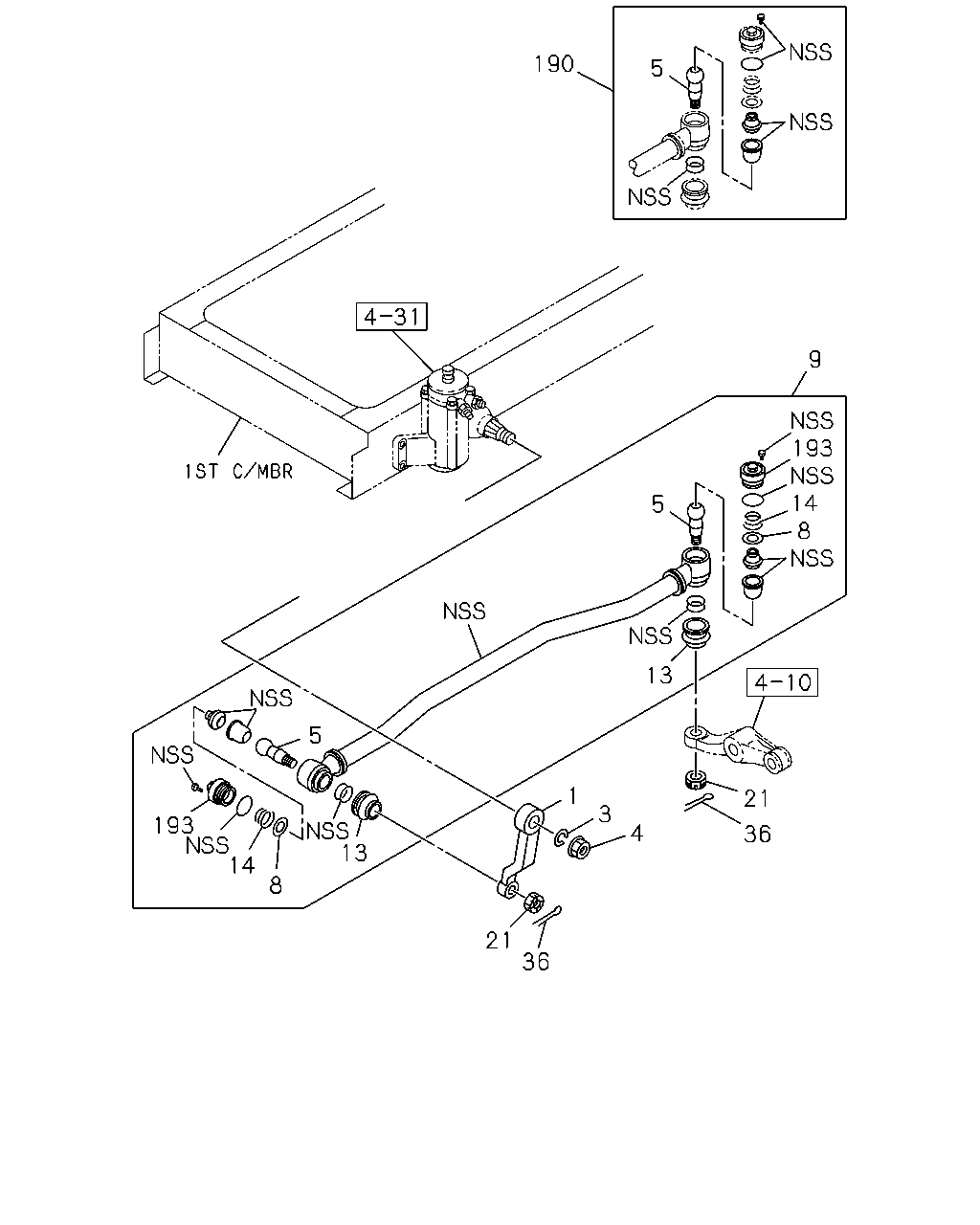

çizim 81964
190 5 9 193 14 8 5 13 5 1 21 3 193 14 13 4 36 8 21 36
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG 1-44341-398-0 01 1 9811-
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9811-
4 NUT; PITMAN ARM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M36 FLANGE 		1-09440-098-0 01 1 0806-
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9811-0805
4 NUT; PITMAN ARM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M36 FLANGE 		1-09440-013-0 01 1 0806-
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 9811-
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9811-
9 LINK; DRAG 1-44380-203-1 01 1 9811-
13 BOOT; DRAG LINK 1-43159-107-0 02 1 9811-
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9811-
21 NUT; LK,JOINT BALL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M24 		1-09442-032-0 02 1 0806-
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9811-0805
21 NUT; LK,JOINT BALL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24 SLOTTED 		1-09442-020-0 02 1 0806-
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9811-0201
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 04 1 0202-0606
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 04 1 0607-
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 9811-
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 9811-
