◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#24722) — 162 parça

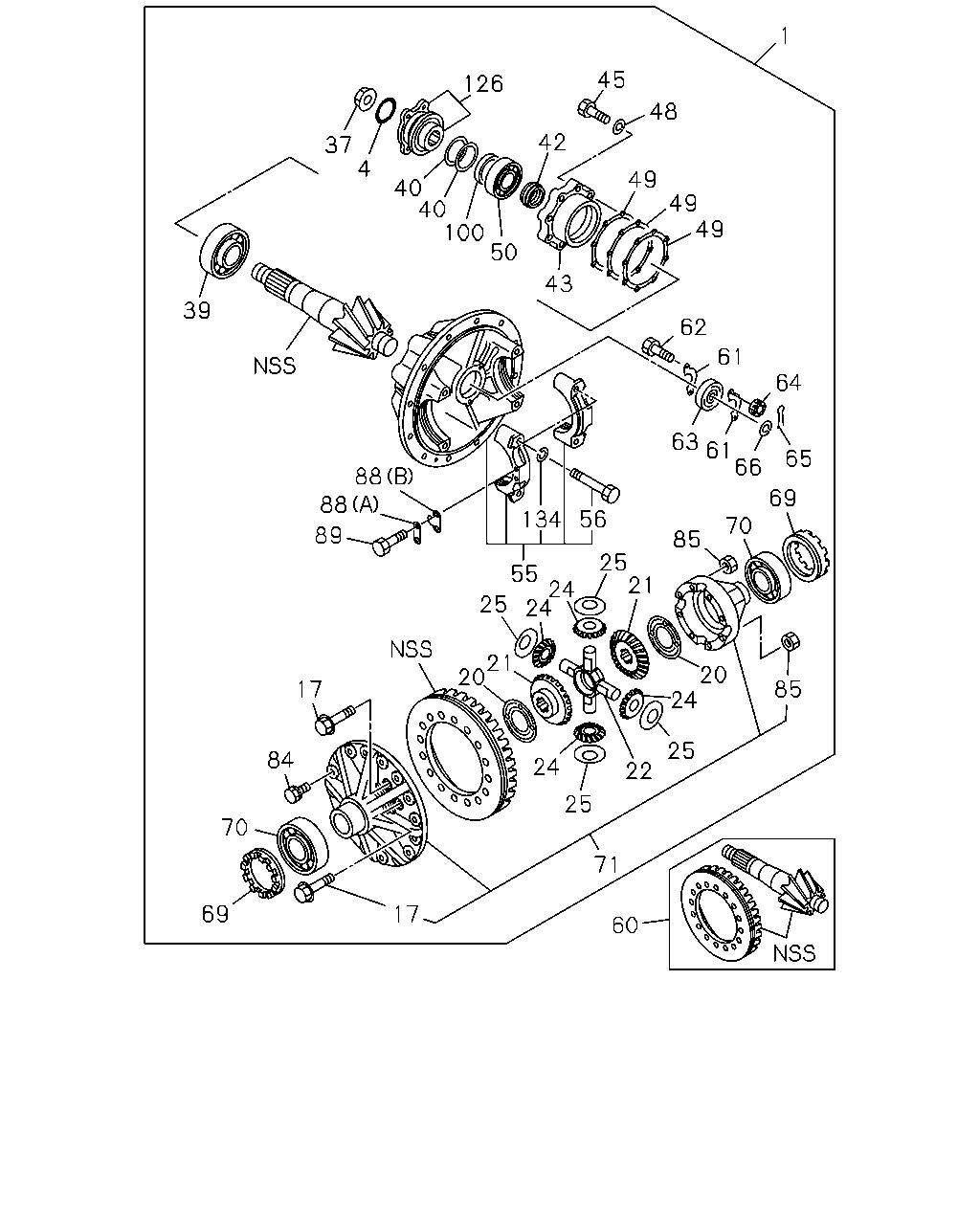

çizim 24880
1 45 126 48 42 37 4 49 40 40 100 50 49 49 43 39 62 61 64 63 61 66 88 88 65 69 134 56 70 89 85 25 21 55 24 24 25 21 20 20 24 85 17 25 84 24 22 25 70 71 69 17 60
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
41/8 		1-41001-306-0 01 1 9811- ●
1 DRIVE ASM; FINAL,RR
43/7 		1-41001-307-0 01 1 0202- ●
1 DRIVE ASM; FINAL,RR
41/7 		1-41001-310-0 01 1 0202- ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		1-09623-475-0 01 1 9811-0201 ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		1-09623-475-0 01 1 0202-0208 ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 0209- ● ● ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 12 1 9811-0201 ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 12 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 AR 1 0202- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 AR 1 9811-0201 ●
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 AR 1 0202- ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-075-0 02 1 9811-0201 ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-075-0 02 1 0202-0407 ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-127-0 02 1 0408-0903 ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-160-0 02 1 0904- ● ● ●
22 SPIDER; DIFF PINION 1-41521-014-1 01 1 9811-0201 ●
22 SPIDER; DIFF PINION 1-41521-014-1 01 1 0202-0408 ● ● ●
22 SPIDER; DIFF PINION 1-41521-061-0 01 1 0409- ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-010-2 04 1 9811-0201 ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-010-2 04 1 0202-0407 ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-041-0 04 1 0408-0903 ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-051-0 04 1 0904- ● ● ●
25 WASHER; THRUST,PINION 1-41552-012-0 04 1 9811-0201 ●
25 WASHER; THRUST,PINION 1-41552-012-0 04 1 0202- ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 9811-0201 ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 0202- ● ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-218-0 01 1 9811-0201 ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-218-0 01 1 0202- ● ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 9811-0201 ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 0202- ● ● ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 9811-0201 ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 0202- ● ● ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 9811-0201 ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 0202- ● ● ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 9811-0201 ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 0202- ● ● ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 9811-0201 ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 0202- ● ● ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 9811-0201 ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 0202- ● ● ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 9811-0201 ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 0202- ● ● ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 9811-0201 ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 0202- ● ● ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 9811-0201 ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 0202- ● ● ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 9811-0201 ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 0202- ● ● ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 9811-0201 ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 0202- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 		1-41229-267-0 AR 1 9811-0201 ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 		1-41229-267-0 AR 1 0202- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-268-0 AR 1 9811-0201 ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-268-0 AR 1 0202- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-269-0 AR 1 9811-0201 ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-269-0 AR 1 0202- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-270-0 AR 1 9811-0201 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-270-0 AR 1 0202- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-271-0 AR 1 9811-0201 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-271-0 AR 1 0202- ● ● ●
43 CAGE; FINAL PINION 1-41151-028-1 01 1 9811-0201 ●
43 CAGE; FINAL PINION 1-41151-028-1 01 1 0202- ● ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 9811-0201 ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 0202- ● ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		9-09150-514-0 08 1 9811-0201 ●
48 WASHER; LK,FINAL PINION
ID=14.2 		9-09150-514-0 08 1 0202-0603 ● ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 0604- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 9811-0201 ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 0202- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 9811-0201 ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 0202- ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 9811-0201 ●
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 0202- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 9811-0201 ●
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 0202- ● ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 0612- ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 9811-0201 ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0202- ● ● ●
55 CARRIER; DIFF 1-41110-052-0 01 1 9811-0201 ●
55 CARRIER; DIFF 1-41110-052-0 01 1 0202- ● ● ●
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 9811-0201 ●
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 0202- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-279-3 01 1 9811- ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-277-3 01 1 0202- ●
60 GEAR SET; FINAL DRIVE,RR
41/7 		1-41210-278-3 01 1 0202- ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 9811-0201 ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 0202- ● ● ●
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 9811-0201 ●
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 0202- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 9811-0201 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 0202- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 9811-0201 ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 0202- ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9811-0201 ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 0202-0512 ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0601- ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9811-0201 ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0202-0805 ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0806- ● ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 9811-0201 ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 0202- ● ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 9811-0201 ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 0202- ● ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 9811-0201 ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 0202- ● ● ●
70 BEARING; DIFF CAGE
ID=80 OD=140 T=35.3 NACHI 		1-09812-144-0 02 1 9811-0201 ●
70 BEARING; DIFF CAGE
ID=80 OD=140 T=35.3 NACHI 		1-09812-144-0 02 1 0202-0911 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 9811-0201 ●
70 BEARING; DIFF CAGE
JTEKT ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 0202-0911 ● ● ●
70 BEARING; DIFF CAGE
NACHI 		1-09812-151-0 02 1 0912- ● ● ●
70 BEARING; DIFF CAGE
NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 9811-0201 ●
70 BEARING; DIFF CAGE
NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 0202-1002 ● ● ●
70 BEARING; DIFF CAGE
NSK 		1-09812-150-0 02 1 1003- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 0601- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 9811-0201 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 0202-0509 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 9811-0201 ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 0202- ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 9811-0201 ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 0202- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		1-41124-002-0 02 1 9811-0201 ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		1-41124-002-0 02 1 0202- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9811-0201 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0202- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9811-0201 ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 0202-0512 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0601- ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 9811-0201 ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 0202- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-215-3 01 1 9811-0201 ●
126 COUPLING; DRIVING PINION 1-37245-215-3 01 1 0202-0208 ● ● ●
126 COUPLING; DRIVING PINION 1-37245-388-0 01 1 0209- ● ● ●
134 WASHER; LK,BRG CAP
ID=18.2 		9-09150-518-0 04 1 9811-0201 ●
134 WASHER; LK,BRG CAP
ID=18.2 		9-09150-518-0 04 1 0202-0603 ● ● ●
134 WASHER; LK,BRG CAP
ID=18.2 		0-91510-518-0 04 1 0604- ● ● ●
