1 |

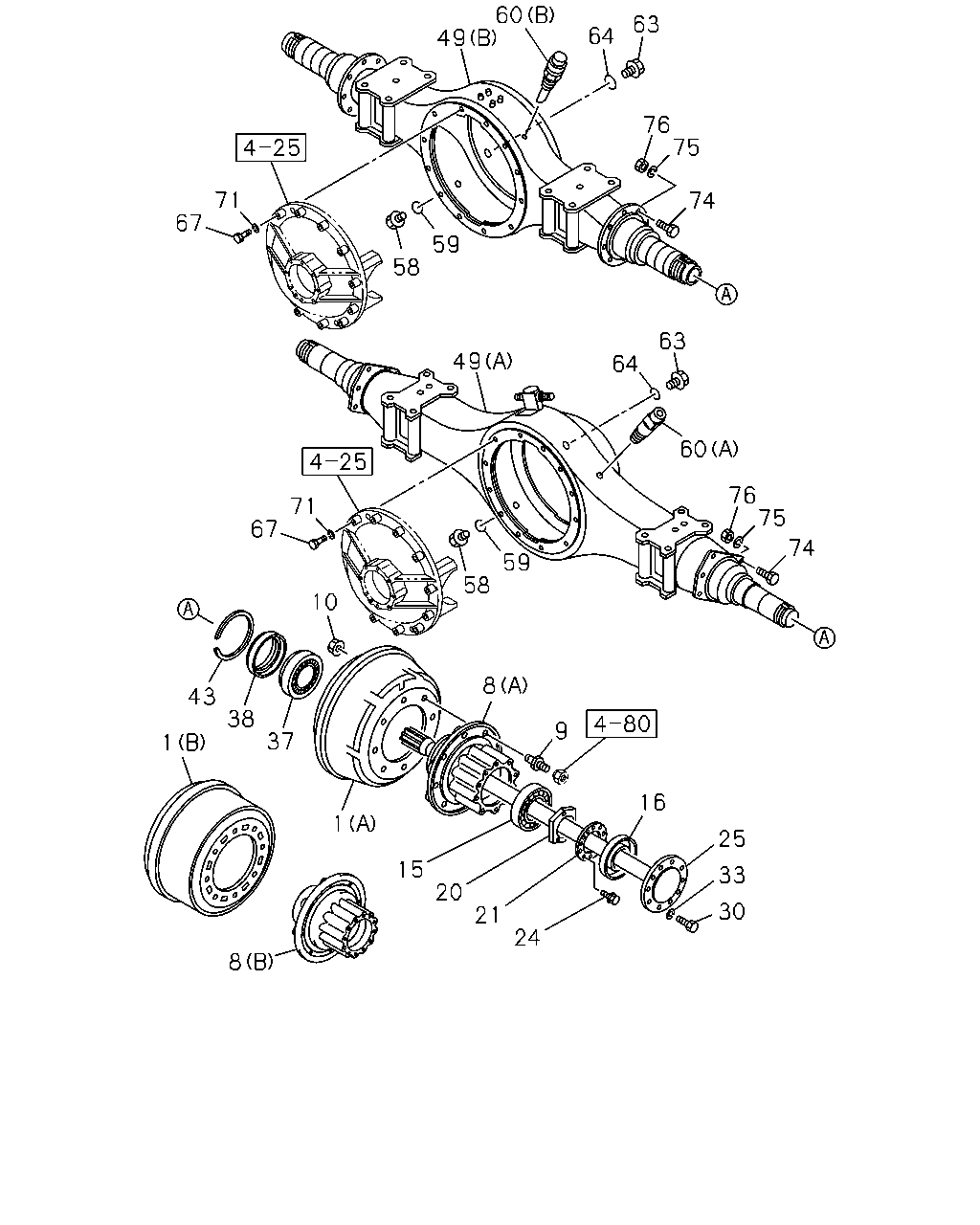

DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42315-220-4 |
02 |
1 |
0707- |
| |
1 |
DRUM; BRK,RR
(A)
|
1-42315-208-2 |
02 |
1 |
9811-0201 |
| |
1 |
DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-42315-208-2 |
02 |
1 |
0202- |
| |
1 |
DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-42315-194-4 |
02 |
1 |
0202-0706 |
| |
1 |
DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(A)
|
1-42315-194-4 |
02 |
1 |
0707- |
| |
8 |
HUB; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42311-098-0 |
02 |
1 |
0707- |
| |
8 |
HUB; RR AXLE
(A)
|
1-42311-092-0 |
02 |
1 |
9811- |
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22X59.8,M22X51.5 RH THREAD
|
1-42337-010-1 |
20 |
1 |
0707- |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-0 |
08 |
1 |
9811-0201 |
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-2 |
08 |
1 |
0202- |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-0 |
08 |
1 |
9811-0201 |
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-2 |
08 |
1 |
0202- |
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M20X34.5 LH THREAD,M22X49.5 RH THREAD
|
1-42332-114-2 |
08 |
1 |
0202-0706 |
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M20X34.5 LH THREAD,M22X49.5 RH THREAD
|
1-42332-114-2 |
08 |
1 |
0707- |
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M20X34.5,M22X49.5 RH THREAD
|
1-42331-114-2 |
08 |
1 |
0202-0706 |
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M20X34.5,M22X49.5 RH THREAD
|
1-42331-114-2 |
08 |
1 |
0707- |
| |
10 |
NUT; WHEEL PIN,RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22
|
1-09400-071-0 |
20 |
1 |
0707- |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
|
1-09440-055-0 |
16 |
1 |
9811-9904 |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
9905- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
|
1-09812-153-0 |
02 |
1 |
9811- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-154-0 |
02 |
1 |
9811- |
| |
16 |
SEAL; OIL,RR HUB,OUTER
NOK
|
9-09924-468-0 |
02 |
1 |
9811- |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
9-09924-470-0 |
02 |
1 |
9811-0509 |
| |
16 |
SEAL; OIL,RR HUB,OUTER
JTEKT
|
9-09924-499-0 |
02 |
1 |
9811-0509 |
| |
20 |
NUT; BRG,RR HUB
M74.6
|
9-09843-064-2 |
02 |
1 |
9811- |
| |
21 |
WASHER; LK,BRG NUT
ID=74.6
|
1-09533-008-0 |
02 |
1 |
9811- |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28680-616-0 |
06 |
1 |
9811-0512 |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28650-616-0 |
06 |
1 |
0601- |
| |
25 |
SHAFT; AXLE,RR
L=986
|
1-42171-499-0 |
02 |
1 |
9811- |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
20 |
1 |
9811- |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
9-09150-814-0 |
20 |
1 |
9811-0603 |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
0-91510-814-0 |
20 |
1 |
0604- |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
|
1-09812-150-0 |
02 |
1 |
9811- |
| |
37 |
BEARING; HUB INNER,RR AXLE
NACHI
|
1-09812-151-0 |
02 |
1 |
9811- |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
9-09924-415-0 |
02 |
1 |
9811- |
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
|
9-09924-416-0 |
02 |
1 |
9811-0111 |
| |
38 |
SEAL; OIL,RR HUB,INNER
JTEKT
|
9-09924-417-0 |
02 |
1 |
9811-0111 |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=150
|
9-09950-147-0 |
02 |
1 |
9811- |
| |
49 |
CASE; RR AXLE
(A)
|
1-42160-153-0 |
01 |
1 |
9811-0201 |
| |
49 |
CASE; RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-42160-153-0 |
01 |
1 |
0202- |
| |
49 |
CASE; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-42160-892-1 |
01 |
1 |
0202- |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
9811- |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9811- |
| |
60 |
BREATHER; RR AXLE CASE
(A)
|
1-09893-003-0 |
01 |
1 |
9811-0201 |
| |
60 |
BREATHER; RR AXLE CASE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-09893-003-0 |
01 |
1 |
0202- |
| |
60 |
BREATHER; RR AXLE CASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
9-36122-015-1 |
01 |
1 |
0202- |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
9811- |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9811- |
| |
67 |
BOLT; FINAL DRIVE SETTING
M14X65
|
9-91066-465-0 |
04 |
1 |
9811-0108 |
| |
67 |
BOLT; FINAL DRIVE SETTING
M14X65
|
9-92061-465-0 |
04 |
1 |
0109- |
| |
67 |
BOLT; FINAL DRIVE SETTING
M14X40
|
9-92061-440-0 |
08 |
1 |
9811-0512 |
| |
67 |
BOLT; FINAL DRIVE SETTING
M14X40
|
0-20951-440-0 |
08 |
1 |
0601- |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9811-0603 |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=14.2
|
0-91510-814-0 |
12 |
1 |
0604- |
| |
74 |
BOLT; RR BRK ASM SETTING
M14X50
|
1-09040-066-0 |
16 |
1 |
9811-0201 |
| |
74 |
BOLT; RR BRK ASM SETTING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M14X50
|
1-09040-066-0 |
16 |
1 |
0202-0205 |
| |
74 |
BOLT; RR BRK ASM SETTING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M14X50
|
1-09040-066-0 |
30 |
1 |
0206-0208 |
| |
74 |
BOLT; RR BRK ASM SETTING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M14X50
|
1-09040-066-0 |
16 |
1 |
0209-1209 |
| |
74 |
BOLT; RR BRK ASM SETTING
M14X50
|
1-09040-066-0 |
16 |
1 |
1210- |
| |
74 |
BOLT; RR BRK ASM SETTING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M14X50
|
1-09040-066-0 |
14 |
1 |
0206-0208 |
| |
74 |
BOLT; RR BRK ASM SETTING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M14X50
|
1-09040-066-0 |
14 |
1 |
0302-1209 |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
9-09150-814-0 |
16 |
1 |
9811-0201 |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=14.2
|
9-09150-814-0 |
16 |
1 |
0202-0301 |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
9-09150-814-0 |
16 |
1 |
0302-0603 |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
0-91510-814-0 |
16 |
1 |
0604- |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
9-99110-514-0 |
16 |
1 |
9811-0201 |
| |
76 |
NUT; RR BRK ASM SETTING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M14
|
9-99110-514-0 |
16 |
1 |
0202-0301 |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
9-99110-514-0 |
16 |
1 |
0302-0512 |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
0-91110-514-0 |
16 |
1 |
0601- |
