1 |

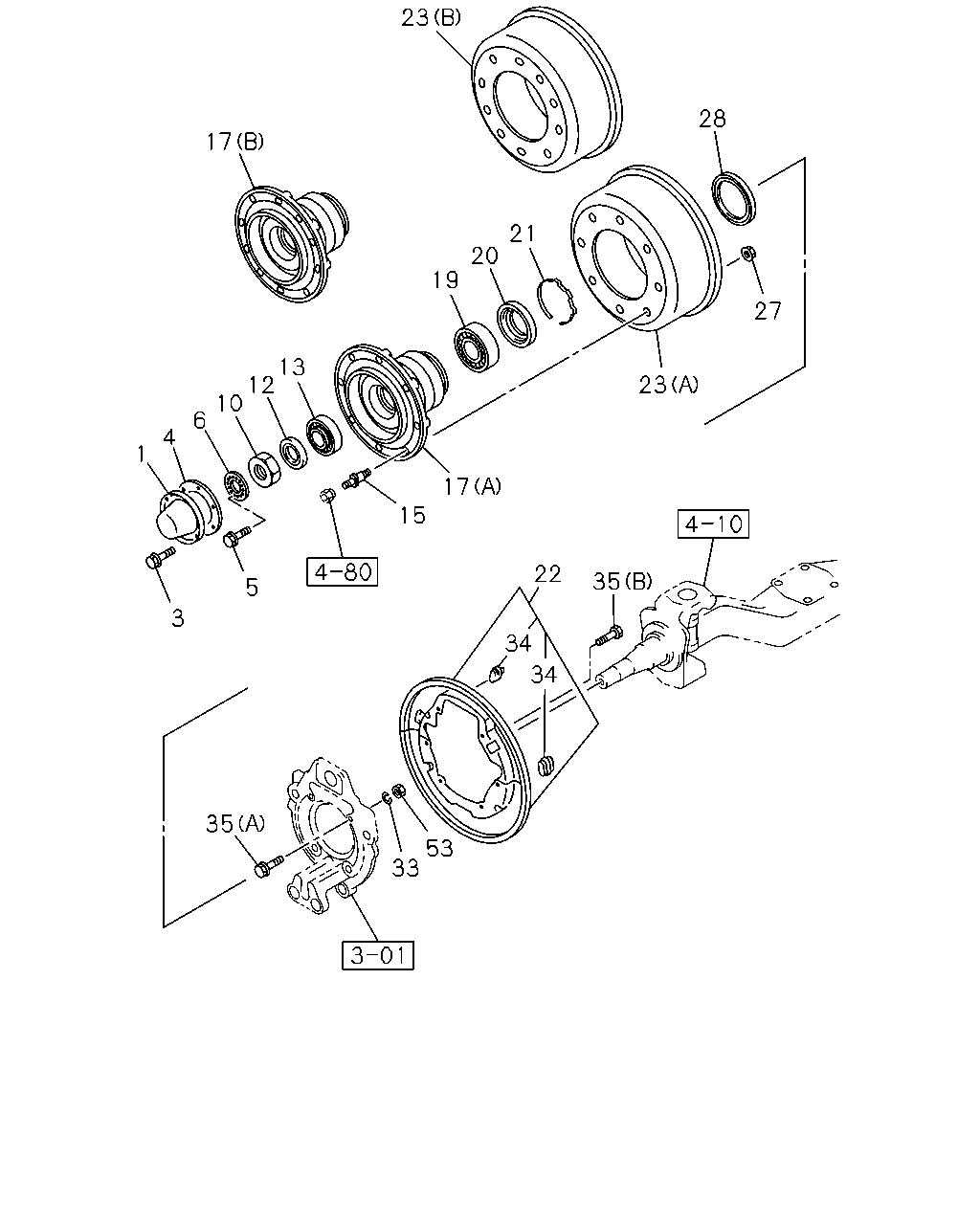

CAP; HUB,FRT AXLE
OD=156
|
9-42313-123-2 |
02 |
1 |
0204- |
| |
1 |
CAP; HUB,FRT AXLE
OD=156
|
9-42313-123-2 |
02 |
1 |
9811-0203 |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
|
0-28080-812-0 |
12 |
1 |
0204-0512 |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
|
0-28050-812-0 |
12 |
1 |
0601- |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
|
0-28080-812-0 |
12 |
1 |
9811-0203 |
| |
4 |
GASKET; HUB CAP,FRT WHEEL
|
1-42319-185-2 |
02 |
1 |
0204- |
| |
4 |
GASKET; HUB CAP,FRT WHEEL
|
1-42319-029-0 |
02 |
1 |
9811-9906 |
| |
4 |
GASKET; HUB CAP,FRT WHEEL
|
1-42319-185-0 |
02 |
1 |
9907-0203 |
| |
5 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28680-616-0 |
04 |
1 |
0204-0512 |
| |
5 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28650-616-0 |
04 |
1 |
0601-0707 |
| |
5 |
BOLT; LK WASHER
M6X16 FLANGE
|
8-98084-271-0 |
04 |
1 |
0708-1201 |
| |
5 |
BOLT; LK WASHER
M6X16 FLANGE
|
8-98200-943-0 |
04 |
1 |
1202- |
| |
5 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28680-616-0 |
04 |
1 |
9811-0203 |
| |
6 |
WASHER; LK,FRT HUB
ID=48
|
1-09533-012-1 |
02 |
1 |
0204-0707 |
| |
6 |
WASHER; LK,FRT HUB
ID=48
|
8-98084-561-0 |
02 |
1 |
0708- |
| |
6 |
WASHER; LK,FRT HUB
ID=48
|
1-09533-012-1 |
02 |
1 |
9811-0203 |
| |
10 |
NUT; FRT HUB BRG
M48
|
1-09840-012-5 |
02 |
1 |
0204- |
| |
10 |
NUT; FRT HUB BRG
M48
|
1-09840-012-3 |
02 |
1 |
9811-0203 |
| |
12 |
WASHER; LK,FRT HUB BRG
ID=48
|
1-09533-016-0 |
02 |
1 |
0204-0911 |
| |
12 |
WASHER; LK,FRT HUB BRG
ID=48
|
8-98156-755-0 |
02 |
1 |
0912- |
| |
12 |
WASHER; LK,FRT HUB BRG
ID=48
|
1-09533-016-0 |
02 |
1 |
9811-0203 |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
JTEKT
|
1-09812-234-0 |
02 |
1 |
0204- |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
JTEKT
|
1-09812-234-0 |
02 |
1 |
9811-0203 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
|
1-42331-109-0 |
08 |
1 |
0204-0610 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
|
1-42331-150-1 |
08 |
1 |
0611-0701 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
|
1-42331-109-1 |
08 |
1 |
0702- |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-109-0 |
08 |
1 |
0204-0610 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-150-1 |
08 |
1 |
0611-0701 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-109-1 |
08 |
1 |
0702- |
| |
15 |
PIN; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22X42.8,M22X55.5 RH THREAD
|
1-42337-067-1 |
20 |
1 |
0707- |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-109-0 |
08 |
1 |
9811-0201 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
|
1-42331-109-0 |
08 |
1 |
9811-0201 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-109-0 |
08 |
1 |
0202-0203 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
|
1-42331-109-0 |
08 |
1 |
0202-0203 |
| |
17 |
HUB; FRT AXLE
|
1-42312-128-2 |
02 |
1 |
0204- |
| |
17 |
HUB; FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42312-100-1 |
02 |
1 |
0707- |
| |
17 |
HUB; FRT AXLE
(A)
|
1-42312-128-2 |
02 |
1 |
9811-0203 |
| |
19 |
BEARING; HUB INNER,FRT AXLE
JTEKT
|
1-09812-231-0 |
02 |
1 |
0204- |
| |
19 |
BEARING; HUB INNER,FRT AXLE
JTEKT
|
1-09812-231-0 |
02 |
1 |
9811-0203 |
| |
20 |
COVER; HUB BRG INNER
|
1-42319-039-0 |
02 |
1 |
0204- |
| |
20 |
COVER; HUB BRG INNER
|
1-42319-039-0 |
02 |
1 |
9811-0203 |
| |
21 |
RING; SNAP,HUB
|
1-09587-017-0 |
02 |
1 |
0204- |
| |
21 |
RING; SNAP,HUB
|
1-09587-017-0 |
02 |
1 |
9811-0203 |
| |
22 |
COVER SET; FRT BRK DRUM
|
1-47151-458-1 |
02 |
1 |
9811-0201 |
| |
22 |
COVER SET; FRT BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47151-458-1 |
02 |
1 |
0202- |
| |
22 |
COVER SET; FRT BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47151-459-1 |
02 |
1 |
0202- |
| |
23 |
DRUM; BRK,FRT
|
1-42315-336-1 |
02 |
1 |
0204-0308 |
| |
23 |
DRUM; BRK,FRT
|
1-42315-355-0 |
02 |
1 |
0309- |
| |
23 |
DRUM; BRK,FRT
(A)
|
1-42315-336-1 |
02 |
1 |
9811-0203 |
| |
23 |
DRUM; BRK,FRT
INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42315-337-0 |
02 |
1 |
0707- |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
0204- |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22
|
1-09400-071-0 |
20 |
1 |
0707- |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
|
1-09440-055-0 |
16 |
1 |
9811-9904 |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
9905-0203 |
| |
28 |
SEAL; OIL,FRT HUB
OD=140
|
1-09625-041-0 |
02 |
1 |
0204- |
| |
28 |
SEAL; OIL,FRT HUB
OD=140
|
1-09625-041-0 |
02 |
1 |
9811-0203 |
| |
33 |
WASHER; LK,DRUM COVER
ID=16.2
|
9-09150-816-0 |
04 |
1 |
0204-0603 |
| |
33 |
WASHER; LK,DRUM COVER
ID=16.2
|
0-91510-816-0 |
04 |
1 |
0604- |
| |
33 |
WASHER; LK,DRUM COVER
ID=16.2
|
9-09150-816-0 |
04 |
1 |
9811-0203 |
| |
34 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
0204- |
| |
34 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
9811-0203 |
| |
35 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0204-0308 |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0309-0906 |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M10X16 W/LK WASHER
|
0-50541-016-0 |
12 |
1 |
0907- |
| |
35 |
BOLT; DRUM COVER
(B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9811-0203 |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M10X12
|
1-47159-187-0 |
12 |
1 |
0309- |
| |
35 |
BOLT; DRUM COVER
(A)
M16X52
|
1-09044-001-2 |
04 |
1 |
9811-0201 |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M16X52
|
1-09044-001-2 |
04 |
1 |
0202-0805 |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M16X52
|
1-09044-120-0 |
04 |
1 |
0806- |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M16X59 FLANGE
|
1-09044-002-2 |
04 |
1 |
0202- |
| |
53 |
NUT; DRUM COVER
M16
|
9-99110-516-0 |
04 |
1 |
0204-0512 |
| |
53 |
NUT; DRUM COVER
M16
|
0-91110-516-0 |
04 |
1 |
0601- |
| |
53 |
NUT; DRUM COVER
M16
|
9-99110-416-0 |
04 |
1 |
9811-9902 |
| |
53 |
NUT; DRUM COVER
M16
|
9-99110-516-0 |
04 |
1 |
9903-0203 |
